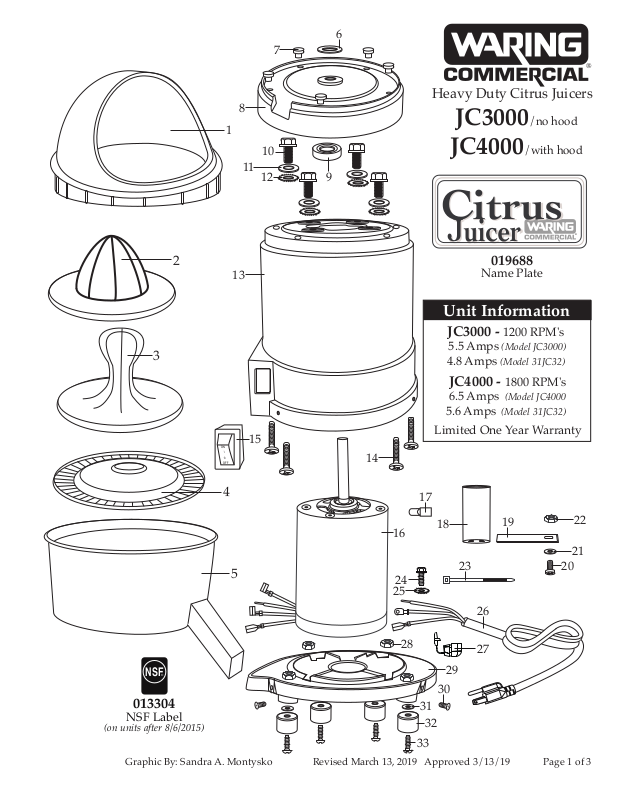

Page 1
6
7
®
Heavy Duty Citrus Juicers
8
1
JC3000
/no hood
10
11
12
9
2
13
JC4000
Citrus
Citrus
Juicer
Juicer
019688
Name Plate
/with hood
®
Unit Information
JC3000 - 1200 RPM's
3
15
ON
l
0
OFF
14
5.5 Amps (Model JC3000)
4.8 Amps (Model 31JC32)
JC4000 - 1800 RPM's
6.5 Amps (Model JC4000
5.6 Amps (Model 31JC32)
Limited One Year Warranty
4
5
®
NSF
013304
NSF Label
(on units after 8/6/2015)
Graphic By: Sandra A. Montysko Revised March 13, 2019 Approved 3/13/19 Page 1 of 3
16
24
25
28
17
31
33
32
18
30
19
23
26
27
29
22
21
20
Page 2
Catalog Model
JC3000
JC3000 31JC32
JC4000 JC4000 31JC33
(on units after 7/30/2008)
Illustration# Part# Description
1 501812-N JC4000 Lexan Juicer Hood (changed after 10/24/2014)
2 017994-N Lexan Large Reamer (changed after 1/26/2015)
3 018690-N Lexan Small Reamer (changed after 8/6/2015)
4 017998 Strainer
5 017997 Bowl
6 018008 Washer
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Fax 860-496-9017
7 018608 Mounting Pad
(5 required)
8 018606 Adapter
9 018004 Seal
(open end toward motor)
10 018009 Hex Head Screw (4 required)
11 018313 Washer (4 required)
12 018314 Lock Washer (4 required)
13 017992 Base
14 018012 Screw
(4 required)
15 018003 Rocker Switch
16 028937 JC3000 Motor
018001 JC3000 Motor
036819 JC4000 Chiaphua Motor
028935 JC4000 Motor
(on units after 11/7/2008)
(on units after 11/15/2018)
(on units after 1/19/2010)
018114 JC4000 Motor (No Longer Available)
17 012409 Crimp Connector (JC3000 on units after 11/7/2008)
(JC4000 on units after 1/19/2010)
18 029485 JC3000 Motor Start Capacitor (on units after 11/7/2008)
018116 JC3000 Capacitor (OBSOLETE)
029483 JC4000 Motor Start Capacitor (on units after 1/19/2010)
018118 JC4000 Capacitor
19 503291 JC3000 & JC4000 Retainer Clip
017999 JC3000 Retainer Clip (on units before 1/9/2009)
018181 JC4000 Retainer Clip (on units before 7/10/2009)
20 018002 Screw
21 018013 Washer
22 002899 Hex Nut
23 013731 Cable Tie
24 027278 Ground Screw (on units after 6/1/2009)
25 002943 Ground Washer (on units after 6/1/2009)
26 503260 Cord Set (changed 6/1/2009)
Page 2 of 3 Revised March 13, 2019
Assembly
(on units after 6/1/2009)
Page 3
Catalog Model
JC3000
JC3000 31JC32
JC4000 JC4000 31JC33
(on units after 7/30/2008)
Illustration# Part# Description
27 013680 Strain Relief
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Fax 860-496-9017
28 002899 Hex Nut
(4 required)
29 018068 JC3000 Bottom Cover
036890 JC4000 Bottom Cover Modified
018069 JC4000 Bottom Cover
30 018010 Screw
(4 required)
31 018013 Washer (4 required)
32 018006 Foot (4 required)
33 018011 Screw (4 required)
Part No Longer Used
501813 - Brown Lead Assembly (JC3000 on units before 6/19/2009)
(JC4000 on units before 2/4/2010)
Rocker Switch
Brown
(on units after 11/15/2018)
Wiring Diagram
Wiring Diagram
(JC3000 on units before 6/19/2009)
(JC4000 on units before 2/4/2010)
Brown
Blue
Green/Yellow
Blue
Green/Yellow
On/Off Switch
Red
Brown
Capacitor
Red
Start
Motor
White
Black
1
6
Motor
Capacitor
Revised March 13, 2019 Page 3 of 3
