Page 1
1
3
500664
4
5
6
2 Piece Lid
(for 64 oz. S.S. Container or
48 oz. Polycarbonate)
10
NSF Sseal
®
NSF
013304
2
1
027142
2 Piece Lid
(for 64 oz. Lexan Container)
13
4
5
6
®
HGB140
plastic top hsg. w/ 64 oz. lexan container
plastic top hsg. w/ 64 oz. stainless steel container
HGBSP (no longer in production)
stainless steel top hsg. w/ 64 oz. lexan container
stainless steel top hsg. w/ 64 oz. stainless steel container
HGB13R /Rykoff (no longer in production)
HGQ200 /quiet blender (no longer in production)
stainless steel top hsg. w/ 48 oz polycarbonate container
HGCSS /CSA (no longer in production)
stainless steel top hsg. w/ 64 oz. stainless steel container
HGC140 /CSA (no longer in production)
HGC150 /CSA (no longer in production)
plastic top hsg. w/ 64 oz. stainless steel container
HGB150
HGBSS
plastic top hsg. w/ 64 oz. lexan container
plastic top hsg. w/ 64 oz. lexan container
6
5
7
11
12
5
7
8
9
503119
500625
(older units)
Blending Assy.
503079
500835
(older units)
64 oz. S.S. Container
with Blending Assy.
701402
(older units)
64 oz. S.S. Container
with Blending Assy. and Lid
2 LITER
1 LITER
14
6
5
7
8
9
503120 - Blending Assy. Kit
502370 - Blending Assy.
(older units)
503074
501529 (older units)
64 oz. Lexan Container
with Blending Assy.
HGD140 /Edward Don
plastic top hsg. w/ 64 oz. lexan container
HGD150 /Edward Don
plastic top hsg. w/ 64 oz. stainless steel container
15
OUNCE
– 48 –
– 40 –
– 36 –
– 32 –
– 24 –
– 16 –
– 11 –
– 9 –
– 8 –
– 4 –
– 2 –
502589
(for HGQ200)
48 oz. Polycarbonate
Container with
Blending Assy.
16
Graphic By: Sandra A. Montysko Revised April 16, 2010 Approved 4/26/10 Page 1 of 5
Page 2
Plastic Top Housing
17
18
20
HIGH 2
®
LOW 1
BLENDER
015394 /Plastic Housing Units EXCEPT
Blender by
OFF 0
Rykoff - Sexton
HIGH
LOW
OFF
Stainless Steel Top Housing
19
016795 /HGB13R
HIGH
BLENDER BY
WARING COMMERCIAL
018140 /HGD140 or HGD150
LOW
OFF
40
HGB140
plastic top hsg. w/ 64 oz. lexan container
plastic top hsg. w/ 64 oz. stainless steel container
17
18
39
stainless steel top hsg. w/ 64 oz. stainless steel container
HGB13R /Rykoff (no longer in production)
HGQ200 /quiet blender (no longer in production)
stainless steel top hsg. w/ 48 oz polycarbonate container
HGCSS /CSA (no longer in production)
stainless steel top hsg. w/ 64 oz. stainless steel container
HGB150
stainless steel top hsg. w/ 64 oz. lexan container
HGBSP
HGBSS
plastic top hsg. w/ 64 oz. lexan container
®
26
22
27
28
21
23
24
30
25
29
32
41
31
®
BLENDER
HIGH 2
LOW 1
OFF 0
42
44
HGC140 /CSA (no longer in production)
plastic top hsg. w/ 64 oz. lexan container
HGC150 /CSA (no longer in production)
plastic top hsg. w/ 64 oz. stainless steel container
HGD140 /Edward Don
plastic top hsg. w/ 64 oz. lexan container
HGD150 /Edward Don
plastic top hsg. w/ 64 oz. stainless steel container
43
22
HIGH 2
LOW 1
®
OFF 0
BLENDER
025250 /Stainless Steel Housing
Not Stamped
27
35
37
38
Page 2 of 5 Revised April 15, 2010
36
34
33
35
29
28
30
31
33
34
36
37
38
Page 3
Catalog Old Model # New Model #
HGB140 36BL24 HGBPBKP6
HGB150 34BL92 HGBPBKS6
HGBSP 36BL22
HGBSS 36BL23 HGBSSSS6
HGQ200 34BL75
HGB13R 36BL36
HGC140 36BL37 HGBPBKP6
HGC150 35BL49 HGBPBKS6
HGCSS 36BL27 HGBSSSS6
HGD140 37BL32 HGBPBKP6
HGD150 37BL33 HGBBPBKS6
Illustration # Part # Description
1 011700 Center Lid
2 013442 Outer Lid
3 503077 Blade Assy.
4 009724 Washer /nylon
5 003537 Washer /stainless steel
6 003509 Washer /neoprene
7 009780 Hex Nut
8 003507 Washer /stainless steel
9 014014 Wheel Coupling
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringproducts.com
10 007540 Jar /64 oz. stainless steel
11 014915 Washer /rubber
12 014914 Container Base
13 503065 Blade Assy.
14 016390 Jar /64 oz. lexan
15 501832 Blending Assy. /48 oz. polycarbonate jar
16 019560 Jar /48 oz. polycarbonate
17 018999 Coupling /underneath
4
18 026413 Cap Washer
003507 Washer
(older units)
19 017777 Cushion Ring
20 007558 Screw 4 Req.'d
21 015377-09 Top Housing /black plastic
22 029355 Toggle Switch
012698 Toggle Switch
(older units)
23 014603 Locking Ring
24 014604 Washer
25 016236 Hex Nut
26 019937 Housing Seal
27 029321 Motor
029319 Motor
All Units EXCEPT HGQ200
HGQ200
28 025662 Baffle /foam
013365 Baffle (older units)
29 501232 Lead
30 009051 Wire Nut 2 Req.'d
Revised April 16, 2010 Page 3 of 5
Page 4
Catalog Old Model # New Model #
HGB140 36BL24 HGBPBKP6
HGB150 34BL92 HGBPBKS6
HGBSP 36BL22
HGBSS 36BL23 HGBSSSS6
HGQ200 34BL75
HGB13R 36BL36
HGC140 36BL37 HGBPBKP6
HGC150 35BL49 HGBPBKS6
HGCSS 36BL27 HGBSSSS6
HGD140 37BL32 HGBPBKP6
HGD150 37BL33 HGBBPBKS6
Illustration # Part # Description
31 012409 Crimp Connector
1 Req.’d (current production) 2 Req.'d /HGC units
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringproducts.com
32 503195 Lead green/yellow
(current production plastic top hsg. units)
501658 Lead green/yellow (2nd generation plastic top hsg. units & older units)
33 029309 Cord Set
003565 Cord Set (2nd generation)
500830 Cord Set (older units)
34 012920 Strain Relief
007556 Strain Relief
(2nd generation & older units)
35 008324 Gasket
36 028591-X Bottom Housing /plastic
014012 Bottom Housing
(2nd generation & older units)
37 017239 Screw 4 Req.'d
38 004090 Foot 4 Req.'d
39 007559 Screw 4 Req.'d
40 026538 Jar Support
008821 Jar Support
(older units)
41 016650 Top Housing /stamped with name plate
016508 Top Housing / stamped needs name plate
016978 Top Housing / stamped HGQ200
42 019935 Housing Seal
43 012703 Switch Seal /boot
44 025664 Motor Spacer Plate
003553 Top End Bell
007557 Screw 2 Req.'d
012369 Kep Nut 2 Req.'d
500584 Field for 701191 • 500666 Field for 701410 • 500714 Field for 701718
500828 Armature for 701191 & 701718 • 500866 Armature for 701410
013368 Bottom End Bell
003555 Brush & Spring 2 Req.'d
002436 - Screw /ground (2nd generation & older units)
002943- Washer/ground (2nd generation & older units)
013963- Bottom Housing Screen (2nd generation & older units)
500455 - Lead /black with Diode- 003262 (older units)

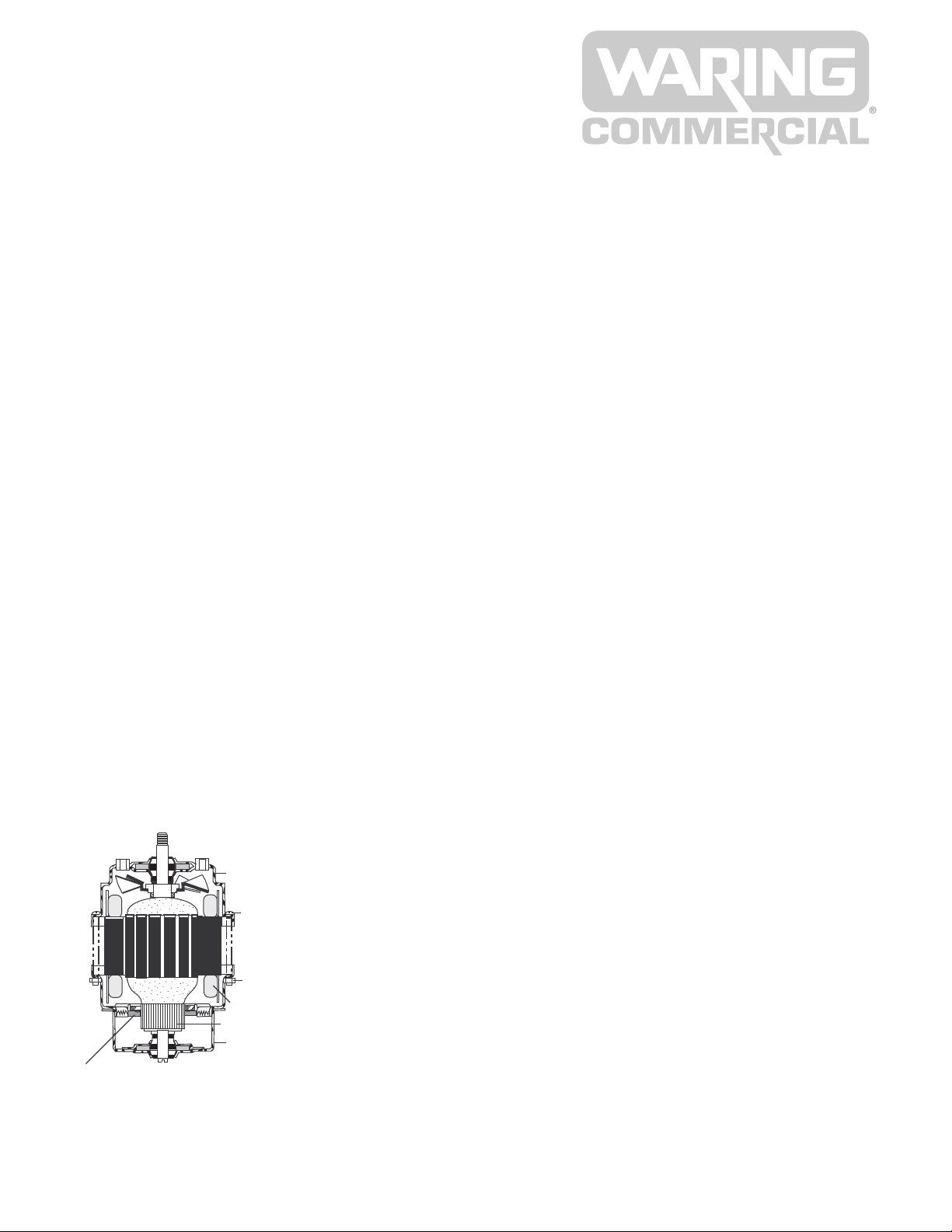

Motor for Older Units (no longer available)
Limited Availability on Some Parts
Page 4 of 5 Revised April 16, 2010
Items Not Shown

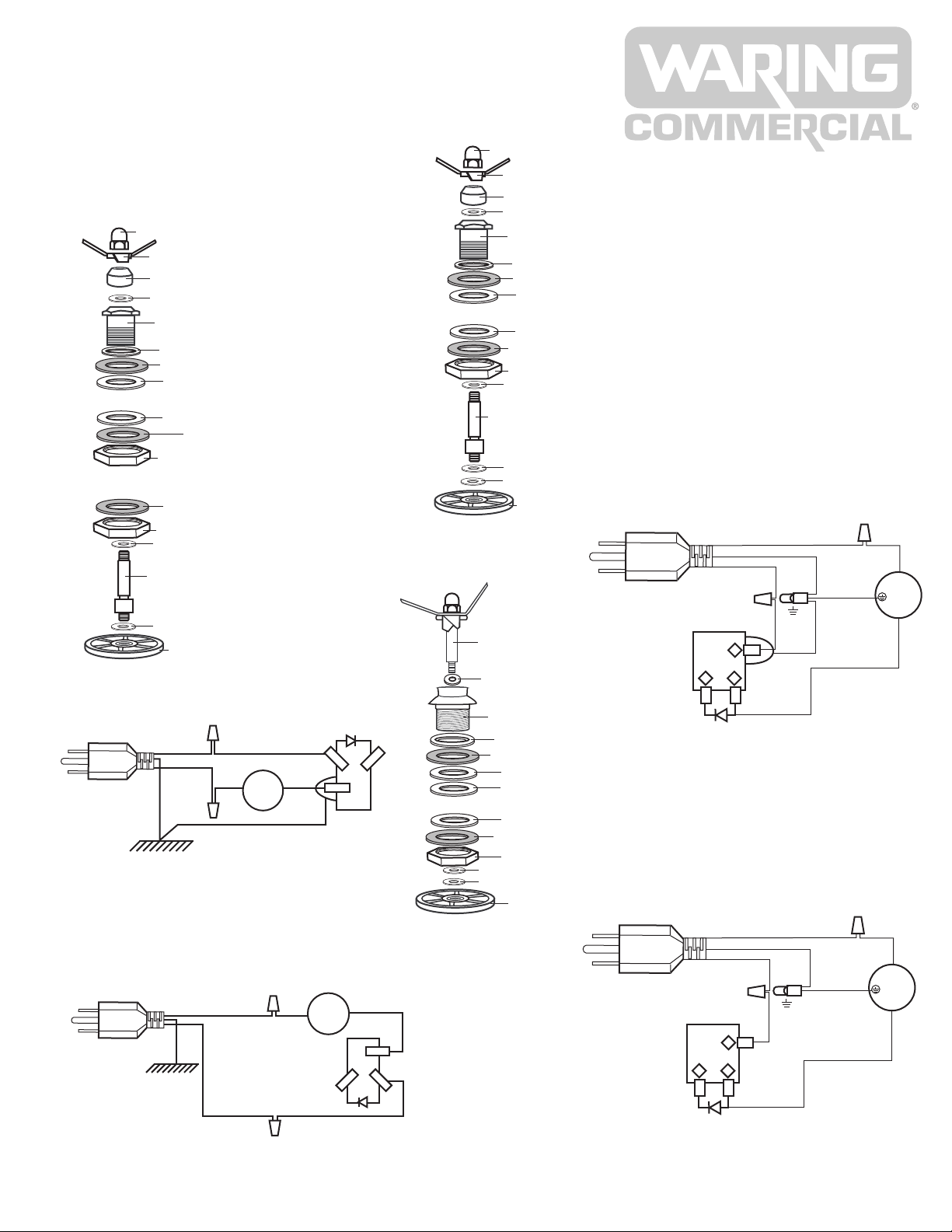

Page 5
Catalog Old Model # New Model #
HGB140 36BL24 HGBPBKP6
HGB150 34BL92 HGBPBKS6
HGBSP 36BL22
HGBSS 36BL23 HGBSSSS6
HGQ200 34BL75
HGB13R 36BL36
HGC140 36BL37 HGBPBKP6
HGC150 35BL49 HGBPBKS6
HGCSS 36BL27 HGBSSSS6
HGD140 37BL32 HGBPBKP6
HGD150 37BL33 HGBBPBKS6
003504 - Cap Nut
024225 - Blade
013405- Bearing Cap
002903 - Washer
500581 - Bearing Holder
009724 - Washer
003537 - Washer /stainless steel
003509 - Washer /neoprene
Container
003509 - Washer /neoprene
003537 - Washer
009780 - Hex Nut /left handed thread
Base Gasket
Container Base
003537 - Washer
009780 - Hex Nut /left handed thread
003526 - Washer /bakelit
014013 - Shaft
005552 - Cap Nut
024225 - Blade
013405- Bearing Cap
002903 - Washer
500581 - Bearing Holder
009724 - Washer
003537 - Washer /stainless steel
003509 - Washer /neoprene
Container
003509 - Washer /neoprene
003537 - Washer
009780 - Hex Nut /left handed thread
003526 - Washer /bakelit
014013 - Shaft
003507 - Washer /stainless steel
003507 - Washer /stainless steel
014014 - Drive Coupling
502370
Blending Assy.
(older units)
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringproducts.com
(wagon wheel)
Green/Yellow
Black or Brown
Blue or White
Green/Yellow
Blue
Motor
003507 - Washer /stainless steel
014014 - Drive Coupling
500625
Blending Assy.
(older units)
Brown Black
Blue
Green/Yellow
Bottom Housing
Wiring Diagram for Plastic Top Housing
(2nd generation & older units)
Chassis Ground
Wiring Diagram for Stainless Steel Top Housing
(2nd generation & older units)
White or Blue
Green
Black
Green/Yellow
Black or Brown
Motor
Black
Black
Black
(wagon wheel)
6 3
5
Toggle
Switch
Black
Motor
5
63
Toggle
Switch
502240 Blade and Shaft Assy.
002903 Washer /fairprene
501752 Bearing Holder
009724 Washer /nylon
003537 Washer /stainless steel
Container
003537 Washer /stainless steel
003526 Washer /phenolic
006937 Washer /stainless steel
501832
Blending Assy.
003509 Washer /neoprene
003509 Washer /neoprene
003509 Washer /neoprene
009780 Hex Nut
003138 Coupling
Wiring Diagram for Stainless Steel Top Housing
Switch
3 6
Brown
5
Green/Yellow
Black
Wiring Diagram for Plastic Top Housing
(current production)
Blue
Motor
Black
Black or Brown
Switch
5
3 6
Blue or White
Green/Yellow
Brown
Green/Yellow
(current production)
Revised April 16, 2010 Page 5 of 5
