Wanhao Duplicator i3Mini User Manual

DUPLICATOR

DESKTOP 3D PRINTER

I3 MINI

INSTRUCTION MANUAL

MODEL NUMBER:DUPLICATOR I3 MINI

Important

Read the manual carefully

It will help you get set up with ease

Visit www.wanhao3dprinter.com

We’ve got additional support videos and guides

Email [e-mail]

We’re always happy to help

Join Wanhao Technical Forum for online support

https://groups.google.com/forum/#!forum/wanhao-printer-3d

Getting the most out of your 3D Printer:

Read the manual carefully

It will help you get set up with ease

Visit www.wanhao3dprinter.com

We’ve got additional support videos and guides

Join Wanhao Technical Forum for online support

https://groups.google.com/forum/#!forum/wanhao-printer-3d

Google Forum

Email [e-mail]

We’re always happy to help

Warranty Note

If you experience any issues with this product, or it’s
performance is not what you had expected, please contact
us at WANHAO before returning the item to the store.

It is likely that we can resolve any problems for you via
phone or email.

We can be reached through your local distributor. Or on
Phone: [phone](Mon-Sat; 8:30am-5:00pm)

Email: [e-mail]
Web: www.wanhao3dprinter.com

3D Printer

[e-mail]

Warranty Details

The product is guaranteed to be free from defects in workmanship and mother board for a period
of 12 months from the date of purchase. The extruder is guaranteed to be free of defects for 90
days. Printing with materials other than WANHAO FILAMENTS which require temperatures above
250 °C or which are different from those recommended on the website www.wanhao3dprinter.
com, will result in the immediate loss of the Warranty. Defects that occur within this warranty
period, under normal use and care, will be repaired, replaced or refunded at our discretion.

The bene ts conferred by this warranty are in addition to all rights and remedies in respect of

the product that the consumer has under the China laws. In case you purchase from WANHAO
distributor, your warranty shall be covered by distributor’s Warranty and honored by WANHAO
distributor too.

Our goods come with guarantees that cannot be excluded under the Chinese Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to
a major failure.

AFTER SALES SUPPORT

86-571-23290996

4

[e-mail]

MODEL: Duplicator I3 MiNi

Safety Instructions

Before you get started, please read these important safety instructions.

CAUTION: The WANHAO 3D Printer generates high temperatures and includes moving parts
that can cause injury. Never reach inside of the WANHAO 3D Printer while it is in operation,
and allow time for the printer to cool down after operation.

HOT SURFACE

Vapours/fumes may be irritating at operating temperatures. Always use the WANHAO
3D Printer in an open, well ventilated area.

Do not leave the WANHAO 3D Printer unattended during operation

Contact with extruded material may cause burns. Wait for printed objects to cool before
removing them from the build platform.

Always take care when using the Scraper. Never direct the Scraper towards your  ngers.

Only use the WANHAO 3D Printer in a clear working area.

• The printer must not be exposed to water or rain, or damage will occur.

• The printer is designed to be used with ambient temperature ranging 15°C - 30°C, and humidity

ranging 20% - 50%. Operating outside these limits may result in low quality models.

• In case of emergency, turn off the 3D printer at the power outlet.

• It is recommended that you use eye protection when cleaning/sanding printed models to avoid

small particles contacting eyes.

• Please read and understand the contents of this installation and user manual carefull.Failure to

read the manual to make the most out of the WANHAO 3D Printer.

• The WANHAO 3D Printer is not intended for use by persons with reduced physical and / or

mental capabilities, or lack of experience and knowledge,unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible
for their safety.

• Children should be under constant supervision when using the printer.

• Before installation ,you should make sure that the WANHAO 3D Printer is unplugged from the

power supply. Only use furniture that can safely suppport WANHAO 3D Printer.

• Ensure the mains socket-outlet is near the equipment and is easily accessible.

MOVING PARTS

5

Contents

Warranty Details

Safety Instructions

Parts List

Technical Specications

Introduction

1.1 What is 3D Printing?

1.2 From 3D Design to Printed 3D Object

Product Overview

2.1 Printer Front View

2.2 Printer Rear View

2.3 Control Panel

Product Assembly & Intial Setup

3.1 Unboxing and Assembly

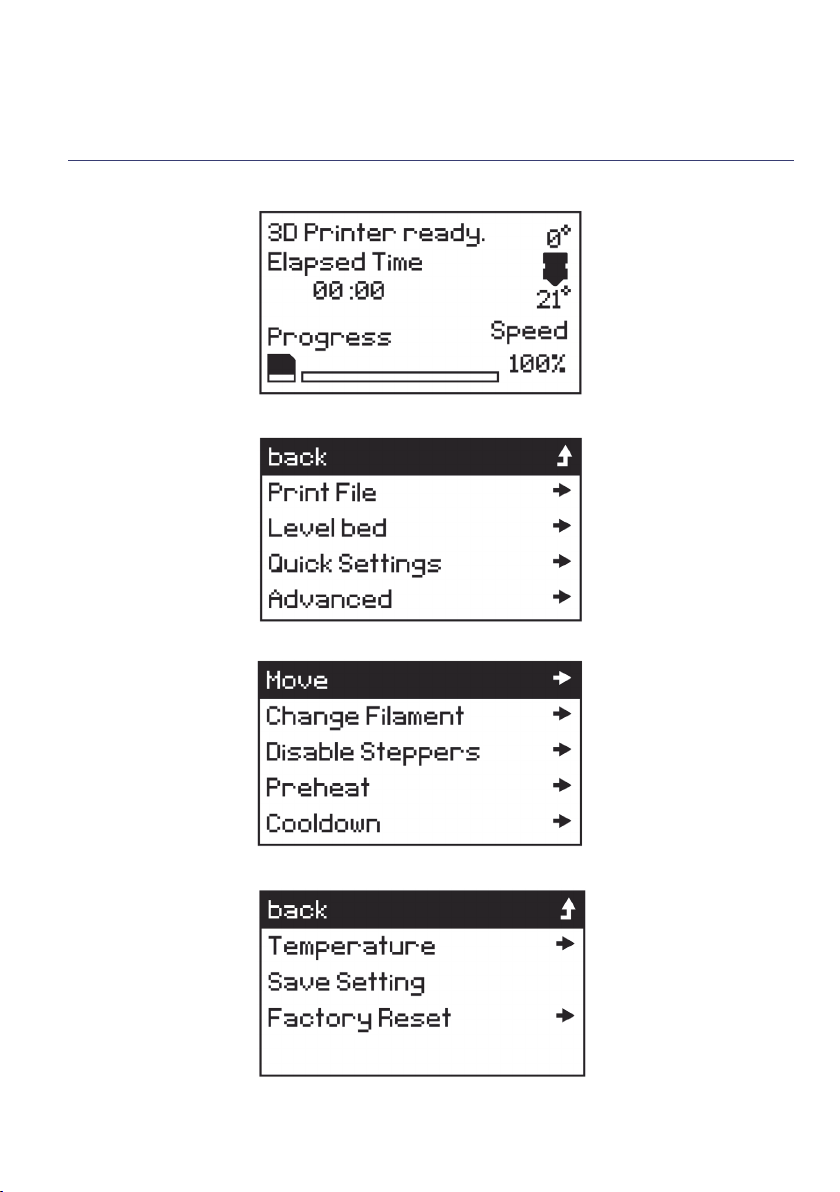

3.2 Home Screen

3.3 Navigating the Menus

3.4 Menus Tree

3.5 Adding Filament

3.6 Levelling The Bed

3.6.1 The Levelling Wizard

3.6.2 Manually Levelling the Bed

Printing and Removing Models

4.1 Printing a File

4.2 Good 3D Printing Practices

4.3 Removing 3D Objects from the Bed

4.4 Removing Filament

4.5 Quick Settings

4.6 Advanced Settings

4.7 Filamnent

4.8 Storage

4.9 Creating and Printing your Own Models

4.1.1 During Print Settings

4.7.1 PLA Filament

4.9.1 Saving Files to MicroSD Card

4.9.2 Creating a WANHAO File Using Cura

4.9.3 Installing Cura

4.9.4 Adding your WANHAO 3D Printer to Cura

4.9.5 Loading a 3D Design into Cura

4

5

8

9

10
10
10
12

12

13

14
15
15
16
16

17
18

18
18

19
20
20
20
21
22

22
23

23

24
24

25
25

25
25
25

26
26

6

Servicing

5.1 Servicing your Duplicator I3 MiNi

5.1.1 Replacting the Print Mat

5.1.2 Nozzle Cleaning

5.1.3 Routine Component Check

Finishing

6.1 Finishing Techniques

5.1.4 Storing

6.1.1 Useful Tools/Equipment

6.1.2 Removing Support Material

6.1.3 Sanding

6.1.4 Surface Coating

Maintenance
Disposal of Packaging
Disposal of Product

Troubleshooting

10.1 Troubleshooting

10.1.1 Printing Problems

10.1.2 Commectivty Problems

10.2 Useful Terms

10.1.3 Other Problems

Appendix

References

Repair and Refurbished Goods or Parts Notice

27
27
27
27
28
28
29

29
29
29

29

30
30

31
31

32
32

32

33
34

35
36

36
37

7

Parts List

1 x WANHAO 3D Printer

1 x Filament Spool Stand

1 x Power Cable

1 x USB Cable

1 x 4GB MicroSD Card

1 x Scraper

1 x PTFE Tube

1 x Hex Key Set

1 x Cable Ties

1 x 10m PLA Filament

1 x Spare Print Bed Mats

1 x Instruction Manual

(Not Shown)

1 x Getting Started Guide

(Not Shown)

1 x Warranty Card

(Not Shown)

1 x Levelling Card

1 x Solid glue

8

Technical Specications

Printing

Print Technology: Fused Filament Fabrication (FFF)
Build Volume: 120 x 135 x 100 mm(Width x Depth x Height)

Layer Resolution: 0.1 – 0.4mm
Positioning Accuracy: X 0.012mm

Y 0.012mm

Z 0.004mm
Extruder Quantity: Single Extruder
Nozzle Diameter: 0.4mm

Print Speed: 10mm/s - 70mm/s
Travel Speed: 10mm/s - 70mm/s
Supported Print Materials: WANHAO Branded PLA, PLA Wood

Temperature

Ambient Operating Temperature: 15°C – 30°C
Operational Extruder Temperature: 170°C - 260°C

Software

Slicer Software: Cura Wanhao Edition
Cura Input Formats: .STL, .OBJ, .DAE, .AMF
Cura Output Format: .GCODE
Connectivity: Micro SD Card, USB port (Firmware updating only)

Electrical

Input Rating: 85~264V AC, 47~63HZ,

0.95A/115VAC 0.56A/230VAC

Physical Dimensions

Printer Frame Dimensions: 325 x 240 x 380 mm(Width x Depth x Height)
Weight: 7KG

9

INTRODUCTION

1.1 What is 3D Printing?

3D Printing is a process whereby a real object is created from a 3D Design. Fused Filament

Fabrication (FFF) is one of the most common technologies used by 3D Printers to achieve this.FFF

works on an 'additive' principle by laying down material, such as PLA or ABS lament,in layers to

create a 3D object.

1.2 From 3D Design to Printed 3D Object

3D Design Slice to GCODE Setup WANHAO 3D Printer
3D Printing Process 3D Printed Object

3D Design

Having a 3D design is the rst step to creating a 3D Object.

There are a number of free 3D Designs that can be downloaded
and printed for personal use. Websits such as Thingiverse.com,
Pinshape.com and YouMagine.com are a good place to start,
but there are many more available!

Alternatively,you can create your own 3D Design using 3D Modelling Software. Programs such as
Sketchup or Blender allow this, however this can take some practice before successfully modelling

your 3D Design. After you've nished your 3D Design,you can export it as an. STL le,to be imported

into a 'Slicer' program such as Cura.

Slice to GCODE

A 'Slice' converts a 3D Design (usually an .STL or .AMF format)into
individual layers. It then generates the machine code (such as GCODE)
that the 3D Printer will use for printing.

We recommend the program Cura as it uses a simple interface and includes a large amount of

10

INTRODUCTION

support material.

Setup WANHAO 3D Printer

It's important to check your printer before every print.We've included
some steps on page 21 in section 4.2 Good 3D Printing Practices

for you to quickly refer to each time.

3D Printing Process

Now that you've loaded a GCODE file onto the printer,it will
commence heating up the Extruder, then start printing. While
printing, the nozzle will move along the X and Y acis as each layer is
printed. This can take some time,depending on the size of the 3D
model, print speed of the 3D printer and resolution of each layer.

Here is an example of how size,in ll,and resolution can affect printing time:

Dimensions:

In ll:

Resolution:
Print Time:

Filament Used:

3D Printed Object

Once the printer has completed all of the layers, you will have a 3D Printed Object. The
results are certainly worth it, with 3D models ranging from simple to complex.

62.5 x 25.75 x 67.75mm 70 x 70 x 140mm

20%

2mm

53min

4m

0%

2mm
39min

2.54m

20%

2mm

6hr 40min

45m

20%

1mm

13hr 12min

45.67m

11

Product Overview

2.1 Printer Front View

1

8

9

2

3

10

4

5

6

7

1. Filament Tuble

2. X-Axis Frame

3. Cooling Fan

4. Nozzle

12

5. Print Bed

6. Front Thumbwheels

7. Control Panel

8. Filament Clamp

9. Tower Frame

10. Spool Holder

Product Overview

2.2 Printer Rear View

4

3

1

1. Power Switch

2. Plug Socket

2

3. Rear Thumbwheels

4. Extruder Assembly

13

Product Overview

2.3 Control Panel

1

2

1. MicroSD Card Slot

2. Restart Button

3. LCD Display Screen

4. Dial Button

3

4

5

5. USB Port

14

PRODUCT ASSEMBLY& INITIAL SETUP

3.1 Unboxing and Assembly

Your WANHAO 3D Printer is carefully packed to avoid damage in transit. Take your time
unpacking it. The printer is preassembld and requires only minimal set up before powering on.

Carefully remove the 3D printer from the box and

1.

place on a clean, level work space.

Cut the 2 x Cable ties holding the Print Bed to the

2.

X-Axis Frame.

Unscrew and remove the outer plastic nut from the

3.

Filament Spool Holder, then insert the nut into the side
slot of the towers. Screw in the Filament Spool Holder
into the side of the Printer.

NOTE:

do not overtighten

4.

the power supply cable into the back of the 3D Printer.
Insert the other end into a nearby mains power outlet.
Turn on the power outlet, then turn on the power switch
at the back of the 3D Printer.

5.

initialize and show the Home Screen.

Ensure the Filament Spool Holder is secure and

Ensure the power switch is in the OFF position,then

After a few seconds, the LCD display screen will

15

SETUP

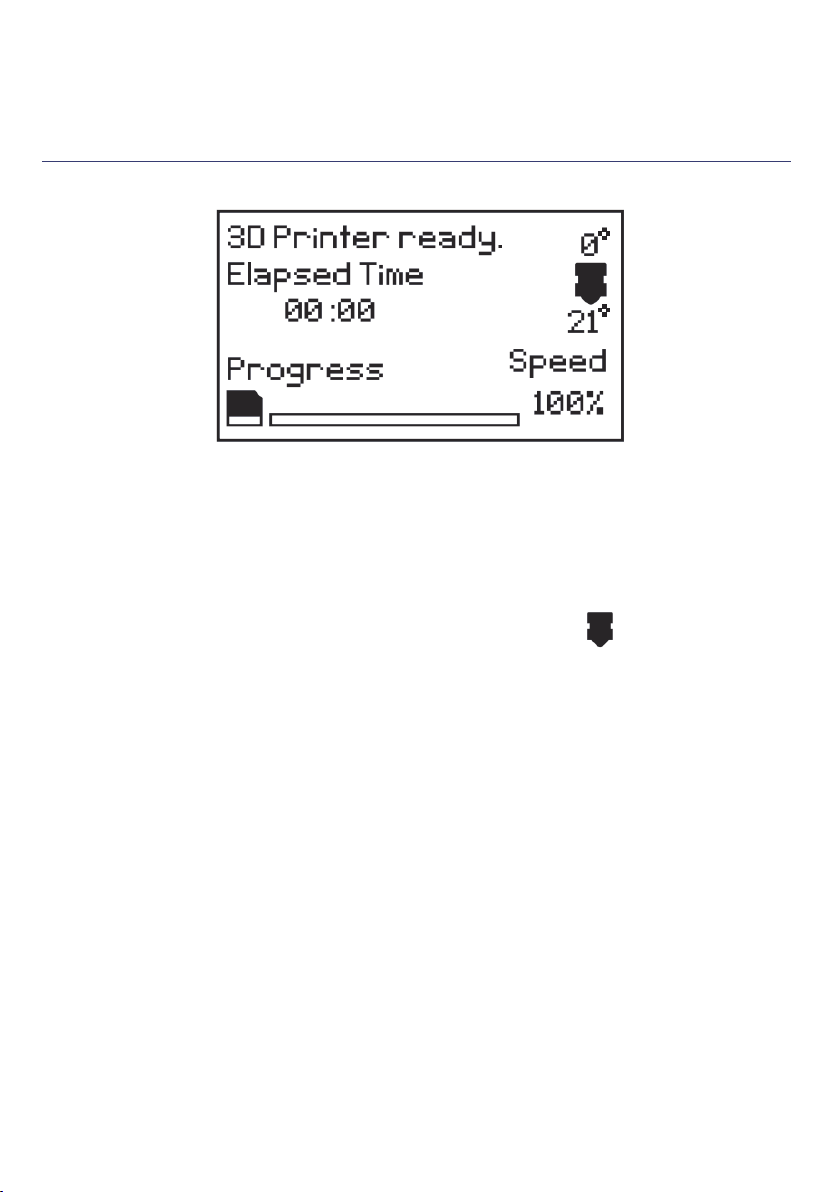

3.2 Home Screen

* Printer Status: Current printer status or memory card status if removed or inserted
* Elapsed Time: Length of time the current model has been printing (if applicable)
* Progress: Displays percentage of model completed (if applicable)
* Speed:Current printing speed - 100 % is full speed
NOTE: The initial pringting speed is dened in the GCODE le, not by the printer

* Extruder Temperature: The temperature shown above the symbol is the

set/target temperature. The temperature below the same symbol is the current
temperature.
NOTE: When no temperature is set, the extruder will register the current ambient

temperature.

3.3 Navigating the Menus

To enter the Main Menu, quickly press and release the Dial button

1.

To move throughout the menu, turn the Dial Button.Note some menus have

2.

options not visible one the screen. Keep turning the dial to see all options available

To make a selection, quickly press and release the Dial Button

3.

To move to the previous menu or exit, highlight 'back'at the top of each menu

4.

and push the Dial Button

16

SETUP

3.4 Menu Tree

Home Screen

Main Menu

Quick Settings

Advanced Settings

17

SETUP

3.5 Adding Filament

1. Place your roll of lament on the Filament Spool Holder

2. Turn on the 3D Printer with the power switch located at the back of the printer

3. Push the Dial Button to access the main menu and navigate to Quick Settings Change

Filament Add Filament. The Extruder will automatically

raise and preheat; always wait until is has fully preheated

4. After the extruder has preheated, hold the Filament clamp

lament through the entire tube until it reaches the extruder.

The lament will satrt to extrude once the extruder has

motor can push the lament through

5. Once lament is extruding from the nozzle press back to

stop extruding

6. Carefully remove any excess lament from the nozzle using

the scraper;Filament is loaded and ready to print

WARNING: The extruder will still be hot and the scraper should be

used to remove the lament from the nozzle

3.6 Levelling the bed

Levelling the bed is arguably the most important step in producing successful prints and should
be checked before every print.Before levelling the Print Bed check all springs and thumbwheels
are in place

3.6.1 The levelling wizard

1. Clean off any excess lament residue from the tip of the nozzle using the scraper

2. Enter the main menu and select level bed

3. After initializing , the level wizard will guide you through levelling all 4 corners of your print
bed. Press next to proceed to the next screen/corner

4. On each corner, turn the relevant thumbwheel until you can just slide a piece of copy paper
between the extruder and print bed with slight resistance,about 0.1mm

5. After levelling the last corner you can return to the main menu or restart the levelling wizard.

If this is your rst time levelling the bed we recommend completing the wizard again to

ensure it is level

NOTE: The maximum depth is 135mm on the Y-Axis.

18

SETUP

3.5 Adding Filament

1. Clean off any excess lament residue from the tip of the nozzle using the scraper

2. Enter the main menu and select Quick Settings Move Home XYZ to move
the nozzle to the home position in the front right corner
NOTE: Immediately turn off the machine any motors are jamming pr forcing against the chassis.

3. Select back Disanle steppers to enable movement of the print bed and extruder

4. Manually move the print bed and extruder to each corner or area you would like to level

5. On each corner, turn the relevant thumbwheel until you can just slide a piece of copy paper
between the extruder and print bed with slight resistance,about 0.1mm

6. Continue checking points on the print bed until you are satised it is level

CHECKING CHART

SIDE VIEW END VIEW COMMENTS

Nozzle Too High:

Insufcient contact

area resulting in
poor adhesion and
extrusion skipping.

OK:

Filament pushed
into the build
surface slightly to
maximize surface
area contact while
still allowing good

extrusion ow.

NOZZLE TOO LOW:

Not enough
clearance for the

lament to be

extruded... this will
result in damage to
the extruder and/or
build surface.

MAGNIFICATION NOTES

RAFT

NOZZLE TOO HIGH:

Wavey tracks,or tracjs
narrower than 1.2mm
(use vernier callpers
to check)

NOZZLE TOO LOW:

Trancks sides pushed
over neighbouring
tracks.

If you are new to 3D Printing we highly recommend that you visit our website to review our
video tutorial on levelling the print bed at https://www.wanhao3dprinter.com

19

PRINTING AND REMOVING MODELS

4.1 Printing a le

The I3 MiNi only accepts and prints GCODE les.The included microSD Card has sameple model

GCODE available to get you started.See section 4.9 Creating and Printing your own models on
page 25 to load your own models.

1. Check the print bed has been levelled correctly

2. Insert the included microSD Card into the memory card slot
next to the LCD screen with the lablel facting to the left as shown

3. Enter the main menu and select print le

4. Select the le you would like to print

5. The printer will return to the status screen and display 'Heating...' in the upper left corner of
the display. The nozzle temperature will heat until it reaches the target temperature

6. Once the nozzle reaches the target temperature the printer will automatically begin printing

the le

NOTE:

* Micro SD memory cards(up to 32GB) should be formatted to FAT32. If there is no

MicroSD card inserted the main menu will display no SD card no les will be available to print
* If your le is not printing correctly,press the main dial button and select 'Stop print' from the

menu.Ensure the extruder is raised prior to removing the print off the print bed
* Immediately turn off the machine if any of the motors are jamming of forcing against
the chassis
* If you cannot access the print menu,it is likely the microSD card is not mounted properly.Try
removing and reinserting the microSD card.

4.1.1 During Print Settings

While printing,some settings can be modied.Push the button to access these settings.

1. Speed: Turn the dial to adjust the print speed %. Note the original print speed is determined

by GCODE le generated, not the printer

2. Nozzle:Modify the temperature of the Nozzle

3. Pause print: Pauses the print once the last instruction GCODE instruction has completed(be

patient). Tap Resume print to keep printing

4. Stop print: Stops the current print

20

PRINTING AND REMOVING MODELS

4.2 Good 3D Printing Practices

Please refer to these steps during every print to ensure the best quality.

Before Printing

5. Ensure your GCODE  le is correctly setup,  lament diameter is set to to 1.75mm and correct

temperature settings for the material you are using.The I3 MiNi prints PLA  lament.
Depending on the type of PLA  lament ,temperations can rangs from 180 to 210

are unsure,start with 190

°C

6. Check all cables and connerctors are connected and the printer is on a stable surface

7. Check that Heated Print Bed is level and approximately 0.1mm from the nozzle

8. Check that Heated Print Bed is clean and dust free and nozzle does not have excess material

stuck to it

. If you

°C

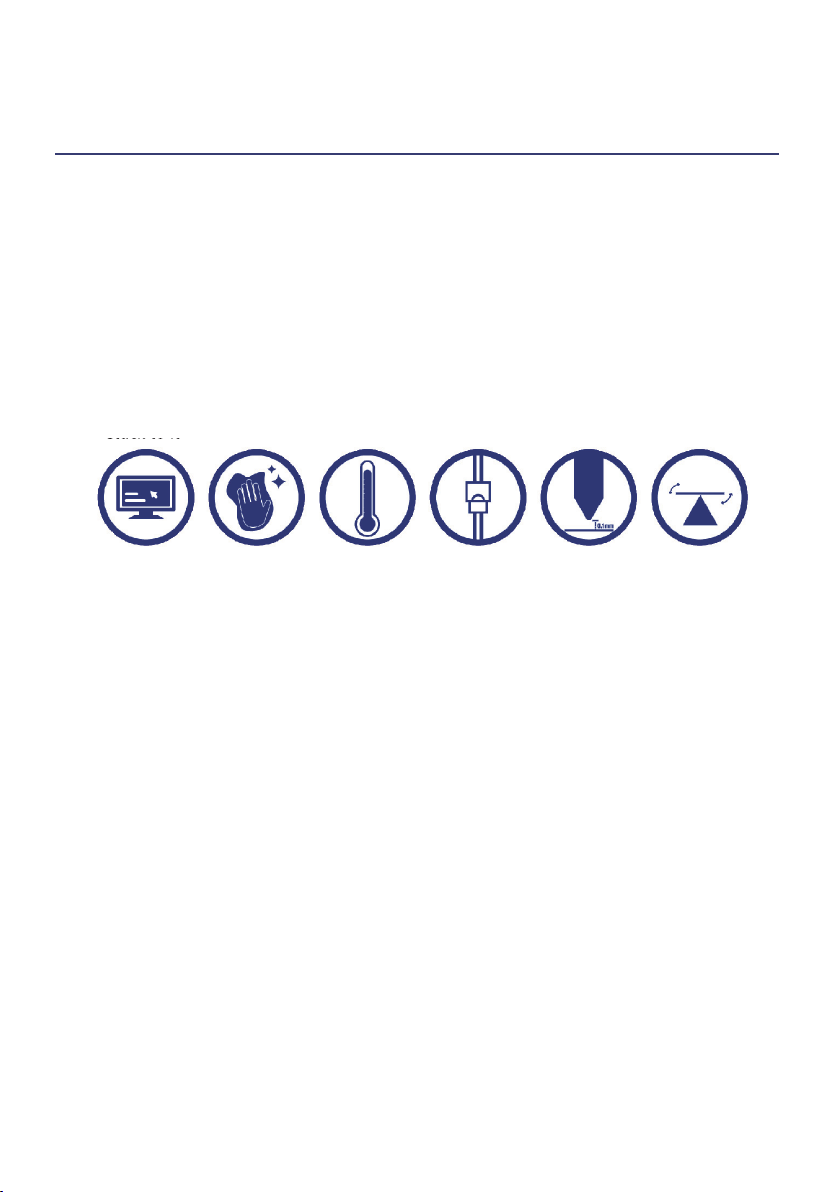

Always check Gcode

 le settings match

 lament and printer

Always check

Print Mat is clean

and there is no
residual plastic

Always check Extruder

& Print Bed

Temperatures are set

for correct  lament type

Always check all

cords are

connected

Always check

Extruder distance is

0.1mm from Print Mat

Always check

Print Bed is level

During Printing

1. Closely monitor the  rst layer being printed – Most problems, like poor adhesion and

warping, will occur in the  rst layer. If problems occur, stop the 3D Printer in the menu or

power off the printer

2. Do not leave the 3D Printer unattended while in operation

3. Keep hands clear while machine is operating

After Printing

1. Wait for the Extruder to cool down

2. Carefully remove 3D Object. Never use Scraper towards your body. Keep Scraper evenly  at

when scraping to avoid damage to the Heated Print Bed. Damaged Heated Print Beds/ mats
may affect adhesion for future prints

3. Store 3D printer in a clean, dry environment

21

PRINTING AND REMOVING MODELS

4.3 Removing 3D objects from the bed

Once the I3 Mini has completed printing your 3D printed object follow these steps to
remove it from the print bed.

1. Once the print is completed,wait for the extruder to cool and then turn off your 3D printer

2. Using the supplied, carefull'wedge'under one of the edges of the 3D object.Take

care to keep the scraper at with the bed to preven damaging the print mat

3. As one edge begins to lift,gently maneuver the scraper forward to continue to'wedge
between the 3D object and print bed

4. Once the 3D object has fully separated from the print bed,it is safe to remove

NOTE:
* Always take care when using the scraper.Never use excessive force scrape towards your hand.
Scrape away from the body and keep hands clear to prevent injury
* Always keep the scrape as level as possible.Scrape can damage the print mat if not used

corretly
* Removing a 3D object,particularly one with a large surface size, can be a long process.Never
rush when removing a 3D printed object

TIP: If you are persistently having trouble removing 3D printed objects, try the following:
* Use a layer of bule masking tape(designed to not leave behind residue) on the print bed.Be
sure to remove and replace after each print
* Check if the printing mat is damaged and replace if needed
* Replacement mats can be purchased at https://www.wanhao3dprinter.com

4.4 Removing Filament

Follow these steps to remove alment
NOTE: You do not have to remove lament after each print,however

if you do not intend to print for long periods of time we recommend

removing and storing lament in a resealable air tight bag

1. Turn on the 3D printer with the power switch located at the back
of the printer

2. Push the dial button to access the main menu and navigate to

Quick setting Chanege lament Remove lament.

The extruder will automatically raise and preheat;always wait
until it has fully preheater

3. After the extruder has preheated,hold the lament clamp on the
top of the tower and push the lament so a small amount begins

to extrude

4. Once lament is extruding from the nozzle,while holding the lament clamp,quick pull the
lament out of the extruder and tube

5. Store the lament in a resealable bag to protect it from moisture

22

PRINTING AND REMOVING MODELS

4.5 Quick settings

To access the quick settings,press the dial button and select quick settings in the main menu

Move:
* Move X,Y,Z: Manually move the X,Y,Z axes by 1mm increments
* Extruder: Manually extrude or retract lament by 1mm increments
IMPORTANT NOTE: You must preheat the extrude or retract lament,180

* Home XYZ: Return to the home position is the front right corner

Change lament:
* Add lament: On screen guide to to Add lament if no lament is currently inserted
* Remove lament: On screen guide to remove alment if cruuently inserted

* Preheat: Preheat the nozzle
* Raise extruder 10mm: Raises the extruder by 10mm

Disable steppers: Disables all motors so you can manually move the bed and extruder position

in the X and Y directions

Preheat: Preheat the nozzle
Cooldown: Cools the nozzle

4.6 Advanced settings

To access the Advanced settings,press the dail button and select advanced in the main menu.
Unless you are an experienced user we do not recommend adjusting settings in the advanced
menus.

Temperature:
* Nozzle: Set the current temperature of the nozzle (0-250
* PID-P: Proportional Response
* PID-I: Integral Response
* PID-D: Derivate Response
* Preheat PLA conf: Adjusts the default PLA heating temperature

°C

)

minimum

°C

Save setting: Save the current settings
NOTE: You must save settings after every changs.Unsaved settings will be lost after restar
Factory Reset: Restores default factory settings

23

SETUP

4.7 Filament

The WANHAO Duplicator I3 Mini is designed to be only used with PLA(Polylactic Acid BioPlastic)

alment.Only use genuine WANHAO laments as using generic laments may damage your 3D
printer and may void your warranty. Extra lament including multiple colours and PLA types are

availabe from the online store at

4.7.1 PLA lament

id.aliexpress.com/store/120824V

Extruder Temp: 215
Ofcial Name: Polyactic Acid

Printing Level: Basic

Advantages: * Bioplastic

Disadvantages: * Low heat resistance

Finishing: * Sanding possible

°C

* Non-Toxic
* Less warping issues

* Hard or soft/exible variants

* High print speed

* Easier break than ABS
* Requires thicker walls than ABS

* Limited gluing

24

SETUP

4.8 Storage

PLA laments are sensitive to moisture. If stored in a humid environment,the quality of the
lament can deteriorate,with a tendency to bubble and spurt from the nozzle tip.This will

affect print quality,so when stroing PLA or other material for an extended period of time,
follow these tips.
* Store in a sealed,air tight bag/container.We recommend a vacuum seal bag

* Store with a silica gel (moisture absorber)pack. One is included with each lament spool

4.9 Creating and Printing your own Models

4.9.1 Saving les to MicroSD Card

* Format new MicroSD Cards up to 32GB to FAT32

* Save les only in the root directory on the MicorSD Card.The I3 Mini will not read les in

folders.

* Ensure your models are saved as GCODE les.STL and other 3D le formats should be

converted or 'sliced' into GCODE before loading them on the MicroSD Card. See the section

Creating a GCODE le using Cura for information on creating GCDOE les

4.9.2 Creating a GCODE le using Cura

A GCODE le provides the essential temperature settings and movement information for your
WANHAO I3 Mini. A number of 'Slicer' software programs exist which convert a 3D model le

into a series of 3D printable layers. Cura is free open source slicer software relesed on the
AGPLv3 license.It is available on MacOS X and windows.

4.9.3 Installing Cura

1. Install the le located on your included MicroSD Card or download Cura from

www.wanhao3dprinter.com

2. Select a destination folder for the install,then press'Next'

3. Select the components to install,then press 'Install'

4. Once complete,press 'Finish'

5. Refer to your computer manual of further instructions on the above steps if required

25

SETUP

4.9.4 Adding your Duplicator I3 Mini to Cura

On rst launch,Cura will ask you to add a 3D printer from the list provided.Alternatively,you

can add a 3D printer by selecting Machine Machine settings Add new Machine

1. Select Other

2. Select Custom...

3. Enter Machine name as 'Duplicator I3 Mini', or your desired name

4. Input Machine width as 120mm

5. Input Machine depth as 135mm

6. Input Machine height as 100mm

7. Change Nozzle size to 0.4mm

8. Ensure heated print bed is Not ticked

9. Select'Finish'

For the latest optimized/recommended Cura settings for your Duplicator I3 Mini,Visit

www.wanhao3dprinter.con

4.9.5 Loading a 3D design into Cura

1. Clear the platform using File clear platform...

2. Then, load your 3D design le onto the platform using File Load model le...

3. Load any le with the following extensions: .STL, .OBJ, .DAE,.AMF
TIP : You can load more than one le onto the platform.Cura will automatically move the

additional les to t

NOTE: Files in grey are outside of the print area and need to be moved or scaled to t.

26

SERVICING

5.1 Servicing your Duplicator I3 Mini

5.1.1 Replacing the print mat

The Duplicator I3 Mini includes 2 x extra prin mats. Additional print mats are available for
purchase from https://www.wanhao3dpriner.com

1. Remove the current print mat by slowly peeling from one corner

2. Using rubbing alcohol and a microber towel,carefully remove any residual adhesive

left in the print bed

3. Peel the 3M backing from the new print mat

4. Gently place the new print mat onto the print bed,making sure to align with each edge.

It is recommended to start at a corner to ensure no bubbles become present

5. Use the scraper to apply pressure on the new print mat,ensuring strong adhesion.keep
the scraper level as it can damage the print mat

5.1.2 Nozzle cleaning

TIP: You can also use masking tape in lieu of a print mat.Blue painters tape is recommended.

If your Extruder nozzle becomes blocked,follow these steps to clean the nozzle.

1. Remove the existing lament using the steps in Quick settings Chanege lament
Remove lament

2. Using a clean 0.4mm drill bit,insert the drill bit into the nozzle by hand,twisting while
inserting

3. Remove the drill bit from the nozzle, twisting while removing

4. Repeat steps'2' and '3' three times,then follow the steps in Quick settings Chanege

lament Add lament

27

SERVICING

5.1.3 Routine Component Check

Motor Connectors

Loose motor connections could cause a 3D print to fail.It's a good habit to routinely check for any
damage to the connectors or the black cables.

Axis Lubrication

Regular lubrication of the X and Y Axis rods is important for the longevity and smooth running of
your printer.The rods can be lubricated with machine oil or synthetic grease.We recommend using
bearing grease and to apply liberally to both the X Axis and Y Axis rods.

Nuts and Bolts

Loose nuts and bolts could affert the geometry of the Duplicator I3 MiNi . Check that all nuts

and bolts remain rmly tightened.If required,retightern using the hex wrench.

5.1.4 Storing

Always store your Duplicator I3 MiNi in a cool,dry location that is free from dust.

28

FINISHING

6.1 Finishing Techniques

6.1.1 Useful Tools/Equipment

• Safety Goggles

• Mask

• Long-nose Pliers

• Wire cutters

• Sandpaper (100,200,300,400,500,600 Grit)

• Medium,  ne and extra  ne sanding sponges

• Acrylic based primer spray paint

• Acrylic based spray paint (colour of your choice)

• Acrylic based varnish spray paint

NOTE: Different paint types are also compatible with PLA and ABS. Consult your local paint supplier
for the best compatibility for your intended purpose.

6.1.2 Removing support Material

Even after support material is removed by hand, residual material will remain.

1. Ensure that safety goggles and a mask are worn for protection

2. Remove most of the support material by hand, taking care not to

damage the 3D object

3. Using the long-nose pliers, carefully grasp some of the remaining
material, then twist to remove. Repeat until no more material can be
removed.

4. Using the wire cutters, cut away any excess  lament.

6.1.3 Sanding

Though fused  lament fabrication(FFF)is capable of producing high quality objects straight out

of the machine,the layer lines will be visible.Sanding will reduce these 'step'marks in the model.

1. Ensure that safety goggles and a mask are worn of protection

2. Starting with 100 grit sandpaper,carefull sand your 3D object using small,circular motions
NOTE: PLA is less resistant to high temperatures caused by sanding. Take your time sanding
your 3D object to avoid damage.

3. Using the medium sanding sponge,sand dif cult to reach areas of your 3D object

4. Gradually increase the sandpaper grid until the 3D print is smooth

TIP: Spraying a primer  ller also help to reduce the layer lines on the 3D object.This can then be

sanded away and repeated,until the desired smoothness is achieved

29

FINISHING

6.1.4 Surface Coating

Finally,to make tour models more presentable,follow these steps;

1. Ensure that safety goggles and a mask are worn for protection

2. Ensure that your 3D object is clean and free from dust

3. Spray your model using an acrylic based primer,following the directions of your primer

4. Allow appropriate time to dry before applying additional coats

5. Spray your model using an acrylic based paint of your colour.Allow appropriate time to dry

6. Spray your model using an acrylic based varnish,following the direchtions of your varnish

Allow appropriate time to dry before applying additional coats.

NOTE:

the best compatibility for your intended purpose.

Congratulations!Your 3D object now looks like a professionally nished product!

Different paint types are also compatible with PLA.Consult your local paint supplier for

MAINTENANCE

The maintenance of Duplicator I3 Mini should be conducted by skilled person only.Always

unplug the printer before doing maintenance or modications. In order to have a smoothly

working Duplicator I3 Mini it is important to maintain it correctly.Please follow the safety/

deterioration checks during maintenance:

* Check condition of all rubber belts

* Oil the lead screens with light machine oil(sewing machine oil)

* Check the condition of the power cable.Make sure there are no cracks in the sheath

* Check the condition of the wiring on the printer to ensure nothing is pinched of damaged

* Check the fans are operational during print

* Check the chassis is secure.Tighten any screws if there is ex in the frame

30

DISPOSAL OF PACKAGING

This product has been packaged to protect it against transportation damage.Unpack the

appliance and keep the original packaging carton and materials in a safe place.It will help

prevent any damage if the product needs to be transported in the future,and you can use

it to store the appliance when it is not in use.

In the event, it is to be disposed of, please recucle all packaging material where possible.

Wrapping can be a suffocation hazard for babies and young children,so ensure all packaging

materials are out of their reach and disposed of safely.Observe any local regulations regarding

the disposal of packaging and dispose of it appropriately for recycling.Contact your local

authorities for advice on recycling facilities in your area.

DISPOSAL OF PRODUCT

Observe any local regulations regarding the disposal of waste products.Contact your local

authorities for advice on recycling facilities in your area.

At the end of its working life,do not throw this product out with your household rubbish,

Electrical and electronic products contain substances that can have a detrimental effect on

the environment and human health if disposed of inappropriately.Observe any local regulations

regarding the disposal of electrical consumer goods and dispose of it appropriately for

recycling.Contact your local authorities for advice on recycling facilities in your area.

31

TROUBLESHOOTING

10.1 Troubleshooting

If having any troubles when using the Duplicator I3 MiNi,please refer to the troubleshooting
guide below,or call customer support on [phone]

You can also visit https://www.wanhao3dprinter.comfor support videos and advanced tutorials

10.1.1 Printing Problems

Clicking sound from one of the stepper motors

One of your stepper motors may not be connected properly. Check each connection and then
inspect the cable routing for any faults

File not printing

Remove the Micro SD Card and insert into your Computer. Open the GCODE le using a text editor

(eg. Notepad), and inspect if GCODE is readable or not. If le consists of multiple ‘ÿÿÿÿ’ symbol,

then le has been corrupted. Try reformatting your Micro SD Card and reloading the GCODE le.

NOTE: Reformatting will delete all les on your SD card

Not extruding when starting to print

Ensure that the nozzle temperature has been set to match your material

Not sticking to the bed

• Ensure that the bed is clean and free from dust

• Check that the bed is level and set to a distance of approximately 0.1mm-see 3.6 Levelling

the bed

• If there are defects / deep scratches in the printing mat, it may need to be changed. Change

the mat or use blue painters masking tape

• Add a brim or raft to your le

• Ensure nozzle to bed gap is not bigger than 0.1mm. Material will solidify if gap is large

• Visit https://www.wanhao3dprinter.com for a tutorial on levelling the print bed

Models Warping/Curling

• Check the inll % of your GCODE. The higher the inll, the more likely to warp

• Add a brim or raft to your le

32

Model appears very ‘stringy’

• Ensure that the lament diameter is set to match your lament spool (1.75mm), then try

creating a new GCODE before printing again

• Check you are using the correct temperature for the lament used

Print stopped halfway

• Check that the GCODE le is complete and not corrupt

• Check the original model le

The motor does not stop at the end of axis

Check that the stop micro switches are aligned with the motor mount and registering.

The print head/bed does not move

Check the part can be moved by hand when stepper motor is disabled. Clear anything that is
blocking the path

10.1.2 Connectivity Problems

My 3D Printer isn’t turning on

Check that you have correctly inserted the power cable into the rear of the Control Box, the power
cord is plugged into the mains outlet and that the Control Box power switch is on.

Micro SD Card not shown

• Please ensure your MicroSD Card is 32GB or less

• Please ensure your MincroSD Card is formatted as FAT32

• Navigate SD Card,select Unmounts SD Card, then select Mount SD Card.Your MicroSD Card

should now appear in the menu.

33

TROUBLESHOOTING

10.1.3 Other Problems

Filament stuck when removing

Please visit www.wanhao3dprinter.com/Video for a video on how to clear the nozzle with stuck

lament.

Where can I buy more lament?

If you require more lament, visit our online store, id.aliexpress.com/store/120824V to purchase
various colours and types.

What brand of lament should I buy?

We recommend using only WANHAO branded lament. Lower quality generic laments can

damage your 3D Printer and potentially void your warranty.

What types of lament can my 3D Printer Print?

The WANHAO 3D Printer accepts various types of laments including PLA, ABS, PVA, HIPS
and specialty laments such as wood, exible, luminous and conductive. For our full range of
laments visit id.aliexpress.com/store/120824

34

TROUBLESHOOTING

10.2 Useful Terms

Display

Provides the main interface for operating the 3D Printer

Firmware

Software that is programmed into the electronic board

GCODE

Code that is produced using the slicing process. Describes the movements and temperature
settings of your 3D printer

Nozzle

Opening at the bottom of the print head where lament is pushed through

Extruder Assembly

The section lament is pushed through encompassing the hot end and nozzle

Micro SD Card

Secure Digital memory card. This is where your GCODE les can be stored and accessed by the 3D

Printer

PLA Filament

Commonly used plastic lament with low environmental impact

Brim/Raft

Types of printed foundations that help madels adhere to the print bed

Slicing

Process that turns a 3D Design into a code that can be used by 3D Printers

Spool

Filaments of PLA and ABS are wrapped, creating a spool

Stepper Motor

DC motors that move in discrete steps. This allows for precise positioning and/or speed control

.stl

A common le format for 3D Designs/Models

USB Cable

This cable allows communication between the WANHAO 3D Printer and a computer, using
the USB port of the computer

35

Appendix

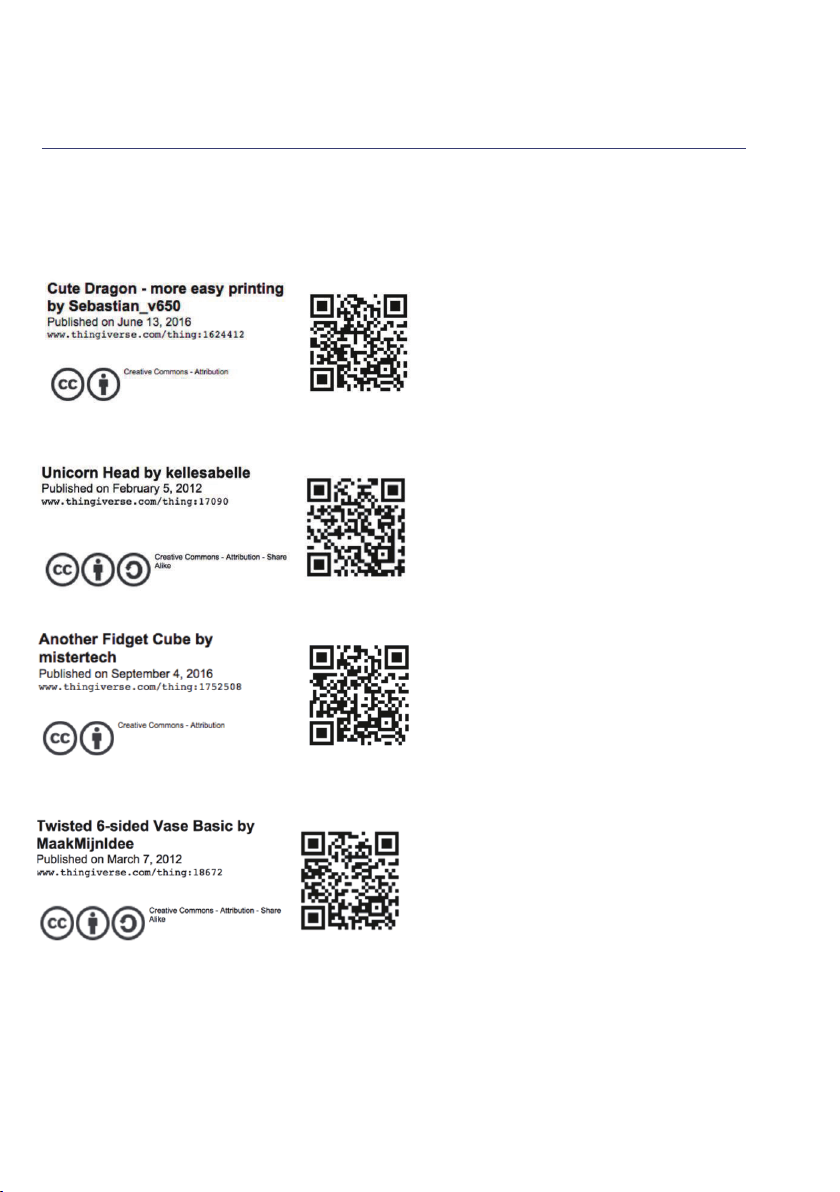

References

Some of the 3D Models used in this manual and other included materials were sourced from the
below:

36

3D Printer

Repair and Refurbished Goods

or Parts Notice

Unfortunately, from time to time, faulty products are manufactured which need to be
returned to the Supplier for repair.

Please be aware that if your product is capable of retaining user-generated data (such as  les

stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs

stored on a portable media player, games saved on a games console or  les stored on a USB

memory stick) during the process of repair, some or all of your stored data may be lost.

We recommend you save this data elsewhere prior to sending the product for repair.

You should also be aware that rather than repairing goods, we may replace them with
refurbished goods of the same type or use refurbished parts in the repair process.

Please be assured though, refurbished parts or replacements are only used where they

meet WANHAO’s stringent quality speci cations.

If at any time you feel your repair is being handled unsatisfactorily, you may escalate your
complaint. Please telephone us on 86-571-23290996 or write to us at:

WANHAO Precision Casting Co.,Ltd
77, RENMING ROAD, JINHUA, CHINA
WANHAO Help Desk 86-571-23290996
(Operating Hours: Mon - Sat; 8:00am - 5:00pm)
[e-mail]
www.wanhao3dprinter.com

AFTER SALES SUPPORT

86-571-23290996

[e-mail]

MODEL: Duplicator I3 MiNi

37
