WANHAO Duplicator 6 User Manual

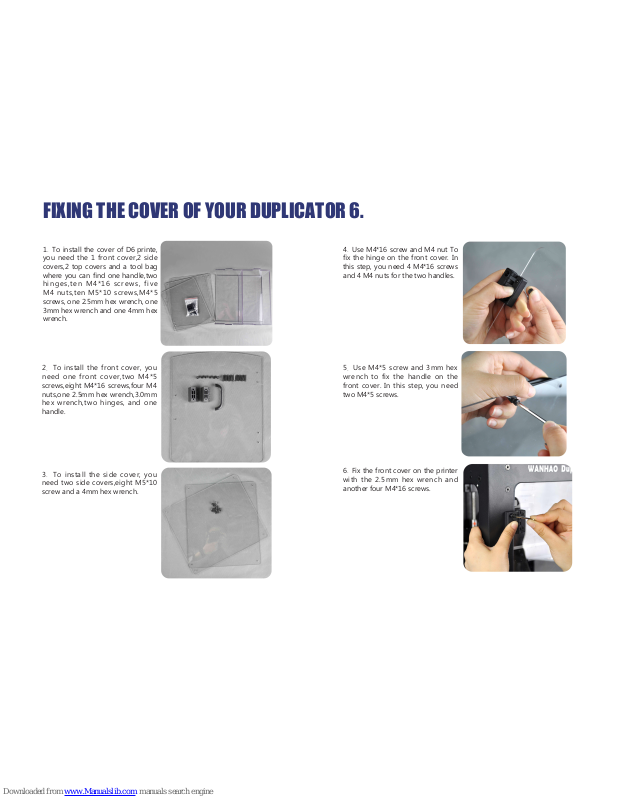

Fixing the cover of your Duplicator 6.

1

.

To install the cover of D6 printe,
you need the 1 front cover,2 side
covers,2 top covers and a tool bag

where you can nd one handle,two

hinges,ten M4*16 screws, five
M4 nuts,ten M5*10 screws,M4*5
screws, one 2.5mm hex wrench, one
3mm hex wrench and one 4mm hex
wrench.

2

.

To install the front cover, you

need one front cover,two M4*5
screws,eight M4*16 screws,four M4
nuts,one 2.5mm hex wrench,3.0mm
hex wrench,two hinges, and one
handle.

3

.

To install the side cover, you
need two side covers,eight M5*10
screw and a 4mm hex wrench.

4

.

Use M4*16 screw and M4 nut To

x the hinge on the front cover. In

this step, you need 4 M4*16 screws
and 4 M4 nuts for the two handles.

5

.

Use M4*5 screw and 3mm hex

wrench to fix the handle on the

front cover. In this step, you need

two M4*5 screws.

6

.

Fix the front cover on the printer
with the 2.5mm hex wrench and
another four M4*16 screws.

7

.

To do the same to the other

handle.

10

.

To do the same to the other

three screws and get them tight.

8

.

Check the front cover if it works.

9.

Fix the side cover with the 4mm
hex wrench and M5*10 screw.
NOTE: You should not fix the first

three screws too tight at rst.

11

Do the same to the other side

cover.

12

.

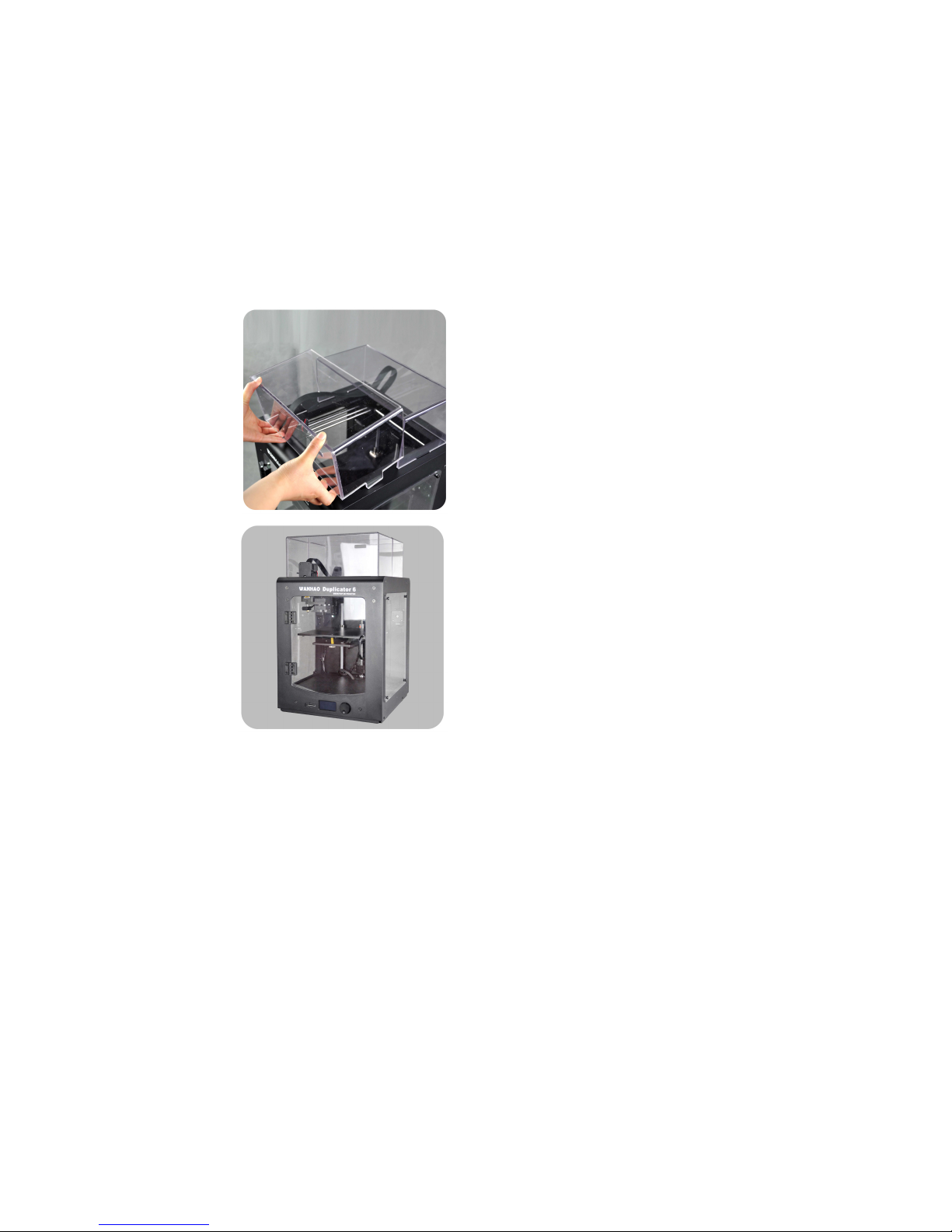

Put one of the rop cover on the
printer aiming at the hole on the
two sides.
