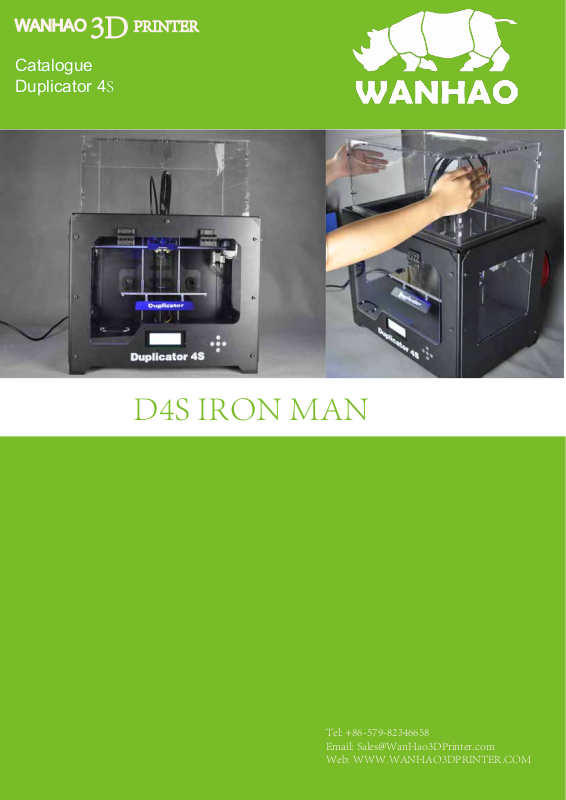

Wanhao Duplicator 4S User Manual

WANHAO

Catalogue

3D

PRINTER

Duplicator 4

S

D4S IRON MAN

Tel: [phone]
Email: [e-mail]
Web: WWW.WANHAO3DPRINTER.COM

WANHAO Duplicator

WANHAO has involve in 3D printer led since early 2011. Several Roommates used all their pocket money and
bought one Thing-O-Matic from Makerbot. This precious awesome machine brought these college students great
enthusiasm in 3D project making and help these buddy build their dream. On 1st Oct WANHAO Duplicate the
Thing-O-Matic and named it DEPLICATOR ONE. This 1st Generation Made In China 3D printer has combined
most of the advantage of RepRap and Makerbot, and upgrade the extruder to Non Block one.

In June 2012 WANHAO has invent it's 3D printer with LCD displayer which is now called DEPLIATOR TWO. This
is geat step that free your computer that you don't have to print while keep your computer running. Just a simple
SD card will do all the rest job.

On 1st Oct 2012 WANHAO 2 EXTRUDER Printer, Duplicator 3, was be sold in our local market. This is big step
for us.

On 18th June 2013, WANHAO Duplicator 4 with Improving extruding system make PLA printing like a piece of
cake. All our Duplicator 3 customer can replace your D3 Nozzle with D4 PLA Nozzle free of charge. We hope
Wanhao D4 Service Care program(For detail, please visit our website) can benit all cusomers around the world.

4

S

Cheers! General Manager Frank Hua

DF

WANHAO

3D

PRINTER

Duplicator 4S over all view

Full covered heating chamber, No curving in
ABS printing

Side transparent Window, better view from
side too.

Full steel structure, tough as a rock Better looking, better printing

WANHAO

3D

PRINTER

Duplicator 4S Detail

Tough Steel plateform, No shaking
Better printing quality ,

Every Screw and components are rened,

Better quality, better printer.

Full window cover ensure more consistant
temperature for ABS printing.

High strength silicon glass, at as mirror,
make your print extrodinary at than ever.

WANHAO

3D

PRINTER

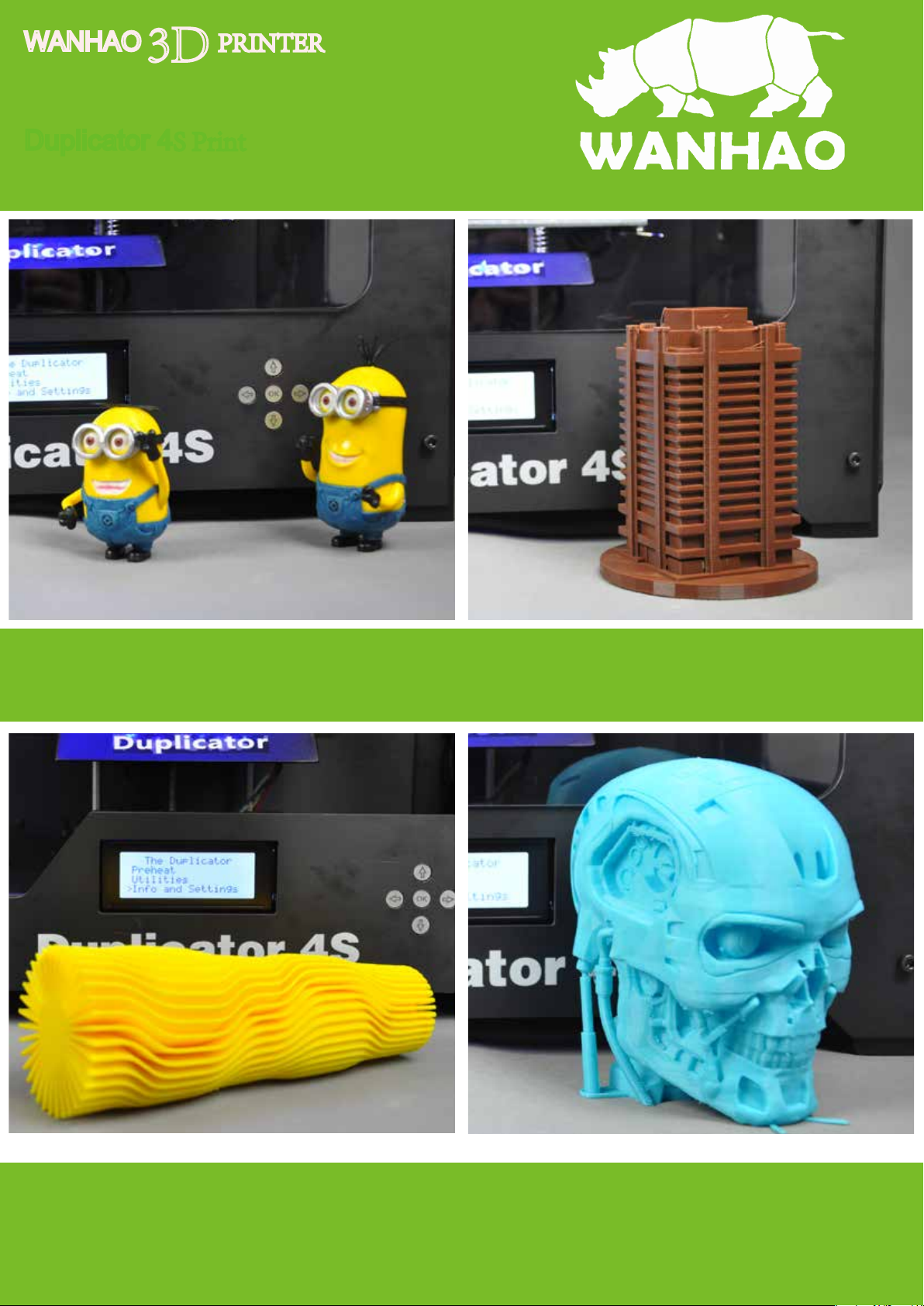

Duplicator 4

S Print

DUPLICATOR 4S SPECIFICATION

MECHANICAL PROPERTY

Overall dimensions: 320 x 466 x 382 mm | 12.6 x 18.4 x 15 in
Shipping Weight: 25kg
Linear ball bearings
Precision ground 8mm shafts
Snap-on, snap-off carriage assemblies

ELECTRONICS PROPERTY

Duplicator 4S single-piece motherboard
5 axis, 1/16 micro-stepping motor control
4x20 LCD character display and multi-direction control pad
Piezoelectric buzzer
DOUBLE Power Supply: 110 AND 250V, 50/60Hz, 4.0A (input), and takes standard IEC cable

SOFTWARE: REPLICATORG

Compatibility: Linux, OSX, and Windows
Print from SD card or over USB

Input le type: STL, gcode

/ SIMPLIFY 3D(Optional)

OVERVIEW FEATURES SPECIFICATIONS

Build envelope 225 x 145 x 150 mm | 8.9 x 5.7 x 5.9 in
Build volume About 5 liters
Layer thickness Choose 0.1-0.5 mm which is adjustable by software
Stock nozzle diameter Stock 0.4 mm
Speed 40 mm/s
Flow Rate Approximately 24 cc/hr
Extruder Temperature Recommended Maximum 230 C
Heated Build Platform 120 C Maximum
Positioning precision 2.5 micron on Z axis

11.micron on XY axis

MATERIALS

Works with ABS, PLA and other materials
Filament diameter: 1.75 mm
