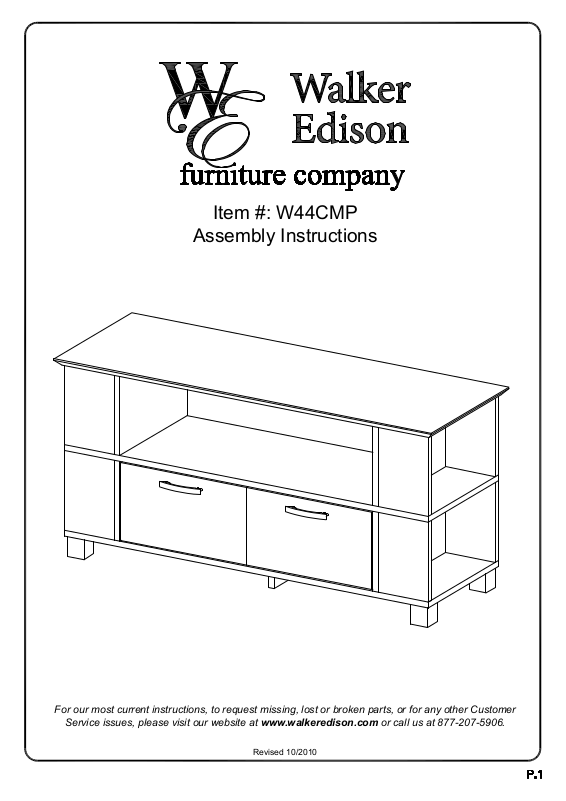

Page 1
Item #: W44CMP
Assembly Instructions
For our most current instructions, to request missing, lost or broken parts, or for any other Customer
Service issues, please visit our website at www.walkeredison.com or call us at 877-207-5906.
Revised 10/2010
Page 2
General Assembly Guidelines
I. Ensure that all parts and hardware are available before beginning assembly.
II. Follow each step carefully to ensure the proper assembly of this product.
III. Two people are recommended for ease in the assembly of this product.
IV. The four main types of hardware used to assemble this product are: wood dowels,
cam bolts and locks, bolts and screws.
V. The provided glue is to secure wood dowels in place. When first inserting dowels,
locate the appropriate hole for the dowel, place a small amount of glue in the hole
and insert the dowel. Wipe away excess glue immediately.
In future assembly steps when dowels are necessary to attach assembly parts
together, place a small amount of glue on the end of the dowel before attaching
parts together. Wipe away excess glue immediately.
VI. A Phillips head screwdriver is required for the assembly of this product.
VII. Power tools should not be used to assemble this product.
P.2
Page 3
Parts List
Page 4
Hardware List
Short wood dowel 16 pcs
Long wood dowel 6 pcs
Large cam lock 32 pcs
Small cam lock 8 pcs
Short cam bolt 24 pcs
Long cam bolt 8 pcs
Bolt 6 pcs
Wrench 1 pc
Handle 2 pcs
Round-head screw 4 pcs
Plastic wedge 8 pcs
Small screw 8 pcs
Large screw 8 pcs
Glue tube 2 pcs
Sticker 40 pcs
The hardware quantities listed above are required for proper assembly. Some
extra hardware may also have been included.
Page 5
Screw short cam bolts (E) into stand top (1).
Attach feet (12) and stand support (11) to stand base (3) using bolts (G) and wrench (H).
Page 6

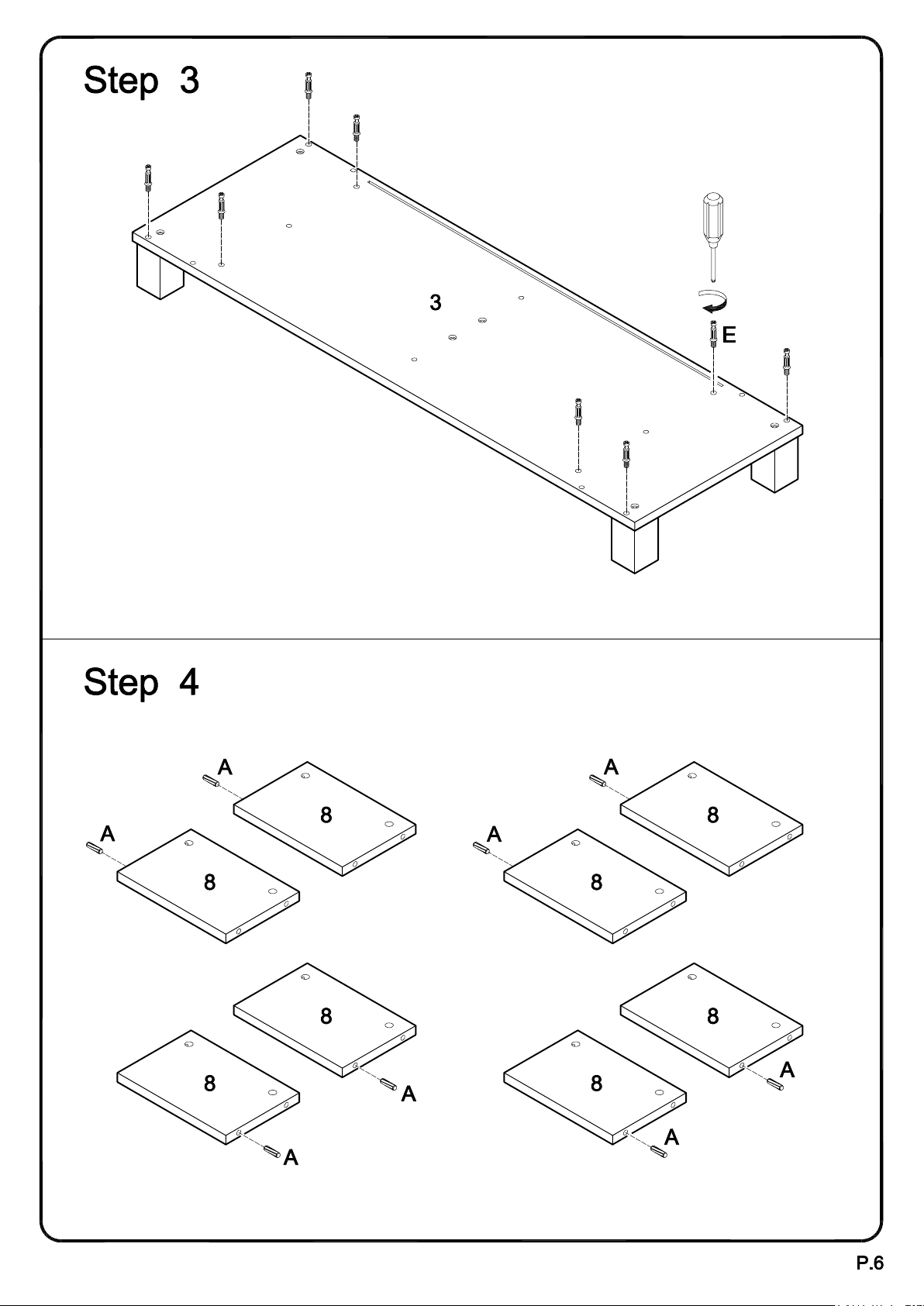

Screw short cam bolts (E) into stand base (3).
Insert short dowels (A) into panels (8) on appropriate sides.
Page 7

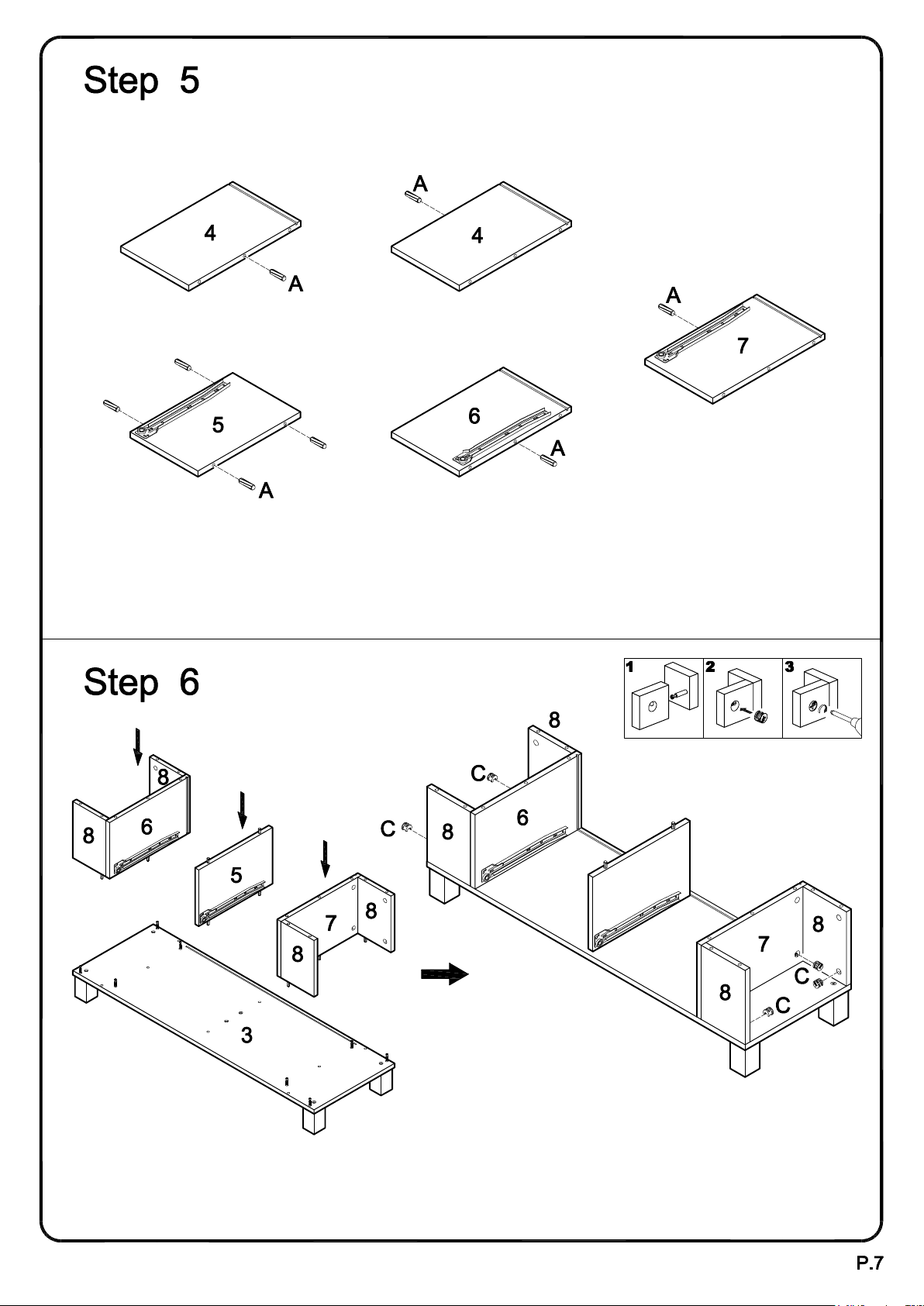

Insert short dowels (A) into panels (4,5,6,7) on appropriate sides.
Attach panels (5,6,7,8) to stand base (3) using cam bolts and dowels as guides. Note that panels (8) are not
attached to panels (6,7), but that all panels should align when attached to stand base (3). Secure panels
(6,7,8) to stand base (3) by inserting large cam locks (C) into panels (6,7,8) and tightening with a screwdriver.
Page 8

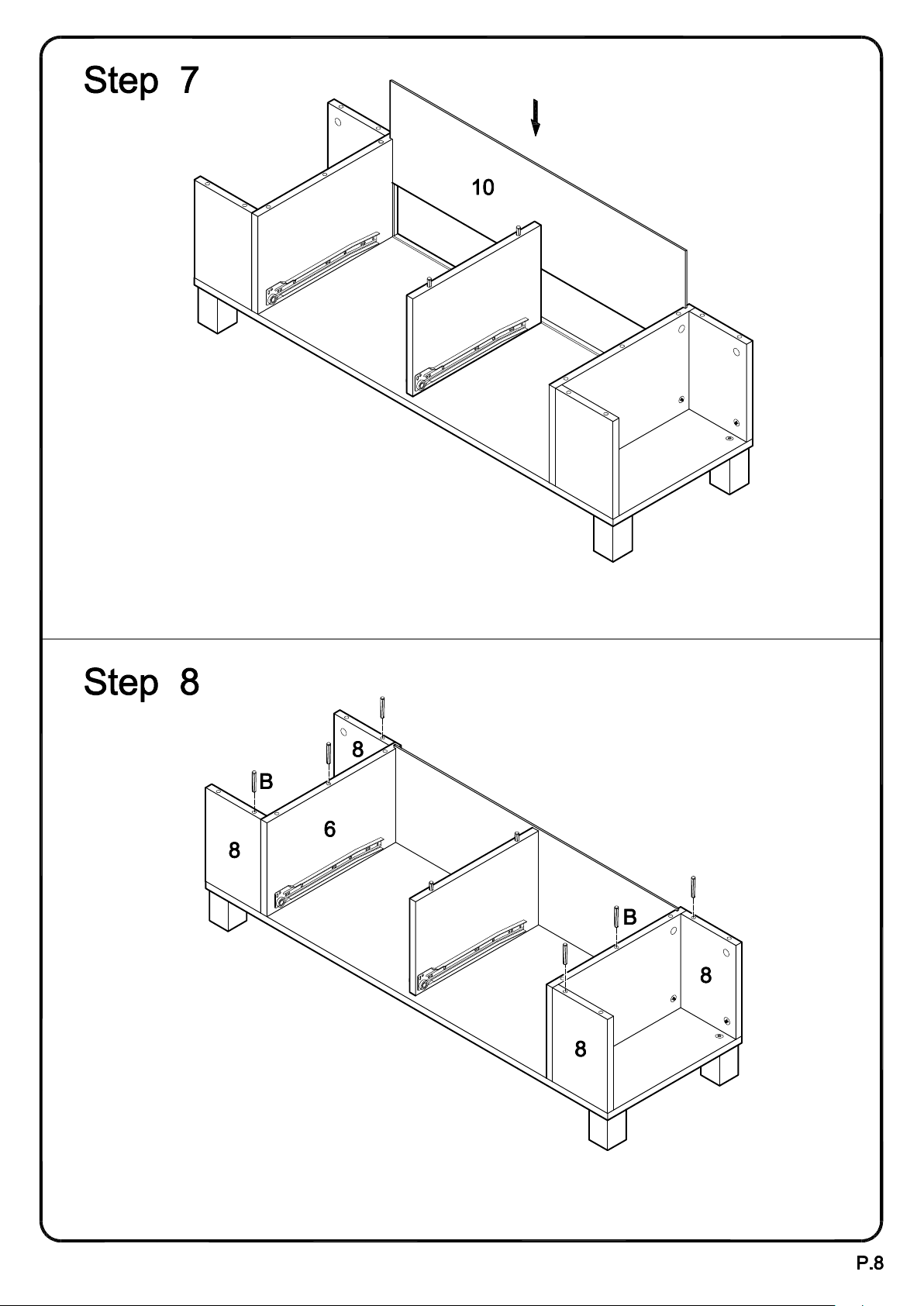

Slide back panel (10) into the stand assembly along the grooves at the back of the assembly. Note that the
vinyl lamination of back panel (10) should face out.
7
Insert long dowels (B) into panels (6,7,8).
Page 9

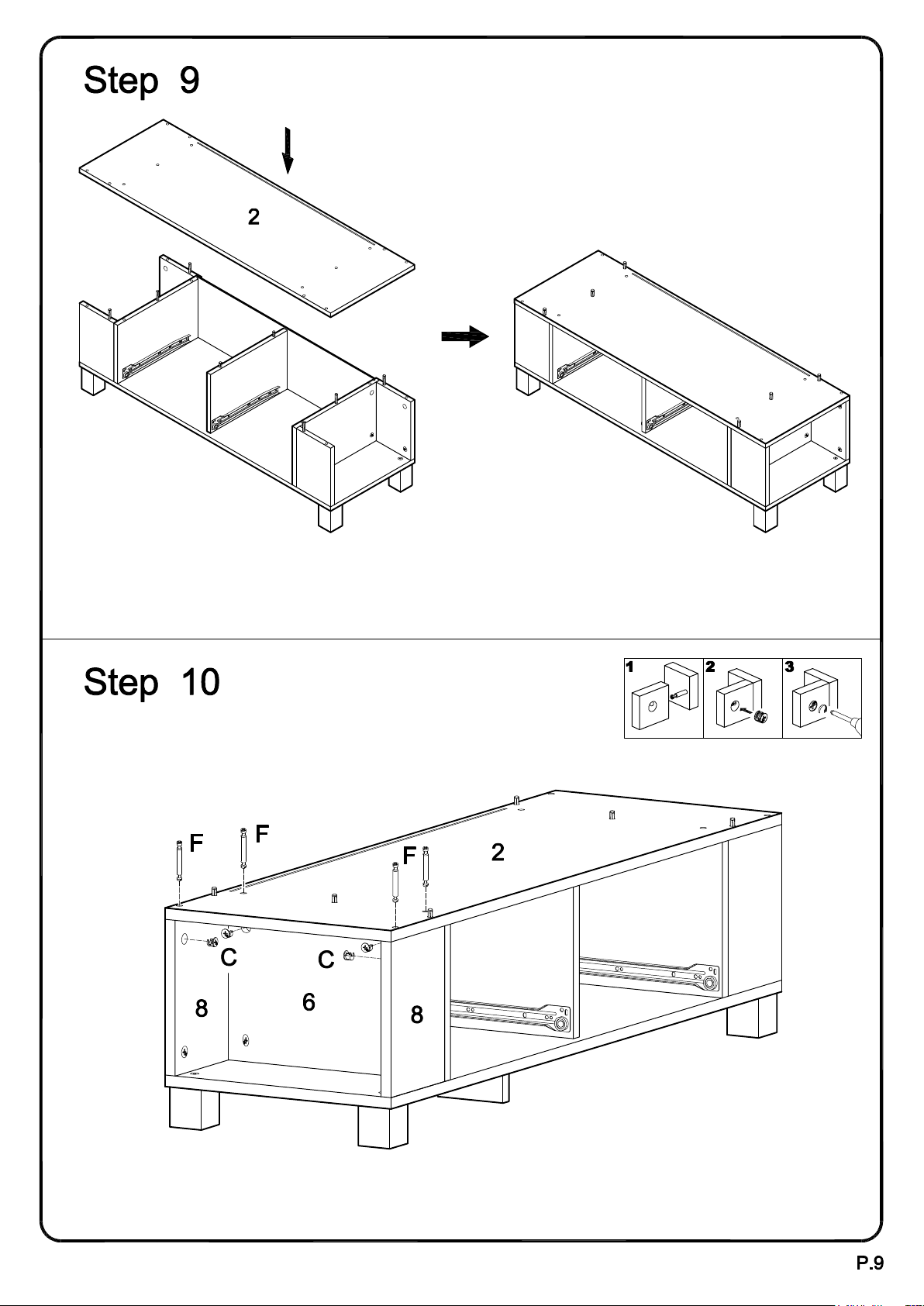

Attach middle panel (2) to stand assembly using dowels as guides.
Insert long cam bolts (F) into middle panel (2). Insert large cam locks (C) into panels (6,8) and tighten with a
screwdriver.
Page 10
7

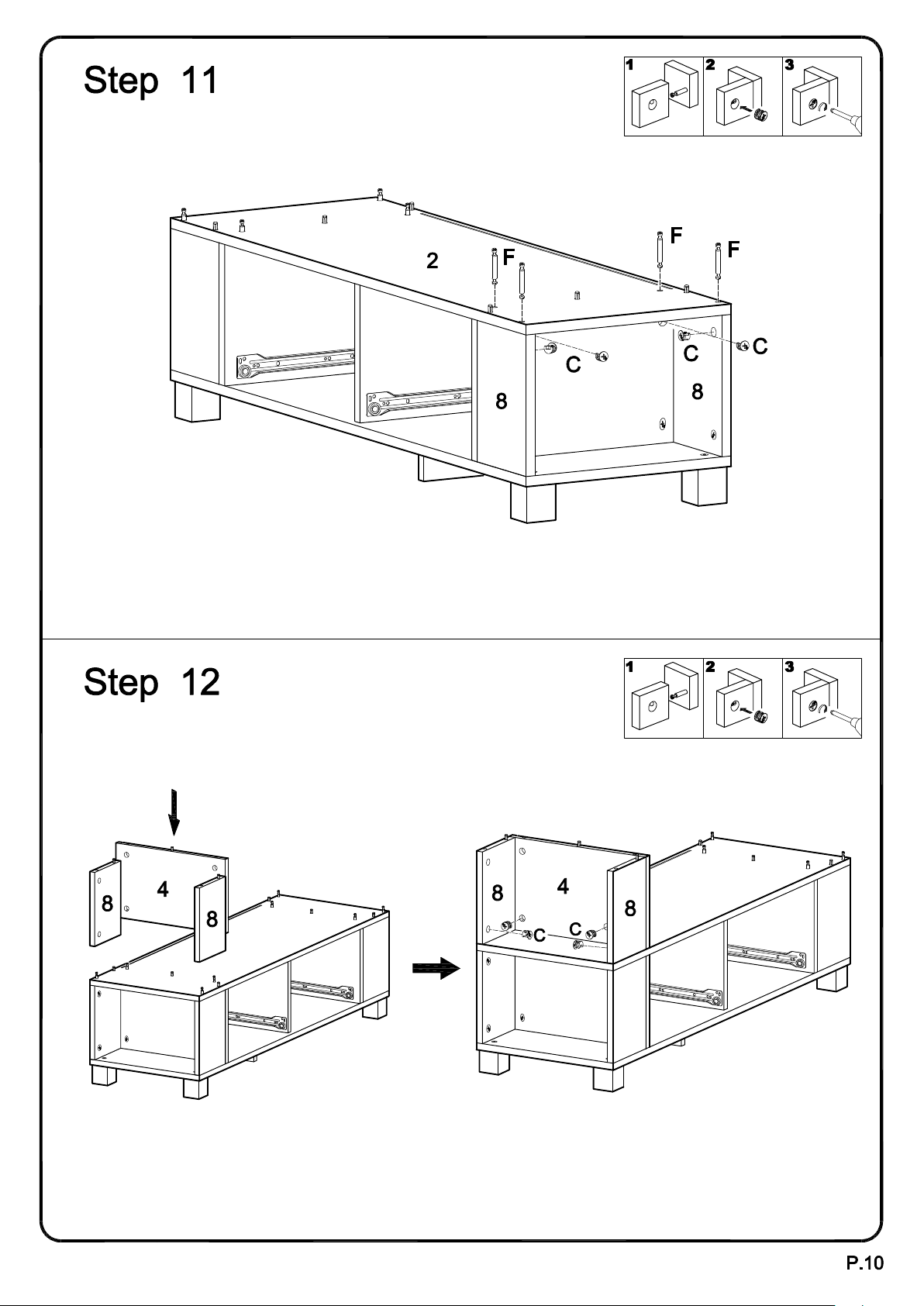

Insert long cam bolts (F) into middle panel (2). Insert large cam locks (C) into panels (7,8) and tighten with a
screwdriver.
Attach panels (4,8) to the stand assembly using cam bolts and dowels as guides. Secure panels (4,8) by
inserting large cam locks (C) into panels (4,8) and tightening with a screwdriver.
Page 11

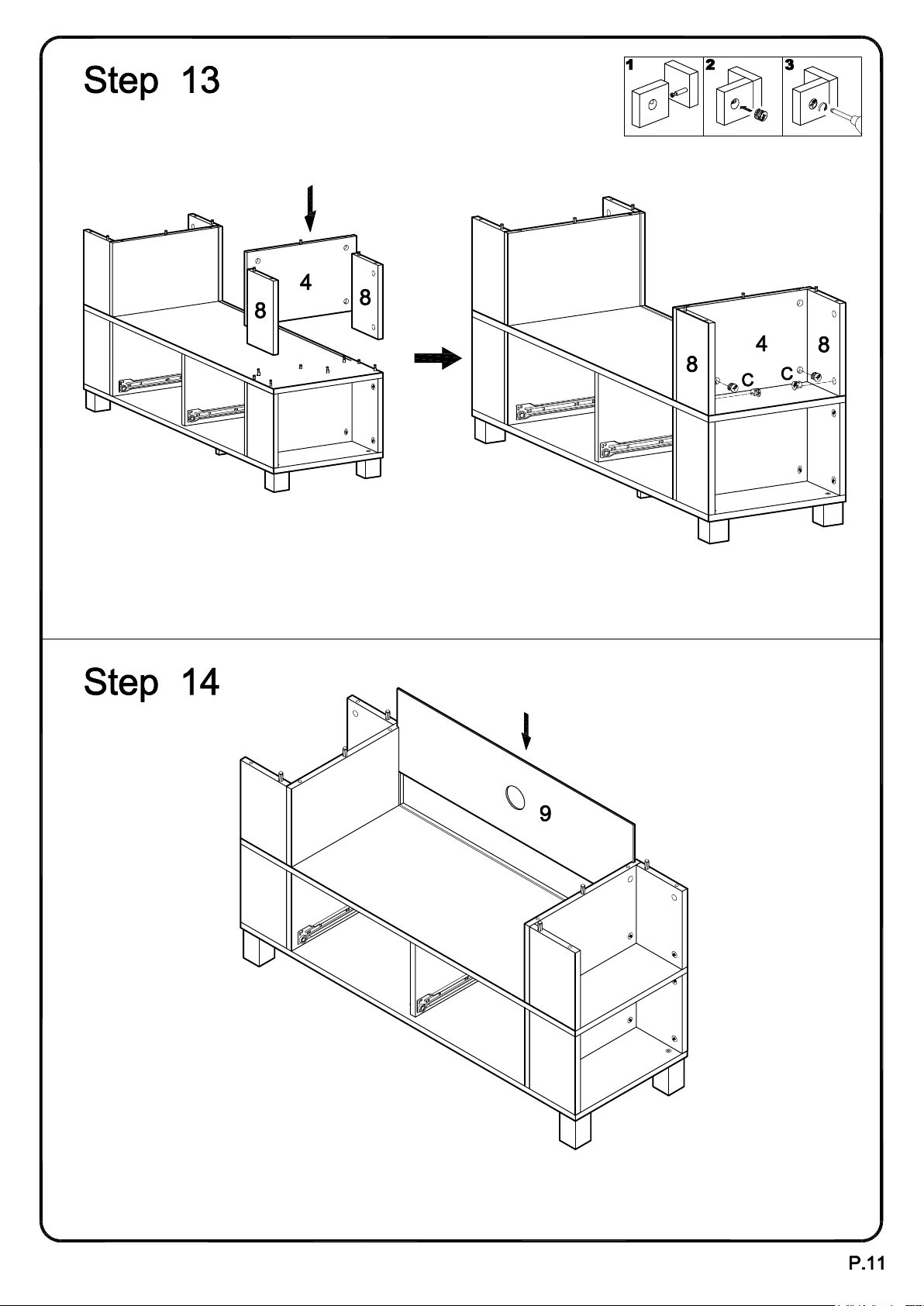

Attach panels (4,8) to the other end of the stand assembly using cam bolts and dowels as guides. Secure
panels (4,8) by inserting large cam locks (C) into panels (4,8) and tightening with a screwdriver.
Slide back panel (9) into the stand assembly along the grooves at the back of the assembly.
Page 12
8
8
4
8
4
8

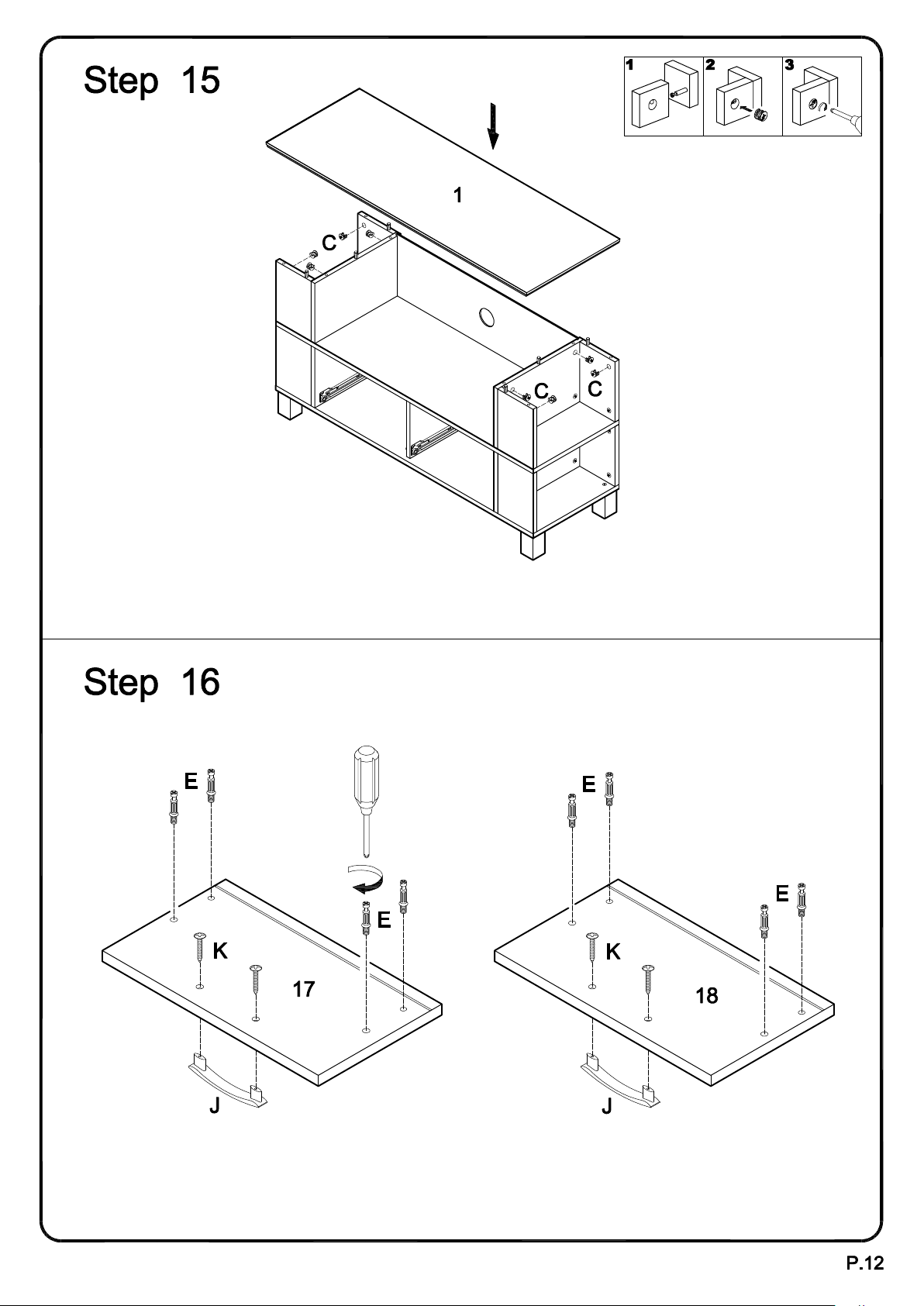

Insert large cam locks (C) into panels (4,8). Attach stand top (1) to the stand assembly using cam bolts and
dowels as guides. Tighten large cam locks (C) with a screwdriver.
Screw short cam bolts (E) into drawer fronts (17,18). Attach handles (J) to drawer fronts (17,18) using round
head screws (K).
Page 13

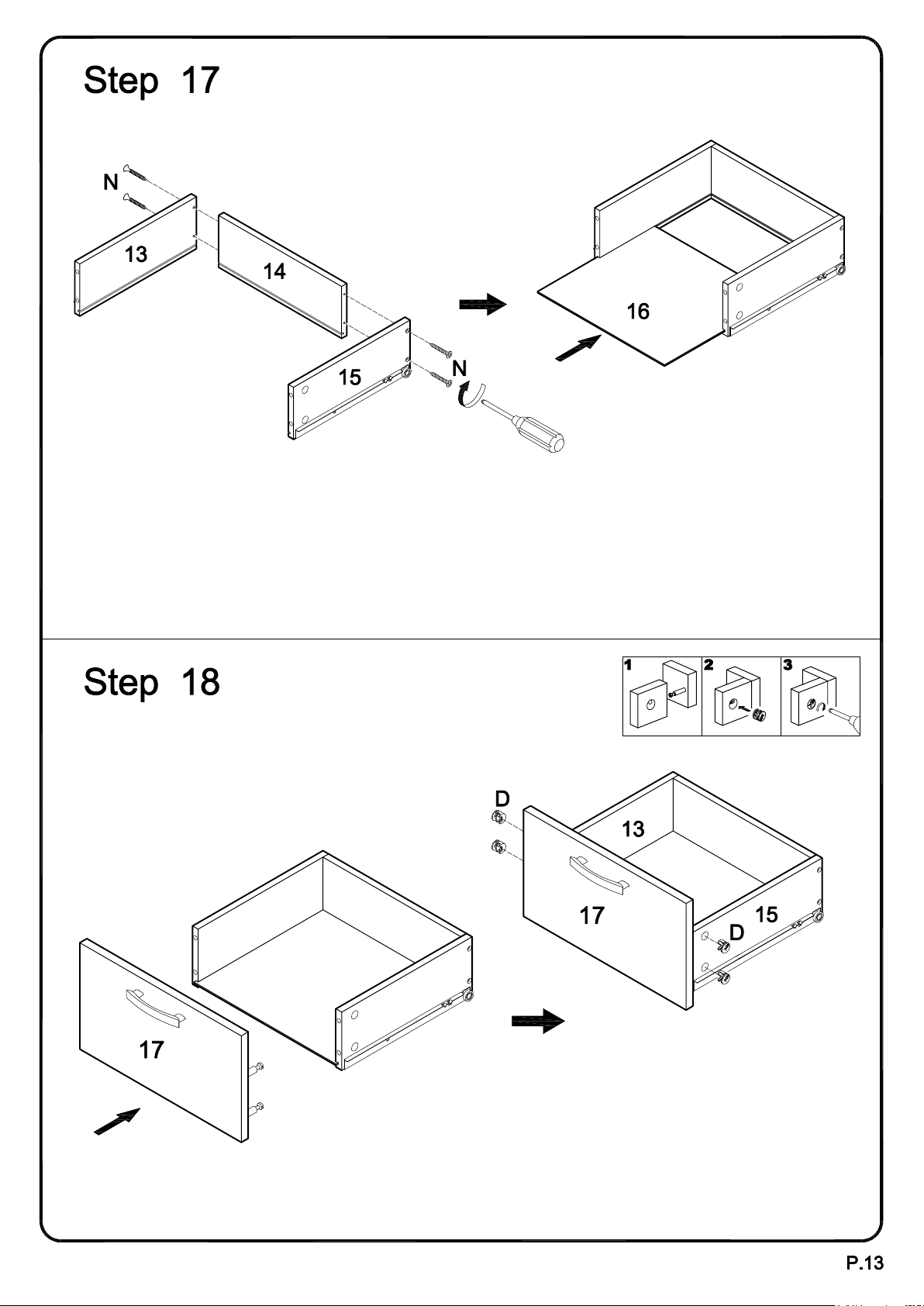

Attach drawer sides (13,15) to drawer back (14) using large screws (N). Slide drawer bottom (16) into the
grooves of the drawer assembly. Note that the vinyl lamination of drawer bottom (16) should be on the inside
of the drawer. Repeat this step for the second drawer.
Attach drawer front (17) to the first drawer assembly using cam bolts as guides. Insert small cam locks (D) into
drawer sides (13,15) and tighten with a screwdriver.
Page 14

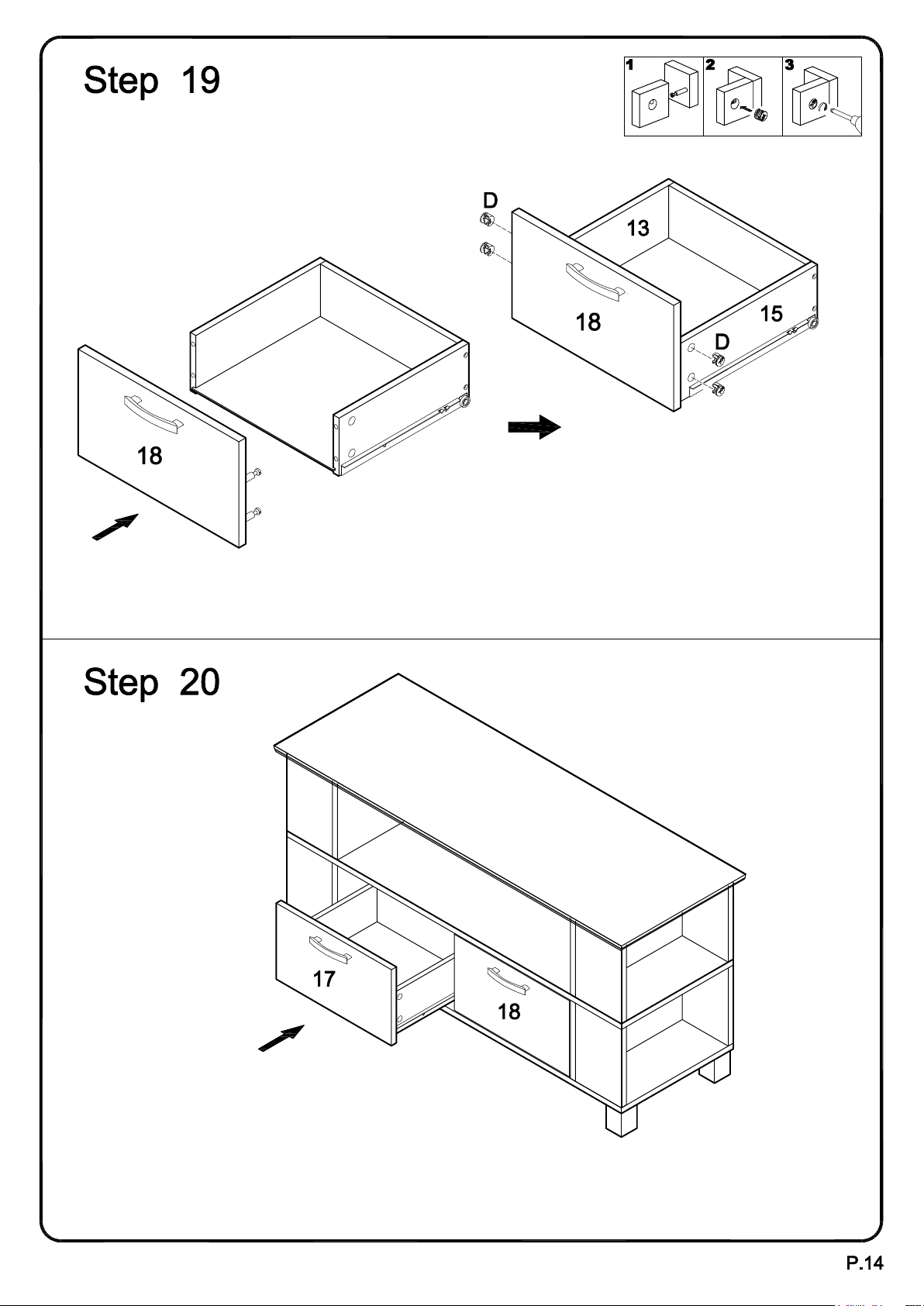

Attach drawer front (18) to the second drawer assembly using cam bolts as guides. Insert small cam locks (D)
into drawer sides (13,15) and tighten with a screwdriver.
Carefully slide drawer assemblies into the stand assembly.
Page 15
9
10

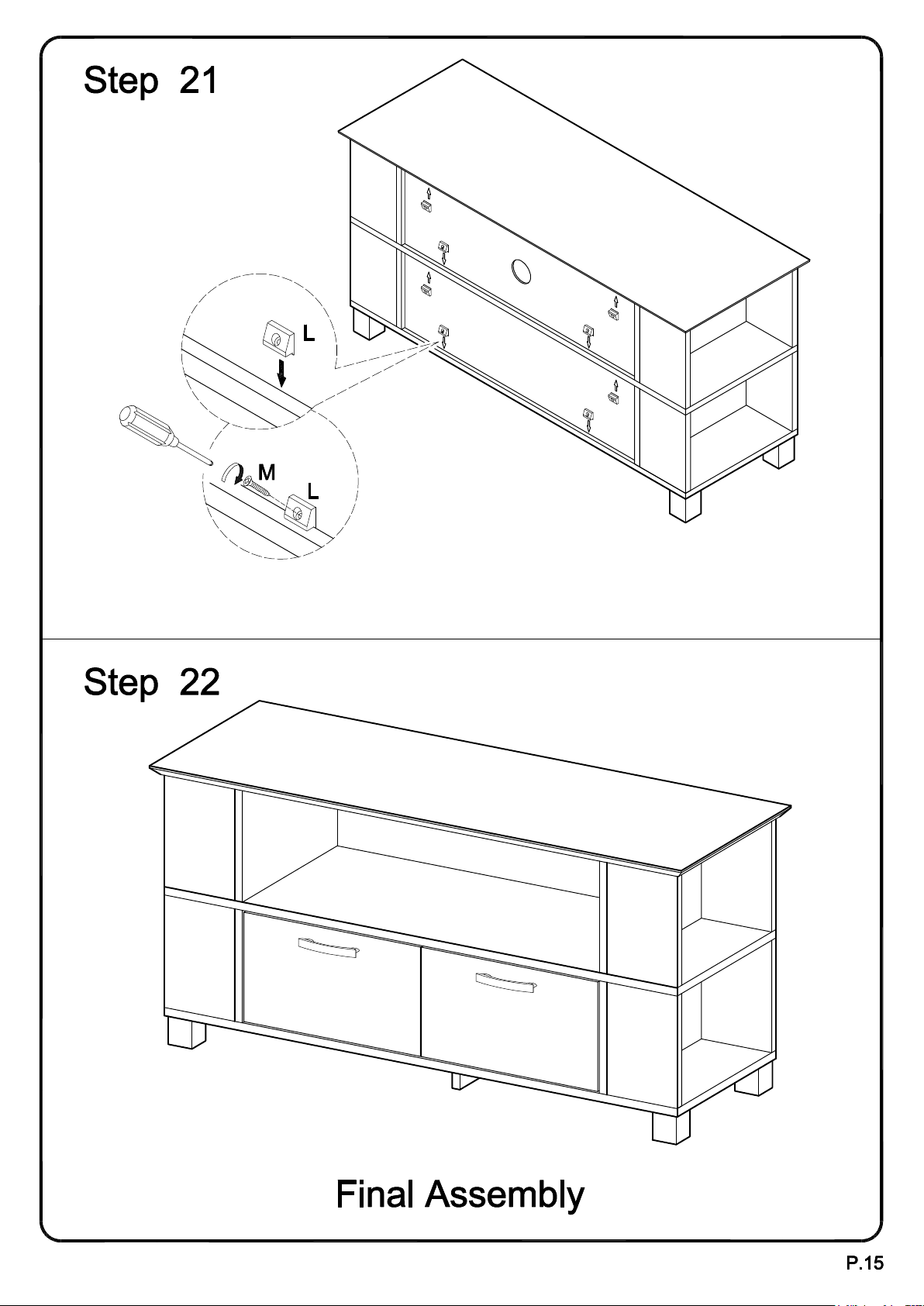

Secure back panels (9,10) to the stand assembly using plastic wedges (L) and small screws (M).
