Walker W1100 User Manual
Clarity®Extra
High-Frequency Enhancing Phone
E
N
G
L
I
S
H
Model: W1100
User Guide
www.walkerc larity .com
E
S
P
A
Ñ
O
L
F
R
A
N
Ç
A
I
S
Table of Contents
SAFETY INSTRUCTIONS: .................................. 3
INSTALLATION:..................................................... 7
FEATURES: ............................................................. 11
®
• Clarity
• Boost Control ....................................................... 12
• Clarity Effect......................................................... 12
• Sound Level Indicator .......................................... 12
• Ringer Volume Control......................................... 13
• Ringer Pitch Control............................................. 13
• Warble Control ..................................................... 13
• Visual Ringer........................................................ 13
• Tone / Pulse Selection ......................................... 14
• Last Number Redial ............................................. 14
• Flash .................................................................... 14
• Hold...................................................................... 15
• Surge Protection .................................................. 15
• Mute ..................................................................... 15
• Neck Loop/Auxillary Port...................................... 16
Power Control .......................................... 12
OPERATION:........................................................... 16
• To Place or Receive a Call................................... 16
• Programming Frequently-Dialed Numbers .......... 17
CARE: ....................................................................... 19
TROUBLE-SHOOTING GUIDE ................................. 20
FCC REQUIREMENTS.............................................. 23
LIMITED WARRANTY ............................................... 25
WALKER WARRANTY SERVICE.............................. 26
SAFETY INSTRUCTIONS
➤
Read and Understand
All Instructions
1.Never install telephone wiring during a
lightning storm.
2. Never install telephone jacks in wet
locations unless the jack is specifically
designed for wet locations.
3. Never touch uninsulated telephone
wires or terminals unless the line has been
disconnected at the network interface.
4. Use caution when installing or modifying
telephone lines.
➤
Important Safety
Instructions
When using your telephone equipment,
basic safety precautions should always
be followed to reduce the risk of fire,
electric shock and injury to persons,
including the following:
• Read and understand all instructions.
• Follow all warnings and instructions
marked on the product.
• Unplug this product from the wall outlet
before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for
cleaning.
• Do not use this product near water, for
example, near a bath tub, wash bowl,
kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool.
• Do not place this product on an unstable
cart, stand or table. The product may fall,
causing serious damage to the product.
• Slots and openings in the cabinet and
the back or bottom are provided for ventilation, to protect it from overheating.
These openings must not be blocked or
covered. The openings should never be
blocked by placing the product on the bed,
sofa, rug, or other similar surface. This
product should never be placed near or
over a radiator or heat register. This
product should not be placed in a built-in
installation unless proper ventilation is
provided.
• Do not allow anything to rest on the
power cord. Do not locate this product
where the cord will be abused by persons
walking on it.
E
N
G
L
I
S
H
SAVE THESE INSTRUCTIONS
3
SAFETY INSTRUCTIONS
• Never push objects of any kind into this
product through cabinet slots as they may
touch dangerous voltage points or short
out parts that could result in a risk of fire or
electric shock. Never spill liquid of any
kind on the product.
• To reduce the risk of electric shock, do
not disassemble this product. Opening or
removing covers may expose you to
dangerous voltages or other risks. Incorrect reassembly can cause electric shock
when the appliance is subsequently used.
• Unplug this product from the wall outlet
and refer servicing to the manufacturer
under the following conditions:
A. When the power supply cord or plug is
damaged or frayed.
B. If liquid has been spilled into the
product.
C. If the product has been exposed to rain
or water.
D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are
covered by the operating instructions
because improper adjustment of other
controls may result in damage and will
often require extensive work by a qualified
technician to restore the product to normal
operation.
E. If the product has been dropped or the
cabinet has been damaged.
F. If the product exhibits a distinct change
in performance.
• Avoid using a telephone (other than a
cordless type) during an electrical storm.
There may be a remote risk of electric
shock from lightning.
• Do not use this telephone to report a gas
leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
4
W-1100 Clarity Extra
SAFETY INSTRUCTIONS
The following items are included as part of
the CS-03 Requirements.
The Load Number of the equipment is 20.
The standard connecting arrangement
code for the equipment is CA11A.
NOTICE: The Canadian Department of
Communications label identifies certified
equipment. This certification means that
the equipment meets certain telecommunications network protective operational and
safety requirements. The Department
does not guarantee that the equipment will
operate to the user’s satisfaction.
Before installing this equipment, users
should ensure that it is permissible to be
connected to the facilities of the local
telecommunications company. The equipment must also be installed using an
acceptable method of connection. In some
cases, the company’s inside wiring associated with a single line individual service
may be extended by means of a certified
connector assembly (telephone extension
cord). The customer should be aware that
compliance with the above conditions may
not prevent degradation of service in some
situations.
Repairs to certified equipment should be
made by an authorized Canadian maintenance facility designated by the supplier.
Any repairs or alterations made by the
user to this equipment, or equipment
malfunctions, may give the telecommunications company cause to request the
user disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections
of the power utility, telephone lines and
internal metallic water pipe system, if
present, are connected together. This
precaution may be particularly important in
rural areas.
Caution: Users should not attempt to make
such connections themselves, but should
contact the appropriate electric inspection
authority, or electrician, as appropriate.
The Load Number (LN) assigned to each
terminal device denotes the percentage of
total load to be connected to a telephone
loop which is used by the device to prevent overloading. The termination on a
loop may consist of any combination of
devices subject only to the requirement
that the total of the load numbers of all the
devices does not exceed 100.
E
N
G
L
I
S
H
SAVE THESE INSTRUCTIONS
5
UNPACKING THE WALKER CLARITY
®
Inside you will find the following items:
A. Handset
B. Handset Line Cord (Coiled, 10 ft.)
C. Base Unit
D. Phone Line Cord (long, flat)
E. Desk/Wall-Mounting Bracket
F . AC Adapter
G. This User’s Guide
Carefully remove all of the contents from
the package. If there is any visible damage, or any of the contents are missing, do
not attempt to operate this equipment.
Please call 1-800-552-3368 to exchange
this unit for a factory-fresh replacement. In
addition to the items listed above, you will
need one of the following to complete
installation of this unit:
• Modular Wall Jack, or
• RJ-11C Modular Jack Adapter (if you
have an older 4-prong jack)
D
A
B
C
G
F
E
6
W-1100 Clarity Extra
INSTALLATION
Warning: To prevent electrical shock,
always remove the telephone line cord
from the wall jack before removing the
cord from the telephone. Never leave the
line cord connected to the wall jack if it is
not also connected to the telephone.
AC adapter should be unplugged when not
in use.
➤
Connecting
the Clarity Phone:
To install as a Desk Unit:
• Plug one end of the telephone line cord
(long, flat) into the back of the Walker
Clarity.
• Plug the other end of the telephone line
cord into the wall jack.
E
N
G
L
I
S
H
➤
Select a Location:
• This unit requires a modular phone jack
and a standard 120 volt outlet.
• The unit should be located in an area
where it is easy to see the lighted ringer.
• The unit can be used as a desk top
phone or a wall mount phone.
Avoid placing the unit where it will be
exposed to excessive heat or humidity.
• Plug one end of the handset cord (coiled)
into the bottom of the handset.
• Plug the other end of the handset cord
into the jack located on the left edge of the
Walker Clarity.
• Place the handset in the cradle of the
Walker Clarity.
• Connect AC adapter into back of unit and
plug directly into standard 120 volt outlet.
7
INSTALLATION
Installation View
Flat cord here
AC adapter
120 volt
outlet
AC adapter
plugs-in here
RJ-11C
Note: If you are
plugging the
phone into an
older 4-prong
jack, use an
RJ11C adapter
Coiled
cord here
PROGRAM
EXTRA
REDIAL FLASH
HOLD
HELP
MUTE
BOOST
CLARITY
12345
678910
SIGNAL
WALKER
8
W-1100 Clarity Extra
INSTALLATION
Walker Clarity comes assembled with
mounting bracket attached in desk mount
position. For wall mounting simply remove
bracket, rotate 180° and reattach as
shown.
Desk
Mount
key
Wall
Mount
Key
Back of
Phone
E
N
G
L
I
S
H
Wall
Mount
Bracket

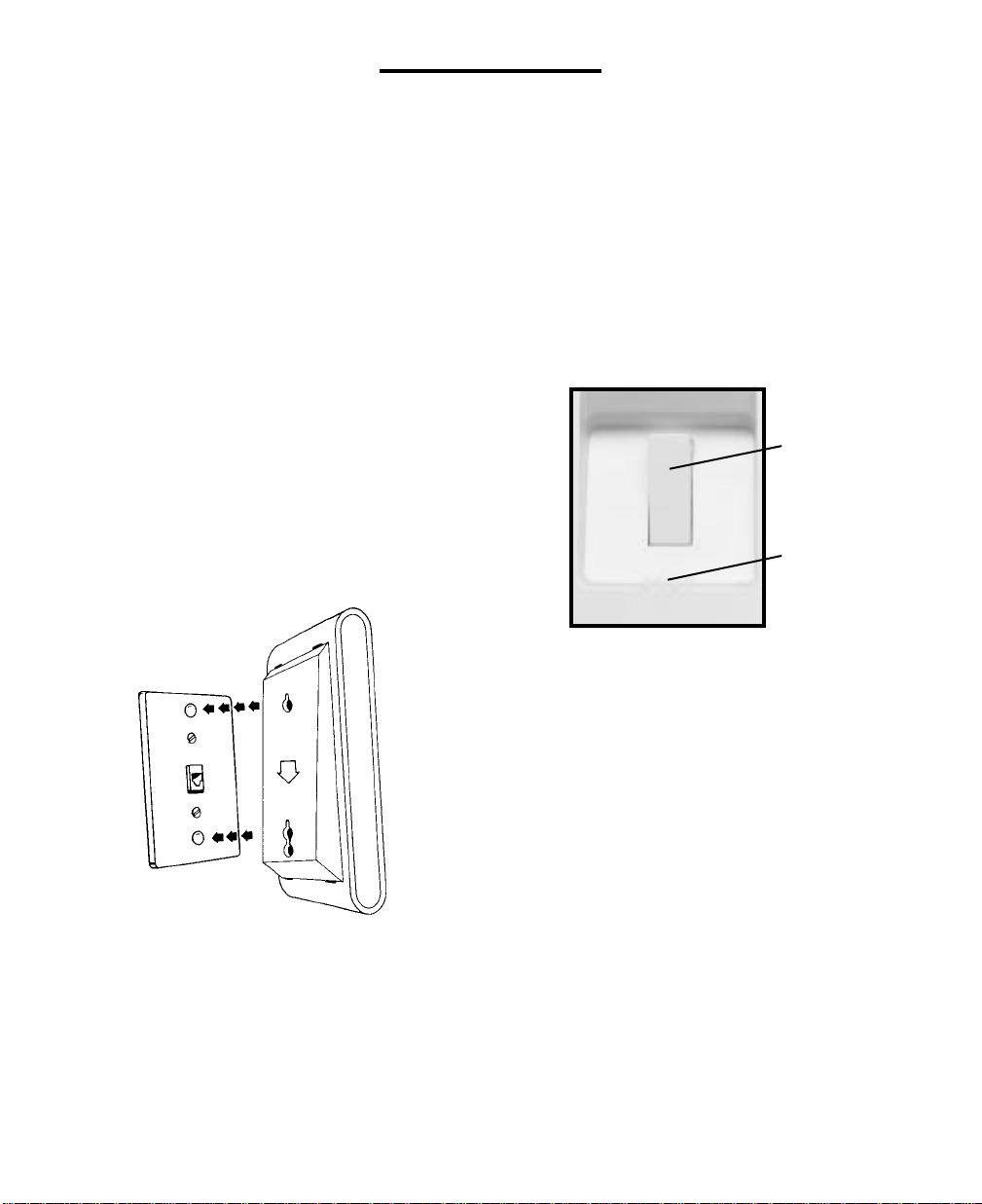

• Attach the wall-mounting bracket to the
bottom of the Walker Clarity. It snaps into
place. The cord should run underneath the
wall mounting bracket.
To Install As a Wall Unit:
Important: A modular wall jack with raised
mounting pins is required for installation
as a Wall Unit.
• Insert AC adapter into back of base unit,
run cord underneath back plate and
through opening on bottom.
• Plug AC adapter directly into standard
120 volt outlet.
• Plug one end of the telephone line cord
(long, flat) into the back of the Walker
Clarity.
• Plug the other end of the telephone line
cord into the wall jack with raised mounting pins. You can store excess line cord
inside the wall mounting bracket.
Note: If the wall-mounting bracket is
already placed in the desk mount position,
remove it by pressing the tabs and turning
it 180° per the key shown for the wallmount.
9
