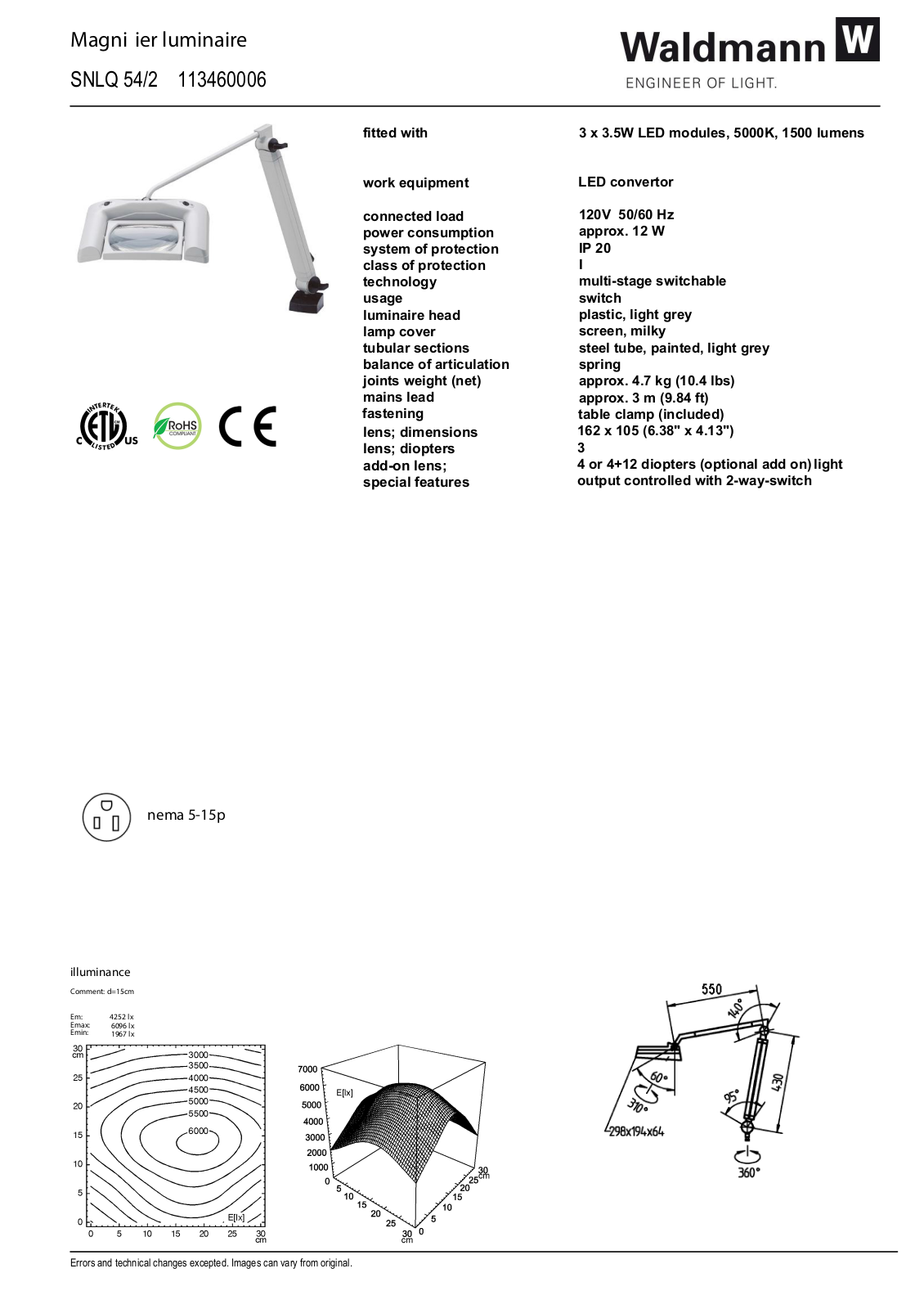

Waldmann 113460006 Information guide

Comment: d=15cm

Magni ier luminaire

SNLQ 54/2 113460006

fitted with

work equipment

connected load
power consumption
system of protection
class of protection
technology
usage
luminaire head
lamp cover
tubular sections
balance of articulation
joints weight (net)
mains lead
fastening

lens; dimensions
lens; diopters
add-on lens;
special features

3 x 3.5W LED modules, 5000K, 1500 lumens

LED convertor

120V 50/60 Hz
approx. 12 W
IP 20
I
multi-stage switchable
switch
plastic, light grey
screen, milky
steel tube, painted, light grey
spring
approx. 4.7 kg (10.4 lbs)
approx. 3 m (9.84 ft)

table clamp (included)
162 x 105 (6.38" x 4.13")
3
4 or 4+12 diopters (optional add on) light
output controlled with 2-way-switch

nema 5-15p

illuminance

Em:

4252 lx

Emax:

6096 lx
1967 lx

Errors and technical changes excepted. Images can vary from original.
