Wago 857-810 Data Sheet

Page 1

Data sheet | Item number:857-810

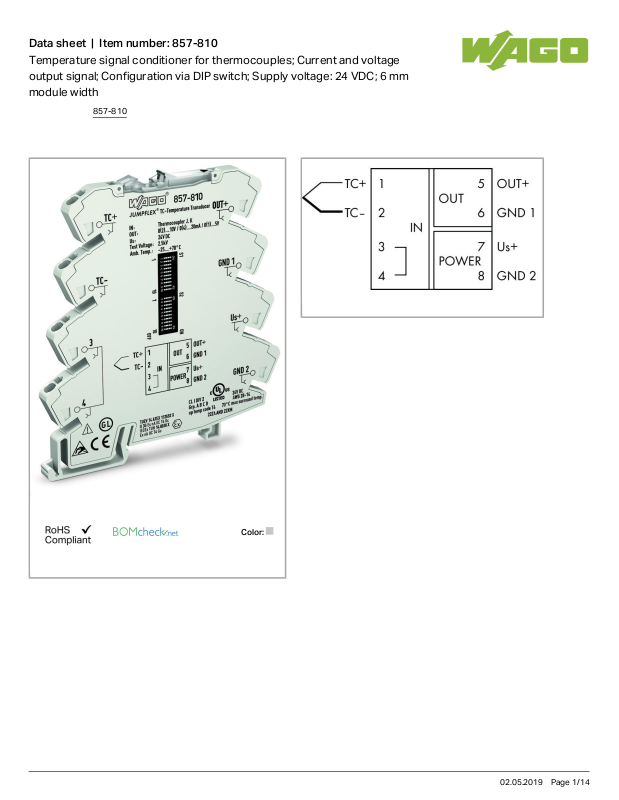

Temperature signal conditioner for thermocouples; Current and voltage output signal; Configuration via DIP switch; Supply voltage: 24 VDC; 6 mm module width

Color:

857-810

02.05.2019Page /1 14

Page 2

Data sheet | Item number:857-810

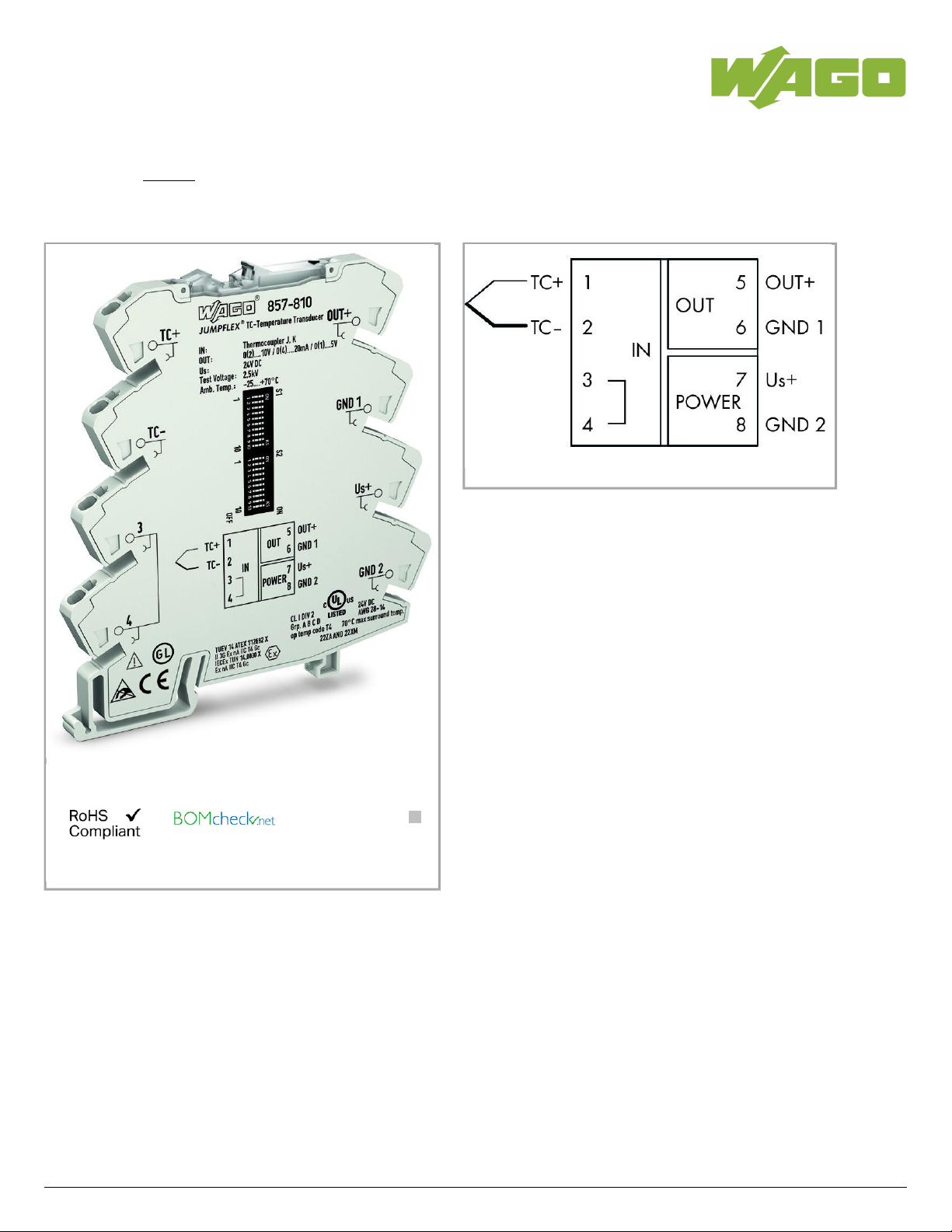

Item description

Short description:

This temperature signal conditioner records signals from type J and K thermocouples and converts the temperature signal into a standard analog signal on the output side.

Features:

For type J and K thermocouples

Cold junction compensation (on/off)

Switching between measurement ranges is calibrated

Detect sensor's wire break

Detect measurement range underflow/measurement range overflow

Integrate a switchable clipping function to limit the standard analog signal to the upper range values

Safe 3-way isolation with 2.5 kV test voltage per EN 61140

Data

Technical Data

Configuration

Configuration options DIP switches

Input

Input signal type TC sensors

Input – TC sensors

Sensor types (TC) Type J

Type K

Measurement range temperature (TC) -150 … 1200°C (Type J);-150 … 1350°C (Type K)

857-810

02.05.2019Page /2 14

Page 3

Data sheet | Item number:857-810

Min. measuring span (TC) 100 K

Cold junction compensation On/Off (Default: On)

Cold junction error 3 K (typ. 2 K )

Output

Output signal type Current

Voltage

Output signal voltage 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V

Output signal current 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA

Load impedance (output/voltage) ≥2kΩ

Load impedance (output/current) ≤600Ω

Signal processing

Step response typ. 60ms (cold junction compensation off);120ms (cold junction

compensation on)

Measurement error

Transmission error typ. ≤ 0.1 % at max. measuring span (Type J, K)

Transmission error of set measurement range ≤ (150 K/set measurement range [K]) %

Temperature coefficient ≤ 0.04 %/K

Power supply

Type of power supply 24 VDC

Nominal supply voltage U

DC24V

Supply voltage range ±30%

Current consumption at supply voltage ≤40mA

Safety and protection:

Test voltage (input/output/supply) AC 2.5kV;50Hz;1min

Protection class IP20

Connection data

Connection technology

Push-in CAGE CLAMP

Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG

Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Geometrical Data

Width 6mm/ 0.236inch

857-810

02.05.2019Page /3 14

Page 4

Data sheet | Item number:857-810

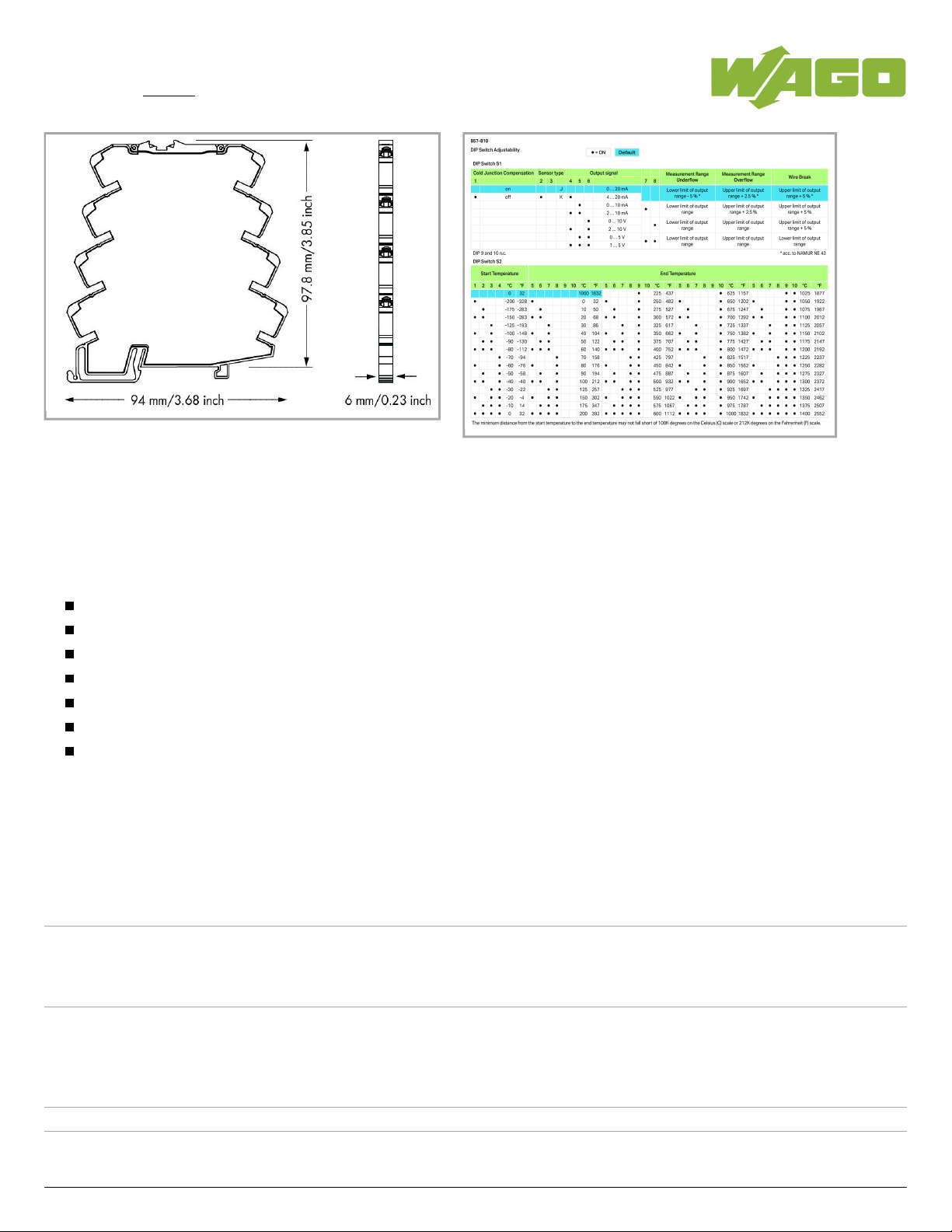

Height from upper-edge of DIN-35 rail 97.8mm/ 3.85inch

Depth 94mm/ 3.701inch

Mechanical data

Type of mounting DIN-35 rail

Material Data

Color light gray

Fire load 0 MJ

Weight 35.5 g

Environmental Requirements

Surrounding air (operating) temperature -25 … 70°C

Surrounding air (storage) temperature -40 … 85°C

Standards and specifications

Conformity marking 1

EMC immunity to interference EN 61000-6-2

EMC emission of interference EN 61000-6-4

Commercial data

Product Group 6 (Interface Electronics)

Country of origin DE

GTIN 4045454470135

Customs Tariff No. 85437090300

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text Certificate name

IECEx

TUEV Nord Cert GmbH

IEC 60079-0 IECEX_TUN_14.0030_X

IECEx

TUEV Nord Cert GmbH

EN 60079-0 TÜV_14_ATEX_112692_X

Ship Approvals

Logo Approval Additional Approval Text

Certificate name

857-810

02.05.2019Page /4 14

Page 5

Data sheet | Item number:857-810

Bureau Veritas S.A.

- 40179_A0

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAA00001D1

Nippon Kaiji Kyokai

- TA17255M

PRS

Polski Rejestr Statków

- TE/2186 /880590/18

UL-Approvals

Logo Approval Additional Approval Text

Certificate name

UL International Netherlands B.V. (ORDINARY LOCATIONS)

UL 508 E175199

Sec.4
