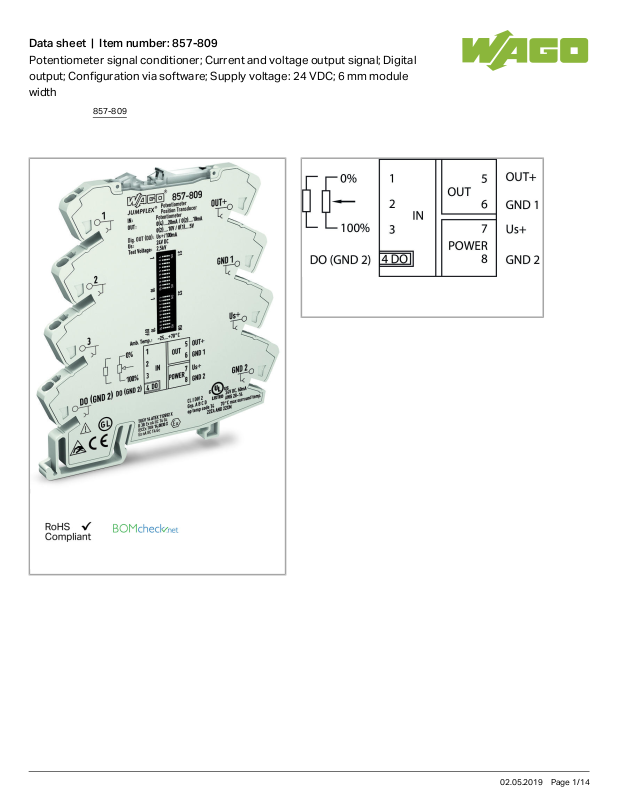

Page 1
Data sheet | Item number:857-809
Potentiometer signal conditioner; Current and voltage output signal; Digital
output; Configuration via software; Supply voltage: 24 VDC; 6 mm module
width
857-809
02.05.2019Page /1 14
Page 2
Data sheet | Item number:857-809
Item description
Short description:
The Potentiometer Position Signal Conditioner records resistance signals (e.g., from potentiometers), and converts them into standard analog
signals. The device is supplied with 24 VDC (nominal voltage). It is set via DIP switches or push and slide switches.
Features:
PC configuration interface
Calibrated measurement range switching
Automatic potentiometer identification
Safe 3-way isolation with 2.5 kV test voltage per EN 61140
Note:
Additional setting options via interface configuration software or interface configuration app
Data
Technical Data
Configuration
Configuration options DIP switches
Interface configuration software
Interface configuration app
Push/slide switch
857-809
02.05.2019Page /2 14
Page 3
Data sheet | Item number:857-809
Input
Input signal type Potentiometers
Resistance
Input – Resistors
Input range resistance 10Ω … 100kΩ
Input range potentiometer 100Ω … 100kΩ
Max. potentiometer supply voltage 2.5 V
Min. measurement range 100 Ω
Output
Output signal type Current
Voltage
Output signal voltage 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V
Output signal current 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA
Load impedance (output/voltage) ≥2kΩ
Load impedance (output/current) ≤600Ω
Output – Digital
Max. switching voltage (DO) Supply voltage applied
Max. continuous current (DO) 100mA (no internal restriction)
Number of switching tresholds (DO) 1 (adjustable)
Signal processing
Step response typ. 32ms
Measurement error
Transmission error typ. ≤ 0.1 % of upper range value
Temperature coefficient ≤ 0.01 %/K
Power supply
Type of power supply 24 VDC
Nominal supply voltage U
S
DC24V
Supply voltage range ±30%
Current consumption at supply voltage ≤40mA(+ I )
DO
Safety and protection:
Test voltage (input/output/supply) AC 2.5kV;50Hz;1min
857-809
02.05.2019Page /3 14
Page 4
Data sheet | Item number:857-809
Protection class IP20
Connection data
Connection technology
Push-in CAGE CLAMP
®
Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG
Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Geometrical Data
Width 6mm/ 0.236inch
Height from upper-edge of DIN-35 rail 97.8mm/ 3.85inch
Depth 94mm/ 3.701inch
Mechanical data
Type of mounting DIN-35 rail
Material Data
Color light gray
Fire load 0 MJ
Weight 36.6 g
Environmental Requirements
Surrounding air (operating) temperature -25 … 70°C
Surrounding air (storage) temperature -40 … 85°C
Standards and specifications
Conformity marking 1
EMC immunity to interference EN 61000-6-2
EMC emission of interference EN 61000-6-4
Commercial data
Product Group 6 (Interface Electronics)
Country of origin DE
GTIN 4050821480761
Customs Tariff No. 85437090300
Approvals / Certificates
Ship Approvals
Certificate
857-809
02.05.2019Page /4 14
Page 5
Data sheet | Item number:857-809
Logo Approval Additional Approval Text
Certificate
name
BV
Bureau Veritas S.A.
- 40179_A0
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAA00001D1
PRS
Polski Rejestr Statków
- TE/2186
/880590/18
PRS
Polski Rejetr Statkow
- TE/1989
/880590/13
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Netherlands B.V. (ORDINARY
LOCATIONS)
UL 508 E175199
Sec.4
(ORDINARY
LOCATIONS)
