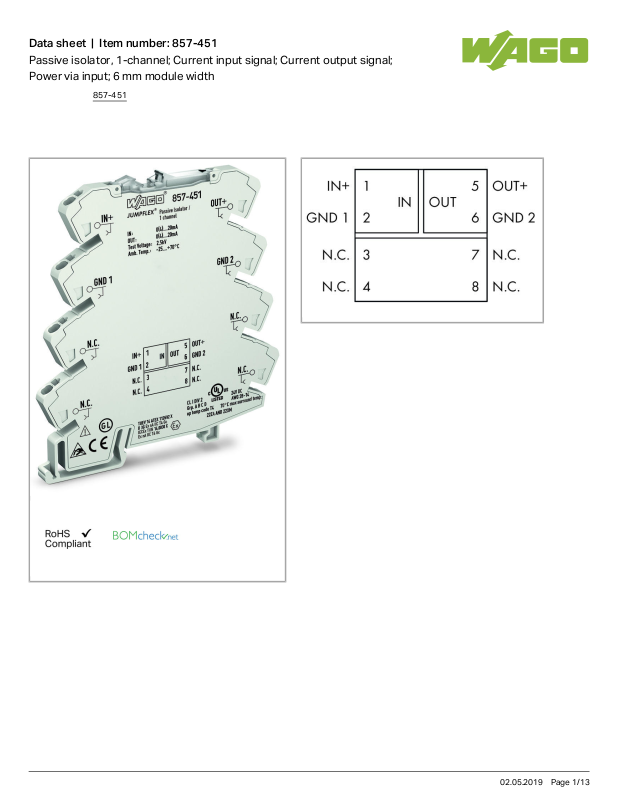

Data sheet | Item number:857-451
Passive isolator, 1-channel; Current input signal; Current output signal; Power via input; 6 mm module width
857-451
02.05.2019Page /1 13
Page 2

Item description

Short description:
WAGO’s passive isolator (1‐channel) electrically isolates and filters 0(4)–20 mA standard analog signals, while drawing power for signal transmission from the input circuit. The connected sensor supplies the passive isolator with the required power to energize the connected load.
Characteristics:
No additional supply voltage required
Safe 2-way isolation with 2.5kV test voltage per EN 61140

Data

Technical Data

Configuration

Configuration options permanently configured

Input

Input signal type Current
Input signal, current 0 … 20mA;4 … 20mA
Voltage drop at input ≤2.5V (at 20 mA at the output)
Max. input current 40mA
Max. input voltage 20 V
Response threshold 200 µA

Output

Output signal type Current
Output signal current 0 … 20 mA; 4 … 20 mA
Load impedance (output/current) ≤600Ω (temperature range restrictions may occur)
857-451
02.05.2019Page /2 13
Page 3
Signal processing
Max. operating frequency 100Hz
Step response typ. 3.5ms

Measurement error

Transmission error typ. ≤ 0.1 % of upper range value
Load error ≤ 0.05% (of the full scale value; per 100 Ω load)
Temperature coefficient ≤ 0.01 %/K

Power supply

Type of power supply passive (via input)

Safety and protection:

Test voltage (input/output/supply) AC 2.5kV;50Hz;1min
Protection class IP20

Connection data

Connection technology
Push-in CAGE CLAMP
®
Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG
Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch

Geometrical Data

Width 6mm/ 0.236inch
Height from upper-edge of DIN-35 rail 97.8mm/ 3.85inch
Depth 94mm/ 3.701inch

Mechanical data

Type of mounting DIN-35 rail

Material Data

Color light gray
Fire load 0.747 MJ
Weight 34.2 g

Environmental Requirements

Surrounding air (operating) temperature -25 … 70°C
Surrounding air (storage) temperature -40 … 85°C
857-451
02.05.2019Page /3 13
Page 4
Standards and specifications
Conformity marking 1
EMC immunity to interference EN 61000-6-2
EMC emission of interference EN 61000-6-4

Commercial data

Product Group 6 (Interface Electronics)
Country of origin DE
GTIN 4045454471323
Customs Tariff No. 85437090300
