Data sheet | Item number:857-424

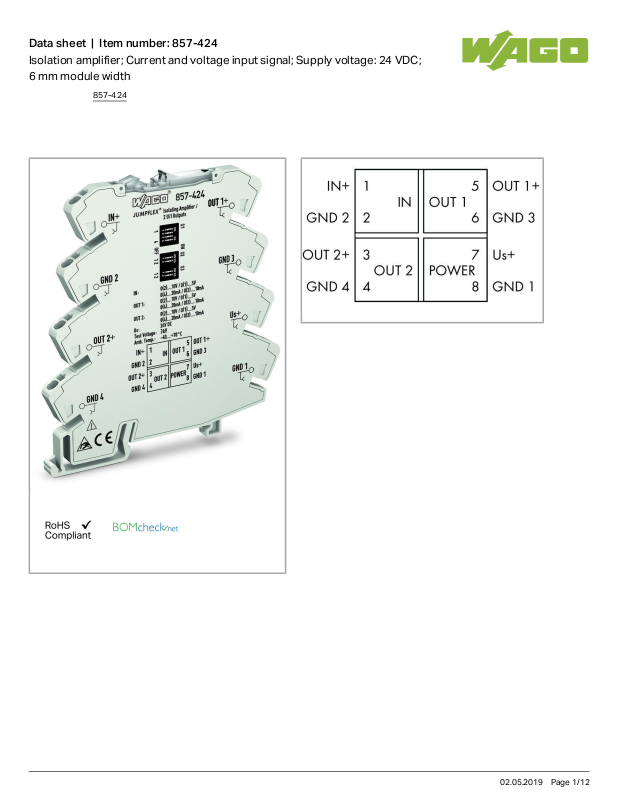

Isolation amplifier; Current and voltage input signal; Supply voltage: 24 VDC;
6 mm module width
857-424
02.05.2019Page /1 12
Page 2
Data sheet | Item number:857-424
Item description
Short description:
WAGO’s signal splitter converts, amplifies, filters, and electrically isolates standard analog signals. In addition, the input signal is split into two
separate outputs.
Features:
Two configurable voltage/current outputs
Switchable limit frequency
Safe 4-way isolation with 3 kV test voltage per EN 61010-1
Data
Technical Data
Configuration
Configuration options DIP switches
Input
Input signal type Voltage
Current
Input signal voltage 0 … 5V;1 … 5V;0 … 10V;2 … 10V
Input signal, current 0 … 10mA;2 … 10mA;0 … 20mA;4 … 20mA
Input resistance (intput/current) ≤50Ω
Input resistance (input/voltage) ≥100kΩ
Max. input current 50 mA
Max. input voltage 30 V
Output
Output signal type Voltage
Current
Output signal voltage 0 … 10 V; 2 … 10 V (calibrated switchable)
857-424
02.05.2019Page /2 12
Page 3
Data sheet | Item number:857-424
Output signal current 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA (calibrated switchable)
Load impedance (output/voltage) ≥2kΩ
Load impedance (output/current) ≤600Ω
Signal processing
Max. operating frequency 100Hz/ 1kHz (configurable via DIP switch)
Step response typ. 3.5ms (100 Hz);300µs (1 kHz)
Measurement error
Transmission error typ. ≤ 0.1 % of upper range value
Temperature coefficient ≤ 0.01 %/K
Power supply
Type of power supply 24 VDC
Nominal supply voltage U
S
DC24V
Supply voltage range ±30%
Current consumption at supply voltage ≤35mA
Safety and protection:
Test voltage (input/output/supply) AC 3kV;50Hz;1min
Protection class IP20
Connection data
Connection technology
Push-in CAGE CLAMP
®
Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG
Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Geometrical Data
Width 6mm/ 0.236inch
Height from upper-edge of DIN-35 rail 97.8mm/ 3.85inch
Depth 94mm/ 3.701inch
Mechanical data
Type of mounting DIN-35 rail
Material Data
Fire load 0 MJ
857-424
02.05.2019Page /3 12
Page 4
Data sheet | Item number:857-424
Weight 41.514 g
Environmental Requirements
Surrounding air (operating) temperature -40 … 70°C
Surrounding air (storage) temperature -40 … 85°C
Max. operating altitude 2000 m
Standards and specifications
Conformity marking 1
EMC immunity to interference EN 61000-6-2; EN 61326-1; EN 50121-3-2
EMC emission of interference EN 61000-6-3; EN 61326-1; EN 50121-3-2
Standards/specifications EN 61010-1; EN 61373
Commercial data
Country of origin DE
GTIN 4055143595476
Customs Tariff No. 85437090300
Compatible products
power supply
Item no.: 787-2852
Switched-mode power supply; for JUMPFLEX® Signal Conditioners; 1-phase; 24 VDC output voltage; 1
A output current
787-2852
General accessories
Item no.: 857-979
Supply and through module
857-979
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
