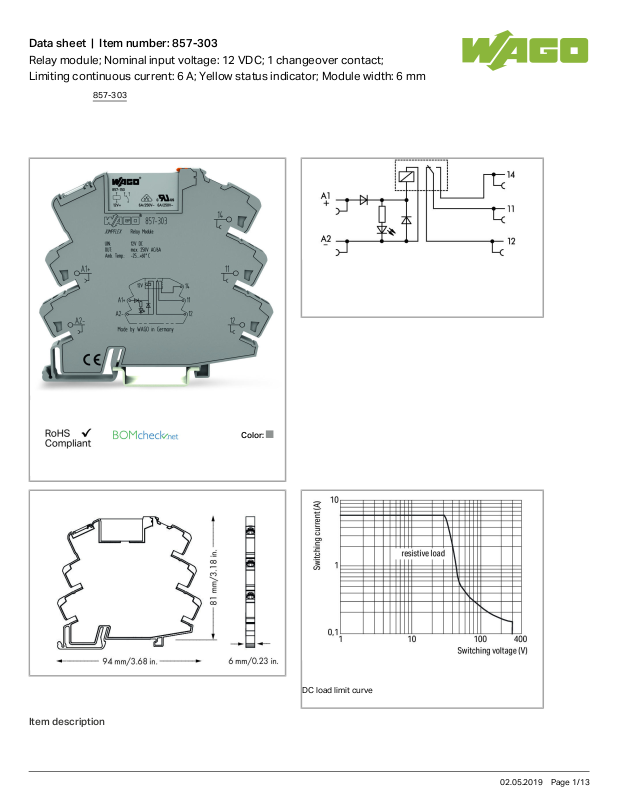

Data sheet | Item number:857-303
Relay module; Nominal input voltage: 12 VDC; 1 changeover contact;
Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm
DC load limit curve
Color:
Item description
857-303
02.05.2019Page /1 13
Page 2
Data sheet | Item number:857-303
Note:
Inductive loads have to be attenuated by an appropriate protective circuit in order to protect relay coils and contacts.
Data
Technical Data
Control circuit
Nominal input voltage U
N
DC12V
Input voltage range -15 … +20%
Nominal input current at U
N
17mA
Load circuit:
Number of changeover/switchover contacts 1
Contact material (relay) AgSnO
2
Limiting continuous current 6A
Max. make current (resistive) (AC) 20A/ 0.02s
Max. switching voltage AC250V
Max. switching power (resistive) AC1,500VA;DC see load limit curve
Switching capacity AC-15:3A/ AC250V;DC-13:2A/ DC24V
Recommended minimum load 10V/ 10mA;24V/ 1mA
Pull-in time (typ.) 15 ms
Drop-out time (typ.) 25ms
Bounce time (typ) 3.5 ms
Electrical life (N.O.; resistive load; 23 °C)
50x 10 switching operations
3
Mechanical life (N.O.; resistive load; 23 °C)
5x 10 switching operations
6
Max. switching load with load/without load
6min / 180min
-1 -1
Signaling
Status indication LED yellow
Safety and protection:
Rated voltage 250 V
Rated impulse voltage 4 kV
Pollution degree 2
Dielectric strength, control/load circuit (AC, 1 min) 4kVrms
Dielectric strength open contact (AC, 1 min) 1kVrms
857-303
02.05.2019Page /2 13
Page 3
Data sheet | Item number:857-303
Protection class IP20
Connection data
Connection technology
Push-in CAGE CLAMP
®
Solid conductor 0.34 … 2.5mm²/ 22 … 14AWG
Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Geometrical Data
Width 6mm/ 0.236inch
Height from upper-edge of DIN-35 rail 81mm/ 3.189inch
Depth 94mm/ 3.701inch
Mechanical data
Type of mounting DIN-35 rail
Material Data
Color gray
Fire load 0.631 MJ
Weight 30.6 g
Environmental Requirements
Pollution degree 2
Surrounding air (operating) temperature at U
N
-40 … 60°C
Surrounding air (storage) temperature -40 … 70°C
Processing temperature -25 … +50°C
Standards and specifications
Standards/specifications EN 61010-2-201; EN 61810-1; EN 61373; UL 508; ATEX, IEC Ex
Elementary relay
WAGO elementary relay 857-150
Commercial data
Product Group 6 (Interface Electronics)
Country of origin CN
GTIN 4055143135207
Customs Tariff No. 85364900990
857-303
02.05.2019Page /3 13
Page 4
Data sheet | Item number:857-303
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text Certificate name
ATEX
DEKRA EXAM GmbH
EN 60079-0 BVS_14_ATEX_E_091_X
IECEx
DEKRA EXAM GmbH
IEC 60079-0 IECEx_BVS_14.0079_X
UL
UL International Germany GmbH (HAZARDOUS
LOCATIONS)
ANSI/ISA 12.12.01 E198726 Sec.4
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Netherlands B.V. (ORDINARY
LOCATIONS)
UL 508 E175199
Sec.4
Compatible products
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
857-303
02.05.2019Page /4 13
Page 5
Data sheet | Item number:857-303
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 209-128
Adaptor
209-128
Item no.: 209-183
Marker card
209-183
Item no.: 210-110
Fiber-tip pen
210-110
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
857-303
02.05.2019Page /5 13
Page 6
Data sheet | Item number:857-303
Item no.: 793-502
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
Item no.: 793-502/000-002
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-002
Item no.: 793-502/000-005
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-005
Item no.: 793-502/000-006
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-006
Item no.: 793-502/000-007
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-007
Item no.: 793-502/000-012
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-012
Item no.: 793-502/000-017
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-017
Item no.: 793-502/000-023
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-023
Item no.: 793-502/000-024
WMB marking card; as card; MARKED; 1 ... 10 (10x); not stretchable; Horizontal marking; snap-on type
793-502
/000-024
Item no.: 793-503
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
Item no.: 793-503/000-002
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-002
Item no.: 793-503/000-005
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-005
Item no.: 793-503/000-006
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-006
Item no.: 793-503/000-007
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-007
Item no.: 793-503/000-012
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-012
857-303
02.05.2019Page /6 13
Page 7
Data sheet | Item number:857-303
Item no.: 793-503/000-017
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-017
Item no.: 793-503/000-023
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-023
Item no.: 793-503/000-024
WMB marking card; as card; MARKED; 11 ... 20 (10x); not stretchable; Horizontal marking; snap-on type
793-503
/000-024
Item no.: 793-504
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
Item no.: 793-504/000-002
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-002
Item no.: 793-504/000-005
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-005
Item no.: 793-504/000-006
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-006
Item no.: 793-504/000-012
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-012
Item no.: 793-504/000-017
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-017
Item no.: 793-504/000-023
WMB marking card; as card; MARKED; 21 ... 30 (10x); not stretchable; Horizontal marking; snap-on type
793-504
/000-023
Item no.: 793-505
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
Item no.: 793-505/000-005
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-005
Item no.: 793-505/000-006
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-006
Item no.: 793-505/000-007
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-007
Item no.: 793-505/000-012
WMB marking card; as card; MARKED; 31 ... 40 (10x); not stretchable; Horizontal marking; snap-on type
793-505
/000-012
Item no.: 793-506
857-303
02.05.2019Page /7 13
Page 8
Data sheet | Item number:857-303
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type 793-506
Item no.: 793-506/000-005
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-005
Item no.: 793-506/000-006
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-006
Item no.: 793-506/000-012
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-012
Item no.: 793-506/000-017
WMB marking card; as card; MARKED; 41 ... 50 (10x); not stretchable; Horizontal marking; snap-on type
793-506
/000-017
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on
type
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on
type
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-014
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-014
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
857-303
02.05.2019Page /8 13
Page 9
Data sheet | Item number:857-303
Item no.: 793-566
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
Item no.: 793-566/000-002
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-002
Item no.: 793-566/000-005
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-005
Item no.: 793-566/000-006
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-006
Item no.: 793-566/000-007
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-007
Item no.: 793-566/000-012
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-012
Item no.: 793-566/000-017
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-017
Item no.: 793-566/000-023
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-023
Item no.: 793-566/000-024
WMB marking card; as card; MARKED; 1 ... 50 (2x); not stretchable; Horizontal marking; snap-on type
793-566
/000-024
tools
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
Jumper
Item no.: 281-482
Comb-style jumper bar; insulated; 2-way; IN = IN terminal block
281-482
Item no.: 859-402
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated
859-402
Item no.: 859-402/000-005
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated
859-402
/000-005
Item no.: 859-402/000-006
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated
859-402
/000-006
Item no.: 859-402/000-029
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated
859-402
/000-029
857-303
02.05.2019Page /9 13
Page 10
Data sheet | Item number:857-303
Item no.: 859-403
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated
859-403
Item no.: 859-403/000-005
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated
859-403
/000-005
Item no.: 859-403/000-006
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated
859-403
/000-006
Item no.: 859-403/000-029
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated
859-403
/000-029
Item no.: 859-404
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated
859-404
Item no.: 859-404/000-005
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated
859-404
/000-005
Item no.: 859-404/000-006
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated
859-404
/000-006
Item no.: 859-404/000-029
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated
859-404
/000-029
Item no.: 859-405
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated
859-405
Item no.: 859-405/000-005
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated
859-405
/000-005
Item no.: 859-405/000-006
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated
859-405
/000-006
Item no.: 859-405/000-029
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated
859-405
/000-029
Item no.: 859-406
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated
859-406
Item no.: 859-406/000-005
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated
859-406
/000-005
Item no.: 859-406/000-006
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated
859-406
/000-006
Item no.: 859-406/000-029
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated
859-406
/000-029
857-303
02.05.2019Page /10 13
Page 11
Data sheet | Item number:857-303
Item no.: 859-407
Push-in type jumper bar; 7-way; Nominal current 18 A; insulated
859-407
Item no.: 859-407/000-005
Push-in type jumper bar; 7-way; Nominal current 18 A; insulated
859-407
/000-005
Item no.: 859-407/000-006
Push-in type jumper bar; 7-way; Nominal current 18 A; insulated
859-407
/000-006
Item no.: 859-407/000-029
Push-in type jumper bar; 7-way; Nominal current 18 A; insulated
859-407
/000-029
Item no.: 859-408
Push-in type jumper bar; 8-way; Nominal current 18 A; insulated
859-408
Item no.: 859-408/000-005
Push-in type jumper bar; 8-way; Nominal current 18 A; insulated
859-408
/000-005
Item no.: 859-408/000-006
Push-in type jumper bar; 8-way; Nominal current 18 A; insulated
859-408
/000-006
Item no.: 859-408/000-029
Push-in type jumper bar; 8-way; Nominal current 18 A; insulated
859-408
/000-029
Item no.: 859-409
Push-in type jumper bar; 9-way; Nominal current 18 A; insulated
859-409
Item no.: 859-409/000-005
Push-in type jumper bar; 9-way; Nominal current 18 A; insulated
859-409
/000-005
Item no.: 859-409/000-006
Push-in type jumper bar; 9-way; Nominal current 18 A; insulated
859-409
/000-006
Item no.: 859-409/000-029
Push-in type jumper bar; 9-way; Nominal current 18 A; insulated
859-409
/000-029
Item no.: 859-410
Push-in type jumper bar; 10-way; Nominal current 18 A; insulated
859-410
Item no.: 859-410/000-005
Push-in type jumper bar; 10-way; Nominal current 18 A; insulated
859-410
/000-005
Item no.: 859-410/000-006
Push-in type jumper bar; 10-way; Nominal current 18 A; insulated
859-410
/000-006
857-303
02.05.2019Page /11 13
Page 12
Data sheet | Item number:857-303
Item no.: 859-410/000-029
Push-in type jumper bar; 10-way; Nominal current 18 A; insulated
859-410
/000-029
General accessories
Item no.: 209-184
Protection cover
209-184
Item no.: 249-105
Group marker carrier
249-105
Item no.: 857-150
Basic relay; Nominal input voltage: 12 VDC; 1 changeover contact; Limiting continuous current: 6 A;
Module width: 5 mm; Module height: 15 mm
857-150
ferrule
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped;
acc. to DIN 46228, Part 4/09.90
216-243
Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90
216-244
Downloads
Documentation
Bid Text
857-303
Relaisbaustein
Jan 15, 2016 doc
27.1 kB
Download
Instruction Leaflet
Sockets, relay module, optocoupler module
Nominal input voltage 24VDC, switching current 0.1A
pdf
2.4 MB
Download
Additional Information
Disposal; Electrical and electronic equipment, Packaging V 1.0.0 pdf
265.8 kB
Download
CAD/CAE - Smart Data
CAD data
3D Download 857-303 URL Download
857-303
02.05.2019Page /12 13
Page 13
Data sheet | Item number:857-303
Step file 857-03xx Series
1.0
Jun 30, 2011
STP
299.3 kB
Download
857-303
Subject to changes.
02.05.2019Page /13 13
Loading...
