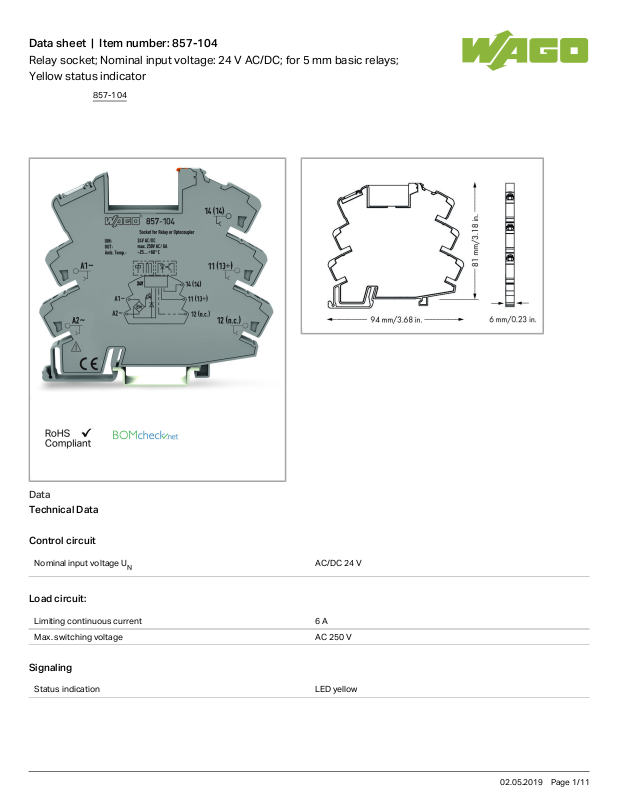

Data sheet | Item number:857-104
Relay socket; Nominal input voltage: 24 V AC/DC; for 5 mm basic relays;
Yellow status indicator
Data
Technical Data
Control circuit
Nominal input voltage U
N
AC/DC24V
Load circuit:
Limiting continuous current 6A
Max. switching voltage AC250V
Signaling
Status indication LED yellow
857-104
02.05.2019Page /1 11
Page 2
Data sheet | Item number:857-104
Safety and protection:
Protection class IP20
Connection data
Connection technology
Push-in CAGE CLAMP
®
Solid conductor 0.34 … 2.5mm²/ 22 … 14AWG
Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Geometrical Data
Width 6mm/ 0.236inch
Height from upper-edge of DIN-35 rail 81mm/ 3.189inch
Depth 94mm/ 3.701inch
Mechanical data
Type of mounting DIN-35 rail
Material Data
Fire load 0 MJ
Weight 26.32 g
Environmental Requirements
Surrounding air (operating) temperature at U
N
-40 … 70°C
Surrounding air (storage) temperature -40 … 70°C
Standards and specifications
Standards/specifications EN 61010-2-201; UR 508
Commercial data
Product Group 6 (Interface Electronics)
Country of origin CN
GTIN 4055143093729
Customs Tariff No. 85366990990
Approvals / Certificates
UL-Approvals
Certificate
857-104
02.05.2019Page /2 11
Page 3
Data sheet | Item number:857-104
Logo Approval Additional Approval Text name
UL
Underwriters Laboratories Inc. (ORDINARY
LOCATIONS)
UL 508 E175199
Vol.2 Sec.
1
