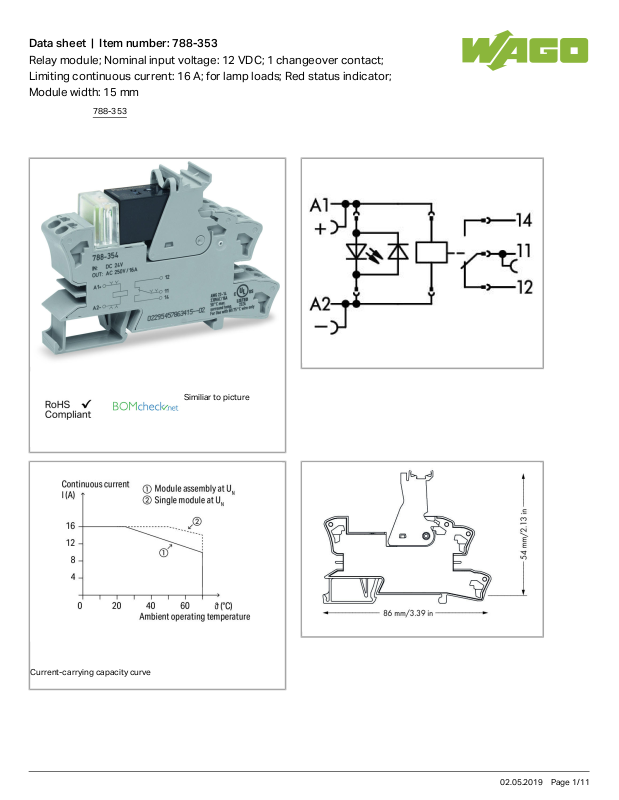

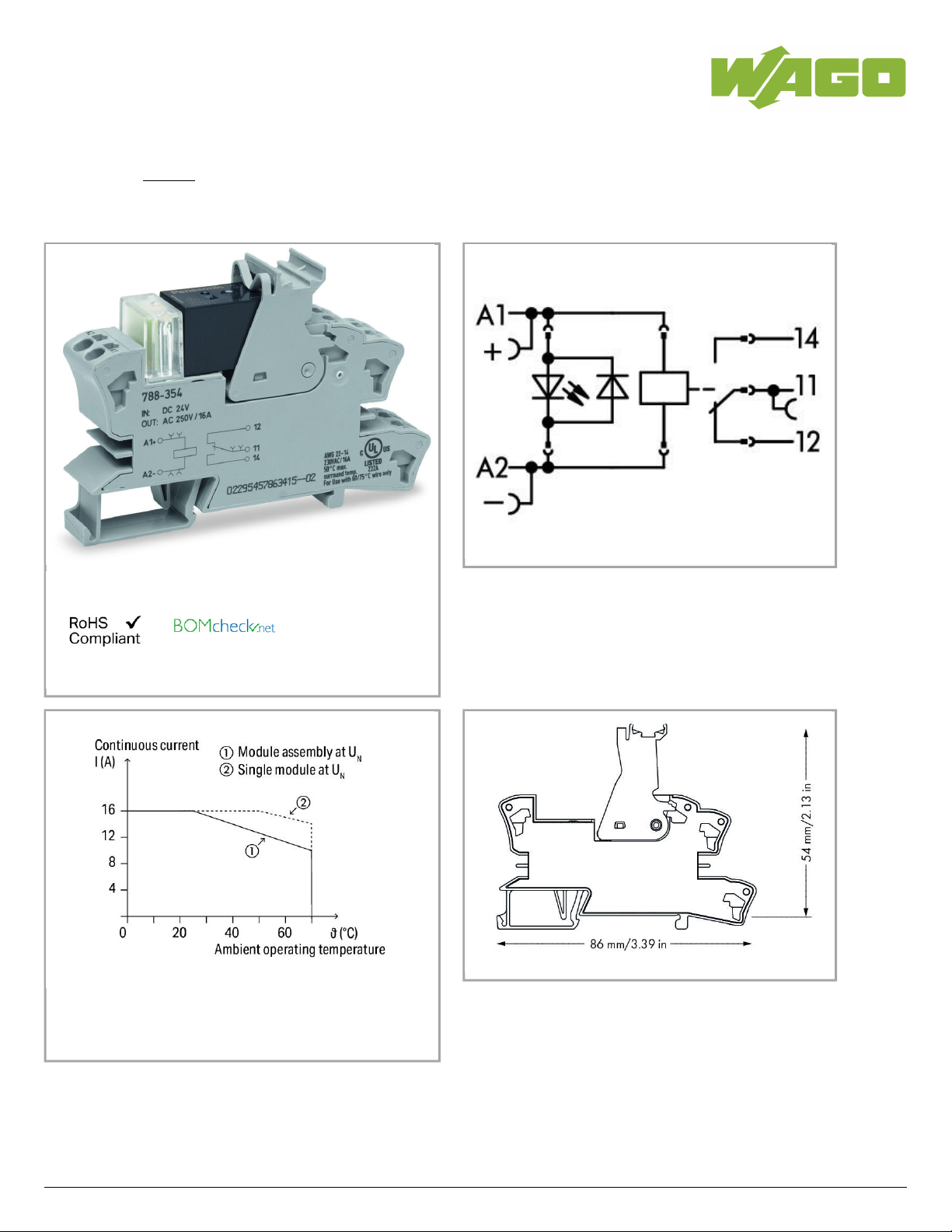

Wago 788-353 Data Sheet

Data sheet | Item number:788-353

Relay module; Nominal input voltage: 12 VDC; 1 changeover contact;
Limiting continuous current: 16 A; for lamp loads; Red status indicator;
Module width: 15 mm

Current-carrying capacity curve

Similiar to picture

788-353

02.05.2019Page /1 11

Data sheet | Item number:788-353

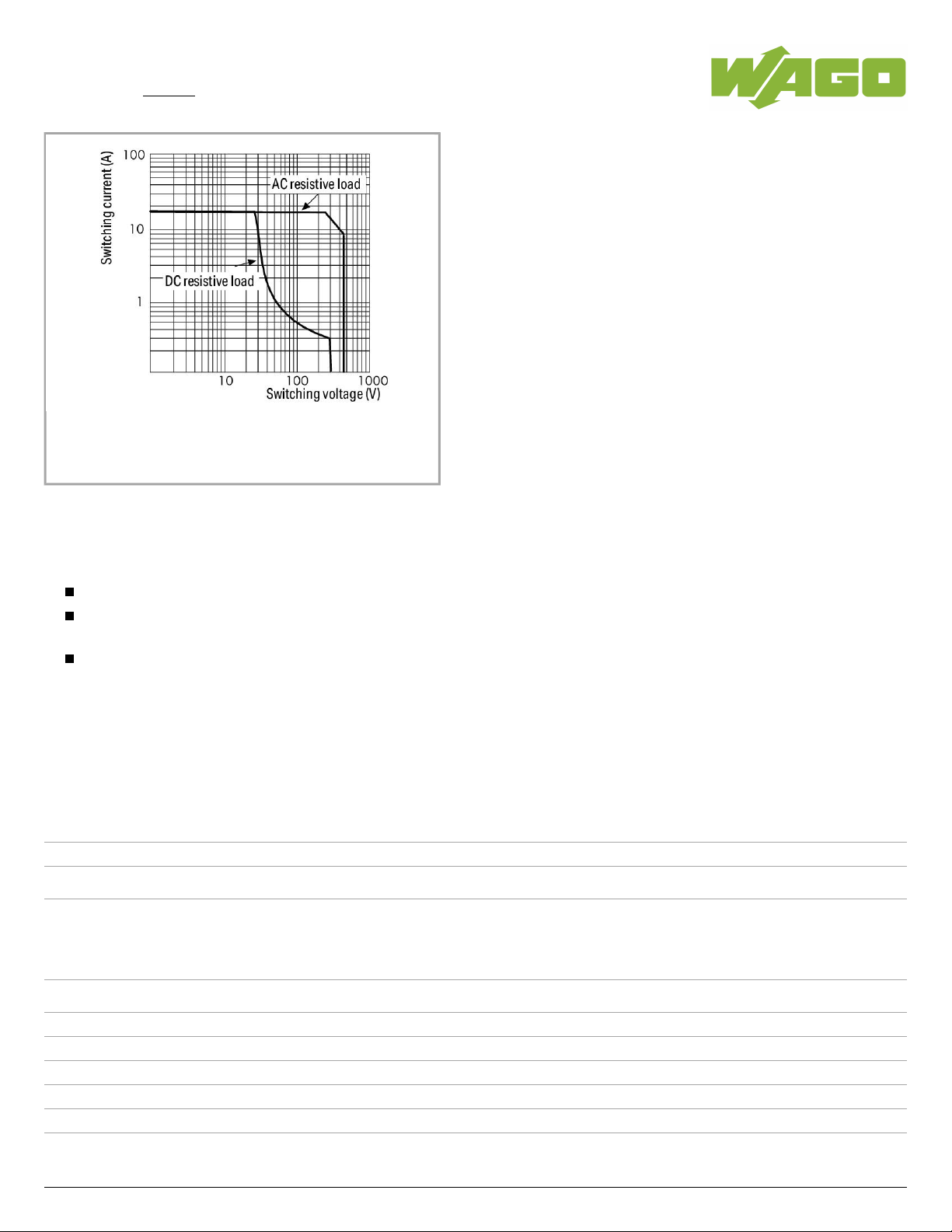

Load limit curve

Item description

Note:

Reinforced insulation between coil and contacts

A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the
reinforced insulation requirements.

To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

Data

Technical Data

Control circuit

Nominal input voltage U

N

DC12V

Input voltage range -15 … +20%

Nominal input current at U

N

35mA

Load circuit:

Number of changeover/switchover contacts 1

Contact material (relay) AgSnO

2

Limiting continuous current 16A

Max. make current (resistive) (AC) 120A/ 0.05s

Max. switching voltage AC250V

Max. switching power (resistive) AC4,000VA;DC see load limit curve

Recommended minimum load 5V/ 100mA

788-353

02.05.2019Page /2 11

Data sheet | Item number:788-353

Min. switching current 0µA

Pull-in time (typ.) 15 ms

Drop-out time (typ.) 5ms

Drop-out time ≤0µs

Electrical life (N.O.; resistive load; 23 °C)

100x 10 switching operations

3

Mechanical life (N.O.; resistive load; 23 °C)

10x 10 switching operations

6

Signaling

Status indication LED red

Safety and protection:

Rated voltage 250 V

Rated impulse voltage 4 kV

Pollution degree 3

Dielectric strength, control/load circuit (AC, 1 min) 5kVrms

Dielectric strength open contact (AC, 1 min) 1kVrms

Protection class IP20

Connection data

Connection technology

Push-in CAGE CLAMP

®

Solid conductor 0.34 … 2.5mm²/ 22 … 14AWG

Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Geometrical Data

Width 15mm/ 0.591inch

Height from upper-edge of DIN-35 rail 54mm/ 2.126inch

Depth 86mm/ 3.386inch

Mechanical data

Type of mounting DIN-35 rail

Material Data

Fire load 0 MJ

Weight 44.366 g

Environmental Requirements

Pollution degree 3

788-353

02.05.2019Page /3 11

Data sheet | Item number:788-353

Surrounding air (operating) temperature at U

N

-40 … 70°C

Surrounding air (storage) temperature -40 … 70°C

Processing temperature -25 … +50°C

Standards and specifications

Standards/specifications EN 61010-2-201; EN 61810-1; EN 61373; UL 508 (max. 10 A)

Elementary relay

WAGO elementary relay 788-196

Commercial data

Product Group 6 (Interface Electronics)

Country of origin DE

GTIN 4045454545864

Customs Tariff No. 85364900990
