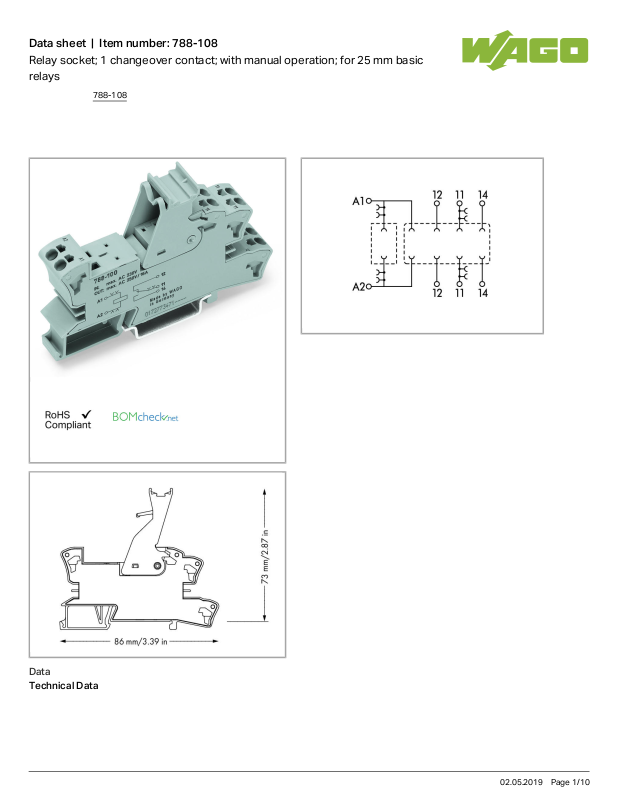

Wago 788-108 Data Sheet

Data sheet | Item number:788-108

Relay socket; 1 changeover contact; with manual operation; for 25 mm basic
relays

Data

Technical Data

788-108

02.05.2019Page /1 10

Data sheet | Item number:788-108

Control circuit

Nominal input voltage U

N

AC/DC250V (depending on relay)

Input voltage range AC/DC0 … 250V

Load circuit:

Number of changeover/switchover contacts 1

Limiting continuous current 16A

Max. switching voltage AC250V

Max. switching power (resistive) AC4,000VA

Safety and protection:

Rated voltage 250 V

Rated impulse voltage 4 kV

Pollution degree 3

Dielectric strength, control/load circuit (AC, 1 min) 6kVrms (depending on relay))

Dielectric strength open contact (AC, 1 min) 1kVrms (depending on relay))

Protection class IP20

Connection data

Connection technology

Push-in CAGE CLAMP

®

Solid conductor 0.34 … 2.5mm²/ 22 … 14AWG

Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Geometrical Data

Width 15mm/ 0.591inch

Height from upper-edge of DIN-35 rail 73mm/ 2.874inch

Depth 86mm/ 3.386inch

Mechanical data

Type of mounting DIN-35 rail

Material Data

Fire load 0.662 MJ

Weight 32 g

788-108

02.05.2019Page /2 10

Data sheet | Item number:788-108

Environmental Requirements

Pollution degree 3

Surrounding air (operating) temperature at U

N

-40 … 70°C (depending on relay)

Surrounding air (storage) temperature -40 … 80°C

Processing temperature -25 … +50°C

Standards and specifications

Standards/specifications EN 60664-1

Commercial data

Product Group 6 (Interface Electronics)

Country of origin DE

GTIN 4045454931032

Customs Tariff No. 85366990990

Compatible products

Jumper

Item no.: 788-113

Comb-style jumper bar; 2-way; insulated

788-113

Item no.: 788-114

Comb-style jumper bar; 3-way; insulated

788-114

Item no.: 788-115

Comb-style jumper bar; 4-way; insulated

788-115

Item no.: 788-116

Comb-style jumper bar; 6-way; insulated

788-116

Item no.: 788-117

Comb-style jumper bar; 8-way; insulated

788-117

Item no.: 788-118

Comb-style jumper bar; 2-way (1-3); insulated

788-118

Item no.: 859-402

Push-in type jumper bar; 2-way; Nominal current 18 A; insulated

859-402

Item no.: 859-402/000-005

Push-in type jumper bar; 2-way; Nominal current 18 A; insulated

859-402

/000-005
