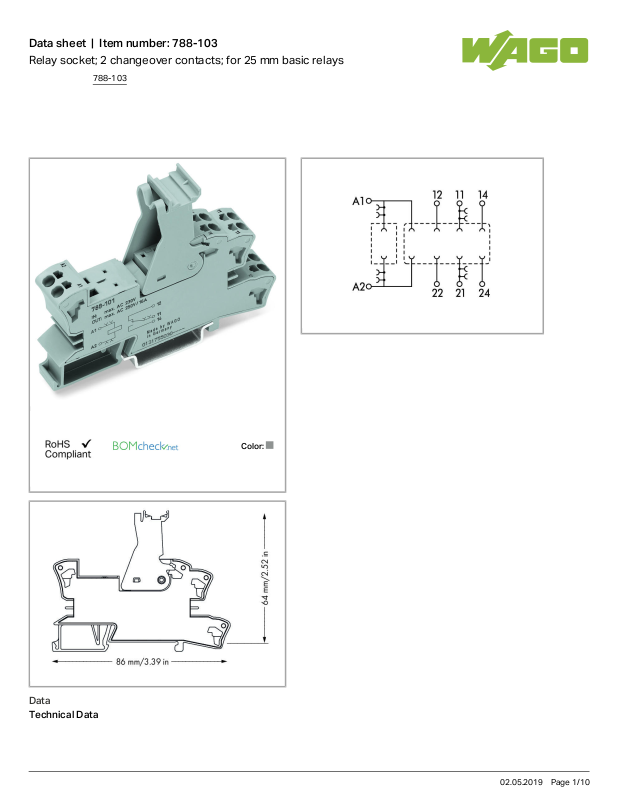

Data sheet | Item number:788-103
Relay socket; 2 changeover contacts; for 25 mm basic relays
Color:
Data
Technical Data
788-103
02.05.2019Page /1 10
Data sheet | Item number:788-103
Control circuit
Nominal input voltage U
N
AC/DC250V (depending on relay)
Input voltage range AC/DC0 … 250V
Nominal input current at U
N
0
Load circuit:
Number of changeover/switchover contacts 2
Limiting continuous current 8A
Max. switching voltage AC250V
Max. switching power (resistive) AC2,000VA
Min. switching current 0µA
Drop-out time ≤0µs
Safety and protection:
Rated voltage 250 V
Rated impulse voltage 4 kV
Pollution degree 3
Dielectric strength, control/load circuit (AC, 1 min) 6kVrms (depending on relay))
Dielectric strength open contact (AC, 1 min) 1kVrms (depending on relay))
Dielectric strength, channel/channel (AC, 1 min) (depending on relay))
Dielectric strength, load/load circuit (AC, 1 min) 3.5kVrms (depending on relay))
Protection class IP20
Connection data
Connection technology
Push-in CAGE CLAMP
®
Solid conductor 0.34 … 2.5mm²/ 22 … 14AWG
Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Geometrical Data
Width 25mm/ 0.591inch
Height from upper-edge of DIN-35 rail 64mm/ 2.52inch
Depth 86mm/ 3.386inch
Mechanical data
Type of mounting DIN-35 rail
788-103
02.05.2019Page /2 10
Data sheet | Item number:788-103
Material Data
Color gray
Fire load 0.651 MJ
Weight 30.98 g
Environmental Requirements
Pollution degree 3
Surrounding air (operating) temperature at U
N
-40 … 70°C (depending on relay)
Surrounding air (storage) temperature -40 … 80°C
Processing temperature -25 … +50°C
Standards and specifications
Standards/specifications EN 60664-1
Commercial data
Product Group 6 (Interface Electronics)
Country of origin CN
GTIN 4050821591801
Customs Tariff No. 85366990990
