Wago 788-101 Data Sheet

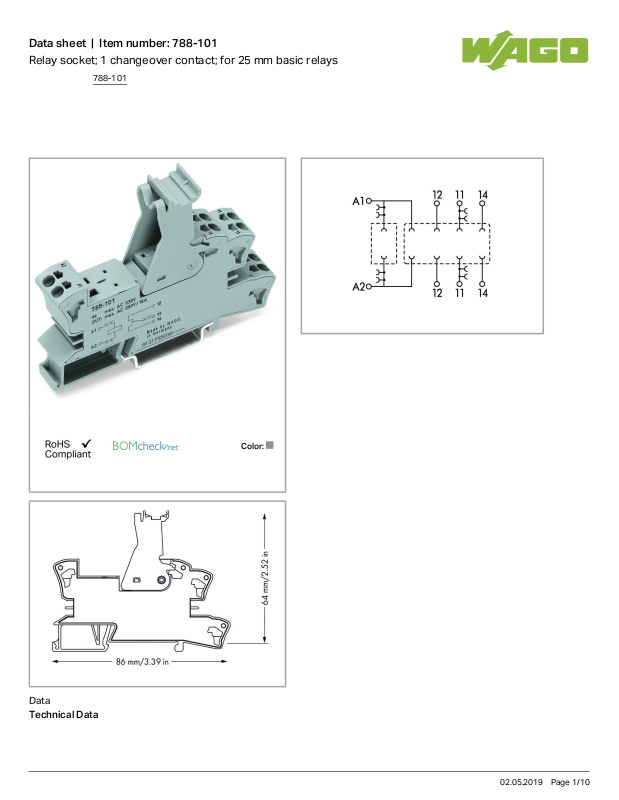

Data sheet | Item number:788-101

Relay socket; 1 changeover contact; for 25 mm basic relays

Color:

Data

Technical Data

788-101

02.05.2019Page /1 10

Data sheet | Item number:788-101

Control circuit

Nominal input voltage U

N

AC/DC250V (depending on relay)

Input voltage range AC/DC0 … 250V

Load circuit:

Number of changeover/switchover contacts 1

Limiting continuous current 16A

Max. switching voltage AC250V

Max. switching power (resistive) AC4,000VA

Safety and protection:

Rated voltage 250 V

Rated impulse voltage 4 kV

Pollution degree 3

Dielectric strength, control/load circuit (AC, 1 min) 6kVrms (depending on relay))

Dielectric strength open contact (AC, 1 min) 1kVrms (depending on relay))

Protection class IP20

Connection data

Connection technology

Push-in CAGE CLAMP

®

Solid conductor 0.34 … 2.5mm²/ 22 … 14AWG

Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Geometrical Data

Width 25mm/ 0.591inch

Height from upper-edge of DIN-35 rail 64mm/ 2.52inch

Depth 86mm/ 3.386inch

Mechanical data

Type of mounting DIN-35 rail

Material Data

Color gray

Fire load 0.645 MJ

Weight 31.014 g

788-101

02.05.2019Page /2 10

Data sheet | Item number:788-101

Environmental Requirements

Pollution degree 3

Surrounding air (operating) temperature at U

N

-40 … 70°C (depending on relay)

Surrounding air (storage) temperature -40 … 80°C

Processing temperature -25 … +50°C

Standards and specifications

Standards/specifications EN 60664-1

Commercial data

Product Group 6 (Interface Electronics)

Country of origin CN

GTIN 4050821591771

Customs Tariff No. 85366990990

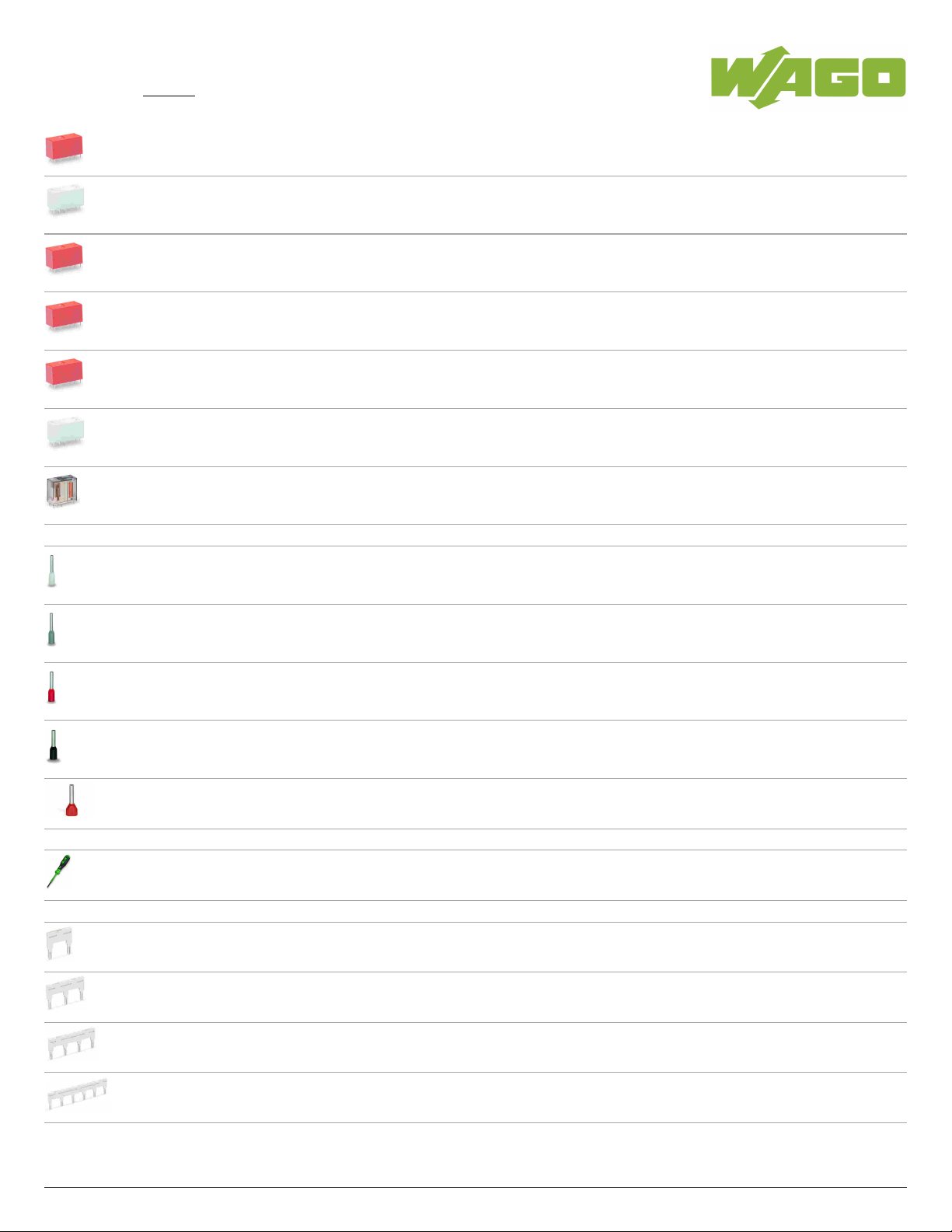

Compatible products

Marking accessories

Item no.: 2009-110

Marking strips; on reel; not stretchable; plain; snap-on type

2009-110

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

Item no.: 2009-115/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-002

Item no.: 2009-115/000-006

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-006

Item no.: 2009-115/000-007

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-007

Item no.: 2009-115/000-012

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-012

Item no.: 2009-115/000-017

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-017
