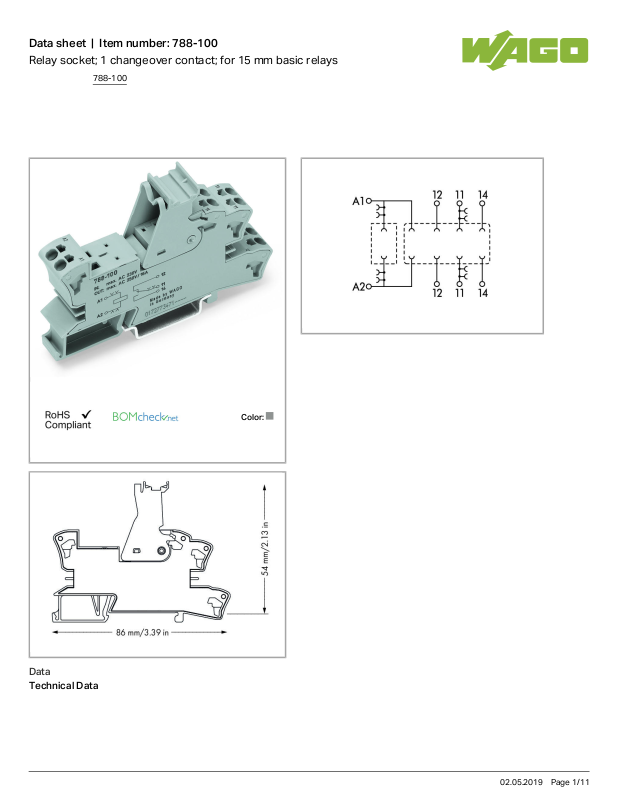

Wago 788-100 Data Sheet

Data sheet | Item number:788-100

Relay socket; 1 changeover contact; for 15 mm basic relays

Color:

Data

Technical Data

788-100

02.05.2019Page /1 11

Data sheet | Item number:788-100

Control circuit

Nominal input voltage U

N

AC/DC250V (depending on relay)

Input voltage range AC/DC0 … 250V

Nominal input current at U

N

0

Load circuit:

Number of changeover/switchover contacts 1

Limiting continuous current 16A

Max. switching voltage AC250V

Max. switching power (resistive) AC4,000VA

Min. switching current 0µA

Drop-out time ≤0µs

Safety and protection:

Rated voltage 250 V

Rated impulse voltage 4 kV

Pollution degree 3

Dielectric strength, control/load circuit (AC, 1 min) 6kVrms (depending on relay))

Dielectric strength open contact (AC, 1 min) 1kVrms (depending on relay))

Dielectric strength, channel/channel (AC, 1 min) (depending on relay))

Protection class IP20

Connection data

Connection technology

Push-in CAGE CLAMP

®

Solid conductor 0.34 … 2.5mm²/ 22 … 14AWG

Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Geometrical Data

Width 15mm/ 0.591inch

Height from upper-edge of DIN-35 rail 54mm/ 2.126inch

Depth 86mm/ 3.386inch

Mechanical data

Type of mounting DIN-35 rail

788-100

02.05.2019Page /2 11

Data sheet | Item number:788-100

Material Data

Color gray

Fire load 0 MJ

Weight 31.25 g

Environmental Requirements

Pollution degree 3

Surrounding air (operating) temperature at U

N

-40 … 70°C (depending on relay)

Surrounding air (storage) temperature -40 … 80°C

Processing temperature -25 … +50°C

Standards and specifications

Standards/specifications EN 60664-1

Commercial data

Product Group 6 (Interface Electronics)

Country of origin CN

GTIN 4050821591764

Customs Tariff No. 85366990990

Compatible products

Jumper

Item no.: 788-113

Comb-style jumper bar; 2-way; insulated

788-113

Item no.: 788-114

Comb-style jumper bar; 3-way; insulated

788-114

Item no.: 788-115

Comb-style jumper bar; 4-way; insulated

788-115

Item no.: 788-116

Comb-style jumper bar; 6-way; insulated

788-116

Item no.: 788-117

Comb-style jumper bar; 8-way; insulated

788-117

Item no.: 788-118

Comb-style jumper bar; 2-way (1-3); insulated

788-118

788-100

02.05.2019Page /3 11

Data sheet | Item number:788-100

Item no.: 859-402

Push-in type jumper bar; 2-way; Nominal current 18 A; insulated

859-402

Item no.: 859-402/000-005

Push-in type jumper bar; 2-way; Nominal current 18 A; insulated

859-402

/000-005

Item no.: 859-402/000-006

Push-in type jumper bar; 2-way; Nominal current 18 A; insulated

859-402

/000-006

Item no.: 859-402/000-029

Push-in type jumper bar; 2-way; Nominal current 18 A; insulated

859-402

/000-029

General accessories

Item no.: 209-145

Group marker carrier

209-145

Item no.: 209-184

Protection cover

209-184

Item no.: 249-105

Group marker carrier

249-105

Item no.: 788-120

Accessories for relay modules; Operation status indicator: red

788-120

Item no.: 788-121

Accessories for relay modules; Operation status indicator: red

788-121

Item no.: 788-122

Operation status indicator; 110 VDC

788-122

Item no.: 788-123

Accessories for relay modules; Operation status indicator: red

788-123

Item no.: 788-124

Accessories for relay modules; Operation status indicator: red

788-124

Item no.: 788-125

Accessories for relay modules; Operation status indicator: red

788-125

Item no.: 788-148

Filter module; RC filter element; Nominal voltage: 230 VAC

788-148

Item no.: 788-150
Basic relay; Nominal input voltage: 12 VDC; 1 changeover contact; Limiting continuous current: 16 A;
Module width: 13 mm; Module height: 15 mm

788-150

Item no.: 788-154
Basic relay; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 16 A;
Module width: 13 mm; Module height: 15 mm

788-154

Item no.: 788-158
Basic relay; Nominal input voltage: 48 VDC; 1 changeover contact; Limiting continuous current: 16 A;
Module width: 13 mm; Module height: 15 mm

788-158

Item no.: 788-162
Basic relay; Nominal input voltage: 60 VDC; 1 changeover contact; Limiting continuous current: 16 A;
Module width: 13 mm; Module height: 15 mm

788-162
