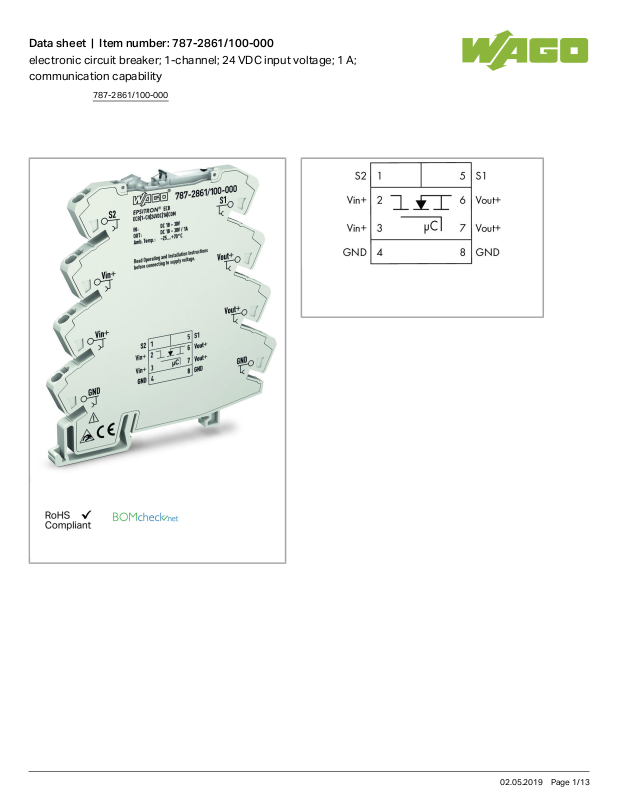

Wago 787-2861/100-000 Data Sheet

Data sheet | Item number:787-2861/100-000

electronic circuit breaker; 1-channel; 24 VDC input voltage; 1 A;
communication capability

787-2861/100-000

02.05.2019Page /1 13

Data sheet | Item number:787-2861/100-000

Item description

Features:

Space-saving ECB with one channel

Reliably and safely trips in the event of an overload and short circuit on the secondary side

Switch-on capacity > 50,000 μF

Enables the use of an economical, standard power supply

Minimizes wiring via two voltage outputs and maximizes commoning options on both input and output sides (e.g., commoning of the output
voltage on 857 and 2857 Series devices)

Status signal – as single or group message

Reset, switch on/off via remote input or local switch

Prevents power supply overload due to total inrush current thanks to time-delayed switching on during interconnected operation

Data

Technical Data

Input

Nominal input voltage U

i nom

DC24V

Input voltage range DC18 … 30V

Output

Total number of channels (module) 1

Nominal output voltage U

o nom

1 x DC24V

Output voltage range DC 18 … 30V(U – voltage drop(

i

Voltage drop ≤50mV

Nominal output current I

o nom

1 x 1A (fixed setting)

Trip time 4 ms … 100 s (Load-dependent)

Switch-on capacity >50000µFper channel

787-2861/100-000

02.05.2019Page /2 13

Data sheet | Item number:787-2861/100-000

Switch-on behavior Time-delayed channel switching (load-dependent, min. 170 ms /

max. 500 ms)

Active Current Limitation no

Signaling and communication

Signaling 1 x LED status (green/yellow/rot/blue)

1 x cntrol input
1 x active signal output (U , max. 4 mA)

i

Operation status indicator LED green (channel OK)

LED red (tripped channel)

Remote input 18 … 30 VDC signal, switches on/off and resets the channel

Efficiency/Power losses:

Power loss P

v

≤0.3W (no load)

Efficiency 99%

Fuse protection:

Internal fuse T 15 A

Safety and protection:

Insulation voltage (connectors-housing) DC 0.5kV

Protection class III

Protection class IP20 (per EN 60529)

Reverse voltage protection No

Transient protection, primary Suppressor diode, 33 V

Parallel operation of single channels Not permitted

Series connection No

MTBF 1,263,074 h (per MIL-HDBK-217F2)

Connection data

Number of jumper slots 8

Connection technology

Push-in CAGE CLAMP

®

WAGO terminal WAGO 857 Series

Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG

Fine-stranded conductor 0.34 … 2.5mm²/ 22 … 14AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Geometrical Data

Width 6mm/ 0.236inch

787-2861/100-000

02.05.2019Page /3 13

Data sheet | Item number:787-2861/100-000

Height from upper-edge of DIN-35 rail 97.8mm/ 3.85inch

Depth 94mm/ 3.701inch

Mechanical data

Type of mounting DIN-35 rail (EN 60715)

Material Data

Fire load 0 MJ

Weight 37.9 g

Environmental Requirements

Surrounding air (operating) temperature -25 … 70°C

Surrounding air (storage) temperature -40 … 85°C

Relative humidity 10 … 95% (no condensation permissible)

Derating No derating

Pollution degree 2

Standards and specifications

Conformity marking 1

Standards/specifications EN 61000-6-2; EN 61000-6-3; UL 61010-2-201* (*pending)

Commercial data

Country of origin DE

GTIN 4055143533249

Customs Tariff No. 85363010900

Approvals / Certificates

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

Underwriters Laboratories Inc. (ORDINARY
LOCATIONS)

UL 61010-2-201 E175199

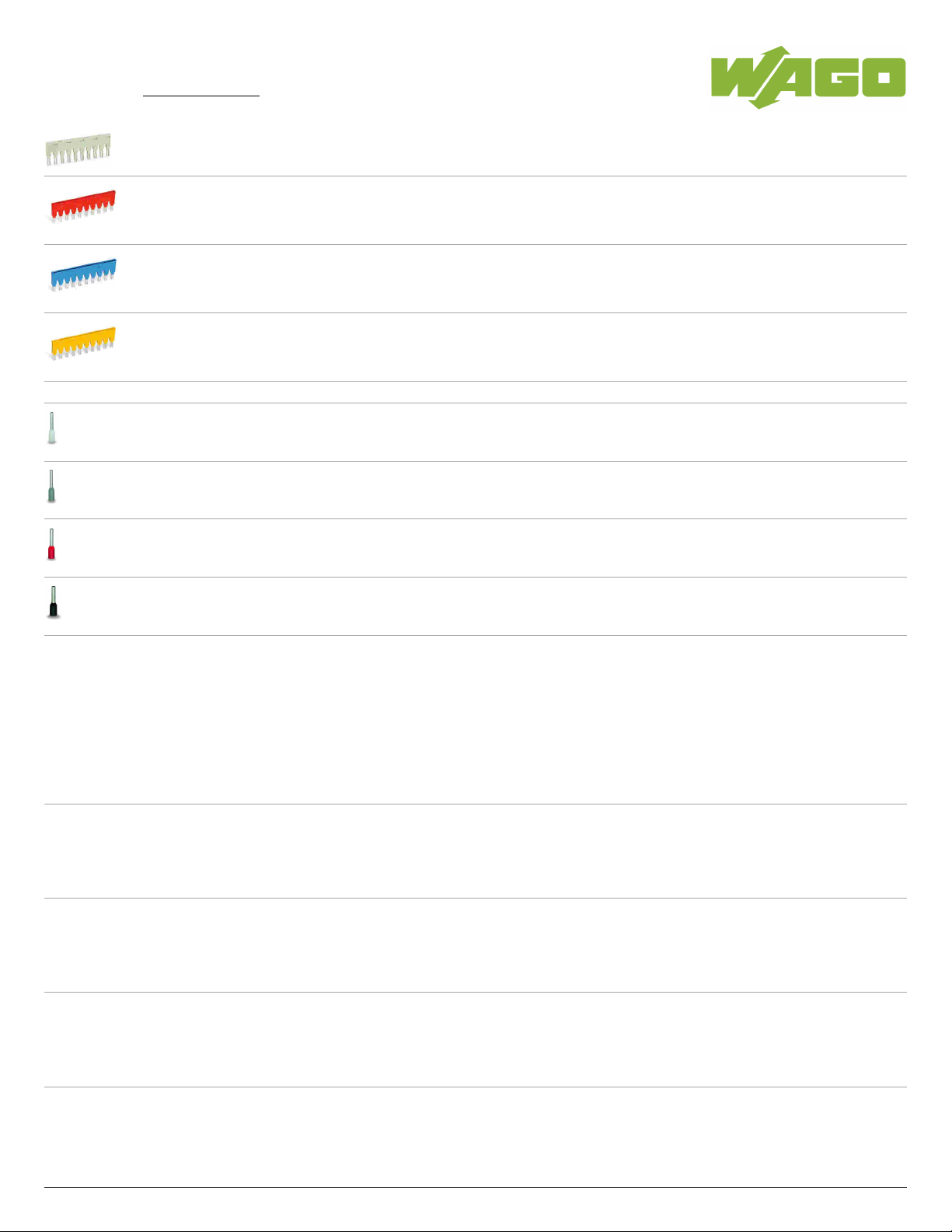

Compatible products
