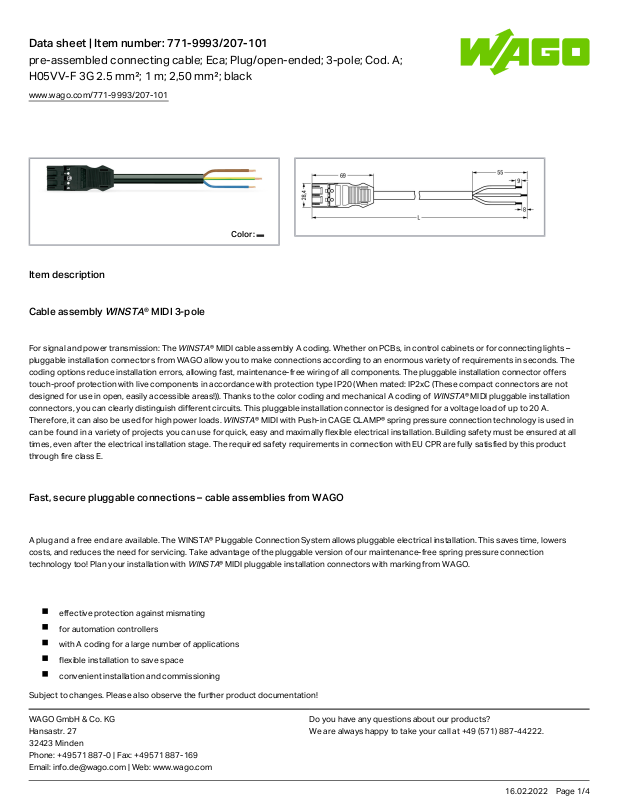

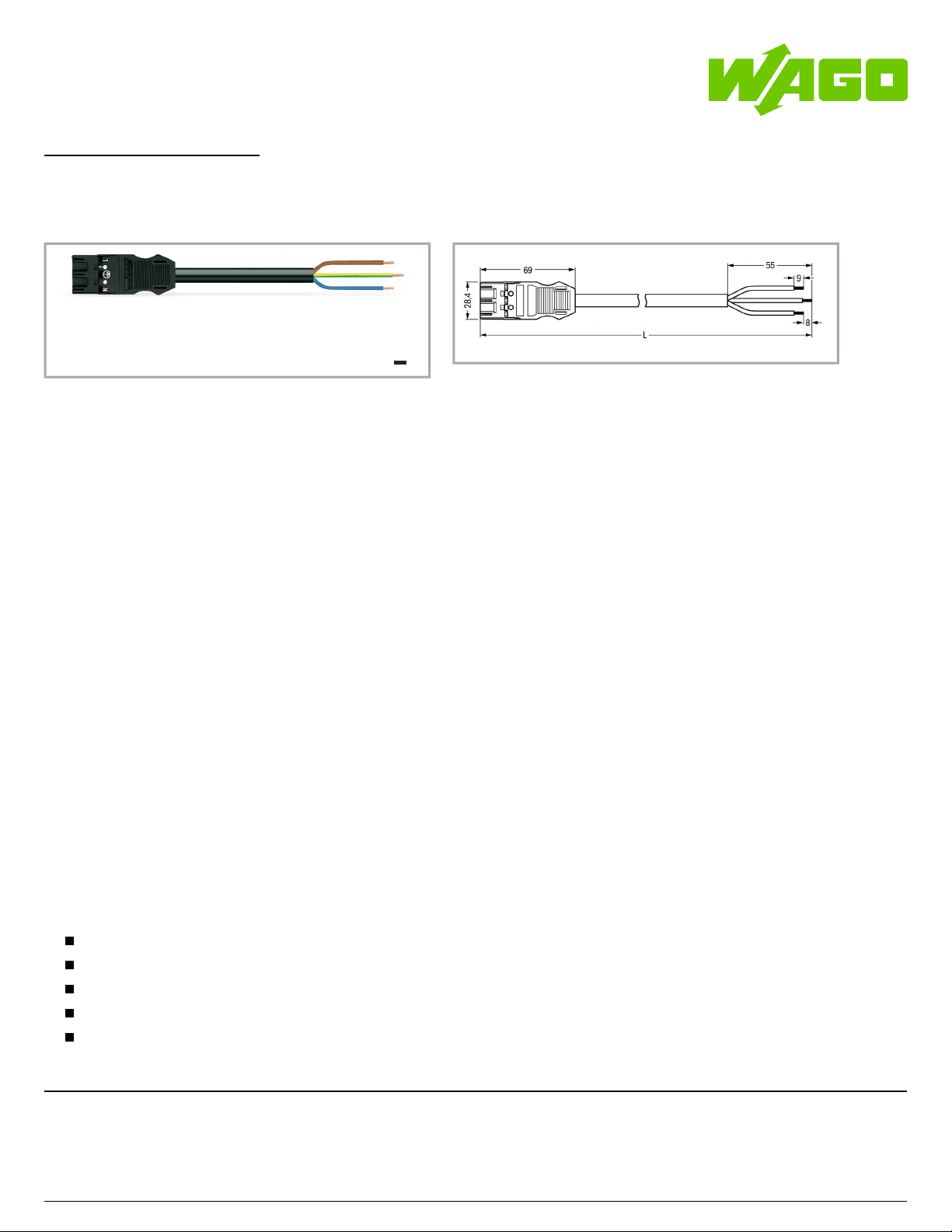

Page 1
Data sheet| Item number:771-9993/207-101
pre-assembled connecting cable; Eca; Plug/open-ended; 3-pole; Cod. A;
H05VV-F 3G 2.5 mm²; 1 m; 2,50 mm²; black
Color:
Item description
Cable assembly ® MIDI 3-pole
WINSTA
For signal and power transmission: The ® MIDI cable assembly A coding. Whether on PCBs, in control cabinets or for connecting lights –
WINSTA
pluggable installation connectors from WAGO allow you to make connections according to an enormous variety of requirements in seconds. The
coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector offers
touch-proof protection with live components in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not
designed for use in open, easily accessible areas!)). Thanks to the color coding and mechanical A coding of ® MIDI pluggable installation
WINSTA
connectors, you can clearly distinguish different circuits. This pluggable installation connector is designed for a voltage load of up to 20 A.
Therefore, it can also be used for high power loads. ® MIDI with Push-in CAGE CLAMP® spring pressure connection technology is used in
WINSTA
can be found in a variety of projects you can use for quick, easy and maximally flexible electrical installation. Building safety must be ensured at all
times, even after the electrical installation stage. The required safety requirements in connection with EU CPR are fully satisfied by this product
through fire class E.
Fast, secure pluggable connections – cable assemblies from WAGO
A plug and a free end are available. The WINSTA® Pluggable Connection System allows pluggable electrical installation. This saves time, lowers
costs, and reduces the need for servicing. Take advantage of the pluggable version of our maintenance-free spring pressure connection
technology too! Plan your installation with ® MIDI pluggable installation connectors with marking from WAGO.
WINSTA
effective protection against mismating
for automation controllers
with A coding for a large number of applications
flexible installation to save space
convenient installation and commissioning
www.wago.com/771-9993/207-101
Subject to changes. Please also observe the further product documentation!
WAGO GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: [email protected] | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
16.02.2022Page /1 4
Page 2
Data sheet| Item number:771-9993/207-101
convenient installation and commissioning
Data
Notes
Note
Cables with a different fire class can be found in the eShop.
Electrical data
Note on contact resistance approx. 1 mΩ of contact resistance
approx. 0.25 mΩ contact transition plug/socket
Ratings per IEC/EN
Ratings per IEC/EN 60664-1
Nominal voltage (III/3) 250 V
Rated impulse voltage (III/3) 4 kV
Rated current 20 A
Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3
Ratings per UL
Note for the US market Some versions may also be used for current interruption in
accordance with the UL certificate in select applications with
currents below 16 A and voltages up to 600 V. For further
information, please contact your local sales office.
Connection data
Total number of potentials 3
PE function Preceding PE contact
Conductor preparation ultrasonically tip-bonded
Connection 1
Pole number 3
Sheathed cable diameter 9.2 … 11.4mm
Wire cross-section 2.5 mm²
Strip length (outer insulation) 55 mm
Connection type Plug - Free end
www.wago.com/771-9993/207-101
Subject to changes. Please also observe the further product documentation!
WAGO GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: [email protected] | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
16.02.2022Page /2 4
Page 3
Data sheet| Item number:771-9993/207-101
Physical data
Pin spacing 10mm/ 0.394inch
Total length 1 m
Mechanical data
Application General mains applications
Coding A
Variable coding Yes
Marking
L N⏚
Potential marking
L N⏚
Mating force of a plug-in connection approx. 20 … 70 N (depending on pole number)
Retention force of a plug-in connection when locked: > 80N
Unmating force of a plug-in connection when unlocked: approx. 20 … 70 N (depending on pole number)
Number of mating cycles 200, without resistive load
Connection type Plug - Free end
Type of pre-assembled cable Connecting cable
Cable type H05VV-F 3G2.5
Protection type IP20; When mated: IP2xC (These compact connectors are not
designed for use in open, easily accessible areas!)
Plug-in connection
Mismating protection Yes
Note on mismating protection All WINSTA® components are 100% protected against mismating
when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
Locking lever Can be retrofitted
Locking of plug-in connection locking lever
Material data
Note (material data) Information on material data can be found here
Color black
Insulation material Polyamide (PA66)
Fire class per EN 50575 E
ca
Contact material Copper or copper alloy; surface-treated
www.wago.com/771-9993/207-101
Subject to changes. Please also observe the further product documentation!
WAGO GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: [email protected] | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
16.02.2022Page /3 4
Page 4
Data sheet| Item number:771-9993/207-101
Fire load 2.924 MJ
Connector color black
Printing color of mating face white
Strain relief color black
Printing color of strain relief white
Sheathed cable color black
Printing color of sheathed cable white
Halogen-free No
Sheath material PVC
Weight 167.6 g
Copper weight of the pipe 0.072 kg/m
Environmental requirements
Processing temperature -5 … +40°C
Continuous operating temperature -35 … +85°C
Note on continuous operating temperature PVC cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 61535 NTR NL-
7355
KEMA/KEUR
DEKRA Certification B.V.
EN 61535 2179129.01
www.wago.com/771-9993/207-101
Subject to changes. Please also observe the further product documentation!
WAGO GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: [email protected] | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
16.02.2022Page /4 4
