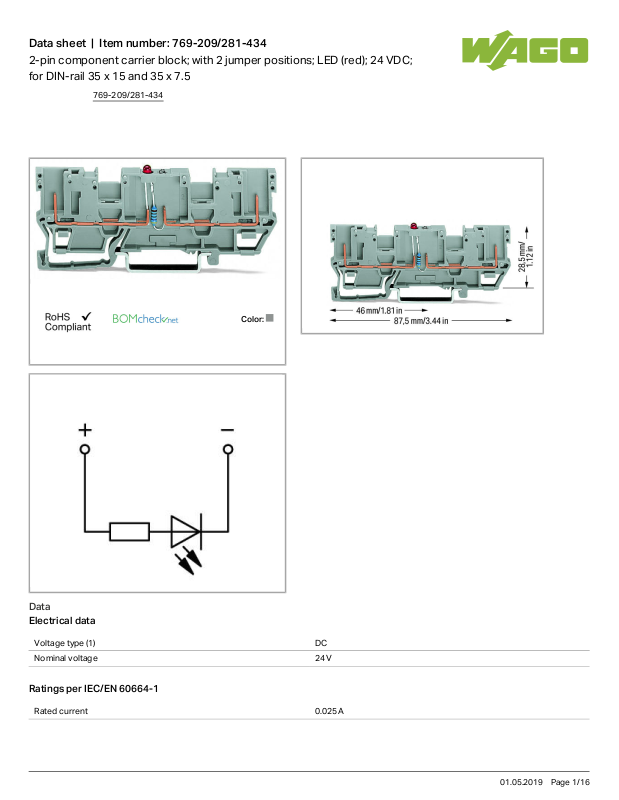

Data sheet | Item number:769-209/281-434
2-pin component carrier block; with 2 jumper positions; LED (red); 24 VDC; for DIN-rail 35 x 15 and 35 x 7.5
Color:

Data

Electrical data

Voltage type (1) DC
Nominal voltage 24 V

Ratings per IEC/EN 60664-1

Rated current 0.025 A
769-209/281-434
01.05.2019Page /1 16
Page 2
Data sheet | Item number:769-209/281-434
Connection data
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 28.5mm/ 1.122inch
Depth 87.5mm/ 3.445inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.159 MJ
Weight 7.581g

Commercial data

Product Group 18 (X-COM-System)
Country of origin DE
GTIN 4050821418443
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7626
CSA
DEKRA Certification B.V.
C22.2 No. 158 1101144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2190419.01
769-209/281-434
01.05.2019Page /2 16
Page 3
Data sheet | Item number:769-209/281-434
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA

Compatible products

assembling
Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails
209-106
Coding
Item no.: 769-435
Coding pin; for coding of female plugs; for carrier terminal blocks / male connectors
769-435
Jumper
Item no.: 249-123
Push-in type wire jumper; insulated; wire length 180 mm; Conductor cross section 0.75 mm²
249-123
Item no.: 249-125
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²
249-125
Item no.: 249-126
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²
249-126
Item no.: 249-127
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²
249-127
Item no.: 280-402
Adjacent jumper; insulated; IN = IN terminal block
280-402
Item no.: 280-409
Alternate jumper; insulated; IN = IN terminal block
280-409
Item no.: 780-452
Staggered jumper; insulated; from 1 to 2; Spacing: 5 mm; suitable for 2-conductor female plugs
780-452
769-209/281-434
01.05.2019Page /3 16
Page 4
Data sheet | Item number:769-209/281-434
Item no.: 780-453
Staggered jumper; insulated; from 1 to 3; Spacing: 5 mm; suitable for 2-conductor female plugs
780-453
Item no.: 780-454
Staggered jumper; insulated; from 1 to 4; Spacing: 5 mm; suitable for 2-conductor female plugs
780-454
Item no.: 780-455
Staggered jumper; insulated; from 1 to 5; Spacing: 5 mm; suitable for 2-conductor female plugs
780-455
Item no.: 780-456
Staggered jumper; insulated; from 1 to 6; Spacing: 5 mm; suitable for 2-conductor female plugs
780-456
Item no.: 780-457
Staggered jumper; insulated; from 1 to 7; Spacing: 5 mm; suitable for 2-conductor female plugs
780-457
Item no.: 780-458
Staggered jumper; insulated; from 1 to 8; Spacing: 5 mm; suitable for 2-conductor female plugs
780-458
tools
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
check
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable
210-137
General accessories
Item no.: 280-404
Test plug adapter; 5 mm wide; for test plug 210-137 (2.3 mm Ø); suitable for 1.5 mm² - 4 mm² tbs
280-404
Item no.: 280-418 Test plug module; modular; suitable for all WAGO 280 and 780 Series rail-mounted terminal blocks with jumper slots in the current bar
280-418
Item no.: 280-419 Spacer module; modular; bridging commoned terminal blocks
280-419
Item no.: 769-438 Pin cover; with marker slot for miniature WSB
769-438
Item no.: 769-439 Pin cover; with marker slot for miniature WSB
769-439
Item no.: 769-501 Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
Item no.: 769-501/000-006
Start module for 1-conductor female connector; 4 mm²; 1-pole
769-501
/000-006
Item no.: 769-501/000-016
Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-501
/000-016
Item no.: 769-502 Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
769-209/281-434
01.05.2019Page /4 16
Page 5
Data sheet | Item number:769-209/281-434
Item no.: 769-502/000-006
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-006
Item no.: 769-502/000-016
Center module for 1-conductor female connector; 4 mm²; 1-pole
769-502
/000-016
Item no.: 769-503 End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
Item no.: 769-503/000-006
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-006
Item no.: 769-503/000-016
End module for 1-conductor female connector; 4 mm²; 1-pole
769-503
/000-016
Item no.: 769-504 Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-504
Item no.: 769-504/000-006
Start module for 2-conductor female connector; with integrated end plate; 4 mm²; 1-pole
769-504
/000-006
Item no.: 769-504/000-016
Start module for 2-conductor female connector; 4 mm²; 1-pole
769-504
/000-016
Item no.: 769-505 Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
Item no.: 769-505/000-006
Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
/000-006
Item no.: 769-505/000-016
Center module for 2-conductor female connector; 4 mm²; 1-pole
769-505
/000-016
Item no.: 769-506 End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
Item no.: 769-506/000-006
End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
/000-006
Item no.: 769-506/000-016
End module for 2-conductor female connector; 4 mm²; 1-pole
769-506
/000-016
Item no.: 769-512 Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
Item no.: 769-512/000-006
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-006
769-209/281-434
01.05.2019Page /5 16
Page 6
Data sheet | Item number:769-209/281-434
Item no.: 769-512/000-016
Start module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-512
/000-016
Item no.: 769-513 Center module for 1-conductor female connector; angled; 4 mm²; 1-pole
769-513
Item no.: 769-513/000-006
1-conductor center module; angled; codable; 1-pole
769-513
/000-006
Item no.: 769-513/000-016
1-conductor center module; angled; codable; 1-pole
769-513
/000-016
Item no.: 769-515 1-conductor end module; angled; codable; 1-pole
769-515
Item no.: 769-515/000-006
1-conductor end module; angled; codable; 1-pole
769-515
/000-006
Item no.: 769-515/000-016
1-conductor end module; angled; codable; 1-pole
769-515
/000-016
Marking accessories
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
769-209/281-434
01.05.2019Page /6 16
Page 7
Data sheet | Item number:769-209/281-434
Item no.: 248-501 Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
769-209/281-434
01.05.2019Page /7 16
Page 8
Data sheet | Item number:769-209/281-434
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
End plate
Item no.: 769-309 End and intermediate plate; 1.1 mm thick
769-309
Item no.: 769-310 End and intermediate plate; 1.1 mm thick
769-310
Item no.: 769-313 Separator plate; 1.1 mm thick; oversized
769-313
Female plug
Item no.: 769-101 1-conductor female plug; 4 mm²; 1-pole
769-101
Item no.: 769-101/000-006
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-006
Item no.: 769-101/000-016
1-conductor female plug; 4 mm²; 1-pole
769-101
/000-016
Item no.: 769-101/022-000
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-000
Item no.: 769-101/022-016
1-conductor female plug; angled; 4 mm²; 1-pole
769-101
/022-016
Item no.: 769-102 1-conductor female plug; 4 mm²; 2-pole
769-102
Item no.: 769-102/000-006
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-006
Item no.: 769-102/000-036
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-036
Item no.: 769-102/000-037
1-conductor female plug; 4 mm²; 2-pole
769-102
/000-037
769-209/281-434
01.05.2019Page /8 16
Page 9
Data sheet | Item number:769-209/281-434
Item no.: 769-102/022-000
1-conductor female plug; angled; 4 mm²; 2-pole
769-102
/022-000
Item no.: 769-103 1-conductor female plug; 4 mm²; 3-pole
769-103
Item no.: 769-103/000-006
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-006
Item no.: 769-103/000-036
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-036
Item no.: 769-103/000-037
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-037
Item no.: 769-103/000-038
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-038
Item no.: 769-103/000-039
1-conductor female plug; 4 mm²; 3-pole
769-103
/000-039
Item no.: 769-103/022-000
1-conductor female plug; angled; 4 mm²; 3-pole
769-103
/022-000
Item no.: 769-104 1-conductor female plug; 4 mm²; 4-pole
769-104
Item no.: 769-104/000-006
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-006
Item no.: 769-104/000-036
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-036
Item no.: 769-104/000-037
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-037
Item no.: 769-104/000-038
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-038
Item no.: 769-104/000-039
1-conductor female plug; 4 mm²; 4-pole
769-104
/000-039
Item no.: 769-104/022-000
1-conductor female plug; angled; 4 mm²; 4-pole
769-104
/022-000
769-209/281-434
01.05.2019Page /9 16
Page 10
Data sheet | Item number:769-209/281-434
Item no.: 769-105 1-conductor female plug; 4 mm²; 5-pole
769-105
Item no.: 769-105/000-006
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-006
Item no.: 769-105/000-036
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-036
Item no.: 769-105/000-037
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-037
Item no.: 769-105/000-038
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-038
Item no.: 769-105/000-039
1-conductor female plug; 4 mm²; 5-pole
769-105
/000-039
Item no.: 769-105/022-000
1-conductor female plug; angled; 4 mm²; 5-pole
769-105
/022-000
Item no.: 769-106 1-conductor female plug; 4 mm²; 6-pole
769-106
Item no.: 769-106/000-006
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-006
Item no.: 769-106/000-036
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-036
Item no.: 769-106/000-037
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-037
Item no.: 769-106/000-038
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-038
Item no.: 769-106/000-039
1-conductor female plug; 4 mm²; 6-pole
769-106
/000-039
Item no.: 769-106/022-000
1-conductor female plug; angled; 4 mm²; 6-pole
769-106
/022-000
Item no.: 769-107 1-conductor female plug; 4 mm²; 7-pole
769-107
769-209/281-434
01.05.2019Page /10 16
Page 11
Data sheet | Item number:769-209/281-434
Item no.: 769-107/000-006
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-006
Item no.: 769-107/000-036
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-036
Item no.: 769-107/000-037
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-037
Item no.: 769-107/000-038
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-038
Item no.: 769-107/000-039
1-conductor female plug; 4 mm²; 7-pole
769-107
/000-039
Item no.: 769-107/022-000
1-conductor female plug; angled; 4 mm²; 7-pole
769-107
/022-000
Item no.: 769-108 1-conductor female plug; 4 mm²; 8-pole
769-108
Item no.: 769-108/000-006
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-006
Item no.: 769-108/000-036
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-036
Item no.: 769-108/000-037
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-037
Item no.: 769-108/000-038
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-038
Item no.: 769-108/000-039
1-conductor female plug; 4 mm²; 8-pole
769-108
/000-039
Item no.: 769-108/022-000
1-conductor female plug; angled; 4 mm²; 8-pole
769-108
/022-000
Item no.: 769-109 1-conductor female plug; 4 mm²; 9-pole
769-109
Item no.: 769-109/000-006
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-006
769-209/281-434
01.05.2019Page /11 16
Page 12
Data sheet | Item number:769-209/281-434
Item no.: 769-109/000-036
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-036
Item no.: 769-109/000-037
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-037
Item no.: 769-109/000-038
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-038
Item no.: 769-109/000-039
1-conductor female plug; 4 mm²; 9-pole
769-109
/000-039
Item no.: 769-109/022-000
1-conductor female plug; angled; 4 mm²; 9-pole
769-109
/022-000
Item no.: 769-110 1-conductor female plug; 4 mm²; 10-pole
769-110
Item no.: 769-110/000-006
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-006
Item no.: 769-110/000-036
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-036
Item no.: 769-110/000-037
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-037
Item no.: 769-110/000-038
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-038
Item no.: 769-110/000-039
1-conductor female plug; 4 mm²; 10-pole
769-110
/000-039
Item no.: 769-110/022-000
1-conductor female plug; angled; 4 mm²; 10-pole
769-110
/022-000
Item no.: 769-111 1-conductor female plug; 4 mm²; 11-pole
769-111
Item no.: 769-111/000-006
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-006
Item no.: 769-111/000-036
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-036
769-209/281-434
01.05.2019Page /12 16
Page 13
Data sheet | Item number:769-209/281-434
Item no.: 769-111/000-037
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-037
Item no.: 769-111/000-038
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-038
Item no.: 769-111/000-039
1-conductor female plug; 4 mm²; 11-pole
769-111
/000-039
Item no.: 769-111/022-000
1-conductor female plug; angled; 4 mm²; 11-pole
769-111
/022-000
Item no.: 769-112 1-conductor female plug; 4 mm²; 12-pole
769-112
Item no.: 769-112/000-006
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-006
Item no.: 769-112/000-036
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-036
Item no.: 769-112/000-037
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-037
Item no.: 769-112/000-038
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-038
Item no.: 769-112/000-039
1-conductor female plug; 4 mm²; 12-pole
769-112
/000-039
Item no.: 769-112/022-000
1-conductor female plug; angled; 4 mm²; 12-pole
769-112
/022-000
Item no.: 769-113 1-conductor female plug; 4 mm²; 13-pole
769-113
Item no.: 769-113/000-036
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-036
Item no.: 769-113/000-037
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-037
Item no.: 769-113/000-038
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-038
769-209/281-434
01.05.2019Page /13 16
Page 14
Data sheet | Item number:769-209/281-434
Item no.: 769-113/000-039
1-conductor female plug; 4 mm²; 13-pole
769-113
/000-039
Item no.: 769-113/022-000
1-conductor female plug; angled; 4 mm²; 13-pole
769-113
/022-000
Item no.: 769-114 1-conductor female plug; 4 mm²; 14-pole
769-114
Item no.: 769-114/000-006
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-006
Item no.: 769-114/000-036
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-036
Item no.: 769-114/000-037
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-037
Item no.: 769-114/000-038
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-038
Item no.: 769-114/000-039
1-conductor female plug; 4 mm²; 14-pole
769-114
/000-039
Item no.: 769-114/022-000
1-conductor female plug; angled; 4 mm²; 14-pole
769-114
/022-000
Item no.: 769-115 1-conductor female plug; 4 mm²; 15-pole
769-115
Item no.: 769-115/000-036
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-036
Item no.: 769-115/000-037
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-037
Item no.: 769-115/000-038
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-038
Item no.: 769-115/000-039
1-conductor female plug; 4 mm²; 15-pole
769-115
/000-039
Item no.: 769-115/022-000
1-conductor female plug; angled; 4 mm²; 15-pole
769-115
/022-000
Item no.: 769-121
769-209/281-434
01.05.2019Page /14 16
Page 15
Data sheet | Item number:769-209/281-434
2-conductor female connector; 4 mm²; 1-pole 769-121
Item no.: 769-121/000-016
2-conductor female connector; 4 mm²; 1-pole
769-121
/000-016
Item no.: 769-122 2-conductor female connector; 4 mm²; 2-pole
769-122
Item no.: 769-123 2-conductor female connector; 4 mm²; 3-pole
769-123
Item no.: 769-124 2-conductor female connector; 4 mm²; 4-pole
769-124
Item no.: 769-125 2-conductor female connector; 4 mm²; 5-pole
769-125
Item no.: 769-126 2-conductor female connector; 4 mm²; 6-pole
769-126
Item no.: 769-127 2-conductor female connector; 4 mm²; 7-pole
769-127
Item no.: 769-128 2-conductor female connector; 4 mm²; 8-pole
769-128
Item no.: 769-129 2-conductor female connector; 4 mm²; 9-pole
769-129
Item no.: 769-130 2-conductor female connector; 4 mm²; 10-pole
769-130
Item no.: 769-131 2-conductor female connector; 4 mm²; 11-pole
769-131
Item no.: 769-132 2-conductor female connector; 4 mm²; 12-pole
769-132
Item no.: 769-133 2-conductor female connector; 4 mm²; 13-pole
769-133
Item no.: 769-134 2-conductor female connector; 4 mm²; 14-pole
769-134
Item no.: 769-135 2-conductor female connector; 4 mm²; 15-pole
769-135

Downloads

Documentation

Bid Text
769-209/281-434 doc
24.6 kB
Download
769-209/281-434
01.05.2019Page /15 16
Page 16
Data sheet | Item number:769-209/281-434
CAD/CAE - Smart Data
CAD data
3D Download 769-209/281-434 URL Download

Product family

X-COM
Learn more about the product family.
Show all products from the family
769-209/281-434
Subject to changes.
01.05.2019Page /16 16
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
