Wago 279-684 Data Sheet

Download

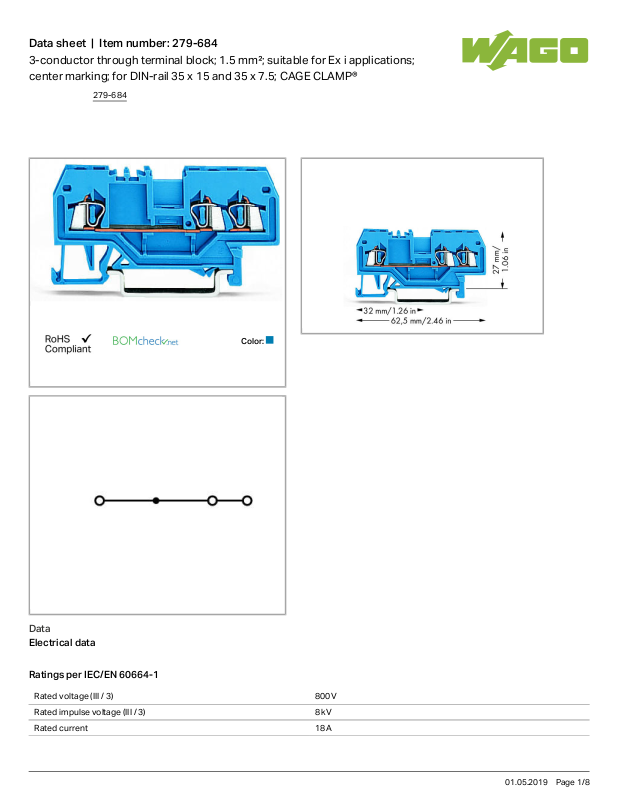

Page 1
Data sheet | Item number:279-684
3-conductor through terminal block; 1.5 mm²; suitable for Ex i applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®
Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 18 A
279-684
01.05.2019Page /1 8
Page 2
Data sheet | Item number:279-684
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG
Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Total number of connection points 3
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 4mm/ 0.157inch
Height from upper-edge of DIN-35 rail 27mm/ 1.063inch
Depth 62.5mm/ 2.461inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.104 MJ
Weight 5.378g

Commercial data

Country of origin DE
GTIN 4044918650526
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7081
279-684
01.05.2019Page /2 8
Page 3
Data sheet | Item number:279-684
CSA
DEKRA Certification B.V.
C22.2 No. 158 70133738
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2160584.04
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

279-684
01.05.2019Page /3 8
Page 4
Data sheet | Item number:279-684
check
Item no.: 209-170
Test plug adapter; 8.3 mm wide; for 4 mm Ø test plugs; suitable for 1.5 mm² - 10 mm² tbs
209-170
Marking accessories
Item no.: 2009-114
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
Item no.: 2009-114/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-002
Item no.: 2009-114/000-005
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-005
Item no.: 2009-114/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-006
Item no.: 2009-114/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-007
Item no.: 2009-114/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-012
Item no.: 2009-114/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-023
Item no.: 2009-114/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type
2009-114
/000-024
Item no.: 209-128
Adaptor
209-128
Item no.: 209-140
Group marker carrier
209-140
Item no.: 209-141
Group marker carrier
209-141
Item no.: 209-142
Group marker carrier
209-142
Item no.: 209-185
Adaptor
209-185
279-684
01.05.2019Page /4 8
Page 5
Data sheet | Item number:279-684
Item no.: 793-4501
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
Item no.: 793-4501/000-002
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-002
Item no.: 793-4501/000-005
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-005
Item no.: 793-4501/000-006
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-006
Item no.: 793-4501/000-007
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-007
Item no.: 793-4501/000-012
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-012
Item no.: 793-4501/000-014
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-014
Item no.: 793-4501/000-017
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-017
Item no.: 793-4501/000-023
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-023
Item no.: 793-4501/000-024
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type
793-4501
/000-024
assembling
Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails
209-106
Item no.: 709-153
Cover; Type 1; suitable for cover carrier, type 1; 1 m long
709-153
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
210-115
279-684
01.05.2019Page /5 8
Page 6
Data sheet | Item number:279-684
mm
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
General accessories
Item no.: 249-105 Group marker carrier
249-105
Item no.: 280-404 Test plug adapter; 5 mm wide; for test plug 210-137 (2.3 mm Ø); suitable for 1.5 mm² - 4 mm² tbs
280-404
Protective Warning Marker
Item no.: 279-415 Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
279-415
ferrule
Item no.: 216-101 Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102 Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103 Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-201 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
Item no.: 216-203 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-203
Item no.: 216-301 Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated
216-301
279-684
01.05.2019Page /6 8
Page 7
Data sheet | Item number:279-684
Item no.: 216-302 Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated
216-302
tools
Item no.: 210-647 Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short
210-647
Item no.: 210-648 Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled
210-648
Item no.: 210-719 Operating tool with partially insulated shaft; Type 1, blade (2.5 x 0.4) mm
210-719
End plate
Item no.: 279-308 End and intermediate plate; 2 mm thick
279-308
Item no.: 279-309 Separator plate; 2 mm thick; oversized
279-309
Item no.: 279-339 End and intermediate plate; 2 mm thick
279-339
Item no.: 279-340 Separator plate; 2 mm thick; oversized
279-340
Item no.: 284-334 Step-down cover plate; 1 mm thick; for 2-, 3- and 4-conductor terminal blocks
284-334
Item no.: 284-344 Step-down cover plate; 1 mm thick; for 2-, 3- and 4-conductor terminal blocks
284-344
Jumper
Item no.: 210-103 Wire commoning chain; insulated; 50 connections
210-103
Item no.: 249-123 Push-in type wire jumper; insulated; wire length 180 mm; Conductor cross section 0.75 mm²
249-123
Item no.: 249-125 Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²
249-125
Item no.: 249-126 Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²
249-126
Item no.: 249-127 Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²
249-127
Item no.: 279-402 Adjacent jumper; insulated; Nominal current 15 A
279-402
Item no.: 279-409 Alternate jumper; insulated; Nominal current 15 A
279-409
Item no.: 279-422 Adjacent jumper; insulated; Nominal current 15 A
279-422
279-684
01.05.2019Page /7 8
Page 8
Data sheet | Item number:279-684
Item no.: 279-482 Comb-style jumper bar; insulated; 2-way; IN = IN terminal block
279-482
Item no.: 279-483 Comb-style jumper bar; insulated; 3-way; IN = IN terminal block
279-483
Item no.: 279-490 Comb-style jumper bar; insulated; 10-way; IN = IN terminal block
279-490
Item no.: 279-492 Alternate comb-style jumper bar; insulated; 2-way; IN = IN terminal block
279-492
Item no.: 284-414 Step-down jumper; insulated; from 10/6 mm² to 4/2.5/1.5 mm²; Nominal current 15 A
284-414
Insulation stop
Item no.: 279-470 Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
279-470
Item no.: 279-471 Insulation stop; 0.25 mm²; 5 pieces/strip
279-471

Downloads

Documentation

Bid Text
279-684 doc
24.6 kB
Download

CAD/CAE - Smart Data

CAD data
3D Download 279-684 URL Download
279-684
Subject to changes.
01.05.2019Page /8 8
