270-574
Data Sheet
9 pgs259.94 Kb0

Wago 270-574 Data Sheet

Download
Data sheet | Item number:270-574

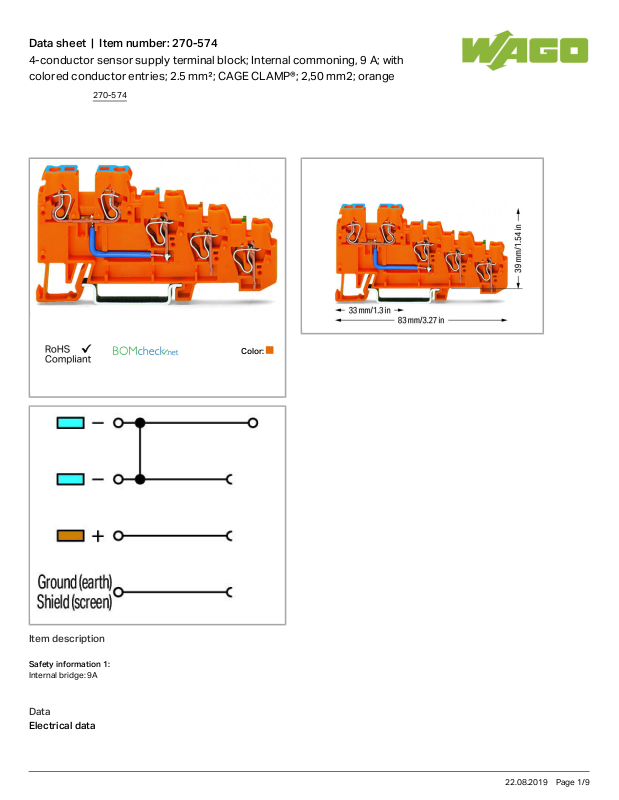

4-conductor sensor supply terminal block; Internal commoning, 9 A; with colored conductor entries; 2.5 mm²; CAGE CLAMP®; 2,50 mm2; orange
Color:
Item description
Safety information 1:
Internal bridge: 9A
Data
Electrical data
270-574
22.08.2019Page /1 9
Data sheet | Item number:270-574
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated current 18 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 2.5mm²/ 28 12AWG
Fine-stranded conductor 0.08 2.5mm²/ 28 12AWG
Strip length 6 7mm/ 0.24 0.28inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 5
Total number of potentials 3
Number of levels 4
Type of wiring Front-entry wiring
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 39mm/ 1.535inch
Depth 83mm/ 3.268inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Side marking
Material Data
Color orange
Fire load 0.204 MJ
Weight 11.03g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin CN
GTIN 4045454193829
Customs Tariff No. 85369010000
270-574
22.08.2019Page /2 9
Data sheet | Item number:270-574
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
6828
CCA
DEKRA Certification B.V.
EN 60947 2143311.03
CSA
DEKRA Certification B.V.
C22.2 1565649
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
6828
CCA
DEKRA Certification B.V.
EN 60947 2143311.03
CSA
DEKRA Certification B.V.
C22.2 1565649
Compatible products
Jumper
Item no.: 270-409
Jumper; unplated; 9-way; Nominal current 18 A; silver-colored
270-409
Item no.: 270-417
Jumper; unplated; 17-way; Nominal current 18 A; silver-colored
270-417
270-574
22.08.2019Page /3 9
Data sheet | Item number:270-574
Item no.: 270-480
Jumper; unplated; 80-way; Nominal current 18 A; silver-colored
270-480
Item no.: 870-402
Push-in type jumper bar; insulated; 2-way; Nominal current 18 A; light gray
870-402
Item no.: 870-403
Push-in type jumper bar; insulated; 3-way; Nominal current 18 A; light gray
870-403
Item no.: 870-404
Push-in type jumper bar; insulated; 4-way; Nominal current 18 A; light gray
870-404
Item no.: 870-405
Push-in type jumper bar; insulated; 5-way; Nominal current 18 A; light gray
870-405
Item no.: 870-405/011-000
Ready-made push-in type jumper bar; insulated; 3-way (1-3-5); Nominal current 18 A; light gray
870-405
/011-000
Item no.: 870-406
Push-in type jumper bar; insulated; 6-way; Nominal current 18 A; light gray
870-406
Item no.: 870-407
Push-in type jumper bar; insulated; 7-way; Nominal current 18 A; light gray
870-407
Item no.: 870-407/011-000
Ready-made push-in type jumper bar; insulated; 1-3-5-7; Nominal current 18 A; light gray
870-407
/011-000
Item no.: 870-408
Push-in type jumper bar; insulated; 8-way; Nominal current 18 A; light gray
870-408
Item no.: 870-409
Push-in type jumper bar; insulated; 9-way; Nominal current 18 A; light gray
870-409
Item no.: 870-409/011-000
Ready-made push-in type jumper bar; insulated; 1-3-5-7-9; Nominal current 18 A; light gray
870-409
/011-000
Marking accessories
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-115
/000-012
270-574
22.08.2019Page /4 9
Data sheet | Item number:270-574
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; light green
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-115
/000-024
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; red
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-145
/000-024
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; yellow
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-006
270-574
22.08.2019Page /5 9
Data sheet | Item number:270-574
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-024
Item no.: 709-177
Marking strips; on reel; 7.5 mm wide; not stretchable; plain; snap-on type; translucent
709-177
Item no.: 709-178
Marking strips; on reel; 7.5 mm wide; not stretchable; plain; snap-on type; white
709-178
Item no.: 709-196
Marking strips; for laser printer; translucent
709-196
Item no.: 709-198
Marking strips
709-198
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-017
270-574
22.08.2019Page /6 9
Data sheet | Item number:270-574
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-024
Item no.: 793-5501 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on type; white
793-5501
Item no.: 793-5501/000-002 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
793-5501
/000-002
Item no.: 793-5501/000-005 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; red
793-5501
/000-005
Item no.: 793-5501/000-006 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; blue
793-5501
/000-006
Item no.: 793-5501/000-007 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; gray
793-5501
/000-007
Item no.: 793-5501/000-012 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; orange
793-5501
/000-012
Item no.: 793-5501/000-017 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; light green
793-5501
/000-017
Item no.: 793-5501/000-023 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; green
793-5501
/000-023
Item no.: 793-5501/000-024 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; violet
793-5501
/000-024
End plate
Item no.: 270-322
End and intermediate plate; 1 mm thick; for quadruple-deck terminal blocks; orange
270-322
Insulation stop
Item no.: 280-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip; white
280-470
Item no.: 280-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip; light gray
280-471
Item no.: 280-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
280-472
tools
270-574
22.08.2019Page /7 9
Data sheet | Item number:270-574
Item no.: 210-657
Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft; short
210-657
Item no.: 210-720
Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft
210-720
ferrule
Item no.: 216-121
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-121
Item no.: 216-122
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-122
Item no.: 216-123
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-123
Item no.: 216-124
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-124
Item no.: 216-131
Ferrule; Sleeve for 0.25 mm² / AWG 24; uninsulated; electro-tin plated
216-131
Item no.: 216-132
Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated
216-132
Item no.: 216-221
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; white
216-221
Item no.: 216-222
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; gray
216-222
Item no.: 216-223
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; red
216-223
Item no.: 216-224
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; black
216-224
Item no.: 216-321
Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated; yellow
216-321
Item no.: 216-322
Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated; green
216-322
Downloads
Documentation
Bid Text
270-574 doc
24.6 kB
Download
Additional Information
Technical explanations Apr 3, 2019 pdf
2.1 MB
Download
270-574
22.08.2019Page /8 9
Data sheet | Item number:270-574
CAD/CAE - Smart Data
CAD data
3D Download 270-574 URL Download
EPLAN
EPLAN Data Portal Download
WSCAD
WSCAD Universe Download
270-574
Subject to changes.
22.08.2019Page /9 9
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
