Wago 264-711 Data Sheet

Download

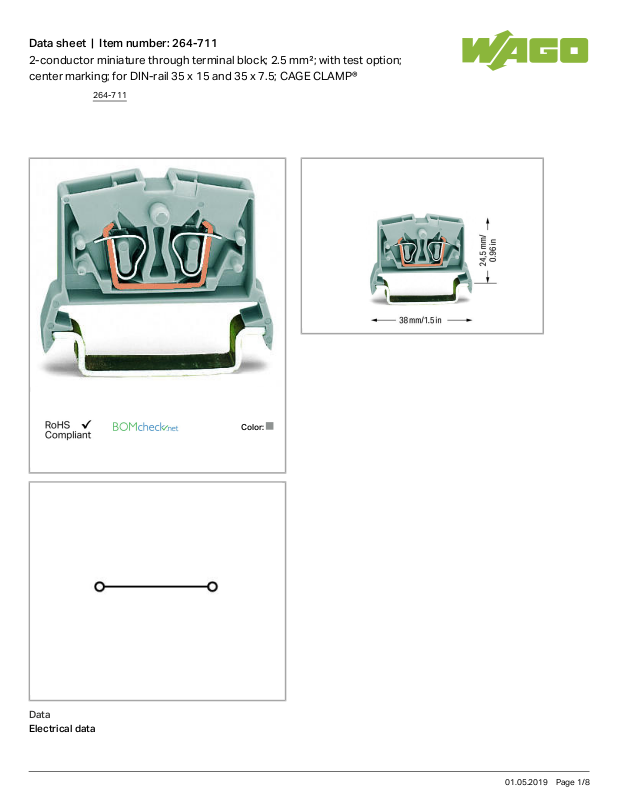

Data sheet | Item number:264-711
2-conductor miniature through terminal block; 2.5 mm²; with test option; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®
Color:

Data

Electrical data

264-711
01.05.2019Page /1 8
Data sheet | Item number:264-711
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 24 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 6mm/ 0.236inch
Height from upper-edge of DIN-35 rail 24.5mm/ 0.965inch
Depth 38mm/ 1.496inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color gray
Fire load 0.073 MJ
Weight 3.878g

Commercial data

Product Group 9 (Std. Chassis Mt. Blocks)
Country of origin CH
GTIN 4044918415415
Customs Tariff No. 85369010000
264-711
01.05.2019Page /2 8
Data sheet | Item number:264-711
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7077
CSA
DEKRA Certification B.V.
C22.2 70010891
ENEC
DEKRA Certification B.V.
EN 60947 2160584.02
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1241539­PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
IEC 60998 91/20242
(E7)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172,
sec. 6

Compatible products

264-711
01.05.2019Page /3 8
Data sheet | Item number:264-711
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-162 Steel carrier rail; 35 x 7.5 mm; slotted; 1 mm thick
210-162
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
Jumper
Item no.: 264-402 Comb-style jumper bar; insulated; 2-way; reduces conductor size to 1.5 mm
264-402
Item no.: 281-492 Alternate comb-style jumper bar; insulated; 2-way; IN = IN terminal block
281-492
ferrule
Item no.: 216-101 Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102 Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
264-711
01.05.2019Page /4 8
Data sheet | Item number:264-711
Item no.: 216-103 Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104 Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-106 Ferrule; Sleeve for 2.5 mm² / AWG 14; uninsulated; electro-tin plated
216-106
Item no.: 216-121 Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-121
Item no.: 216-122 Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-122
Item no.: 216-123 Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-123
Item no.: 216-124 Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-124
Item no.: 216-131 Ferrule; Sleeve for 0.25 mm² / AWG 24; uninsulated; electro-tin plated
216-131
Item no.: 216-132 Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated
216-132
Item no.: 216-151 Ferrule; Sleeve for 0.25 mm² / AWG 24; uninsulated; electro-tin plated
216-151
Item no.: 216-152 Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated
216-152
Item no.: 216-201 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
Item no.: 216-203 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-203
Item no.: 216-204 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-204
Item no.: 216-205 Ferrule; Sleeve for 2.08 mm² / AWG 14; insulated; electro-tin plated
216-205
Item no.: 216-206 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated
216-206
Item no.: 216-221 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-221
Item no.: 216-222 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-222
Item no.: 216-223 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-223
264-711
01.05.2019Page /5 8
Data sheet | Item number:264-711
Item no.: 216-224 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-224
Item no.: 216-321 Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated
216-321
Item no.: 216-322 Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated
216-322
Marking accessories
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-023
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-145
/000-024
Item no.: 209-290 Marker tags; not stretchable; plain; snap-on type
209-290
Item no.: 248-501 Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-006
264-711
01.05.2019Page /6 8
Data sheet | Item number:264-711
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type
248-501
/000-024
check
Item no.: 210-136 Test plug; 2 mm Ø; with 500 mm cable
210-136
Item no.: 210-137 Test plug; 2.3 mm Ø; with 500 mm cable
210-137
Item no.: 249-136 Test plug module; without locking device; modular; for 2-conductor terminal blocks
249-136
End plate
Item no.: 264-368 End and intermediate plate; 4 mm thick
264-368
Item no.: 264-369 End and intermediate plate; 4 mm thick
264-369
tools
Item no.: 209-130 Operating tool; suitable for 264, 280 and 281 Series; 1-way; of insulating material
209-130
Item no.: 210-657 Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short
210-657
Item no.: 210-658 Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
Item no.: 210-720 Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
Item no.: 280-432 Operating tool; of insulating material; 2-way
280-432
assembling
Item no.: 209-106 Mounting carrier; for isolated mounting on DIN 35 rails
209-106
264-711
01.05.2019Page /7 8
Data sheet | Item number:264-711
Item no.: 249-116 Screwless end stop; 6 mm wide; for DIN-rail 35 x 15 and 35 x 7.5
249-116
Item no.: 249-117 Screwless end stop; 10 mm wide; for DIN-rail 35 x 15 and 35 x 7.5
249-117
Item no.: 709-153 Cover; Type 1; suitable for cover carrier, type 1; 1 m long
709-153

Downloads

Documentation

Bid Text
264-711 doc
24.6 kB
Download

CAD/CAE - Smart Data

CAD data
3D Download 264-711 URL Download
264-711
Subject to changes.
01.05.2019Page /8 8
