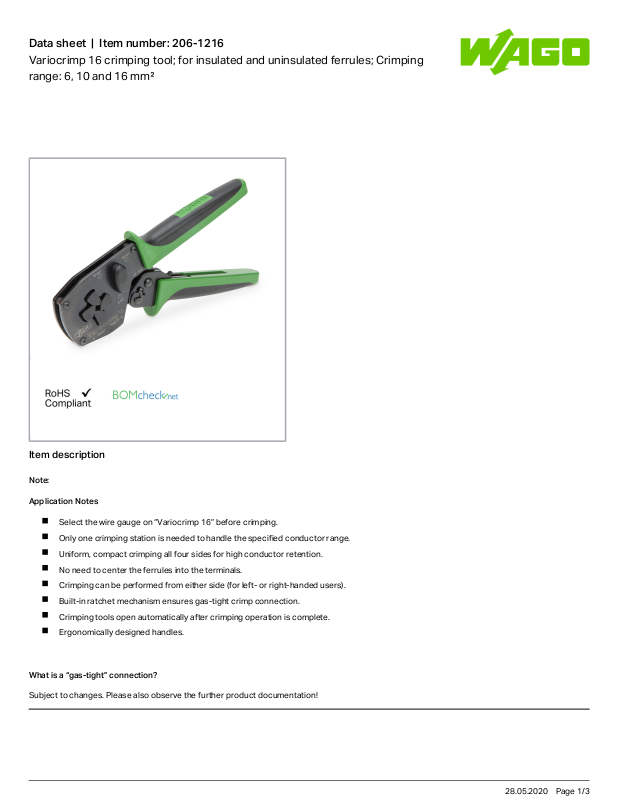

Wago 206-1216 Data Sheet
Data sheet | Item number:206-1216
Item description
Note:
Application Notes
Select the wire gauge on “Variocrimp 16” before crimping.
Only one crimping station is needed to handle the specified conductor range.
Uniform, compact crimping all four sides for high conductor retention.
No need to center the ferrules into the terminals.
Crimping can be performed from either side (for left- or right-handed users).
Built-in ratchet mechanism ensures gas-tight crimp connection.
Crimping tools open automatically after crimping operation is complete.
Ergonomically designed handles.
What is a “gas-tight” connection?
Variocrimp 16 crimping tool; for insulated and uninsulated ferrules; Crimping
range: 6, 10 and 16 mm²
Subject to changes. Please also observe the further product documentation!
28.05.2020Page /1 3
Data sheet | Item number:206-1216
In a gas-tight connection, the conductor and the ferrule are compressed, eliminating all spaces. Under normal atmospheric conditions, neither a
liquid nor gaseous medium can penetrate the crimped connection.
Oxidation between crimped single conductors is prevented, virtually eliminating the possibility of any increase in the crimped connection’s
resistance. In some exceptional cases, minute, isolated spaces may be present. However, these instances can be considered as closed off due to
the twisted conductor.
Inadequate crimping can allow the conductor to be pulled out of the connection. Hollow spaces also remain, permitting oxidation formation
and an increase in contact resistance.
Elevated resistance is detrimental for both signal transmission (signal flow is damped) and power transmission, resulting in power loss and contact
heating (risk of fire).
Crimping tools with built-in ratchets are recommended (e.g., . These tools open automatically after the crimping operation is WAGO Crimping Tools
complete. Space-saving crimping from all four sides is ideal for spring clamp termination.
Ferruled conductor cross-sections specified for WAGO products are based on this crimping method.
Data
Technical Data
Main product function Crimping tool
Material Data
Weight 600 g
Commercial data
Packaging type BOX
Country of origin DE
GTIN 4055143885461
Customs tariff number 82032000000
Counterpart
Handling Instructions
Subject to changes. Please also observe the further product documentation!
28.05.2020Page /2 3
