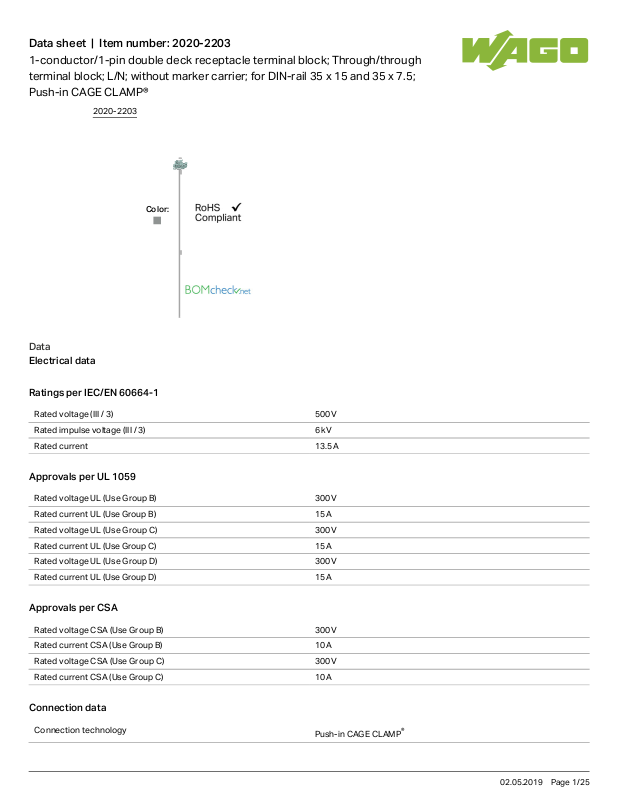

Data sheet | Item number:2020-2203
1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; L/N; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 13.5 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 15 A
Rated voltage UL (Use Group D) 300 V
Rated current UL (Use Group D) 15 A

Approvals per CSA

Rated voltage CSA (Use Group B) 300 V
Rated current CSA (Use Group B) 10 A
Rated voltage CSA (Use Group C) 300V
Rated current CSA (Use Group C) 10 A

Connection data

Connection technology
Push-in CAGE CLAMP
®
2020-2203
02.05.2019Page /1 25
Page 2
Data sheet | Item number:2020-2203
Push-in CAGE CLAMP
®
Actuation type Open Tool Slot
Push-in
Connectable conductor materials Copper
Nominal cross section 1mm²
Solid conductor 0.14 … 1.5mm²/ 24 … 16AWG
Solid conductor, push-in termination 0.5 … 1.5mm²/ 20 … 16AWG
Fine-stranded conductor 0.14 … 1.5mm²/ 24 … 16AWG
Strip length 9 … 11mm/ 0.35 … 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring

Geometrical Data

Width 3.5mm/ 0.138inch
Height from upper-edge of DIN-35 rail 51.3mm/ 2.02inch
Depth 80.1mm/ 3.154inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Potential marking L/L
Marking level Side marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.188 MJ
Weight 8.436g

Commercial data

Product Group 18 (X-COM-System)
Country of origin CN
GTIN 4050821049470
Customs Tariff No. 85366990990

Approvals / Certificates

Country specific Approvals
2020-2203
02.05.2019Page /2 25
Page 3
Data sheet | Item number:2020-2203
Logo
Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7617
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
CSA
DEKRA Certification B.V.
C22.2 No. 158 2516073
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
100670
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
UL
Underwriters Laboratories Inc.
UL 1059 E45172
2020-2203
02.05.2019Page /3 25
Page 4
Data sheet | Item number:2020-2203

Compatible products

Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-162 Steel carrier rail; 35 x 7.5 mm; slotted; 1 mm thick
210-162
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Jumper
Item no.: 2000-402
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
Item no.: 2000-402/000-005
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-005
2020-2203
02.05.2019Page /4 25
Page 5
Data sheet | Item number:2020-2203
Item no.: 2000-402/000-006
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-006
Item no.: 2000-402/000-018
Push-in type jumper bar; insulated; 2-way; Nominal current 14 A
2000-402
/000-018
Item no.: 2000-403
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
Item no.: 2000-403/000-005
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
/000-005
Item no.: 2000-403/000-006
Push-in type jumper bar; insulated; 3-way; Nominal current 14 A
2000-403
/000-006
Item no.: 2000-404
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
Item no.: 2000-404/000-005
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
/000-005
Item no.: 2000-404/000-006
Push-in type jumper bar; insulated; 4-way; Nominal current 14 A
2000-404
/000-006
Item no.: 2000-405
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
Item no.: 2000-405/000-005
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
/000-005
Item no.: 2000-405/000-006
Push-in type jumper bar; insulated; 5-way; Nominal current 14 A
2000-405
/000-006
Item no.: 2000-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block
2000-405
/011-000
Item no.: 2000-406
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
Item no.: 2000-406/000-005
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
/000-005
Item no.: 2000-406/000-006
Push-in type jumper bar; insulated; 6-way; Nominal current 14 A
2000-406
/000-006
Item no.: 2000-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block
2000-406
/020-000
2020-2203
02.05.2019Page /5 25
Page 6
Data sheet | Item number:2020-2203
Item no.: 2000-407
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
Item no.: 2000-407/000-005
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
/000-005
Item no.: 2000-407/000-006
Push-in type jumper bar; insulated; 7-way; Nominal current 14 A
2000-407
/000-006
Item no.: 2000-408
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
Item no.: 2000-408/000-005
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
/000-005
Item no.: 2000-408/000-006
Push-in type jumper bar; insulated; 8-way; Nominal current 14 A
2000-408
/000-006
Item no.: 2000-409
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
Item no.: 2000-409/000-005
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
/000-005
Item no.: 2000-409/000-006
Push-in type jumper bar; insulated; 9-way; Nominal current 14 A
2000-409
/000-006
Item no.: 2000-410
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
Item no.: 2000-410/000-005
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
/000-005
Item no.: 2000-410/000-006
Push-in type jumper bar; insulated; 10-way; Nominal current 14 A
2000-410
/000-006
Item no.: 2000-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
Item no.: 2000-433/000-005
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
/000-005
Item no.: 2000-433/000-006
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 14 A
2000-433
/000-006
Item no.: 2000-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 14 A
2000-434
2020-2203
02.05.2019Page /6 25
Page 7
Data sheet | Item number:2020-2203
Item no.: 2000-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 14 A
2000-435
Item no.: 2000-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 14 A
2000-436
Item no.: 2000-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 14 A
2000-437
Item no.: 2000-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 14 A
2000-438
Item no.: 2000-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 14 A
2000-439
Item no.: 2000-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 14 A
2000-440
Item no.: 2000-492
Double-deck vertical jumper; insulated
2000-492
Item no.: 2002-492/000-012
Double-deck vertical jumper; insulated
2002-492
/000-012
Item no.: 2009-402 Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-402
Item no.: 2009-404 Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-404
Item no.: 2009-406 Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²; suitable for 2000 and 2020 Series rail-mounted terminal blocks
2009-406
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
End plate
Item no.: 2020-2291
End and intermediate plate; 1 mm thick
2020-
2291
Item no.: 2020-2292
End and intermediate plate; 1 mm thick
2020-
2292
check
Item no.: 2009-174 Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks
2009-174
Item no.: 2009-182 Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm
2009-182
2020-2203
02.05.2019Page /7 25
Page 8
Data sheet | Item number:2020-2203
Item no.: 859-500
Test pin; 1 mm Ø; with solder connection for test wire
859-500
ferrule
Item no.: 216-241 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-241
Item no.: 216-242 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-242
Item no.: 216-243 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-243
General accessories
Item no.: 2000-121
Adaptor
2000-121
Item no.: 2020-161
Start module for 1-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-161
Item no.: 2020-164
Start module for 1-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-164
Item no.: 2020-167
Start module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-167
Item no.: 2020-181
End module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-181
Item no.: 2020-184
End module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-184
Item no.: 2020-187
End module for 1-conductor female connector; 1.5 mm²; 1-pole
2020-187
Item no.: 2020-261
Start module for 2-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-261
Item no.: 2020-264
Start module for 2-conductor female connector; with integrated end plate; 1.5 mm²; 1-pole
2020-264
Item no.: 2020-267
Start module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-267
Item no.: 2020-281
End module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-281
Item no.: 2020-284
End module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-284
Item no.: 2020-287
End module for 2-conductor female connector; 1.5 mm²; 1-pole
2020-287
Female plug
Item no.: 2020-102
1-conductor female plug; 1.5 mm²; 2-pole
2020-102
2020-2203
02.05.2019Page /8 25
Page 9
Data sheet | Item number:2020-2203
Item no.: 2020-102/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 2-pole
2020-102
/122-000
Item no.: 2020-102/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/132-000
Item no.: 2020-102/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 2-pole
2020-102
/142-000
Item no.: 2020-103
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
Item no.: 2020-103/000-036
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-036
Item no.: 2020-103/000-037
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-037
Item no.: 2020-103/000-038
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-038
Item no.: 2020-103/000-039
1-conductor female plug; 1.5 mm²; 3-pole
2020-103
/000-039
Item no.: 2020-103/122-000
1-conductor female plug; Locking lever; 1.5 mm²; 3-pole
2020-103
/122-000
Item no.: 2020-103/132-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 3-pole
2020-103
/132-000
Item no.: 2020-103/142-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 3-pole
2020-103
/142-000
Item no.: 2020-104
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
Item no.: 2020-104/000-036
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-036
Item no.: 2020-104/000-037
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-037
Item no.: 2020-104/000-038
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-038
2020-2203
02.05.2019Page /9 25
Page 10
Data sheet | Item number:2020-2203
Item no.: 2020-104/000-039
1-conductor female plug; 1.5 mm²; 4-pole
2020-104
/000-039
Item no.: 2020-104/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 4-pole
2020-104
/124-000
Item no.: 2020-104/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 4-pole
2020-104
/133-000
Item no.: 2020-104/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 4-pole
2020-104
/143-000
Item no.: 2020-105
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
Item no.: 2020-105/000-036
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-036
Item no.: 2020-105/000-037
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-037
Item no.: 2020-105/000-038
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-038
Item no.: 2020-105/000-039
1-conductor female plug; 1.5 mm²; 5-pole
2020-105
/000-039
Item no.: 2020-105/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 5-pole
2020-105
/124-000
Item no.: 2020-105/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 5-pole
2020-105
/133-000
Item no.: 2020-105/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 5-pole
2020-105
/143-000
Item no.: 2020-106
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
Item no.: 2020-106/000-036
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-036
Item no.: 2020-106/000-037
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-037
2020-2203
02.05.2019Page /10 25
Page 11
Data sheet | Item number:2020-2203
Item no.: 2020-106/000-038
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-038
Item no.: 2020-106/000-039
1-conductor female plug; 1.5 mm²; 6-pole
2020-106
/000-039
Item no.: 2020-106/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 6-pole
2020-106
/124-000
Item no.: 2020-106/133-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 6-pole
2020-106
/133-000
Item no.: 2020-106/143-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 6-pole
2020-106
/143-000
Item no.: 2020-107
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
Item no.: 2020-107/000-036
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-036
Item no.: 2020-107/000-037
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-037
Item no.: 2020-107/000-038
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-038
Item no.: 2020-107/000-039
1-conductor female plug; 1.5 mm²; 7-pole
2020-107
/000-039
Item no.: 2020-107/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 7-pole
2020-107
/124-000
Item no.: 2020-107/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 7-pole
2020-107
/134-000
Item no.: 2020-107/144-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 7-pole
2020-107
/144-000
Item no.: 2020-108
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
Item no.: 2020-108/000-036
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-036
2020-2203
02.05.2019Page /11 25
Page 12
Data sheet | Item number:2020-2203
Item no.: 2020-108/000-037
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-037
Item no.: 2020-108/000-038
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-038
Item no.: 2020-108/000-039
1-conductor female plug; 1.5 mm²; 8-pole
2020-108
/000-039
Item no.: 2020-108/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 8-pole
2020-108
/124-000
Item no.: 2020-108/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 8-pole
2020-108
/134-000
Item no.: 2020-108/144-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 8-pole
2020-108
/144-000
Item no.: 2020-109
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
Item no.: 2020-109/000-036
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
/000-036
Item no.: 2020-109/000-037
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
/000-037
Item no.: 2020-109/000-038
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
/000-038
Item no.: 2020-109/000-039
1-conductor female plug; 1.5 mm²; 9-pole
2020-109
/000-039
Item no.: 2020-109/124-000
1-conductor female plug; Locking lever; 1.5 mm²; 9-pole
2020-109
/124-000
Item no.: 2020-109/134-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 9-pole
2020-109
/134-000
Item no.: 2020-109/144-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 9-pole
2020-109
/144-000
Item no.: 2020-110
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
2020-2203
02.05.2019Page /12 25
Page 13
Data sheet | Item number:2020-2203
Item no.: 2020-110/000-036
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
/000-036
Item no.: 2020-110/000-037
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
/000-037
Item no.: 2020-110/000-038
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
/000-038
Item no.: 2020-110/000-039
1-conductor female plug; 1.5 mm²; 10-pole
2020-110
/000-039
Item no.: 2020-110/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 10-pole
2020-110
/125-000
Item no.: 2020-110/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 10-pole
2020-110
/135-000
Item no.: 2020-110/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 10-pole
2020-110
/145-000
Item no.: 2020-111
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
Item no.: 2020-111/000-036
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
/000-036
Item no.: 2020-111/000-037
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
/000-037
Item no.: 2020-111/000-038
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
/000-038
Item no.: 2020-111/000-039
1-conductor female plug; 1.5 mm²; 11-pole
2020-111
/000-039
Item no.: 2020-111/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 11-pole
2020-111
/125-000
Item no.: 2020-111/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 11-pole
2020-111
/135-000
Item no.: 2020-111/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 11-pole
2020-111
/145-000
2020-2203
02.05.2019Page /13 25
Page 14
Data sheet | Item number:2020-2203
Item no.: 2020-112
1-conductor female plug; 1.5 mm²; 12-pole
2020-112
Item no.: 2020-112/000-036
1-conductor female plug; 1.5 mm²; 12-pole
2020-112
/000-036
Item no.: 2020-112/000-037
1-conductor female plug; 1.5 mm²; 12-pole
2020-112
/000-037
Item no.: 2020-112/000-038
1-conductor female plug; 1.5 mm²; 12-pole
2020-112
/000-038
Item no.: 2020-112/000-039
1-conductor female plug; 1.5 mm²; 12-pole
2020-112
/000-039
Item no.: 2020-112/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 12-pole
2020-112
/125-000
Item no.: 2020-112/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 12-pole
2020-112
/135-000
Item no.: 2020-112/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 12-pole
2020-112
/145-000
Item no.: 2020-113
1-conductor female plug; 1.5 mm²; 13-pole
2020-113
Item no.: 2020-113/000-036
1-conductor female plug; 1.5 mm²; 13-pole
2020-113
/000-036
Item no.: 2020-113/000-037
1-conductor female plug; 1.5 mm²; 13-pole
2020-113
/000-037
Item no.: 2020-113/000-038
1-conductor female plug; 1.5 mm²; 13-pole
2020-113
/000-038
Item no.: 2020-113/000-039
1-conductor female plug; 1.5 mm²; 13-pole
2020-113
/000-039
Item no.: 2020-113/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 13-pole
2020-113
/125-000
Item no.: 2020-113/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 13-pole
2020-113
/135-000
2020-2203
02.05.2019Page /14 25
Page 15
Data sheet | Item number:2020-2203
Item no.: 2020-113/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 13-pole
2020-113
/145-000
Item no.: 2020-114
1-conductor female plug; 1.5 mm²; 14-pole
2020-114
Item no.: 2020-114/000-036
1-conductor female plug; 1.5 mm²; 14-pole
2020-114
/000-036
Item no.: 2020-114/000-037
1-conductor female plug; 1.5 mm²; 14-pole
2020-114
/000-037
Item no.: 2020-114/000-038
1-conductor female plug; 1.5 mm²; 14-pole
2020-114
/000-038
Item no.: 2020-114/000-039
1-conductor female plug; 1.5 mm²; 14-pole
2020-114
/000-039
Item no.: 2020-114/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 14-pole
2020-114
/125-000
Item no.: 2020-114/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 14-pole
2020-114
/135-000
Item no.: 2020-114/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 14-pole
2020-114
/145-000
Item no.: 2020-115
1-conductor female plug; 1.5 mm²; 15-pole
2020-115
Item no.: 2020-115/000-036
1-conductor female plug; 1.5 mm²; 15-pole
2020-115
/000-036
Item no.: 2020-115/000-037
1-conductor female plug; 1.5 mm²; 15-pole
2020-115
/000-037
Item no.: 2020-115/000-038
1-conductor female plug; 1.5 mm²; 15-pole
2020-115
/000-038
Item no.: 2020-115/000-039
1-conductor female plug; 1.5 mm²; 15-pole
2020-115
/000-039
Item no.: 2020-115/125-000
1-conductor female plug; Locking lever; 1.5 mm²; 15-pole
2020-115
/125-000
2020-2203
02.05.2019Page /15 25
Page 16
Data sheet | Item number:2020-2203
Item no.: 2020-115/135-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 15-pole
2020-115
/135-000
Item no.: 2020-115/145-000
1-conductor female plug; Strain relief plate; 1.5 mm²; 15-pole
2020-115
/145-000
Item no.: 2020-202
2-conductor female connector; 1.5 mm²; 2-pole
2020-202
Item no.: 2020-202/122-000
2-conductor female connector; Locking lever; 1.5 mm²; 2-pole
2020-202
/122-000
Item no.: 2020-202/132-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 2-pole
2020-202
/132-000
Item no.: 2020-202/142-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 2-pole
2020-202
/142-000
Item no.: 2020-203
2-conductor female connector; 1.5 mm²; 3-pole
2020-203
Item no.: 2020-203/000-036
2-conductor female connector; 1.5 mm²; 3-pole
2020-203
/000-036
Item no.: 2020-203/000-037
2-conductor female connector; 1.5 mm²; 3-pole
2020-203
/000-037
Item no.: 2020-203/000-038
2-conductor female connector; 1.5 mm²; 3-pole
2020-203
/000-038
Item no.: 2020-203/000-039
2-conductor female connector; 1.5 mm²; 3-pole
2020-203
/000-039
Item no.: 2020-203/122-000
2-conductor female connector; Locking lever; 1.5 mm²; 3-pole
2020-203
/122-000
Item no.: 2020-203/132-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 3-pole
2020-203
/132-000
Item no.: 2020-203/142-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 3-pole
2020-203
/142-000
Item no.: 2020-204
2-conductor female connector; 1.5 mm²; 4-pole
2020-204
2020-2203
02.05.2019Page /16 25
Page 17
Data sheet | Item number:2020-2203
Item no.: 2020-204/000-036
2-conductor female connector; 1.5 mm²; 4-pole
2020-204
/000-036
Item no.: 2020-204/000-037
2-conductor female connector; 1.5 mm²; 4-pole
2020-204
/000-037
Item no.: 2020-204/000-038
2-conductor female connector; 1.5 mm²; 4-pole
2020-204
/000-038
Item no.: 2020-204/000-039
2-conductor female connector; 1.5 mm²; 4-pole
2020-204
/000-039
Item no.: 2020-204/124-000
2-conductor female connector; Locking lever; 1.5 mm²; 4-pole
2020-204
/124-000
Item no.: 2020-204/133-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 4-pole
2020-204
/133-000
Item no.: 2020-204/143-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 4-pole
2020-204
/143-000
Item no.: 2020-205
2-conductor female connector; 1.5 mm²; 5-pole
2020-205
Item no.: 2020-205/000-036
2-conductor female connector; 1.5 mm²; 5-pole
2020-205
/000-036
Item no.: 2020-205/000-037
2-conductor female connector; 1.5 mm²; 5-pole
2020-205
/000-037
Item no.: 2020-205/000-038
2-conductor female connector; 1.5 mm²; 5-pole
2020-205
/000-038
Item no.: 2020-205/000-039
2-conductor female connector; 1.5 mm²; 5-pole
2020-205
/000-039
Item no.: 2020-205/124-000
2-conductor female connector; Locking lever; 1.5 mm²; 5-pole
2020-205
/124-000
Item no.: 2020-205/133-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 5-pole
2020-205
/133-000
Item no.: 2020-205/143-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 5-pole
2020-205
/143-000
2020-2203
02.05.2019Page /17 25
Page 18
Data sheet | Item number:2020-2203
Item no.: 2020-206
2-conductor female connector; 1.5 mm²; 6-pole
2020-206
Item no.: 2020-206/000-036
2-conductor female connector; 1.5 mm²; 6-pole
2020-206
/000-036
Item no.: 2020-206/000-037
2-conductor female connector; 1.5 mm²; 6-pole
2020-206
/000-037
Item no.: 2020-206/000-038
2-conductor female connector; 1.5 mm²; 6-pole
2020-206
/000-038
Item no.: 2020-206/000-039
2-conductor female connector; 1.5 mm²; 6-pole
2020-206
/000-039
Item no.: 2020-206/124-000
2-conductor female connector; Locking lever; 1.5 mm²; 6-pole
2020-206
/124-000
Item no.: 2020-206/133-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 6-pole
2020-206
/133-000
Item no.: 2020-206/143-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 6-pole
2020-206
/143-000
Item no.: 2020-207
2-conductor female connector; 1.5 mm²; 7-pole
2020-207
Item no.: 2020-207/000-036
2-conductor female connector; 1.5 mm²; 7-pole
2020-207
/000-036
Item no.: 2020-207/000-037
2-conductor female connector; 1.5 mm²; 7-pole
2020-207
/000-037
Item no.: 2020-207/000-038
2-conductor female connector; 1.5 mm²; 7-pole
2020-207
/000-038
Item no.: 2020-207/000-039
2-conductor female connector; 1.5 mm²; 7-pole
2020-207
/000-039
Item no.: 2020-207/124-000
2-conductor female connector; Locking lever; 1.5 mm²; 7-pole
2020-207
/124-000
Item no.: 2020-207/134-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 7-pole
2020-207
/134-000
2020-2203
02.05.2019Page /18 25
Page 19
Data sheet | Item number:2020-2203
Item no.: 2020-207/144-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 7-pole
2020-207
/144-000
Item no.: 2020-208
2-conductor female connector; 1.5 mm²; 8-pole
2020-208
Item no.: 2020-208/000-036
2-conductor female connector; 1.5 mm²; 8-pole
2020-208
/000-036
Item no.: 2020-208/000-037
2-conductor female connector; 1.5 mm²; 8-pole
2020-208
/000-037
Item no.: 2020-208/000-038
2-conductor female connector; 1.5 mm²; 8-pole
2020-208
/000-038
Item no.: 2020-208/000-039
2-conductor female connector; 1.5 mm²; 8-pole
2020-208
/000-039
Item no.: 2020-208/124-000
2-conductor female connector; Locking lever; 1.5 mm²; 8-pole
2020-208
/124-000
Item no.: 2020-208/134-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 8-pole
2020-208
/134-000
Item no.: 2020-208/144-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 8-pole
2020-208
/144-000
Item no.: 2020-209
2-conductor female connector; 1.5 mm²; 9-pole
2020-209
Item no.: 2020-209/000-036
2-conductor female connector; 1.5 mm²; 9-pole
2020-209
/000-036
Item no.: 2020-209/000-037
2-conductor female connector; 1.5 mm²; 9-pole
2020-209
/000-037
Item no.: 2020-209/000-038
2-conductor female connector; 1.5 mm²; 9-pole
2020-209
/000-038
Item no.: 2020-209/000-039
2-conductor female connector; 1.5 mm²; 9-pole
2020-209
/000-039
Item no.: 2020-209/124-000
2-conductor female connector; Locking lever; 1.5 mm²; 9-pole
2020-209
/124-000
2020-2203
02.05.2019Page /19 25
Page 20
Data sheet | Item number:2020-2203
Item no.: 2020-209/134-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 9-pole
2020-209
/134-000
Item no.: 2020-209/144-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 9-pole
2020-209
/144-000
Item no.: 2020-210
2-conductor female connector; 1.5 mm²; 10-pole
2020-210
Item no.: 2020-210/000-036
2-conductor female connector; 1.5 mm²; 10-pole
2020-210
/000-036
Item no.: 2020-210/000-037
2-conductor female connector; 1.5 mm²; 10-pole
2020-210
/000-037
Item no.: 2020-210/000-038
2-conductor female connector; 1.5 mm²; 10-pole
2020-210
/000-038
Item no.: 2020-210/000-039
2-conductor female connector; 1.5 mm²; 10-pole
2020-210
/000-039
Item no.: 2020-210/125-000
2-conductor female connector; Locking lever; 1.5 mm²; 10-pole
2020-210
/125-000
Item no.: 2020-210/135-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 10-pole
2020-210
/135-000
Item no.: 2020-210/145-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 10-pole
2020-210
/145-000
Item no.: 2020-211
2-conductor female connector; 1.5 mm²; 11-pole
2020-211
Item no.: 2020-211/000-036
2-conductor female connector; 1.5 mm²; 11-pole
2020-211
/000-036
Item no.: 2020-211/000-037
2-conductor female connector; 1.5 mm²; 11-pole
2020-211
/000-037
Item no.: 2020-211/000-038
2-conductor female connector; 1.5 mm²; 11-pole
2020-211
/000-038
Item no.: 2020-211/000-039
2-conductor female connector; 1.5 mm²; 11-pole
2020-211
/000-039
2020-2203
02.05.2019Page /20 25
Page 21
Data sheet | Item number:2020-2203
Item no.: 2020-211/125-000
2-conductor female connector; Locking lever; 1.5 mm²; 11-pole
2020-211
/125-000
Item no.: 2020-211/135-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 11-pole
2020-211
/135-000
Item no.: 2020-211/145-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 11-pole
2020-211
/145-000
Item no.: 2020-212
2-conductor female connector; 1.5 mm²; 12-pole
2020-212
Item no.: 2020-212/000-036
2-conductor female connector; 1.5 mm²; 12-pole
2020-212
/000-036
Item no.: 2020-212/000-037
2-conductor female connector; 1.5 mm²; 12-pole
2020-212
/000-037
Item no.: 2020-212/000-038
2-conductor female connector; 1.5 mm²; 12-pole
2020-212
/000-038
Item no.: 2020-212/000-039
2-conductor female connector; 1.5 mm²; 12-pole
2020-212
/000-039
Item no.: 2020-212/125-000
2-conductor female connector; Locking lever; 1.5 mm²; 12-pole
2020-212
/125-000
Item no.: 2020-212/135-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 12-pole
2020-212
/135-000
Item no.: 2020-212/145-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 12-pole
2020-212
/145-000
Item no.: 2020-213
2-conductor female connector; 1.5 mm²; 13-pole
2020-213
Item no.: 2020-213/000-036
2-conductor female connector; 1.5 mm²; 13-pole
2020-213
/000-036
Item no.: 2020-213/000-037
2-conductor female connector; 1.5 mm²; 13-pole
2020-213
/000-037
Item no.: 2020-213/000-038
2-conductor female connector; 1.5 mm²; 13-pole
2020-213
/000-038
2020-2203
02.05.2019Page /21 25
Page 22
Data sheet | Item number:2020-2203
Item no.: 2020-213/000-039
2-conductor female connector; 1.5 mm²; 13-pole
2020-213
/000-039
Item no.: 2020-213/125-000
2-conductor female connector; Locking lever; 1.5 mm²; 13-pole
2020-213
/125-000
Item no.: 2020-213/135-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 13-pole
2020-213
/135-000
Item no.: 2020-213/145-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 13-pole
2020-213
/145-000
Item no.: 2020-214
2-conductor female connector; 1.5 mm²; 14-pole
2020-214
Item no.: 2020-214/000-036
2-conductor female connector; 1.5 mm²; 14-pole
2020-214
/000-036
Item no.: 2020-214/000-037
2-conductor female connector; 1.5 mm²; 14-pole
2020-214
/000-037
Item no.: 2020-214/000-038
2-conductor female connector; 1.5 mm²; 14-pole
2020-214
/000-038
Item no.: 2020-214/000-039
2-conductor female connector; 1.5 mm²; 14-pole
2020-214
/000-039
Item no.: 2020-214/125-000
2-conductor female connector; Locking lever; 1.5 mm²; 14-pole
2020-214
/125-000
Item no.: 2020-214/135-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 14-pole
2020-214
/135-000
Item no.: 2020-214/145-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 14-pole
2020-214
/145-000
Item no.: 2020-215
2-conductor female connector; 1.5 mm²; 15-pole
2020-215
Item no.: 2020-215/000-036
2-conductor female connector; 1.5 mm²; 15-pole
2020-215
/000-036
Item no.: 2020-215/000-037
2-conductor female connector; 1.5 mm²; 15-pole
2020-215
/000-037
2020-2203
02.05.2019Page /22 25
Page 23
Data sheet | Item number:2020-2203
Item no.: 2020-215/000-038
2-conductor female connector; 1.5 mm²; 15-pole
2020-215
/000-038
Item no.: 2020-215/000-039
2-conductor female connector; 1.5 mm²; 15-pole
2020-215
/000-039
Item no.: 2020-215/125-000
2-conductor female connector; Locking lever; 1.5 mm²; 15-pole
2020-215
/125-000
Item no.: 2020-215/135-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 15-pole
2020-215
/135-000
Item no.: 2020-215/145-000
2-conductor female connector; Strain relief plate; 1.5 mm²; 15-pole
2020-215
/145-000
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type
2009-110
Item no.: 2009-113
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
Item no.: 2009-113/000-002
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-002
Item no.: 2009-113/000-005
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-005
Item no.: 2009-113/000-006
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-006
Item no.: 2009-113/000-007
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-007
Item no.: 2009-113/000-012
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-012
Item no.: 2009-113/000-017
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-017
Item no.: 2009-113/000-023
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-023
Item no.: 2009-113/000-024
WMB-Inline; for Smart Printer; on reel; plain; snap-on type
2009-113
/000-024
2020-2203
02.05.2019Page /23 25
Page 24
Data sheet | Item number:2020-2203
Item no.: 793-3501
WMB marking card; as card; plain; snap-on type
793-3501
Coding
Item no.: 2020-100
Carrier with 6 coding pins; for coding of female plugs; for carrier terminal blocks
2020-100
Protective Warning Marker
Item no.: 2000-115
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
2000-115
tools
Item no.: 210-647 Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short
210-647
Item no.: 210-648 Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled
210-648
Item no.: 210-719 Operating tool with partially insulated shaft; Type 1, blade (2.5 x 0.4) mm
210-719

Downloads

Documentation

Bid Text
2020-2203 docx
15.5 kB
Download
Additional Information
pdf
2.1 MB
Download

CAD/CAE - Smart Data

CAD data
3D Download 2020-2203 URL Download

Product family

X-COM S-Mini
Show all products from the family
2020-2203
02.05.2019Page /24 25
Page 25
Data sheet | Item number:2020-2203
2020-2203
Subject to changes.
02.05.2019Page /25 25
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
