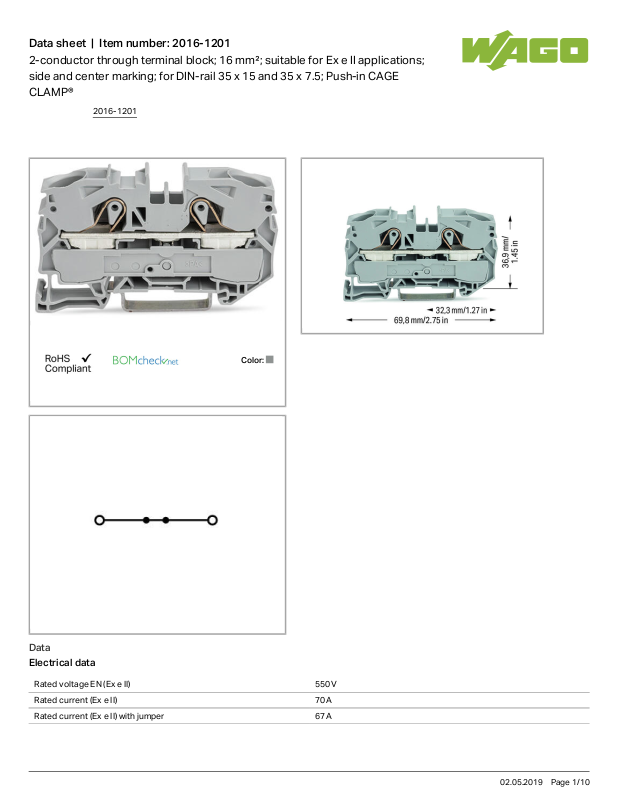

Data sheet | Item number:2016-1201
2-conductor through terminal block; 16 mm²; suitable for Ex e II applications;
side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE
CLAMP®
Color:
Data
Electrical data
Rated voltage EN (Ex e II) 550 V
Rated current (Ex e II) 70 A
Rated current (Ex e II) with jumper 67 A
2016-1201
02.05.2019Page /1 10
Page 2
Data sheet | Item number:2016-1201
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 76 A
Rated current (2) 90 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 85 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 85 A
Approvals per CSA
Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 80 A
Rated voltage CSA (Use Group C) 600 V
Rated current CSA (Use Group C) 80 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Open Tool Slot
Connectable conductor materials Copper
Nominal cross section 16mm²
Solid conductor 0.5 … 16mm²/ 20 … 6AWG
Solid conductor, push-in termination 6 … 16mm²/ 14 … 6AWG
Fine-stranded conductor 0.5 … 25mm²/ 20 … 4AWG
Strip length 18 … 20mm/ 0.71 … 0.79inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 12mm/ 0.472inch
Height from upper-edge of DIN-35 rail 36.9mm/ 1.453inch
Depth 69.8mm/ 2.748inch
2016-1201
02.05.2019Page /2 10
Page 3
Data sheet | Item number:2016-1201
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.464 MJ
Weight 21.7g
Commercial data
Product Group 22 (TOPJOB S)
Country of origin DE
GTIN 4017332076494
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
sec.9
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 05
ATEX
1031 U (II
2 G Ex eII
bzw. I M2
Ex eI)
IECEx
Physikalisch Technische Bundesanstalt (PTB)
IEC 60079 IECEx PTB
05.0015 U
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 2172580.01
CSA
C22.2 No. 158 1579112
2016-1201
02.05.2019Page /3 10
Page 4
Data sheet | Item number:2016-1201
DEKRA Certification B.V.
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 14HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 38586/A0
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 E45172
Compatible products
General accessories
Item no.: 2016-100
Finger guard; touchproof cover protects unused conductor entries
2016-100
ferrule
2016-1201
02.05.2019Page /4 10
