WAGNER TITANUS Technical Manual

Download

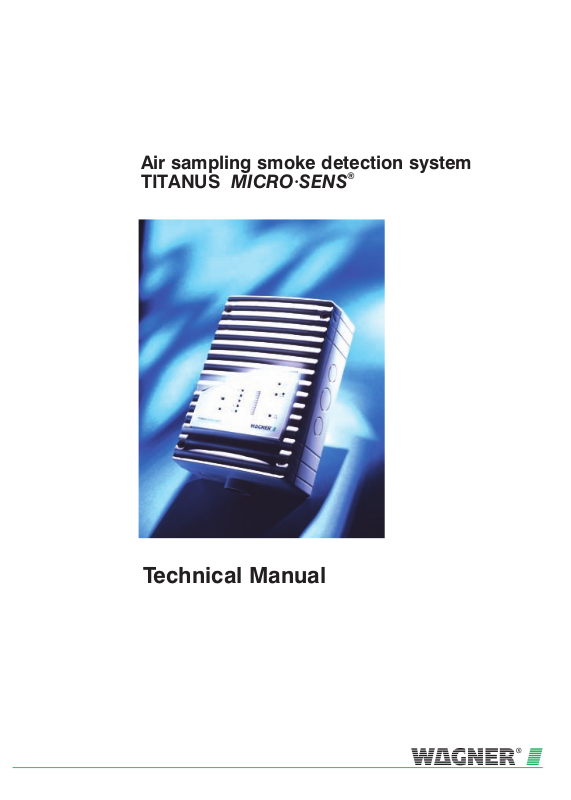

Air sampling smoke detection system

TITANUS MICRO·SENS

Technical Manual

Air Sampling Smoke Detection System

TITANUS MICRO·SENS

Rev.a

Technical Manual

WAGNER Group GmbH

Schleswigstraße 1 - 5 D-30853 Langenhagen Telephone +49 (0) 511 / 97383-0 Telefax +49 (0) 511 / 97383-140 E-Mail

Internet www.wagner.de

support@wagner.de

item number:

dated:

supersedes:

69-30-0525 01/09 12/06

Contents TITANUS MICRO·SENS®

0 General 0 – 1

0.1 Introduction 1

0.2 Safety Information 1

0.3 Guarantee 2

0.4 Copyright 2

0.5 Packaging 3

0.6 Disposal 3

1 Product Description 1 – 1

1.1 Characteristics of the TITANUS MICRO·SENS®

aspirating smoke detection system 1

1.2 Areas of Application 3

2 Technical Description 2 – 1

2.1 System Description 1

2.1.1 Function 2

2.2 TITANUS MICRO·SENS® and Accessories 6

2.2.1 Overview 6

2.2.2 TITANUS MICRO·SENS® air sampling smoke detection system 7

2.2.3 Detector Box 9

2.2.4 Diagnostics tool 12

2.2.5 Parallel Displays 13

2.2.6 Reaction Indicator 14

2.3 Pipe system 15

2.3.1 Overview 15

2.3.2 Aspiration apertures for room monitoring 17

2.3.2.1 Aspiration reduction films 17

2.3.2.2 Aspiration reduction clips 18

2.3.3 Ceiling duct for concealed mounting 19

2.3.4 Air filters for dusty areas 20

2.3.5 Air return for pressure differences and air pollution 21

2.3.6 Noise suppressor 22

2.3.7 Steam trap for humid areas 23

3 Technical Data 3 – 1

3.1 TITANUS MICRO·SENS® 1

3.2 TITANUS MICRO·SENS® detection box 3

3.3 Accessories – TITANUS MICRO·SENS® 4

3.4 Pipe System – TITANUS MICRO·SENS® 6

Data: 01/09 MS_A_Inhalt-en-e

TITANUS MICRO·SENS® Contents

Contents

4 Design 4 – 1

4.1 General 1

4.1.1 Regulations 2

4.1.2 Pipe system 3

4.1.3 Air flow monitoring 7

4.1.4 Sensitivity 9

4.1.5 Design Limits 10

4.2 Project planning 11

4.2.1 Project planning guidelines 11

4.2.1.1 Determining the necessary accessories 11

4.2.2 Pipe accessories 12

4.2.3 Sensitivity and pipeline project planning 13

4.2.3.1 Pipeline project planning with pipe accessories 13

4.2.4 Aperture diameter 17

4.3 Special project planning 19

4.3.1 Project planning for individual aperture monitoring 19

4.3.1.1 I-Pipe system 19

4.3.1.2 U-Pipe system 21

4.3.1.3 M-Pipe system 23

4.3.1.4 Double-U-Pipe system 25

4.3.2 Simplified pipe design 27

4.3.2.1 I-Pipe system 27

4.3.2.2 U-pipe system 28

4.3.2.3 M-pipe system 29

4.3.2.4 Double-U-pipe system 30

4.3.3 Design for Forced Air Flow 31

4.4 Power Supply 35

5 Installation TITANUS MICRO·SENS® 5 – 1

5.1 General 1

5.2 Installation site 2

5.2.1 Fitting the TITANUS MICRO·SENS® air sampling smoke detector2

5.2.2 Connecting the air sampling pipe 5

5.3 Incorporation and electrical connection of additional modules 6

5.4 Connection to CFDU, with reset button 9

5.5 Incorporating the reset board 10

5.5.1 Connection to a CFDU, with reset board 12

5.6 Incorporating the reset and isolating button board 13

5.6.1 Function switching plan, reset and isolating button board 14

MS_A_Inhalt-en-e Data: 01/09

Contents TITANUS MICRO·SENS®

Contents

Incorporating the relay board RU-1/RU-2 15

5.7

5.7.1 Function switching plan, relay board RU-1 16

5.7.2 Function switching plan, relay board RU-2 17

5.8 Using TITANUS MICRO·SENS® in the AlgoRex® fire alarm system 18

5.8.1 Collective Connection 18

5.8.2 Function switching plan, collective connection 19

5.8.3 Use of the TITANUS MICRO·SENS® with AlgoRex

5.8.3.1 Installation of AlgoRex® line components

line components 20

into the TITANUS MICRO·SENS

additional housing 20

5.8.3.2 TITANUS MICRO·SENS® and AnalogPLUS technology 21

5.8.3.3 TITANUS MICRO·SENS® and interactive technology 22

5.9 TITANUS MICRO·SENS® in a network 23

5.9.1 Fitting the network module into the

TITANUS MICRO·SENS

additional housing 23

5.9.2 Connecting the Network Module 24

5.10 Parallel displays 25

5.10.1 Connecting the parallel displays to TITANUS MICRO·SENS® 25

5.10.2 Parallel display housing 26

5.10.3 Electrical connection 27

5.11 Reaction indicator 28

5.11.1 Addressing the reaction indicators 28

5.11.2 Connecting the reaction indicator to the

TITANUS MICRO·SENS

5.12 Inserting the detection unit in the device base unit 30

5.13 Settings 31

5.13.1 Detection Unit 31

5.13.1.1 Setting reaction sensitivity 32

5.13.1.2 Delay time for triggering the alarm 32

5.13.1.3 Threshold for air flow monitoring 32

5.13.1.4 Delay time for air flow fault 33

5.13.1.5 Action-Alarm Threshold 33

5.13.1.6 Fault display 33

5.13.1.7 Dynamic air flow 34

5.13.1.8 ROOM·IDENT 34

5.13.1.9 LOGIC·SENS 34

5.13.1.10 Fire Alarm threshold after ROOM·IDENT 35

5.13.1.11 Setting the ventilator voltage 35

5.13.1.12 Inputting the current air pressure 36

5.13.1.13 Inputting height above Normal Sea Level (NN) 36

5.13 Data Logging 37

Data: 01/09 MS_A_Inhalt-en-e

TITANUS MICRO·SENS® Contents

Contents

6 Installation Pipe System 6 – 1

6.1 Linear expansion of the pipe system 3

6.2 Patented air sampling points 5

6.3 Ceiling lead through 7

6.4 Monitoring in forced air flow systems (ventilation or climatic applications)9

6.4.1 Detection at air inlets/outlets 9

6.4.2 Detection in bypass systems 9

6.5 Filter 10

6.5.1 Installation of air filter, type LF-AD-x 10

6.5.2 Mounting of the special filter type SF-400/650 11

6.6 Air return 12

6.7 Noise suppressor 13

6.8 3-Way ball valve 14

6.9 Steam trap 15

6.10 Test adapter 16

7 Commissioning 7 – 1

7.1 Commissioning the detection unit 1

7.1.1 Plug and Play Commissioning 2

7.1.2 Commissioning with the diagnostics tool 2

7.2 Installing diagnostics software 3

7.3 Air flow sensor adjustment 5

7.3.1 Air Pressure-Independent Adjustment 5

7.3.2 Air Pressure-Dependent Adjustment 6

7.4 Testing the detection unit and alarm forwarding 8

7.5 Testing air flow monitoring 9

7.6 Testing fault forwarding 10

7.7 Testing the air flow sensory analysis function 11

7.7.1 Preparations for function testing 11

7.7.2 Carrying out function testing 13

7.8 Commissioning fire seat location 15

7.9 Commissioning the reaction indicators 19

MS_A_Inhalt-en-e Data: 01/09

Contents TITANUS MICRO·SENS®

Contents

8 Maintenance 8 – 1

8.1 Visual check 1

8.2 Testing detector and alarm forwarding 1

8.3 Testing pipe system 1

8.4 Exchanging the detection unit 2

8.5 Exchanging the type AF-TM air filter for the device base 3

8.6 Changing the filter on the LF-AD-x air filter 4

8.7 Changing the filter on the SF-400/650 special filter 5

8.8 Pipe system blow through process 6

8.9 Checking the air flow sensor adjustment 7

8.10 Testing fire seat location and the reaction indicators 9

8.11 Testing Air Flow Monitoring 10

8.12 Testing Fault Forwarding 10

8.13 Maintenance Intervals 10

Appendix

Air Pressure Adjustment Tables Projection Tables System Product List Certificate of Approval of Components and Systems EMC Declaration of Conformity Inspection Protocol Glossary Conformity certification pursuant to EU

Data: 01/09 MS_A_Inhalt-en-e

TITANUS MICRO·SENS® Contents

MS_A_Inhalt-en-e Data: 01/09

TITANUS MICRO·SENS® General

0 General

0.1 Introduction

This manual is for installers of air sampling smoke detection systems, in particular for engineers, technicians, and fitters etc. who have technical knowledge in the field of smoke detection technology but who are possibly working with this device for the first time.

For damage and faults resulting from the non-observance of this manual WAGNER Group GmbH, called WAGNER in the following, does not assume liability.

This manual refers to the air sampling smoke detection systems TITANUS MICRO·SENS and very early smoke detection. As the smoke detection systems are from one series, TITANUS MICRO·SENS

. These systems may only be used for early

is described here.

0.2 Safety Information

D The following symbols identify parts of the text in this manual which require special attention so that damage can be avoided and so that operations can run smoothly.

This symbol warns against actions which might cause damage if it is ignored.

ATTENTION

INSTRUCTION

TIP

This symbol warns against actions which could cause operational breakdowns if it is ignored.

Operational improvements can be achieved if this symbol is observed.

MS_A_00-en-e Data: 01/09 0 – 1

General TITANUS MICRO·SENS®

0.3 Guarantee

The manual is subject to technical modification without notice and makes no claim to completeness.

In principle our “Terms and Conditions of Supply and Assembly” apply. No claims under the guarantee or for liability can be made for damage to persons or property if they are based on one or more of the following causes:

• insufficient observance of the instructions about the design, assem- bly of the aspirating smoke detection system, assembly of the pipe system, commissioning and maintenance

• use of the aspirating smoke detection system in contravention of the intended use

• insufficient monitoring of working parts

• improperly executed repairs

• unauthorised constructional changes to the aspirating smoke detec-

tion system

• force majeure

0.4 Copyright

The copyright in this Technical Manual remains with WAGNER. The manual is designed exclusively for the assembler and his col-

leagues. Reproduction of the manual, including extracts, is not allowed. Copying

or distribution of the manual in any form is only allowed with permission in writing from WAGNER.

0 – 2 Data: 01/09 MS_A_00-en-e

TITANUS MICRO·SENS® General

0.5 Packaging

The individual air sampling smoke detection systems are packed in accordance with the anticipated transport conditions. Exclusively environmentally friendly materials were used for the packaging.

The packaging is intended to protect the air sampling smoke detection system from being damaged until it is installed. For that reason, it should only be removed from its packaging shortly before installation.

The packaging material is to be disposed of in accordance with applicable statutory provisions and local regulations.

z Dispose of the packaging materials in an environmentally friendly

manner.

z Observe local disposal regulations.

Packaging materials are valuable raw materials and in many cases can be re-used or expediently processed and recycled. Improper disposal of packaging materials can harm the environment.

INSTRUCTION

0.6 Disposal

If no take-back or disposal agreements have been made, disassembled components are to be taken for recycling:

z Take metal parts for scrapping. z Take plastic parts to be recycled. z Sort the remaining components by material quality and dispose of

them.

MS_A_00-en-e Data: 01/09 0 – 3

General TITANUS MICRO·SENS®

0 – 4 Data: 01/09 MS_A_00-en-e

TITANUS MICRO·SENS® Product Description

1 Product Description

1.1 Characteristics of the TITANUS

MICRO·SENS

detection system

aspirating smoke

TITANUS MICRO·SENS® is the latest generation of the renowned WAGNER smoke detection systems. The TITANUS MICRO·SENS be used for room and equipment protection and for monitoring air conditioning cabinets or air conditioning ducts. Through the innovative ROOM·IDENT process, the system can also locate the site of the fire.

Locating the site of the fire The unique ROOM·IDENT technology makes it possible to determine the

location of a fire when monitoring up to 5 separate areas. So that the emergency services can act as quickly as possible, the seat of the fire can be made known, for example, via reaction indicators which are allocated to the various monitoring areas.

Sensitivity The TITANUS MICRO·SENS

0.1 %/m and 2 %/m light obscuration in steps of 0.1%/m. Using a smoke

level indicator, an indicator sensitivity of between 0.05 %/m and 0.2 %/m light obscuration can be achieved. The HIGH POWER LIGHT SOURCE light source technology used in TITANUS neous reaction behaviour from different types of fire. The device can provide 2 alarm thresholds (pre alarm and alarm). The pre-alarm threshold is adjustable from 10 - 80 % of the fire alarm threshold.

Intelligent signal processing The TITANUS MICRO·SENS

processing for avoiding false alarms. Perfected algorithms based on numerous fire trials and decades of experience ensure a high level of safety in differentiating between a false status and a fire event.

Safe airflow monitoring PIPE·GUARD, the comprehensive package for airflow monitoring,

recognises safe breakdowns such as pipe breakages or blocked detection apertures. Using dynamic airflow monitoring, the TITANUS

MICRO·SENS

thus makes an important contribution to sabotage safety. Airflow monitoring is temperature-compensated and can be set to be air

pressure-dependent.

reacts even to small, quick changes in the airflow and

reaction threshold can be set at between

systems guarantees homoge-

has LOGIC·SENS intelligent signal

can

MS_A_01-en-e Data: 01/09 1 – 1

Product Description TITANUS MICRO·SENS®

Plug and Play Installation and commissioning of the TITANUS MICRO·SENS

are

simple with the Plug & Play function. The device base is pre-assembled on site. By pre-setting the detection

unit for standard applications, the TITANUS MICRO·SENS

is operational

immediately after it is inserted in the device base.

Redundancy

ventilators For maximum safety, the TITANUS MICRO·SENS

can be fitted with redundancy ventilators as an option. During operation of the device with the redundancy ventilator, ROOM·IDENT is not possible.

Network capacity Fitted with a network card, several TITANUS MICRO·SENS® devices can

be linked together in an Ethernet network. From a central point the user can, for example, via VisuLAN T levels, airflow values etc. In addition, the TITANUS MICRO·SENS

monitor the whole plant for smoke

can be integrated via the so-called OPC server into existing hazard and building management systems.

Potential free contacts The TITANUS MICRO·SENS

has one potential free contact each for

alarm and fault. So the smoke detection system can be switched to col-

lective and addressable (FAS). A relay card (optional) can be connected to the TITANUS

MICRO·SENS

in order to connect the potential-free contact for the pre-

recording lines of any central fire alarm systems

alarm to a detector line of a CFDU.

Diagnostics With the DIAG 3 diagnostics device, there is a system available for

commissioning, inspection and servicing which makes it possible to configure the device quickly and easily and contain faults. For diagnostics purposes events are stored in the TITANUS MICRO·SENS

for 72 hours.

Designing detection points The monitoring surfaces of the detection point type for the TITANUS

MICRO·SENS

are to be set to match the point-specific smoke alarms. The detection points can thus be designed similar to point-specific smoke alarms in accordance with the particular national regulations.

Patented detection points Wagner’s patented detection reducing films, clips and banderols make

assembly simple and comfortable and avoid whistling operational noises. An even inflow of air through all the apertures is achieved with a stepped aperture diameter. These are fitted with rapidly checkable identification.

Extensive

pipe accessories Wagner’s extensive range of accessories makes it possible to use the

TITANUS

aspirating smoke detection system even under the most difficult of conditions. Products from various types of air filter from condensate traps to blow through devices raise the serviceable life under extreme dusty, humid and excessively cold environmental conditions.

Via the address module of the particular FAS.

1 – 2 Data: 01/09 MS_A_01-en-e

TITANUS MICRO·SENS® Product Description

1.2 Areas of Application

The TITANUS MICRO·SENS® air sampling smoke detection system is a fire alarm system for the protection of rooms, equipment and air conditioning ducts.

Principle Air samples for a monitoring area are taken through the draw-off holes in

a pipe system and fed to the detection unit. The principle is particularly suitable for areas in which point type alarms

are not used or can only be used to a limited extent. This involves areas in particular …

• where is a high risk of fire,

• where high detection sensitivity is required,

• where false alarms must be avoided,

• which are difficult to access and in which it is difficult to mount and/or

inspect point type alarms,

• where interrupting operations for inspection and servicing must be

avoided,

• which are air conditioned,

• where the height is greater than is allowed for point type alarms,

• where for aesthetic reasons point type alarms are not wanted,

• where there are strong electromagnetic fields,

• which are subjected to high or low temperatures,

• which have a heavy dust load,

• where the fire alarm equipment must be protected against vandalism

or sabotage

MS_A_01-en-e Data: 01/09 1 – 3

Product Description TITANUS MICRO·SENS®

Room protection The TITANUS MICRO·SENS

rooms such as, e.g.

• double floors, intermediate ceilings,

• tunnels, ducts, cavities not easily accessible,

• warehouses, deep freeze stores, lift shafts,

• museums, cultural establishments,

• hotel rooms, hospital rooms, offices, prison cells, railway

compartments.

is suitable, for example, for monitoring

9 8

7 6 5

4 3

2 1

TITANUS MICRO·SENS

10 9 8

7 6

5 4

3 2

TITANUS MICRO·SENS

Fig.. 1.1: Principle of Room Monitoring with TITANUS MICRO·SENS

System

Smoke Detection

1 – 4 Data: 01/09 MS_A_01-en-e

TITANUS MICRO·SENS® Product Description

Room monitoring

with air conditioning Room monitoring takes place

• in server rooms with air conditioning,

• in ventilation ducts,

• in double floors, intermediate ceilings,

• in IT rooms, E-distribution rooms, transformer cells,

• for air conditioning cabinets (see Fig. 1.2),

• at bypass of air conditioning ducts.

Fig. 1.2: Monitoring options for a circulating air conditioning cabinet or an air conditioning

duct (principle representation)

The TITANUS MICRO·SENS® aspirating smoke detection system can also be used for earliest detection of fires in rooms with special air conditioning.

Its high level of sensitivity means goods and equipment can be reliably monitored. The TITANUS MICRO·SENS

is therefore especially suitable

for areas of application.

MS_A_01-en-e Data: 01/09 1 – 5

Product Description TITANUS MICRO·SENS®

z in which because of concentrated high values early intervention is nec-

essary,

z in which equipment must always be operational, z in which highly sensitive detection is required (e.g. in areas where,

because of built-in filter elements, there is a low level of smoke particles in the air)

z in which there are high rates of air change.

Device protection unventilated and force-ventilated equipment / cabinets such as, e.g.

• distribution cabinets, switching cabinets,

• telephone switching equipment,

• measuring, control and regulation equipment.

Fig. 1.3: Equipment monitoring principle using the TITANUS MICRO·SENS

1 – 6 Data: 01/09 MS_A_01-en-e

TITANUS MICRO·SENS® Technical Description

2 Technical Description

2.1 System Description

The TITANUS MICRO·SENS® aspirating smoke detection system comprises a detection unit, device base and pipe system.

The most important components of the TITANUS MICRO·SENS sensitive detection unit for picking up smoke aerosols and the aspiration unit with integrated air flow sensor for transporting air samples and for monitoring the pipe system for breaks and blockages .

The pipe system consists essentially of pipe and fittings, in either PVC or ABS plastics.

are the

Pipe system

Aspiration pipe

ir aspiration

Detection unit

Detection incl. air flow sensor

Device base

spiration a pertures

Accessories

Aspiration unit

9 8

7 6

5 4

3 2

Detection unit

and

Device base

Air outlet

TITANUS MICRO·SENS

Paral lel display

Reaction indicator

Fig. 2.1: Overview of the TITANUS MICRO·SENS® smoke detection system

To guarantee safe operation even under the most difficult conditions (e.g. recycling area), there are extensive accessories available such as, e.g., an integrated air filter, various external air filters or the blow through device. In very cold areas, a deep freeze version of the TITANUS

MICRO·SENS

can be used. A redundancy ventilator can be used for

applications where there are particular safety requirements. When fitted to monitor several monitoring areas and blind spots, there

are reaction indicators for rapid identification of the seat of the fire and an offset parallel display as a status indicator for the detection unit.

MS_A_02-a-en-e Data: 01/09 2 – 1

Technical Description TITANUS MICRO·SENS®

2.1.1 Function

Air samples are taken from the area to be monitored via a pipe system with defined aspiration apertures, using the TITANUS MICRO·SENS aspiration unit and these are sent to the sensitive detection unit (see Fig.2.1).

Locating the site of the fire It is possible to locate the site of the fire using ROOM·IDENT with an I-

pipe design for a maximum 5 rooms or pieces of equipment. The operating principle incorporates four phases:

Phase 1 During operating conditions air samples are taken from the pipes cover-

ing the various rooms. The samples are taken via fan to the detector unit and analysed for possible smoke particles.

Fig. 2.2: Phase 1 ROOM-IDENT standard operation

Phase 2 The system will activate an alarm once it has reached an alarm threshold

level due to the rise of typical smoke aerosols. If « Fire alarm after ROOM·IDENT « is enabled, then the localisation process will start after an adjustable Action - Alarm threshold. The system will activate an alarm once the localisation is completed.

Fig. 2.3: Phase 2 ROOM-IDENT Earliest fire detection.

2 – 2 Data: 01/09 MS_A_02-a-en-e

TITANUS MICRO·SENS® Technical Description

Phase 3 In case alarm or at function « Fire alarm after ROOM·IDENT « once the

system has reached the adjustable action the aspiration fan is switched off and a second fan is switched on, blowing out the smoke particles in the opposite direction.

Fig. 2.4: Phase 2 ROOM-IDENT Blow through.

Phase 4 After the pipe system has been freed from smoke, the airflow is reversed

once again and the time it takes for the smoke to reach the detector unit is measured. With this time value the exact location of the smoke source is given and shows which room is affected.

Fig. 2.5: Phase 4 ROOM-IDENT Localisation.

The alarm is indicated on the TITANUS MICRO·SENS® itself, indicated within the monitored area via an optical external alarm indicator. The System with enabled option “Fire alarm after ROOM IDENT » will now activate an alarm.

Detection Depending on the reaction sensitivity of the detection unit used (which

can be 0.1 %/m to 2 %/m light obscuration or 0.5 %/m to 2 %/m light obscuration), the TITANUS MICRO·SENS

triggers the main alarm once the

corresponding light turbidity is reached. The sensitivity can be set in

MS_A_02-a-en-e Data: 01/09 2 – 3

Technical Description TITANUS MICRO·SENS®

steps of 0.1 %/m. The alarm is shown on the device via the alarm display and forwarded to a connected fire alarm system (FAS).

By changing the delay time with the diagnosis tool, the forwarding of alarms and faults can be set.

The intelligent LOGIC·SENS signal processing device serves to blank out fire-like false alarms and ensures high false alarm safety.

Airflow monitoring An airflow sensor checks the connected pipe system for breaks and

blockages. Depending on the design of the pipe system and the setting on the air-

flow sensor, the blockage of just one aspiration aperture can be picked up. The airflow monitoring is temperature-compensated and can be made air pressure-dependent.

At the end of the adjustable delay time, the fault is shown on the smoke detection system and a corresponding message is forwarded to the central fire alarm point via a contact. The monitoring windows can be adjusted to the environmental conditions.

The principle of the airflow sensor signalling process can be seen in

0HFig.

2.6 .

Device monitoring The detection unit is monitored for dirt and signal fault. Any fault which

occurs is displayed at the TITANUS MICRO·SENS

and can be for-

warded to the FAS via a contact.

Signal from the air flow sensor

Airflow too high

Break

Airflow normal

Airflow too low

Delay time Fault message

Fig. 2.6: Example signal pattern in the airflow sensor during faults

Blockage

Airflow adjustment Airflow adjustment on the TITANUS MICRO·SENS

when the detection unit is inserted in the device base, if previously the Jumper X4 had been changed. This plug & play reduces the time needed for commissioning to a minimum. It is also possible, however, to adjust the airflow using the DIAG 3 diagnosis tool. This means the initialisation phase can be carried out in an air pressure-dependent or air pressureindependent manner.

Monitoring window

Time

is fully automatic

2 – 4 Data: 01/09 MS_A_02-a-en-e

TITANUS MICRO·SENS® Technical Description

Resetting through FAS A fault message is reset via the connected FAS. If whilst the TITANUS

MICRO·SENS

is operating an FAS alarm and fault [menages] have to

be reset at the same time as the control line, then as an option a reset

can be inserted in a separate housing. The effect is that when

board there is any short-term switching off of the line voltage, the alarm and fault messages on the TITANUS MICRO·SENS

are automatically reset.

MS_A_02-a-en-e Data: 01/09 2 – 5

The reset board can only be placed in a separate housing and if the idle current on the

line is between 5 mA and 50 mA. The line must be switched to dead for resetting.

Technical Description TITANUS MICRO·SENS®

2.2 TITANUS MICRO·SENS® and Accessories

2.2.1 Overview

Connections

FAS / Pow er s upply

Pipe sys tem s

Air return feed

to the nex t s m ok e

detect ion sy s t em Indicat or bus

Additional housing (opt iona l)

Network interface board (optional)

Line m odule s (opt iona l)

Relay platine RU-2 (opt iona l)

Relay boa rd RU-1 (opt iona l)

Reset board (opt iona l)

Parallel display unit (opt iona l)

Separation and reset button (option al)

TITANUS

Fire al arm cable

Front film (opt iona l)

detector box (option al)

Cable entries M25 (opt iona l)

Cable entries M 20 (opt iona l)

Test pipe (optio nal)

Fig. 2.7: Overview TITANUS MICRO·SENS

Diagnostics tool

Reacti on ind icato r (optio nal)

The components shown in

1HFig. 2.7 can be used by way of option.

2 – 6 Data: 01/09 MS_A_02-a-en-e

TITANUS MICRO·SENS® Technical Description

2.2.2 TITANUS MICRO·SENS® air sampling smoke detection system

The TITANUS MICRO·SENS® air sampling smoke detection system comprises the following components, device base, detection unit and pipe system:

Device base

z Connections for 25 mm aspiration pipe (in and return) z Cable feeds z Floating contacts for connection to a FAS

Detection unit

z Sensitive detection using the latest technology according to the

principle of optical scattered light indicators with integrated airflow monitoring

z Aspiration unit with improved air feed z Optical displays for smoke levels, main alarm, action alarm, fault, op-

eration and indication of the location of the seat of fire

z Infrared interface for diagnostics

Fig. 2.8: TITANUS

Infrared interface

Fig. 2.9: TITANUS

(For explanation see number 1 in table on next page)

displays and connections (For explanation see table on next page)

E D C B A

Fire location

display variant with smoke levels and fire location

Smoke level

Operation

9 8

7 6 5 4 3 2 1

Fire alarm

Action alarm

Fault

MS_A_02-a-en-e Data: 01/09 2 – 7

Technical Description TITANUS MICRO·SENS®

TITANUS MICRO·SENS

Number

in 2HFig.

2.8

* Smoke level display 1 to 10

Operation (green LED) Operation display Fire alarm (red LED) Smoke level (where main

Action alarm (red LED) Smoke level (Value as

Fault (yellow LED) Pipe system fault or

* Locating the seat of the fire A – E

Infrared interface Commissioning and fault

* optional

Function Explanation

Displays (see to Fig. 2.8

(10 yellow LEDs)

(5 red LEDs)

Air sampling pipe connection for ∅ 25 mm pipe system Cable feed, fire alarm cable for switching

on FAS and/or power supply (in / out) Air return pipe connection for air return Cable feed fire alarm cable 8 x M 20 Cable entries (small) 2 x M 20 for cable with

Cable entries (large) 1 x M 25 for cable with

3HFig. 2.9)

Current smoke level

alarm threshold is set)

per main alarm threshold 10 – 80 % adjustable)

ventilator breakdown or detector module fault

Locating the seat of fire

diagnosis

2 x M 25

∅ of 1 to 13 mm

∅ of 1 to 18 mm

2 – 8 Data: 01/09 MS_A_02-a-en-e

TITANUS MICRO·SENS® Technical Description

2.2.3 Detector Box

External detector boxes can be used in the pipe system in connection with the TITANUS MICRO·SENS

Use The detector box is used …

z to create a two-detector or two-line dependency, z to be able to locate the branch affected by smoke in multi-branch pipe

systems and/or

z to raise the reaction sensitivity in multi-branch pipe systems

Aspiration pipe

Detectionunit

Detector box

Detection inc l. air f low se ns or and A spiration unit

Smoke detectio n system

Air outlet

Fig. 2.10: TITANUS MICRO·SENS

two-line dependency

smoke detection system.

Air aspiration

Aspiration apertures

function principle with detector box for two-detector or

Detector box

Aspiration pipe

Detection incl. air flow sensor and Aspiration unit

Smoke detection system

Air outlet

Detectionunit

Detector box

Detectionunit

Fig. 2.11: TITANUS MICRO·SENS

ing reaction sensitivity

Air aspiration

spiration apertures

function principle with detector box for locating and rais-

MS_A_02-a-en-e Data: 01/09 2 – 9

Technical Description TITANUS MICRO·SENS®

The TITANUS MICRO·SENS

detector box comprises the following com-

ponents: Device base

z Connections for 25 mm aspiration pipe (in and out) z Cable feeds z Potential-free contacts for connection to a FAS

Detection unit

z Sensitive detection with the latest technology according to the principle

of optical scattered light detectors

z Optical displays for smoke level, main alarm, action alarm, fault, op-

eration

z Infrared interface for diagnostics

Fig. 2.12: Detector box displays and connections (For explanation see table, next page)

Operation

9 8

7 6 5 4 3 2 1

Infrared interface

Fig. 2.13: Display variant, detector box with smoke level

(For explanation see number 1 in table)

Smoke level

Fire alarm

Action alarm

Fault

2 – 10 Data: 01/09 MS_A_02-a-en-e

TITANUS MICRO·SENS® Technical Description

Detector box

Number

in Fig.

2.15

* Smoke level display 1 to 10

Operation (green LED) Operation display Fire alarm (red LED) Smoke level (where main

Action alarm (red LED) Smoke level (Value as

Fault (yellow LED) Pipe system fault or

Infrared interface Commissioning and fault

* optional

Function Explanation

Displays

Current smoke level

(10 yellow LED’s)

alarm threshold is set)

per main alarm threshold 10 – 80 % adjustable)

ventilator breakdown or detector module fault

diagnosis Air sampling pipe connection for ∅ 25 mm pipe system Cable feed, fire alarm cable for switching

on FAS and/or power supply (in / out) Cable feed fire alarm cable 8 x M 20 Cable entries (small) 2 x M 20 for cable with

Cable entries (large) 1 x M 25 for cable with

2 x M 25

∅ of 1 to 13 mm

∅ of 1 to 18 mm

MS_A_02-a-en-e Data: 01/09 2 – 11

Technical Description TITANUS MICRO·SENS®

2.2.4 Diagnostics tool

Diagnostics tool

TIP

Infrared interface for “DIAG 3” connection

Fig. 2.14: Diagnostics tool for inputting and reading off device data

Using the DIAG 3 diagnosis tool, the device configuration for the TITANUS MICRO·SENS

can be changed during commissioning. For

TITANUS

maintenance and servicing, there is the option with the diagnosis software to display the stored and current device status and error messages from the TITANUS MICRO·SENS fer to the diagnostics equipment the infrared interface of the TITANUS

MICRO· SENS

is used. There is a USB cable for transferring data from

on a PC or laptop. For the data trans-

the diagnostics equipment to the PC/laptop connection.

It is recommended that the commissioning status are read out, checked and recorded.

Diagnosis messages can be deleted at any time using the DIAG 3 diagnosis tool. If they are not deleted, the messages are stored in the TITANUS MICRO·SENS

for 72 hours. This allows for evaluation of

short, sporadic faults (e.g. in changed operating conditions).

2 – 12 Data: 01/09 MS_A_02-a-en-e

TITANUS MICRO·SENS® Technical Description

2.2.5 Parallel Displays

Parallel display in the wall housing

Fig. 2.15: Parallel display for wall mounting

The TITANUS MICRO·SENS

offers the possibility of connecting one or more parallel displays. The displays on the parallel display are identical to those on the detection unit. The connection is made in the TITANUS

MICRO·SENS

device base.

A parallel display can be connected up to a distance of 1000 m. If a second parallel display [sic] is connected behind the first one, this can in turn again be 1000 m from the first one. This is possible as each parallel display is also a repeater.

The power supply for small distances is direct through TITANUS

MICRO·SENS

®,

and for longer distances via an external supply (see

Chapter 4.4 "Power Supply Calculation").

MS_A_02-a-en-e Data: 01/09 2 – 13

Technical Description TITANUS MICRO·SENS®

2.2.6 Reaction Indicator

Fig. 2.16: Reaction indicator for locating the site of a fire

When the TITANUS MICRO·SENS® is used with fire location, up to 5 addressable reaction indicators can be used via the indicator bus.

The reaction indicator can be connected up to a distance of 1000 m. .

2 – 14 Data: 01/09 MS_A_02-a-en-e

TITANUS MICRO·SENS® Technical Description

2.3 Pipe system

2.3.1 Overview

Connections

A pipe system

steam trap

ceilin g feed

special filter

air filter double screw

TITANUS

T- p i ec e

test adapter

End cap

throu gh

air sampling pipe

noise suppressor

90° arc

air

sampli ng

hose-

joint

90° elbo w

45°- el bo w

reducer coupling

sleeve

aspi ration red u cin g fil m sheet

marki ng tape for A F

plastic clip for air flow reducer

pipe cap (o p tio nal)

air flo w red ucer

pipe with PG16

intern al thread

Fig. 2.21: Components of the pipe system for smoke detection systems

The accessory components shown in Fig. 2.21 are to be chosen for the particular individual case and can be used in combination.

MS_A_02-b-en-e Data: 01/09 2 – 15

Technical Description TITANUS MICRO·SENS®

Free blow device In areas in which there is expected to be an increased occurrence of dust

particles or ice formation, blowing through of the aspiration pipe system and aspiration apertures may be necessary. Fig. 2.22 and Fig. 2.23 each show the components of a manual and an automatic blowing-out system. Depending on the frequency of blockages, the blow-throng process can be undertaken manually or automatically.

Connections

Compressed air supply

Pipe system

3-Way bushing ball valve

Fig. 2.22: Components of the manual blowing-out system

Connections

Compressed air supply

Pipe system

2/2-way valve,

Stop valve complete

Quick close coupling bushing with fittings

Valve co ntrol

2/2-way valve, Compressed air valve complete

Quick close coupling

bushing wi th fittings

Fig. 2.23: Components of the automatic blowing-out system

2 – 16 Data: 01/09 MS_A_02-b-en-e

TITANUS MICRO·SENS® Technical Description

2.3.2 Aspiration apertures for room monitoring

2.3.2.1 Aspiration reduction films

Ma rking ta pe fo r asp iratio n reducing film sheet

Air sampling pipe

Aspiration reducing film sheet

Colour: transparent

Aspiration reducing film sheet

Colour: blazing red RAL 3000

Marking tape for aspirat io n reducing film sheet

7.0

Air sampling point Air sampling point

Fig. 2.24: Aspiration aperture with aspiration reduction film and banderol

7.0

7.0 7.0

An aspiration aperture is a 10 mm hole in the aspiration pipe which is covered by a patented aspiration reduction film with the required aperture diameter. The size of the aperture depends on the pipe system design (see Chapter 4, "Design").

To prevent the aspiration reduction film coming loose, it is held in place by a banderol. The banderol is a transparent adhesive film with red edges and a 10 mm large hole. It is stuck over the aspiration reduction film in such a way that the aspiration aperture is not covered and is also visible at larger distances.

The standard type AF-x aspiration reduction films and the type AF-BR banderol’s are not suitable for use in very low temperature areas. Aspiration reduction clips are to be used in these areas instead (see Chapter

2.3.2.2).

MS_A_02-b-en-e Data: 01/09 2 – 17

Technical Description TITANUS MICRO·SENS®

2.3.2.2 Aspiration reduction clips

air flo w reducer fo r d eep freeze sto rage areas

plastic clip for air flo w reducer

Fig. 2.25: Aspiration reduction for dirty areas and deep freeze areas

The aspiration apertures used in areas where there may be blockages are fitted with a patented type AK-C plastic clip and a patented type AK-x flexible aspiration reduction (see

0HFig. 2.25). The aspiration reducers are

available in defined, stepped aperture diameters. With blowing through, the flexible aspiration reducer stretches to the

aspiration apertures. In deep freeze areas this leads to icing breaking off and in very dusty areas to dirt breaking off. The special plastic clip is for fixing the aspiration reduction to the pre-defined point.

When designing for areas with environmental influences which make blowing through necessary (e.g. dust) or very humid areas, the aspiration reducers with a plastic clip are to be preferred over aspiration reduction films with banderol. The plastic clips have greater resistance when subject to pressure stress. There is also a greater cleaning effect thanks to the elastic rubber insert.

2 – 18 Data: 01/09 MS_A_02-b-en-e

TITANUS MICRO·SENS® Technical Description

2.3.3 Ceiling duct for concealed mounting

Ceiling

T-piece

Air sampling hose

Knurled nut

Fig. 2.26: Ceiling duct for intermediate ceilings

Ceiling leadthrough, complete

Aspiration-reduction film ´

Pipe system

Ceiling void

Aspiration

Aesthetics If room monitoring requires a concealed pipe system installation, then it

can be mounted in an intermediate ceiling. Ceiling ducts into the intermediate ceiling are then used. The ceiling ducts are – in accordance with design guidelines – fitted with aspiration reduction films with defined aspiration apertures (see Chapter 4 "Design"). The ceiling ducts are then connected to the pipe system via aspiration hoses (see

1HFig. 2.26).

If the length of these hoses is a maximum 3 m, then the design according to Chapter 4 applies. If because of building circumstances lengths of

more than 3 m are required, the pipe system must be calculated

The ceiling duct can be used for intermediate ceiling boards up to about 35 mm in strength. The aspiration reduction films are available in two colours (pure white, RAL 9010 and papyrus white, RAL 9018) and also in special colours on request.

MS_A_02-b-en-e Data: 01/09 2 – 19

The calculation is worked out by WAGNER

Technical Description TITANUS MICRO·SENS®

2.3.4 Air filters for dusty areas

Ai r filter for

ADx und TITANUS

Spe cial filter for

ADx und TITANUS

Air sa mpling pipe

Fig. 2.27: TITANUS MICRO·SENS

with air filter

In areas with interference to the environment such as, e.g. dust, an air filter is to be used to protect the smoke detection system.

Type LF-AD-x air filter The standard air filter used is the type LF-AD-x, comprising a plastic

housing with two PG29 threaded connections. The multi-layer filter material absorbs particles which are larger than about 15 μm.

The air filter is automatically monitored for dirt (blockage) by the TITANUS MICRO·SENS

air flow monitoring arrangement. If the air filters are dirty, then the filter inserts must be changed by opening the filter housing.

Special type SF-x filter In extremely dusty areas (e.g. recycling plants) in which the use of an

LF-AD is not sufficient, a special filter must be used. The special filter safely holds back the dust particles in a heavily polluted atmosphere using the filter medium. The filter is guaranteed to have an even quality of dust collection right through to the end of its useful life. Two types of special filter are available (type SF-400 and type SF-650), the SF-650 having a longer useful life because of its larger surface area.

2 – 20 Data: 01/09 MS_A_02-b-en-e

TITANUS MICRO·SENS® Technical Description

2.3.5 Air return for pressure differences and air pollution

Fig. 2.28: Principle of air return in the TITANUS MICRO·SENS

If the TITANUS MICRO·SENS® and the pipe system are installed in two areas P1 and P2 with different air pressures, the air drawn off has to be returned to the pipe system pressure range (see

2HFig. 2.28). Returning the

air can also avoid air pollution (e.g. smells) in neighbouring rooms.

Air sampling pipe

Air return

TITANUS

Fig. 2.29: TITANUS MICRO·SENS

MICRO · SENS

with air return

The air return pipe is mounted in the conical pipe plug-in connection for th e TITANUS MICRO·SENS

air return (see 3HFig. 2.29). As the air return

pipe sits perfectly in the air return pipe, a firm hold is guaranteed.

MS_A_02-b-en-e Data: 01/09 2 – 21

Technical Description TITANUS MICRO·SENS®

2.3.6 Noise suppressor

noise suppressor

TITANUS

Fig. 2.30: TITANUS

MICRO·SENS

with noise suppressor

By using the SD-1 noise suppressor, the noise level can be reduced by up to 10 db(A) for use in areas in which low noise emissions are required from the TITANUS

The noise suppressor is mounted directly to the air recirculation on the TITANUS

(such as in offices or hospitals).

2 – 22 Data: 01/09 MS_A_02-b-en-e

TITANUS MICRO·SENS® Technical Description

2.3.7 Steam trap for humid areas

45º elbow

steam trap

(max. 16 bar)

45º elbow

(optional)

Areas of application

TITANUS

Fig. 2.31: Steam trap to eliminate water vapour from the pipe system and to collect the con-

densate from the pipe system

If the TITANUS MICRO·SENS

is operated in environments where condensate can form in the pipe system, then a condensate trap is used. To collect the condensate, the steam trap is fitted at the lowest point of the pipe system, between the air filter and the smoke detection system. Using 45° angles gives optimum wall distance.

The steam trap can be operated in a temperature range of 0°C to +50°C. The sinter filter in the condensate trap has a pore width of 50 µm and additionally absorbs coarse dust particles.

The condensate trap is used in the following areas:

 Areas with severely oscillating temperatures and high air humidity  External areas  Sauna areas

MS_A_02-b-en-e Data: 01/09 2 – 23

Technical Description TITANUS MICRO·SENS®

2 – 24 Data: 01/09 MS_A_02-b-en-e

TITANUS MICRO·SENS® Technical Data

3 Technical Data

All power consumption figures relate to an ambient temperature of 20°C.

INSTRUCTION

3.1 TITANUS MICRO·SENS®

Voltage

Current

Outputs

Dimension

Weight

Sound intensity level

Protection class

Power supply (Ue)

Nominal power supply

Power consumption at idle status2 105 mA 125 mA 145 mA 170 mA

Power consumption at alarm status2

Device variant with fire alarm 110 mA 130 mA 150 mA 175 mA

Power consumption at alarm status2

Contact loading capacity of the

Dimensions (H x W x D mm) 70 x 140 x 222 mm

Lwa as per EN 27779, 1991 40 dB(A) at 9V

Protection class (EN 60 529)

with pipe piece 100 mm/pipe bend

Starting current1F2 150 mA

fire alarm, smoke level 140 mA 160 mA 180 mA 205 mA

alarm and fault relay

without air return

with air return

TITANUS MICRO·SENS®

16 to 30 V DC

24 V DC

= 9 V

(at 24 V)

Weight 0.8 kg

UL = 10.5V

(at 24 V)

UL = 12 V

(at 24 V)

1A / 30VDC

IP 20 IP 42 IP 54

UL = 13.5V

(at 24 V)

MS_A_03-en-e Data: 01/09 3 – 1

UL = Ventilator voltage

without extra module

Technical Data TITANUS MICRO·SENS

Housing

TITANUS MICRO·SENS®

Material Plastic (ABS)

Temperature range

Displays on device

Infrared interface

Connections

Humidity

Ventilator

TITANUS MICRO·SENS Deep freeze version

Type of construction axial

Lifetime of ventilator (12V) 60.000 h at 24° C

Device connection Clips for

Colour Housing papyrus white, RAL 9018

not condensed max. 95 % rf (without dew)

Operation

Fire alarm

Action alarm

Fault

Smoke level display

Alarm location display

Infrared interface IR

yellow smoke level display 1 to 10

– 20° to +60° C – 40° to +60° C

green operating display

red alarm display

red alarm display (optional)

yellow collective fault

(10 segments) (optional)

5 red displays

(optional)

Transmitter/ Receiver

0.5 – 2.5 mm² wires

Cable pair twisted,

Cable feeds device base

Device base floor

conical pipe plug-in connections

1 x for aspiration pipe

8 x M 20 2 x M 25 4 x M 25

∅ 25 mm and

1x air return

∅ 25 mm

Reaction sensitivity

Detection unit

DM-TM-10 0.1 to 2.0 % light obscuration/m

DM-TM-50 0.5 to 2.0 % light obscuration/m

3 – 2 Data: 01/09 MS_A_03-en-e

TITANUS MICRO·SENS® Technical Data

3.2 TITANUS MICRO·SENS® detection box

with Bargraph and

Processor

Dimension

Protection class

Temperature range

Displays on device

Infrared interface

Connections

Reaction sensitivity

Voltage

Weight

Housing

Humidity

Detection box

Power supply (Ue)

Nominal power supply

Power consumption at idle status 30 mA

Power consumption at alarm status

fire alarm

Power consumption at alarm status

fire alarm, smoke level

Dimensions (H x W x D mm) 70 x 140 x 222 mm

Weight 0.8 kg

Protection class (EN 60 529) IP 54

Material Plastic (ABS)

Detection box Deep freeze version

Device connection Clips for

Cable pair twisted, Cable feeds

Detection box base

Detection box base floor conical pipe plug-in connections

Detection unit

Colour Housing papyrus white, RAL 9018

not condensed max. 95 % rf (without dew)

Operation

Fire alarm

Action alarm

Fault

Smoke level display

Infrared interface IR Transmitter / Receiver

DM-TM-10 0.1 to 2.0 % light obscuration/m DM-TM-50 0.5 to 2.0 % light obscuration/m

yellow smoke level display 1 to 10

15 to 30 V DC

– 20° to +60°C – 40° to +60°C

green operating display

red alarm display

red alarm display (optional)

yellow collective fault

(10 segments) (optional)

0.5 – 2.5 mm² wires

24 V DC

38 mA

68 mA

8 x M 20 2 x M 25 4 x M 25

2 x for pipe

∅ 25 mm

MS_A_03-en-e Data: 01/09 3 – 3

Technical Data TITANUS MICRO·SENS

3.3 Accessories – TITANUS MICRO·SENS®

Parallel display

Protection class

Temperature range

Displays on device

Dimension

Weight

Housing

Power consumption (at 24 V)

electr. connection lengths max. 1000 m

Dimensions (H x W x D mm) 70 x 140 x 200 mm

Protection class (EN 60 529) IP 54

Parallel display for

TITANUS MICRO·SENS

Voltage

Nominal voltage

idle

maximum

Weight 0.6 kg

Material Plastic (ABS)

Colour Housing papyrus white, RAL 9018

Parallel display – 20° to +60°C

Operation

green operating display

24V

15 mA 50 mA

Connections

Cable feeds

Parallel display base

Parallel display base floor

Fire alarm

Action alarm

Fault

Smoke level display

Alarm location display

Clip strip Clips for

Cable pair twisted,

red alarm display

red alarm display (optional)

yellow collective fault

yellow smoke level display 1 to 10

(10 segments) (optional)

5 red displays

(optional)

max. 2.5 mm² wires

8 x M 20 2 x M 25 4 x M 25

3 – 4 Data: 01/09 MS_A_03-en-e

TITANUS MICRO·SENS® Technical Data

Reaction indicator

Power consumption (at 24 V)

Nominal voltage

Voltage

15 to 30 V DC

24 V DC

Stand by

Blink light

Steady burning

Protection class (EN 60 529) IP 30

Relay board

RU-1/RU-2

Power consumption (at 24 V)

RU-1

RU-2

electr. connection lengths 1000 m

Dimensions 98 x 94 mm

Temperature range -40 °C to +60 °C

Contact loading capacity of the

relay contacts

idle status

alarm status

idle status

alarm status

2 mA 5 mA 8 mA

1 A to 30 V DC

6 mA

max. 36 mA

13 mA

max. 36 mA

Reset board

Network module

Power consumption max. 20 mA

Power consumption max. 40 mA

MS_A_03-en-e Data: 01/09 3 – 5

Technical Data TITANUS MICRO·SENS

3.4 Pipe System – TITANUS MICRO·SENS®

Pipe system for

TITANUS MICRO · SENS

Pipe system

max. pipe length ∅ 25 mm

plus max. pipe length ∅ 12 mm

max. no. aspiration apertures 8

max. length aspiration hose

per ceiling duct

Temperature range

PVC pipe

ABS pipe

max. monitoring surface area 400 m2

50 m

8 x 3 m

3 m

0°C..+60° C

-40°C..+80° C

3 – 6 Data: 01/09 MS_A_03-en-e

TITANUS MICRO·SENS® Pipe Design

4 Design

4.1 General

The following describes the project planning of the air sampling smoke detection system to EN 54-20. The basic conditions are described in Chapter 4.1. The project planning is to be conducted in accordance with Chapter 4.2.

The limiting project planning instructions in accordance with Chapter 4.2 apply to special applications in addition to Chapter 4.3 These should be taken into consideration at the beginning of project planning for special projects.

Project planning options according to EN 54-20:

There are various technical solutions to be selected from, depending on the project planning criteria. The chapters for the solutions are listed in the following tables.

Project planning criterion

General area monitoring Standard project

Recognition of a failure at an individual aperture

Device protection/cabinet monitoring

Ventilation conduits Project planning for

Technical solution Basic Prin-

planning Project planning for

individual aperture monitoring

Simplified pipe project planning

forced air flow

ciples

Chapter 4.2 ---

Chapter 4.2 Chapter 4.3.1

Chapter 4.2 Chapter 4.3.2

Chapter 4.2 Chapter 4.3.5

Limitations

MS_A_04-en-e Data: 01/09 4 – 1

Pipe Design TITANUS MICRO·SENS®

4.1.1 Regulations

The current respective national regulations in each particular country must also be complied with and project planning must be adjusted to such regulations.

EN 54-20

The air sampling smoke detection systems shall be planned in accordance with the project planning guidelines described in Chapter 4.2.1 in order to be compliant with EN 54-20.

The following guidelines must also be complied with for systems in accordance with the requirements of VdS Schadenverhütung:

• "Guideline for automatic fire alarm systems, planning and installa-

tion", VdS Schadenverhütung GmbH, Cologne, Germany (VdS 2095)

• "Local application protection for electric and electronic equipment -

rules for planning and installation" guideline, VdS Schadenverhütung GmbH, Cologne, Germany (VdS 2304)

• The technical bulletin “Project Planning for air sampling fire alarms”

VdS Schadenverhütung GmbH, Cologne, Germany (VdS 3435)

The following national regulations must also be complied with in Germany, for instance:

• DIN VDE 0833 part 1 and 2 "Alarm systems for fire, intrusion und

hold-up"

• Additional regulations for installing fire alarm systems which are laid

down by fire authorities and building supervisory boards or building regulation authorities and are only valid locally.

4 – 2 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.1.2 Pipe system

When planning the pipe system, it must be ensured that reliable fire detection is guaranteed for any fire present in an installation or in a monitored area. Fig. 4.1 depicts an example of a U-pipe system with symmetrical or asymmetrical design and the diameters of the aspiration apertures calculated according to Chapter 4.6.2 “Standard planning.”

The number of the intake apertures and the pipe system design depends on the size, ventilation and shape of the monitored area. The aspiration apertures should be planned like point-type detectors. The pipe system is to be fitted in accordance with the project planning guidelines in this section while taking the following points into consideration:

Symmetrical design The pipe system should preferably have a symmetrical design, i.e.:

• equal number of aspiration apertures per pipeline branch

• equal lengths of pipeline (must not exceed ± 20 % deviation)

• equal distance between neighbouring aspiration apertures on the

smoke aspiration pipe (must not exceed ± 20 % deviation)

Asymmetrical design The following specifications apply in the event that pipe system must be

laid out asymmetrically due to structural conditions (see also Fig. 4.1):

• The number of aspiration apertures as well as the length of the

shortest and longest pipeline branch in the pipe system must not exceed a quantity or length ratio of 1:2.

• The distances between adjacent aspiration apertures in the sampling

pipe must be identical (should not exceed deviation of ±20%).

• The diameters of the aspiration apertures are determined for each

pipeline branch individually and depend on the number of aspiration apertures on the pipeline branch in question. The commensurate aperture diameters can be found in the tables in Chap. 4.2.4.

3,0 4,03,0 3,6

symmetrical pipe syste m

3,0 3,0

4,2 4,6

asymmetrical pipe system

4,03,6

3,0 4,03,0 3,6

Fig. 4.1: Example of a symmetrical and an asymmetrical U-pipe system

MS_A_04-en-e Data: 01/09 4 – 3

Pipe Design TITANUS MICRO·SENS®

Branch length In order to ensure a short transport time for the smoke fumes in the sam-

pling pipe and thus enable rapid detection, it is better to plan several shorter than a few long ones (preferably a U- or double U-pipe system ).

Pipe designs 4 types of pipe designs can be selected, depending on the cabinet ge-

ometry (see Figure 4.2).

I- pipe

U- pipe

M-pipe

Double U-pipe

An air sampling smoke detection pipe system without branches.

An air sampling smoke detection pipe system which branches into 2 air sampling branches after the connection to the TITANUS MICRO ·SENS

An air sampling smoke detection pipe system which branches into 3 air sampling branches after the connection to the TITANUS MICRO ·SENS

An air sampling smoke detection pipe system which branches into 4 air sampling branches after the connection to the TITANUS MICRO ·SENS

The design for fire location should be the I-pipe configuration.

INSTRUCTION

4 – 4 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

TITANUS

I-pipe system

U-pipe system

M-pipe syste m

Double-U-pipe system

Fig. 4.2: Pipe designs

Direction change Angles and bends in the pipe system increase flow resistance. For that

reason, it is necessary to limit the number of them to the amount required.

It is preferable to use bends, since angles have a higher flow resistance. Angles should therefore only be used where they are necessary due to structural constraints.

Corresponds to a straight pipe length of

Angle 1.5m

Bend 0.3m

If the pipe system includes angles or bends, the maximum overall length of the pipe system will be reduced.

MS_A_04-en-e Data: 01/09 4 – 5

Pipe Design TITANUS MICRO·SENS®

Bends are to be preferred over angles. An excessive number of changes in direction can change the detection time.

INSTRUCTION

Special cases If the pipe system does not match the project planning guidelines de-

scribed here due to structural constraints, WAGNER should make the individual calculations for such a case.

Checking Check detection reliability with activation tests in cases where use of the

system is critical. Also check whether an air flow rate is present at individual aspiration apertures.

The fan voltage can be increased in order to reduce transport time.

TIP

Make sure that the current intake increases.

4 – 6 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.1.3 Air flow monitoring

EN 54-20 requires the recognition of a 20 percent change in the air flow volume by the detector module’s air flow sensor system. The activating threshold of the air flow sensor system has to be adjusted to ≤ 20 % in order to achieve this. It is recommended to conduct an air pressuredependent air flow compensation for both of these settings.

Any threshold desired may be set with systems which do not require EN 54-20 conformity.

Project planning for the air flow monitoring system in sampling pipes is carried out while taking into consideration the respective national regulations for each country.

Adjusting the air flow sensitivity The air flow sensor sensitivity must be adjusted to the application in

question. Breakage and stoppages must be detected reliability with low susceptibility to malfunction.

The activating threshold and for this reason the sensitivity of the air flow sensor is continuously adjustable from 10 – 50 %.

In conformity with

EN 54-20

Triggering threshold 10 % 20 % 40 % 50 %

Sensitivity Very high High Medium Low

It is recommended to always select the greatest possible level which is permissible according to national standards.

TIP

Dynamic

air flow sensor system The device’s air flow monitoring enables the system to detect both pipe

breakages outside the device and sudden obstruction in individual aspiration apertures (e.g. in the event of sabotage to the pipe system). The dynamic air flow sensor system has been activated via the diagnostics software, the following modifications have to be regarded.

MS_A_04-en-e Data: 01/09 4 – 7

Pipe Design TITANUS MICRO·SENS®

Limitations The air flow monitoring may only be set, if:

z Project planning according to “Individual aperture monitoring” has been

carried out (see Chap. 4.3.1 “Pipe project planning individual aperture monitoring”),

z the air flow sensor has been compensated depending on the air pres-

sure (see Chap. 7.1.2 “Air pressure dependent air flow compensation") and

z No large air flow fluctuations occur.

Air pressure differences The same air pressure must be present throughout the sampling pipe.

If the air sampling smoke detection system and pipe system are in areas with different air pressure, the air sampled by the TITANUS

MICRO·SENS® should be re-circulated in the pipe system pressure

area (see Chapter 2.3.5 “Air recirculation”).

INSTRUCTION

TITANUS MICRO·SENS® with active location of the fire must be installed outside the areas to be monitored and without air return.

INSTRUCTION

ROOM IDENT cannot be used in applications with varying or not consistent air pressure levels. This is due to the fact, that under these conditions the aspirated air needs to be returned to the monitored area. Since air return is not allowed with ROOM·IDENT these applications

INSTRUCTION

cannot be served.

4 – 8 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.1.4 Sensitivity

According to EN 54-20, the sensitivity of a air sampling smoke detection system can be divided into particular fire sensitivity classes. These sensitivity classes describe particular example applications in which the systems can be used. Permissible system project planning can be determined for each classification according to Chapter 4.2.

Air sampling smoke detection systems with a higher sensitivity class according to EN 54-20 also meet the requirements of the lower classes.

Class Description Example application

Air sampling smoke de-

tector with very high

sensitivity

Air sampling smoke de-

tector with increased

sensitivity

Air sampling smoke de-

tector with standard

sensitivity

The fire sensitivity classes A, B and C can be achieved with each detection unit available, depending on the number of aspiration apertures.

Very early detection:

Highly diluted smoke in air

conditioned IT areas

Early detection:

Diluted smoke in conventional

cooled IT areas.

Standard detection:

Fire detection with the benefits of air

sampling smoke detection systems

INSTRUCTION

The following sensitivities can be adjusted with the different detection units.

detection unit DM-TM-10 detection unit DM-TM-50

sensitivity sensitivity

0,1 - 2 % /m

0,5 - 2 % /m

Standard

0,1 % /m

0,5 % /m

adjustment

Project planning for the monitored surface is always carried out according to national specifications for point-shaped smoke detectors.

levels

0,1 % /m

MS_A_04-en-e Data: 01/09 4 – 9

Pipe Design TITANUS MICRO·SENS®

4.1.5 Design Limits

The following limit values must always be observed with the TITANUS

MICRO·SENS

• The minimum pipe length between 2 aspiration apertures is 0.1 m.

• The minimum pipe length between 2 aspiration apertures when

locating a fire is 3 m.

• The maximum pipe length between 2 aspiration apertures is 10 m.

• The maximum monitoring surface area per aspiration aperture

corresponds to the monitoring area of a point-specific alarm according to the regulations in the particular national standards.

TP0F

• Maximum 8 aspiration apertures are possible

PT.

• Maximum 5 aspiration apertures are possible with site of a fire

location.

The maximum overall monitoring surface area for the TITANUS

MICRO·SENS

®PP

and the maximum overall pipe length depend on the

design chosen.

max. overall monitoring surface area

per TITANUS MICRO · SENS

400 m²

max. design pipe lengt1F

Pipe ∅ 25 mm: 50 m

plus

Pipe ∅12 mm: 8 x 3 m

INSTRUCTION

Because of country-specific regulations, there may be restrictions compared to the design limits in the manual!

PT Designs / design forms not given in the manual are to be requested.

PT Depending on the design chosen, restricted values apply in part.

4 – 10 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.2 Project planning

4.2.1 Project planning guidelines

In order to conduct project planning in accordance with the EN 54-20 standard, it is necessary to be familiar with particular factors. These are the requirements for the system’s sensitivity, the number of aspiration apertures and the accessories necessary for the corresponding application. The pipe system design in conformity with the standard can be determined based on these factors using the following chapter and with the help of the project planning tables in the appendix.

4.2.1.1 Determining the necessary accessories

INSTRUCTION

Since the accessory components, such as filters, have a certain influence on the dimension of the pipe planning, the suitable accessories must be selected for the corresponding application ahead of time. Retrofitting, with a fine filter, for instance, is generally only possible if a more sensitive detector module is being used or a particular reserve has been planned in advance.

Components which have not been approved by WAGNER are used, CE conformity on the basis of EN 54-20 will not be possible.

The following accessory components should be taken into consideration in the process:

z Air filters z Steam trap z VSK stop valves z Detector box z OXY·SENS

air sampling detector

The SD-1 noise suppressor may be used in any case with no project planning restrictions.

MS_A_04-en-e Data: 01/09 4 – 11

Pipe Design TITANUS MICRO·SENS®

4.2.2 Pipe accessories

Air filters

Type Application Examples LF-AD

LF-AD-1

LF-AD-2

SF-400

SF-650

Steam trap

Type Application KA-DN-25

Sound suppressor

Type Application SD-1

Stop valve

Type Application AVK-PV AVK-PV-F

Coarse filter for separating particles > approx. 15 µm

Filter for separating particles > approx. 10 µm

Fine filter for separating particles > approx. 5 µm

Fine filter for separating particles > approx. 1 µm

Condensation separator for applications with condensation moisture in the pipe

Sound suppressor for areas sensitive to noise

Stop valve for VSK cleaning air nozzle Stop valve for VSK cleaning air nozzle for use in freezer areas

Dust, insects, fibres, hair, cinders, pollen

As above. Additionally: Colour pigments and fine dust

As above. Additionally: Fine dust in low concentrations

As above. Additionally: Fine dust in high concentrations

As above, but with increased filter lifetime

4 – 12 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.2.3 Sensitivity and pipeline project planning

4.2.3.1 Pipeline project planning with pipe accessories

The following project planning tables for pipeline project planning can be found in the appendix for each previously selected pipe accessory.

z Project planning without filter z Project planning with LF-AD air filter z Project planning with LF-AD-1 air filter z Project planning with LF-AD-2 air filter z Project planning with SF-400 / SF-650 air filter

An area can be monitored with more than detection points than required by the national guideline in order to improve an air sampling smoke detection system’s detection quality. In such case, the number

INSTRUCTION

of normatively required sampling points is to be used in calculating the required sensitivity of an air sampling smoke detection system.

MS_A_04-en-e Data: 01/09 4 – 13

Pipe Design TITANUS MICRO·SENS®

Procedure In the following example, a project plan is supposed to fulfil class B re-

quirements with air filters LF-AD-1, with 4 apertures and without further accessory. The red arrows show the possible project plans with varying pipe shapes and fan voltages.

Selection

Selection of the corresponding project planning table based on the air filter to be used (see Chap. 4.2.2 )

1. Result

The project planning table has been determined Selection Selection of the number of aspiration apertures in the project planning table

Result

The achievable sensitivity class for the selected number of apertures has been determined

Selection Determinations on the sensitivity necessary to achieve the sensitivity class

3. Result

Determination of the detection unit and sensitivity setting Selection

Selection of other pipe components ( e.g. steam trap see Chap. 4.2.2 described components)

4. Result

The project planning table has been determined Selection Pipe length selection

5. Result

Determination of the pipe shape and necessary fan voltage.

4 – 14 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

MS_A_04-en-e Data: 01/09 4 – 15

Pipe Design TITANUS MICRO·SENS®

Results: The following modules may optionally be used with the corresponding

settings for class B or A:

z Detection unit DM-TM-10 – with a sensitivity of 0,1 % LT/m to

0,6 % LT/m

z Detection unit DM-TM-50 – with a sensitivity of 0,5 % LT/m to

0,6 % LT/m

Possible system parameters:

z I- pipe system

- ≥ 9 V fan voltage, max. 40 m overall pipe length

z U- pipe system

- ≥ 9 V fan voltage, max. 50 m overall pipe length

z M- pipe system,

- ≥ 9 V fan voltage, max. 50 m overall pipe length

z Double U- pipe system,

- ≥ 9 V fan voltage, max. 50 m overall pipe length

4 – 16 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.2.4 Aperture diameter

The aperture diameters of the aspiration apertures can be found in the corresponding table for the respective pipe configuration:

I-Pipe

Fig. 4.3: I –Pipe system

Aspiration apertures

Number of apertures

Sampling aperture ∅

in mm

A 6.8 5.0 4.2 3.4 3.0 B C D E

U-Pipe

TITANUS

CDE

1 2 3 4 5

— — — — — — — — — —

5.0 4.2 3.6 3.2

4.4 3.8 3.4

4.4 3.6

4.4

Fig. 4.4: U –Pipe system

Aspiration apertures

Number of apertures

Sampling aperture ∅

2 4 6 8

in mm

)

A 6.0 4.2 3.4 3.0 B C D

— — —

4.6 3.6 3.0

4.4 3.6

— — —

4.0

Press cut diameter in aspiration-reducing film sheet

MS_A_04-en-e Data: 01/09 4 – 17

Pipe Design TITANUS MICRO·SENS®

M-Pipe

TITANUS

Fig. 4.5: M –Pipe system

Aspiration apertures

Number of apertures

Sampling aperture ∅

Double-U-Pipe

M-pipe system

in mm

A 5.0 3.6 B

3 6

—

4.0

Aspiration apertures

Double-U-pipe system

Fig. 4.6: Double -U –Pipe system

Number of apertures

Sampling aperture ∅

in mm

)

A 4.4 3.0 B

4 8

—

Press cut diameter in aspiration-reducing film sheet

3.8

4 – 18 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.3 Special project planning

4.3.1 Project planning for individual aperture monitoring

The following system parameters apply to the detection of an individual or a particular number of blocked aspiration apertures, depending on pipe configuration.

The specifications according to Chapter 4.2 apply to project planning. The following limit values and aperture diameters should also be taken into account. Additional accessories (air filters, condensation separators, etc.) can influence the maximum pipe length.

4.3.1.1 I-Pipe system

1 Pipe system

TITANUS

MICRO· SENS

CDE

Fig. 4.7: I-Pipe system for area protection

Limit values

min. distance TITANUSP max. distance TITANUSP max. overall pipe length per pipe system

pipe ∅ 25 mm plus pipe ∅ 12 mm

max. overall pipe length per pipe system with a ventilator voltage <10.5 V pipe ∅ 25 mm plus pipe ∅ 12 mm

min. distance between 2 aspiration apertures (d) 4 m max. distance between 2 aspiration apertures (d) 10 m max. number aspiration apertures (n) per pipe system 5 no.

– 1st aspiration aperture 2 m

– 1st aspiration aperture 20 m

40 m

5 x 3 m

30 m

5 x 3m

MS_A_04-en-e Data: 01/09 4 – 19

Pipe Design TITANUS MICRO·SENS®

Aspiration apertures

Trigger threshold

Number of apertures per pipe system

∅ Aspiration aperture

in mmTP4F

B C D E

1 2 3 4 5

PT)

6,8

— — — —

4,6 5,0

— — —

4,0 4,2 4,4

— —

3,4 3,6 3,8 4,0

—

Trigger Thresholds I-Pipe system

Number of apertures 2 3 4 5

1 blocked aperture

2 blocked apertures {TP5F

3 blocked apertures

±30 % ±20 % ±15 % ±10 %

{ { { {

{

±30 % ±20 %

3,0 3,2 3,4 3,6 3,8

4 blocked apertures

5 blocked apertures

… is/are recognised when main air flow set x %

{ { { {

Example If the blockage of 2 aspiration apertures out of a total of 5 aspiration

apertures is recognised, then with the help of the diagnosis tool flow monitoring can be set to ±20 %.

For a project planning according to EN 54-20, the air flow monitoring has to be adjusted to ≤20 % in either case.

INSTRUCTION

PT Opening diameter of the aspiration reducing film

PT { not sensible

4 – 20 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.3.1.2 U-Pipe system

1 Pipe system

TITANUS

MICRO·SENS

ABCD

Fig. 4.6: U-Pipe system for area protection

Limit values

min. distance TITANUSP

max. distance TITANUSP

max. branch length 25 m

max. overall pipe length per pipe system pipe ∅ 25 mm plus pipe ∅ 12 mm

max. overall pipe length per pipe system with a ventilator voltage of <10.5 V pipe ∅ 25 mm plus pipe ∅ 12 mm

– T piece 2 m

– T piece 20 m

50 m

8 x 3 m

40 m

8 x 3m

Aspiration apertures

min. distance between 2 aspiration apertures (d) 4 m

max. distance between 2 aspiration apertures (d) 10 m

max. number aspiration apertures (n) per pipe system 8 no.

Number of apertures per pipe system

∅ Aspiration aperture in

TP6F

PT)

mm A B

C D

2 4 6 8

6,0

— — —

4,2 4,4

— —

3,4 3,6 3,6

—

3,0 3,0 3,2 3,2

PT Opening diameter of the aspiration reduction film

MS_A_04-en-e Data: 01/09 4 – 21

Pipe Design TITANUS MICRO·SENS®

Trigger Thresholds U-pipe System

per pipe system

Number apertures 2 4 6 8

1 blocked aperture

±25 % ±15 %

2 blocked apertures {TP8F

3 blocked apertures

4 blocked apertures

5 blocked apertures

6 blocked apertures

7 blocked apertures

±25 % ±20 % ±15 %

{ {

{ { {

{ { { {

TP7F

PT —

—

±30 % ±25 %

… is/are recognised if main air flow set at x %

Example If the blockage of 3 aspiration apertures out of a total of 8 aspiration

apertures is recognised, then with the aid of the diagnosis tool, air flow monitoring can be set to ±

25 %.

For a project planning according to EN 54-20, the air flow monitoring has to be adjusted to ≤20 % in either case.

INSTRUCTION

±35 %

PT — not possible

PT { not sensible

4 – 22 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.3.1.3 M-Pipe system

1 Pipe system

TITANUS

MICRO ·SENS

TITANUS

Fig. 4.8: M-Pipe system for area protection

Limit values

min. distance TITANUSP

max. distance TITANUSP

max. branch length 16,5 m

max. overall pipe length per pipe system Pipe ∅ 25 mm plus pipe ∅ 12 mm

max. overall pipe length per pipe system with a ventilator voltage of <10.5 V Pipe ∅ 25 mm plus pipe ∅ 12 mm

min. distance between 2 aspiration apertures (d) 4 m

max. distance between 2 aspiration apertures (d) 10 m

max. number aspiration apertures (n) per pipe system 6 no.

– T piece 2 m

– T piece 20 m

50 m

8 x 3 m

40 m

8 x 3m

Aspiration apertures

Number of apertures per pipe system

∅ Aspiration aperture in

TP9F

PT)

mm A B

3 6

5,0

—

3,6 3,8

PT Opening diameter of the aspiration reduction film

MS_A_04-en-e Data: 01/09 4 – 23

Pipe Design TITANUS MICRO·SENS®

Trigger Thresholds M-pipe System

per pipe system

Number apertures 3 6

1 blocked aperture

2 blocked apertures { TP10F

3 blocked apertures

4 blocked apertures

5 blocked apertures

6 blocked apertures

… is/are recognised if main air flow set to x %

±30 % ±15 %

{ {

Example If the blockage of 1 aspiration apertures out of a total of 6 aspiration

apertures is recognised, then with the aid of the diagnosis tool, air flow monitoring can be set to ±

15 %.

For a project planning according to EN 54-20, the air flow monitoring has to be adjusted to ≤20 % in either case.

INSTRUCTION

±30 %

PT { not sensible

4 – 24 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.3.1.4 Double-U-Pipe system

1 Pipe system

MICRO·SENS

TITANUS

Limit values

TITANUS

Fig. 4.9: Double-U-Pipe system for area protection

min. distance TITANUSP

max. distance TITANUSP

max. branch length 12,5 m

max. overall pipe length per pipe system Pipe ∅ 25 mm plus pipe ∅ 12 mm

max. overall pipe length per pipe system with a ventilator voltage of <10.5 V Pipe ∅ 25 mm plus pipe ∅ 12 mm

– T piece 2 m

– T piece 20 m

50 m

8 x 3 m

40 m

8 x 3m

Aspiration apertures

min. distance between 2 aspiration apertures (d) 4 m

max. distance between 2 aspiration apertures (d) 10 m

max. number aspiration apertures (n) per pipe system 8 no.

Number of apertures

4 8

per pipe system

∅ Aspiration aperture

in mm

TP11F

PT)

A B

4,4

—

PT Opening diameter of the aspiration reduction film

3,0 3,2

MS_A_04-en-e Data: 01/09 4 – 25

Pipe Design TITANUS MICRO·SENS®

Trigger Thresholds Double U-pipe System

per pipe system

Number apertures 4 8

1 blocked aperture

2 blocked apertures

3 blocked apertures {TP13F

4 blocked apertures

5 blocked apertures

6 blocked apertures

±15 %

±30 % ±15 %

{

{ {

—TP12F

±25 %

±35 %

… is/are recognised if main air flow set to x %

Example If the blockage of 3 aspiration apertures out of a total of 8 aspiration

apertures is recognised, then with the aid of the diagnosis tool air flow monitoring can be set to ±25 %.

For a project planning according to EN 54-20, the air flow monitoring has to be adjusted to ≤20 % in either case.

INSTRUCTION

PT — not possible

PT { not sensible

4 – 26 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.3.2 Simplified pipe design

Simplified pipe design is used for equipment protection and in areas with small dimensions. The advantage of this design is the unified diameters of the aspiration apertures.

For the project planning’s, the specifications according to chapter 4.2 apply. Furthermore, the following limit values and opening diameters have to be considered. Additional accessories (air filter, steam traps etc.) can influence the maximum pipe length.

4.3.2.1 I-Pipe system

1 Pipe system

TITANUS

MICRO·SENS

Limit values

Aspiration apertures

8 7

6 5 4

TITANUS

TITANUS MICRO·SENS

Fig. 4. 10: I-Pipe system, e.g. for equipment protection

min. distance

TITANUS max. distance

TITANUS

– 1st aspiration aperture

max. pipe length per pipe system Pipe ∅ 25 mm plus pipe ∅ 12 mm

max. overall pipe length per pipe system with a ventilator voltage of <10.5 V Pipe ∅ 25 mm plus pipe ∅ 12 mm

max. number aspiration apertures (n) per pipe system

minimum distance between the aspiration apertures (d)

maximum distance between the aspiration apertures (d)

minimum distance for fire site location between the aspiration apertures (d)

Number of apertures 1 2 3 4 5

∅ of all aspiration apertures

in mm

TP14F

PT)

6,8

4,6

4,0

2 m

20 m

40 m

5 x 3 m

30 m

5 x 3 m

5 no.

0,1 m

4 m

3 m

3,6

3,4

PT Opening diameter of the aspiration reduction film

MS_A_04-en-e Data: 01/09 4 – 27

Pipe Design TITANUS MICRO·SENS®

4.3.2.2 U-pipe system

1 Pipe system

TITANUS

MICRO·SENS

10 9 8

Fig. 4. 11: U-pipe system, e.g. for equipment protection

Limit values

min. distance TITANUSP

max. distance TITANUSP

max. branch length 25 m

max. overall pipe length per pipe system Pipe ∅ 25 mm plus pipe ∅ 12 mm

max. overall pipe length per pipe system with a ventilator voltage of <10.5 V Pipe ∅ 25 mm plus pipe ∅ 12 mm

TITANUS

7 6

5 4

3 2

TITANUS MICRO·SENS

– T piece 2 m

– T piece 20 m

50 m

8 x 3 m

40 m

8 x 3 m

Aspiration apertures

max. number of aspiration apertures (n) per pipe system 8 no.

minimum distance between the aspiration apertures (d) 0,1 m

maximum distance between the aspiration apertures (d) 4 m

Number of apertures 2 4 6 8

∅ of all aspiration

apertures in mm

TP15F

PT) 6,0 4,2 3,4 3,0

PT Opening diameter of the aspiration reduction film

4 – 28 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.3.2.3 M-pipe system

1 Pipe system

TITANUS

MICRO·SENS

Fig. 4. 12: M-Pipe system, e.g. for equipment protection

Limit values

min. distance TITANUSP

max. distance TITANUSP

max. branch length 16,5 m

max. overall pipe length per pipe system Pipe ∅ 25 mm plus pipe ∅ 12 mm

max. overall pipe length per pipe system with a ventilator voltage of <10.5 V Pipe ∅ 25 mm plus pipe ∅ 12 mm

TITAN US

– T piece 2 m

– T piece 20 m

50 m

8 x 3 m

40 m

8 x 3 m

Aspiration apertures

max. number of aspiration apertures (n) per pipe system 6 no.

minimum distance between the aspiration apertures (d) 0,1 m

maximum distance between the aspiration apertures (d) 4 m

Number of apertures 3 6

∅ of all aspiration

apertures in mm

TP16F

PT) 5,0 3,6

PT Opening diameter of the aspiration reduction film

MS_A_04-en-e Data: 01/09 4 – 29

Pipe Design TITANUS MICRO·SENS®

4.3.2.4 Double-U-pipe system

1 Pipe system

TITANUS

MICRO·SENS

TITANUS

TITANUS MICRO·SENS

EDCBA

1098765432

Fig. 4.13: Double U-pipe system, e.g. for equipment protection

Limit values

min. distance

TITANUS max. distance

TITANUS

– last T piece

– last T piece max. branch length 12,5 m max. overall pipe length per pipe system

Pipe ∅ 25 mm plus pipe ∅ 12 mm

2 m

20 m

50 m

8 x 3 m

Aspiration apertures

max. overall pipe length per pipe system with a ventilator voltage of <10.5 V Pipe ∅ 25 mm plus pipe ∅ 12 mm

max. number aspiration apertures (n) per pipe system 8 no. minimum distance between the aspiration apertures (d) 0,1 m maximum distance between the aspiration apertures (d) 4 m

Number of apertures

4 8

per pipe system

∅ of all aspiration aper-

tures in mm

TP17F

PT)

PT Opening diameter of the aspiration reduction film

4,4

40 m

8 x 3 m

3,0

4 – 30 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.3.3 Design for Forced Air Flow

Monitoring air conditioning ducts Air conditioning plants are divided into low-speed and high-speed plants

(see table below). The information given in this chapter applies only to low-speed plants. There is insufficient information from experience with

high-speed plants. Where air conditioning ducts have flow speeds of more than 10 m/s, therefore, smoke testing must be carried out for the best reaction behaviour to be determined.

Low speed plants High speed plants

Flow speed maximum 6 to 10 m/s > 10 m/s

Duct cross-section large small

Differential pressures

along the flow direction

small large

The speed distribution in an air conditioning duct looks as follows:

Fig. 4.14: Speed distribution in an air conditioning duct with v

Air conditioning duct

In the outer areas of the cross-section surf ace area t he air f low i s lowest

The largest air flow is t in the centre of the cross section

> v2 > v3 > v

Aspiration To achieve optimum detection results, the pipe system must be arranged

in the area v

to v3.

Location of the

pipe system To achieve the best location for constructing the pipe system, the ex-

haust duct should be as far as possible from sound dampers, air baffle plates and kinks. The guideline figure for the distance from such “obstacles” is at least 3 x the smallest duct diameter.

If it is absolutely essential to fit the pipe system directly behind baffle plates, sound dampers or bends, the main speed areas must be monitored (see Fig. 4.15/16).

MS_A_04-en-e Data: 01/09 4 – 31

Pipe Design TITANUS MICRO·SENS®

Min. 3 x smallest duct diameter

Main speed area

Pipe system arrangement in except io nal case

(if the distance 3x smallest duct diameter can not be maintained)

Fig. 4.15: Duct direction change without baffle plates

Sound damping

Air sampling pipe

Main sp eed area

Fig. 4.16: Sound dampers in a duct

Hole

Standard pipe system

Air conditioning duct

When a pipe system is built into air conditioning ducts, the following must be observed:

• As the TITANUS MICRO·SENS

and the pipe system are in different pressure areas, there must be an air return arrangement (see following page).

• The pipe entries into the duct must be sealed air-tight.

• The part of the pipe system which is outside the duct must be

bonded air-tight.

4 – 32 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

Air conditioning duct

Front view

Air stream

Duct a dapte r

Plan view

Fig. 4.17: Air return

Aspiration

TITANUS

A ir re tu rn

Duct adapter

1/2 b

Air conditioning duct

Width air conditioning duct

The open end of the air return pipe is chamfered at an angle of 45°.

The distance between the aspiration apertures and between them and the duct wall is shown in the following table.

Hole distances

Distance from aspiration

apertures to the wall

Distance between the

aspiration apertures

Duct cross-section

≤ 0.5 m²

100 to 200 mm 200 to 300 mm

100 mm 150 mm

Duct cross-section

> 0.5 m²

Diameter of the aspiration apertures The diameter of the aspiration apertures results from the number of

aspiration apertures. The exact figure can be found in Chapter 4.6.3 "Simplified Pipe Design ".

The pipe is closed by an end cap without a hole.

MS_A_04-en-e Data: 01/09 4 – 33

Pipe Design TITANUS MICRO·SENS®

Arrangement The aspiration apertures are to be arranged against the air flow.

Take care in the design that, for assembling the pipe system, the air conditioning ducts are often only accessible from two sides.

Example The following figure shows two design examples of pipe systems in air

conditioning ducts.

100 100

1/2 b

Duct cross-section: surface area A 0.5 m²≤

150 200

Duct cross-section: surface area A > 0.5 m²

Fig. 4.15: Ducts with small and large duct cross-section

1/2 b

4 – 34 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Pipe Design

4.4 Power Supply

When sizing the power supply, the signal-ready status of the danger alarm equipment and the alarm case are considered. When the plant is in the signal-ready status, the power supply must deliver the idling current to the air sampling smoke detection systems and guarantee charging of the stand-by accus in accordance with DIN VDE 0833, Part 1

The following formulae apply in case of alarm:

Power calculation In case of alarm the current is calculated by the following formula:

)(

Room protection

Equipment protection

InnInII ≤−+⋅= )(

powermax.quiescentalarmequipmenttotal

InnInII ≤−+⋅=

P18F

PT.

.,..,

maxypowersupplareamaxquiescentareamaxalarmroomtotal

Charging current

INSTRUCTION

The current for charging the accus is calculated by the following formula:

8,0

⋅

charging

nominal

≈

IInII ≤+⋅=

max.y,powersupplchargingquiescentequipmenttotal

total = total current of all connected air sampling systems [A]

Ipower supply, max. = max. supply current of the power supply unit [A] n

= total number of all air sampling systems connected to a

power supply unit

max area

= total number of all air sampling systems in the area with

the highest power consumption I I K I

alarm quiescent

nominal = nominal capacity of the accumulators [Ah]

charging = charging current of the accumulators (within 24 h 80% of

= alarm current of an air sampling system [A] = quiescent current of an air sampling system [A]

the nominal capacity) [A]

The higher figure of the total current calculated (I

) is used to design

total

the power supply!

The power consumption of the TITANUS MICRO·SENS

can be found in

Chapter 3, "Technical Data".

PT 80% charging in 24 hours

MS_A_04-en-e Data: 01/09 4 – 35

Pipe Design TITANUS MICRO·SENS®

Line calculation The maximum line length results from the permitted line drop on the feed.

The permitted line drop is the difference resulting from the stand-by accus discharge voltage (21.5 V) and the lower operating voltage limit of the aspiration smoke detection system.

⋅Δ⋅

total

2⋅

max

L A I

= Maximum line length in [m]

max

= Wire cross-section in [mm²]

total = Total current of the aspiration smoke detection system in [A]

= Conductivity: Cu=57m/Ωmm²

U = Max.line drop on the feed

To guarantee the tightness of the housing seal, the appropriate cable throughput for the particular cable must be selected.

z M 25- cable throughput: ∅ 9 to 14 mm

z M 20- cable throughput: ∅ 8 to 12 mm

Emergency Supply Calculation The nominal capacity is calculated by means of the following formula:

K t = required bridging time [h]

= nominal capacity of the emergency supply accumulators [Ah]

nominal

The factor 1.25 in the equation is only to be observed if bridging times are smaller equal to [sic] 24 hours.

totalquiescentnominal

25.1)5.0( ⋅⋅+⋅⋅= hItnIK

4 – 36 Data: 01/09 MS_A_04-en-e

TITANUS MICRO·SENS® Installation

5 Installation

TITANUS MICRO·SENS

5.1 General

The regulations, guidelines and provisions set out in Chapter 4.1 apply. The following must be considered when the TITANUS MICRO·SENS

aspirating smoke detector is being installed:

1. Interventions, changes and modifications to equipment are to be

avoided. If adjustments are unavoidable, they must be discussed with the operator, the manufacturer and/or the supplier (written approval).

2. All interventions to the in-house network (230 V/400 V supply) and to

outside systems must be carried out on the customer side. These include, for example:

• the power supply primary connection

• any connecting to outside systems (e.g. central units)

• the carrying out of any lightning and surge protection measures

which are required to comply with standards

MS_A_05-en-e Data: 01/09 5 – 1

Installation TITANUS MICRO·SENS®

5.2 Installation site

5.2.1 Fitting the TITANUS MICRO·SENS smoke detector

When choosing the installation site, ensure that the notices can be easily seen.

When choosing the installation site, ensure that it is not within a space where doors open.

INSTRUCTION

air sampling

Aspiration from above

Fig. 5.1: Installation of TITANUS MICRO·SENS

Aspiration

from above

Ensure that the air outlet from the aspirating smoke detector is not blocked. Maintain a distance of at least 10 cm between the air outlet from the TITANUS MICRO·SENS

Aspiration from below

Aspiration pipe

min. 10 cm dist ance from other objec ts

and surrounding objects (e.g. wall).

Air return

Aspiration pipe

5 – 2 Data: 01/09 MS_A_05-en-e

TITANUS MICRO·SENS® Installation

Aspiration from below If the TITANUS MICRO·SENS

underneath, ensure that no foreign bodies or drops of water can get into the air outlet aperture which in this case is facing upwards. For that reason, use a short pipe angled downwards (see Fig. 5.1).

With aspiration from below, the housing cover on the TITANUS

MICRO·SENS® must be turned by 180°.

ATTENTION

is installed with the aspiration pipe

Fig. 5. 2: Turn the cover of the TITANUS MICRO·SENS® detection unit

To turn the cover of the TITANUS MICRO·SENS

detection unit by 180o,

the following steps must be taken:

Turn cover

Release the 4 screws (for position see Fig. 5.2).

Now turn the cover and fix the detection unit again with the 4

screws.

MS_A_05-en-e Data: 01/09 5 – 3

Installation TITANUS MICRO·SENS®

Installation equipment

TITANUS

Cylinder or flat head screws – Thread diameter: max. 4 mm – Head diameter: max. 8 mm

Hole distances The dimensions (all dimensions in mm) of the holes for fixing the

TITANUS MICRO·SENS

are shown in the following Figures.

140

122

130

200

Fig. 5.3: Hole distances TITANUS

MICRO·SENS® base unit

5 – 4 Data: 01/09 MS_A_05-en-e

TITANUS MICRO·SENS® Installation

5.2.2 Connecting the air sampling pipe

Aspiration pipe

Connecting the

air sampling pipe

INSTRUCTION

Fig. 5.4: Connecting the aspiration pipe to the TITANUS MICRO·SENS

smoke detector

air sampling

When connecting the air sampling pipe to the TITANUS MICRO·SENS the following steps must be taken:

To join the air sampling pipe to the TITANUS MICRO·SENS®,

push it into the pipe connection provided for the purpose.

Under no circumstances use adhesive to join the air sampling pipe and pipe connection together. Where there are widely oscillating temperatures, the pipe must be fixed firmly immediately in front of the device such that the pipe is not pulled out of the connection by changes in length which occur (see Chapter

6.1).

MS_A_05-en-e Data: 01/09 5 – 5

Installation TITANUS MICRO·SENS®

5.3 Incorporation and electrical connection

of additional modules

To prepare the electrical connections, the following steps must first be taken:

1. Make the number of cable entries required on the device base unit,

e.g. with a screwdriver.

2. Put the cable entries M20 and/or M25 into the corresponding cable

holes.

3. Feed the cable through the corresponding cable holes.

2x M20 and 1x M25 cable entries are supplied with the device.

INSTRUCTION

The electrical connection is made via screw terminals 1a to 8a and 1b to 8b on the TITANUS MICRO·SENS

base unit. In so doing, note the permitted cable cross-sections on the threaded joints and the permitted wire cross-sections on the terminals for a max. 0.5 mm²-2.5 mm² wires.

+24V

Alarm relay

Fault relay

Reset +

Reset -

Indicato r b us

Fig. 5.5 : Layout of screw terminals in the device base unit

Carry out all connection work to the device with the power off!

ATTENTION

5 – 6 Data: 01/09 MS_A_05-en-e

TITANUS MICRO·SENS® Installation

Aspiration pipe connection

Te r m in a l b lo c k

Device base unit

Fig. 5.6: Arrangement of screw terminals in the device base unit

Alarm and fault contact can be used, for example, to connect to a CFDU or to control signals, guidance systems etc. There is also the option of connecting a parallel display or reaction indicators to the device indicator bus.

Permanent wiring in the reset input leads to all messages being automatically reset when the cause of the message has been removed.

INSTRUCTION

Additional housing If additional modules or a parallel display are used, then an installation

plate is screwed into the base unit of the additional housing.

Fig. 5.7: Positioning of the installation plate in the additional housing base unit

MS_A_05-en-e Data: 01/09 5 – 7

Installation TITANUS MICRO·SENS®

The installation plate is for all additional modules and prefabricated for the parallel display switching power supply.

3/7

or up to 2 reset plates

AlgoRex line modules

Network module

Switching power supply for parallel display

Reset-and isolation button plate

Fixing base for cable connectors

Relay board RU-1 / RU-2

Fig. 5.8: Arrangement of holes on the installation plate of the additional housing

5 – 8 Data: 01/09 MS_A_05-en-e

TITANUS MICRO·SENS® Installation

5.4 Connection to CFDU, with reset button

Device 1 Device n

+24V

L1+

L1-

Fault +

Fault -

Reset butt o n

+24V

Indicator bus

Indi ca to r b us

Pri nci pl e of al arm c on necti on

L1+

L1-

Fig. 5.9: Example of connecting TITANUS MICRO·SENS

Line end or line outlet to next device

Resist ances depend on th e FAS con nected

to a CFDU and reset button

MS_A_05-en-e Data: 01/09 5 – 9

Installation TITANUS MICRO·SENS®

5.5 Incorporating the reset board

The reset board can be used as an option for the TITANUS

MICRO·SENS

. The reset board is mounted in an additional housing. If several TITANUS MICRO·SENS the reset board is only connected into the detection line after the last TITANUS MICRO·SENS as per the switching plan (see Fig. 5.10).

The reset board can only be used if the idling current on the detection line is between 5 mA and 50 mA and the detection line terminal has an ohmic resistance. The reset impulse is triggered if the line voltage falls below 3V when the central unit is reset.

INSTRUCTION

Line idling current The idling current I

I =

where R

= Original terminating resistor of the line in [

= Line voltage in [V]

= Idle current on the line in [A]

are connected to a detection line, then

. The electrical connection to the reset board is

on the line is calculated as follows:

]

The formulae shown for calculating the terminating resistor and the idling current on the detection line take account of the ideal status for signal evaluation.

If no acknowledgement is given from calculating the reset board terminating resistor, the value of the terminating resistor must be reduced by about 20 %.

Terminating resistor The reset board balances the detection line terminating resistor. It is

calculated afresh and incorporated in the reset board (Connection X1, see Fig. 5.10). The value of the terminating resistor R

is calculated as

follows:

()

7,2−

where R U I

= Terminating resistor on the reset board in [

= Line voltage in [V]

R = Idling current on the line in [A]

]

5 – 10 Data: 01/09 MS_A_05-en-e

TITANUS MICRO·SENS® Installation

Reset plate Type E 5 48

Fig. 5.10: Fitting the rest board into the TITANUS MICRO · SENS

additional housing

Fitting To fit the reset board into the TITANUS MICRO·SENS

ing, the following steps must be taken:

Using a screwdriver, loosen the four screws on the additional

housing cover.

Put the terminating resistor

as calculated into the connecting

terminal X1. Fix the reset board to the installation board with 3 plastic spacers (for

fixing points see Fig. 5.8) in the additional housing. The electrical connection (terminal strip 8a/b) is described in section

5.5.1. Fix the cover on again by screwing down the four screws on the

device cover firmly using a screwdriver

additional hous-

MS_A_05-en-e Data: 01/09 5 – 11

Terminal resistor not supplied, performance 1/4W

Installation TITANUS MICRO·SENS®

5.5.1 Connection to a CFDU, with reset board

Devi ce 1 Devi ce n

+24V

L1+

L1-

Fault+

Fault-

Resista nc e R is to be c alc ulate d. For formula see Chapter 5.7.

Resista nc es de pend on the FAS c onnected

The reset plate must always be mounted in the last device on the line

Indicator bus

gn ge

Fig. 5.11: Example of connecting a TITANUS MICRO · SENS

Indicator bus

Device Base detec tion unit

Additional housing

- Reset

+ Reset

5 4

- Ub

+ Ub

to a CFDU and reset board

Reset plate I

5 – 12 Data: 01/09 MS_A_05-en-e

TITANUS MICRO·SENS® Installation

5.6 Incorporating the reset and isolating button board

If a reset or isolating button is needed, the plate must be fitted into an additional housing.

Fig. 5.12: Incorporating the reset and isolating board into the TITANUS MICRO·SENS

ditional housing

Fitting Proceed as follows to incorporate the reset and isolating button board:

Using a screwdriver, loosen the four screws on the additional

housing cover. Push the spacer blocks into the installation board

see Fig. 5.8) on the additional housing. The reset and isolating button board is then engaged with the spacer blocks using the holes provided

Feed the wires through as per the following switching plan.

Fit the cover again, using a screwdriver to fit the four screws on the

device cover firmly

(for fixing points

ad-

MS_A_05-en-e Data: 01/09 5 – 13

Installation TITANUS MICRO·SENS®

5.6.1 Function switching plan, reset and isolating button board

Reset and Isolating button plate

-+S

Res et

Isolating

12345

+24V

L1-

Faul t

Reset+

24V D C

Reset-

Indicator bus

Device Base detection unit

Additional housing

not us ed

2345

+S1S2S3S4

S1 S2 S3 S4

2345678

Iso la ting bu tton

2345678

not us ed

X7X6

Rese t

+-+

234

Reset

+24V

+-S

Reset

Supply

Red

Dark g rey

Micro-terminals

Isolate

Reset and Isolating button

front plate

Yellow

Light gr e y

Fa ult

Reset

Fig. 5.13: Example of TITANUS

L1-

L1+

Alarm

connections with reset and isolating button board

+24V

Resistances depend on the FAS connected

Schirm (S)

+24V

5 – 14 Data: 01/09 MS_A_05-en-e

WAGNER TITANUS Technical Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

TITANUS MICRO·SENS® General

0 General

0.1 Introduction

0.2 Safety Information

0.3 Guarantee

0.4 Copyright

0.5 Packaging

0.6 Disposal

1 Product Description

1.2 Areas of Application

2 Technical Description

2.1 System Description

2.1.1 Function

2.2 TITANUS MICRO·SENS® and Accessories

2.2.1 Overview

2.2.3 Detector Box

2.2.4 Diagnostics tool

2.2.5 Parallel Displays

2.2.6 Reaction Indicator

2.3 Pipe system

2.3.1 Overview

A pipe system

2.3.2 Aspiration apertures for room monitoring

2.3.2.1 Aspiration reduction films

2.3.2.2 Aspiration reduction clips

2.3.3 Ceiling duct for concealed mounting

2.3.4 Air filters for dusty areas

2.3.5 Air return for pressure differences and air pollution

2.3.6 Noise suppressor

2.3.7 Steam trap for humid areas

3 Technical Data

3.1 TITANUS MICRO·SENS®

3.2 TITANUS MICRO·SENS® detection box

3.3 Accessories – TITANUS MICRO·SENS®

3.4 Pipe System – TITANUS MICRO·SENS®

TITANUS MICRO·SENS® Pipe Design

4 Design

4.1 General

4.1.1 Regulations

4.1.2 Pipe system

4.1.3 Air flow monitoring

4.1.4 Sensitivity

4.1.5 Design Limits

4.2 Project planning

4.2.1 Project planning guidelines

4.2.1.1 Determining the necessary accessories

4.2.2 Pipe accessories

4.2.3 Sensitivity and pipeline project planning

4.2.3.1 Pipeline project planning with pipe accessories

4.2.4 Aperture diameter

4.3 Special project planning

4.3.1 Project planning for individual aperture monitoring

4.3.1.1 I-Pipe system

Trigger Thresholds I-Pipe system

4.3.1.2 U-Pipe system

Trigger Thresholds U-pipe System

4.3.1.3 M-Pipe system

Trigger Thresholds M-pipe System

4.3.1.4 Double-U-Pipe system

Trigger Thresholds Double U-pipe System

4.3.2 Simplified pipe design

4.3.2.1 I-Pipe system

4.3.2.2 U-pipe system

4.3.2.3 M-pipe system

4.3.2.4 Double-U-pipe system

4.3.3 Design for Forced Air Flow

4.4 Power Supply

5 Installation

5.1 General

5.2 Installation site

5.2.2 Connecting the air sampling pipe

5.4 Connection to CFDU, with reset button

5.5 Incorporating the reset board

5.5.1 Connection to a CFDU, with reset board

5.6 Incorporating the reset and isolating button board
