WAGNER Control Stainer 150 Owner's Manual
CONTROL STAINER™ 150
OWNER‘S MANUAL
READ THIS MANUAL FOR COMPLETE INSTRUCTIONS
FRANÇAIS P. 13
ESPAÑOL P. 25
wagner-group.com
Watch a video manual at www.wagnerspraytech.com/controlstainer150
EN
F
0117 • Form No. 0529650B
ES
IMPORTANT SAFETY INFORMATION
i
Grounded Outlet
Grounding Pin
Cover for grounded outlet box
TABLE OF CONTENTS
IMPORTANT SAFETY INFORMATION .............................................2-3
CONTROLS AND FUNCTIONS ........................................................... 4-5
SETUP ........................................................................................................ 6-7
SPRAYER CONTROLS ............................................................................... 8
SPRAYING .................................................................................................... 9
CLEANUP ...................................................................................................10
MAINTENANCE ........................................................................................11
TROUBLESHOOTING ..............................................................................12
PARTS LIST .........................................................................................37-38
WARRANTY ...............................................................................................39
EXPLANATION OF SYMBOLS
Read all safety information before operating the equipment.
Save these instructions.
To reduce the risks of re or explosion, electrical shock and the
injury to persons, read and understand all instructions included
in this manual. Be familiar with the controls and proper usage
of the equipment.
Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
IMPORTANT:
This symbol indicates a potential hazard to you
or to the equipment. Important information
that tells how to prevent damage to the
equipment or how to avoid causes of minor
injuries will follow.
GROUNDING INSTRUCTIONS
This product must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product
is equipped with a cord having a grounding wire with an
appropriate grounding plug. The plug must be plugged into
an outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
WARNING - Improper installation of the
grounding plug can result in a risk of electric
shock.
If repair or replacement of the cord or plug is necessary, do not
connect the green grounding wire to either at blade terminal.
The wire with insulation having a green outer surface with
or without yellow stripes is the grounding wire and must be
connected to the grounding pin.
Check with a qualied electrician or serviceman if the grounding
instructions are not completely understood, or if you are in
doubt as to whether the product is properly grounded. Do not
modify the plug provided. If the plug will not t the outlet,
have the proper outlet installed by a qualied electrician.
This product is for use on a nominal 120 volt circuit and has a
grounding plug that looks like the plug illustrated below. Make
sure that the product is connected to an outlet having the same
conguration as the plug. No adapter should be used with this
product.
Danger of electric shock
Danger of re from solvent and paint fumes
Danger of explosion from solvent, paint fumes
and incompatible materials
Notes give important information which
should be given special attention.
2
IMPORTANT ELECTRICAL INFORMATION
Use only a 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot receptacle that will accept the plug on the
product. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough
to carry the current your product will draw. An undersized cord
will cause a drop in line voltage resulting in loss of power and
overheating. A 14 gauge or 12 gauge cord is recommended. If
an extension cord is to be used outdoors, it must be marked with
the sux W-A after the cord type designation. For example, a
designation of SJTW-A would indicate that the cord would be
appropriate for outdoor use.
IMPORTANT: Household use only. Intended for indoor/
outdoor use ONLY with materials having
ashpoint above 100ºF (38ºC).
EN
IMPORTANT SAFETY INFORMATION
SAFETY HAZARDS
HAZARD: EXPLOSION OR FIRE
PREVENTION:
Flammable vapors, such as solvent and
paint vapors, in work area can ignite or
explode.
• Do not spray ammable or combustible materials near
an open ame, pilot lights or sources of ignition such
as hot objects, cigarettes, motors, electrical equipment
and electrical appliances. Avoid creating sparks from
connecting and disconnecting power cords.
• For use with only water-based or mineral spirit-type
materials with a minimum ash point of 100ºF (38ºC) — Do
not spray or clean with liquids having a ash point of less
than 100ºF (38ºC). Flash point is the temperature at which
a uid can produce enough vapor to ignite.
• Verify that all containers and collection systems are
grounded to prevent static discharge.
• Connect to a grounded outlet and use grounded extension
cords (electric models only). Do not use a 3 to 2 adapter.
• Keep spray area well ventilated. Keep a good supply of
fresh air moving through the area to keep the air within the
spray area free from accumulation of ammable vapors.
• Do not smoke in the spray area.
• Do not operate light switches, engines, or similar spark
producing products in the spray area.
• Keep area clean and free of paint or solvent containers,
rags, and other ammable materials.
• Know the contents of the paint and solvents being sprayed.
Read all material Safety Data Sheets (SDS) and container
labels provided with the paints and solvents. Follow the
paint and solvent manufacture’s safety instructions.
• Fire extinguisher equipment shall be present and working.
HAZARD: GENERAL
This product can cause severe injury or property
damage.
PREVENTION:
• Always wear appropriate gloves, eye protection, clothing
and a respirator or mask when painting. Hazardous vapors
– Paints, solvents, insecticides, and other materials can be
harmful if inhaled or come in contact with body. Vapors
can cause severe nausea, fainting or poisoning.
• Do not operate or spray near children. Keep children away
from equipment at all times.
• Do not overreach or stand on an unstable support. Keep
eective footing and balance at all times.
• Stay alert and watch what you are doing.
• Do not operate the unit when fatigued or under the
inuence of drugs or alcohol.
• Never aim spray gun at any part of the body.
• Follow all appropriate local, state, and national codes
governing ventilation, re prevention, and operation.
• The United States Government Safety Standards have
been adopted under the Occupational Safety and Health
Act (OSHA). These standards, particularly part 1910 of
the General Standards and part 1926 of the Construction
Standards should be consulted.
• Use only manufacturer authorized parts. User assumes all
risks and liabilities when using parts that do not meet the
minimum specications and safety devices of the turbine
manufacturer.
• Power cord must be connected to a grounded circuit.
• Do not spray outdoors on windy days.
HAZARD: ELECTRIC SHOCK
This product can cause injury due to electric shock.
PREVENTION:
• Power cord must be connected to a grounded circuit.
• Never submerge electrical parts.
• Never expose the equipment to rain. Store indoors.
• Keep electrical cord plug and spray gun trigger free from
paint and other liquids. Never hold the cord at plug
connections to support the cord. Failure to observe may
result in an electrical shock.
3
EN

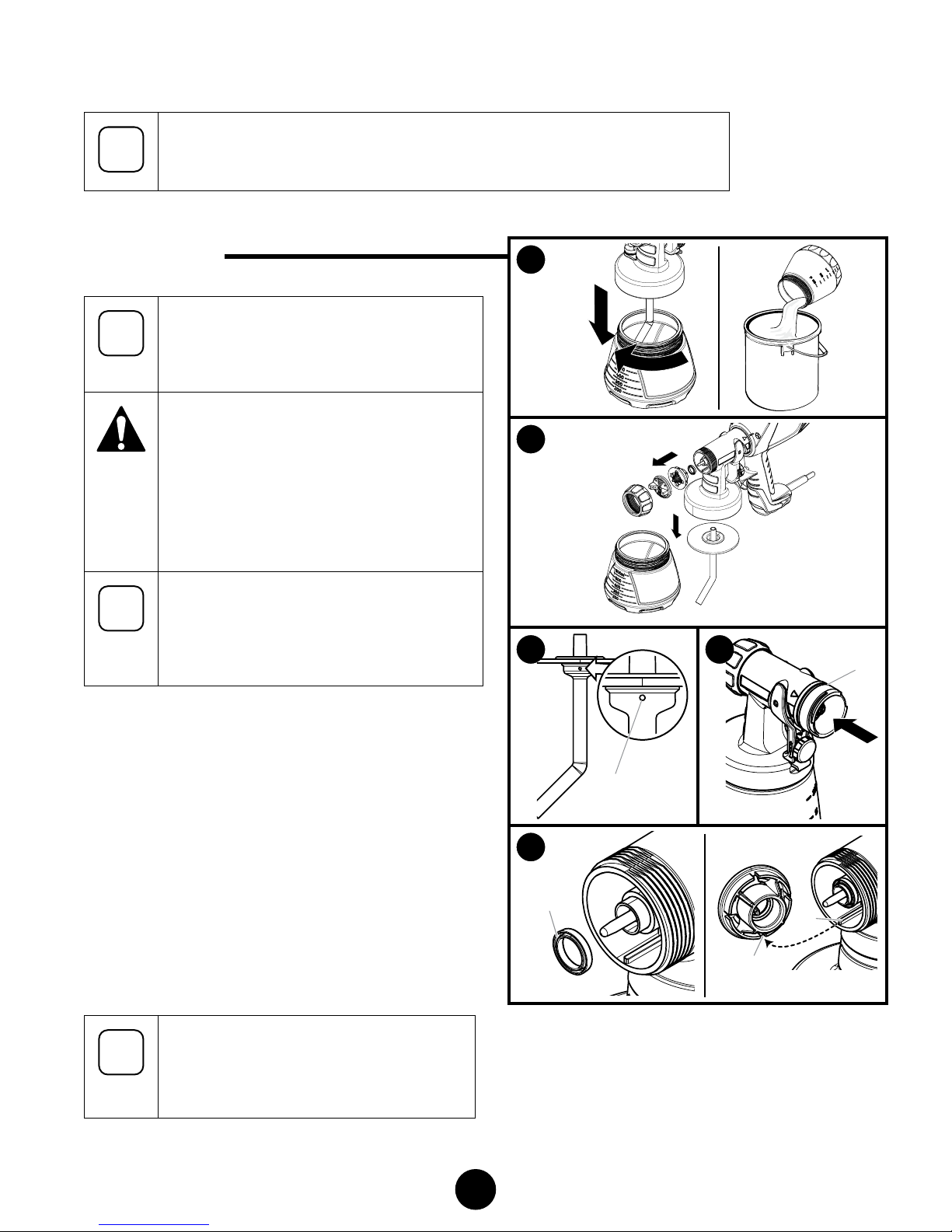

CONTROLS AND FUNCTIONS
Air cap
Nut
Nozzle
assembly
Nozzle
Seal
Turbine
ON/OFF
switch
Filter housing
Filter
Kickstand
Material ow
control
Trigger
Material container
(600 ml)
Seal
Pickup tube
4
EN
CONTROLS AND FUNCTIONS
=
=
=
0
ON / OFF SWITCH
The ON/ OFF switch turns the turbine ON (I)
and OFF (0).
No spray material will be delivered until trigger
is pulled.
MATERIAL FLOW CONTROL
The material ow control knob determines the
amount of spray material that is sprayed from
the spray nozzle.
TRIGGER
Pulling the trigger will deliver spray material
from the material container to the nozzle
assembly, where it is sprayed.
KICKSTAND
The kickstand allows the sprayer to be set
down on a at, even surface when using a
larger material container.
=
=
=
AIR CAP
Round pattern (use ‘up and down’ or ‘side to
side’ spraying motion)
Horizontal pattern (use ‘up and down’ spraying
motion)
Vertical pattern (use ‘side to side’ spraying
motion)
5
