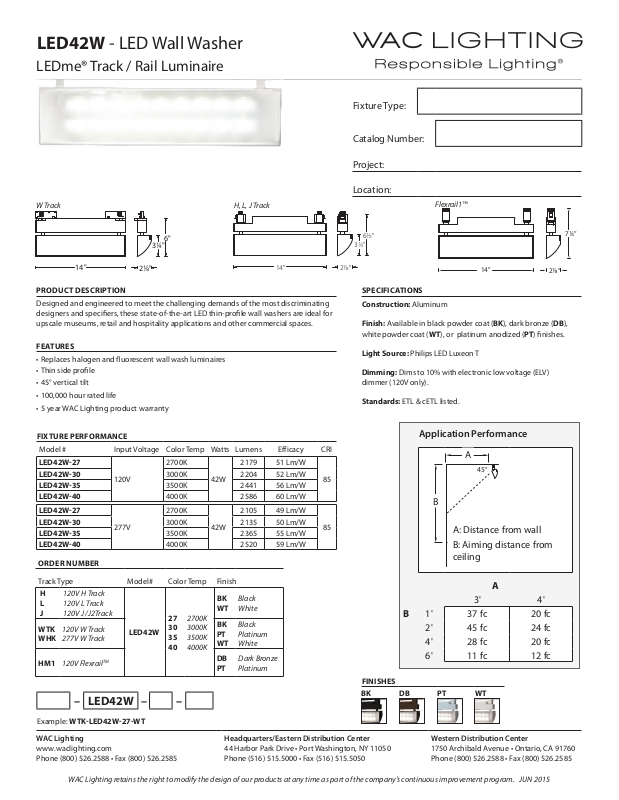

LED42W - LED Wall Washer
6
2
3
4
2
8
LEDme® Track / Rail Luminaire
H, L, J TrackW Track
Fixture Type:
Catalog Number:
Project:
Location:
Flexrail1™
6"
34"
14"
PRODUCT DESCRIPTION
Designed and engineered to meet the challenging demands of the most discriminating
designers and specifi ers, these state-of-the-art LED thin-profi le wall washers are ideal for
upscale museums, retail and hospitality applications and other commercial spaces.
FEATURES
• Replaces halogen and fl uorescent wall wash luminaires
• Thin side profi le
• 45° vertical tilt
• 100,000 hour rated life
• 5 year WAC Lighting product warranty
FIXTURE PERFORMANCE
Model # Input Voltage Color Temp Watts Lumens Efficacy CRI
LED42W-27
LED42W-30 3000K 2204 52 Lm/W
LED42W-35 3500K 2441 56 Lm/W
LED42W-40 4000K 2586 60 Lm/W
LED42W-27
LED42W-30 3000K 2135 50 Lm/W
LED42W-35 3500K 2365 55 Lm/W
LED42W-40 4000K 2520 59 Lm/W
ORDER NUMBER
Track Type Model# Color Temp Finish
H
120V H Track
L
120V L Track
J
120V J /J2Track
WTK
120V W Track
WHK
277V W Track
HM1 120V Flexrail
TM
120V
277V
28"
LED42W
2700K
2700K
27
30
35
40
42W
42W
2700K
3000K
3500K
4000K
2179 51 Lm/W
2105 49 Lm/W
BKWTBlack
White
BK
Black
PT
Platinum
WT
White
DBPTDark Bronze
Platinum
85
85
– LED42W – –
14”
SPECIFICATIONS
Construction: Aluminum
Finish: Available in black powder coat (BK), dark bronze (DB),
white powder coat (WT), or platinum anodized (PT) fi nishes.
Light Source: Philips LED Luxeon T
Dimming:
dimmer (120V only).
Standards: ETL & cETL listed.
Dims to 10% with electronic low voltage (ELV)
28”
Application Performance
A
45°
B
A: Distance from wall
B: Aiming distance from
ceiling
A
3' 4'
B 1' 37 fc 20 fc
2' 45 fc 24 fc
4' 28 fc 20 fc
6' 11 fc 12 fc
FINISHES
BK DB PT WT
74”
Example: WTK-LED42W-27-WT
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUN 2015
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
LED42W - LED Wall Washer
Photometrics - 120V
2700K
3000K
4000K 3500K
