Wac lighting LED-TE24 User Manual

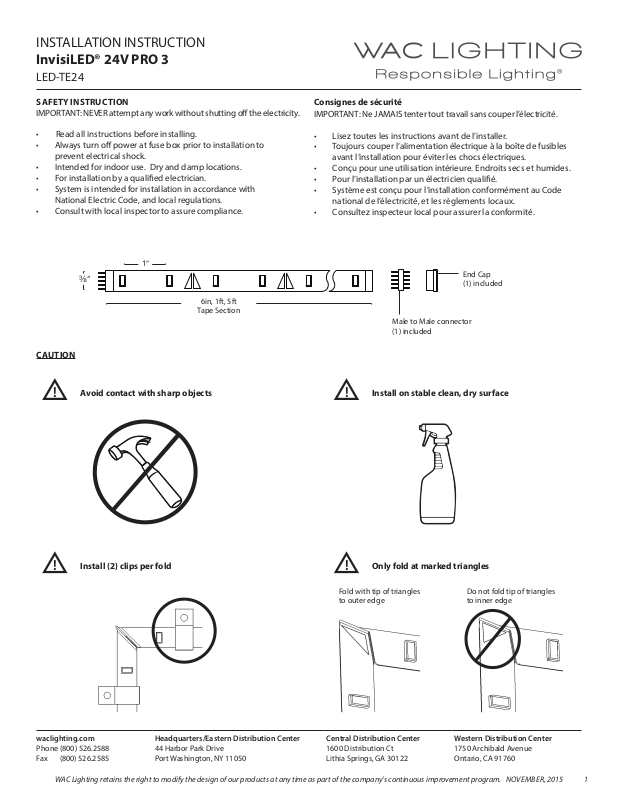

INSTALLATION INSTRUCTION
InvisiLED® 24V PRO 3
LED-TE24
SAFETY INSTRUCTION
IMPORTANT: NEVER attempt any work without shutting o the electricity.
• Read all instructions before installing.
• Always turn o power at fuse box prior to installation to
prevent electrical shock.
• Intended for indoor use. Dry and damp locations.
• For installation by a qualied electrician.
• System is intended for installation in accordance with
National Electric Code, and local regulations.
• Consult with local inspector to assure compliance.
1“
a“
6in, 1ft, 5ft
Tape Section
CAUTION
Avoid contact with sharp objects
! !
Consignes de sécurité
IMPORTANT: Ne JAMAIS tenter tout travail sans couper l’électricité.
• Lisez toutes les instructions avant de l’installer.
• Toujours couper l’alimentation électrique à la boîte de fusibles
avant l’installation pour éviter les chocs électriques.
• Conçu pour une utilisation intérieure. Endroits secs et humides.
• Pour l’installation par un électricien qualié.
• Système est conçu pour l’installation conformément au Code
national de l’électricité, et les règlements locaux.
• Consultez inspecteur local pour assurer la conformité.
End Cap
(1) included
Male to Male connector
(1) included
Install on stable clean, dry surface
Install (2) clips per fold
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Only fold at marked triangles
!!
Fold with tip of triangles
to outer edge
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Do not fold tip of triangles
to inner edge
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
1WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. NOVEMBER, 2015
INSTALLATION INSTRUCTION
InvisiLED® 24V PRO 3
LED-TE24
WIRING AND INSTALLATION:
1. Determine the number of separately powered runs needed. Each individual run is to be powered by a seperate power supply.
Min. / max. run length 6in/ 20 ft per run (100W transformer)
6in/ 12ft per run (60W transformer)
Current 200 mA/ft
Power consumption 5 Watts/ft
2. Measure the length of each run and round it o to the nearest 6-inch interval. Determine the necessary quantities of
1-ft, 5-ft, 6-in sections, joiner cables, and L, X or Y connectors. Note: Tapelight may be eld cut every 6-inch at the end of run where indicated.
Fig. 1
Note: Figure not drawn to scale
Additional power feeds and wiring boxes may
be used to transition in walls.
LED-TC-EC
(Male end cap)
LED-TE24-1
LED-TC-L
LED-TE24-6IN
LED-TC-Y
LED-TE24
LED-TE24-5
LED-TC-EC
(Cut end cap)
LED-TE24-5
LED-TC-EC
(Cut end cap)
LED-TC-X
LED-TC-IC
LED-TE24-5
LED-TC-EC
(Male end cap)
Wire with Remote Transformer
6’ lead wire included
Model: EN-2460-RB2-T
EN-24100-RB2-T
EN-24100-277-RB2-T
OR
Wire with Plug-in Transformer
6’ lead wire included
Model: EN-2460-P-AR-T
EN-24100-P-AR-T
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
2WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. NOVEMBER, 2015
