Operator’s Manual
Pump
PS3 1500
PS3 2200
EN
5000187821 03 0112
5000187821
Copyright
notice
© Copyright 2011 by Wacker Neuson Production Americas LLC
All rights, including copying and distribution rights, are reserved.
This publication may be photocopied by the original purchaser of the machine. Any
other type of reproduction is prohibited without express written permission from
Wacker Neuson Production Americas LLC.
Any type of reproduction or distribution not authorized by Wacker Neuson Production
Americas LLC represents an infringement of valid copyrights. Violators will be
prosecuted.
T ra d emarks
Manufacturer
All trademarks referenced in this manual are the property of their respective owners.
Wacker Neuson Production Americas LLC
N92W15000 Anthony Avenue
Menomonee Falls, WI 53051 U.S.A.
Tel: (262) 255-0500 · Fax: (262) 255-0550 · Tel: (800) 770-0957
www.wackerneuson.com
Original
instructions
This Operator’s Manual presents the original instructions. The original language of this
Operator’s Manual is American English.
PS3 1500 / PS3 2200 Foreword
Foreword
SAVE THESE INSTRUCTIONS—This manual contains important instructions for
the machine models below. These instructions have been written expressly by
Wacker Neuson Production Americas LLC and must be followed during inst allation,
operation, and maintenance of the machines.
Machines discussed in this manual:
Machine
documentation
Expectations
for
information in
this manual
Part No. PS3 1500
0009117, 0009118
From this point forward in this documentation, Wacker Neuson Production
PS3 2200
0009119
Americas LLC will be referred to as Wacker Neuson.
Keep a copy of the Operator’s Manual with the machine at all times.
Use the separate Parts Book supplied with the machine to order replacement
parts.
Refer to the separate Repair Manual for detailed instructions on servicing and
repairing the machine.
If you are missing any of these documents, please contact Wacker Neuson to
order a replacement or visit www.wackerneuson.com.
When ordering parts or requesting service information, be prepared to provide
the machine model number, item number, revision number, and serial number.
This manual provides information and procedures to safely operate and
maintain the above Wacker Neuson model(s). For your own safety and to
reduce the risk of injury , carefully rea d, understand, and obse rve all instructions
described in this manual.
Wacker Neuson expressly reserves the right to make technical modifications,
even without notice, which improve the performance or safety standards of its
machines.
The information contained in this manual is based on machines manufactured
up until the time of publication. Wacker Neuson reserves the right to change
any portion of this information without notice.
Manufacturer’s
approval
This manual contains references to approved parts, attachments, and
modifications. The following definitions apply:
Approved parts or attachments are those either manufactured or provided by
Wacker Neuson.
Approved modifications are those performed by an authorized Wacker
Neuson service center according to written instructions published by Wacker
Neuson.
Unapproved parts, attachments, and modifications are those that do not
meet the approved criteria.
Unapproved parts, attachments, or modifications may have the following
consequences:
Serious injury hazards to the operator and persons in the work area
Permanent damage to the machine which will not be covered under warranty
wc_tx002040gb.fm 3
Foreword PS3 1500 / PS3 2200
Contact your Wacker Neuson dealer immediately if you have questions about
approved or unapproved parts, attachments, or modifications.
4 wc_tx002040gb.fm
Table of ContentsPS3 1500 / PS3 2200
Foreword 3
1 Safety Information 7
1.1 Signal Words Used in this Manual ....................................................... 7
1.2 Machine Description and Intended Use ............................................... 8
1.3 Operating and Electrical Safety ............................................................ 9
1.4 Service Safety .................................................................................... 10
1.5 Labels ................................................................................................. 11
2 Lifting and Transporting 12
3 Installation 13
3.1 Components ....................................................................................... 13
3.2 Preparing the Machine for First Use ................................................... 14
3.3 Application Area ................................................................................. 14
3.4 Maximum Allowable Water Pressure ................................................. 15
3.5 Preparing for installation ..................................................................... 15
3.6 Checks to Make Before Installation .................................................... 17
3.7 Changing the Operating Voltage ........................................................ 18
3.8 Precautions in Installation .................................................................. 20
3.9 Electrical Wiring .................................................................................. 21
3.10 Connecting the power supply ............................................................. 21
3.11 Cable Assembly ................................................................................. 22
4 Operation 23
4.1 Before Starting ................................................................................... 23
4.2 Operating Water Level ..................................................................... 25
4.3 Motor Protection System .................................................................... 25
4.4 Emergency Shutdown Procedure ....................................................... 26
5 Maintenance 27
5.1 Periodic Maintenance Schedule ......................................................... 27
5.2 Maintenance and Inspection .............................................................. 28
5.3 Storage ............................................................................................... 28
5.4 Disassembly and Reassembly ........................................................... 30
5.5 Disassembly ....................................................................................... 31
5.6 Reassembly ........................................................................................ 32
5.7 Troubleshooting .................................................................................. 33
wc_bo5000187821_03TOC.fm 5
Table of Contents PS3 1500 / PS3 2200
6 Technical Data 34
6.1 Standard Specifications .......................................................................34
6.2 Operating Specifications (60 Hz) .........................................................35
7 Schematics 36
8 AEM Safety Manual 39
6 wc_bo5000187821_03TOC.fm
PS3 1500 / PS3 2200 Safety Information
1 Safety Information
1.1 Signal Words Used in this Manual
This manual contains DANGER, WARNING, CAUTION, NOTICE, and
NOTE signal words which must be followed to reduce the possibility
of personal injury, damage to the equipment, or improper service.
This is the safety alert symbol. It is used to alert you to potential personal hazards.
f Obey all safety messages that follow this symbol.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death
or serious injury.
f
To avoid death or serious injury from this type of hazard, obey all safety messages that
follow this signal word.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
To avoid possible death or serious injury from this type of hazard, obey all safety
f
messages that follow this signal word.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
f
To avoid possible minor or moderate injury from this type of hazard, obey all safety
messages that follow this signal word.
NOTICE: Used without the safety alert symbol, NOTICE indicates a
situation which, if not avoided, could result in property damage.
Note: A Note contains additional information important to a procedure.
wc_si000036gb.fm 7
Safety Information PS3 1500 / PS3 2200
1.2 Machine Description and Intended Use
This machine is a submersible water pump. The Wacker Neuson
Submersible Pump consists of an electric motor, an impeller, a strainer,
and a metal casing with ports for water suction and discharge. Power is
supplied to the pump through a corded plug or a hard-wired connection,
depending on the installation. The operator connects hoses to the pump
and routes them so that water is pumped from the work area and
discharged into an appropriate location.
This machine is intended to be used for general de-watering applications.
This machine is intended for the pumping of clear water, or water
containing solids up to the size stated within the products specifications,
and up to the flow, head, and suction lift limits also stated within the
product specifications.
This machine has been designed and built strictly for the intended use
described above. Using the machine for any other purpose could
permanently damage the machine or seriously injure the operator or other
persons in the area. Machine damage caused by misuse is not covered
under warranty.
The following are some examples of misuse:
• Pumping flammable, explosive, or corrosive fluids
• Pumping hot or volatile fluids that result in pump cavitation
• Operating the pump outside of product specifications due to
incorrect diameter hoses, incorrect length hoses, other inlet or
outlet restrictions, or excessive suction lift or head
• Using the machine as a ladder, support, or work surface
• Using the machine to carry or transport passengers or equipment
• Operating the machine outside of factory specifications
• Operating the machine in a manner inconsistent with all warnings
found on the machine and in the Operator’s Manual.
This machine has been designed and built in accordance with the latest
global safety standards. It has been carefully engineered to eliminate
hazards as far as practicable and to increase operator safety through
protective guards and labeling. However, some risks may remain even
after protective measures have been taken. They are called residual
risks. On this machine, they may include exposure to:
• Electric shock from improper electrical connections or high
voltage
• Personal injury from improper lifting techniques
• Projectile hazard from discharge
8 wc_si000036gb.fm
PS3 1500 / PS3 2200 Safety Information
To protect yourself and others, make sure you thoroughly read and
understand the safety information presented in this manual before
operating the machine.
Operator qualifications
Only trained personnel are permitted to start, operate, and shut down
the machine. They also must meet the following qualifications:
• have received instruction on how to properly use the machine
• are familiar with required safety devices
The machine must not be accessed or operated by:
•children
• people impaired by alcohol or drugs
Personal Protective Equipment (PPE)
Wear the following Personal Protective Equipment (PPE) while
operating this machine:
• Close-fitting work clothes that do not hinder movement
• Safety glasses with side shields
• Hearing protection
• Safety-toed footwear
Replacement parts
When replacement parts are required for this machine, use only
Wacker Neuson replacement parts or those parts equivalent to the
original in all types of specifications, such as physical dimensions,
type, strength, and material.
1.3 Operating and Electrical Safety
To reduce risk of electric shock, connect only to a properly grounded,
grounding-type receptacle.
WARNING
Risk of electric shock—this pump has not been investigated for use in
swimming pool areas.
An acceptable motor-control switch shall be provided at the time of
installation according to local codes and regulations.
To reduce risk of electric shock, follow instructions in this manual for
proper installation.
CAUTION: This pump may automatically restart. Prior to working on
the pump or control panel, all supply circuits must be disconnected.
CAUTION: Risk of shock—do not remove cord and strain relief.
wc_si000036gb.fm 9
Safety Information PS3 1500 / PS3 2200
1.4 Service Safety
Service training
Before servicing or maintaining the machine:
• Read and understand the instructions contained in all manuals
delivered with the machine.
• Familiarize yourself with the location and proper use of all
controls and safety devices.
• Only trained personnel shall troubleshoot or repair problems
occurring with the machine.
• Contact Wacker Neuson for additional training if necessary.
When servicing or maintaining this machine:
• Do not allow improperly trained people to service or maintain the
machine. Personnel servicing or maintaining the machine must
be familiar with the associated potential risks and hazards.
Personal Protective Equipment (PPE)
Wear the following Personal Protective Equipment (PPE) while
servicing or maintaining this machine:
• Close-fitting work clothes that do not hinder movement
• Safety glasses with side shields
• Hearing protection
• Safety-toed footwear
In addition, before servicing or maintaining the machine:
• Tie back long hair.
• Remove all jewelry (including rings).
Replacing parts and labels
• Replace worn or damaged components.
• Replace all missing and hard-to-read labels.
• When replacing electrical components, use components that are
identical in rating and performance as the original components.
• When replacement parts are required for this machine, use only
Wacker Neuson replacement p arts or those parts equivalent to
the original in all types of specifications, such as physical
dimensions, type, strength, and material.
10 wc_si000036gb.fm
PS3 1500 / PS3 2200 Safety Information
1.5 Labels
A nameplate listing the model number, item number,
revision number, and serial number is attached to each
unit. Please record the information found on this nameplate
so it will be available should the nameplate become lost or
damaged. When ordering parts or requesting service
information, you will always be asked to specify the model
number, ite m number, revision number, and serial number
of the unit.
CAUTION
Do not attempt to operate this product before reading the
Operator’s Manual and understanding its contents.
Mishandling of this product may result in explosion, fire, or
electrical shock.
Do not pull on the power cord or use the power cord to lift
the pump.
Always use a dedicated ground leakage circ uit bre ak er.
Be sure to install the ground wire securely.
Be sure to disconnect the power supply before handling
or inspecting the pump.
Never insert your hand into the pump inlet holes while the
pump is connected to the power supply.
Model
Serial No.
VHz
ft
Wacker Neuson Production Americas LLC
Menomonee Falls, WI 53051 USA
Item N o. Rev.
Man. Y/M
INDOORS OR OUTDOORS
Phase
Amp.
kWkgMax. L/ mi nMax. m
HPlbsMax. GPMMax.
CSA ENCLOSURE
Cert . to CAN/CSA
C22.2 No. 108-M89
/
,
6
&
MADE IN
Y THERMALL PROTECTED
Conforms to UL Std.778
Std.
5
'
(
86
7
JAPAN
3
wc_si000036gb.fm 11
Lifting and Transporting PS3 1500 / PS3 2200
2 Lifting and Transporting
Do not under any circumstances install or move the pump by
suspending it from the cable assembly. The cable may be damaged,
WARNING
CAUTION
causing electrical leakage, shock, or fire.
When installing the pump, pay close attention to its center of gravity
and weight. If it is not lowered into place correctly, it may fall and be
damaged or cause injury.
When transporting the pump by hand, be sure to employ manpower
commensurate with the weight of the pump. To avoid back injury when
lifting the pump, bend the knees to pick it up rather than bending your
back only.
Avoid dropping the pump or other strong impact. Lift the pump by
holding it firmly with the hands or by attaching a rope or chain to the
handle.
12 wc_tx001959gb.fm
PS3 1500 / PS3 2200 Installation
3 Installation
3.1 Components
1
2
3
4
wc_gr000321
Ref. Description Ref. Description
5
6
7
8
9
10
11
12
13
14
15
1. Coupling 9. Dust Seal
2. Mechanical Seal 10. Wear Ring
3. Gasket 11. Oil Housing
4. Sleeve 12. Impeller
5. Cable Assembly 13. Volute
6. Lifting Handle 14. Strainer
7. Lubricant 15. Retainer Plate
8. Oil Plug
wc_tx001974gb.fm 13
Installation PS3 1500 / PS3 2200
3.2 Preparing the Machine for First Use
When the pump is delivered, first perform the following checks:
• Inspection
While unpacking, inspect the product for damage during shipment, and
make sure all bolts and nuts are tightened properly.
• Specification check
Check the model number to make sure it is the product that was
ordered. Be certain it is the correct voltage and frequency.
Note: If there is any problem with the product as shipped, contact your
nearest dealer or Wacker Neuson representative at once.
• Product specifications
Do not operate this product under any conditions other than those for
which it is specified. Failure to observe this precaution can lead to
CAUTION
electrical shock, current leakage, fire, water leakage or other
problems.
3.3 Application Area
If the pump is used to drain a swimming pool, the pump must be
connected to a Ground Fault Interrupter (GFI).
WARNING
If the pump is used in fountains, the pump must be connected to a
Ground Fault Interrupter (GFI).
The pump must not be used when people are in the water.
Leakage of pump lubricants may cause pollution of water.
Proper plug must be provided according to local codes and standards.
Refer to wiring diagram.
Do not use this pump in liquids other than water, such as oil, salt water,
or organic solvents.
Use with a power supply voltage within ±5% of the rated voltage.
Do not use in water temperatures outside the range of 0–40°C
(32–104°F) which can lead to failure, current leakage or shock.
Do not use in the vicinity of explosive or flammable materials.
Use only in fully assembled state.
Note: Consult your local dealer or Wacker Neuson representative
before using with any liquids other than those indicated in this
document.
14 wc_tx001974gb.fm
PS3 1500 / PS3 2200 Installation
3.4 Maximum Allowable Water Pressure
NOTICE: Do not use at greater than the water pressure shown, which
can damage the pump resulting in electrical leakage and electrical
shock.
Model Maximum Allowable Water Pressure
PS 3 1500/2200 0.3 MPa (43 PSI)
3.5 Preparing for installation
Before installing the pump at a work site, you will need to have the
following tools and instruments ready:
• Insulation resistance tester (megohmmeter)
• AC voltmeter
• AC ammeter (clamp-on type)
• Bolt and nut tighteners
• Power supply connection tools (screwdriver or box wrench)
Note: Please also read the instructions that come with each of the test
instruments.
wc_tx001974gb.fm 15
Installation PS3 1500 / PS3 2200
Notes
16 wc_tx001974gb.fm
PS3 1500 / PS3 2200 Installation
3.6 Checks to Make Before Installation
With the megohmmeter, measure the insulation resistance between
each of the power wires and grounding wire to verify the insulation
resistance of the motor.
Reference insulation resistance: 20MW or greater
Note: The reference insulation resistance (20MW or greater) is the
value when the pump is new or has been repaired. For the reference
value after installation, see Maintenance and Inspection.

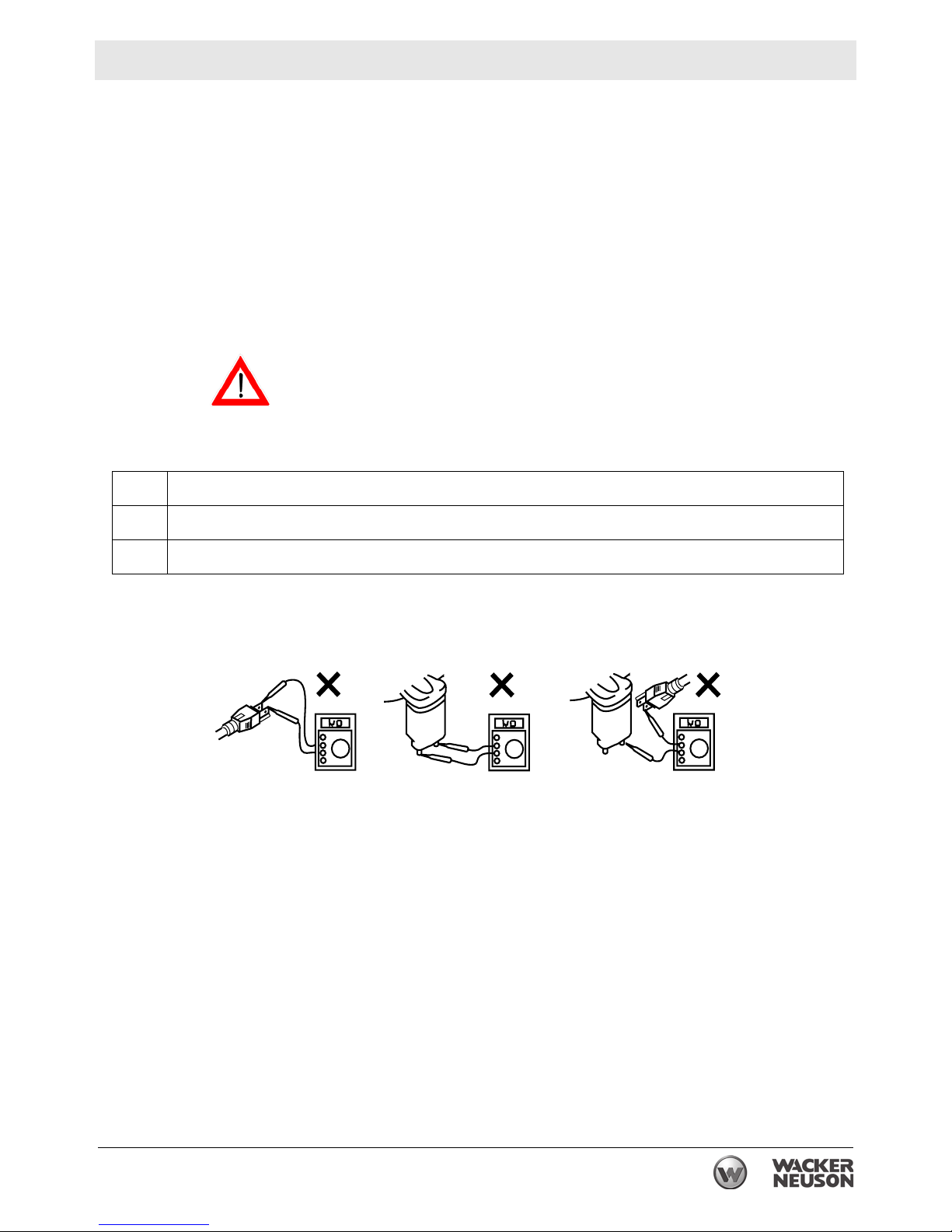

DO NOT measure the insulation resistance with insulation resistance
tester for the following parts. It will cause damage (Model PSA 2 500).
CAUTION
Improper ways to measure insulation resistance
1 Between the plug prongs.
2 Between the electrodes on the level relay unit.
3 Between the electrodes on the level relay unit and the plug prongs.
1
2
3
wc_gr000258
wc_tx001974gb.fm 17
Installation PS3 1500 / PS3 2200
3.7 Changing the Operating Voltage
The operating voltage of the motor can be changed from 110V to
220V depending on the available power source.
WARNING
Electric shock hazard.
f Ensure that the pump is disconnected from the power source before changing
the operating voltage.
Requirements
• Pump disconnected from the power source
• Hand tools (screwdriver and wrench)
Procedure
Follow the procedure below to change the operating voltage of the
motor.
p
wc_gr008856

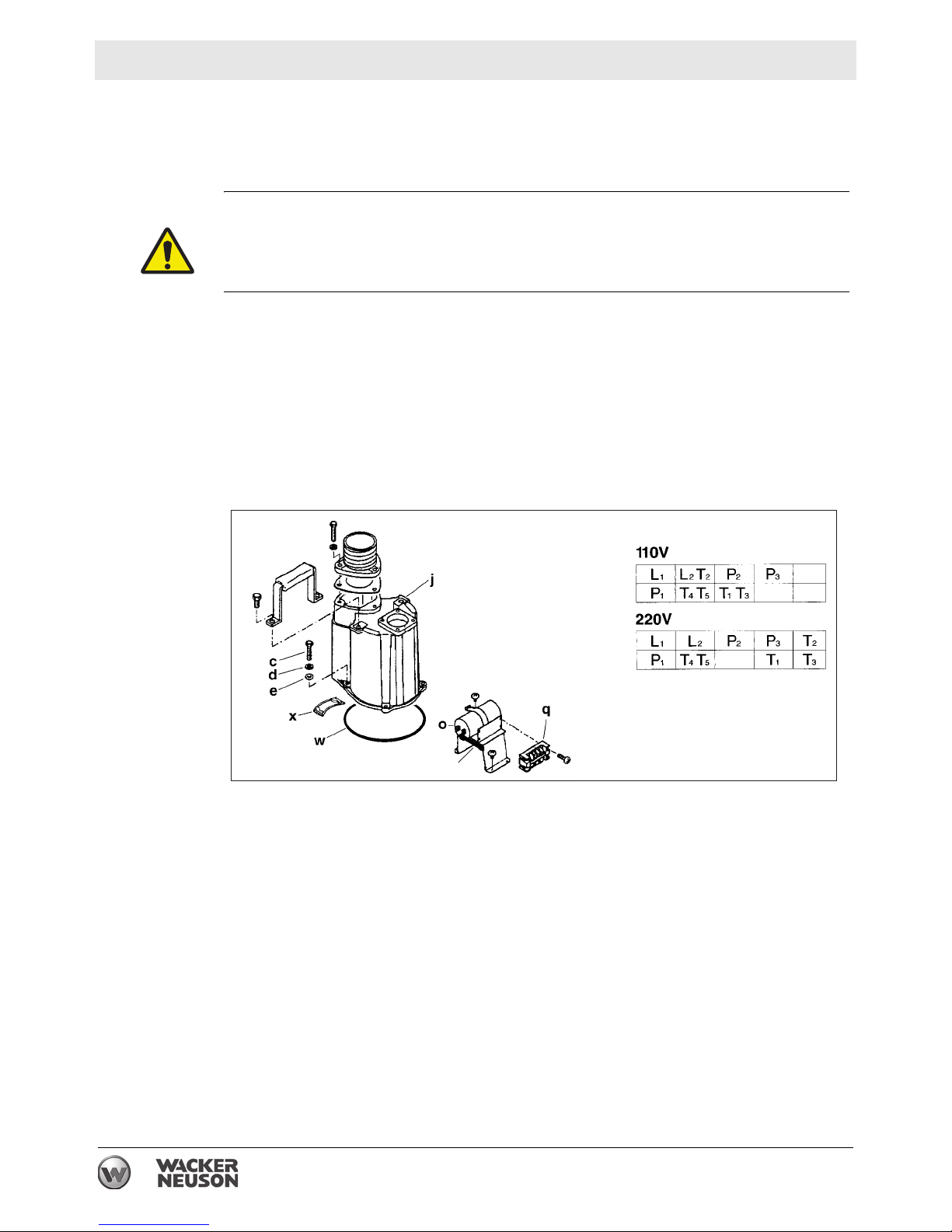

3.7.1 Remove the four bolts (c), lockwashers (d), and flat washers (e) that
fasten the housing cover (j) to the motor bracket.
3.7.2 Carefully lift the housing cover.
NOTICE: Avoid entangling the power cord lead wires with internal components such as the centifugal switch (p) or the capacitor (o). Be careful not to
damage the O-ring (w) while lifting the housing cover.
3.7.3 Support the housing cover so that it allows access to the terminal box
(q).
18 wc_tx001974gb.fm
PS3 1500 / PS3 2200 Installation
3.7.4 Remove the plastic cover (not shown) from the front face of the
terminal box. Using a screwdriver , detach and move the lead wires as
needed to configure the operating voltage.
Desired
voltage
110V Upper L2 and T2 together at position 2 (from left)
220V Upper T2 at position 5 (from left)
Terminal block Wire locations
Lower T1 and T3 together at position 3 (from left)
Lower T1 at position 4 (from left)
T3 at position 5 (from left)
3.7.5 Reinstall the plastic cover.
3.7.6 Make sure that the O-ring (w) and gasket (x) are properly seated.
NOTICE: Replace the O-ring or gasket if either shows signs of damage or
wear.
3.7.7 Lower the housing cover onto the motor bracket. Align the housing
cover as shown.
3.7.8 Fasten the housing cover to the motor bracket.
Result
The operating voltage of the motor has now been changed.
wc_tx001974gb.fm 19
Installation PS3 1500 / PS3 2200
3.8 Precautions in Installation
3.8.1 The pump is supplied with a threaded discharge fitting. Tighten hose
coupling or discharge pipe securely and with proper gaskets.
3.8.2 Install the pump in a location with sufficient water level, where water
collects readily.
Note: See Operation (“Operating Water Level”) for the water level
necessary for operation. The discharge end of the hose should be
located higher than the water surface. If the end of the hose is
submerged, water may flow back to the pump when the pump is
stopped; and if the hose end is lower than the water surface, water may
overflow when the pump is turned off.
3.8.3 The hose should be run as straight as possible, since excessive
bending will hinder the water flow, preventing sufficient lift, and can
even cause the hose to become clogged with earth. If the hose is
crimped near the pump, air can become trapped in the pump and
cause idle running.
If large quantities of earth are sucked up, damage resulting from
friction in the pump can lead to electrical leakage and shock.
CAUTION
NOTICE: When the pump is installed at a work site, make sure the
hose is connected in such a way as to ensure proper drainage.
Otherwise water may leak out and cause damage to surrounding walls
or flooring, or to equipment.
3.8.4 Use the pump in the upright position. To prevent the strainer from
becoming submerged in mud, causing it to suck in sand or debris,
mount it on a block or other firm base.
3.8.5 If used in a permanent installation, where the pump is not readily
accessible after installation, please contact Wacker Neuson for a
duplicate nameplate to be installed at the wellhead or on the control
box so that it will be readily visible.
Do not operate the pump dry. Doing so will prevent the pump from
attaining its full potential and may also damage the pump and lead to
CAUTION
a short and electrical shock.
20 wc_tx001974gb.fm
PS3 1500 / PS3 2200 Installation
3.9 Electrical Wiring
Performing electrical wiring
Electrical wiring should be performed by a qualified person in accord
with all applicable regulations. Failure to observe this precaution not
WARNING
WARNING
only risks breaking the law but is extremely dangerous.
Incorrect wiring can lead to current leakage, electrical shock or fire.
Always make sure the pump is equipped with the specified overload
protectors and fuses or breakers, so as to prevent electrical shock from
a current leak or pump malfunction.
Operate within the capacity of the power supply and wiring.
Grounding
Do not use the pump without first grounding it properly. Failure to
ground it can lead to electrical shock from a current leak or pump
malfunction.
Do not attach the grounding wire to a gas pipe, water pipe, lightning
arrester or telephone grounding wire. Improper grounding can result in
CAUTION
electrical shock.
3.10 Connecting the power supply
Before connecting leads to the terminal strip, make certain the power
supply is turned off (circuit breaker, etc.), to avoid electrical shock,
WARNING
CAUTION
shorting, or unexpected starting of the pump, leading to injury.
Do not use the pump if the cable assembly is worn or damaged, which
can result in electric shock, shorting, or fire.

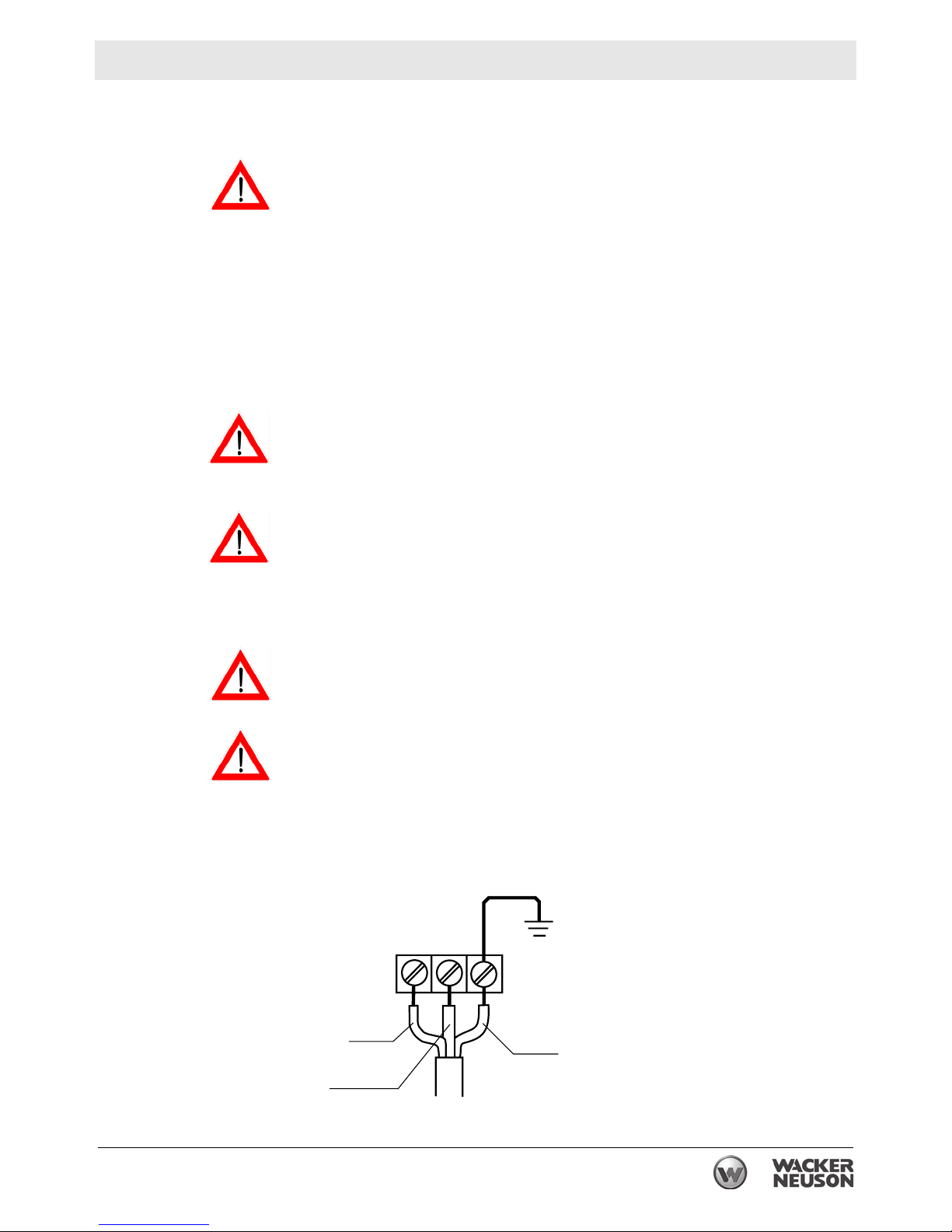

Connect the leads to the control panel terminals as shown in the
diagram, making sure they do not become twisted together.
W
wc_tx001974gb.fm 21
R
G
wc_gr000260
Installation PS3 1500 / PS3 2200
3.11 Cable Assembly
If it is necessary to extend the cable assembly, use a core size equal
to or larger than the original. This is necessary not only to avoid a
CAUTION
performance drop, but to prevent cable overheating which can result in
fire, electrical leakage or electrical shock.
If a cable with cut insulation or other damage is submerged in the
water, there is a danger of damage to the pump, electrical leakage,
electrical shock, or fire.
Be careful not to let the cable assembly be cut or become twisted. This
may result in damage to the pump, electrical leakage, electrical shock,
or fire.
If it is necessary to submerge the connection wires of the cable
assembly in water, first seal the wires completely in a molded
protective sleeve, to prevent electrical leakage, electrical shock, or fire.
Do not allow the cable assembly wires or power supply plug to become
wet.
Make sure the cable does not become excessively bent or twisted, and
does not rub against a structure in a way that might damage it.
If used in a deep-well installation, the cable assembly should be
secured every 6 m (20 ft.).
22 wc_tx001974gb.fm
PS3 1500 / PS3 2200 Operation
4 Operation
4.1 Before Starting
4.1.1 Make sure once again that the product is of the correct voltage and
frequency rating.
NOTICE: Using the product at other than rated voltage and frequency
will not only lower its performance but may damage the product.
Note: Confirm the rated voltage and frequency on the model
nameplate.
4.1.2 Confirm the wiring, supply voltage, circuit breaker capacity, and motor
insulation resistance.
Reference insulation resistance = 20 MΩ or greater.
Note: The reference insulation resistance (20 MΩ or greater) is the
value when the pump is new or has been repaired. For the reference
value after installation see “Periodic Maintenance Table.”
4.1.3 The setting on the circuit breaker or other overload protector should be
made in accord with the rated current of the pump.
Note: See “Operating Specifications” fo r the rated current of the pump.
4.1.4 When powering the pump with a generator, be certain the generator is
sized to supply the required power for the pump and any other
equipment powered by the generator.
Non-Automatic Model
Test Operation
Do not operate the pump while it is suspended in the air. The recoil
may result in injury or other major accident.
WARNING
Do not start the pump when people are standing next to it. A current
leak can result in electrical shock.
WARNING
Run the pump for a short time (3–10 minutes) and confirm the
following:
• Using an ammeter (clamp-on type), measure the operating cur-
rent at the L1 and L2 phase wires on the terminal.
COUNTERMEASURE: If the operating current exceeds the rated
value, pump motor overload may be a cause. Make sure the pump has
been installed under proper conditions as described in Installation.
• Using an AC voltmeter (tester), measure voltage at the terminals.
Supply voltage tolerance: within ±5% of rated voltage.
wc_tx001989gb.fm 23
Operation PS3 1500 / PS3 2200
COUNTERMEASURE: If the supply voltage is outside the tolerance,
possible causes are the power supply capacity or an inadequate
extension cable. Look again at the wiring diagram and make sure the
conditions are proper.
In case of very excessive vibration, unusual noise or odor, turn off the
power immediately and consult your nearest dealer or Wacker Neuson
CAUTION
WARNING
representative. Continuing to operate the pump under abnormal
conditions may result in electrical shock, fire, or current leakage.
Operation
Make sure no extraneous objects such as pins, nails or other metal
objects are sucked into the pump. These can damage the pump or
cause it to malfunction, and can result in electrical shock or electrical
leakage.
When the pump is not used for an extended period, be sure to turn off
the power (circuit breaker, etc.). Deterioration of the insulation may
lead to electrical leakage, electrical shock, or fire.
In case of a power outage, turn off the power to the pump to avoid
having it start unexpectedly when the power is restored, presenting
serious danger to people in the vicinity.
CAUTION
The pump may become hot during operation. Do not touch an
operating pump. Allow the pump to cool before handling.
Pay careful attention to the water level while the pump is operating. Dry
operation may cause the pump to malfunction.
Note: See section “Operating Water Level” for the water level
necessary for operation.
If the protection system operates due to an overload or malfunction,
causing the pump to stop, first investigate and remove the cause
before restarting.
24 wc_tx001989gb.fm
PS3 1500 / PS3 2200 Operation
4.2 Operating Water Level
Do not operate the pump below the C.W.L. (Continuous running Water
Level) indicated below. Failure to observe this condition may result in
CAUTION
damage to the pump, current leakage or electrical shock.
CWL
wc_gr000324
Operating Water Level
Pump Model C.W.L.
PS 3 1500 80 mm (3-1/8")
PS 3 2200 80 mm (3-1/8")
4.3 Motor Protection System
Circle thermal protector
The pump has a built-in motor protection system (circle thermal
protector). If an excessive current is detected or the motor overheats,
for reasons such as the following, the pump will automatically stop
operating regardless of the water level, to protect the motor:
• Change in supply voltage polarity
• Overload
• Open-phase operation or operation under constraint
Note: Always determine the cause of the problem and resolve it before
resuming operation. Simply repeating cycles of stopping and restarting
will end up damaging the pump. Do not continue operation at very low
lift, low water level, or while the strainer stand is clogged with debris.
Not only will performance suffer, but also such conditions may cause
noise, heavy vibration, and malfunctioning.
wc_tx001989gb.fm 25
Operation PS3 1500 / PS3 2200
4.4 Emergency Shutdown Procedure
If a breakdown/accident occurs while the machine is operating, follow
the procedure below.
4.4.1 Turn off the pump.
4.4.2 Disconnect the power supply.
4.4.3 Contact the rental yard or machine owner.
26 wc_tx001989gb.fm
PS3 1500 / PS3 2200 Maintenance
5 Maintenance
5.1 Periodic Maintenance Schedule
The table below lists basic machine maintenance. Tasks designated
with check marks may be performed by the operator. Tasks
designated with square bullet points require special training and
equipment.
Pump
Measure insulation resistance.
Reference insulation resistance =
1MΩ or greater. (1)
Measure operating current.
Compare with rated current.
Measure supply voltage.
Compare with allowable range (within ±5% of rated
voltage).
Pump inspection.
A noticeable drop in performance may indicate
wear in the impeller, etc., or else clogging of the
strainer, etc. Remove the clogged debris and
replace any worn parts.
Lubricant inspection.
Change lubricant.
Weekly Monthly Every
1000
hrs.
Every
2000
hrs.
Designated lubricant: SAE 10W/20W. (2)
Change mechanical seal. (3)
Overhaul.
This should be carried out even if there are no problems with the pump. The frequency depends on
how continuously the pump is in use. (4)
(1) If the insulation resistance has become noticeably lower than the previous inspection, an inspec-
tion of the motor will be necessary.
(2) See Inspecting Lubricant and Replacing Lubricant in this section.
(3) Specialized know-how is required for inspecting and replacing the mechanical seal. Consult with
your nearest dealer or Wacker Neuson representative.
(4) Consult with your nearest dealer or Wacker Neuson representative regarding overhauls.
wc_tx002004gb.fm 27
Maintenance PS3 1500 / PS3 2200
5.2 Maintenance and Inspection
Regular maintenance and inspections are a necessity for continued
efficient functioning of the pump. If any abnormal conditions are
noticed, refer to the Troubleshooting section and take corrective
measures immediately. It is recommended that a spare pump be kept
ready in case of any problems.
Prior to inspecting
Before inspecting the pump, make certain the power supply (circuit
breaker, etc.) is turned off. Then, unplug the cable assembly from the
WARNING
5.2.1 Washing the pump
5.2.2 Inspecting the pump exterior
receptacle or detach it from the terminals. Failure to follow this
precaution may result in a serious accident from electrical shock or
unexpected starting of the pump motor.
Remove accumulated matter from the surface of the pump and wash
it with clean water. Take special care to remove any debris from the
impeller.
5.3 Storage
Look for any peeling or chipped paint, and make sure the nuts and
bolts are fastened tightly. Any cracks in the surface should be repaired
by cleaning that area, drying it and then applying a touch-up coating.
Note: Touch-up paint is not supplied. Note that some kinds of damage
or looseness may require that the unit be disassembled for repairs.
Please consult your nearest dealer or Wacker Neuson representative.
When the pump is out of use for an extended period, wash it and dry it
thoroughly, then store it indoors.
Note: Always run a test operation before putting the pump back into
service.
If the pump is left in the water, it should be run a minimum of once a
week.
• Inspecting Lubricant
Remove the oil plug and tilt the pump to drain a small amount of
lubricant. If the lubricant is milky white or has water mixed in with it, the
mechanical seal may be faulty. In this case the pump will need to be
disassembled and repaired.
• Replacing Lubricant
Remove the oil plug and drain all the lubricant, then replace it with the
specified amount.
28 wc_tx002004gb.fm
PS3 1500 / PS3 2200 Maintenance
Note: Worn lubricant and other waste products should be disposed of
by a qualified agent, in accord with applicable laws. The oil plug gasket
should be replaced each time the lubricant is inspected or changed.
1
2
3
4
wc_gr000325
Pump Model Lubricant Capacity
PS3 1500/2200 270 ml (9.1 fl. oz.)
Ref. Description Ref. Description
1. Oil Inlet 3. Oil Plug
2. Gasket 4. Wrench
Replacement Parts
The table lists the parts that need to be replaced periodically. Replace
these using the recommended frequency as a guideline.
Part Replacement Frequency
Seal - Mechanical When lubricant in oil compartment becomes milky.
Lubricant (SAE 10W/20W) Every 6,000 hours or 12 months, whichever comes first.
Gasket, O-Ring Each time pump is disassembled or inspected.
Dust Seal When ring is worn, and each time pump is disassembled
or inspected.
Sleeve When it becomes worn.
wc_tx002004gb.fm 29
Maintenance PS3 1500 / PS3 2200
5.4 Disassembly and Reassembly
Before disassembling the pump, make certain the power supply (circuit
breaker, etc.) is turned off. Then, unplug the cable assembly from the
WARNING
receptacle or detach it from the terminals. To avoid electrical shock, do
not work with wet hands.
Do not check the operation of any parts (impeller rotation, etc.) by
turning on the power while the unit is partially assembled. Failure to
observe these precautions may result in a serious accident.
Do not disassemble or repair any parts other than those designated
here. If repairs are necessary in any other than the designated parts,
consult your nearest dealer or Wacker Neuson representative.
Improper repairs can result in electrical leakage, electrical shock, fire,
or water leaks.
After reassembly, always perform a test operation before resuming
use of the pump. Improper assembly will cause the pump to
malfunction, resulting in electric shock or water leaks.
The procedure for disassembly and reassembly is shown here to the
extent necessary for impeller replacement. A specialized environment
and facilities are necessary for work on the mechanical seal and the
motor parts. Contact your nearest dealer or Wacker Neuson
representative in the event such repairs are necessary.
30 wc_tx002004gb.fm
PS3 1500 / PS3 2200 Maintenance
5.5 Disassembly
Note: Remove the lubricant prior to disassembly.
5.5.1 Removing strainer, retainer plate and pump casing
Remove the strainer bolts (8) and washers (7), then remove the
strainer (6), retainer plate (5) and volute (4) from the pump.
5.5.2 Removing impeller
With a socket wrench or other tool, remove acorn nut (3) and nut (2),
then remove washer (1), impeller (16), key, sleeve (15) and dust seal
(14) from the shaft.
5.5.3 Removing wear ring
Remove the wear ring (11) from the oil casing.
A worn impeller may have sharp edges that can cause injury, and
should be handled with care.
CAUTION
1
2
3
4
9
10
5
11
12
6
13
14
15
7
16
8
wc_tx002004gb.fm 31
wc_gr000326
Maintenance PS3 1500 / PS3 2200
Ref. Description Ref. Description
1. Washer 9. Gasket
2. Nut 10. Oil Plug
3. Acorn nut 11. Wear ring
4. Volute 12. Wear plate
5. Retainer plate 13. Screw
6. Strainer 14. Dust seal
7. Washer 15 Sleeve
8. Bolt 16. Impeller
5.6 Reassembly
5.6.1 Reassembly can be performed by reversing the steps for disassembly,
paying attention to the following precautions:
Note: After assembling the pump, do not forget to fill it with lubricant
up to the required amount. Replace the gasket (9) each time this
operation is performed. Replace any other worn or damaged parts as
well.
5.6.2 After attaching the impeller (16), and again after completing assembly,
check to make sure the impeller rotates smoothly.
32 wc_tx002004gb.fm
PS3 1500 / PS3 2200 Maintenance
5.7 Troubleshooting
Before ordering repairs, carefully read through this manual, then
repeat the inspection. If the problem remains, contact your nearest
dealer or Wacker Neuson representative.
ALWAYS turn off the power before inspecting the pump. Failure to
observe this precaution can result in serious accident.
WARNING
Problem / Symptom Reason / Remedy
Pump will not start • Power is off. Restore power.
• Cable assembly is cut or not connected properly.
Repair/replace the cable or fix the connection.
• Impeller is clogged. Inspect the pump and remove
any debris.
Pump stops soon after start-
ing (Motor protector operates)
Poor lift or discharge
capacity
• Impeller is clogged. Remove debris.
• Low voltage. Provide the rated voltage, or make
sure the cable assembly extension is the proper
standard.
• Wrong power frequency. Check the nameplate, and
replace the pump or the impeller.
• Extended operation with a clogged strainer.
Remove debris from the strainer.
• Faulty motor (burning, water infiltration, etc.). Repair
or replace the motor.
• Motor protection system was triggered. Identify and
correct cause before re-starting.
• Worn out impeller or suction cover. Repair or
replace the worn parts.
• Sharply bent or clogged hose. Straighten out any
sharp bends. Enclose the pump with a screen to
keep away debris.
• Strainer clogged or buried. Remove debris from the
strainer, or place a block under the pump.
Heavy vibration or noise • Damaged motor shaft. Contact dealer and replace
wc_tx002004gb.fm 33
• Wrong power frequency. Check the nameplate, and
replace the pump or the impeller.
motor.
Technical Data PS 3 1500 / PS 3 2200
6 Technical Data
6.1 Standard Specifications
Applicable Liquids,
Consistency and
Temperature
Pump Impeller Semi-Vortex Type
Shaft Seal Double Mechanical Seal
Bearing Shielded Ball Bearing
Motor Specification Dry Submersible Induction Motor (2-Pole)
Insulation Class B
Protection System Circle Thermal Protector
Lubricant SAE 10W/20W
Rain Water, Fountain Water, Ground Water,
Sand-Carrying Water
0–40°C (32–104°F)
Such as:
–Turbine Oil ISO VG #32
–Shell Victrolia Oil #27
–British Pet Energol THB #32
–Gulf Paramount #32
–Tellus #T22 Shell Oil
–Shell Turbo T32
Connection Coupling (NPT 3”)
34 wc_td000036gb.fm
PS 3 1500 / PS 3 2200 Technical Data
6.2 Operating Specifications (60 Hz)
Part No.
0009117 0009118
PS 3 1500 PS 3 2200
0009119
Pump
Bore
mm (in.)
80 (3)
Phase 1
Starting Method Capacitor-Run Capacitor-Start
Capacitor-Run
Output
Rated Current
Maximum Head
Maximum Capacity
Maximum Pressure
kW (Hp)
(V)
m (ft.)
L/min
(GPM)
kg/cm
(psi)
1.5 (2) 2.2 (2)
A
23.0
110
11.5
220
13.0
220
21 (69) 26 (85)
420
(111)
2
2.1
(30)
493
(130)
2.6
(37)
Solid Size Capacity
Weight*
*The weight (mass) given above is the operating weight of the pump itself, not including the cable
assembly.
mm (in.)
Kg (lbs.)
8.5 (0.3)
28.8 (63.5) 29.0 (64)
wc_td000036gb.fm 35
Schematics PS3 1500 / PS3 2200
B
E
H
C
2
3
1
F
G
D
wc_gr000322
7 Schematics
A
wc_gr000322

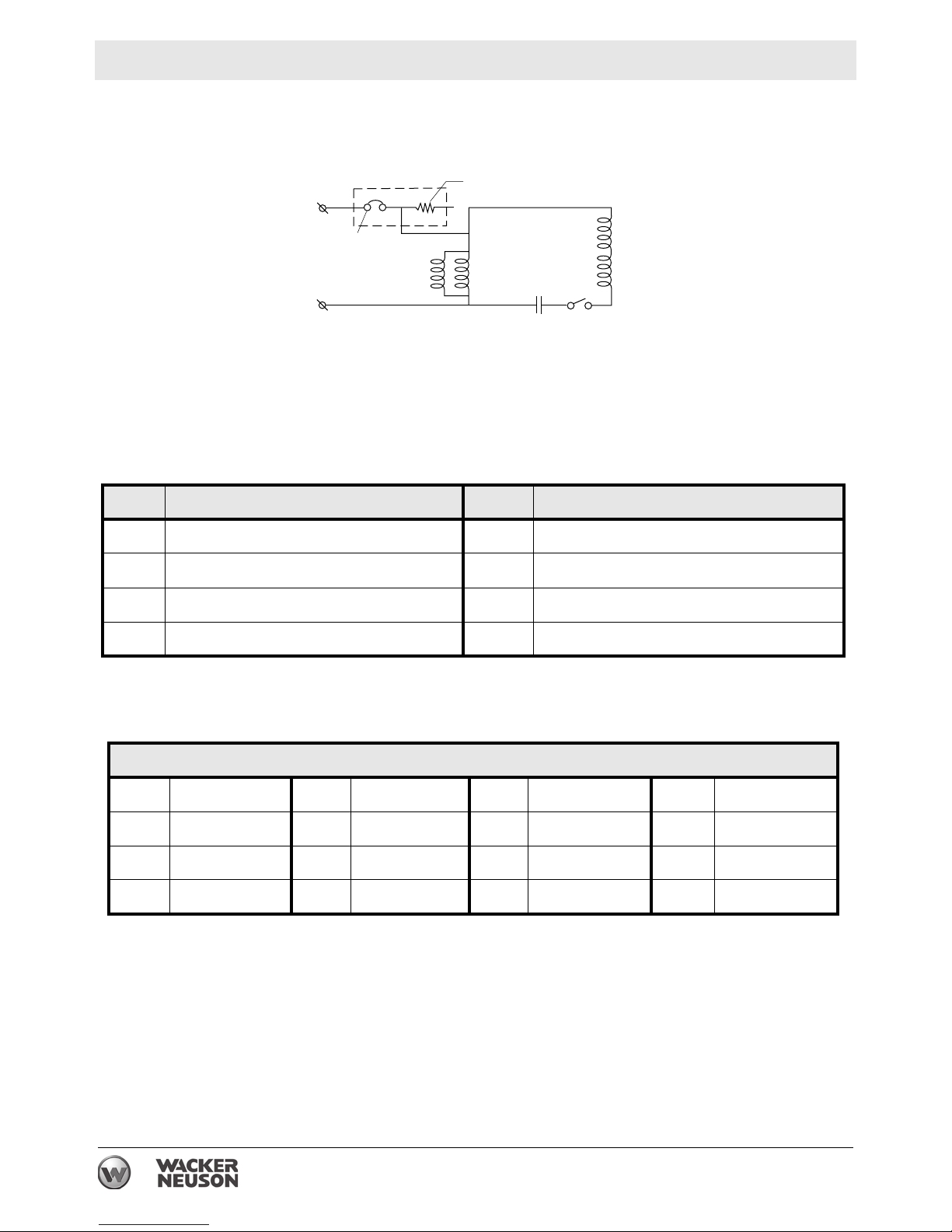

PS 3 1500 CAPACITOR-START MODELS, SINGLE PHASE MOTOR
Ref. Description Ref. Description
A Protector E Main Coil
B Heater F Aux. Coil
C Bi-metal G Centrifugal Switch
D To Power Supply H Capacitor
Wire Colors
B Black R Red Y Yellow Or Orange
G Green T Tan Br Brown Pr Purple
L Blue V Violet Cl Clear Sh Shield
P Pink W White Gr Gray LL Light blue
36 wc_tx002019gb.fm
PS3 1500 / PS3 2200 Schematics
B
E
H
C
2
3
1
F
G
D
wc_gr000323
J
A
wc_gr000323

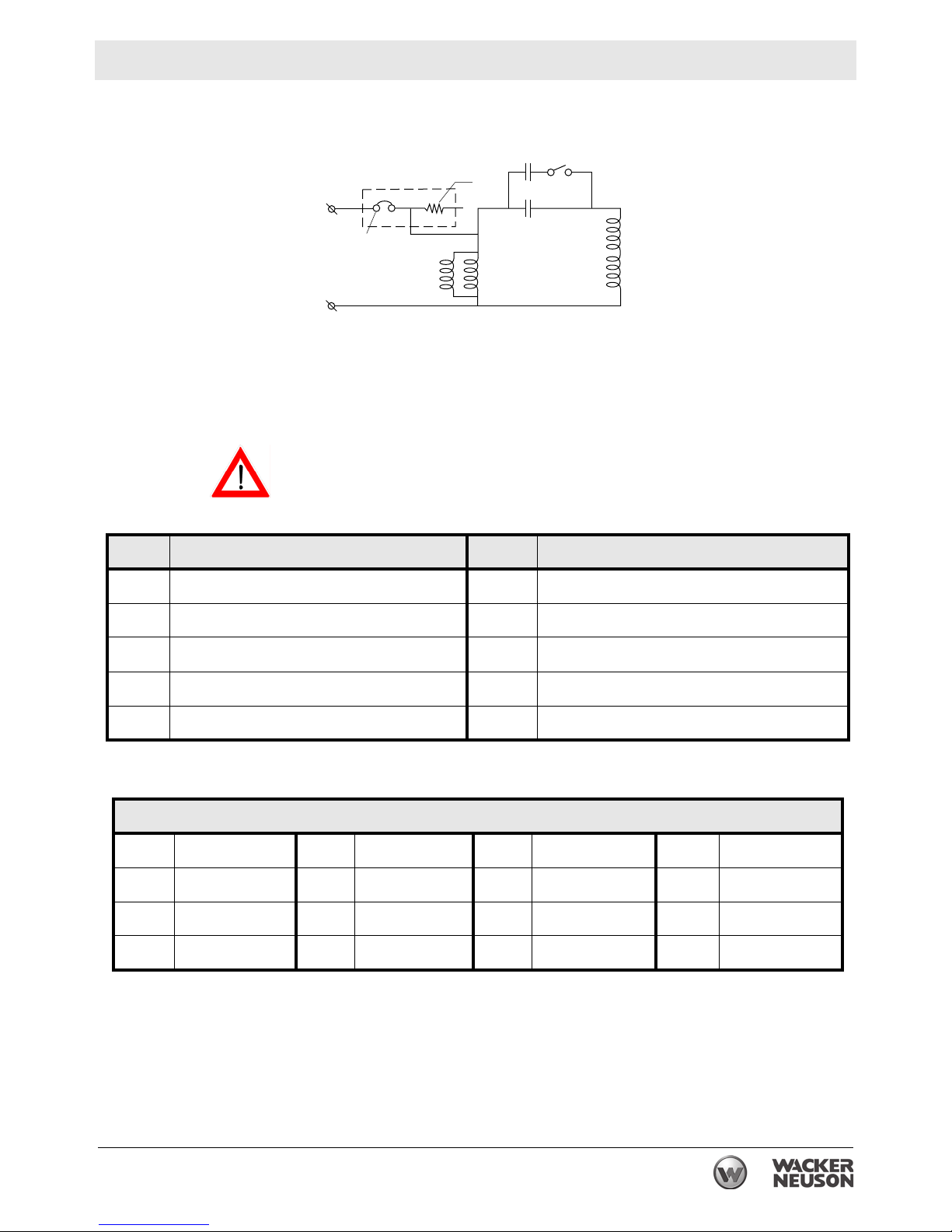

PS 3 2200 CAPACITOR-START AND -RUN MODELS, SINGLE PHASE MOTOR
If connected to a circuit protected by a fuse, use a time-delay fuse with
this pump.
CAUTION
Ref. Description Ref. Description
A Protector E Main Coil
B Heater F Aux. Coil
C Bi-metal G Centrifugal Switch
D To Power Supply H Starting Capacitor
J Running Capactor
Wire Colors
B Black R Red Y Yellow Or Orange
G Green T Tan Br Brown Pr Purple
L Blue V Violet Cl Clear Sh Shield
P Pink W White Gr Gray LL Light blue
wc_tx002019gb.fm 37
Schematics PS3 1500 / PS3 2200
38 wc_tx002019gb.fm
Wacker Neuson Produktion GmbH & Co. KG, Preußenstraße 41, D-80809 München, Tel.: +49-(0)89-3 54 02-0 Fax: +49 - (0)89-3 54 02-390
Wacker Neuson Limited - Room 1701–03 & 1717–20, 17/F. Tower 1, Grand Century Place, 193 Prince Edward Road West, Mongkok, Kowloon, Hongkong.
Wacker Neuson Production Americas LLC, N92W15000 Anthony Ave., Menomonee Falls, WI 53051
Tel. : (262) 255-0500 Fax: (262) 255-0550 Tel.: (800) 770-0957
Tel: (852) 3605 5360, Fax: (852) 2758 0032
Loading...
