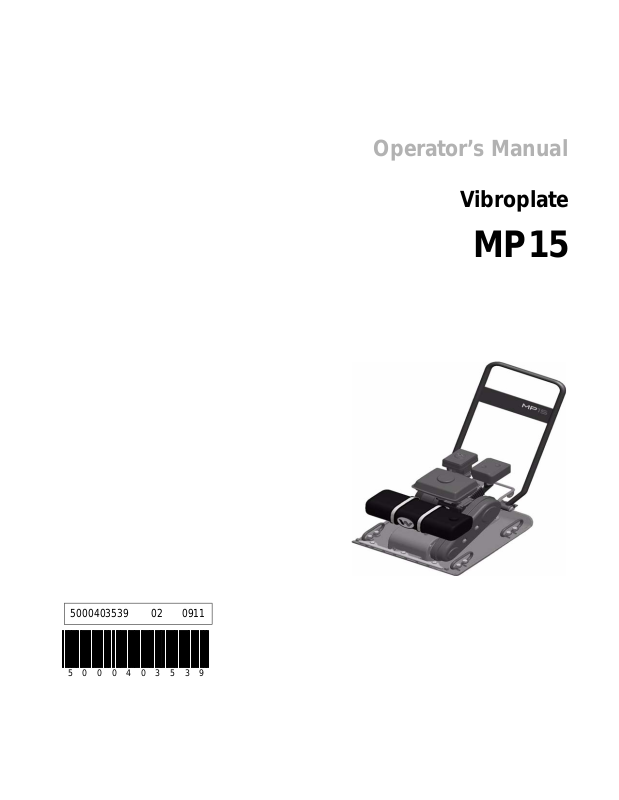

Operator’s Manual
Vibroplate
MP15
5000403539 02 0911
5000403539
Copyright
notice
© Copyright 2012 by Wacker Neuson Corporation.
All rights, including copying and distribution rights, are reserved.
This publication may be photocopied by the original purchaser of the machine. Any
other type of reproduction is prohibited without express written permission from
Wacker Neuson Corporation.
Any type of reproduction or distribution not authorized by W acker Neuson Corp oration
represents an infringement of valid copyrights. Violators will be prosecuted.
T ra d emarks
Manufacturer
Tra n slated
instructions
All trademarks referenced in this manual are the property of their respective owners.
Wacker Neuson Manila Incorporated
Lot 2,Blk 1 Phase , PEZA Drive, First Cavite Industrial Estate, Brgy. Langkaan
Dasmariñas, Cavite, Philippines 4126
Tel: +63-(0)2-580-7136 Fax: +63-(0)2-580-7122
www.wackerneuson.com
This Operator’s Manual presents a translation of the original instructions. The original
language of this Operator’s Manual is American English.
MP15 Table of Contents
Foreword 3
1. Emission System Control Information 4
2. Safety Information 5
2.1 Laws Pertaining to Spark Arresters ...................................................... 5
2.2 Operating Safety .................................................................................. 6
2.3 Operator Safety while using Internal Combustion Engines .................. 7
2.4 Service Safety ...................................................................................... 8
2.5 Label Locations .................................................................................... 9
2.6 Warning and Informational Labels ...................................................... 10
3. Technical Data 12
3.1 Engine Data ........................................................................................ 12
3.2 Machine Data ..................................................................................... 13
3.3 Sound and Vibration Measurements .................................................. 13
3.4 Dimensions ......................................................................................... 14
4. Operation 15
4.1 Recommended Fuel ........................................................................... 15
4.2 Application .......................................................................................... 15
4.3 Before Starting ................................................................................... 15
4.4 To Start ............................................................................................... 16
4.5 To Stop ............................................................................................... 16
4.6 Operation ............................................................................................ 17
1
MP15 Table of Contents
5. Maintenance 18
5.1 Periodic Maintenance Schedule ......................................................... 18
5.2 Spark Plug .......................................................................................... 20
5.3 Air Cleaner ......................................................................................... 21
5.4 Engine Oil ........................................................................................... 22
5.5 Drive Belt ............................................................................................ 23
5.6 Exciter Lubrication .............................................................................. 24
5.7 Cleaning Plate .................................................................................... 24
5.8 Lifting Machine ................................................................................... 25
5.9 Transporting Machine ......................................................................... 26
5.10 Storage ............................................................................................... 26
5.11 Troubleshooting .................................................................................. 27
2
Foreword
WARNING
CALIFORNIA
Proposition 65 Warning:
Engine exhaust, some of its constituents, and certain vehicle
components, contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproductive
harm.
This manual provides information and procedures to safely operate
and maintain this Wacker Neuson model. For your own safety and
protection from injury, carefully read, understand and observe the
safety instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this
manual or need an additional copy, please contact Wacker Neuson
Corporation. This machine is built with user safety in mind; however,
it can present hazards if improperly operated and serviced. Follow
operating instructions carefully! If you have questions about operating
or servicing this equipment, please contact Wacker Neuson
Corporation.
The information contained in this manual was based on machines in
production at the time of publication. Wacker Neuson Corporation
reserves the right to change any portion of this information without
notice.
All rights, especially copying and distribution rights, are reserved.
Copyright 2012 by Wacker Neuson Corporation.
No part of this publication may be reproduced in any form or by any
means, electronic or mechanical, including photocopying, without
express written permission from Wacker Neuson Corporation.
Any type of reproduction or distribution not authorized by Wacker
Neuson Corporation represents an infringement of valid copyrights
and will be prosecuted. We expressly reserve the right to make
technical modifications, even without due notice, which aim at
improving our machines or their safety standards.
wc_tx000001gb.fm 3
Emission Control System Information
1 Emission Control Systems Information and Warranty
The Emission Control Warranty and associated information is valid only for the
U.S.A., its territories, and Canada.
1.1 Emission Control Systems Warranty Statement
See the supplied engine owner’s manual for the applicable exhaust and
evaporative emission warranty statement.
wpm_tx001755gb.fm 4
MP15 Safety Information
2. Safety Information
This manual contains DANGER, WARNING, CAUTION, NOTICE, and NOTE signal words which
must be followed to reduce the possibility of personal injury, damage to the equipment, or improper
service.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
DANGER
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
WARNING
CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
CAUTION
NOTICE: Used without the safety alert symbol, NOTICE indicates a
situation which, if not avoided, could result in property damage.
Note: Contains additional information important to a procedure.
2.1 Laws Pertaining to Spark Arresters
Notice: State Health Safety Codes and Public Resources Codes
specify that in certain locations spark arresters be used on internal
combustion engines that use hydrocarbon fuels. A spark arrester is a
device designed to prevent accidental discharge of sparks or flames
from the engine exhaust. Spark arresters are qualified and rated by
the United States Forest Service for this purpose.
In order to comply with local laws regarding spark arresters, consult
the engine distributor or the local Health and Safety Administrator.
wpm_si000617gb.fm 5
MP15 Safety Information
2.2 Operating Safety
Familiarity and proper training are required for the safe operation of the
machine. Machines operated improperly or by untrained personnel
can be hazardous. Read the operating instructions contained in this
WARNING
2.2.1 Do not allow anyone to operate this equipment without proper training.
2.2.2 Do not touch the engine or muffler while the engine is on or
2.2.3 Do not use accessories or attachments that are not recommended by
manual and the engine manual, and familiarize yourself with the
location and proper use of all controls. Inexperienced operators should
receive instruction from someone familiar with the machine before
being allowed to operate it.
People operating this equipment must be familiar with the risks and
hazards associated with it.
immediately after it has been turned off. These areas get hot and may
cause burns.
Wacker Neuson. Damage to equipment and injury to the user may
result.
2.2.4 NEVER operate the machine with the beltguard missing. Exposed
drive belt and pulleys create potentially dangerous hazards that can
cause serious injuries.
2.2.5 Never leave the machine running unattended.
2.2.6 Be sure operator is familiar with proper safety precautions and
operation techniques before using machine.
2.2.7 Always wear protective clothing appropriate to the job site when
operating the machine.
2.2.8 Wear hearing protection when operating equipment.
2.2.9 Close fuel valve on engines equipped with one when machine is not
being operated.
2.2.10 Store the machine properly when it is not being used. The machine
should be stored in a clean, dry location out of the reach of children.
2.2.11 Always operate machine with all safety devices and guards in place
and in working order. Do not modify or defeat safety devices. Do not
operate machine if any safety devices or guards are missing or
inoperative.
2.2.12 Read, understand, and follow procedures in the Operator’s Manual
before attempting to operate the machine.
wpm_si000617gb.fm 6
MP15 Safety Information
2.3 Operator Safety while using Internal Combustion Engines
Internal combustion engines present special hazards during operation
and fueling. Read and follow the warning instructions in the engine
owner’s manual and the safety guidelines below. Failure to follow the
WARNING
2.3.1 DO NOT run the machine indoors or in an enclosed area such as a
2.3.2 Do not smoke while operating the machine.
2.3.3 Do not smoke when refueling the engine.
2.3.4 Do not refuel a hot or running engine.
2.3.5 Do not refuel the engine near an open flame.
2.3.6 Do not spill fuel when refueling the engine.
2.3.7 Do not run the engine near open flames.
warnings and safety standards could result in severe injury or death.
deep trench unless adequate ventilation, through such items as
exhaust fans or hoses, is provided. Exhaust gas from the engine
contains poisonous carbon monoxide gas; exposure to carbon
monoxide can cause loss of consciousness and may lead to death.
2.3.8 Refill the fuel tank in a well-ventilated area.
2.3.9 Replace the fuel tank cap after refueling.
2.3.10 ALWAYS check the fuel lines and the fuel tank for leaks and cracks
before starting the engine. Do not run the machine if fuel leaks are
present or the fuel lines are loose.
wpm_si000617gb.fm 7
MP15 Safety Information
2.4 Service Safety
A poorly maintained machine can become a safety hazard! In order
for the machine to operate safely and properly over a long period of
time, periodic maintenance and occasional repairs are necessary.
WARNING
2.4.1 Do not attempt to clean or service the machine while it is running.
Rotating parts can cause severe injury.
2.4.2 Do not crank a flooded engine with the spark plug removed on
gasoline-powered engines. Fuel trapped in the cylinder will squirt out
the spark plug opening.
2.4.3 Do not test for spark on gasoline-powered engines if the engine is
flooded or the smell of gasoline is present. A stray spark could ignite
the fumes.
2.4.4 Do not use gasoline or other types of fuels or flammable solvents to
clean parts, especially in enclosed areas. Fumes from fuels and
solvents can become explosive.
2.4.5 Keep the area around the muffler free of debris such as leaves, paper,
cartons, etc. A hot muffler could ignite the debris and start a fire.
2.4.6 Replace worn or damaged components with spare parts designed and
approved by Wacker Neuson.
2.4.7 Disconnect the spark plug on machines equipped with gasoline
engines, before servicing, to avoid accidental start-up.
2.4.8 Keep the machine clean and labels legible. Replace all missing and
hard-to-read labels. Labels provide important operating instructions
and warn of dangers and hazards.
wpm_si000617gb.fm 8
MP15 Safety Information
2.5 Label Locations
wpm_si000617gb.fm 9
wpmgr008608
MP15 Safety Information
2.6 Warning and Informational Labels
Wacker Neuson machines use international pictorial labels where
needed. These labels are described below.
Label Meaning
WARNING!
Always wear hearing and eye protection when
operating this machine.
Please read the user’s manual carefully before
operating the product.
Guaranteed sound power level in dB(A).
WARNING!
Hand injury if caught in moving belt.
Always replace beltguard.
Check that there is not any fuel spilling or fuel
leakage. Filling fuel before starting product.
Throttle control lever:
Turtle = Idle or Slow
Rabbit = Full or Fast
wpm_si000617gb.fm 10
MP15 Safety Information

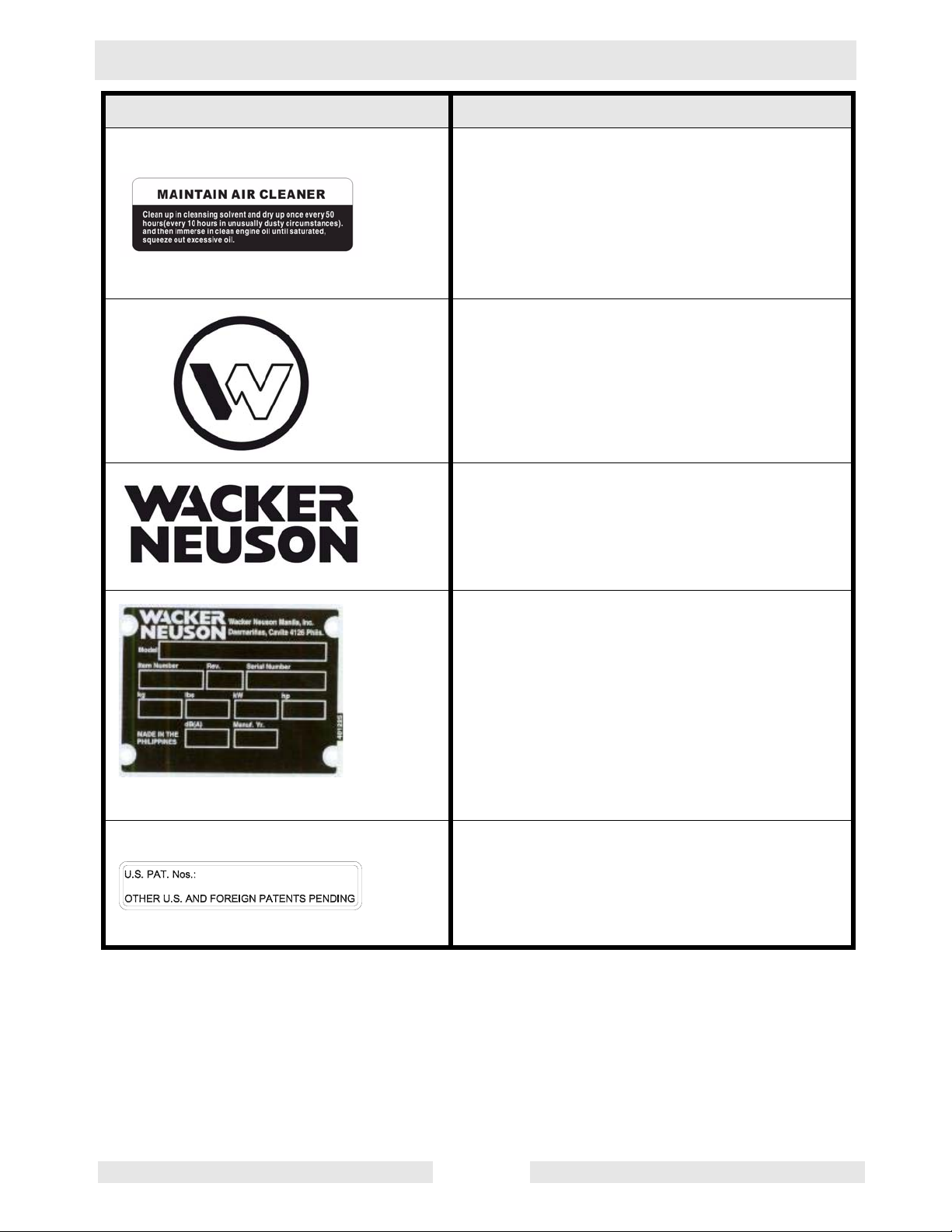

Label Meaning
Clean up in cleansing solvent and dry up once
every 50 hours(every 10 hours in unusually
dusty circumstances). and then immerse in
clean engine oil until saturated, squeeze out
excessive oil.
Company logo
Company label
A nameplate listing the model number, item
number, revision number, and serial number is
attached to each unit. Please record the information found on this nameplate so it will be
available should the nameplate become lost or
damaged. When ordering parts or requesting
service information, you will always be asked
to specify the model number, item number,
revision number, and serial number of the unit.
This machine may be covered by one or more
patents.
wpm_si000617gb.fm 11
MP15 Technical Data
3. Technical Data
3.1 Engine Data
Engine Power Rating
Net power rating per SAE J1349. Actual power output may vary due to
conditions of specific use.
MP15
0630131
Engine
Engine Make Wacker Neuson
Engine Model WN6
Max. rated power @ rated
kW (Hp)
3.5 (4.7) @ 3600 rpm
speed
Spark Plug P6TC
Electrode Gap
Operating speed
Air Cleaner
Engine Lubrication
Engine Oil Capacity
Fuel
Fuel Tank Capacity
mm (in.)
rpm
type
oil grade
ml (oz.)
type
l (qts.)
0.6 - 0.8 (0.024 - 0.031)
3600
oil air cleaner
SAE 15W-40
0.6 (0.02)
Regular unleaded gasoline
3.6 (3,7)
Valve Clearance (cold)
Inlet:
Outlet:
mm (in.)
0.10 - 0.15 (0.004 - 0.006)
0.15 - 0.20 (0.006 - 0.008)
wpm_td000468gb.fm 12
MP15 Technical Data
3.2 Machine Data
MP15
0630131
Plate
Weight
Water Tank Capacity
Exciter Speed
Exciter Lubrication
kg (lbs.)
l (qts.)
rpm
ml (oz.)
Dextron III/Mercon or equivalent
Dimensions
mm (in.)
588 (23) x 500 (20) x 940 (37)
3.3 Sound and Vibration Measurements
The required sound specification, Paragraph 1.7.4.f of 89/392/EEC
Machinery Directive, is:
• the guaranteed sound power level (LWA) = 108 dB(A).
• the sound pressure level at operator’s location (LpA) = 96 dB(A).
These sound values were determined according to ISO 3744 for the
sound power level (LWA) and ISO 6081 for the sound pressure level
(LpA) at the operator’s location.
81 (179)
7.3 (7.7)
5800 ± 100
240 (8)
Automatic transmission fluid
The weighted effective acceleration value, determined according to
EN ISO 5349, is approximately 4.50 m/s2.
The sound and vibration measurements were obtained with the
machine operating on crushed gravel at nominal engine speed.
wpm_td000468gb.fm 13
MP15 Technical Data
3.4 Dimensions
mm (in.)
wpmgr008609
wpm_td000468gb.fm 14
MP15 Operation
4. Operation
4.1 Recommended Fuel
The engine requires regular grade unleaded gasoline. Use only fresh,
clean gasoline. Gasoline containing water or dirt will damage fuel
system. Consult engine owner’s manual for complete fuel
specifications.
4.2 Application
This plate is designed for compacting loose, granular soils, gravel, and
paving stones. It is intended to be used in confined areas and areas
next to structures such as walls, curbs, and foundations. Plates
equipped with water tanks can be used for compacting asphalt.
This plate is not recommended for compacting cohesive soils with a
heavy clay content. For cohesive soil, use a vibratory rammer or
sheepsfoot roller.
4.3 Before Starting
4.3.1 Read and understand the safety and operating instructions at the
beginning of this manual.
4.3.2 Check:
• Oil level in the engine
• Fuel level
• Condition of the air cleaner
• Tightness of the external fasteners
• Condition of the fuel lines
wpm_tx001872gb.fm 15
MP15 Operation
4.4 To Start
See Graphic: wpm_gr008613
4.4.1 Turn the fuel cock to the “ON” (OPEN) postion (a1).
Note: If engine is cold, move choke lever to close position (b1). If
engine is hot, set choke to open position (b2).
4.4.2 Move the governor lever to left a little (c1).
4.4.3 Turn the engine switch to “ON” postion. (d1)
4.4.4 Pull starter rope (e).
Note: Don’t allow the starter grip to snap back against the engine.
Return it gently to prevent damage to the starter.
4.4.5 Preheat the engine and push back the choke lever to the “OPEN”
postion (f1).
4.4.6 Move the throttle lever to proper postion to make the gasoline engine
run at required velocity. (g1)
4.5 To Stop
See Graphic: wpm_gr008613
4.5.1 Push right the throttle lever to low speed position (c2).
4.5.2 Push the engine switch to the “OFF” position (d2).
4.5.3 Set the fuel cock to “OFF” position (a2).
wpm_tx001872gb.fm 16
MP15 Operation
4.6 Operation
Run the engine at full throttle and allow the plate to pull itself along at
its normal speed. When operating on an incline it may be necessary to
assist the plate by pushing it forward slightly. When operating downhill
hold the plate back slightly, if it begins to pick up speed. Depending on
the material being compacted, three or four passes are recommended
to achieve the best compaction.
While a certain amount of moisture in the soil is necessary, excessive
moisture may cause soil particles to stick together and prevent good
compaction. If soil is extremely wet, allow it to dry somewhat before
compacting.
If soil is so dry as to create dust clouds while operating plate, some
moisture should be added to the ground material to improve
compaction. This will also reduce service to the air filter.
For compacting asphalt, use a water tank to wet the asphalt and the
underside of plate. This will prevent asphalt material from sticking.
Two passes are usually sufficent to ensure good compaction.
When using the plate on paving stones, attach a pad to the bottom of
the plate to prevent chipping or grinding surface of stones. A special
polyurethane pad designed for this purpose is available as an optional
accessory.
NOTICE: DO NOT operate the plate on concrete or on extremely hard,
dry, compacted surfaces. The plate will jump rather than vibrate and
could damage both the plate and the engine.
wpm_tx001872gb.fm 17
MP15 Maintenance
5. Maintenance
5.1 Periodic Maintenance Schedule
5.1.1 Engine Maintenance
The chart below lists basic engine maintenance. Refer to the engine
manufacturer’s Operation Manual for additional information.
Check fuel level.
Check engine oil level.
Inspect fuel lines.
Inspect air filter. Replace as needed.
Clean air cleaner elements.
Change engine oil.
Clean engine cooling fins.
Clean sediment cup / fuel filter.
Check and clean spark plug.
Check and adjust valve clearance.
Change exciter oil.
Daily
before
starting
After
first
20 hrs.
Every
2 weeks
or
50 hrs.
Every
month
or
100 hrs.
Every
year
or
300 hrs.
wpm_tx001873gb.fm 18
MP15 Maintenance
5.1.2 Machine Maintenance
The chart below lists basic machine maintenance.
Check external hardware.
Check and adjust drive belt.
Inspect shockmounts for damage.
Replace shockmounts as needed.
Change exciter oil.
Note: When machine is being used in asphalt, it is highly
recommended that shockmounts are replaced every year or
after 300 hours of usage.
Daily
before
starting
After
first
20 hrs.
Every
2 weeks
or
50 hrs.
Every
month
or
100 hrs.
Every
year
or
300 hrs.
wpm_tx001873gb.fm 19
MP15 Maintenance
5.2 Spark Plug
See Graphic: wpm_gr008620
In order to ensure the engine normal running, gap of the spark plug
must be correct and no deposit around the spark plug.
The muffler becomes very hot during operation and remains hot for a
while after stopping the engine. Do not touch the muffler while it is hot.
WARNING
Note: Refer to section “Technical Data” for the recommended spark
plug type and the electrode gap setting.
5.2.1 Remove the spark plug cap.
5.2.2 Clear away dirt around the spark plug base.
5.2.3 Dismantle the spark plug with a spark plug wrench.
5.2.4 Visually check the spark plug. Clean with a steel brush. If the insulator
is damaged, replace the spark plug instead.
5.2.5 Measure the spark plug clearance with a feeler. The clearance should
be 0.7 - 0.8 mm. If adjustment is necessary, bend the side electrode
carefully.
5.2.6 Check if the spark plug gasket is in good conditions. In order to screw
thread misplace, screw in by hand.
5.2.7 Screw on the spark plug to the bottom first by hand and then screw in
by a spark plug wrench and compress the gasket.
5.2.8 If a new spark plug is used, more 1/2 turns after compressing the
gasket.
5.2.9 If reinstalling the used spark plug, just more twist 1/8 - 1/4 turns.
NOTICE: A loose spark plug can become very hot and may cause
engine damage.
wpm_tx001873gb.fm 20
wpm_gr008620
MP15 Maintenance
5.3 Air Cleaner
See Graphic: wpmgr008845
A dirty air cleaner can restrict air flowing into the carburetor. To keep
the carburetor in good working conditions, please service the air
cleaner periodically. If operating the engine in extremely dusty area,
the job should be done more often.
NOTICE: NEVER clean the air cleaner element with gasoline or low
flash-point detergents, or explosion may happen.
NEVER run the engine without an air cleaner, because air with dirt and
dust entering the engine can speed up the engine wear.
WARNING
To service:
5.3.1 Remove the air cleaner cover (a) off and take the element out.
5.3.2 Wash the foam element (b) with detergent and warm water (or nonflammable or high flash-point cleansing solvents) and dry up.
5.3.3 Clean the air cleaner cover and inner surface with wet cloth, be careful
not to allow the dust entering into the carburetor.
5.3.4 Reinstall the element and put the air cleaner cover on.
wpm_tx001873gb.fm 21
MP15 Maintenance
5.4 Engine Oil
See Graphic: wpm_gr008622
Drain the engine oil rapidly and completely out when the engine is hot.
5.4.1 Turn off the oil filler cap and drain plug to drain engine oil thoroughly.
reinstall the drain plug and screw in securely.
Note: Do not dump oil containers or discarded engine oil into rubbish
boxes or onto the ground. For the sake of environmental protection, we
suggest you take in discarded engine oil with a closed container and
bring to local recycling station.
5.4.2 Fill the specified engine oil up to the lower level mark.
5.4.3 Reinstall the oil filler cap
wpm_gr008622
wpm_tx001873gb.fm 22
MP15 Maintenance
5.5 Drive Belt
See Graphic: wpmgr008610
On new machines or after installing a new belt, check the belt tension
after first 20 hours of operation. Check and adjust the belt every 50
hours thereafter.
To adjust the belt:
5.5.1 Loosen the two screws (a) on the beltguard, then remove the
beltguard, keeping the screw assemblies captured on the beltguard.
5.5.2 Loosen the four nuts (b) which hold the engine to the console, and the
screw (c) which holds the beltguard back to the console.
5.5.3 Slide the engine backward (towards the handle) to tighten the belt,
forward to loosen the belt.
5.5.4 Adjust the belt so that it deflects 10–13 mm (d) when pressed midway
between the belt pulleys.
5.5.5 Make sure that the clutch pulley (f) and the exciter pulley (e) are in
alignment. Place a straight edge against the exciter pulley (e) and
move the engine so that the two pulleys are parallel.
5.5.6 Torque all nuts and screws to 20.5 Nm as you reassemble the
machine.
a
e
b
d
c
f
wpmgr008610
wpm_tx001873gb.fm 23
MP15 Maintenance
5.6 Exciter Lubrication
See Graphic: wpmgr006018
The bearings in the exciter assembly are splash lubricated and rotate
at very high speed. It is important to maintain the exciter oil at the
correct level and change it regularly.
Check oil level in exciter every 50 hours of operation.
To check oil level, place plate on a flat, level surface. Remove the drain
plug (a) with seal ring (b). Oil level should be at drain plug threads. Add
oil as required.
Change exciter oil every 300 hours of operation.
To drain oil, remove plug (a) from end of exciter and tilt plate up.
Note: In the interests of environmental protection, place a plastic sheet
and a container under the machine to collect any liquid which drains
off. Dispose of this liquid in accordance with environmental protection
legislation.
Place plate on a level surface and add oil through plug opening until oil
reaches the drain plug threads. See Technical Data.
NOTICE: DO NOT overfill. Too much oil in the exciter can reduce
performance and damage the drive belt.
a
b
5.7 Cleaning Plate
wpmgr006018
Clean plate after use to remove dirt, stones, and mud caught under the
engine console. If plate is being used in a dusty area, check engine
cylinder cooling fins for heavy dirt accumulation. Keep engine cylinder
fins clean to prevent engine from overheating.
wpm_tx001873gb.fm 24
MP15 Maintenance
5.8 Lifting Machine
See Graphic: wpmgr008611
See Technical Data for weight of the machine.
To lift machine manually:
5.8.1 Stop the engine.
5.8.2 Obtain help from a partner and plan the lift.
To avoid burns or fire hazards, let the engine cool before transporting
the machine or storing it indoors. Turn the fuel valve to the off position
WARNING
5.8.3 Grasp machine by the lifting handles (a) and (b).
5.8.4 Lift machine as shown.
and keep the engine level to prevent fuel from spilling.
To reduce risk of back injury while lifting, keep feet flat on ground and
shoulder width apart. Keep head up and back straight.
WARNING
a
b
wpmgr008611
wpm_tx001873gb.fm 25
MP15 Maintenance
5.9 Transporting Machine
See Graphic: wpmgr008612
To avoid burns or fire hazards, let engine cool before transporting
machine or storing indoors.
WARNING
5.9.1 Turn fuel valve to the off position and keep the engine level to prevent
fuel from spilling.
5.9.2 Tie down machine on vehicle to prevent machine from sliding or tipping
over. Tie machine to vehicle at points shown on graphic.
5.10 Storage
5.10.1 Remove loose stones and dirt from plate.
5.10.2 Clean engine cylinder cooling fins.
5.10.3 Clean or replace air filter.
5.10.4 Change exciter oil.
5.10.5 Change engine oil and follow procedures described in engine manual
5.10.6 Cover plate and engine and store in a clean, dry area.
wpmgr008612
If plate is being stored for more than 30 days:
for engine storage.
wpm_tx001873gb.fm 26
MP15 Maintenance
5.11 Troubleshooting
Problem / Symptom Reason / Remedy
Plate does not develop full
speed. Poor compaction.
Engine running, no vibration • Engine throttle not open.
• Engine throttle control not completely open.
• Throttle control not adjusted correctly.
• Ground too wet, plate sticking. Allow soil to dry
before compacting.
• Drive belt loose or worn, slipping on pulleys. Adjust
or replace belt. Check that engine mounting bolts
are tight.
• Exciter bearings binding. Check condition and level
of oil in exciter. Add or change oil.
• Air filter clogged with dust, reducing engine performance. Clean or replace air filter.
• Engine speed too low. Check engine speed with
tachometer. Adjust or repair engine to run at correct
speed. Refer to engine manual.
• Drive belt loose or broken. Adjust or replace.
• Clutch damaged. Inspect and replace clutch.
Plate jumps or compacts
unevenly.
• Engine speed too low. Check engine speed.
• Too much oil in exciter. Adjust oil to correct level.
• Ground surface too hard.
• Shockmounts loose or damaged.
wpm_tx001873gb.fm 27
Wacker Construction Equipment AG · Preußenstraße 41 · D-80809 München · Tel.: +49-(0)89-3 54 02 - 0 · Fax: +49 - (0)89-3 54 02-3 90
Neuson Corporation · P.O. Box 9007 · Menomonee Falls, WI 53052-9007 · Tel. : (262) 255-0500 · Fax: (262) 255-0550 · Tel. : (800) 770-0957
Wacker
Wacker Asia Pacific Operations · Skyline Tower, Suite 2303, 23/F · 39 Wang Kwong Road, Kowloon Bay, Hong Kong · Tel. +852 2406 60 32 · Fax: +852 2406 60 21
Loading...
