Page 1
Market Information
15 March 2005

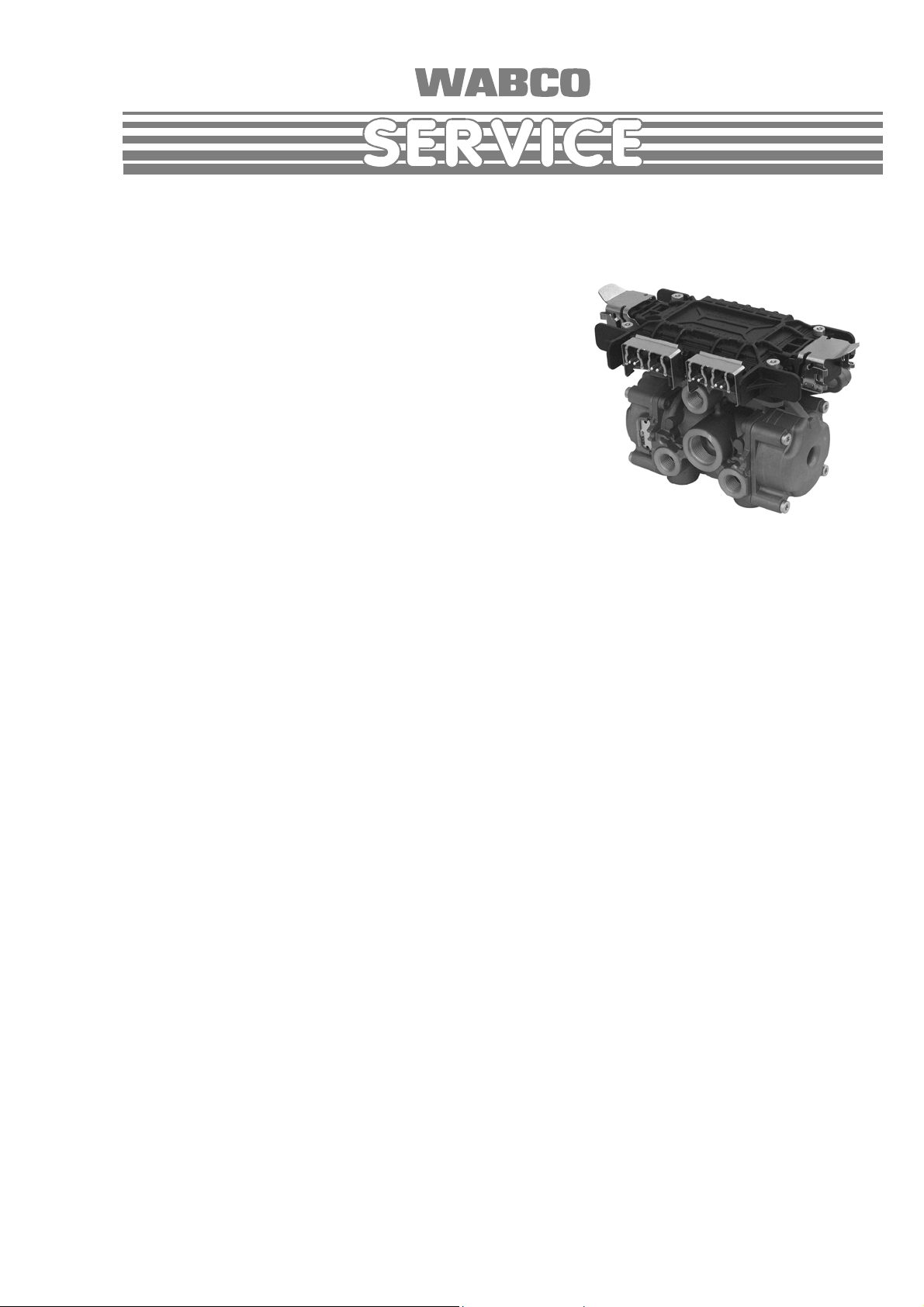

VCS II - Update C1
New functions and two further variants will complement the
Vario Compact ABS from April 2005.
New functions:
• Diagnostics via CAN possible
As an alternative to the ISO diagnostics you can
now run diagnostics on variants 400 500 081 0 /
082 0 / 083 0 and 084 0 over CAN.
• Integrated GenericIO Test
With the GenericIO function(s) parameterized, testing
of these will be automatically included as part of the
vehicle sign-off procedure.
• Operating data memory
The ECU stores various operating data during operation (e.g. operating hours, hours driven, number
of ABS braking operations). This data can be read using PC diagnostics.
• Vehicle documentation
The ECU can store braking and ALB data making them available at any time. Using the diagnostic
software this data can generate an ALB (= load sensing valve) data plate.
• Copy function for parameter file
This PC diagnosis function will help you in duplicating parameter sets easily and quickly in support of
efficiently commissioning large-scale production.
New variants:
• 400 500 083 0 Premium 12 V
This variant is functionally identical to premium variant 400 500 081 0 but the supply voltage is
12 V.
• 400 500 084 0 Premium incl. 3
This variant replaces the old VCS variant 400 500 030 0.
All VCS II variants will be changed over to new ECU software in connection with these
extensions.
rd
modulator
New VCS II – PC diagnostic software 1.20:
Use of the new VCS II PC diagnostic software 1.20 is required for utilizing the new functions and
because of the new ECU software.
Version 1.00 does not work with the new ECUs.
The new version 1.20 is downwardly compatible and supports all VCS II ECUs.
We ask trailer manufacturers in particular to update to the new software immediately
The German version of VCS II PC diagnostic software 1.20 is now available via Internet download.
Most common local language versions are currently being prepared.
Änderungen bleiben vorbehalten © Copyright: WABCO' 2005 The right of amendment is reserved © copyright: WABCO' 2005
Nachdruck - auch auszugsweise - nur mit unserer Genehmigung. No part of this publication may be reproduced without our prior permission.
1/1 5008en0
