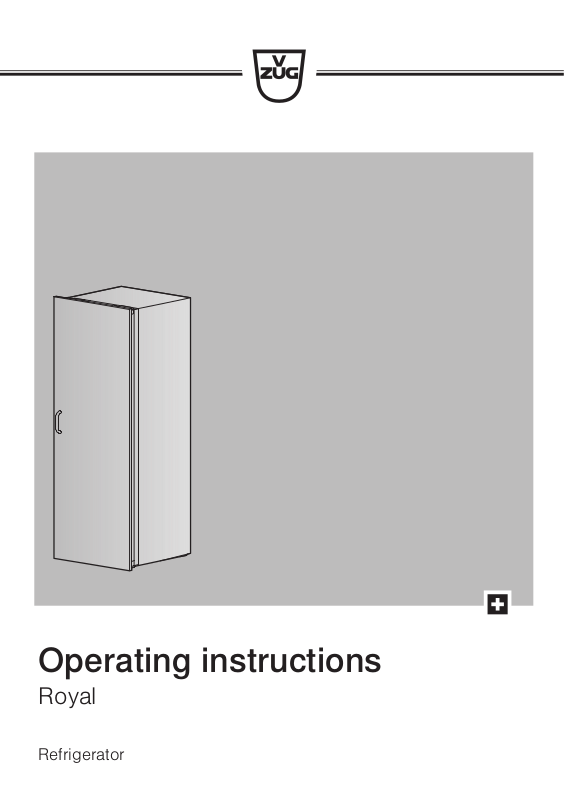

Page 1
Operating instructions
Royal
Refrigerator
Page 2
Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarise yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make technical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Model Product family Size system
Royal 51018 SMS 55 / Euro 60
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2016
2
Page 3
Contents
1 Safety precautions 5
1.1 Symbols used ........................................................................................................ 5
1.2 General safety precautions ................................................................................. 6
1.3 Instructions for use ............................................................................................... 7
2 Disposal 9
3 Using for the first time 10
4 Appliance description 11
4.1 Structure ...............................................................................................................11
4.2 Operating and display elements ......................................................................12
5 Operation 13
5.1 Switching the appliance on...............................................................................13
5.2 Setting the temperature of the refrigerator compartment ...........................13
5.3 Fast cooling..........................................................................................................14
5.4 Button lock ...........................................................................................................14
5.5 Switching the appliance off...............................................................................14
6 Glass shelves and door trays 15
6.1 Positioning door trays ........................................................................................15
6.2 Positioning glass shelves ..................................................................................15
7 Cold storage compartment 16
7.1 Humidity ................................................................................................................16
7.2 Setting the humidity ............................................................................................16
7.3 Removing the chill compartment drawer .......................................................17
7.4 Inserting the chill compartment drawer ..........................................................17
8 Bottle drawer 18
8.1 Removing the bottle drawer..............................................................................18
8.2 Inserting the bottle drawer ................................................................................18
9 Tips and tricks 19
9.1 General information on using the appliance .................................................19
9.2 Notes on storing food ........................................................................................20
9.3 Notes on freezing................................................................................................21
9.4 Notes on saving energy.....................................................................................21
10 Care and maintenance 22
10.1 Cleaning................................................................................................................22
10.2 Defrosting .............................................................................................................22
10.3 Changing the LED lighting ................................................................................24
3
Page 4
11 Noises and alarms 26
11.1 Operating noise...................................................................................................26
11.2 Warning and alarm signals ...............................................................................27
12 Trouble-shooting 28
12.1 What to do if ... ....................................................................................................28
13 Technical data 31
13.1 Note for testing institutes...................................................................................31
13.2 Temperature measurement...............................................................................31
13.3 Product fiche........................................................................................................32
14 Index 33
15 Service & Support 35
4
Page 5
1 Safety precautions
1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in damage
to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
▸ Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
▪ Indicates a list.
5
Page 6
1 Safety precautions
1.2 General safety precautions
▪ Read the operating instructions before using the appliance for
the first time!
▪ This appliance can be used by children aged 8 and above
and by persons with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, provided
they are supervised or have been instructed on the safe use
of the appliance and have understood the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be undertaken by children without supervision.
▪ If an appliance is not equipped with a mains cable and a plug
or other means for disconnecting from the mains with a contact opening on each pole complying with the conditions of
overvoltage category III for full isolation, an isolating device
must be incorporated into the permanently installed electrical
installation in accordance with the installation regulations.
▪ If the mains cable of this appliance is damaged, it must be re-
placed by the manufacturer or its Customer Services or a similarly qualified person in order to avoid hazard.
6
Page 7
1 Safety precautions
1.3 Instructions for use
Before using for the first time
▪ The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
▪ Do not use the appliance if the cold circuit is damaged.
▪ Electrical safety (protection against contact) must be ensured by the install-
ation.
▪ When installed, it is important to ensure that the air inlets and vent openings
are not covered or blocked.
▪ Do not use extension cables, if possible.
Correct use
▪ The appliance is designed for cooling and storing food in the home.
The appliance must only be used as described in the operating instructions.
▪ This appliance is intended for use in the home and similar settings such as:
in staff kitchens in shops, offices and other commercial establishments; in
agricultural establishments; by guests in hotels, motels and other accommodation establishments; in bed and breakfast establishments. This appliance is not intended for use in the professional sector.
▪ No liability is assumed for any damage caused by improper or incorrect use
or by repairs carried out by unqualified people. In this case, any warranty or
other liability claims are deemed null and void.
▪ Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its Customer Services or a similarly qualified person. Repairs if carried out incorrectly may cause serious injury, damage to the appliance and fittings, as
well as affect the functioning of the appliance. If the appliance is not working properly or in case a repair is needed, follow the instructions given in
the «Service & Support» section. Please contact our Customer Services if
necessary.
▪ Use original spare parts only.
▪ Retain these operating instructions for future reference.
▪ The appliance corresponds to recognized technology standards and the rel-
evant safety regulations. Proper use of the appliance is essential to avoid
damage and accidents. Please therefore follow the precautions given in
these operating instructions.
7
Page 8
1 Safety precautions
Note on use
▪ Do not use any electrical appliances inside the cooling and/or freezer com-
partment.
▪ Strong alcohol should only be stored tightly sealed and standing upright. Do
not store explosive materials in the appliance. Danger of explosion!
▪ This appliance is CFC and FC-free and contains small quantities of the en-
vironmentally friendly refrigerant isobutane (R600a).
When handling the appliance, ensure that the cold circuit is not damaged. If
the cold circuit is damaged, however, all types of open flame and sources
of ignition must be avoided, as isobutane is flammable. The room in which
the appliance is located must be ventilated for a few minutes. Inform Customer Services.
▪ If you have received a damaged appliance, contact your supplier immedi-
ately.
Caution: Risk of injury!
▪ Be careful not to put fingers in the door hinges, as there is otherwise a risk
of injury if the appliance door is moved. Particular care should be taken
when children are around.
▪ When cleaning, cut the power going to the appliance by: pulling out the
mains plug or switching off the fuse. Never pull the mains plug out of the
mains socket by the cable or with wet hands. Hold the mains plug and pull
it straight out of the socket.
▪ Do not remove the evaporation tray on the compressor. Fire hazard!
Caution: Risk to life!
Packaging materials, e.g. plastic film and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging material away from children.
How to avoid damaging the appliance
▪ Only use water or a mild alkaline solution when cleaning the appliance.
▪ Do not use pointed or sharp-edged objects when removing layers of ice or
frozen-on food.
▪ No mechanical or artificial means other than those recommended may be
used to accelerate defrosting.
8
Page 9
2 Disposal
Packaging
▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
▪ Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
▪ Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
▪ Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
Disposal
▪ The old appliance should not be discarded as worthless rubbish. If dis-
posed of correctly, the raw materials can be recovered for recycling.
▪ The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
▪ The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recycling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
9
Page 10
3 Using for the first time
Before operating the newly installed appliance for the first time, the following
steps should be taken:
▸ Remove packaging and transport material, as well as protective film, if any,
from the interior.
▸ Clean the interior and accessories with lukewarm water or a mild alkaline
solution, and dry completely.
▸ Check that all appliance door seals are completely dry, and dry them if ne-
cessary.
▸ If the appliance was transported in a horizontal position, wait an hour before
switching it on.
10
Page 11
5
6
12
13
3
2
11
8
1
4
7
10
9
6
4 Appliance description
4.1 Structure
The appliance door can be set to open to the left or to the right. Our
Customer Services can make the necessary adjustments to the appliance.
Door tray with cover
1
Door trays
2
Door tray with bottle holder
3
(bottles up to max. 1.5 litres)
Appliance door
4
Bottle drawer
5
LED lighting
6
Chill compartment
7
Chill compartment humidity
8
regulator
Temperature sensor
9
Defrost drainage channel
10
Shelves
11
Freezer compartment
12
Operating and display ele-
13
ments
11
Page 12
4 Appliance description
o
DBAC
1 2
4
3
4.2 Operating and display elements
Displays
A
B
C
D
Buttons
1
2
3
4
Fast cooling
Refrigerator compartment temperature display
Appliance switched off
Chill compartment
ON/OFF
Temperature setting
Cancel alarm
Fast cooling
12
Page 13
5 Operation
5.1 Switching the appliance on
▸ Plug in the appliance at the mains.
– «off» is shown in the digital display.
▸ Depress the button for 3 seconds.
– The appliance is switched on.
An appliance that has been started up for the first time takes around
15 hours (with food inside) to reach its normal operating temperatures.
5.2 Setting the temperature of the refrigerator compartment
The temperature can be set between 3°C and 9°C.
▸ Depress the or button for 3 seconds.
– The temperature display flashes in the digital display.
▸ Touch the or button repeatedly until the desired temperature flashes.
– If no further settings are made after 5 seconds, the temperature dis-
play stops flashing.
– The average temperature for the last 2 hours is shown in the temperat-
ure display; the set temperature will be reached after a few hours.
The value displayed may be different from the target value if the door
is open for an extended period of time or if warm food has been
placed inside. If the temperature is below -5°C, is shown in the
temperature display; if the temperature is above 20°C, is shown.
The temperature of the freezer compartment is adjusted to the temperature of the refrigerator compartment and cannot be set individually.
13
Page 14
5 Operation
5.3 Fast cooling
The Fast cooling function allows large quantities of food, e.g. after a shopping trip, to be cooled more quickly. The function lowers the target temperature of the refrigerator compartment to the coldest target temperature (3 °C)
for 24 hours.
▸ Depress the button for 3 seconds.
– The Fast cooling function is activated and shown in the digital dis-
play.
– It switches off automatically after 24 hours.
Switch on 12 hours before putting food in the refrigerator compartment to prevent food that is already in there from warming up.
To end the Fast cooling function early in the activated state:
▸ Depress the button for 3 seconds.
– The Fast cooling function is deactivated and no longer shown in the
digital display.
5.4 Button lock
The button lock prevents the temperature from being adjusted unintentionally.
To override the button lock:
▸ Depress the desired button for 3 seconds until the corresponding display/
symbol flashes.
▸ Touch another button or make settings within 5 seconds.
– The button lock is reactivated 10 seconds after the last press of a but-
ton.
5.5 Switching the appliance off
▸ Depress the button for 3 seconds.
– The appliance switches off.
– «off» is shown in the digital display for 30 seconds.
If the appliance is being taken out of operation, e.g. for repair work or disposal:
▸ Disconnect the plug from the mains.
▸ When not in use for an extended period of time: empty, defrost and clean
the appliance, and leave the refrigerator compartment door and the freezer
compartment door open.
14
Page 15
6 Glass shelves and door trays
The height of the glass shelves in the refrigerator compartment and the door
trays on the inside of the refrigerator compartment can be adjusted.
6.1 Positioning door trays
▸ Push the door tray up and remove
it.
▸ Select the desired height.
▸ Hang the door tray in the openings
in the door frame.
▸ Push the door tray down as far as it
will go.
The top door tray with the cover is not adjustable.
When the appliance is new, it may require a little more effort to take
out the door trays.
6.2 Positioning glass shelves
▸ On both sides, push the slide bar
inwards and downwards.
– The slide bar engages and
stays in this position.
▸ Pull the glass shelf out of the rear
guide and insert into desired position.
▸ To fix the glass shelf in place, turn
the slide bar upwards and release
it.
– The slide bar engages.
15
Page 16
7 Cold storage compartment
Suitable foods can be stored in the chill compartment (temperature between
1°C and 2°C) for up to three times longer than in a conventional refrigerator
compartment.
To ensure optimum storage conditions in the chill compartment, the temperature in the refrigerator compartment must be set between 4°C and 6°C. A
higher temperature setting results in higher temperatures in the chill compartment; and conversely, a lower temperature setting results in lower temperatures.
7.1 Humidity
The humidity in the chill compartment can be set to any level. However, it also
depends on the quantity and the moisture content of the stored foods, their
packaging and how often the chill compartment drawer is opened.
The following foods are suited to different levels of humidity:
Low humidity High humidity
Meat, fish, poultry and sausages Berries, lettuce, vegetables, fruit and
mushrooms
7.2 Setting the humidity
▸ Pull the chill compartment drawer
out as far as it will go.
▸ Move the slide valve on the top
edge of the chill compartment to the
desired position:
– Left = low humidity
– Right = high humidity
16
Page 17
7 Cold storage compartment
7.3 Removing the chill compartment drawer
▸ Pull the drawer out as far as it will
go.
▸ Tip the drawer upwards slightly.
▸ Swing the drawer horizontally to-
wards the appliance door and remove it.
7.4 Inserting the chill compartment drawer
▸ Tip the drawer upwards slightly and
position the back part in the rail
guide.
▸ Push the drawer in, keeping it level.
17
Page 18
8 Bottle drawer
The temperature in the bottle drawer is 4–5°C higher than in the rest of the
refrigerator compartment. Beverages and perishable vegetables, for instance,
can be cooled to 10°C in the bottle drawer.
8.1 Removing the bottle drawer
▸ Pull the bottle drawer out as far as it
will go.
▸ Pull the carrying handle sharply up-
wards.
8.2 Inserting the bottle drawer
▸ Tip the bottle drawer backwards
slightly and position the rear edge
onto the rails.
▸ Push the rails and bottle drawer in
as far as they will go.
▸ Push the carrying handle down so
that the front part of the bottle
drawer locks into place.
18
Page 19
9 Tips and tricks
9.1 General information on using the appliance
▪ When closing the appliance door make sure that it forms a seal all the way
round. This is supported by the self-closing hinges, as the appliance doors
shut themselves if the opening angle is between 20–30°.
▪ Snow and ice forming on the rear wall of the refrigerator can be caused by
the appliance door not being closed properly. Make sure no food items are
protruding, the appliance door does not catch and the hinges move freely.
▪ It can take up to 6 hours for food and beverages to cool down from room
temperature to the cooling compartment temperature. The greater the
quantity of warm food, the longer it takes to cool down.
▪ Changing the temperature setting has no effect on the time it takes for food
and beverages to cool down, only the temperature itself.
▪ Storing food that releases moisture can lead to condensation on the glass
shelves. For this reason, food must be covered or wrapped up; this also
prevents it from drying out.
▪ The electronic controller defrosts the cooling compartment once a day. A
visible layer of snow or ice on the rear wall of the cooling compartment is
therefore normal.
▪ At high ambient temperatures, a significant amount of ice may form on the
rear wall. This is normal: due to the high humidity, more water condenses in
the appliance and ices up. Defrost the appliance manually if necessary.
▪ The food must not come into contact with the rear wall of the cooling com-
partment or it may freeze. Additionally, when defrosting the appliance, water
may enter the cooling compartment.
▪ Placing very warm or very cold items (e.g. warm, bottled sauces or frozen
food for defrosting) directly in front of the temperature sensor can affect the
appliance's temperature regulation: insufficient or excessive cooling may
take place.
19
Page 20
9 Tips and tricks
9.2 Notes on storing food
▪ Store oils and fats in closed containers. They must not come into contact
with the plastic parts or the door seal.
▪ The coldest areas of the cooling compartment are the rear wall and the
space above the bottom shelf, regardless of the temperature setting. Perishables like meat should therefore be stored on the lowest shelf.
Example arrangement (from top to bottom)
In the freezer compartment:
▪ For freezing and storing
food and making ice
On the glass shelves:
▪ Cakes and baking
▪ Cooked foods
▪ Dairy products
▪ Meat, sausages and fish
In the chill compartment:
▪ Vegetables, fruit and salad
▪ Meat, sausages and fish
In the bottle drawer:
▪ Beverages and cold-sensit-
ive food
In the door trays:
▪ Butter and cheese
▪ Tubes and eggs
▪ Small cans
▪ Smaller bottles and Tetra
Pak containers
▪ Large bottles (up to max.
1.5litres)
20
Page 21
9 Tips and tricks
9.3 Notes on freezing
▪ Check the packaging for damage. Damp patches or swollen packaging
may indicate that the contents have defrosted.
▪ Food to be frozen should not come into contact with goods that are already
frozen or it may cause them to defrost.
▪ Only freeze small quantities at any one time so that the temperature of the
frozen food already in the freezer compartment does not increase too
sharply (for max. freezing capacity, see the identification plate or product
fiche).
▪ For freezing large quantities (for max. freezing capacity, see the identifica-
tion plate or product fiche), use the space above the rack. If there is frozen
food already in there, put it below the rack. Activate the Fast cooling function by pressing the button 12 hours before placing the food inside. It
switches off automatically after 24 hours.
▪ Defrosted frozen food must not be refrozen as the food may perish.
9.4 Notes on saving energy
▪ Leave the drawers, glass shelves and door trays in the positions they were
in upon delivery, if possible. This ensures the best possible temperature distribution.
▪ Only open the appliance doors when necessary and keep them open for as
short a time as possible. The sooner the doors are closed, the less cold air
escapes.
▪ Leave warm or hot food to cool down before placing it in the appliance.
▪ Store food that releases moisture in closed containers or covered in the
cooling compartment, if possible. Moisture can cause the rear wall of the refrigerator to ice up more quickly and reduce its cooling output.
▪ Make sure the appliance doors close correctly. The door seal must align
properly with the appliance frame.
▪ Do not install the appliance near radiators, heating pipes or flues, and pro-
tect it against direct sunlight.
21
Page 22
10 Care and maintenance
10.1 Cleaning
For hygienic food storage, the interior should be kept clean.
Do not use any abrasive cleaning agents or scouring cloths.
This may damage the appliance.
▸ Every so often, use a mild soapy solution to wipe the interior and dry thor-
oughly. Occasionally wipe with lemon water; this eliminates smells.
▸ Regularly inspect the door seals and if dirty clean using a soft brush. This
helps to prevent them from sticking or being damaged.
▸ Clean the operating and display elements just with a slightly damp cloth.
▸ When not in use for an extended period of time, switch the appliance «off»
with the button. Empty, defrost and clean the appliance, and leave the refrigerator compartment door and the freezer compartment door open.
Ensure that no cleaning water runs through the defrost drainage
channel into the evaporation tray.
10.2 Defrosting
Defrosting the refrigerator compartment
The refrigerator compartment defrosts once a day automatically.
During defrosting, the temperature inside the refrigerator compartment increases so that the ice on the rear
wall melts. The water created when the
ice melts collects in the defrost channel, flows through the drain hole and
evaporates outside the appliance in
the evaporation tray.
When defrosting is complete, the temperature is lowered back down to the set
target temperature.
Keep the collection channel and the drain pipe clean so that the water
can flow freely.
22
Page 23
10 Care and maintenance
▸ Clean the defrost drainage channel
with the green cleaner that is in it
with an up-and-down and circular
motion.
If milk has been spilt accidentally and has ended up in the defrost
drainage channel:
► Push some kitchen towel into the drain hole and try to absorb as
much liquid as possible.
► If more than 1dl has flowed into the defrost drainage channel
and/or a strong odour develops after a while: call Customer Services.
If any foreign objects get into the defrost drainage channel:
► Carefully insert a flexible plastic object (such as a cable tie) into
the drain hole and try to remove any foreign objects.
► Do not use hard or sharp objects, or the defrost drainage channel
and surrounding components could get damaged.
Defrosting the freezer compartment
A thick layer of ice will prevent the cold from being transferred to the frozen
food. Therefore, the freezer compartment should be defrosted if a lot of ice
has formed. When defrosting, keep frozen food as cold and insulated as possible, e.g. by wrapping it in newspaper.
Do not use sharp objects to remove ice or food that has frozen solid.
Do not use electrical heaters or naked flames for defrosting.
▸ Switch the appliance «off» using the button.
▸ Leave the appliance door and freezer compartment door open.
▸ After defrosting, clean the interior and dry thoroughly.
▸ Start the appliance again using the button.
23
Page 24
10 Care and maintenance
1
10.3 Changing the LED lighting
Only use original LED lighting from the manufacturer.
▸ Disconnect the power supply: by pulling out the mains plug or switching off
the fuse.
▸ Remove the LED lighting.
▸ Disconnect the plug and socket
connection 1 for the LED lighting.
▸ Insert the new LED lighting by fol-
lowing the instructions above in reverse order.
24
Page 25
Chill compartment and bottle drawer
▸ Loosen the locking device on the
underside on both sides with your
index fingers and pull the top edge
of the transparent cover down at the
same time.
▸ Push the locking device on the un-
derside of the LED lighting backwards and remove.
▸ Pull away the plug and socket con-
nection at the side.
10 Care and maintenance
▸ Insert the new LED lighting by fol-
lowing the instructions above in reverse order.
25
Page 26
11 Noises and alarms
11.1 Operating noise
The compressor and the cooling circuit make various noises while the appliance is running.
Although the appliance is fitted with a quiet compressor and a noise-optimized
cooling circuit, some noises cannot be completely avoided. The volume of
these noises depends on the size of the appliance, how it is installed and the
cooling requirement (e.g. for Fast cooling). Operating noises are particularly
audible immediately after switching on the compressor; however, these noises
become quieter as the appliance runs.
Keyword Cause Remarks
Buzzing Cooling unit Normal operating noise made by the cool-
ing unit, volume depends on the size of
the appliance and the load-dependent
speed of the compressor motor.
Gurgling,
bubbling,
hissing
Whirring Fan Normal operating noise caused by con-
Fizzling Cooling circuit Normal operating noise caused by the in-
Rattling Glass shelves, bas-
Creaking Housing Normal, temperature-dependent stress-
Clicking Valve Normal switching noise of the switching
Cooling circuit Normal operating noise caused by the
flow of refrigerant through the cold circuit.
vection cooling in the chill compartment.
jection of refrigerant into the evaporator.
Arrange the parts in the interior so that
kets, door trays,
contents, etc.
they are fixed in place and are not touch-
ing.
strain of the materials, e.g. plastics, insula-
tion.
valve.
26
Page 27
11 Noises and alarms
Unusual noises caused by improper installation
Unusual noises are often caused by improper installation. The appliance must
be installed on a level and stable surface. The pipework on the back of the appliance must never be routed across the wall or other furniture. The pipes
must not touch each other.
In open kitchens or in the case of appliances installed in partitioned areas,
normal operating noises may appear louder. This is not a fault but rather an effect of the architecture.
Fast cooling
During the Fast cooling process, the compressor operates at a higher cooling
output, which increases the noise level above the normal operating noise level.
The compressor output is increased until the temperature in the refrigerator
compartment reaches the target temperature or the maximum duration
elapses. The target temperature for the refrigerator compartment is reset to
the previously set target temperature after 24hours.
11.2 Warning and alarm signals
Warnings when the appliance doors are open
If the cooling compartment door is open for several minutes, the following
alarm signals occur:
After 2 minutes LEDs flash every 15 seconds.
After 3 minutes LEDs flash every 5 seconds.
After 4 minutes LEDs flash rhythmically every second.
After 10 minutes An acoustic alarm sounds for 3 minutes. The acoustic
alarm repeats every 30minutes.
Temperature alarm
An acoustic signal sounds if the cooling compartment temperature rises
10°C above the selected temperature value.
Cancelling alarm
▸ Cancel the alarm by touching the button.
▸ To resolve the problem, see Trouble-shooting (see page 28).
27
Page 28
12 Trouble-shooting
This section lists faults that can be solved simply by following the instructions
given. If another fault is displayed or the fault cannot be remedied, please call
Customer Services.
Before calling Customer Services,
▸ please note down the serial number (FN; see identification plate in «Tech-
nical data») and the malfunction message in full, e.g. .
12.1 What to do if ...
… the appliance is not working
Cause Solution
▪ A household fuse or circuit
breaker has tripped.
▪ The fuse or circuit breaker
keeps blowing.
▪ An interruption in the
power supply.
▪ The appliance is faulty. ▸ Call Customer Services.
... the following appears in the temperature display
▸ Change the fuse.
▸ Reset the circuit breaker.
▸ Call Customer Services.
▸ Check the fuse.
▸ Have the house wiring checked by a com-
petent electrician.
Cause Solution
▪ Temperature sensor in the
cooling compartment is
defective.
...the following appears in the temperature display
Cause Solution
▪ The temperature in the re-
frigerator compartment is
above 20°C.
28
▸ Call Customer Services.
– The appliance enters emergency mode.
The cooling compartment is cooled at
the same output level as before the
temperature sensor malfunction.
▸ Cancel by touching the button.
– The current average temperature is
shown in the temperature display.
Page 29
...the following appears in the temperature display
Cause Solution
▪ The temperature in the re-
frigerator compartment is
below -5°C.
▸ Cancel by touching the button.
– The current average temperature is
shown in the temperature display.
...the following appears in the temperature display
Cause Solution
▪ Various situations can lead
▸ Call Customer Services.
to an «F» message.
... the temperature display is flashing
Cause Solution
▪ There has been a power
failure. The flashing temperature display shows the
temperature when the appliance is put back into
service.
▸ Cancel by touching the button.
– The current average temperature is
shown in the temperature display.
▸ Check any refrigerated or frozen food and
discard if spoiled.
12 Trouble-shooting
29
Page 30
12 Trouble-shooting
the chill compartment display is flashing
display symbol: Chill compartment
Cause Solution
▪ The temperature in the
chill compartment is too
warm or too cold.
▸ If necessary: put fewer items that are «still
warm» or «very cold» into the chill compartment.
– flashes in the digital display until the
target temperature is reached again.
...the illumination is flashing
Cause Solution
▪ Appliance door has been
▸ Close the appliance door.
open for more than
2minutes.
▪ Appliance door has not
been shut correctly.
30
Page 31
13 Technical data
1
External dimensions
▸ See installation instructions
Electrical connection
▸ See identification plate
13.1 Note for testing institutes
The maximum quantity (see identification plate or product fiche) must be
frozen on the rack. In order to freeze the maximum quantity, the Fast cooling
button must be activated 12 hours before placing the food to be frozen inside.
13.2 Temperature measurement
The refrigerator and freezer compartment temperature are measured in accordance with an internationally recognized standard. Own measurements can
be imprecise and are not suitable for checking the accuracy of the temperature.
1
31
Page 32
13 Technical data
13.3 Product fiche
In accordance with EU Regulation No. 1060/2010
Brand – V-ZUG Ltd
Model name – Royal
Category
Energy Efficiency Class – A++
Annual Energy Consumption (AEC)
1)
Storage volume, refrigerator compartment
overall
of which chill compartment l 17
Storage volume, freezer compartment l 24
Star rating – ****
Frost-free refrigerator/freezer compartment
3)
Power cut safe time h 15
Freezing capacity kg/24 h 2
Climate class
Airborne acoustical noise emissions dB (A) 36
Built-in appliance
– 7 (refrigerator/
freezer)
kWh per
208
year
l 216
– No
– SN-ST
– Yes
2)
4)
1) Annual energy consumption based on standard test results for 24 hours. The actual consumption value will depend on how the ap-
pliance is used and where it is located.
2) Food freezer compartment and frozen-food storage compartment -18°C or colder with a minimum freezing capacity
3) Automatic defrost system for the refrigerator or freezer compartment is present
4) This appliance is intended to be used at an ambient temperature between 10°C and 38°C.
32
Page 33
14 Index
A
Alarm........................................................ 12, 27
B
Bottle drawer ................................................. 18
Button lock ..................................................... 14
C
Care................................................................. 22
Chill compartment ........................................ 16
Cleaning.......................................................... 22
Construction................................................... 11
D
Defrost drainage channel............................ 22
Defrosting ....................................................... 22
Disconnection.................................................. 9
Disposal............................................................ 9
Door trays....................................................... 15
E
Electrical connection .................................... 31
Error display
Chill compartment............................. 30
F............................................................ 29
F1 ......................................................... 28
HI .......................................................... 28
LO......................................................... 29
Temperature display flashing.......... 29
F
Fast cooling ............................................ 12, 14
G
Glass shelves ................................................ 15
I
Identification plate.................................. 31, 35
Initial set-up ............................................... 7, 10
Instructions for use ......................................... 7
M
Maintenance .................................................. 22
Malfunctions................................................... 28
Model number ................................................. 2
N
Noises ............................................................. 26
O
ON/OFF .......................................................... 12
Operating and display elements................ 12
Operation........................................................ 13
P
Packaging ........................................................ 9
Power failure .................................................. 29
Product family.................................................. 2
Product fiche.................................................. 32
Q
Queries ........................................................... 35
R
Refrigerator compartment temperature dis-
play
.................................................................. 12
S
Safety ................................................................ 9
Safety precautions
Correct use............................................7
General...................................................6
Service & Support......................................... 35
Service agreement........................................ 35
Setting the temperature
Refrigerator compartment ............... 13
Switching appliance on................................ 13
Switching on .................................................. 13
Symbols ............................................................ 5
T
Technical data ............................................... 31
Temperature measurement......................... 31
Temperature setting ..................................... 12
Testing institutes ........................................... 31
Tips .................................................................. 19
Type................................................................... 2
U
Using for the first time............................. 7, 10
33
Page 34
V
Validity............................................................... 2
W
Warning signal............................................... 27
34
Page 35
15 Service & Support
The «Troubleshooting» section provides valuable tips for dealing with minor oper-
ating faults. This saves you the time, effort and potential cost of having to call out
a service technician.
Information on the V-ZUG warranty can be found at www.vzug.com →Service →Warranty information. Please read this information carefully.
Please register your V-ZUG appliance immediately:
▪ online via www.vzug.com →Service →Warranty registration, or
▪ using the enclosed registration card.
This will allow you to take advantage of the best possible support in the event of a fault in
the appliance during the guarantee period. You will require the serial number (FN) and appliance designation to complete the registration process. This information can be found on
the identification plate for your appliance.
My appliance information:
FN:
___________________
Always have this appliance information to hand when you contact V-ZUG. Thank you.
The identification plate is located on the left-hand side by the bottle drawer.
Your repair order
Call the free service number 0800 850 850 to contact your nearest
V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish.
Appliance:
_____________________
General queries, accessories and service agreement
V-ZUG will be happy to help you with any general administrative or technical queries, to
accept your orders for accessories and spare parts and to inform you about our progress-
ive service agreements. You can contact us by calling Tel. + 41 58 767 67 67 or by going
to our website at www.vzug.com.
35
Page 36
V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug
Tel. +41 58 767 67 67, Fax +41 58 767 61 61
info@vzug.com, www.vzug.com
Service Centre: Tel. 0800 850 850
1022490-R02
Loading...
