V-ZUG DWPQG9C-H42608 Specifications Sheet
V-ZUG Australia Pty. Ltd
2/796 High Street East Kew Vic 3102, VICTORIA/Australia
Phone +61 (03) 9832 7500
enquire.au@vzug.com, www.vzug.com

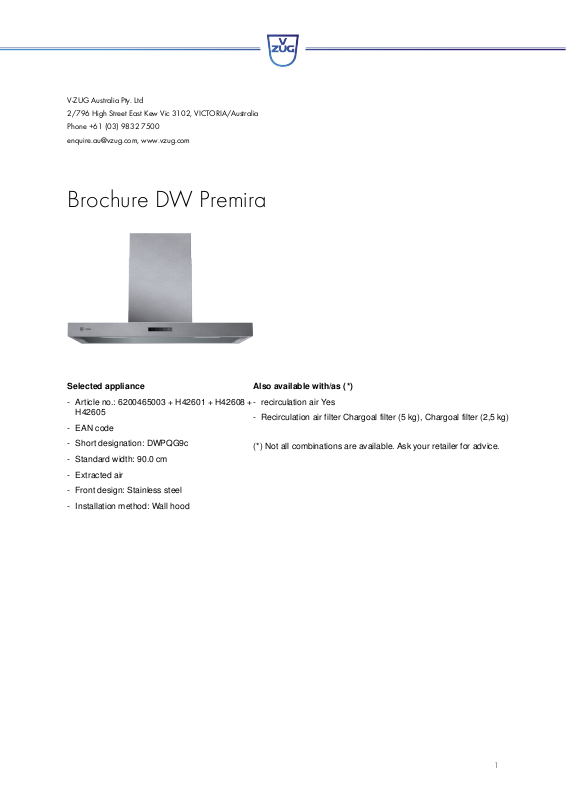

Brochure DW Premira
Selected appliance
- Article no.: 6200465003 + H42601 + H42608 +
H42605
- EAN code
- Short designation: DWPQG9c
- Standard width: 90.0 cm
- Extracted air
- Front design: Stainless steel
- Installation method: Wall hood
Also available with/as (*)
- recirculation air Yes
- Recirculation air filter Chargoal filter (5 kg), Chargoal filter (2,5 kg)
(*) Not all combinations are available. Ask your retailer for advice.
1
Details DWPQG9c
Design
- Standard width: 90.0 cm
- Extracted air
- Front design: Stainless steel
- Installation method: Wall hood
Dimensions
- Appliance height: 475.0 mm
- Max. appliance height: 675.0 mm
- Front height: 55.0 mm
- Height: Extracted air/recirculation air: 5.5 cm
- Appliance width: 898.0 mm
- Appliance depth: 550.0 mm
- Max. appliance depth: 550.0 mm
- Empty weight: 25.5 kg
Display and operation
- Controls: TouchControl
- Fan power level display
- Lighting: LED
- Number of lights: 4
- Grease filter cleaning indicator
Energy
- Energy efficiency rating: A
- Annual energy consumption: 39.0 kWh
- Lighting efficiency rating: A
- Fluid dynamic efficiency: 30.9
- Fluid dynamic efficiency rating: A
- Type of connection: 220-240V~
- Nominal lighting output (quantity x W): 2 x 2.2 W
- Frequency (1): 50 Hz
- Connected loads: 0.13440000000000002 kW
- Fuse protection: 10.0 A
- Plug type: AS/NZS_3112
- Connection cable: 1.5 m
- Telescopic casing: Standard
- Power levels: 3 + i
- Remote control: optional
- Fleece grease filter: 3
- Side exhaust
- Non-return flap, integrated/attached: included
Functions
- Intensive setting
- Automatic after-running time
Additional data
- Exhaust air connection (diameter): 150.0 mm
- Lighting efficiency: 62.7
- Illumination on cooking surface: 276.0 lux
- Grease absorption capacity rating: C
- Extracted air output, intensive setting: 679 m³/h
- Extracted air output, max. setting: 423 m³/h
- Extracted air output, min. setting: 255 m³/h
- Extracted air noise output, intensive setting: 62.0 dB(A)
- Extracted air noise level, max. setting: 51.0 dB(A)
- Extracted air noise output, min. setting: 39.0 dB(A)
- Recirculation air output, intensive setting: 556 m³/h
- Recirculation air output, max. setting: 358 m³/h
- Recirculation air output, min. setting: 222 m³/h
- Motor(s): 1
- Motor output: 130 W
- Feature level: 5
Service and interfaces
- Warranty: 2 years
Range hood features
2
