Operating instructions
Induction with easy cooking
Glass ceramic hob
Page 2
Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarise yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make technical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Type Product family
GK46TIAKS/C/F 90A
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2016
2
Page 3
Contents
1 Safety precautions 5
1.1
1.2
1.3
1.4
2 Disposal 11
3 Using for the first time 12
4 Your appliance 13
4.1
4.2
4.3
4.4
4.5
5 Operating the appliance 18
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
5.10
5.11
5.12
5.13
5.14
5.15
5.16
Symbols used .............................................................................................5
General safety precautions ...................................................................... 6
Appliance-specific safety precautions....................................................7
Instructions for use .................................................................................... 8
Appliance overview ................................................................................ 13
Operating and display elements .......................................................... 14
How induction hobs function ................................................................ 16
Pan detection ........................................................................................... 16
Cookware.................................................................................................. 17
Switching the appliance on and off ..................................................... 18
Selecting a cooking zone ...................................................................... 18
Overview of power levels....................................................................... 19
Switching a cooking zone off................................................................ 20
Residual heat indicator .......................................................................... 20
Keep warm setting .................................................................................. 20
Melting function ....................................................................................... 20
Simmer function....................................................................................... 21
PowerPlus ................................................................................................. 21
Automatic boost ...................................................................................... 23
Operating time ......................................................................................... 24
Timer.......................................................................................................... 26
Childproof lock ........................................................................................ 27
Restore function ...................................................................................... 28
Pause cooking ......................................................................................... 28
Wipe protection........................................................................................ 29
6 Easy cooking 30
6.1
6.2
6.3
Cooking control ....................................................................................... 30
Rice control .............................................................................................. 34
Temperature control ............................................................................... 36
3
Page 4
7 User settings 38
7.1
7.2
Changing user settings .......................................................................... 39
Cancelling user settings......................................................................... 39
8 Care and maintenance 40
9 Trouble-shooting 41
10 Technical data 45
10.1
Product fiche ............................................................................................ 45
11 Index 46
12 Notes 48
13 Service & Support 51
4
Page 5
1 Safety precautions
1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in damage to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
▸ Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
▪ Indicates a list.
5
Page 6
1 Safety precautions
1.2 General safety precautions
▪ Read the operating instructions before using the appliance for
the first time!
▪ This appliance can be used by children aged 8 and above
and by persons with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, provided
they are supervised or have been instructed on the safe use
of the appliance and have understood the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be undertaken by children without supervision.
▪ If an appliance is not equipped with a mains cable and a plug
or other means for disconnecting from the mains with a contact opening on each pole complying with the conditions of
overvoltage category III for full isolation, an isolating device
must be incorporated into the permanently installed electrical
installation in accordance with the installation regulations.
▪ If the mains cable of this appliance is damaged, it must be re-
placed by the manufacturer or its Customer Services or a similarly qualified person in order to avoid hazard.
6
Page 7
1 Safety precautions
1.3 Appliance-specific safety precautions
▪ WARNING: If the surface is cracked or there is damage to the
material thickness, the appliance must be switched off and
disconnected from the electricity supply in order to avoid a
possible electric shock.
▪ WARNING: During use, the appliance and its exposed parts
become hot. Please be careful to avoid the exposed parts of
the heating elements.
▪ Never use a steam cleaner.
▪ Objects made of metal, e.g. knives, forks, spoons, covers or
aluminium foil, should not be put on the hob as they can become hot.
▪ After use, switch the hob off using the controls and do not
rely on the pan detector.
▪ WARNING: Leaving fat or oil unattended on the hob can be
dangerous and can lead to fires. NEVER try to extinguish a
fire with water. Instead, switch the appliance off and then carefully cover the flames with an object such as a cover or a fire
blanket.
▪ WARNING: Never leave objects on the hob as they pose a fire
hazard.
▪ The appliance must not be operated with an external time
switch or a separate remote control system.
7
Page 8
1 Safety precautions
1.4 Instructions for use
Before using for the first time
▪ The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
Correct use
▪ The appliance is designed for use in the home for preparing food. No liabil-
ity is assumed for any damage caused by improper use or incorrect handling.
▪ Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its Customer Services or a similarly qualified person. Repairs if carried out incorrectly may cause serious injury, damage to the appliance and fittings, as
well as affect the functioning of the appliance. If the appliance is not working properly or in case of a repair order, follow the instructions given in the
repair service section. Please contact Customer Services if necessary.
▪ Use original spare parts only.
▪ Retain these operating instructions for future reference. If you sell the appli-
ance or pass it on to a third party, include these operating instructions as
well as the installation instructions.
▪ The appliance corresponds to recognised technology standards and the rel-
evant safety regulations. Proper use of the appliance is, however, essential
to avoid damage and accidents. Please therefore follow the precautions
given in these operating instructions.
▪ The heated surface will remain hot for some time after it is switched off and
will only cool down slowly to room temperature. Leave a sufficient amount of
time before you carry out work such as cleaning the appliance.
Note on use
▪ Tests have shown that under normal circumstances there is no risk to car-
diac pacemaker users. If, as the user of a cardiac pacemaker (or a hearing
aid or another type of implant), you would like to be reassured that using
the appliance does not pose a risk, you are advised to consult a competent
medical authority.
8
Page 9
1 Safety precautions
Caution: Risk of burns!
▪ Overheated fat and oil can easily catch fire. Never attempt to extinguish
burning oil or fat with water. Danger of explosion! Smother the flames with a
fire blanket. Keep doors and windows closed.
Caution: Risk of injury!
▪ Keep pets away from the device.
Caution: Risk to life!
▪ Packaging materials, e.g. plastic film and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging material away from children.
How to avoid damaging the appliance
▪ In the case of thermal failure, switch the solid plate off and allow to cool
down completely. Do not put any dishes on it. Do not cool with cold water
under any circumstances.
▪ Do not climb onto the appliance.
▪ To avoid damaging the silicon grouting, do not put hot cookware on the
frame.
▪ Do not cut or prepare food on the surface or drop hard objects onto it. Do
not drag cookware across the surface.
▪ Make sure than no sugary foods or juices end up on the hot cooking zones.
This can damage the surface. If sugary foods or juices do end up on the
hot cooking zones, remove these immediately with a glass ceramic hob
scraper (while the hob is still hot).
▪ Do not leave the appliance unattended during operation.
▪ Pots with pure copper or aluminium bases should not be used for cooking
as they leave behind traces that can be difficult to clean. If the traces are
not removed immediately after cooking with a suitable cleaning agent, they
can be permanently burned on and therefore permanently ruin the visual appearance of the appliance.
▪ Sliding pots and cookware across the glass ceramic causes scratches. You
can largely avoid these by lifting pots and cookware when putting them into
place.
9
Page 10
1 Safety precautions
▪ The hob is an item for daily use: signs of usage such as scratches or visible
material abrasion from pots or cookware are normal. Intensive use leads to
more distinctive signs of usage. In such cases, the appliance continues to
function perfectly and a complaint is not justified. Safety is always guaranteed.
▪ There is no such thing as completely scratch-proof glass; scratches can
even develop on sapphire glass, which is used in watches. The glass
ceramic used is of the best quality available on the market.
10
Page 11
2 Disposal
Packaging
Danger of suffocation! Packaging material (e.g. plastic, polystyrene) can be dangerous for children. Keep packaging material
away from children.
All packaging material is marked and should be collected for recycling and disposed of in an environmentally friendly way.
Disconnection
▸ Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
▸ After being disconnected, disable the appliance.
Appliance disposal
▪ The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
▪ The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recycling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
11
Page 12
3 Using for the first time
1 2
The appliance must be installed and connected to the electricity
supply in accordance with the separate installation instructions.
Have a qualified fitter/electrician carry out the necessary work.
During the first few hours of use, a cooking zone can give off an unpleasant smell. This is normal for brand new appliances. Ensure that
the room is well ventilated.

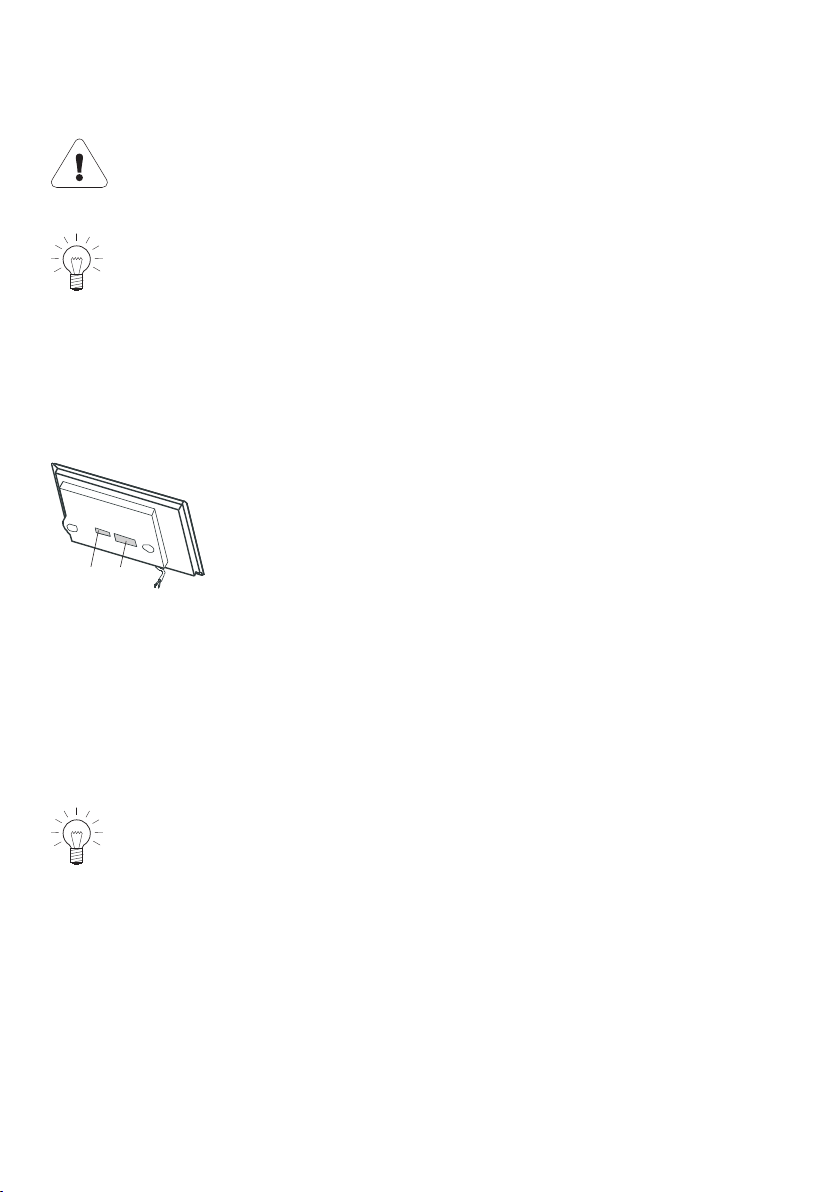

Where is the identification plate?
The identification plate and the connection plate are located on the underside
of the hob.
Identification plate with serial number (FN)
1
Connection plate
2
A second identification plate is supplied and should be affixed in the fitted unit
underneath the hob.
Note down the serial number (FN) of your appliance on the back page of
these operating instructions.
The serial number is required for identifying the appliance. Only then
can customer services guarantee a faultless service.
12
Page 13
4 Your appliance

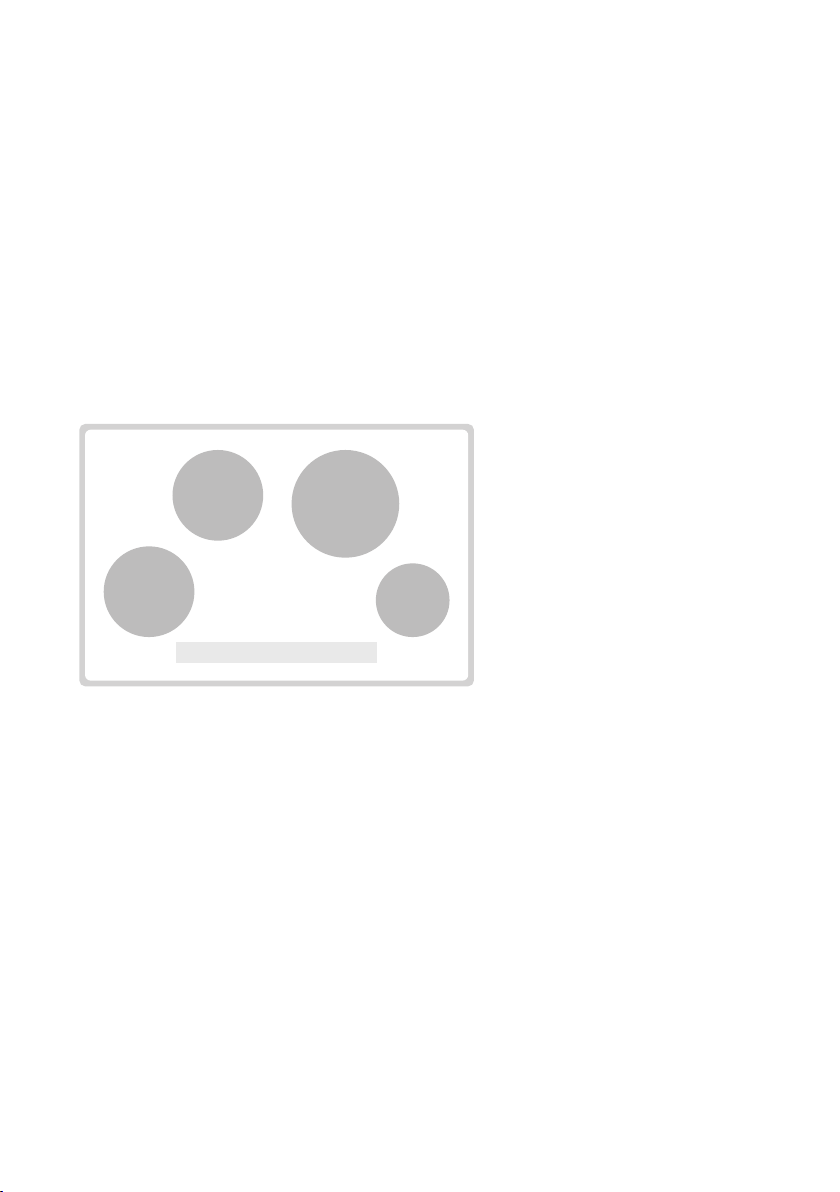

4.1 Appliance overview
GK46TIAKS, GK46TIAKSC, GK46TIAKSF
▪ 1 cooking zone ø 210mm with automatic programme
▪ 2 cooking zones ø 180mm with automatic programme
▪ 1 cooking zone ø 145mm with automatic programme
13
Page 14
4 Your appliance

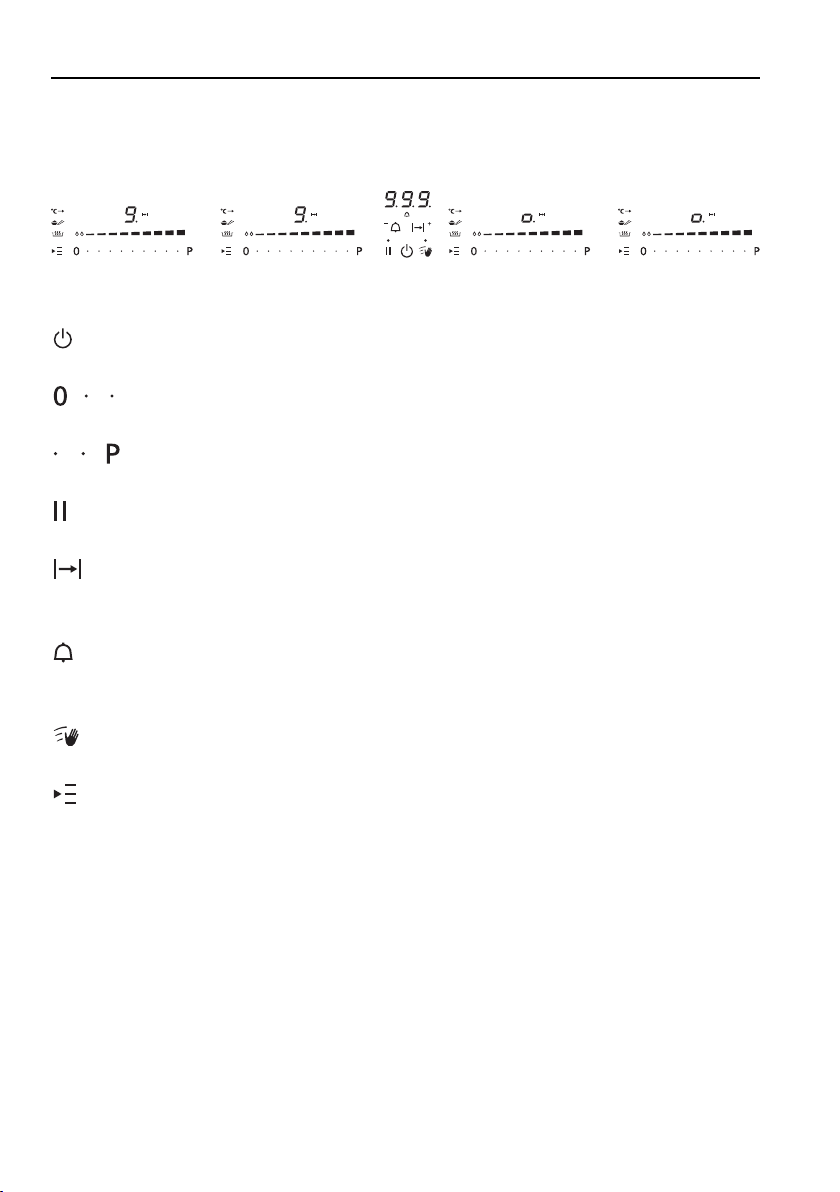

4.2 Operating and display elements
GK46TIAKS with easy cooking
Buttons
Appliance ON/OFF
Slider (for setting the power levels)
PowerPlus
Pause cooking ON/OFF and restore function
Operating time
Function as + button in operating time / timer mode
14
Timer
Function as - button in operating time / timer mode
Wipe protection ON/OFF
Easy cooking programme selection
Page 15
4 Your appliance

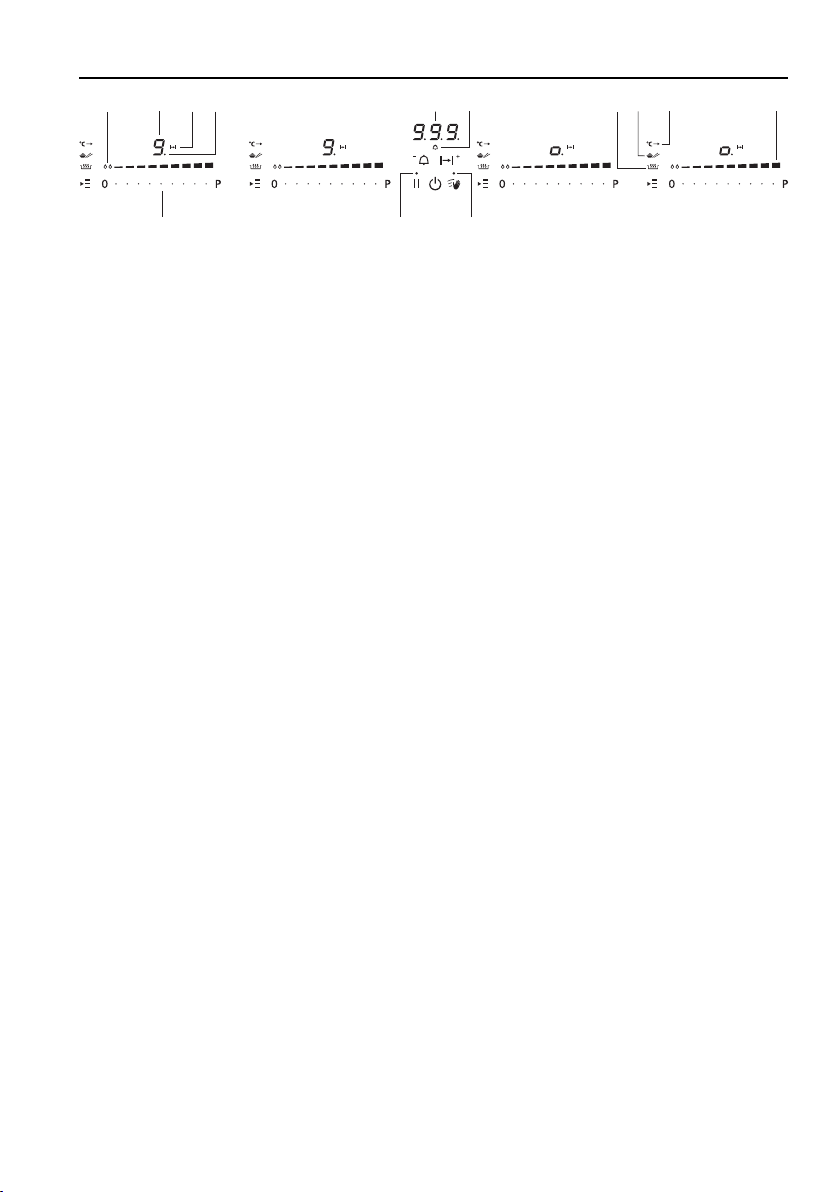

1 43 5 6
111213
2 7 8 9 10
Displays
Melting function activated
1
Cooking zone power level
2
Operating time activated
3
Cooking zone indicator lights for the operating time
4
Operating time / timer
5
Timer activated
6
Temperature control activated
7
Rice control activated
8
Cooking control activated
9
Bar graph
10
Wipe protection activated
11
Pause activated / possibility for restoring saved settings
12
Corresponding cooking zone for slider
13
15
Page 16
4 Your appliance
4.3 How induction hobs function
Induction hobs work very differently from conventional hobs or hot plates. The
induction coils under the glass ceramic plate produce a rapidly changing magnetic field which directly heats up the magnetic base of the cookware.
The glass ceramic plate is only warmed by the hot cookware. Removing the
cookware from the cooking zone immediately interrupts the supply of energy.
Induction hobs are:
▪ quick reacting
▪ finely adjustable
▪ powerful
▪ energy-efficient
▪ safe.
Induction hobs can only be used with cookware with a complete/full
magnetic base.
4.4 Pan detection
Every cooking zone is equipped with pan detection. This recognises cookware
with a magnetisable base that is suitable for use with induction hobs.
▪ If the cookware is removed during operation or unsuitable cookware is
used,
– the selected power level flashes alternately with .
▪ If there is no cookware placed on the cooking zone during the pan detec-
tion time of 10minutes:
– The cooking zone switches off automatically.
– The display changes from to .
– The appliance switches off after 10seconds if no other cooking zone is
switched on.
16
Page 17
4 Your appliance
4.5 Cookware
Suitable cookware
Only cookware with a full magnetic base is suitable for use with the induction
hob.
This can be checked in the follow ways:
▪ A magnet sticks anywhere on the base of the cookware.
▪ On the hob, the power level set illuminates and does not alternate with
the power level.
Do not heat any unsuitable cookware using aids such as metal rings
and the like. This can damage the hob.
Energy-efficient cooking
For maximum energy efficiency and even heat distribution note the following:
▪ The base of the cookware must be clean, dry and smooth.
▪ Centre the cookware in the middle of the cooking zone.
▪ Use a well-fitting lid.
▪ Match the diameter of the cookware to the quantity of food to be cooked.
Coated cookware
▪ Coated cookware when empty may never be heated at a higher power level
than .
– The coating may otherwise become overheated and damaged.
▪ For frying, do not use a higher power level than .
Never use PowerPlus with coated frying pans.
Noise during cooking
Cookware can make noise during cooking. This does not indicate any malfunction, nor does it affect the functioning of the appliance in any way.
Noise depends on the cookware used. If the noise causes considerable disturbance, it can help to change the cookware.
17
Page 18
5 Operating the appliance
The individual cooking zones are all operated in the same way. When the appliance is switched off, all the displays are dark (stand-by mode), except for
the residual heat indicator should any cooking zone still be hot.
5.1 Switching the appliance on and off
All the appliances are operated in the same way.
▸ To switch the appliance on: Depress the button for 1second.
– flashes in all the power level displays.
– If no other entry is made, the appliance switches off again after about
10seconds for safety reasons.
▸ To switch the appliance off: Touch the button.
5.2 Selecting a cooking zone
▸ Touch the slider of the required cooking zone or swipe it to set the
power level.
18
Page 19
5 Operating the appliance

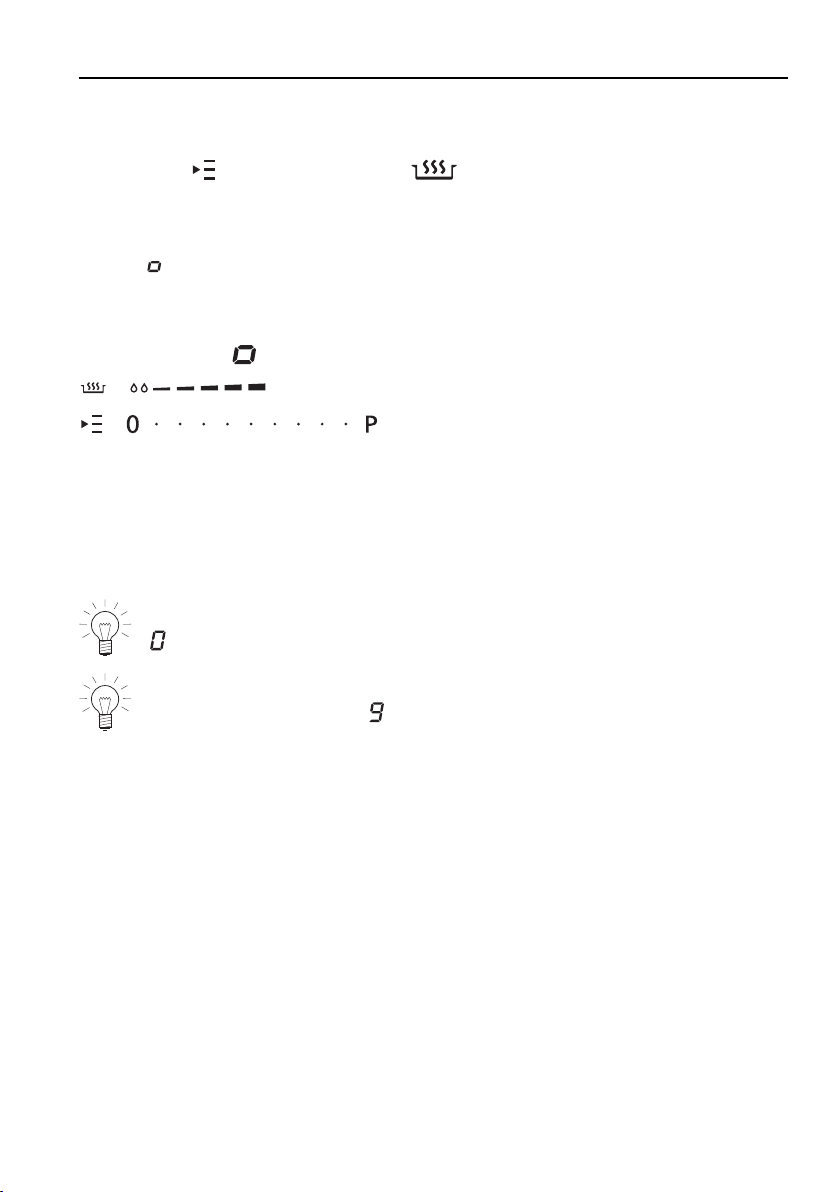

5.3 Overview of power levels
Power level Cooking method Use
Melting Melting butter, chocolate or honey at
around 40 °C
L
1
2
3
4
5
6
7
8
9
P
Keeping warm Sauces, keeps food ready for serving
at around 65 °C
Melting, gentle
warming
Swelling Rice
Continued cooking,
reducing, stewing
Continued cooking,
braising
Gentle frying Rösti (hash browns), omelettes,
Frying, deep frying Meat, chips
Flash frying Steak
Fast heating Boiling water
Butter, chocolate, gelatine, sauces
Vegetables, potatoes, sauces, fruit,
fish
Pasta, soup, braised meat
breaded fried foods, sausages
19
Page 20
5 Operating the appliance
5.4 Switching a cooking zone off
▸ Touch power level «0» on the slider.
– If no other entry is made and the other cooking zones are switched off,
the appliance switches off after 10seconds.
5.5 Residual heat indicator
After a cooking zone is switched off, remains illuminated as long as there is
a risk of burns.

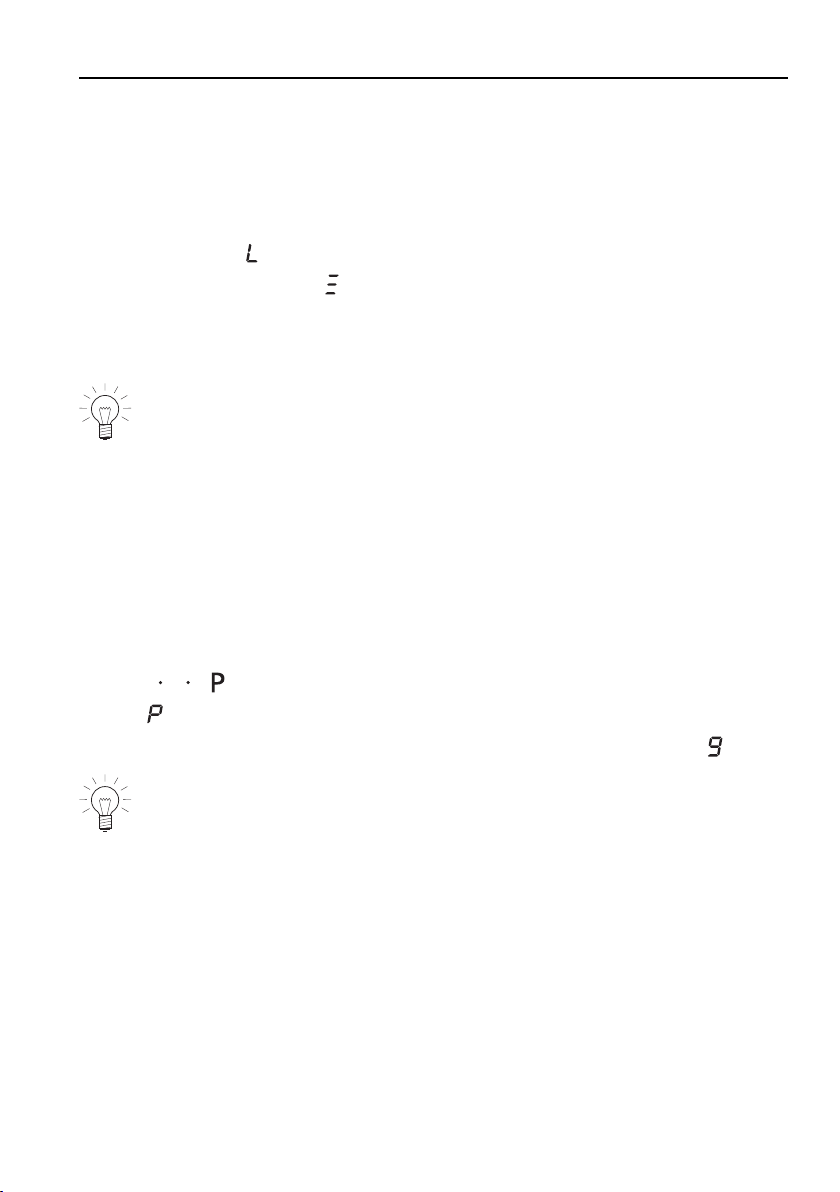

5.6 Keep warm setting
The keep warm setting keeps ready-cooked foods warm at approx. 65°C. It
can be found between power levels and .
5.7 Melting function
With the melting function, butter, chocolate or honey, for instance, can be
gently melted at 40°C.
Switching the melting function on
▸ Hold power level on the slider depressed for 2seconds.
– The symbol illuminates.
– The power level goes out.
Switching the melting function off
▸ Use the slider to set any power level.
20
Page 21
5 Operating the appliance
5.8 Simmer function
With the simmer function, sausages, dumplings and stuffed pasta, for instance,
can be cooked below boiling point at about 94°C.
Switching the simmer function on
▸ Press the level on the slider for 4seconds.
– Three cross pieces are illuminated in the power level display.
Switching the simmer function off
▸ Set any power level using the slider.
In locations higher than 1500m above sea level, we recommend using the simmer function without the pan lid.
5.9 PowerPlus
All the cooking zones are equipped with the PowerPlus booster.
When PowerPlus is switched on, the cooking zone selected works at extra
high power for 10minutes. PowerPlus can be used, for instance, to heat a
large quantity of water quickly.
Switching PowerPlus on
▸ Press on the slider.
– illuminates in the display.
– After 10minutes it automatically switches back to power level .
Removing the cookware interrupts PowerPlus. PowerPlus is resumed
as soon as the cookware is returned to the cooking zone.
Ending PowerPlus off before time
▸ Press the desired power level on the slider.
21
Page 22
5 Operating the appliance
1
2
3
4
A
B

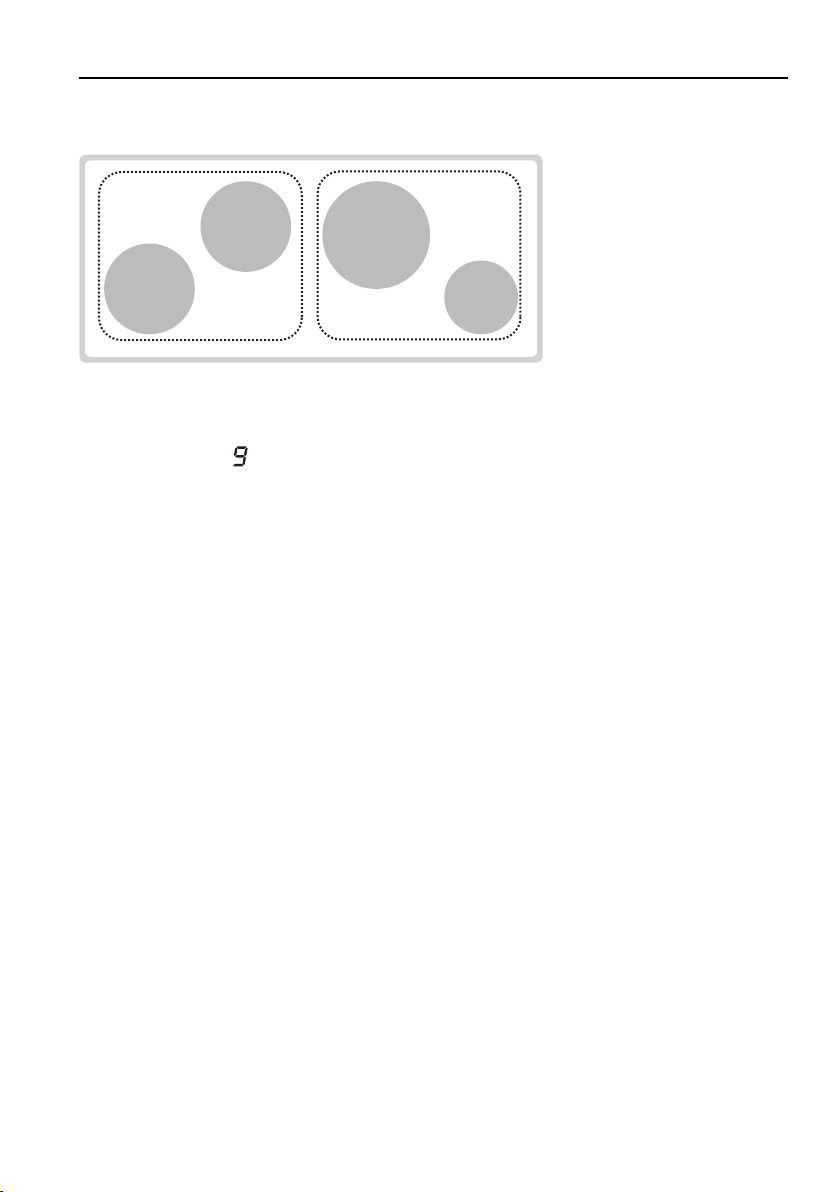

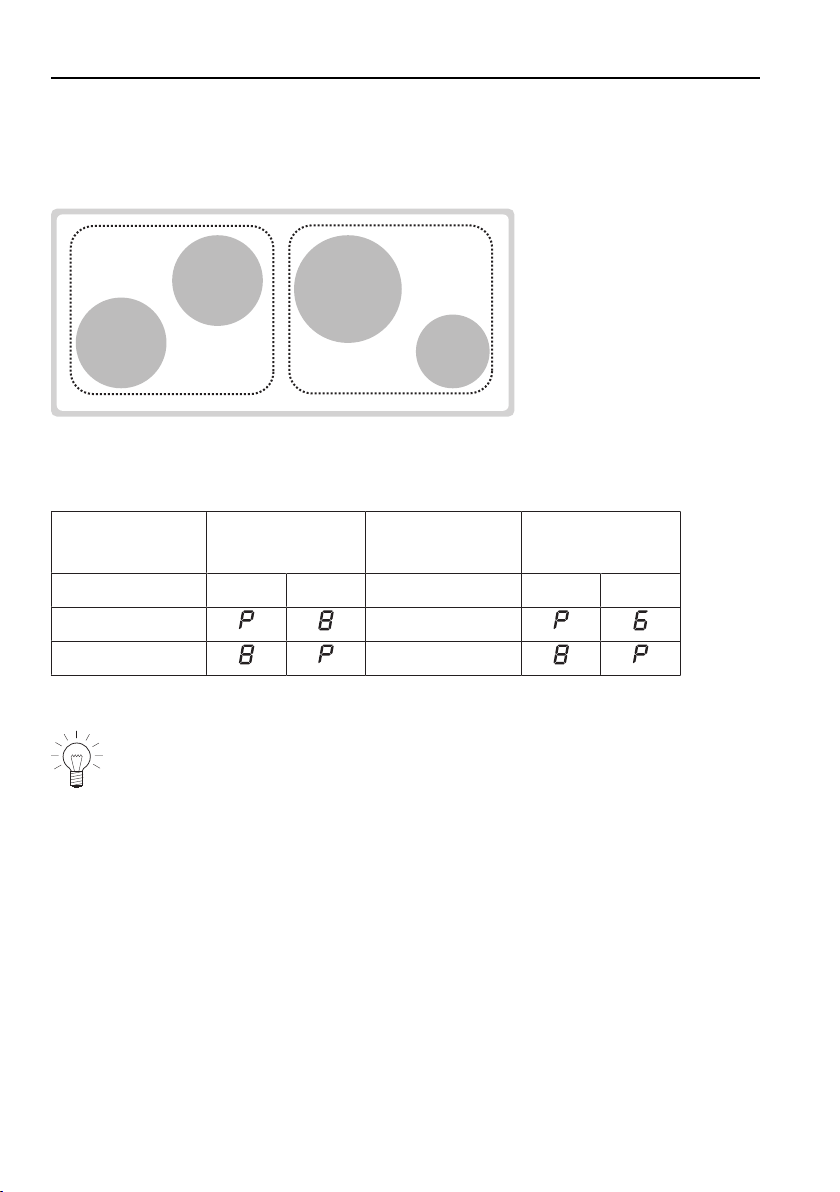

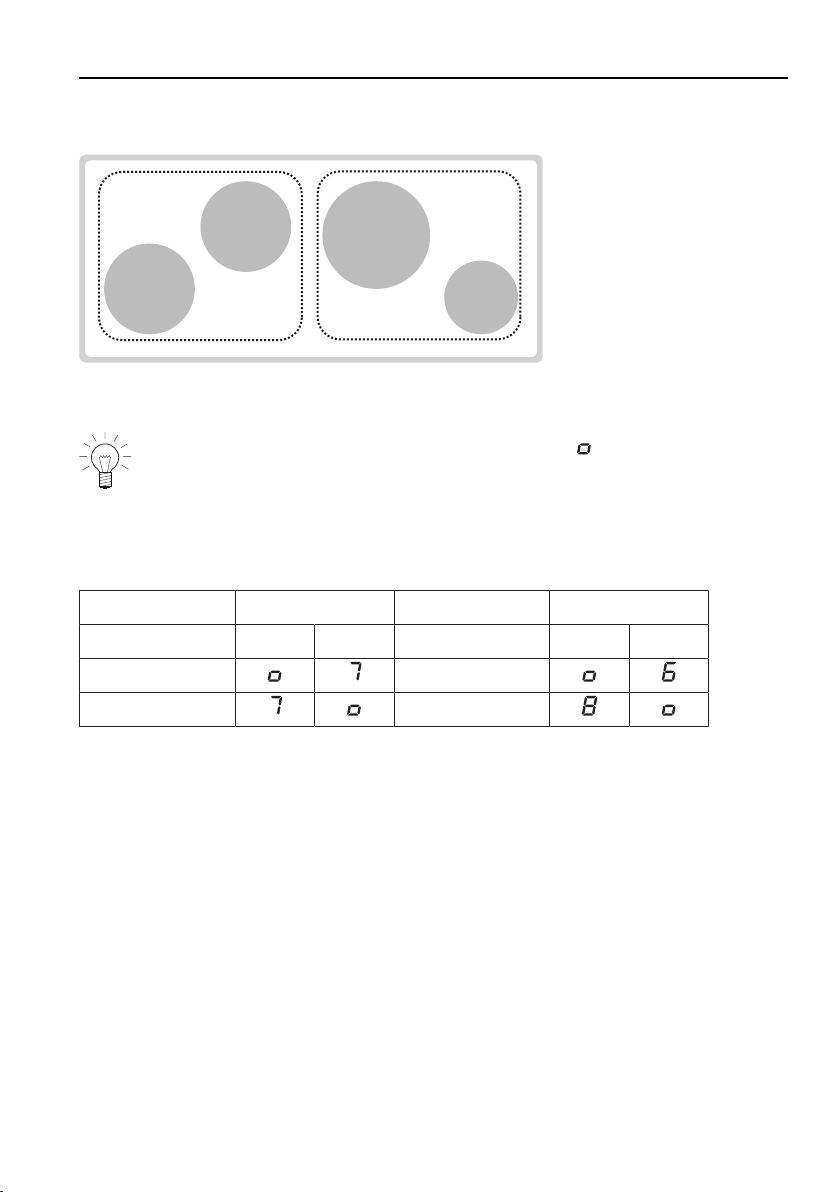

Power management
GK46TIAKS, GK46TIAKSC, GK46TIAKSF
PowerPlus cannot be used with both cooking zones of a group (A or B) at the
same time. If PowerPlus is activated with both cooking zones of a group, then
the power output is reduced for the cooking zone that was first selected.
PowerPlus with
cooking zone
1 3
2 4
* Maximum available power level with cooking zones
If the power level is increased above these levels, PowerPlus switches
off.
Group A * PowerPlus with
cooking zone
1 2 3 4
Group B *
22
Page 23
5 Operating the appliance
5.10 Automatic boost
Do not leave the hob unattended when using the automatic boost.
Risk of boiling over, burning on and igniting!
All the cooking zones are equipped with a selectable automatic boost. With
this function, a cooking zone works at power level for a certain length of
time (see table). Then it automatically switches back to the power level set.
The automatic boost function must be activated anew each time a cooking zone is switched on.
Automatic boost is switched off when the appliance is delivered from
the factory. If required the user setting P3 must be changed from 0 to
1, see the «User settings» section.
Power level
Boost in mins.:secs.
If during the automatic boost a higher power level is selected, the duration will change automatically.
1 2 3 4 5 6 7 8
0:40 1:15 2:00 3.00 4:15 7:15 2:00 3:15
Switching the automatic boost on
▸ Hold the desired power level on the slider depressed for 3seconds.
– and the power level illuminate alternately in the display when the
automatic boost is activated.
– When the automatic boost is over, the heat output is reduced again to
the power level selected.
Switching the automatic boost off before time
▸ Use the slider to set a lower power level.
23
Page 24
5 Operating the appliance

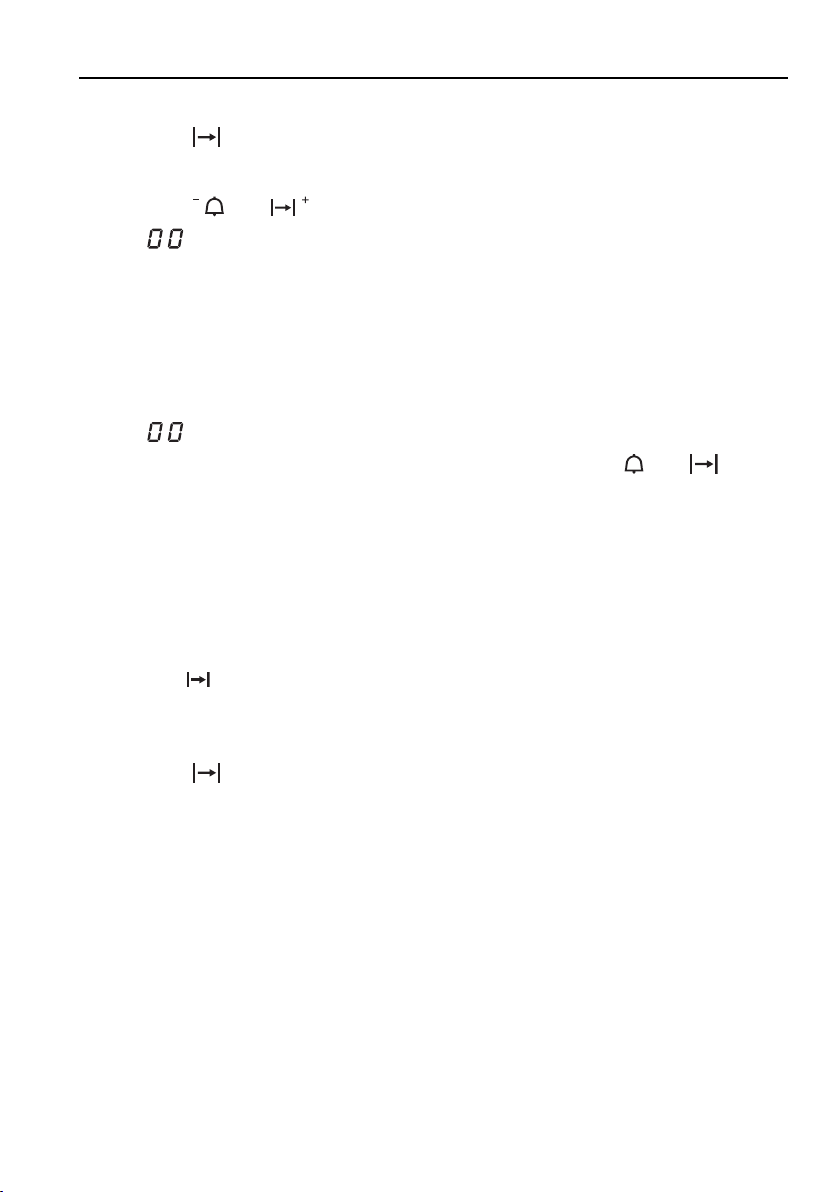

5.11 Operating time
Do not leave the hob unattended during use. Risk of boiling over,
burning on and igniting!
With the operating time function, a Cooking zone switches off automatically
after a set time 1 min.–1 h 59 min..
Setting the operating time
▸ Set the required cooking zone.
▸ Press the button.
– flashes in the display.
▸ Touch the slider of the required cooking zone.
– The symbol illuminates.
▸ Increase the operating time using the button or reduce the operating
time using the button.
– The indicator light for the cooking zone illuminates.
– When you press the button for the first time, is illuminated in the
display.
– When you press the button for the first time, is illuminated in
the display.
You can quickly change the operating time by holding down the
or buttons.
Changing the operating time
▸ Press the button.
– flashes in the display.
▸ Touch the slider of the required cooking zone.
– The remaining operating time for the cooking zone selected is dis-
played.
– The indicator light for the cooking zone illuminates.
▸ Use the or button to change the operating time.
24
Page 25
5 Operating the appliance
Switching the operating time function off before time
▸ Press the button.
▸ Touch the slider of the required cooking zone.
▸ Press the and buttons at the same time.
– flashes in the display.
– The cooking zone continues to run.
End of the operating time
After the operating time has ended:
– The assigned cooking zone switches off.
– An acoustic signal is emitted.
– and power level flash.
▸ Switch off the acoustic signal and display by pressing the and but-
tons.
Several operating times
If operating times are set for several cooking zones:
– The shortest operating time is illuminated in the display.
– The corresponding illuminated point of the cooking zone indicator light
is illuminated.
– The is illuminated for every cooking zone with a set operating time.
To display another operating time:
▸ Press the button.
▸ Touch the slider of the required cooking zone.
– The operating time is displayed and can be changed.
25
Page 26
5 Operating the appliance

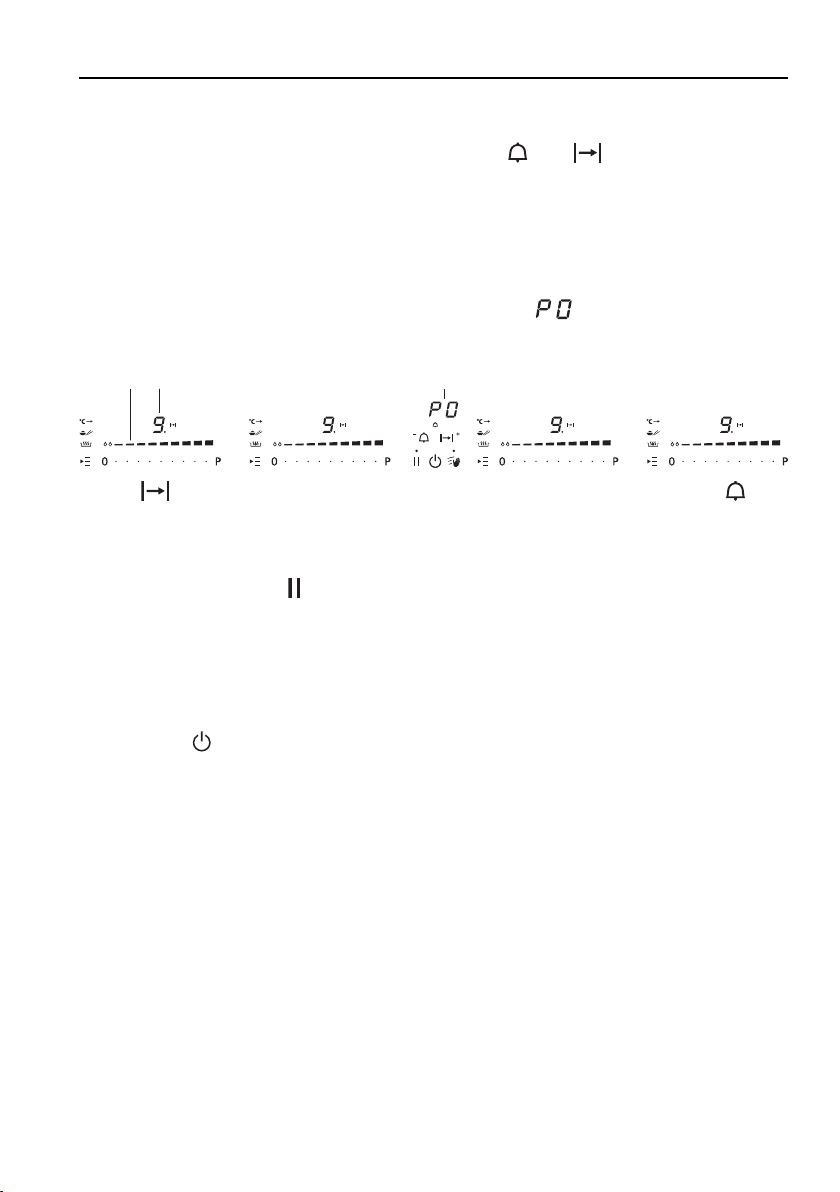

5.12 Timer
The timer functions like an egg timer (1 min.–9 h 59 min.).
It can be used at any time and independently of all other functions.
Setting the timer
▸ Switching the appliance on
▸ Press the button.
– The symbol illuminates.
– flashes in the display.
▸ Use the button to increase the duration of the timer or use the but-
ton to reduce the duration of the timer.
– The first time the button is pressed, illuminates in the display.
– The first time the button is pressed, illuminates in the display.
To quickly change the duration of the timer, press and hold the or
button.
Changing the timer
If no cooking zone is in use, first switch the appliance on.
▸ Press the button.
– The time left on the timer flashes.
▸ Use the or button to change the duration of the timer.
Switching the timer off before time
If no cooking zone is in use, first switch the appliance on.
▸ Press the button.
▸ Press the and buttons at the same time.
– flashes in the display.
26
Page 27
5 Operating the appliance
5.13 Childproof lock
The childproof lock is to prevent the appliance from being accidentally
switched on.
Switching the childproof lock on
▸ Switch the appliance on.
Ensure all cooking zones are switched off.
▸ Touch the and buttons at the same time.
– An acoustic signal is emitted.
▸ Touch the button again.
– An acoustic signal is emitted.
– The childproof lock is now switched on.
– illuminates in all the power level displays for 10seconds.
Operating the appliance with the childproof lock activated
▸ Switch the appliance on.
▸ Touch the and buttons at the same time.
– An acoustic signal is emitted.
– The childproof lock is overridden. The appliance can now be used as
normal.
The childproof lock is automatically reactivated 1minute after switching off the
hob.
Switching the childproof lock off
▸ Switch on the appliance.
No cooking zone must be in operation.
▸ Touch the and buttons at the same time.
– An acoustic signal is emitted.
▸ Press the button again.
– A double acoustic signal is emitted.
– The childproof lock is now switched off.
– On all power level displays, flashes for 10seconds.
27
Page 28
5 Operating the appliance
5.14 Restore function
If the appliance was switched off accidentally with the button, the settings
can be restored within 6seconds.
▸ Switch on the appliance.
– The illuminated point for the button flashes.
▸ Press the button.
5.15 Pause cooking
With this function, the power level of all cooking zones that are switched on
can be temporarily reduced to for up to 10minutes.
Thereafter, the appliance can continue to be operated using the previous settings.
Any activated automatic function is resumed.
▸ Press the button.
– The indicator light for the button illuminates.
– The power level of the cooking zone switched on changes to .
– The operating time is interrupted.
– The timer continues to run.
– All buttons except , and are inactive.
If the pause cooking function is not turned off within 10minutes, the
appliance switches off completely.
▸ Press the button again to resume cooking.
– The cooking zones resume operation using the previous settings.
28
Page 29
5 Operating the appliance
5.16 Wipe protection
This function prevents the power level from being changed accidentally, for instance when wiping the control panel with a cloth.
▸ Press the button.
– The indicator light for the button illuminates.
▸ Wipe protection is switched off by pressing the button again or automat-
ically after 30seconds.
Press the button to switch the appliance off at any time.
29
Page 30
6 Easy cooking
The easy cooking programmes are specific additional functions that make
cooking easier. Easy cooking comprises these functions:
Cooking control , rice control and temperature control .
The diameter of the cookware must correspond as closely as possible
to the diameter of the cooking zone for the easy cooking programmes
to function optimally. Move or lift the cookware as little as possible
while an easy cooking programme is running.
6.1 Cooking control
With cooking control , increased power is used to boil water. When boiling point is reached, the energy supply is automatically reduced and the food
to be cooked can be added. It is cooked at the continued cooking level selected.
Example uses: sauces, vegetables, soups, eggs or pasta
In order to correctly detect the boiling point, use cool, unsalted, unseasoned water only. Always use a lid when boiling water. Cooking
control can only be started on a cooking zone that is switched off.
Minimum and maximum quantity of water per cooking zone:
Diameter
of cooking zone
145mm 0.2l 1l
180mm 0.2l 3l
210mm 0.4l 4l
30
Minimum quantity
of water
Maximum quantity
of water
Page 31
6 Easy cooking
Selecting and starting cooking control
▸ Place the cookware with water and a lid on the desired cooking zone.
▸ Press the button once until the symbol flashes.
▸ Use the slider to set the desired continued cooking level (see 'Tips on set-
tings for cooking control' for examples of continued cooking levels).
– rotates in the power level display during boiling point detection.
– The bar graph display shows the continued cooking level that has
been selected.
– As soon as boiling point is detected, a 3x acoustic signal is emitted
and the set continued cooking level illuminates in the power level dis-
play.
▸ The seasoning and food can be added.
▸ Finish cooking at the desired continued cooking level with or without a lid.
The continued cooking level can be set or changed at any time. Press
on the slider to switch off cooking control before time.
When the boiling point is detected, if the water is not yet boiling then
continued cooking level can be set. In this way, water is quickly
brought to the boil without having to turn off cooking control.
31
Page 32
6 Easy cooking
Tips on settings for cooking control
Continued
cooking level
Cooking method /
Cooking stage
Use
1 Poaching with lid Stewing meat, smoked meat,
sausages
2 Poaching without lid Sausages
3 Simmering with lid Dumplings
4 Simmering gently with lid Vegetables in water, soup
5 Boiling moderately with lid Vegetables in steaming bas-
ket, chopped potatoes, whole
potatoes with skins, pulses
6 Simmering gently without lid /
Boiled eggs, pasta
Boiling moderately with lid
7 Simmering gently without lid /
Pasta
Boiling vigorously with lid
8 Boiling vigorously without lid Pasta, spätzli (egg noodles)
9 Fast boiling with lid For boiling water fast if boiling
point is detected too soon
32
Page 33
6 Easy cooking
1
2
3
4
A
B
Power management for cooking control
During the boiling point detection phase, cooking control cannot be used with
both cooking zones of a group (A or B) at the same time.
During the boiling point detection phase (when rotates in the power
level display), the other cooking zone in the same group can only be
used at a reduced power level and no automatic function can be started.
Maximum available power level with cooking zones:
Cooking zone Group A Cooking zone Group B
1 2 3 4
1 3
2 4
Cooking control always takes precedence. If the power level of the other cooking zone is increased above these levels, it will be automatically reduced.
33
Page 34
6 Easy cooking
6.2 Rice control
Rice control cooks rice without it boiling over or burning on the bottom.
The degree of doneness is controlled by adding water.
Degree of
doneness
Grainy in the
middle
Firm to the bite (al
dente)
Soft 1:2
Always use a lid when cooking rice. Adding more water to the rice
lengthens the cooking time. Rice control can only be started on a cooking
zone that is switched off.
Ratio of rice to water
1:1
1:1.5
Optimum amount per cooking zone
The following information on cooking times for different amounts of rice refer
to the most common types of rice such as long-grain, basmati, jasmine and
wild rice. Add another 15minutes to the cooking times below for unhusked
rice such as whole-grain rice.
Diameter of cooking zone Amount of rice Cooking time
145mm 100–400g 15–25min.
180mm 200–600g 20–35min.
210mm 400–1000g 20–40min.
34
Page 35
6 Easy cooking

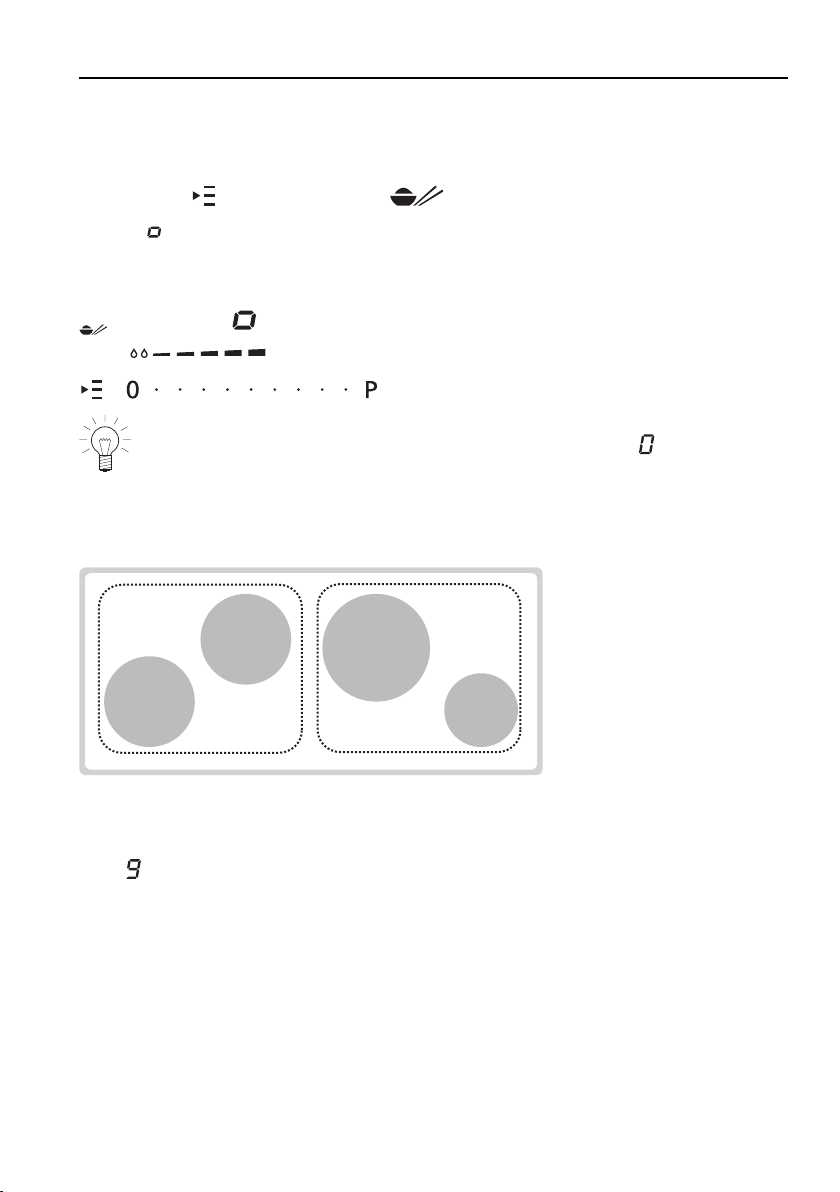

1
2
3
4
A
B
Selecting and starting rice control
▸ Place the rice, water and seasoning in a covered pan and put on the de-
sired cooking zone.
▸ Press the button 2× until the symbol flashes.
– rotates in the power level display.
– When the rice is cooked, an acoustic signal is emitted and the cooking
zone is switched off.
Rice control can be switched off at any time by pressing on the slider.
Power management for rice control
Rice control and PowerPlus cannot be used with both cooking zones of a
group (A or B) at the same time. Rice control always takes precedence. If
PowerPlus is set as the other power level, this cooking zone switches to
level .
35
Page 36
6 Easy cooking

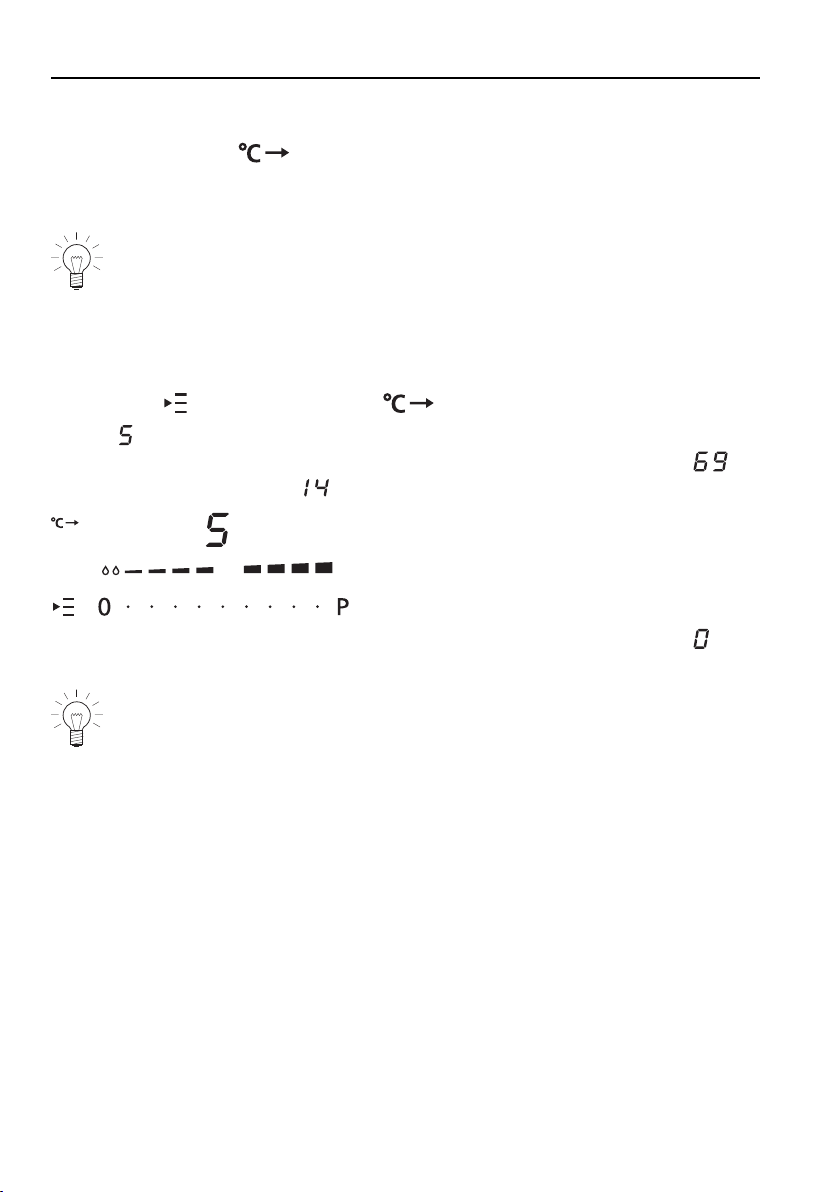

6.3 Temperature control
Temperature control keeps the set temperature of the pan bottom constant. Cooking conditions are kept constant without having to regulate the temperature further.
Example uses: Longer searing, searing several portions one after the
other (e.g. meat, omelettes), poaching dumplings, reducing sauces and
syrups
Selecting and starting temperature control
▸ Bring the cookware and the food to be cooked to the desired temperature.
▸ Press the button once until the symbol flashes.
– appears in the power level display. This number refers to the holding
temperature. The holding temperature can be raised with levels - or
lowered with levels - .
▪ The temperature control can be switched off at any time by pressing on
the slider.
The timing of when the temperature control is activated is very important
for subsequent optimal regulation. Certain points to note are:
– Temperature control may not be activated directly from PowerPlus.
– The desired cooking stage should be stable before activating temper-
ature control. Taking searing meat as an example: Heat oil in the pan.
Activate temperature control just before the meat is added.
– Cookware may be briefly removed from the cooking zone in order to,
for instance, add the next lot of mixture when preparing omelettes. The
cookware must then be placed exactly back on the cooking zone.
36
Page 37
6 Easy cooking
1
2
3
4
A
B
Power management for temperature control
Temperature control and PowerPlus cannot be used with both cooking zones
of a group (A or B) at the same time. Temperature control always takes precedence. If PowerPlus is set as the other power level, this cooking zone
switches to level .
37
Page 38
7 User settings
The following user settings can be individually set and saved:
User setting Setting value Factory
setting
P0
P1
P2
P3
P4
P5*
P6
Loudness of
acoustic signal
Acoustic signal at
end of operating
Operating time
Automatic boost 0 Automatic boost off 0
Default time
Acoustic signal
when button is
Restore factory
time / timer
PowerPlus
operating
time / timer
pressed
settings
0 Low 2
1 Medium
2 High
0 No acoustic signal 2
1 Automatically off after
10seconds
2 Automatically off after
1minute
0 Ends after 5minutes 1
1 Ends after 10minutes
2 Ends after 15minutes
1 Automatic boost on
0 Default time 0 minutes 3
1–9 Adjustable in steps from
10–90 minutes
0 Acoustic signal off 1
1 Acoustic signal on
0 Restoring factory settings:
Hold the button
depressed for 2seconds.
* When the operating time or timer is up or when error messages appear, an
acoustic signal is emitted at the level of loudness set in P0.
38
Page 39
7 User settings
1 32
7.1 Changing user settings
▸ When the hob is switched off, hold down the and buttons at the same
time for 3seconds.
– An acoustic signal is emitted.
▸ Press both left sliders at the same time.
– An acoustic signal is emitted.
– The user setting is shown in display 3, e.g. .
– The current default value of the user setting is shown in display 2.
▸ The button is used to select the next highest user setting and the but-
ton to select the next lowest.
▸ Press or swipe slider 1 to select a higher or lower default value.
▸ Saving entries: Hold button down for 2 seconds.
– An acoustic signal is emitted.
– The "User settings" mode is ended.
7.2 Cancelling user settings
▸ Press the button.
– Any changes made to the default values are not saved.
– The «User settings» mode is ended.
39
Page 40
8 Care and maintenance
Preferably, do not clean the appliance until it is cold.
Burns hazard!
Clean the hob after every use in order to prevent food residues from burning
on. Cleaning dried-on and burnt-on dirt requires more effort.
If the appliance is not cleaned correctly, the appearance and surface could be
damaged.
Do not clean the glass ceramic surface with scouring cleaning agents,
all purpose scouring pads, steel wool, etc. This can damage the surface.
▸ For cleaning everyday dirt, just use a soft cloth or sponge with water and a
suitable cleaning agent. Please follow the manufacturer's advice with regard
to cleaning agents. We recommend using protective cleaning agents.
▸ Remove encrusted dirt, e.g. from milk that has boiled over, with a glass
ceramic hob scraper while the hob is still warm. Please follow the manufacturer's advice with regard to the scraper.
▸ Remove sugary foods, such as marmalade, which have boiled over with a
glass ceramic hob scraper while the hob is still warm. Otherwise, this could
damage the glass ceramic surface.
▸ Remove melted plastic with a glass ceramic hob scraper while the hob is
still warm. Otherwise, this could damage the glass ceramic surface.
▸ Remove limescale stains using a small amount of lime-dissolving solution,
e.g. vinegar or lemon juice, when the hob has cooled down. Then clean
again with a damp cloth.
40
Page 41
9 Trouble-shooting
What to do if …
… the appliance is not working and the displays are not illuminated?
Possible cause Solution
▪ The fuse or circuit breaker for
electrical installations in the
home is defective.
▪ The fuse or circuit breaker
keeps blowing.
▪ An interruption in the power
supply.
… flashes alternately with the power level in the display?
Possible cause Solution
▪ Cookware is not suitable for
use with induction hobs.
▪ Cookware is too small for the
cooking zone selected.
... illuminates in the displays?
▸ Change the fuse.
▸ Reset the circuit breaker.
▸ Call Customer Services.
▸ Check the power supply.
▸ Use suitable magnetic cookware. See
«Cookware» section.
▸ Ensure cookware corresponds to the
size of the cooking zone.
Possible cause Solution
▪ The childproof lock is activ-
ated.
▸ For operating the appliance with the
childproof lock activated, see «Operating
the appliance» section.
▸ Switch the childproof lock off.
41
Page 42
9 Trouble-shooting
... A continuous acoustic signal is emitted, flashes in a display and the appliance switches off?
Possible cause Solution
▪ A button or a slider was
touched for longer than
10seconds.
▪ Object (e.g. pan, dish) on the
▸ Remove object or food that has boiled
over.
▸ The appliance can be used again as nor-
mal.
control panel.
▪ Food boiled over onto the
control panel.
... and flash alternately in the display?
Possible cause Solution
▪ The automatic safety shut-off
was triggered.
▸ Switch the cooking zone back on
again if required.
If a cooking zone has been running for longer without any settings being changed, the appliance switches the cooking zone off automatically, after how much time depends on the power level set.
Power level
Safety shut-off after hrs.:mins.
Power level
Safety shut-off after hrs.:mins.
42
L 1 2 3 4
2:00 2:00 8:30 6:30 5:30 4:30
5 6 7 8 9
3:30 3:00 2:30 2:00 1:30
Page 43
9 Trouble-shooting
... flashes in the display?
Possible cause Solution
▪ The excess temperature pro-
tection of a cooking zone
was triggered.
▸ Allow the cooking zone to cool down.
▸ Continue cooking on a different cooking
zone.
▸ Check cookware.
... flashes in the display?
Possible cause Solution
▪ An interruption in the power
supply.
▸ Press any button to quit the error mes-
sage.
▸ The appliance can be used again as nor-
mal.
… and are illuminated in the display?
Possible cause Solution
▪ An object , e.g. paper, un-
derneath the hob is affecting the air intake.
▸ Remove any objects in the drawer under-
neath the hob.
▸ Press any button to cancel the error mes-
sage.
▸ After 10 minutes the appliance can be used
again as normal.
▪ Ventilation is defective.
▸ Note down the error number.
▸ Note down the serial number (FN) of the ap-
pliance. See the identification plate for this.
▸ Call Customer Services.
43
Page 44
9 Trouble-shooting
… or and a number illuminate in the display?
Possible cause Solution
▪ Internal error occurred.
▸ Note down the error number.
▸ Note down the serial number (FN) of the
appliance. See the identification plate for
this.
▸ Call Customer Services.
... and illuminate alternately in the display?
Possible cause Solution
▪ Automatic function abor-
ted due to:
▪ pan lifted from cooking
▸ Press any button to quit the display.
▸ The appliance can be used again as nor-
mal.
zone for too long
▪ pan moved too vigorously
on cooking zone.
44
Page 45
10 Technical data
10.1 Product fiche
In accordance with EU Regulation No. 66/2014
Model number GK 90A
Type designation GK GK46TIAKS/C/F
Number of cooking zones 4
Heating technology Induction cooking zone
Diameter of round cooking
zones
Energy consumption per
cooking zone
Energy consumption for
hob EC
cm 18 18 21 14,5
Wh/kg 181,6 182,3 175,3 195,8
Wh/kg 183,8
45
Page 46
11 Index
A
Appliance
Switching off....................................... 52
Switching on....................................... 52
Switching on and off......................... 18
Appliance overview ................................. 13
Appliance-specific safety precautions
................................................................. 7
Automatic boost ....................................... 23
Switching off before time ................. 23
Switching on....................................... 23
C
Care and maintenance ........................... 40
Childproof lock ......................................... 27
Operating appliance with childproof
lock activated .............................. 27
Switching off....................................... 27
Switching on....................................... 27
Connection plate...................................... 12
Cooking control........................................ 30
Power management.......................... 33
Selecting and starting....................... 31
Tips on settings ................................. 32
Cooking zone .................................... 18, 52
Cookware .................................................. 17
Coated cookware .............................. 17
Energy-efficient cooking................... 17
Noise during cooking ....................... 17
Suitable cookware............................. 17
D
Disposal..................................................... 11
Appliance disposal ........................... 11
Disconnection .................................... 11
Packaging........................................... 11
E
Easy cooking ............................................ 30
I
Instructions for use ..................................... 8
M
Melting function........................................ 20
Switching off....................................... 20
Switching on....................................... 20
Model number ............................................. 2
N
Notes.......................................................... 48
O
Operating and display elements........... 14
Buttons ................................................14
Displays............................................... 15
Operating the appliance......................... 18
Operating time.......................................... 24
Changing ............................................ 24
Elapsed ............................................... 25
Setting ................................................. 24
Several operating times ...................25
Switching off before time ................. 25
Overview of power levels ....................... 19
P
Pan detection............................................ 16
Pause cooking.......................................... 28
Power levels.............................................. 21
Power management ................................ 22
PowerPlus.................................................. 21
Ending before time............................ 21
Switching on....................................... 21
Product family.............................................. 2
Product fiche............................................. 45
Q
Queries ...................................................... 51
Quick instructions .................................... 52
R
Residual heat indicator........................... 20
Restore function ....................................... 28
Rice control............................................... 34
Optimum amount per cooking zone....
34
46
Page 47
11 Index
Power management.......................... 35
Selecting and starting....................... 35
S
Safety precautions
General...................................................6
Safety shut-off ........................................... 42
Serial number (FN) .................................. 12
Service & Support.................................... 51
Service agreement................................... 51
Simmer function ....................................... 21
Switching off....................................... 21
Switching on....................................... 21
Symbols ........................................................ 5
T
Temperature control................................ 36
Power management.......................... 37
Selecting and starting....................... 36
Timer .......................................................... 26
Changing ............................................ 26
Ending before time............................ 26
Setting ................................................. 26
Trouble-shooting ...................................... 41
Type............................................................... 2
U
User settings............................................. 38
Changing ............................................ 39
Switching off before time ................. 39
Using for the first time............................. 12
V
Validity........................................................... 2
W
Where is the identification plate?.......... 12
Wipe protection ........................................ 29
Y
Your appliance ......................................... 13
47
Page 48
12 Notes
48
Page 49
49
Page 50
50
Page 51
13 Service & Support
The «Troubleshooting» section provides valuable tips for dealing with minor oper-
ating faults. This saves you the time, effort and potential cost of having to call out
a service technician.
Information on the V-ZUG warranty can be found at www.vzug.com →Service →Warranty in-
formation. Please read this information carefully.
Please register your V-ZUG appliance immediately:
▪ online via www.vzug.com→Service→Warranty registration, or
▪ using the enclosed registration card.
This will allow you to take advantage of the best possible support in the event of a fault in
the appliance during the guarantee period. You will require the serial number (FN) and ap-
pliance designation to complete the registration process. This information can be found on
the identification plate for your appliance.
My appliance information:
FN: ___________________ Appliance: _____________________
Always have this appliance information to hand when you contact V-ZUG. Thank you.
The identification plate and connection plate are located on the underside of the hob.
Your repair order
Call the free service number 0800 850 850 to contact your nearest
V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish.
General queries, accessories and service agreement
V-ZUG will be happy to help you with any general administrative or technical queries, to
accept your orders for accessories and spare parts and to inform you about our progress-
ive service agreements. You can contact us by calling Tel. + 41 58 767 67 67 or by going
to our website at www.vzug.com.
51
Page 52
Quick instructions
First, please read the safety precautions in the operating instructions.
Switching the appliance on
▸ Hold button down for 1second.
Setting the cooking zone
▸ Touch the slider of the required cooking zone or swipe it to set the power level.
Or:
▸ Press to heat large quantities of water quickly.
Switching the cooking zone off
▸ Touch on the slider.
Switching the appliance off
▸ Press the button.
V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug
Tel. +41 58 767 67 67, Fax +41 58 767 61 61
info@vzug.com, www.vzug.com
Service Centre: Tel. 0800 850 850
J90A013-R03
Loading...
