Page 1
V-ZUG Ltd
Glass ceramic hob
Induction Teppan Yaki
Operating instructions
Page 2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the time these operating instructio ns went to p ress. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Validity
The model number is made up of the first digits on the identification plate.
These operating instructions are valid for:
Type Model no.
GK16TIYSF 85A, 31008
GK26TIYSF 86A, 31009
Deviations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2012
2
Page 3
Contents
1 Safety precautions 4
1.1 Symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 General safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Appliance-specific safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Precautions on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2Disposal 11
3 Using for the first time 12
3.1 Where is the identification plate? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4 Your appliance 13
4.1 Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.2 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.3 Operating and display elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5 Operating the appliance 16
5.1 Residual heat indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.2 Switching the appliance on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3 Selecting the frying zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.4 Overview of frying temperatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.5 Switching the frying zone off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.6 Residual heat indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.7 Bridging function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.8 Operating time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.9 Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.10 Childproof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.11 Wipe protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6 User settings 24
6.1 Changing user settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.2 Cancelling user settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 Care and maintenance 26
7.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8 Trouble-shooting and error messages 27
8.1 What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9Notes 31
10 Index 34
11 Repair service 35
3
Page 4
1 Safety precautions
1.1 Symbols used
Denotes important safety precautions. Failure to observe said
precautions can result in injury or in damage to the appliance or
fittings!
Information and precautions that should be observed.
Information on disposal.
Information about the operating instructions.
➤ Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
• Indicates a list.
4
Page 5
1 Safety precautions
1.2 General safety precautions
• Read the operating instructions before using
the appliance for the first time!
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and/or knowledge, unless
they are supervised or have been given
instruction concerning use of the appliance by
a person responsible for their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
• If the mains cable of this appliance is
damaged, it must be replaced by the
manufacturer or its Customer Services or a
similarly qualified person in order to avoid
hazard.
5
Page 6
1 Safety precautions
1.3 Appliance-specific safety precautions
• WARNING: If the surface is cracked, switch
the appliance off and disconnect it from the
mains to avoid possible electric shock.
• WARNING: The appliance and its accessible
parts get hot during use. Be careful not to
touch the heating elements. Children under 8
years of age must be kept away unless
constantly supervised.
• These appliances can be used by children
aged 8 and above and by persons with
reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge
provided they have been given supervision or
instruction concerning the safe use of the
appliance and understand the hazards
involved. Children are not to play with the
appliance. Cleaning and user maintenance
should not be undertaken by children without
supervision.
6
Page 7
1 Safety precautions
• Never use a steam cleaner.
• Do not place metal objects such as knives,
forks, spoons, lids and aluminium foil on the
hob as they can get hot.
• WARNING: It can be dangerous to leave the
hob unattended when frying with fat or oil, as
this can lead to fires. NEVER attempt to extinguish a fire with water. Instead, switch the
appliance off and then carefully smother the
flames with, for instance, a lid or a fire blanket.
• WARNING: Never store objects on the top of
the hob because of fire hazard.
• Do not operate the appliance using an
external time switch or a separate remote
control system.
7
Page 8
1 Safety precautions
1.4 Precautions on use
Before using for the first time
• The appliance must be installed and connected to the mains supply in
accordance with the separate installation instructions. Have a qualified
fitter/electrician carry out the necessary work.
Correct use
• The appliance is designed for use in the home for preparing food. No
liability is assumed for any damage caused by improper or incorrect use.
• Any repairs, modifications or manipulations to the appliance, especially
any electrically live parts, may only be carried out by the manufacturer, its
Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the
Repair service section. If necessary, please contact our Customer
Services.
• Use original spare parts only.
• Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating instructions accompany the appliance, together with the instructions on installation.
• The appliance corresponds to recognised technology standards and the
relevant safety regulations. However, proper use of the appliance is
essential to avoid damage and accidents. Please observe the precautions
given in these operating instructions.
• The heated surface will remain hot for some time after it is switched off and
will cool down only slowly to room temperature. Please allow sufficient time
for the appliance to cool down before, for instance, cleaning it.
8
Page 9
1 Safety precautions
Note on use
• Induction hobs produce a high-frequency electro magnetic field around the
frying zones. Standing near the frying zones can under unfavourable
circumstances have an adverse effect on or affect the working of the
pacemaker, hearing aid or metallic implant.
• Tests have shown that under normal circumstances there is no risk to
cardiac pacemaker users. If, as the user of a cardiac pacemaker (or a
hearing aid or another type of implant), you would like to be reassured that
using the appliance does not pose a risk, you are advised to consult a
competent medical authority.
• Use the two turners to turn the food. It is possible to cut food on the frying
surface, but this is not recommended as the frying surface may become
scratched. Do not use ceramic knives to cut food on the frying surface.
• Do not hit the frying surface with the turner or knife tip as this can cause
nicks in the frying surface.
• Over time, the frying surface will show signs of use. This will not affect the
functioning or quality of the appliance in any way.
Caution: Risk of burns and fire!
• Overheated fat and oil can easily catch fire. Never attempt to extinguish
burning oil or fat with water. Danger of explosion! Smother the flames with
a fire blanket and keep all doors and windows closed.
9
Page 10
1 Safety precautions
Caution: Risk of injury!
• Keep animals away from the appliance.
Caution: Risk to life!
• Packaging materials, e.g. plastic and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging materials away from
children.
How to avoid damaging the appliance
• In case of overheating, switch the hot plate off and allow it to cool down
completely. Do not put any dishes on it. Under no circumstances use cold
water to cool it down quickly!
• Do not climb onto the appliance.
• Do not put hot cookware on the hob frame in order not to damage the
silicon joints.
• Do not cut or prepare food on the surface and avoid impact with hard
objects. Do not drag cookware across the surface.
• Do not leave the appliance unattended when in use.
10
Page 11
2 Disposal
Packaging
Danger of suffocation! Packaging materials (e.g. plastic,
polystyrene) can be dangerous for children. Keep packaging
materials away from children.
All packaging material is marked and should be collected for
recycling and disposed of in an environmentally friendly way.
Disconnection
➤ Pull the plug out of the mains socket or have the appliance disconnected
from the mains supply by an electrician. Then cut off the mains cable.
➤ Disable the appliance after disconnecting it.
Appliance disposal
• The symbol on the identification plate warns that the appliance may
not be disposed of in normal household waste.
• The appliance must be disposed of in accordance with local regulations
on waste disposal. For more information on the handling, disposal and
recycling of the product, please contact the local authorities, the local
recycling facilities for household waste or the retailer from whom you
purchased the appliance.
11
Page 12
3 Using for the first time
• The appliance must be installed and connected to the mains supply in
accordance with the separate installation instructions. Have a qualified
fitter/electrician carry out the necessary work.
• A frying zone can give off an unpleasant smell during the first few hours of
use. This is normal for brand new appliances. Ensure that the room is well
ventilated.
3.1 Where is the identification plate?
The identification plate and the connection plate are located on the underside
of the hob element.
12
1 Identification plate with serial number (FN)
2 Connection plate
A second identification plate is supplied and should be affixed in the fitted unit
underneath the hob.
Note down the serial number (FN) of your appliance on the back page of
these operating instructions.
12
Page 13
4 Your appliance
4.1 Appliance overview
GK16TIYSF
• Frying surface with 2 separately heatable frying zones,
total surface 316 x 334 mm
GK26TIYSF
• Frying surface with 2 separately heatable frying zones,
total surface 479 x 334 mm
13
Page 14
4 Your appliance

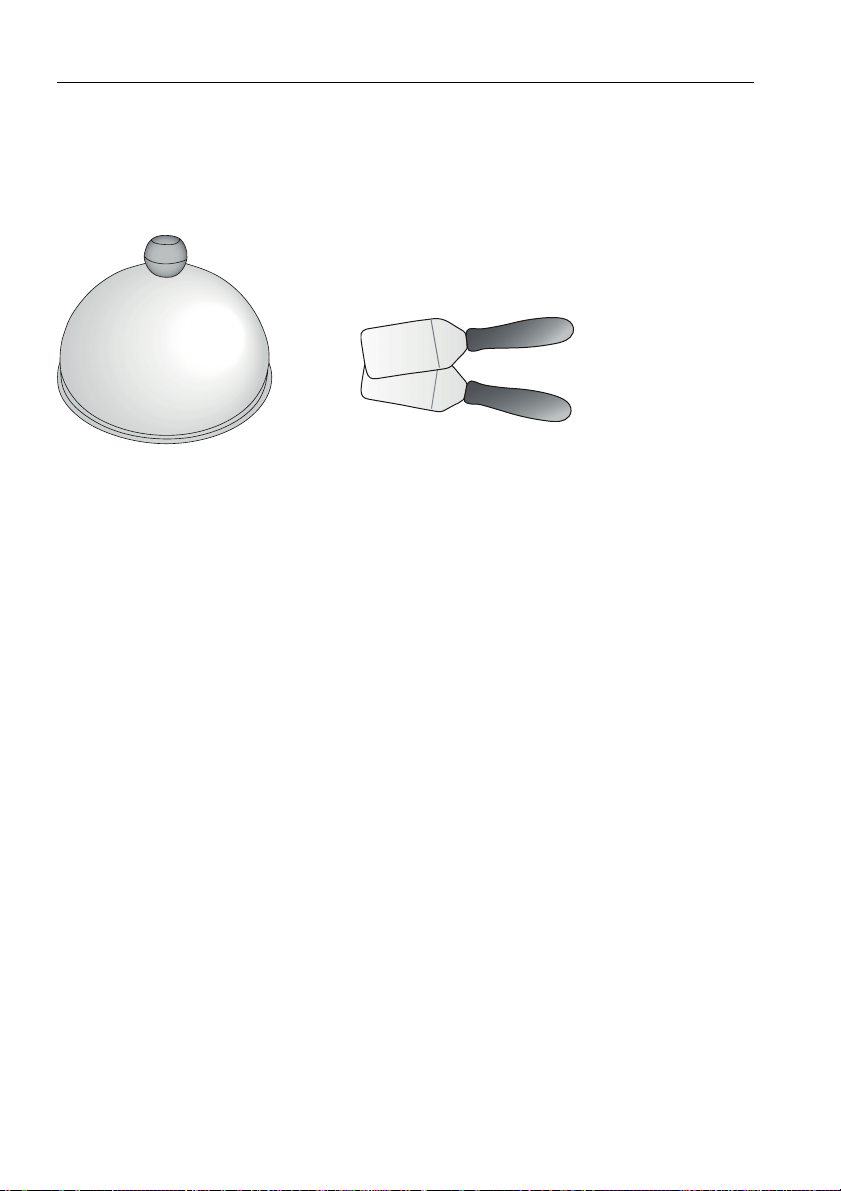

4.2 Accessories
• Wok cover, 250 mm in diameter
•2 turners
14
Page 15
4.3 Operating and display elements
GK16TIYSF/GK26TIYSF
23
1
11
10
9
4 Your appliance
5
4
6
8
Touch buttons
Appliance ON/OFF Wipe protection ON/OFF
Slider (for setting the frying
temperature)
Operating time Temperature selector
Timer
Displays
1 Heating-up/cooling-down/residual heat indicator
2 Operating time activated
3 Frying zone temperature display indicator
4 Bridging function activated
5 Operating time/timer and temperature display
6 Timer activated
7 Wipe protection activated
8 Frying zone slider indicator
9 Temperature selector meat
10 Temperature selector vegetables
11 Temperature selector fish
Bridging switch
7
15
Page 16
5 Operating the appliance
5.1 Residual heat indicator
The frying zones are all operated in the same way. When the appliance is
switched off, all the displays are dark (stand-by mode), except for the
residual heat indicator should any frying zone still be hot.
5.2 Switching the appliance on and off
➤ To switch appliance on: Depress the touch button for about 1 second.
– flashes in the temperature display.
– If no other entry is made, the appliance switches off after 10 seconds for
safety reasons.
➤ To switch the appliance off: Press the touch button.
5.3 Selecting the frying zone
➤ Press the slider for the required frying zone or slide your finger along it to
set the frying temperature.
– The frying zone temperature display indicator illuminates above the
corresponding slider.
– The frying temperature selected illuminates in the temperature display.
– When the appliance is heating up, appears in the display above
the slide.
– As soon as the frying temperature is reached, the heating indicator goes
out.
If a lower frying temperature is selected, appears as long as
the frying zone still remains too hot.
Even if using only one frying zone, the whole frying surface can get
hot. Do not put objects on the frying surface as they can melt or get
hot.
The frying temperature for fish (180 °C), vegetables (160 °C) and
meat (200 °C) can be also be set directly via the temperature preselection button.
16
Page 17
5.4 Overview of frying temperatures
5 Operating the appliance
Frying temperature (°C)
70 Keeping warm Prepared food under the wok cover
160 Gentle frying Vegetables
170 Fruit
180 Frying Fish and seafood, sausages, tofu, grilled cheese
190 Omelettes , egg dishes, fried rice and noodles
200 Chicken
210 Burger
220 Flash frying Meat (steak)
240 Meat (chopped or minced meat)
Cooking method Use
5.5 Switching the frying zone off
➤ Press on the slider.
– If no other entry is made and the other frying zone is switched off, the
appliance switches off after 10 seconds.
5.6 Residual heat indicator
After the cooking zone is switched off, remains illuminated in the display
as long as a burn hazard exists.
17
Page 18
5 Operating the appliance
5.7 Bridging function
The bridging function allows the two individual frying zones to be switched on
together and to be adjusted together.
Switching the bridging function on
➤ Press the touch button.
– The indicator light for the touch button illuminates.
If, when the bridging function is switched on, a frying zone is already
running, the frying temperature and operating time of this frying zone
will be taken over for both zones.
If both frying zones are already running, the operating times are
cleared and flashes in the temperature displays.
Switching the bridging function off
➤ Press the touch button.
– Both frying zones revert to the previous settings.
– Each frying zone can be adjusted individually again.
18
Page 19
5 Operating the appliance
5.8 Operating time
Do not leave food on the hob unattended during use. Risk of
burning on and igniting!
With the operating time function, the frying zone switches off automatically
after a set time (1 min. – 1 hr 59 mins.).
Setting the operating time
➤ Select the required frying zone.
➤ Press the touch button.
– flashes in the display.
➤ Touch the slider for the required frying zone and slide your finger along it
to set the operating time.
– The symbol illuminates.
To change the operating time, press and hold .
➤ Press the touch button to start the operating time.
– The frying temperature appears in the display again.
Displaying/changing the operating time
➤ Press the touch button.
– flashes in the display.
➤ Press the slider for the required frying zone.
– The remaining operating time for the frying zone selected is displayed.
➤ Using the slider, change the operating time.
19
Page 20
5 Operating the appliance
Switching the operating time function off before time
➤ Press the touch button.
➤ Press on the slider for the required frying zone.
– flashes in the display for the operating time/timer.
– The frying zone continues to run.
End of the operating time
When the operating time is up
– the relevant frying zone switches off
– an acoustic signal is emitted
– and flash.
➤ Press the or touch button to switch off the acoustic signal and the
displays.
20
Page 21
5 Operating the appliance
5.9 Timer
The timer functions like an egg timer (1 min. – 9 hr 59 mins.). It can be used
at any time and independently of all other functions.
Setting the timer
➤ Switch the appliance on.
➤ Press the touch button.
– flashes in the display.
➤ The required duration of the timer can be set using any slider.
To change the duration of the timer, press and hold .
If the hob is switched off, a timer that is active continues to run.
➤ Press the touch button to start the timer.
– If a frying zone is in use, the frying temperature will appear in the display
again.
Displaying/changing the timer
If no frying zone is in use, first switch the appliance on.
➤ Press the touch button.
– The time left on the timer flashes.
➤ The duration of the timer can be changed using any slider.
Switching the timer off before time
If no frying zone is in use, first switch the appliance on.
➤ Press the touch button.
➤ Press on any slider.
– flashes in the display.
21
Page 22
5 Operating the appliance
5.10 Childproof lock
The childproof lock is to prevent the appliance from being accidentally
switched on.
Switching the childproof lock on
➤ Switch the appliance on.
Ensure all frying zones are switched off.
➤ Press the and touch buttons at the same time.
– An acoustic signal is emitted.
➤ Press the touch button again.
– An acoustic signal is emitted.
– illuminates in all the power level displays for 10 seconds.
Operating the appliance with the childproof lock activated
➤ Switch the appliance on.
➤ Press the and touch buttons at the same time.
– An acoustic signal is emitted.
– The childproof lock is overridden. The appliance can now be used as
normal.
The childproof lock is automatically reactivated 1 minute after the frying zone
has been switched off.
Switching the childproof lock off
➤ Switch the appliance on.
Ensure all frying zones are switched off.
➤ Press the and touch buttons at the same time.
– An acoustic signal is emitted.
➤ Press the touch button again.
– A double acoustic signal is emitted.
– flashes in the temperature display.
22
Page 23
5 Operating the appliance
5.11 Wipe protection
This function prevents the frying temperature from being changed
accidentally, for instance when wiping the control panel with a cloth.
➤ Press the touch button.
– The indicator light for the touch button illuminates.
➤ Wipe protection is switched off by pressing the touch button again or
automatically after 30 seconds.
Press the button to switch the appliance off at any time.
23
Page 24
6 User settings
The following user settings can be set and stored individually.
User setting Setting value Factory setting
Loudness of acoustic
P0
P1
P4
P5*
P6
signal
Acoustic signal at end
of operating time/timer
Default time
operating time/timer
Acoustic signal
emitted when touch
button is pressed
Restore factory
settings
* When the operating time or timer is up or when error messages appear, an
acoustic signal is emitted at the level of loudness set in P0.
0low
2loud
0 No acoustic signal
2 Automatically off after 1 minute
0 Default time 0 minutes
1–9 Adjustable from 10–90 minutes
0 Acoustic signal off
1 Acoustic signal on
Restoring factory settings:
0
Hold the
for 2 seconds.
touch button depressed
21medium
21 Automatically off after 10 seconds
3
1
24
Page 25
6 User settings
6.1 Changing user settings
➤ With the hob switched off, simultaneously hold the and touch
buttons depressed for 3 seconds.
– An acoustic signal is emitted.
➤ Press both sliders at the same time.
– An acoustic signal is emitted.
– The user setting, e.g. , appears in display 3.
– The current setting value for the user settings appears in display 2.
1
➤ Use the touch button to select the next higher and the button the
2
3
next lower user setting.
➤ On slider 1, use to select a higher and a lower setting value.
➤ To save entries: Hold the touch button depressed for 2 seconds.
– An acoustic signal is emitted.
– The «User settings» mode is ended.
6.2 Cancelling user settings
➤ Press the touch button.
– Any changes made to setting values are not saved.
– The «User settings» mode is ended.
25
Page 26
7 Care and maintenance
To avoid risk of burns, allow the appliance to cool down before
cleaning.
7.1 Cleaning
Always clean the frying zone after use. This prevents food residue from
burning on. Dried-on or burned-on food residue is harder to clean off.
Use of improper cleaning techniques can result in damage to the markings
or surface.
Clean using the turner, a soft, heat-resistant cloth or sponge, water
and a suitable detergent and care product only. Always follow the
detergent manufacturer’s instructions for use.
➤ Put a few ice cubes or cold water on the hot frying surface (60-80 °C).
– Caution: This produces steam!
➤ Scrape the frying surface with the turner to remove most of the food
residue.
➤ Then clean the frying surface with water and detergent, rinse with clear
water and finally wipe dry.
➤ Remove limescale stains when cool with a small amount of limescale
remover (e.g. vinegar, lemon juice, descaler). Then wipe clean with a damp
cloth.
26
Page 27
8 Trouble-shooting and error messages
8.1 What to do if …
… the appliance is not working and the displays are not illuminated
Possible cause Solution
• The fuse or circuit breaker
for electrical installations
in the home is defective.
• The fuse or circuit breaker
keeps blowing.
• An interruption in the
power supply.
… illuminates in the displays
Possible cause Solution
• The childproof lock is
activated.
➤ Change the fuse.
➤ Reset the circuit breaker.
➤ Call Customer Services.
➤ Check the power supply.
➤ For operating the appliance with the child-
proof lock activated, see the section on
Operating the appliance.
➤ Switch the childproof lock off.
27
Page 28
8 Trouble-shooting and error messages
… a continuous acoustic signal is emitted, flashes in a display and the
appliance switches off
Possible cause Solution
• A touch button or a slider
was touched for longer
than 10 seconds.
➤ Remove the object.
➤ The appliance can be used again as
normal.
• Object (e.g. pan, dish) on
the control panel.
… and flash alternately in the display
Possible cause Solution
• The automatic safety
➤ Switch the frying zone back on if required.
shut-off has been
triggered.
If a frying zone has been running for longer without any settings being
changed, the appliance switches the frying zone off automatically,
Temperature setting °C 70 160 170 180 190 200 210 220 240
Safety shut-off after mins. 120 120 120 120 120 120 120 120 60
after how much time depends on the power level set.
28
Page 29
8 Trouble-shooting and error messages
… flashes in the display
Possible cause Solution
• The excess temperature
protection of a frying zone
➤ Allow the frying zone to cool down.
➤ Resume frying on a different frying zone.
has been triggered.
… flashes in the display
Possible cause Solution
• An interruption in the
power supply.
➤ Press any touch button to cancel the error
message.
➤ The appliance can be used again as
normal.
… and illuminate in the display
Possible cause Solution
• An object, e.g. paper,
underneath the frying
zone is affecting the air
intake.
➤ Remove any objects in the drawer under-
neath the frying zone.
➤ Press any button to cancel the error
message.
➤ After 10 minutes, the appliance can be
used again as normal.
• Ventilation is defective.
➤ Note down the error number.
➤ Note down the serial number (FN) of the
appliance. See the identification plate for
this.
➤ Call Customer Services.
29
Page 30
8 Trouble-shooting and error messages
… or and a number illuminate in the display
Possible cause Solution
• Internal error occurred. ➤ Note down the error number.
➤ Note down the serial number (FN) of the
appliance. See the identification plate for
this.
➤ Call Customer Services.
30
Page 31
9Notes
31
Page 32
9 Notes
32
Page 33
9 Notes
33
Page 34
10 Index
A
Appliance
Switching off . . . . . . . . . . . . . 16, 36
Switching on . . . . . . . . . . . . . 16, 36
Appliance overview . . . . . . . . . . . . 13
B
Before using for the first time . . . . . . 8
Bridging function
Switching off . . . . . . . . . . . . . . . . 18
Switching on . . . . . . . . . . . . . . . . 18
C
Care . . . . . . . . . . . . . . . . . . . . . . . 26
Caution
Risk of burns and fire . . . . . . . . . . . 9
Risk of injury . . . . . . . . . . . . . . . . 10
Changing user settings . . . . . . . . . 25
Childproof lock . . . . . . . . . . . . . . . 22
Cleaning . . . . . . . . . . . . . . . . . . . . 26
Correct use . . . . . . . . . . . . . . . . . . . . 8
D
Displays . . . . . . . . . . . . . . . . . . . . 15
Disposal . . . . . . . . . . . . . . . . . . . . 11
Appliance disposal . . . . . . . . . . . 11
Disconnection . . . . . . . . . . . . . . . 11
E
Error messages. . . . . . . . . . . . . . . 27
F
Frying temperatures
Overview . . . . . . . . . . . . . . . . . . . 17
Frying zone . . . . . . . . . . . . . . . 16, 36
Switching off . . . . . . . . . . . . . . . . 17
H
How to avoid damaging the
appliance . . . . . . . . . . . . . . . . . . . 10
I
Identification plate . . . . . . . . . . 12, 35
M
Maintenance . . . . . . . . . . . . . . . . . . 26
Malfunction . . . . . . . . . . . . . . . . . . . 35
Model no. . . . . . . . . . . . . . . . . . . . . . 2
N
Note on use . . . . . . . . . . . . . . . . . . . 9
O
Operating elements . . . . . . . . . . . . 15
Operating the appliance . . . . . . . . . 16
Operating time . . . . . . . . . . . . . . . . 19
P
Precautions on use . . . . . . . . . . . . . . 8
Q
Quick instructions . . . . . . . . . . . . . . 36
R
Repair service. . . . . . . . . . . . . . . . . 35
Residual heat indicator . . . . . . 16, 17
S
Safety precautions . . . . . . . . . . . . . . 4
Appliance-specific. . . . . . . . . . . . . . 6
Before using for the first time . . . . . 8
General. . . . . . . . . . . . . . . . . . . . . . 5
Serial number (FN) . . . . . . . . . 12, 35
Symbols . . . . . . . . . . . . . . . . . . . . . . 4
T
Timer. . . . . . . . . . . . . . . . . . . . . . . . 21
Touch buttons . . . . . . . . . . . . . . . . . 15
Trouble-shooting . . . . . . . . . . . . . . . 27
Type . . . . . . . . . . . . . . . . . . . . . . . . . 2
U
User settings. . . . . . . . . . . . . . . . . . 24
Using for the first time. . . . . . . . . 8, 12
V
Validity . . . . . . . . . . . . . . . . . . . . . . . 2
W
Wipe protection. . . . . . . . . . . . . . . . 23
34
Page 35
11 Repair service
The
Trouble-shooting and error messages section will help you to carry
out small repairs yourself, saving you the time and trouble of calling
out a service technician and the cost that goes along with it.
Whether you contact us about a malfunction or an order, please always state
the serial number (FN) and the model type of your appliance. Enter these
details below and also on the service sticker which comes with the appliance.
Stick it in a conspicuous place or in your telephone or address book.
FN
You will also find the same details on the certificate of guarantee, the original
sales invoice and the identification plate of the appliance.
Appliance
35
Page 36
Quick instructions
Please first read the safety precautions in the operating instructions!
To switch appliance on
➤ Hold the touch button depressed for about 1 second.
To select frying zone
➤ Press the slider for the required frying zone or slide your finger along it to
set the temperature for frying.
To switch off the frying zone
➤ Press on the slider.
To switch appliance off
➤ Press the touch button.
V-ZUG Ltd
Industriestrasse 66, CH-6301 Zug
vzug@vzug.ch, www.vzug.com
J85A.361-1
Loading...
