V-ZUG 6400160003 Specifications Sheet

V-ZUG Australia Pty. Ltd

2/796 High Street East Kew Vic 3102, VICTORIA/Australia

Phone [phone]

[e-mail], www.vzug.com

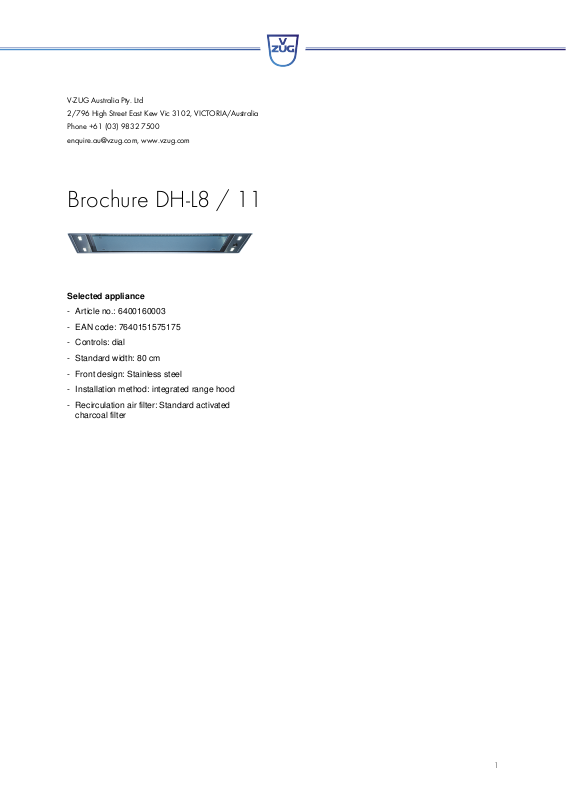

Brochure DH-L8 / 11

Selected appliance

- Article no.: 6400160003

- EAN code: 7640151575175

- Controls: dial

- Standard width: 80 cm

- Front design: Stainless steel

- Installation method: integrated range hood

- Recirculation air filter: Standard activated
charcoal filter

1

Details DH L8

Design

- Controls: dial

- Standard width: 80 cm

- Front design: Stainless steel

- Installation method: integrated range hood

- Recirculation air filter: Standard activated charcoal filter

Dimensions

- Appliance height: 300 mm

- Front height: 300 mm

- Height: Extracted air/recirculation air: 30 cm

- Appliance width: 800 mm

- Appliance depth: 300 mm

- Max. appliance depth: 300 mm

- Empty weight: 25.5 kg

Display and operation

- Controls: dial

- Fan power level display

- Lighting: LED

- Number of lights: 4

Energy

- Energy efficiency rating: C

- Annual energy consumption: 90.8 kWh

- Lighting efficiency rating: A

- Fluid dynamic efficiency: 22.9

- Fluid dynamic efficiency rating: C

- Type of connection (1): 220-240V~

- Nominal lighting output (quantity x W): 4 x 3

- Frequency (1): 50/60Hz

- Connected loads (1): 0.2 kW

- Fuse protection (1): 10 A

- Plug type: Schuko 16A

- Plug type B: AS/NZS 3112

- Connection cable: 1.5 m

- Grease filter cleaning indicator

- Power levels: 3 + i

- Fleece grease filter: 1

- Side exhaust

- Non-return flap, integrated/attached: included

Functions

- Grease filter cleaning indicator

- Side exhaust

- recirculation air

- Intensive setting

- Automatic after-running time

Additional data

- Exhaust air connection (diameter): 150 mm

- Lighting efficiency: 32

- Illumination on cooking surface: 382 lux

- Grease absorption capacity rating: E

- Extracted air output, intensive setting: 563 m³/h

- Extracted air output, max. setting: 469 m³/h

- Extracted air output, min. setting: 228 m³/h

- Recirculation air output, intensive setting: 322 m³/h

- Recirculation air output, max. setting: 233 m³/h

- Recirculation air output, min. setting: 146 m³/h

- Extracted air noise output, intensive setting: 61 dB(A)

- Extracted air noise level, max. setting: 57 dB(A)

- Extracted air noise output, min. setting: 40 dB(A)

- Motor(s): 1

- Motor output: 188 W

- Feature level: 3

Service and interfaces

- Warranty: 2 years

Range hood features

2
