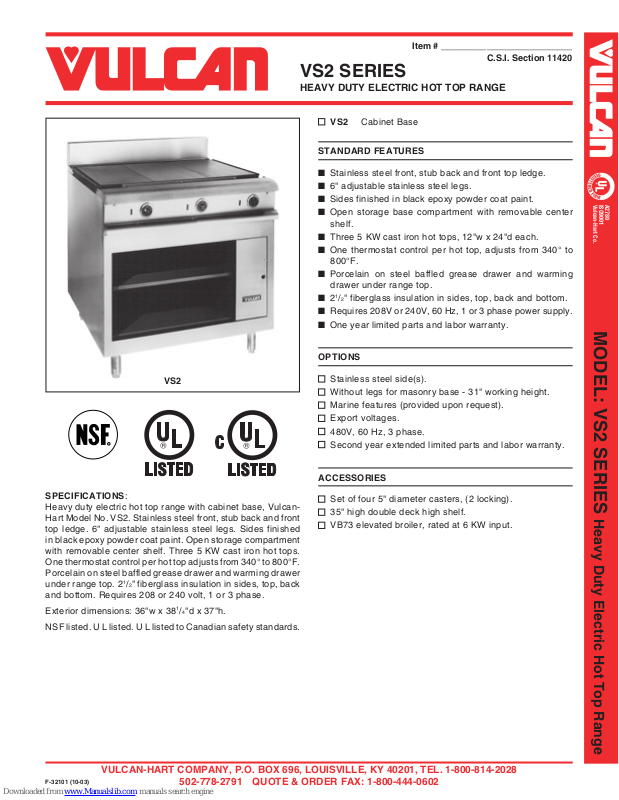

Vulcan-Hart VS2 SERIES, VS2 W/VB73 Quick Manual
Item # __________________________
C.S.I. Section 11420
VS2 SERIES
HEAVY DUTY ELECTRIC HOT TOP RANGE
■■ VS2 Cabinet Base
STANDARD FEATURES
■ Stainless steel front, stub back and front top ledge.
■ 6" adjustable stainless steel legs.
■ Sides finished in black epoxy powder coat paint.
■ Open storage base compartment with removable center
shelf.
■ Three 5 KW cast iron hot tops, 12"w x 24"d each.
■ One thermostat control per hot top, adjusts from 340° to
800°F.
■ Porcelain on steel baffled grease drawer and warming
drawer under range top.
1
/2" fiberglass insulation in sides, top, back and bottom.
■ 2
■ Requires 208V or 240V, 60 Hz, 1 or 3 phase power supply.
■ One year limited parts and labor warranty.
Vulcan-Hart Co.
ISO9001
A2780
MODEL: VS2 SERIES
VS2
SPECIFICATIONS:
Heavy duty electric hot top range with cabinet base, VulcanHart Model No. VS2. Stainless steel front, stub back and front
top ledge. 6" adjustable stainless steel legs. Sides finished
in black epoxy powder coat paint. Open storage compartment
with removable center shelf. Three 5 KW cast iron hot tops.
One thermostat control per hot top adjusts from 340° to 800°F.
Porcelain on steel baffled grease drawer and warming drawer
under range top. 2
and bottom. Requires 208 or 240 volt, 1 or 3 phase.
Exterior dimensions: 36"w x 38
NSF listed. U L listed. U L listed to Canadian safety standards.
1
/2" fiberglass insulation in sides, top, back
1
/4"d x 37"h.
OPTIONS
■■ Stainless steel side(s).
■■ Without legs for masonry base - 31" working height.
■■ Marine features (provided upon request).
■■ Export voltages.
■■ 480V, 60 Hz, 3 phase.
■■ Second year extended limited parts and labor warranty.
ACCESSORIES
■■ Set of four 5" diameter casters, (2 locking).
■■ 35" high double deck high shelf.
■■ VB73 elevated broiler, rated at 6 KW input.
Heavy Duty Electric Hot Top Range
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32101 (10-03)
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
VS2 SERIES
HEAVY DUTY ELECTRIC HOT TOP RANGE
HOT TOP
SINGLE TEMP.
CONTROL
TOP VIEW
FRONT VIEW
TOTAL 3 PHASE LOAD 3 PHASE 1 PHASE
KW KW PER PHASE 208V 240V
UNIT CONN. X-Y Y-Z X-Z X Y Z X Y Z
VS2 15 5 5 5 4242423636367263
VS2 W/VB73 21 8 8 5 54 67 54 47 58 47 101 88
TOTAL KW PER PHASE PER LINE WIRE
KW 408 VOLT 3 PHASE 1 PHASE
UNIT CONN. X-Y Y-Z X-Z X Y Z X & Z
VS2 15 5 5 5 18 18 18 31
VS2 W/VB73 21 5 11 5 18 29 29 44
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
F-32101 (10-03)
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
SIDE VIEW
VS RANGES
208/240 VOLT
NOMINAL AMPS/LINE WIRE
208V 240V
VS RANGES
480 VOLT
3 PHASE LOAD NOMINAL AMPS
