Vulcan Hart V336HS Installation Manual
ONE POWERFUL PACKAGE
OPERATIONS MANUAL
V SERIES HDR
GAS RANGES
TOPS
Open Top
Hot Top
Griddle Top
Plancha Top
Work Surface
- NOTICE -
This manual is prepared for use by trained service technicians and
should not be used by those not properly qualified. If you have
attended a service school for this product, you may still be qualified to
perform the procedures described in this manual. This manual is not
intended to be all encompassing. If you have not attended a service
school for this product, you should read, in its entirety, the repair
procedure you wish to perform to determine if you have the necessary
tools, instruments and skills required to perform the procedure.
Procedures for which you do not have the necessary tools,
instruments and skills should be performed by a trained service
technician.
BASES
Standard Oven
Convection Oven
Cabinet Base
For additional information on Vulcan- Hart or to locate an authorized parts and service
provider in your area, visit our website at www.VulcanEquipment.com.
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANEQUIPMENT.COM
3600 NORTH POINT BLVD.
BALTIMORE, MD 21222
F-37403 (03/11) REV 3
IMPORTANT FOR YOUR SAFETY
THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL GAS
EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START-UP AND
ADJUSTMENTS OF THE EQUIPMENT COVERED BY THIS MANUAL.
POST IN A PROMINENT LOCATION THE INSTRUCTIONS TO BE FOLLOWED IN THE
EVENT THE SMELL OF GAS IS DETECTED. THIS INFORMATION CAN BE OBTAINED
FROM THE LOCAL GAS SUPPLIER.
IMPORTANT
IN THE EVENT A GAS ODOR IS DETECTED, SHUT
DOWN UNITS AT MAIN SHUTOFF VALVE AND
CONTACT THE LOCAL GAS COMPANY OR GAS
SUPPLIER FOR SERVICE.
FOR YOUR SAFETY
Do not store or use gasoline or other
ammable vapors or liquids in the
vacinity of this or any other appliance.
Impr oper in stal lati on, adjustment ,
alteration or modication, service or
maintenance c an cau se pro per ty
dama ge, inj ury or deat h. R ead the
installation, operating and maintenance
instructions tho rou ghl y b efo re
installing or servicing this equipment.
IN THE EVENT OF A POWER FAILURE, DO NOT
ATTEMPT TO OPERATE THIS DEVICE.
— 2 —

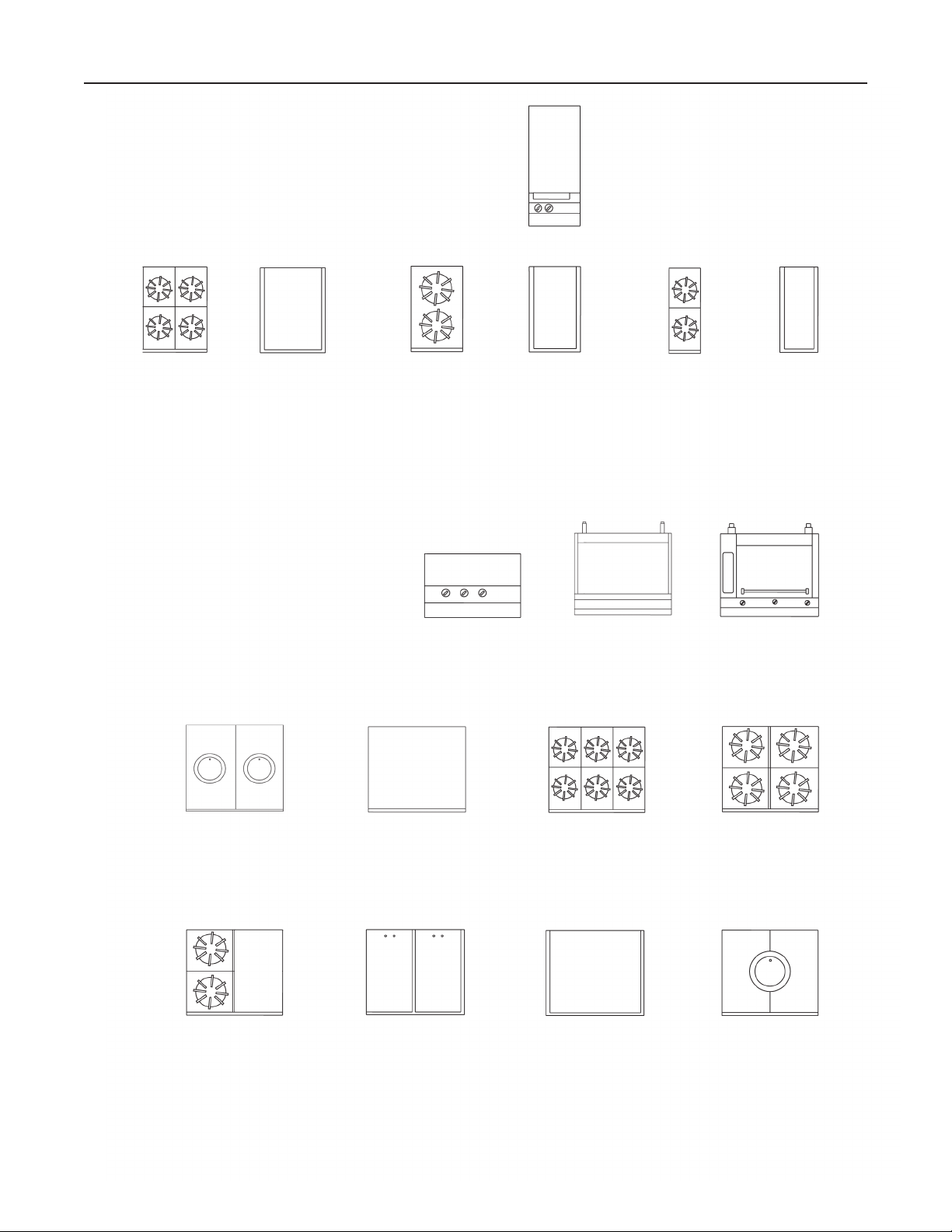

CONFIGURATION OF HEAVY DUTY RANGES
36” WIDE RANGES
V1FT36
V4B36
V4B36U
VGM36
VGMT36
V6B36
V6B36U
V2P36
VWT36
V236H
36” WIDE CHARBROILER
V2BG18
V2BG8T
V2FT36
36” WIDE DOUBLE FRENCH TOP
12”, 18” & 24” WIDE EXPANDO RANGES
— 3 —
24” WIDE CHARBROILER
Installation, Operation and Care Of
HEAVY DUTY SECTIONAL GAS RANGES
PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE
GENERAL
Heavy duty sectional ranges are produced with quality workmanship and material. Proper installation, usage
and maintenance of your range will result in many years of satisfactory performance.
The manufacturer suggests that you thoroughly read this entire manual and carefully follow all of the
instructions provided.
INSTALLATION
UNPACKING
This range was inspected before leaving the factory. The transportation company assumes full responsibility
for safe delivery upon acceptance of the shipment. Immediately after unpacking, check for possible shipping damage
If the range is found to be damaged, save the packaging material and contact the carrier withing 15 days of delivery.
Carefully unpack range(s) and place in the approximate installation position, whether as a battery or single standalone range.
Remove parts (packed in a cardboard box) from oven cavity, or cabinet body, or on top of modular range(s).
Remove wire or nut from rear of each burner before installing the range.
Before installing, check the electrical service (Convection Oven Models only) and type of gas supply
(natural or propane) to make sure they agree with the specications on the rating plate located on the
inside of the burner box lower panel. The rating plate will show the voltage, phase, cycle, full load
ampere, BTU, as well as the type of gas. If the supply and equipment requirements do not agree, do
not proceed with the installation. Contact your dealer or manufacturer.
LOCATION
The equipment area must be kept free and clear of combustible substances.
INSTALLATION CLEARENCES
Open Tops: 6" at rear to combustible construction and 0” to non-combustible.
10" at sides to combustible construction and 0" at sides for non-combustible constructions.
Hot Tops / Manual Griddles: 6” at rear to combustible construction and 0” to non-combustible.
4" at sides to combustible construction and 0" to sides for non-combustible constructions.
Thermo-Controlled Griddle / French Plate: 6" at rear to combustible construction and 0“ to
non-combustible. 2" at sides to combustible construction and 0" to sides for non-combustible constructions.
Work Top: 0" at sides and rear to combustible and non-combustible construction.
Ovens: Standard Oven - 3” at sides and rear for combustible and 0” to non-combustible construction.
Convection Oven - 1” at sides and rear for combustible and 0” to non-combustible construction.
— 4 —
The ranges are suitable for installation on combustible oors when 6" (152 mm) adjustable legs are
used. When legs are removed, use only on noncombustible oors, curb, or platform, with front
appliance projecting 3" (76 mm) beyond curb or platform.
Ranges with convection ovens should be installed on 6" (152 mm) legs or casters, allowing 6" (152 mm)
clearance from the rear of the range. If ranges with convection ovens are installed directly on curbs,
without legs, or in back-to-back installations, provisions must be made for adequate air circulation, and
these provisions must be approved by the manufacturer's Service Department. Contact the Service
Department at the address or phone number shown on the front cover of this manual.
All modular ranges are to be installed only on non-combustible oors.
The installation location must allow adequate clearances for servicing and proper operation. A
minimum front clearance of 35" (889 mm) is required.
The range(s) must be installed so that the ow of combustion and ventilation air will not be obstructed.
Adequate clearance for air openings into the combustion chamber(s) must be provided. Make sure
there is an adequate supply of air in the room to allow for combustion of the gas at the burners.
INSTALLATION CODES AND STANDARDS
Your range(s) must be installed in accordance with:
In the United States:
1. State and local codes.
2. National Fuel Gas Code, ANSI/Z223.1/NFPA #54 (latest edition). Copies may be obtained
from The American Gas Association, Accredited Standards Committee Z223 @ 400 N.
Capital St. NW, Washington, DC 2001 or the Secretary Standards Council, NFPA,
1 Batterymarch Park, Quincy, MA 02169-7471.
NOTE: In the Commonwealth of Massachusetts, All gas appliances vented through a
ventilation hood or exhaust system equipped with a damper or with a power means of
exhaust shall comply with 248 CMR.
3. Vapor Removal From Cooking Equipment, NFPA #96 (latest edition). Copies may be
obtained from The National Fire Protection Association, Batterymarch Park, Quincy MA
02169-7471.
4. National Electrical Code, ANSI/NFPA-70 (latest edition). Copies may be obtained from
The National Fire Protection Association, Batterymarch Park, Quincy, MA 02169-7471.
In Canada:
1. Local codes.
2. CSA B149.1 Natural Gas and Propane Installation Code.
3. CSA C22.1 Canadian Electrical Code (latest edition).
The above are available from The Canadian Standard Association, 5060 Spectrum Way, Suite 100,
Mississauga, Ontario, Canada L4W 5N6.
— 5 —
RANGES MOUNTED ON CASTERS
Ranges mounted on casters must use a exible connector
(not supplied by manufacturer) that complies with the
Standard for Connectors for Movable Gas Appliances,
ANSI Z21.69 • CSA 6.16 and a quick-disconnect device
that complies with the Standard for Quick-Disconnect
Devices for Use With Gas Fuel, ANSI-Z21.41 • CSA 6.9. In
CONNECT GAS LINE
STRAIN
RELIEF HERE
addition, ad equate means m ust be provide d to limi t
movement of the appliance without depending on the
connector and the quick-disconnect device or its associated
piping to limit appliance movement. Attach the restraining
device at the rear of the range as shown in Fig. 1.
PL-5121 9
If disconnection of the restraint is necessary, turn o the gas
supply before disconnection. Reconnect this restraint prior to
Fig. 1
turning the gas supply on and returning the range to its
installation position.
Separate instructions for installing casters to the range are included with the casters.
Note: If the range is installed on casters and is moved for any reason, it is recommended that the range
be releveled front to back and side to side.
LEVELING
Curb Installation
Ranges must overhang curb 3" (76 mm) in front.
Convection Oven
Remove lower front kick plate. Remove two screws holding electric gas valve and move valve o to
the side. Pull oven burner out of compartment through opening. Adjust four corner bolts to level range.
Replace burner valve and kick plate.
Floor Installation on Legs
The 6" (152 mm) adjustable legs must be tightened securely. Level each range by turning the foot
portion of the adjustable legs.
Lining up Range Battery
In batteries of ranges, it is recommended that the center range be installed and leveled rst. Level each
range, one at a time, to line up high shelf and roll front with adjacent range. Bolt the high shelves and
roll fronts together.
— 6 —
CONNECTION OF MANIFOLDS IN BATTERY
Two or more ranges can be coupled together at the manifold by removing the front control panel to
make necessary connections. Be sure to cap open ends. To connect:
1. In a large battery of eight or more ranges, gas should be fed from both ends of the battery.
“T” gas connections can be installed whenever necessary for increased gas supply.
For further details, consult your gas company.
2. Align the front edge of the ranges and adjust the legs to bring the manifolds together
inline for connection. Clamps may be used to pull the ranges together.
3. Connect the unions between the gas manifolds.
4. Use the battery clip at the back of the range base to hold the units together.
5. Before replacing the manifold covers, check all gas connections for leaks. (See GAS
CONNECTIONS in this manual. )
If appliance has rear gas connection, carefully check for open gas lines.
The gas pressure regulator must have proper outlet pressure capacity for this battery application.
— 7 —
GAS CONNECTIONS
All gas supply connections and any pipe joint compound used must be resistant
to the action of propane gases.
This appliance must be connected with a gas supply line as large or larger ID (net inside diameter) than
the gas pipe inlet provided on the rear of the appliance. Connect gas supply to the range(s). Make sure
the pipes are clean and free of obstructions, dirt, and piping compound.
Codes require that a gas shutoff valve be installed in the gas line ahead of the range(s).
An external gas pressure regulator must be installed on the unit at the time of installation. The
regulator must be listed by a nationally recognized testing agency. These appliances are rated at the
following pressure: Natural Gas - 6" W.C. (Water Column) (1.25 kPa); Propane Gas - 10" W.C.
(2.49 kPa).
Prior to lighting, check all joints in the gas supply line for leaks.
Use soap and water solution. Do not use an open flame.
A. Check all joints prior to the gas valve (solenoid) before lighting unit.
B. Check all joints beyond gas valve (solenoid) after unit is lit.
After piping has been checked for leaks, all piping receiving gas should be fully purged to remove air.
TESTING THE GAS SUPPLY SYSTEM
1
When test pressures exceed
/2 psig (3.45 kPa), the range and its individual shutoff valve must be
disconnected from the gas supply piping system.
1
When test pressures are
/2 psig (3.45 kPa) or less, the range must be isolated from the gas supply
system by closing its individual manual shutoff valve.
FLUE CONNECTIONS
DO NOT obstruct the flow of flue gases from the flue duct located on the rear of the range. It is
recommended that the flue gases be ventilated to the outside of the building through a ventilation
system installed by qualified personnel.
A minimum of 18" (457 mm) must be maintained between the ventilation system and the cooking
surface.
Information on the construction and installation of ventilating hoods may be obtained from the standard
for "
Vapor Removal from Cooking Equipment
," NFPA No. 96 (latest edition), available from the
National Fire Protection Association, Batterymarch Park, Quincy, MA 02169-7471.
— 8 —
ELECTRICAL CONNECTIONS
Electrical and grounding connections must comply with the applicable
portions of the national electrical code and/or other loc a l electrica l
codes.
Appliances equipped with a exible electric supply cord are provided with
a three-prong grounding plug. It is imperative that this plug be connected
properly into a properly grounded three-prong receptical. If the receptical is not the
proper grounding type, contact an electrician. Do not remove the grounding prong
from this plug.
Do not connect the range to electrical supply until after gas connections have been made.
— 9 —
LIGHTING AND SHUTTING DOWN PILOTS
Open Top, Griddle Top, and Hot Top
1. Turn the main gas supply ON.
2. Turn all top burner valves to ON to purge gas line of air. (Length of time to purge air will vary.)
3. Turn top burner valve knobs to OFF.
4. Wait 30 seconds.
5. Using a taper, light the pilot(s).
6. If pilot fails to light, wait 5 minutes and repeat Steps 1 through 5.
Nightly Shutdown: Turn burner valve OFF; pilot will remain lit.
Complete Shutdown: Turn burner valve OFF; pilot will remain lit. Turn main gas valve OFF.
Standard Oven - “S” Model (Fig. 2)
1. Turn Thermostat and Shut-Off Valve to the OFF position.
2. Wait 5 minutes.
3. Remove lower panel to locate pilot cutout.
4. Using a taper, light oven pilot by depressing the red ignition button located
on the side control panel below the thermostat knob.
5. Continue to hold down Red Button for at least 30 seconds.
RED BUTTON
(SAFETY)
THERMOSTAT
DIAL
6. When Red Button is released, Pilot should remain lit.
7. Turn Shut-Off Valve to the ON position and turn the Thermostat to the desired
temperature.
SHUT-OFF
VALVE
8. Replace lower panel.
9. If pilot flame becomes extinguished or does not light, repeat Steps 1 through 6.
Nightly Shutdown: Turn Thermostat to OFF; pilot will remain lit.
Complete Shutdown: Turn Thermostat and Shut-Off Valve to OFF. Turn main gas valve OFF.
FIG 2
Convection Oven - “C” Model (Fig. 3)
1. Connect range to main electrical supply.
2. Turn Thermostat and Shut-Off Valve to the OFF position.
3. Turn Fan Switch to OFF position.
4. Wait 5 minutes.
5. Remove lower panel to locate pilot cut out.
6. Using a taper, light oven pilot by depressing the red ignition button located
on the side control panel above the Shut-Off Valve.
7. Continue to hold down the Red Button for at least 30 seconds.
8. When Red Button is released, Pilot should remain lit.
9. Turn Shut-Off Valve to the ON position and turn the Thermostat to the desired
setting.
10. Replace lower panel.
11. If pilot flame becomes extinguished or does not light, repeat Steps 1 through 8.
Nightly Shutdown: Turn Thermostat to OFF; pilot will remain lit.
Complete Shutdown: Turn the Thermostat, Shut-Off Valve, and Fan Switch to OFF. Turn
main gas valve OFF.
— 10 —
RED BUTTON
(SAFETY)
SHUT-OFF
VALVE
THERMOSTAT
DIAL
FAN
SWITCH
FIG 3
OPERATION
The range and its parts are hot. Use care when operating, cleaning or
servicing the range.
BEFORE FIRST USE
Griddle Tops: Before using your griddle, the protective coating that was applied at the factory must
be completely removed with a commercial degreaser. After a thorough cleaning, apply a
high temperature, salt-free frying oil and you are ready to use the griddle.
The griddle requires no “breaking-in” or “seasoning”.
OPERATING SUGGESTIONS
Standard Oven: If you have a standard oven, use your normal recipe times and temperatures.
Convection Oven: The convection oven does everything a regular oven can do, but with less energy
consumption. The oven pre-heats faster, and baking time, temperature settings, and
shrinkage are reduced.
In general, reduce temperature 25°F (10°C) from conventional recipes.
Check product at half the time of the regular recipe.
Level pans bake more evenly; warped pans will give uneven baking results.
— 11 —
Loading...
