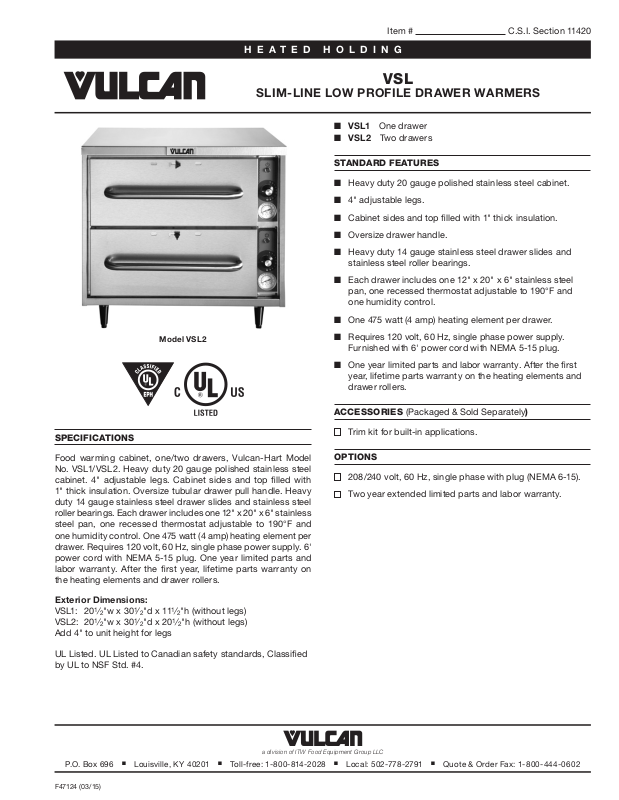

Vulcan VSL1 User Manual

Model VSL2

Item # C.S.I. Section 11420

HEATED HOLDING

VSL

SLIM-LINE LOW PROFILE DRAWER WARMERS

■ VSL1 One drawer

■ VSL2 Two drawers

STANDARD FEATURES

■ Heavy duty 20 gauge polished stainless steel cabinet.

■ 4" adjustable legs.

■ Cabinet sides and top lled with 1" thick insulation.

■ Oversize drawer handle.

■ Heavy duty 14 gauge stainless steel drawer slides and
stainless steel roller bearings.

■ Each drawer includes one 12" x 20" x 6" stainless steel
pan, one recessed thermostat adjustable to 190°F and
one humidity control.

■ One 475 watt (4 amp) heating element per drawer.

■ Requires 120 volt, 60 Hz, single phase power supply.
Furnished with 6' power cord with NEMA 5-15 plug.

■ One year limited parts and labor warranty. After the rst
year, lifetime parts warranty on the heating elements and
drawer rollers.

SPECIFICATIONS

Food warming cabinet, one/two drawers, Vulcan-Hart Model
No. VSL1/VSL2. Heavy duty 20 gauge polished stainless steel
cabinet. 4" adjustable legs. Cabinet sides and top lled with
1" thick insulation. Oversize tubular drawer pull handle. Heavy
duty 14 gauge stainless steel drawer slides and stainless steel
roller bearings. Each drawer includes one 12" x 20" x 6" stainless
steel pan, one recessed thermostat adjustable to 190°F and
one humidity control. One 475 watt (4 amp) heating element per
drawer. Requires 120 volt, 60 Hz, single phase power supply. 6'
power cord with NEMA 5-15 plug. One year limited parts and
labor warranty. After the rst year, lifetime parts warranty on
the heating elements and drawer rollers.

Exterior Dimensions:
VSL1: 2 01⁄2"w x 301⁄2"d x 111⁄2"h (without legs)

VSL2: 201⁄2"w x 301⁄2"d x 201⁄2"h (without legs)
Add 4" to unit height for legs

UL Listed. UL Listed to Canadian safety standards, Classied
by UL to NSF Std. #4.

ACCESSORIES (Packaged & Sold Separately)

Trim kit for built-in applications.

OPTIONS

208/240 volt, 60 Hz, single phase with plug (NEMA 6-15).

Two year extended limited parts and labor warranty.

a divisi on of IT W Food Equ ipment Group LLC

P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: [phone]

F47124 (03/15)

HEATED HOLDING

VSL

SLIM-LINE LOW PROFILE DRAWER WARMERS

Add 4" to unit height for legs

Model

VSL1 12" x 20" x 6" 201⁄2" 301⁄2"

VSL2 12" x 20" x 6" 201⁄2" 301⁄2"

Capacity

Per Drawer Wide Deep High

111⁄2"

without legs

201⁄2"

without legs

Shipping

Weight Volt s Watts

70 lbs.

32 kg

142 lbs .

64 kg

120 475

120 950

This appliance is manufactured for commercial use only and is not intended for home use.
