REPLACEMENT PARTS
ENDURANCE SERIES
CATALOG OF
GAS
MODELS
G36 ML-136472
G36C ML-136746
G36F, X ML-136474, ML-136475
G36S ML-136473
G48 ML-136491
G48C ML-136493
G48F ML-136492
G60 ML-136479
G60C ML-136482
G60CC ML-136485
G60F, X ML-136480, ML136481
G60FC ML-136483
G60XC ML-136484
G60FCC ML-136486
G60XCC ML-136487
G260 ML-136488
G260C ML-136489
G260CC ML-136490
RANGES
For additional information on Vulcan-Hart or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
P.O. BOX 696, LOUISVILLE, KY 40201-0696
TEL. (502) 778-2791
F-35647 Rev. A (5-07)
ENDURANCE SERIES GAS RANGES
Fig. 1
OVEN BODY
- 2 -
ENDURANCE SERIES GAS RANGES
OVEN BODY
ILLUS. PART NO. NAME OF PART AMT.
Fig. 1
1 00-428642-00001 Back Splash ......................................1, 1 1, 1
00-428745-00001 Back Splash ......................................... 1 1 1
00-428805-00001 Back Splash ......................................... 1 1 1
2 00-428641-00001 Rear Heat Shield ............................... 1, 1 1, 1
00-428744-00001 Rear Heat Shield .................................. 1 1 1
00-428804-00001 Rear Heat Shield .................................. 1 1 1
3 00-428504-00001 Bayonet Channel .............................. 2, 2 2, 2 222222
4 00-428936-000G1 Plate Shelf Assy ...............................1, 1 1, 1
00-497021-000G1 Plate Shelf Assy .................................. 111111
5 00-428879-00001 Front Grate Casting .......................... 3, 3 3, 3 555333
6 00-428880-00001 Rear Grate Casting ...........................3, 3 3, 3 555333
00-498132-0000A Weldment, Bullnose .......................... 0, 1 0, 1
7 00-428666-000G1 Front Top Assembly ..........................1, 1 1, 1
00-428731-000G1 Front Top Assembly ............................. 1 1 1
00-428766-000G1 Front Top Assembly ............................. 1 1 1
8 00-428788-000G1 Broiler Front Top Assembly ................. 1 1 1
9 00-428362-00001 Grate Support ...................................2, 2 2, 2 444222
10 00-428639-00001 Manifold Cover, Std. Oven ................1, 1 1, 1
00-428736-00001 Manifold Cover, Std. Oven ................... 1
00-497236-00001 Manifold Cover, Conv. Oven ................ 1 1
00-428789-00001 Manifold Cover, Std. Oven ................... 1
00-497206-00001 Manifold Cover, Conv. Oven ................ 1 1
11 00-497032-000G1 Oven Control Panel, Std.................... 1, 1
00-497151-000G1 Oven Control Panel, Conv.................... 1, 1
12 00-428959-000G2 Oven Liner, Left ................................ 1, 1 1, 1 2 1 2 1
13 00-428959-000G1 Oven Liner, Right .............................. 1, 1 1, 1 2 1 2 1
14 00-428630-00001 Oven Bottom ..................................... 1, 1 1, 1 2 1 2 1
15 00-428499-00001 Oven Rack ........................................ 1, 1 2, 2 234234
16 00-497028-000G1 Door Assembly ................................. 1, 1 1, 1
17 00-428618-00001 Door Handle ......................................1, 1 1, 1 222222
18 00-428948-000G1 Kick Panel Assembly ........................ 1, 1 1, 1
00-497018-000G1 Kick Panel Assembly ........................... 111111
19 00-413112-00012 Leg, 6" Adjustable, SST .................... 4, 4 4, 4 444444
20 00-406734-00001 Electrical Junction Box ........................ 1, 1 1 1 1 1
21 00-406734-00002 Electrical Junction Box Cover ............. 1, 1 1 1 1 1
22 00-405016-00001 Cord, Electrical Supply ........................ 1, 1 1 1 1 1
23 00-411496-000B1 Oven Switch........................................ 1, 1 1 2 1 2
24 00-411496-000F1 Door Limit Switch ................................. 1, 1
00-411496-000F7 Door Limit Switch ................................. 1 2 1 2
25 00-428790-00001 Manifold Cover, Broiler ........................ 1 1 1
26 00-497027-00001 Door Spring Hinge, RH ...................... 1, 1 1, 1 222222
00-497027-00002 Door Spring Hinge, LH ...................... 1, 1 1, 1 222222
SC-081-78 Bolt, Hex Head 1/4-20 X 4
(Attach Shelf to Riser) ..................... 4, 4 4, 4 444444
* 00-497001-00001 Caster (W/O Brake) .......................... AR AR AR AR AR AR AR AR
* 00-497001-00002 Caster (W/Brake) .............................. AR AR AR AR AR AR AR AR
G36, F G36C, FC G60 G60C G60CC G260 G260C G260CC
222222
* Not Shown
- 3 -
ENDURANCE SERIES GAS RANGES
Fig. 2
OVEN BODY
- 4 -
ENDURANCE SERIES GAS RANGES
OVEN BODY
ILLUS. PART NO. NAME OF PART AMT.
Fig. 2
1 00-428982-00001 Back Splash .......................................... 1 1
2 00-428981-00001 Rear Heat Shield ................................... 1 1
3 00-428405-00001 Bayonet Channel .................................. 2 2
4 00-428978-000G1 Plate Shelf Assy ................................... 1 1
5 00-428879-00001 Front Grate Casting .............................. 4 4 2 1, 0 3, 2 2
6 00-428880-00001 Rear Grate Casting ............................... 4 4 2 1, 0 3, 2 2
7 00-429983-000G1 Front Top Assembly .............................. 1 1
9 00-428362-00001 Grate Support ....................................... 3 3 2 1, 0 3, 2 2
10 00-428985-00001 Manifold Cover, Std. Oven .................... 1 1
00-428868-00001 Manifold Cover, S Griddle ...................... 1
00-428859-00001 Manifold Cover, F & X Griddle ............... 1
00-497232-00001 Manifold Cover, F & X Griddle, Std. ....... 1
00-497239-00001 Manifold Cover, F & X Griddle, Conv. .... 1
00-497082-00001 Manifold Cover, F & X Griddle ............... 1
11 00-497032-000G1 Oven Control Panel, Std........................ 1
00-497151-000G1 Oven Control Panel, Conv...................... 1
12 00-428959-000G2 Oven Liner, Left .................................... 1
13 00-428959-000G1 Oven Liner, Right .................................. 1
14 00-428630-00001 Oven Bottom ......................................... 1
15 00-428499-00001 Oven Rack ............................................ 1 2
16 00-497028-000G1 Door Assembly ..................................... 1 1
17 00-428618-00001 Door Handle .......................................... 1 1
18 00-428948-000G1 Kick Panel Assembly ............................ 1 1
19 00-413112-00012 Leg, 6" Adjustable, SST ........................ 4 4
20 00-406734-00001 Electrical Junction Box .......................... 1
21 00-406734-00002 Electrical Junction Box Cover ............... 1
22 00-405016-00001 Cord, Electrical Supply .......................... 1
23 00-411496-000B1 Oven Switch.......................................... 1
24 00-411496-000F1 Door Limit Switch ................................... 1
26 00-497027-00001 Door Spring Hinge, RH .......................... 1 1
00-497027-00002 Door Spring Hinge, LH .......................... 1 1
* 00-497001-00001 Caster (W/O Brake) ............................. AR AR AR AR AR AR
* 00-497001-00002 Caster (W/Brake) ................................. AR AR AR AR AR AR
G48 G48C G36S G36F,X G60F,X G48F
* Not Shown
- 5 -
ENDURANCE SERIES GAS RANGES
Fig. 3-A
PIPING
- 6 -
ENDURANCE SERIES GAS RANGES
PIPING
ILLUS. PART NO. NAME OF PART AMT.
Fig. 3-A
1 00-428675-00001 Burner Head 6" ..................................... 6 6 10 10 10 6 6 6
2 00-428614-00001 Venturi Casting ..................................... 33555333
3 00-428719-00001 Restrictor Plate ..................................... 6 6 10 10 10 6 6 6
4 00-428894-00001 Venturi Pilot Quick Disconnect ............. 33555333
5 00-404060-00001 Air Shutter ............................................ 6 6 10 10 10 9 9 9
6 00-411684-000G1 Broiler Burner ........................................ 3 3 3
7 00-428495-000G1 U-Burner Assy ...................................... 11222222
8 00-497240-00001 Griddle Valve ......................................... 3 3 3
9 00-404076 Burner Control Valve ............................ 6 6 10 10 10 6 6 6
10 00-428904-00001 Pilot Quick Disconnect Valve ................ 33555333
11 00-404193-00001 Broiler Pilot Valve ................................... 3 3 3
13 00-426262-00001 Oven Pilot Assembly, Natural ................ 11222222
00-426262-00002 Oven Pilot Assembly, Propane ............. 11222222
14 00-428888-000G1 Burner Support Assembly .................... 11222222
15 00-404079-0000F Oven Burner Nozzle ............................. 11222222
16 00-497175-00001 Solenoid Valve ....................................... 1 1 1
00-497175-00002 Solenoid Valve ....................................... 1 1 1 1
17 00-408279-00026 Regulator, 3/4" NPT (Natural)................ 1 1
00-408279-00027 Regulator, 1" NPT (Natural).................... 111111
00-408279-00021 Regulator, 3/4" NPT (Propane) ............. 1 1
00-408279-00028 Regulator, 1" NPT (Propane) .................. 111111
18 00-428807-00001 Oven Control Valve............................... 1 1
00-498150 Oven Control Valve (Propane) ............. 1 1
19 00-428806-00001 Oven Control Valve................................ 222222
00-498149 Oven Control Valve (Propane) .............. 222222
20 00-497141-00001 Oven Manifold ........................................ 111111
21 00-428831-00001
00-497013-00001 Manifold Shutoff Valve (W/Knob) ......... 1 1 1
00-497051-00001 Manifold Shutoff Valve (W/Knob) ......... 1 1 1
22 00-428300-00001 Burner Control Knob ............................. 6 6 10 10 10 6 6 6
23 00-497246-00001 Griddle Control Knob ............................. 3 3 3
24 00-428617-00001 Oven Control Knob ............................... 11222222
25 00-412788-00004 Thermocouple ....................................... 1 1
00-428305-00001 Thermocouple ........................................ 222222
26 00-426505-00042 Flex Tube (1/4” X 42”) .......................... 1 1
27 00-426508-00008 Flex Tube (7/16” X 8”) ........................... 1 1 1
00-426508-00030 Flex Tube (7/16” X 30”) ......................... 1
00-426508-00036 Flex Tube (7/16” X 36”) ........................ 1 1
* 00-498124-000G1 Flex Tube Assy. (60/260 Top) ............... 111111
* 00-498125-000G1 Flex Tube Assy. (60/260 Rear) ............. 111111
Manifold Shutoff Valve (W/Knob) ........ 1 1
G36 G36C G60 G60C G60CC G260 G260C G260CC
* Assembly Contains the Oven Pilot and Oven Burner Flex Tubing
- 7 -
ENDURANCE SERIES GAS RANGES
Fig. 4-A
PIPING
- 8 -
ENDURANCE SERIES GAS RANGES
PIPING
ILLUS. PART NO. NAME OF PART AMT.
Fig. 4-A
1 00-428675-00001 Burner Head 6" ..................................... 8 8 4 2, 0 6, 4 4
2 00-428614-00001 Venturi Casting ..................................... 4 4 2 1, 0 3, 2 2
3 00-428719-00001 Restrictor Plate ..................................... 8 8 4 2, 0 6, 4 4
4 00-428894-00001 Venturi Pilot Quick Disconnect ............. 4 4 4 1, 0 6, 2 2
5 00-404060-00001 Air Shutter ............................................ 8 8 4 2, 0 6, 4 4
7 00-428495-000G1 U-Burner Assy ...................................... 111121
8 00-497240-00001 Griddle Valve ......................................... 1 2, 3 2, 3 2
9 00-404076 Burner Control Valve ............................ 8 8 4 2, 0 8, 6 4
10 00-428904-00001 Pilot Quick Disconnect Valve ................ 4 4 2 1, 0 4, 3 2
12 00-404193-00002 Griddle Pilot Valve .................................. 1 2, 3 2, 3 2
13 00-426262-00001 Oven Pilot Assembly, Natural ................ 1 1
00-426262-00002 Oven Pilot Assembly, Propane ............. 1 1
14 00-428888-000G1 Burner Support Assembly .................... 1 1
15 00-404079-0000F Oven Burner Nozzle ............................. 1 1
16 00-497175-00001 Solenoid Valve ....................................... 1
17 00-408279-00027 Regulator, 1" NPT, Natural ..................... 1 1
00-408279-00028 Regulator, 1" NPT, Propane ................... 1 1
18 00-428807-00001 Oven Control Valve............................... 1 1
00-498150 Oven Control Valve, Propane ............... 1 1
21 00-497013-00001 Manifold Shutoff Valve ......................... 1 1
22 00-428300-00001 Burner Control Knob ............................. 8 8 4 2, 0 8, 6 4
23 00-497246-00001 Griddle Control Knob ............................. 1 2, 3 2, 3 2
24 00-428617-00001 Oven Control Knob ............................... 1 1
25 00-412788-00004 Thermocouple ....................................... 1 1 1 1, 1 1
00-428305-00001 Thermocouple ........................................ 2, 2
26 00-426505-00042 Flex Tube (1/4” X 42”) .......................... 1 1 1 1, 1 1
27 00-426508-00036 Flex Tube (7/16” X36”) ......................... 1 1 1, 1 1
00-426508-00065 Flex Tube (7/16” X 65”) ........................ 1 1
00-426508-00030 Flex Tube (7/16” X 30”) ......................... 1
00-426508-00008 Flex Tube (7/16” X 8”) ........................... 1
* 00-498124-000G1 Flex Tube Assy. (60/260 Top) ............... 1,1
* 00-498125-000G1 Flex Tube Assy. (60/260 Rear) ............. 1,1
G48 G48C G36S G36F,X G60F,X G48F
* Assembly Contains Oven Pilot and Oven Burner Flex Tubing
- 9 -
ENDURANCE SERIES GAS RANGES
Fig. 5
CONVECTION OVEN VENT MOTOR
- 10 -
ENDURANCE SERIES GAS RANGES
CONVECTION OVEN VENT MOTOR
ILLUS. PART NO. NAME OF PART AMT.
Fig. 5
1 SC-113-05 Bolt, Hex Head, 1/4-20 x 3" ................................ 448484
2 00-428960-00001 Motor Grate ......................................................... 112121
3 00-411289-00003 Spacer................................................................. 448484
4 00-415780-00008 Rotor Blower ...................................................... 112121
5 00-428343-00001 Motor Mounting Plate .......................................... 112121
6 SD-036-92 Bolt, Hex Head .................................................... 448484
7 00-414367-00001 Insulation ............................................................. 112121
8 SC-121-01 Flat Head, 1/4-20 ................................................ 448484
9 00-412630-00002 Spacer................................................................. 448484
10 00-419719-00002 Motor Mounting Bracket ...................................... 224242
11 NS-047-72 Hex Nut, 1/4-20 ................................................... 448484
12 NS-044-07 Nut ....................................................................... 448484
13 00-419730-00001 Motor, 1/6 HP ....................................................... 112121
14 00-428347-00001 Motor Guard ........................................................ 112121
G36C G60C G60CC G260C G260CC G48C
- 11 -
ENDURANCE SERIES GAS RANGES
Fig. 6
BROILER GRIDDLE ASSEMBLY
- 12 -
ENDURANCE SERIES GAS RANGES
BROILER GRIDDLE ASSEMBLY
ILLUS. PART NO. NAME OF PART AMT.
Fig. 6
1 00-428593-000G1 Griddle Plate Assy ......................................................................... 1
2 00-497062-000G1 Broiler Pilot Tube Assembly ........................................................... 3
3 00-411684-000G1 Broiler Burner ................................................................................ 3
4 00-417669-000G1 Broiler Drip Tray ............................................................................. 1
5 00-428802-000G1 Grease Drawer ............................................................................. 1
6 00-428798-000G1 Broiler Drip Drawer ........................................................................ 1
7 00-417632-00001 Broiler Grate .................................................................................. 1
8 00-408726-000G6 Broiler Brick Set ............................................................................. 1
G260
- 13 -
ENDURANCE SERIES GAS RANGES
Fig. 7
GRIDDLE ASSEMBLY
- 14 -
ENDURANCE SERIES GAS RANGES

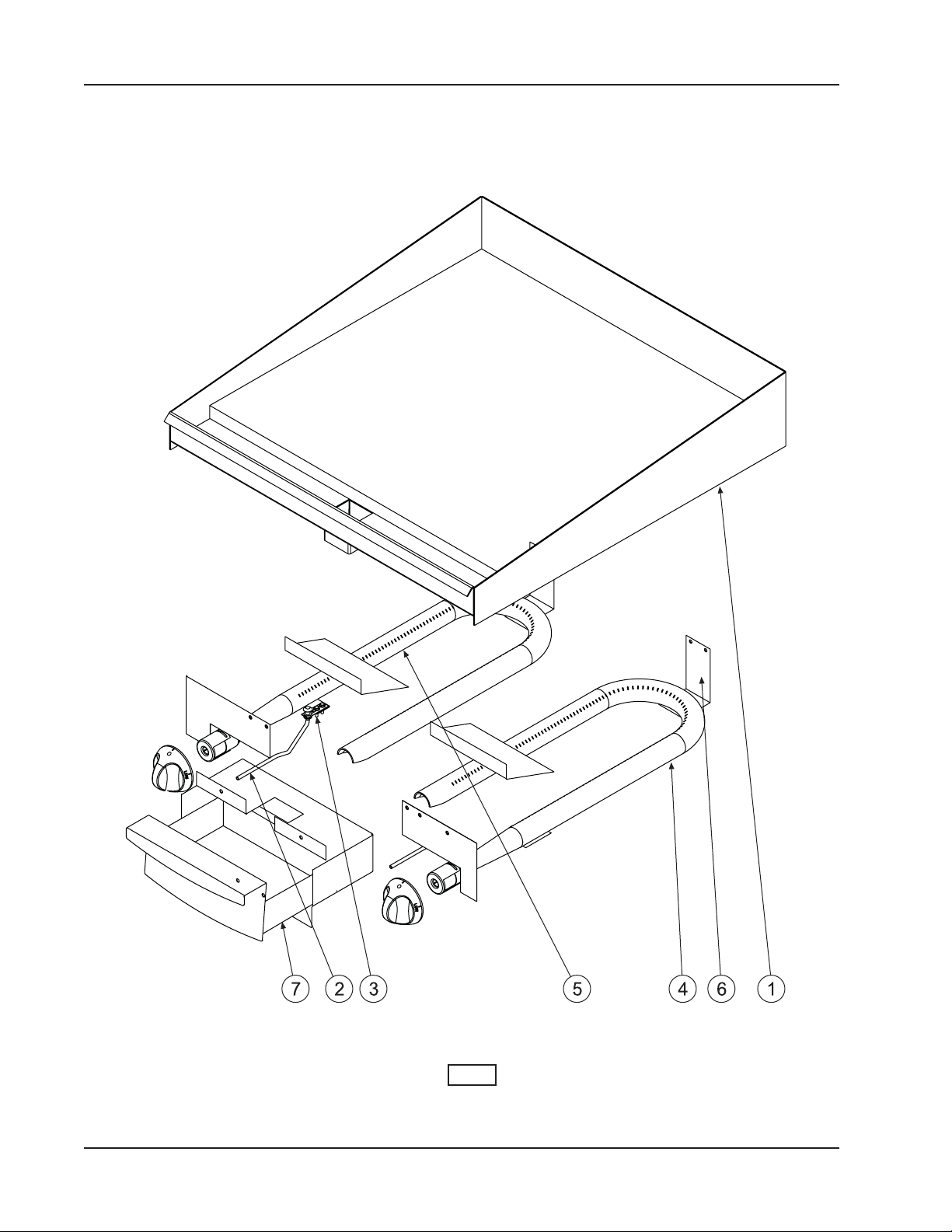

GRIDDLE ASSEMBLY
ILLUS. PART NO. NAME OF PART AMT.
Fig. 7
1 00-428921-000G1 Griddle Plate Assembly 12" .................. 1
00-428922-000G1 Griddle Plate Assembly 24" ................... 1 1 1
00-428927-000G1 Griddle Plate Assembly 36" ................... 1 1
2 00-428915-00001 Pilot Tube Assembly ............................. 123232
3 00-413302-00001 Pilot Mounting Clip ................................. 123232
4 00-428857-000G1 Burner Griddle, RH ................................ 111121
5 00-428857-000G2 Burner Griddle, LH ................................. 12111
6 00-428646-00001 Burner Mounting Bracket ...................... 123232
7 00-428871-000G1 Grease Drawer .................................... 1
00-428862-000G1 Grease Drawer ..................................... 11111
G36S G36F G36X G60F G60X G48F
- 15 -
ENDURANCE SERIES GAS RANGES
PART NO. NAME OF PART AMT.
00-428879-00001 Front Grate .......................................................................................................... 2
00-428880-00001 Rear Grate ........................................................................................................... 2
00-497027-00001 RH Door Spring Hinge .......................................................................................... 2
00-497027-00002 LH Door Spring Hinge .......................................................................................... 2
00-428675-00001 Burner Head ........................................................................................................ 2
00-428719-00001 Restrictor Plate .................................................................................................... 2
00-428495-000G1 Oven Burner ........................................................................................................ 2
00-497240-00001 Griddle Valve ....................................................................................................... 2
00-428894-00001 Pilot Quick Disconnect Valve ............................................................................... 2
00-497175-00001 Solenoid Valve ..................................................................................................... 2
00-497175-00002 Solenoid Valve ..................................................................................................... 2
00-408279-00026 Regulator (3/4) (Natural) ..................................................................................... 1
00-408279-00021 Regulator (3/4) (LP) ............................................................................................. 1
00-408279-00028 Regulator (1”) (LP) ............................................................................................... 1
00-408279-00027 Regulator (1”) (Natural) ....................................................................................... 1
00-428807-00001 Oven Control Valve (Natural) (Single Oven)....................................................... 2
00-428806-00001 Oven Control Valve (Natural) (Double Oven) ..................................................... 2
00-498150 Oven Control Valve (LP) (Single Oven) .............................................................. 2
00-498149 Oven Control Valve (LP) (Double Oven) ............................................................. 2
00-428300-00001 Burner Knob ........................................................................................................ 2
00-428617-00001 Oven Knob ........................................................................................................... 2
00-428915-00001 Pilot Tube Assy. ................................................................................................... 2
00-411496-000F1 Door Limit Switch (G36LC Only) ......................................................................... 2
00-411496-000F7 Door Limit Switch (All Convection Models Except G36LC) ................................ 2
00-411496-000B1 Oven Switch........................................................................................................ 2
00-497246-00001 Griddle Knob ........................................................................................................ 2
00-428614-00001 Burner Venturi ..................................................................................................... 2
00-412788-00004 Thermocouple (48”) ............................................................................................. 2
00-428305-00001 Thermocouple (72”) ............................................................................................. 2
00-426262-00001 Oven Pilot Assy. (Natural) ................................................................................... 2
00-426262-00002 Oven Pilot Assy. (LP) ........................................................................................... 2
00-428857-000G1 RH Griddle Burner ................................................................................................ 2
00-428857-000G2 LH Griddle Burner ................................................................................................ 2
RECOMMENDED SPARE PARTS
- 16 -
Loading...
