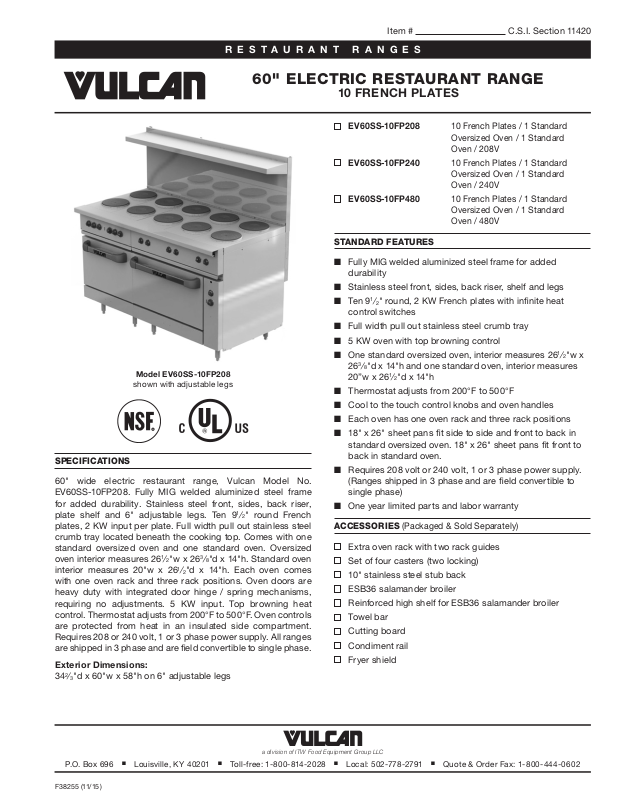

Vulcan EV60SS-10FP208 User Manual
RESTAURANT RANGES
60" ELECTRIC RESTAURANT RANGE
Model EV60SS-10FP208
shown with adjustable legs
SPECIFICATIONS
60" wide electric restaurant range, Vulcan Model No.
EV60SS-10FP208. Fully MIG welded aluminized steel frame
for added durability. Stainless steel front, sides, back riser,
plate shelf and 6" adjustable legs. Ten 91⁄2" round French
plates, 2 KW input per plate. Full width pull out stainless steel
crumb tray located beneath the cooking top. Comes with one
standard oversized oven and one standard oven. Oversized
oven interior measures 261⁄2"w x 263⁄8"d x 14"h. Standard oven
interior measures 20"w x 261⁄2"d x 14"h. Each oven comes
with one oven rack and three rack positions. Oven doors are
heavy duty with integrated door hinge / spring mechanisms,
requiring no adjustments. 5 KW input. Top browning heat
control. Thermostat adjusts from 200°F to 500°F. Oven controls
are protected from heat in an insulated side compartment.
Requires 208 or 240 volt, 1 or 3 phase power supply. All ranges
are shipped in 3 phase and are eld convertible to single phase.
Exterior Dimensions:
342⁄3"d x 60"w x 58"h on 6" adjustable legs
Item # C.S.I. Section 11420
10 FRENCH PLATES
EV60SS-10FP208 10 French Plates / 1 Standard
Oversized Oven / 1 Standard
Oven / 208V
EV60SS-10FP240 10 French Plates / 1 Standard
Oversized Oven / 1 Standard
Oven / 240V
EV60SS-10FP480 10 French Plates / 1 Standard
Oversized Oven / 1 Standard
Oven / 480V
STANDARD FEATURES
■ Fully MIG welded aluminized steel frame for added
durability
■ Stainless steel front, sides, back riser, shelf and legs
■ Ten 91⁄2" round, 2 KW French plates with innite heat
control switches
■ Full width pull out stainless steel crumb tray
■ 5 KW oven with top browning control
■ One standard oversized oven, interior measures 261⁄2"w x
263⁄8"d x 14"h and one standard oven, interior measures
20”w x 261⁄2"d x 14"h
■ Thermostat adjusts from 200°F to 500°F
■ Cool to the touch control knobs and oven handles
■ Each oven has one oven rack and three rack positions
■ 18" x 26" sheet pans t side to side and front to back in
standard oversized oven. 18" x 26" sheet pans t front to
back in standard oven.
■ Requires 208 volt or 240 volt, 1 or 3 phase power supply.
(Ranges shipped in 3 phase and are eld convertible to
single phase)
■ One year limited parts and labor warranty
ACCESSORIES (Packaged & Sold Separately)
Extra oven rack with two rack guides
Set of four casters (two locking)
10" stainless steel stub back
ESB36 salamander broiler
Reinforced high shelf for ESB36 salamander broiler
Tow e l b a r
Cutting board
Condiment rail
Fryer shield
a divisi on of IT W Food Equ ipment Group LLC
P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: 1-800-444-0602
F3 8 2 5 5 (11 /15 )
INSTALLATION INSTRUCTIONS
RESTAURANT RANGES
60" ELECTRIC RESTAURANT RANGE
10 FRENCH PLATES
Clearances from Combustible Construction Rear Sides
Range Only 0" 0"
Range and ESB Salamander Broiler 2" 8"
Clearance Note: Electric Ranges are 0 inches, sides and 0
inches rear from combustible and non-combustible constructions
except when hot top sections are incorporated.
Ranges incorporating hot top sections are 0 inches sides and 0
inches rear to non-combustibles and 6 inches sides and 6 inches
rear to combustible constructions.
The EV 6 0 ranges require two separate electrical hook-ups.
AVAILABLE VOLTAGES - 208 OR 240 VOLT - 1 OR 3 PHASE
3 PHASE LOADING NOMINAL AMPS PER LINE WIRE
MODEL
NUMBER
EV60SS-10FP208
EV60SS-10FP240
P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: 1-800-444-0602
F3 8 2 5 5 (11 /15 )
NOTE: In line w ith its policy to co ntinua lly imp rove its pr oduct s, Vulca n reser ves the right to c hange materia ls and sp ecic ation s withou t notice.
kW
LT RT X-Y Y-Z X-Z X-Y Y-Z X-Z X Y Z X Y Z X Y Z X Y Z 208 240 208 240
13.0 17. 0 5.0 4.0 4.0 4.0 8.0 5.0 3 7. 5 37. 5 33.3 -- -- -- 37.5 50.0 54.1 -- -- -- 62.5 -- 81.7 --
13.0 17. 0 5.0 4.0 4.0 4.0 8.0 5.0 -- -- -- 32.5 32.5 28.9 -- -- -- 32.5 43.3 46.9 -- 58.3 -- 70.8
Note: To calculate 480 volt amps, take 240 volt amp ratings shown and divide by two.
This appliance is manufactured for commercial use only and is not intended for home use.
kW PER PHASE 3 PHASE LT 3 PHASE RT 1 PHASE
LT 3 PH RT 3 PH 208 VOLT 240 V O LT 208 VOLT 240 V O LT LT RT
