EV SERIES ELECTRIC RANGES
EV12
EV24S
EV36S
EV48S
EV60S
EV72S
VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC 3600 NORTH POINT BLVD., BALTIMORE, MD 21222
FORM 43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
F-43240 Rev. C (October 2015) - 2 - © VULCAN-HART COMPANY 2015
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
Table of Contents
5 PLATES
7 OVEN CONTROLS (36 INCH)
9 CONTROLS AND ELECTRICAL COMPONENTS (12 INCH)
11 CONTROLS AND ELECTRICAL COMPONENTS (24 INCH)
13 CONTROLS AND ELECTRICAL COMPONENTS (36 INCH)
15 BODY (12 INCH)
17 BODY (24 INCH)
19 BODY (36 INCH)
21 DOOR ASSEMBLY (BEFORE 10/31/2014)
23 DOOR ASSEMBLY (AFTER 10/31/2014)
25 RANGE GRIDDLE
27 BACKSPLASH, SHELF, AND BULL NOSE (ALL SIZES)
29 OVEN ELEMENT
- 3 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
PLATES
F-43240 Rev. C (October 2015) - 4 -
PLATES
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
ILLUS.
PL-59735
*10 00-335223-00002 Terminal Block Assy. (Plate) (480 V.).....................................................................................AR
PART NO. NAME OF PART AMT.
1 00-927501-0000A Plate - Aeration (French Plate)................................................................................................AR
2 00-421240-00001 Plate - French E.G.O. (208 V.)................................................................................................AR
3 00-421240-00002 Plate - French E.G.O. (240 V.)................................................................................................AR
4 00-421240-00003 Plate - French E.G.O. (480 V.)................................................................................................AR
5 00-415048-00001 Clamp......................................................................................................................................AR
6 00-421320-00001 Top - Hot (208 V.)....................................................................................................................AR
7 00-421320-00002 Top - Hot (240 V.)....................................................................................................................AR
8 00-421320-00003 Top - Hot (480 V.)....................................................................................................................AR
*9 00-335223-00001 Terminal Block Assy. (Plate) (208-240 V.)..............................................................................AR
00-927608-000G1 Harness - French Plate (208/240 V.).......................................................................................AR
00-927608-000G2 Harness - French Plate (480 V.)..............................................................................................AR
* (Service part, not required if the French Plate is being replaced.)
- 5 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
OVEN CONTROLS
(36 INCH)
F-43240 Rev. C (October 2015) - 6 -
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
OVEN CONTROLS
(36 INCH)
ILLUS.
PL-59734
10 00-927506 Control Panel - Vulcan............................................................................................................AR
PART NO. NAME OF PART AMT.
1 00-928068-00001 Plug............................................................................................................................................1
2 00-927603-00001 Knob - Infinite Switch (208 V., 240 V., & 380 V. Units Only)...................................................AR
3 00-412251-00003 Knob - Infinite Switch (480 V. Units Only)...............................................................................AR
4 00-428900-000G3 Light - Indicator........................................................................................................................AR
5 00-417876-00001 Resistor (300 K., 1/4 W.) (480 V. Units Only) (Not Shown)........................................................1
6 00-418060-00002 Dial - Thermostat.....................................................................................................................AR
7 00-927507 Door - Access..........................................................................................................................AR
8 00-411503-00004 Switch - Infinite Switch (208 V., 240 V., & 380 V. Units Only).................................................AR
9 00-411506-00014 Thermostat (175-550 Deg. F)..................................................................................................AR
00-927533-000G1 Harness - Main (LH) (Not Shown)..............................................................................................1
00-927541-000G1 Harness - Power (Not Shown)....................................................................................................1
- 7 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
CONTROLS AND ELECTRICAL COMPONENTS
(12 INCH)
F-43240 Rev. C (October 2015) - 8 -
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
CONTROLS AND ELECTRICAL COMPONENTS
(12 INCH)
ILLUS.
PL-59738
10 00-499075 Box - Main Power.......................................................................................................................1
11 00-921882 Bracket - Manifold Cover (RH)...................................................................................................1
12 00-921888-00012 Panel - Control...........................................................................................................................1
13 00-410472-00008 Block - Terminal (3-Pole)............................................................................................................1
14 00-417856-00001 Lug - Grounding (With Set Screw).............................................................................................1
15 00-499076 Lid - Power Supply.....................................................................................................................1
16 FE-017-16 NLA - Obsolete--Bushing - Electrical Snap................................................................................1
17 FE-017-16 NLA - Obsolete--Bushing - Electrical Snap................................................................................1
PART NO. NAME OF PART AMT.
1 00-927603-00001 Knob - Infinite Switch (208 V. & 240 V. Units Only)...................................................................1
2 00-412251-00003 Knob - Infinite Switch (480 V. Units Only)..................................................................................1
3 00-499974-00001 Plug - Light (Hot Top & Griddle Units Only)...............................................................................1
4 00-921883 Bracket - Manifold Cover (LH)....................................................................................................1
5 00-497496 Stiffener (12 In.)..........................................................................................................................1
6 00-414881-00001 Block - Porcelain........................................................................................................................1
7 00-411503-00004 Switch - Infinite Switch (208 V. & 240 V. Units Only).................................................................1
8 00-355798-00001 Switch (4-Position) (480 V. Units Only)......................................................................................1
9 00-921887-00012 Bracket - Mount..........................................................................................................................1
- 9 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
CONTROLS AND ELECTRICAL COMPONENTS
(24 INCH)
F-43240 Rev. C (October 2015) - 10 -
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
CONTROLS AND ELECTRICAL COMPONENTS
(24 INCH)
ILLUS.
PL-59736
10 00-921883 Bracket - Manifold Cover (LH)....................................................................................................1
11 00-921887-00024 Bracket - Terminal......................................................................................................................1
12 00-927408 Panel - Stiffener (24 In.).............................................................................................................1
13 00-921888-00024 Cover..........................................................................................................................................1
14 00-497218-00001 Clip - Porcelain Block.................................................................................................................1
15 00-414881-00001 Block - Porcelain........................................................................................................................1
16 00-410472-00009 Block - Terminal (1-Pole)............................................................................................................1
17 00-410472-00008 Block - Terminal (3-Pole)............................................................................................................1
18 00-927514 Holder - Terminal Blocks............................................................................................................1
19 00-921882 Bracket - Manifold Cover (RH)...................................................................................................1
20 00-927603-00001 Knob - Infinite Switch (208 V. & 240 V. Units Only)................................................................AR
21 00-412251-00003 Knob - Infinite Switch (480 V. Units Only)...............................................................................AR
PART NO. NAME OF PART AMT.
1 00-499974-00001 Plug - Light.................................................................................................................................1
2 00-428900-000G1 Plug - Light..............................................................................................................................AR
3 00-428900-000G3 Light - Indicator........................................................................................................................AR
4 00-417876-00001 Resistor (300 K., 1/4 W.) (480 V. Units Only) (Not Shown)........................................................1
5 00-418060-00002 Dial - Thermostat.....................................................................................................................AR
*6 00-411506-00014 Thermostat (175-550 Deg. F) (Oven, Griddle & Hot Top).......................................................AR
7 00-414881-00001 Block - Porcelain.....................................................................................................................AR
8 00-411503-00004 Switch - Infinite Switch (208 V. & 240 V. Units Only)..............................................................AR
9 00-355798-00001 Switch (4-Position) (480 V. Units Only)...................................................................................AR
* Also used in 36" Controls
- 11 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
CONTROLS AND ELECTRICAL COMPONENTS
(36 INCH)
F-43240 Rev. C (October 2015) - 12 -
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
CONTROLS AND ELECTRICAL COMPONENTS
(36 INCH)
ILLUS.

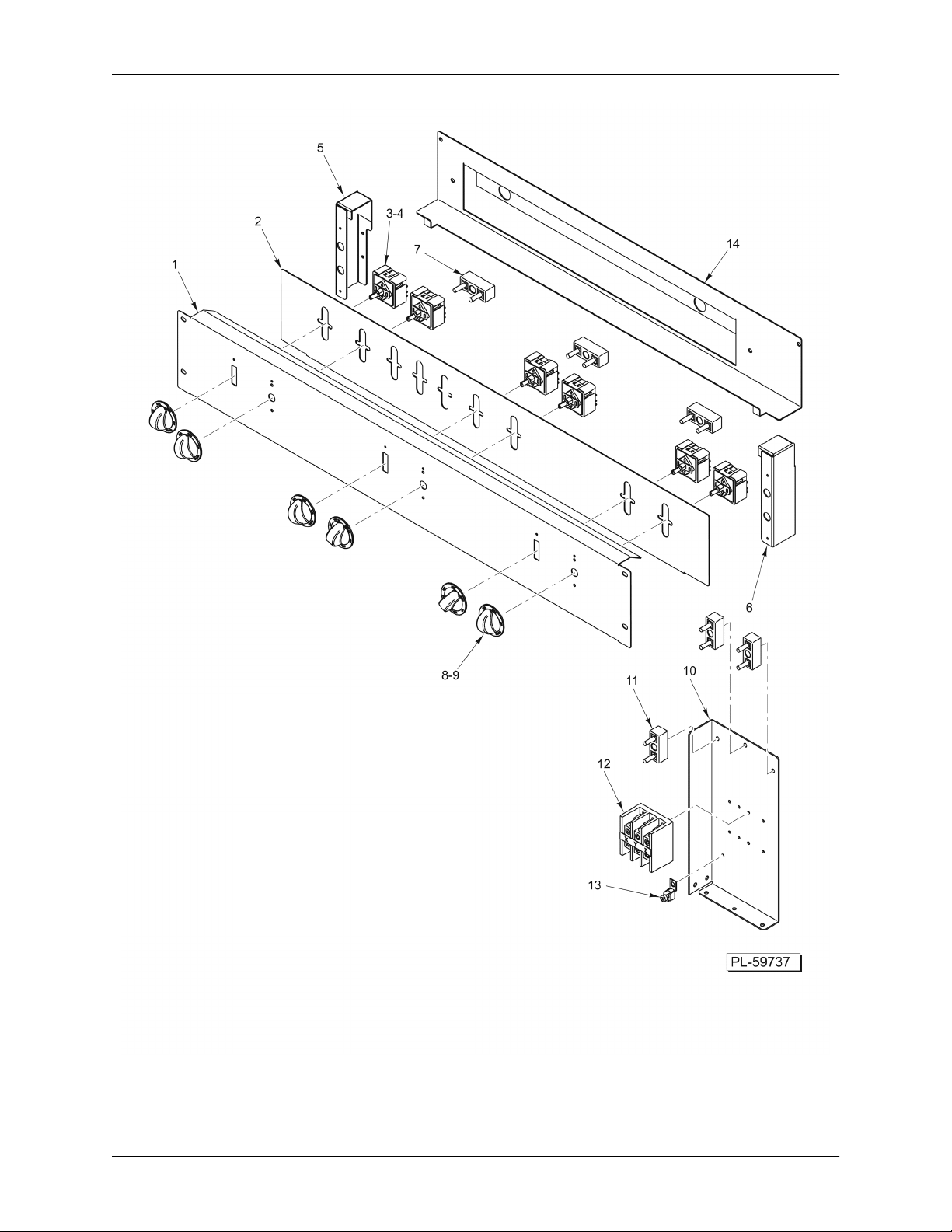

PL-59737
10 00-927509 Bracket - Terminal Block Mount.................................................................................................1
11 00-414881-00001 Block - Porcelain........................................................................................................................3
12 00-410472-00008 Block - Terminal (3-Pole)............................................................................................................1
13 00-417856-00001 Lug - Grounding (With Set Screw).............................................................................................1
14 00-921887-00036 Bracket - Terminal......................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921888-00036 Cover..........................................................................................................................................1
2 00-927503 Panel - Stiffener (36 In.).............................................................................................................1
*3 00-411503-00004 Switch - Infinite Switch (208 V. & 240 V. Units Only)..............................................................AR
*4 00-355798-00001 Switch (4-Position) (480 V. Units Only)...................................................................................AR
5 00-921883 Bracket - Manifold Cover (LH)....................................................................................................1
6 00-921882 Bracket - Manifold Cover (RH)...................................................................................................1
7 00-414881-00001 Block - Porcelain.....................................................................................................................AR
8 00-927603-00001 Knob - Infinite Switch (208 V. & 240 V. Units Only)................................................................AR
9 00-412251-00003 Knob - Infinite Switch (480 V. Units Only)...............................................................................AR
* See 24" for Themostat and Dial
- 13 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
BODY
(12 INCH)
F-43240 Rev. C (October 2015) - 14 -
BODY
(12 INCH)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
ILLUS.

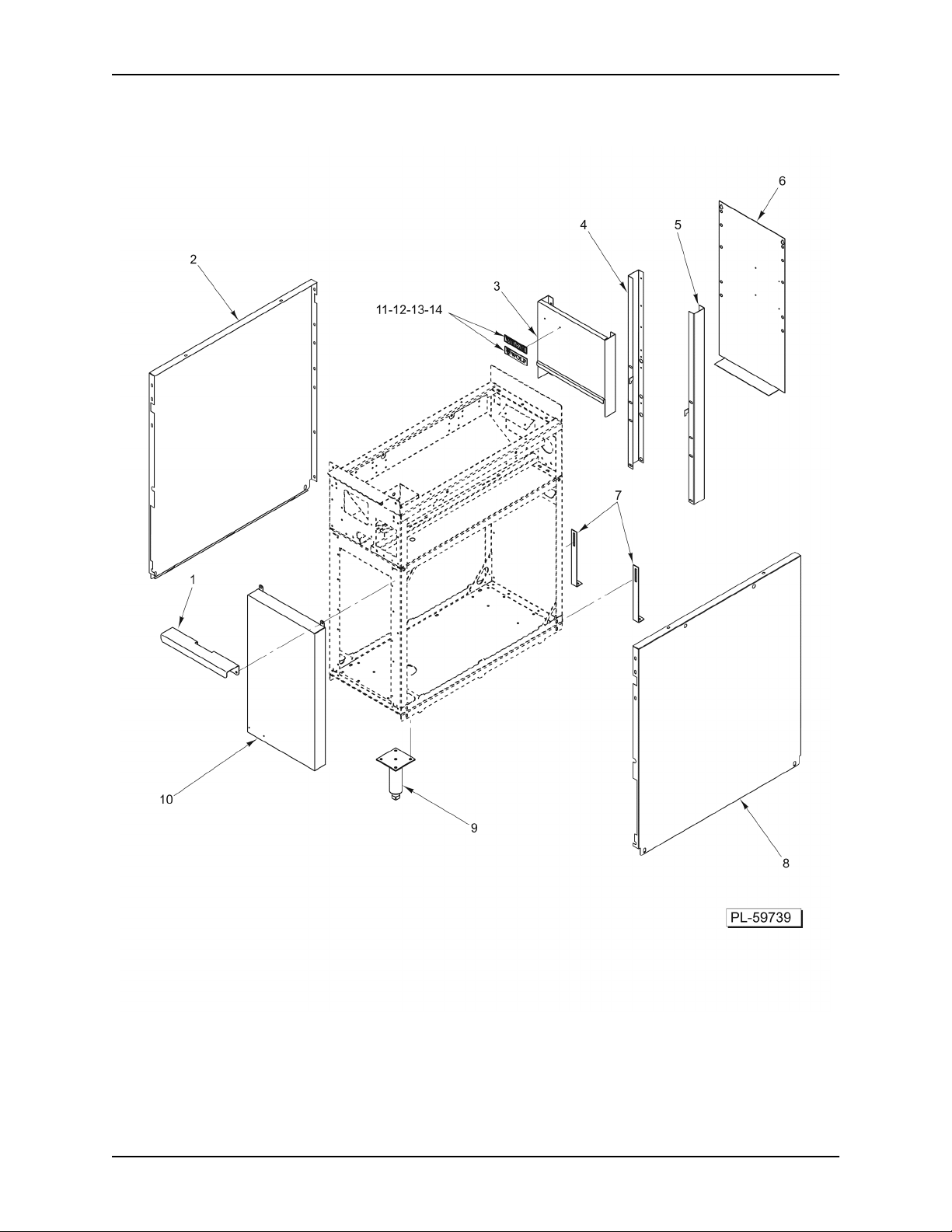

PL-59739
10 00-927464 Cover - Front..............................................................................................................................1
11 00-957916-00003 Nameplate - Small (Vulcan).......................................................................................................1
12 00-723204 Nameplate - Small (Wolf)...........................................................................................................1
13 NS-047-78 Pal Nut (Used with Wolf Nameplate)..........................................................................................2
14 NS-047-79 Pal Nut 3/16 (Used with Vulcan Nameplate)..............................................................................2
PART NO. NAME OF PART AMT.
1 00-927462 Handle - Crumb Tray..................................................................................................................1
2 00-921807 Panel - Side................................................................................................................................1
3 00-921317 Backsplash (12 In.).....................................................................................................................1
4 00-922140 Channel (LH)..............................................................................................................................1
5 00-922141 Channel (RH).............................................................................................................................1
6 00-921713 Panel - Back (12 In.)...................................................................................................................1
7 00-927459 Bracket - Anchor.........................................................................................................................2
8 00-921807 Panel - Side................................................................................................................................1
9 00-413112-00012 Leg (6 In.) (SST).........................................................................................................................4
- 15 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
BODY
(24 INCH)
F-43240 Rev. C (October 2015) - 16 -
BODY
(24 INCH)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
ILLUS.
PL-59743
10 00-428179-000G1 Bracket - Kick Panel Mounting...................................................................................................2
11 00-921785 Kick Panel Assy..........................................................................................................................1
12 00-923515 Cavity Bottom (24 In. Oven).......................................................................................................1
13 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................4
14 00-921325 Side Liner - Right........................................................................................................................1
15 00-921064 Guide - Rack..............................................................................................................................4
16 00-927402 Plate - Element Mounting (24 In.)...............................................................................................1
17 00-927403 Pan - Element (24 In.)................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921326 Side Liner - Left..........................................................................................................................1
2 00-921807 Panel - Side................................................................................................................................1
3 00-923508-0000A Oven Rack (24 In.).....................................................................................................................2
4 00-921611 Cover - Element.........................................................................................................................2
5 00-921786 Flue - Rear.................................................................................................................................1
6 00-921807 Panel - Side................................................................................................................................1
7 00-413112-00012 Leg (6 In.) (SST).........................................................................................................................4
8 00-921095 Insulation - Door Hinge...............................................................................................................2
9 00-497029-00001 Door Hinge Stop.........................................................................................................................2
- 17 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
BODY
(36 INCH)
F-43240 Rev. C (October 2015) - 18 -
BODY
(36 INCH)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
ILLUS.
PL-59744
10 00-428179-000G1 Bracket - Kick Panel Mounting...................................................................................................2
11 00-921721 Kick Panel Assy..........................................................................................................................1
12 00-921015 Cavity Bottom (30 In.).................................................................................................................1
13 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................4
14 00-921325 Side Liner - Right........................................................................................................................1
15 00-921064 Guide - Rack..............................................................................................................................4
16 00-927511-00001 Plate - Element Mounting (30 In.)...............................................................................................1
17 00-927510-00001 Pan - Element (30 In.).............................................................................................................AR
PART NO. NAME OF PART AMT.
1 00-921326 Side Liner - Left..........................................................................................................................1
2 00-921807 Panel - Side................................................................................................................................1
3 00-921010-0000A Oven Rack (30 In.).....................................................................................................................2
4 00-921611 Cover - Element.........................................................................................................................2
5 00-921799 Channel - Back Flue...................................................................................................................1
6 00-921807 Panel - Side................................................................................................................................1
7 00-413112-00012 Leg (6 In.) (SST).........................................................................................................................4
8 00-921095 Insulation - Door Hinge...............................................................................................................2
9 00-497029-00001 Door Hinge Stop.........................................................................................................................2
- 19 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
DOOR ASSEMBLY
(BEFORE 10/31/2014)
F-43240 Rev. C (October 2015) - 20 -
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
DOOR ASSEMBLY
(BEFORE 10/31/2014)
ILLUS.
PL-59740
10 00-921749 Panel - Door (30 In.)...................................................................................................................1
11 00-922118 Bracket - Handle.........................................................................................................................1
12 00-913159-00002 Kit - Door Handle (24 In.) (Vulcan).............................................................................................1
13 00-913159-00001 Kit - Door Handle (24 In.) (Wolf).................................................................................................1
14 00-913159-00004 Kit - Door Handle (30 In.) (Vulcan).............................................................................................1
15 00-913159-00003 Kit - Door Handle (30 In.) (Wolf).................................................................................................1
16 00-922118 Bracket - Handle.........................................................................................................................1
17 00-497027-00002 Hinge - Door Spring (LH)............................................................................................................1
18 00-921033 Insulator - Door Hinge................................................................................................................1
19 00-730240 Mach. Screw #8 x 1/2.................................................................................................................3
20 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................3
PART NO. NAME OF PART AMT.
1 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................3
2 00-922030 Liner - Door (24 In.)....................................................................................................................1
3 00-921022 Liner - Door (30 In.)....................................................................................................................1
4 00-921033 Insulator - Door Hinge................................................................................................................1
5 00-497027-00001 Hinge - Door Spring (RH)...........................................................................................................1
6 00-730240 Mach. Screw #8 x 1/2.................................................................................................................3
7 00-922134 Reinforcement - Door (24 In.).....................................................................................................1
8 00-922133 Reinforcement - Door (30 In.).....................................................................................................1
9 00-921781 Panel - Door (24 In.)...................................................................................................................1
00-922131-0000A Door Assy. (24 In.) (Incls. Items 1, 2, 4, 5, 6, 7, 9, 11, 12, & 16 thru 20)...................................1
00-922132-0000A Door Assy. (30 In.) (Incls. Items 1, 3, 4, 5, 6, 8, 10, 11, 14, & 16 thru 20)..............................AR
- 21 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
DOOR ASSEMBLY
(AFTER 10/31/2014)
F-43240 Rev. C (October 2015) - 22 -
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
DOOR ASSEMBLY
(AFTER 10/31/2014)
ILLUS.
PL-60461
10 00-922701-00030 Panel - Door (30 In.)...................................................................................................................1
11 00-497027-00002 Hinge - Door Spring (LH)............................................................................................................1
12 00-922710-00024 Handle - Door (24 In.).................................................................................................................1
13 00-922710-00030 Handle - Door (30 In.).................................................................................................................1
14 00-922700-00A24 Door Assy. (24 In.).....................................................................................................................1
15 00-922700-00A30 Door Assy. (30 In.).....................................................................................................................1
16 RS-033-05 Screw.........................................................................................................................................2
17 00-922712-00001 Logo (Vulcan).............................................................................................................................1
18 00-922712-00002 Logo (Wolf).................................................................................................................................1
19 Screw......................................................................................................................................AR
20 00-922711 Cap - Door Handle.....................................................................................................................2
21 Nut..............................................................................................................................................4
22 00-923529 Insulation - Door (24 In.).............................................................................................................1
23 00-921102 Insulation - Door (36 In.).............................................................................................................1
24 00-921033 Insulator - Door Hinge................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd................................................................................AR
2 00-922030 Liner - Door (24 In.)....................................................................................................................1
3 00-921022 Liner - Door (30 In.)....................................................................................................................1
4 00-921033 Insulator - Door Hinge................................................................................................................1
5 00-497027-00001 Hinge - Door Spring (RH)...........................................................................................................1
6 00-730240 Mach. Screw #8 x 1/2.................................................................................................................3
7 00-922702-00024 Reinforcment - Door (24 In.).......................................................................................................1
8 00-922702-00030 Reinforcement - Door (30 In.).....................................................................................................1
9 00-922701-00024 Panel - Door (24 In.)...................................................................................................................1
- 23 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
RANGE GRIDDLE
F-43240 Rev. C (October 2015) - 24 -
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
RANGE GRIDDLE
ILLUS.
PL-59741
10 00-421145 Cover - Griddle Element..........................................................................................................AR
11 Lockwasher.............................................................................................................................AR
12 00-926513-0000A Splash Assy. - Outer (RH)..........................................................................................................1
13 00-922396-0000A Grease Can 12"..........................................................................................................................1
14 00-922353-0000A Grease Can 24" & 36"................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-926527-0000A Splash Assy. - Outer (LH)..........................................................................................................1
2 Griddle Plate Assy. (12 In.)........................................................................................................1
3 00-924511-0000A Griddle Plate Assy. (24 In.)........................................................................................................1
4 00-926500-0000A Griddle Plate Assy. (36 In.)........................................................................................................1
5 00-407774-00001 Element - Griddle (208 V.).......................................................................................................AR
6 00-407774-00002 Element - Griddle (240 V.).......................................................................................................AR
7 00-407774-00003 Element - Griddle (480 V.).......................................................................................................AR
8 00-927415 Brace - Griddle Element..........................................................................................................AR
9 NS-046-52 Nut Assy. 1/4-20 Hex..............................................................................................................AR
- 25 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
BACKSPLASH, SHELF, AND BULL NOSE
(ALL SIZES)
F-43240 Rev. C (October 2015) - 26 -
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
BACKSPLASH, SHELF, AND BULL NOSE
(ALL SIZES)
ILLUS.
PL-59745
10 00-921053-00048 Backsplash (48 In.).....................................................................................................................1
11 00-921053-00060 Backsplash (60 In.).....................................................................................................................1
12 00-921053-00072 Backsplash (72 In.).....................................................................................................................1
13 00-921730-00024 Shelf (24 In.)...............................................................................................................................1
14 00-921730-00036 Shelf (36 In.)...............................................................................................................................1
15 00-921730-00048 Shelf (48 In.)...............................................................................................................................1
16 00-921730-00060 Shelf (60 In.)...............................................................................................................................1
17 00-921730-00072 Shelf (72 In.)...............................................................................................................................1
18 00-921728 Support - Backsplash (LH).........................................................................................................1
19 00-921713 Panel - Back (12 In.)...................................................................................................................1
20 00-923525 Panel - Back (24 In.)...................................................................................................................1
21 00-921054 Panel - Back (36 In.) (Use two for 72 In. Units)..........................................................................1
22 00-923009 Panel - Back (48 In.)...................................................................................................................1
23 00-929007 Panel - Back (60 In.)...................................................................................................................1
24 00-921729 Support - Backsplash (RH) (Used on 60 & 72 In. Units)............................................................1
25 00-921729 Support - Backsplash (RH).........................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921884-00012 Bull Nose (12 In.)........................................................................................................................1
2 00-921884-00024 Bull Nose (24 In.)........................................................................................................................1
3 00-921884-00036 Bull Nose (36 In.)........................................................................................................................1
4 00-921884-00048 Bull Nose (48 In.)........................................................................................................................1
5 00-921884-00060 Bull Nose (60 In.)........................................................................................................................1
6 00-921884-00072 Bull Nose (72 In.)........................................................................................................................1
7 00-921317 Backsplash (12 In.).....................................................................................................................1
8 00-921053-00024 Backsplash (24 In.).....................................................................................................................1
9 00-921053-00036 Backsplash (36 In.).....................................................................................................................1
- 27 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
OVEN ELEMENT
F-43240 Rev. C (October 2015) - 28 -
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
OVEN ELEMENT
ILLUS.
PL-59742
PART NO. NAME OF PART AMT.
1 00-412925-00001 Clamp - Element......................................................................................................................AR
2 00-927538-0004S Oven Element - Upper (208 V.)...............................................................................................AR
3 00-927538-0005S Oven Element - Upper (240 V.)...............................................................................................AR
4 00-927538-0006S Oven Element - Upper (480 V.)...............................................................................................AR
5 00-412925-00001 Clamp - Element......................................................................................................................AR
6 00-927538-0001S Oven Element - Lower (208 V.)...............................................................................................AR
7 00-927538-0002S Oven Element - Lower (240 V.)...............................................................................................AR
8 00-927538-0003S Oven Element - Lower (480 V.)...............................................................................................AR
- 29 - F-43240 Rev. C (October 2015)
EV SERIES ELECTRIC RANGES REPLACEMENT PARTS
FORM 43240 Rev. C OCTOBER 2015 PRINTED IN U.S.A.
Loading...
