Vulcan ERC225 Parts List

CATALOG OF

REPLACEMENT PARTS

ERD/ERC SERIES ELECTRIC FRYERS

ERD40 ML-114614
ERD50 ML-114615
ERD225 ML-114616
ERD85 ML-114617

ERC40 ML-114618
ERC50 ML-114619
ERC225 ML-114620
ERC85 ML-114621

MODELS MANUFACTURED AUGUST 2003 TO
OCTOBER 2005 WITH TDI CONTROLLERS

ERD50 ML-135541
ERD85 ML-135543

ERC50 ML-135545
ERC85 ML-135547

MODELS MANUFACTURED AFTER OCTOBER 2005
WITH TDI CONTROLLERS

ER50D ML-136496
ER85D ML-136497

ER50C ML-136498
ER85C ML-136499

For additional information on Vulcan-Hart or to locate an authorized parts

and service provider in your area, visit our website at www.vulcanhart.com

VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC

WWW.VULCANHART.COM

P.O. BOX 696, LOUISVILLE, KY 40201-0696

TEL. [phone]

FORM 37100 (June 2006)

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

CONTROL PANEL* (TRIDELTA)

(CURRENT CONSTRUCTION)

ILLUS. PART NO. NAME OF PART AM T.
PL-56741

1 00-427757-00001 Control Assy. – Solid State ......................................................................................................... 1

2 00-426815-000G1 Plate Assy. – Mounting (ERD40/50) .......................................................................................... 1

3 00-426815-000G2 Plate Assy. – Mounting (ERD85) ............................................................................................... 1

4 00-497421-00001 Overlay – Control Panel ............................................................................................................. 1

5 00-427755-000G1 Rocker Switch Assy. ................................................................................................................. 1

6 00-427758-00001 Computer Cooking Assy. ............................................................................................................ 1

7 00-426815-000G1 Plate Assy. – Mounting (ERC40/50) ........................................................................................... 1

8 00-426815-000G2 Plate Assy. – Mounting (ERC85) ................................................................................................ 1

9 00-497422-00001 Overlay – Control Panel ............................................................................................................. 1

10 00-427755-000G1 Rocker Switch Assy. .................................................................................................................1

00-426251-00002 Plug ............................................................................................................................................. 1

- 2 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

CONTROL PANEL (PRIOR TO OCTOBER 1, 2003)

(ERC SERIES)

ILLUS. PART NO. NAME OF PART AM T.
PL-52819

1 00-419385-000G1 Control Panel Frame (ERC40/50) ............................................................................................... 1

2 00-419386-000G1 Control Panel Frame (ERC85) .................................................................................................... 1

3 00-419385-000G2 Control Panel Frame (ERC225) .................................................................................................. 1

4 00-419557-00007 Board & Panel Assy. (May 15, 2000 Thru September 30, 2003) .............................................. 1

5 NS-046-89 Nut Assy. 6-32 Hex KEPS .......................................................................................................... 6

6 00-411496-000B1 Switch – Rocker ........................................................................................................................ 1

00-419557 Computer Controlled (April 15, 1996 to May 15, 2000) ............................................................. 1

- 3 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

1-2

7

8

9

3

4-5

6

10

19

20-21-22

11-12

13-14

23

24-25

26

CONTROL PANEL

(ERD SERIES)

15-16

17-18

27

PL-56297

- 4 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

CONTROL PANEL

(ERD SERIES)

ILLUS. PART NO. NAME OF PART AM T.
PL-56297

1 00-418387-00002 Overlay – Control Panel (ERD40/50) ......................................................................................... 1

2 00-418388-00002 Overlay – Control Panel (ERD85) ............................................................................................... 1

3 00-411496-000E4 Light – Hot Top............................................................................................................................ 1

4 00-414254-00001 Knob – Thermostat ..................................................................................................................... 1

5 00-415638-000G1 Potentiometer .............................................................................................................................. 1

6 00-411496-000E7 Light – Indicator (Red) ................................................................................................................1

7 00-411496-000B7 Switch – Rocker ........................................................................................................................ 1

8 00-411496-000E6 Light – Indicator (Trouble) .......................................................................................................... 1

9 00-411496-000E3 Light – Indicator (Amber) ........................................................................................................... 1

10 00-411496-000B7 Switch – Rocker ........................................................................................................................ 1

11 00-418387-00002 Overlay – Control Panel (ERD40/50) ......................................................................................... 1

12 00-418388-00002 Overlay – Control Panel (ERD85) ............................................................................................... 1

13 00-411496-000E3 Light – Indicator (Amber) ........................................................................................................... 1

14 00-411496-000E7 Light – Indicator (Red) ................................................................................................................1

15 00-414254-00001 Knob – Thermostat ..................................................................................................................... 1

16 00-415638-000G1 Potentiometer .............................................................................................................................. 1

17 00-411496-000E7 Light – Indicator (Red) ................................................................................................................1

18 00-411496-000E4 Light – Hot Top............................................................................................................................ 1

19 00-411496-000B1 Switch – Rocker ........................................................................................................................ 1

20 00-415254-00002 Timer – Basketlift (Solid State) .................................................................................................AR

21 00-415254-00003 Timer (7 Min.) .............................................................................................................................. 1

22 00-415269-00001 Knob – Basketlift Timer .............................................................................................................. 1

23 00-411496-000E6 Light – Indicator (Trouble) .......................................................................................................... 1

24 00-415255-00005 Overlay – Basketlift (7.5 Min.) .................................................................................................AR

25 00-415255-00004 Label – Basketlift (15 Min.) ...................................................................................................... AR

26 00-411496-000E3 Light – Indicator (Amber) ........................................................................................................... 1

27 00-411496-000B1 Switch – Rocker ........................................................................................................................ 1

00-415144-00012 Board – Temperature ................................................................................................................. 1

- 5 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

1-2-3

5 THRU 8

43-44

42

15-16

38-39

32 THRU 37

12-13

14

9-10-11

30-31

O

N

28-29

27

25

26

F

F

R

R

Y

Y

4

40-41

17

22 THRU 24

18-19-20

Figure 1

BODY UNIT

- 6 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

BODY UNIT

ILLUS. PART NO. NAME OF PART AM T.
Figure 1

1 00-421831-00001 Hanger – Basket (ERC85/ERD85) .............................................................................................. 1

2 00-421912-000G1 Hanger – Basket (ERC85/ERD85) .............................................................................................. 1

3 00-421911-000G1 Hanger – Basket (ERC40/50/ERD40/50) ....................................................................................1

4 00-421897-00001 Bracket – Power Supply Mounting ............................................................................................ 1

5 00-422868-00002 Basket – Twin (ERC85/ERD85) ................................................................................................ AR

6 00-422870-00002 Basket – Triple (ERC85/ERD85) ............................................................................................... AR

7 00-422869-00001 Basket – Single (ERC85/ERD85) .............................................................................................. AR

8 00-411378-00002 Basket – Single (ERC40/50/ERD40/50) .................................................................................... AR

9 00-416994-000G2 Flue Assy. (3 Tube) .................................................................................................................... 1

10 00-418201-000G1 Flue Box Assy. (4 Tube) ............................................................................................................ 1

11 00-418205-000G1 Flue Assy. (5 Tube) .................................................................................................................... 1

12 00-422020-000G4 Flue Wrap (SST) (ERC85/ERD85) .............................................................................................. 1

13 00-422021-00002 Wrap – Flue (SST) (ERC40/50/ERD40/50) .................................................................................1

14 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB ...................................................................... 2

15 00-420596-00004 Body – Side (SST) (RH) (40/50) ................................................................................................1

16 00-419777-00004 Body – Side (SST) (RH) .............................................................................................................1

17 00-497296-000G1 Magnet ........................................................................................................................................2

18 00-413112-00007 Leg (61/4 In.) (SST) .....................................................................................................................4

19 00-413112-00009 Legs (6 In.) (SST) ...................................................................................................................... 4

20 00-413112-00010 Base Plate – Leg ........................................................................................................................ 4

21 00-418906-00001 Caster – Adjustable Rigid ........................................................................................................... 2

22 00-418907-00001 Caster – Adjustable Swivel ....................................................................................................... 2

23 00-421893-00002 Caster W/O Brake (4 In.) (Plate Mounted) ................................................................................. 2

24 00-421893-00001 Caster – Swivel W/Brake (4 In. Dia.) (Plate Mounted) .............................................................. 2

25 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ..................................................... 10

26 00-417014-00001 Bracket – Rear Support (ERC40/50/ERD40/50) ........................................................................ 1

27 00-418320-00001 Bracket – Rear Support (ERC85/ERD85) ...................................................................................1

28 00-419653 Handle ......................................................................................................................................... 1

29 RS-033-02 Pop Rivert (0.187) ...................................................................................................................... 4

30 00-426562-000G8 Door Assy. (SST) (151/2 In.) (ER50D/ER50C) ............................................................................. 1

31 00-426562-000G7 Door Assy. (SS) (21 In.) (ER85D/ER85C) .................................................................................. 1

32 00-416535-00004 Relay S.P.D.T. 24 V. Coil (Located on rear of panel) ................................................................. 1

33 00-415144-00012 Board – Temperature (ERD Series) ........................................................................................... 1

34 00-422737-00001 Probe – Thermistor (ERC85) (ERD85/ER85D w/TDI Controls) .................................................. 1

35 00-422737-00002 Probe – Thermistor (ERC40/50/225) (ERD40/50, ER50D w/TDI Controls) ................................ 1

36 00-414142-00002 Probe – Thermistor (ERD 85) (Prior to October 5, 2003) .......................................................... 1

37 00-414142-00001 Probe – Thermistor (ERD 40, 50, 225) (Prior to October 5, 2003) .......................................... AR

38 00-422838-000G1 Heat Shield (ERC40/50/ERD40/50) .............................................................................................1

39 00-422838-000G2 Heat Shield (ERC85/ERD85) ....................................................................................................... 1

40 00-420596-00003 Body – Side (SST) (LH) (40, 50) ............................................................................................... 1

41 00-419777-00003 Body – Side (SST) (LH) ............................................................................................................. 1

42 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB ........................................................ 8

43 00-420613-00002 Screen – Drain (131/2 In.) ............................................................................................................ 1

44 00-420613-00001 Screen – Drain (19 In.) ............................................................................................................... 1

00-420769-00001 Bumper – Rubber ....................................................................................................................... 1

00-422378-00001 Rack – Basket (85) .................................................................................................................... 1

00-428023-000G2 Door Hinge Assy. ....................................................................................................................... 1

00-426562-000G2 Door Assy. (ERD225/40/50, ERC225/40/50) ..............................................................................1

NS-047-79 Palnut 3/16 ..................................................................................................................................... 2

00-417700-00003 Nameplate 4 In. (Old Style) ......................................................................................................... 1

- 7 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

17-18

1-2

3 THRU 6

19

20

22

21

16

14-15

23

7-8

11-12-13

9-10

TANK ASSEMBLY

- 8 -

Figure 2

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

TANK ASSEMBLY

ILLUS. PART NO. NAME OF PART AM T.
Figure 2

1 00-421844-000G1 Tank Assy. (ER50) ...................................................................................................................... 1

2 00-421842-000G1 Tank Assy. (ER85) ...................................................................................................................... 1

3 00-414460-00001 Strip – Grease Protector (ERC40/50/ERD40/50) ....................................................................... 1

4 00-414460-00002 Strip – Grease Protector (Spec) (ERC85/ERD85) ...................................................................... 1

5 00-414460-00003 Strip – Grease Protector (Spec) ................................................................................................ 1

6 00-414460-00004 Strip – Grease Protector (Spec) ................................................................................................ 1

7 00-414345-00001 Door – Rear ................................................................................................................................ 1

8 00-414345-00003 Door – Rear (PTD) ......................................................................................................................1

9 00-421893-00002 Caster W/O Brake (4 In.) ............................................................................................................ 2

10 00-421893-00001 Caster – Swivel W/Brake (4 In.) ................................................................................................ 2

11 00-413112-00007 Leg (61/4 In.) (SST) .....................................................................................................................4

12 00-413112-00009 Legs (6 In.) (SST) ...................................................................................................................... 4

13 00-413112-00010 Base Plate – Leg ........................................................................................................................ 4

14 00-414212-00003 Valve – Ball (RH) (ERC225/ERD225) ......................................................................................... 1

15 00-414212-00004 Valve – Ball (LH) (ERC40/50/ERD40/50) .................................................................................... 1

16 00-414212-00006 Valve – Ball 11/4 Bal (ERC85/ERD85) .......................................................................................... 1

17 00-414214-00001 Wire Rack (ERC225/ERD225) .................................................................................................... 2

18 00-414214-00002 Wire Rack (ERC40/50/ERD40/50) .............................................................................................. 1

19 FP-028-14 Plug – Pipe 1/2 Sq. Hd. ............................................................................................................... AR

20 00-402570-00003 Eye Bolt .................................................................................................................................... AR

21 NS-046-50 Mach. Nut 6-32 Hex Stl............................................................................................................. AR

22 00-406363-00001 Spring – Door (Long)................................................................................................................ AR

23 FP-090-66 Drain Pipe (ER50D/ER50C) ......................................................................................................... 1

00-426803-000G3 Valve Assy. w/Mounted Switch (ER50) (w/TDI Controller) ...................................................... 1

00-426803-000G2 Valve Assy. w/Mounted Switch (ER85) (w/TDI Controller) ...................................................... 1

FP-090-67 Drain Pipe (ER85D/ER85C) ......................................................................................................... 1

00-426805-000G1 Reed Switch (Wired) (ER50/85) (w/TDI Controller) .................................................................. 1

00-426801-00002 Magnet – Reed Switch (ER50/85) (w/TDI Controller) ............................................................... 1

00-421822-000G1 Tank Assy. (ER40) ......................................................................................................................1

00-422110-000G1 Tank Assy. (ER225) ....................................................................................................................1

- 9 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

HEATING ELEMENT ASSEMBLY

- 10 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

HEATING ELEMENT ASSEMBLY

ILLUS. PART NO. NAME OF PART AM T.
PL-52898

1 00-422321-000G1 Element Head Assy. (ERC225/ERD225) (Prior to December 2003) .......................................... 1

2 00-416782-00001 Bracket – Hi-Limit ..................................................................................................................... AR

3 00-422727-00002 Clamp – Element Bottom (ERC50/ERD50) .................................................................................. 2

4 00-422380-00001 Clamp – Lower (ERC85/ERD85) ................................................................................................ 1

5 00-422381-000G1 Clamp – Top Element Assy. (ERC85/ERD85).............................................................................. 4

6 00-421916-000G1 Top Clamp Assy. (ERC50/ERD50) .............................................................................................. 4

7 00-416741-000G5 Element Assy. (208 V., 7000 kW) (ER40/50) ............................................................................. 2

8 00-416741-000G6 Element Assy. (220 V., 7000 kW) (ER40/50) ............................................................................. 2

9 00-416741-000G7 Element Assy. (240 V., 7000 kW) (ER40/50) ............................................................................. 2

10 00-416741-000G8 Element Assy. (480 V., 7000 kW) (ER225) ................................................................................2

11 00-416741-000G9 Element Assy. (208 V., 8500 kW) (ER40/50) ............................................................................. 2

12 00-416741-00G10 Element Assy. (220 V., 8500 kW) (ER40/50) ............................................................................. 2

13 00-416741-00G11 Element Assy. (240 V., 8500 kW) (ER40/50) ............................................................................. 2

14 00-416741-00G12 Element Assy. (480 V., 8500 kW) (ER40/50) ............................................................................. 2

15 00-416741-00G13 Element Assy. (208 V., 10500 kW) (ER50) ................................................................................2

16 00-416741-00G14 Element Assy. (220 V., 10500 kW) (ER50) ................................................................................2

17 00-416741-00G15 Element Assy. (240 V., 10500 kW) (ER50) ................................................................................2

18 00-416741-00G16 Element Assy. (480 V., 10500 kW) (ER50) ................................................................................2

19 00-421892-000G1 Element Assy. (208 V., 12000 kW) (ER85) ................................................................................2

20 00-421892-000G2 Element Assy. (220 V., 12000 kW) (ER85) ................................................................................2

21 00-421892-000G3 Element Assy. (240 V., 12000 kW) (ER85) ................................................................................2

22 00-421892-000G4 Element Assy. (480 V., 12000 kW) (ER85) ................................................................................2

23 00-421911-000G1 Hanger – Basket (ER40/50) ....................................................................................................... 2

00-422827-000G2 Element Head Assy. (LH) (ER225) ............................................................................................. 1

00-422827-000G3 Element Head Assy. (RH) (ER225) ............................................................................................. 1

00-422827-000G1 Element Head Assy. (ER40/50) .................................................................................................. 1

00-422825-000G1 Element Head Assy. (ER85) ....................................................................................................... 1

00-414146-00002 Thermostat Hi-Limit ..................................................................................................................... 1

00-416736-00001 Gasket – Element Flange (ER225/40/50/85) .............................................................................. 1

00-414178-000G2 Clamp Assy. – Top Element ........................................................................................................ 1

00-414177-00001 Clamp – Bottom Element (October 2005 to Present) ................................................................. 1

00-426801-00001 Wired Switch (Tilt Switch) ......................................................................................................... 1

00-426801-00002 Magnet Switch Element Head (Tilt Switch) ............................................................................... 1

00-411496-000F7 Tilt Switch (Prior to August 15, 2003) ....................................................................................... 1

- 11 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

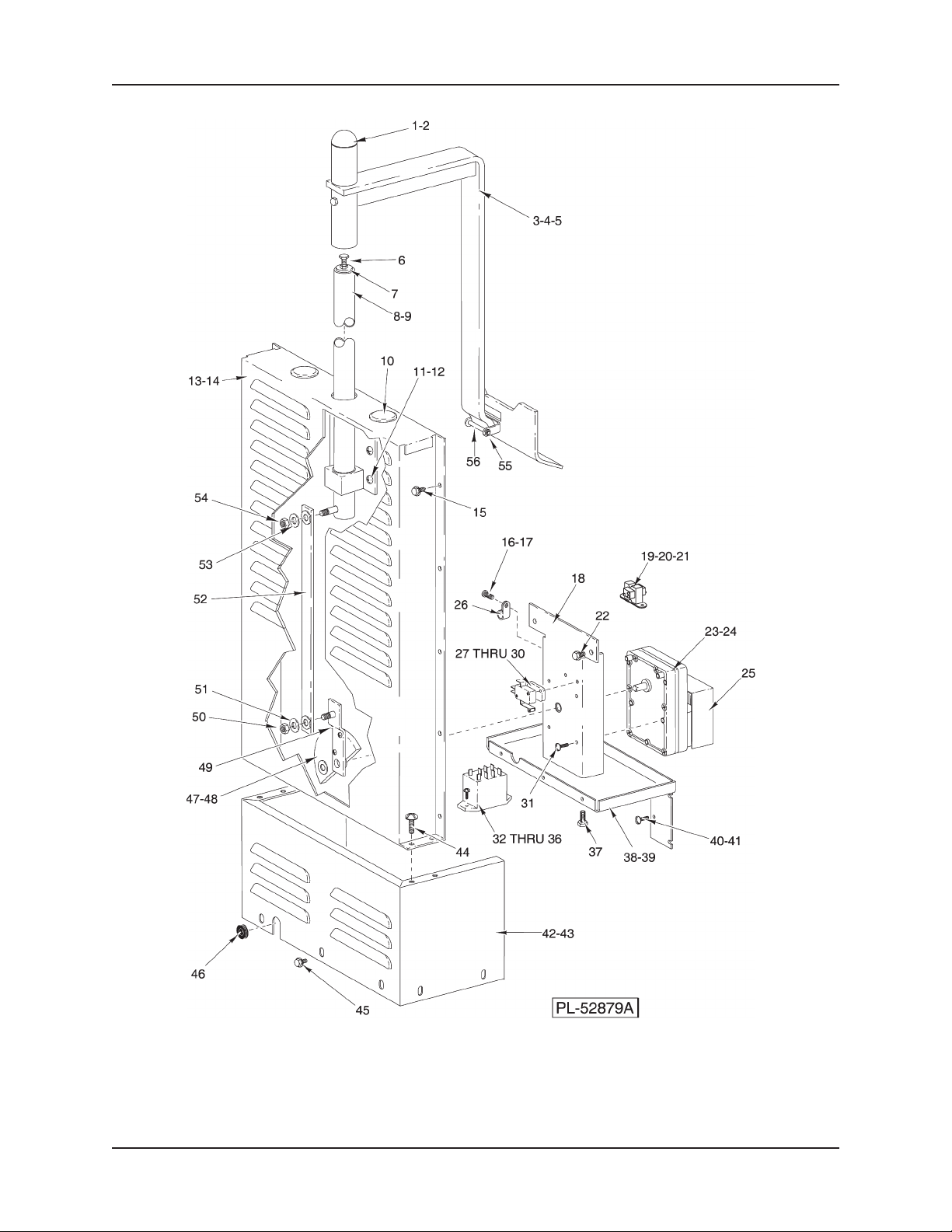

BASKETLIFT COMPONENTS

- 12 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

BASKETLIFT COMPONENTS

ILLUS. PART NO. NAME OF PART AM T.
PL-52879A

1 00-423374-00001 Cap – Rod End ............................................................................................................................ 1

2 SC-047-35 Set Screw 5/16-18 x 1/2 Hdls., Cup Pt. ........................................................................................ 1

3 00-422495-000G1 Lift Assy. (Dual) (ER40/50, ER225)............................................................................................ 1

4 00-422495-000G2 Lift Assy. (ER85) ........................................................................................................................ 1

5 00-422495-000G3 Lift Assy. (Single) (ER40/50) ..................................................................................................... 1

6 00-418118-00001 Bolt – Adjusting........................................................................................................................... 1

7 NS-018-01 Jam Nut 1/4-20 Hex ...................................................................................................................... 1

8 00-418479-000G2 Tube – Basketlift (ER40/50, ER85) ............................................................................................. 1

9 00-423262-000G1 Tube – Baskelift (ER40/50, ER85) .............................................................................................. 1

10 PB-004-04 Plug Button (11/4) ........................................................................................................................ 2

11 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ...................................................... 6

12 00-422247-000G1 Bearing Support Assy. ............................................................................................................... 1

13 00-422017-00001 Wrap – Top (ER40/50) ................................................................................................................ 1

14 00-422018-00001 Wrap – Top (ER85) .....................................................................................................................1

15 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB ....................................................... 10

16 SC-109-10 Mach. Screw 6-32 x 3/8 Pan Hd. ................................................................................................ 1

17 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................... 1

18 00-418123-000G1 Plate – Motor ............................................................................................................................... 1

19 00-411500-00012 Transformer (120 VAC, 28 V., 20 VA) .................................................................................... AR

20 00-411500-00013 Transformer (200-240 VAC, 28 V., 20 VA) ............................................................................. AR

21 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ...................................................... 2

22 SD-037-80 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ...................................................... 6

23 00-418156-00001 Gear Motor (115 V., 60 Hz.) ....................................................................................................... 1

24 00-418156-00002 Gear Motor (208 V.) ................................................................................................................... 1

25 00-418517-00001 Shroud – Motor ........................................................................................................................... 1

26 00-078752-00012 Clamp – Cable .............................................................................................................................1

27 00-418159-00001 Block – Cam Switch ................................................................................................................... 1

28 00-411496-000F3 Switch – Micro ...........................................................................................................................1

29 SC-112-90 Mach. Screw 4-40 x 1 Pan Hd. ................................................................................................. 2

30 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 2

31 SC-018-47 Mach. Screw 10-32 x 3/4 Pan Hd. .............................................................................................. 4

32 00-416535-00004 Relay S.P.D.T. 24 V. Coil (Located on rear of panel) ................................................................. 1

33 00-416535-00006 Switch – Relay (ERC Series) ................................................................................................... AR

34 00-416535-00007 Switch – Relay (240 V.) (ERC Series) .................................................................................... AR

35 SC-109-10 Mach. Screw 6-32 x 3/8 Pan Hd. ................................................................................................ 2

36 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................... 2

37 SD-037-80 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ...................................................... 2

38 00-422730-00001 Base – Motor Mounting (ER85) .................................................................................................. 1

39 00-422729-00001 Base – Motor Mounting (ER40/50) ............................................................................................. 1

40 SC-037-80 Cap Screw 10-24 x 1/2 Hex Hd. ................................................................................................. 2

41 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ...................................................... 2

42 00-418480-00001 Wrap – Bottom ............................................................................................................................ 1

43 00-418510-00001 Wrap – Bottom ............................................................................................................................ 1

44 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB ....................................................... 14

45 SC-037-80 Cap Screw 10-24 x 1/2 Hex Hd. ................................................................................................. 2

46 00-418482-00001 Grommet ..................................................................................................................................... 1

47 00-418475-000G1 Crank-Arm Assy. ........................................................................................................................ 1

48 SC-055-02 Set Screw 1/4-20 x 1/4 Hdls., Cup Pt. .......................................................................................... 2

49 SD-015-41 Self-Tapping Screw 8-32 x 1/2 Phil. Pan Hd., Taptite.................................................................. 2

50 NS-047-73 Lock Nut 5/16-18 Hex ................................................................................................................... 1

51 WS-004-33 Washer ....................................................................................................................................... 1

52 00-418477-000G2 Coupler Assy. ............................................................................................................................. 1

53 WS-004-33 Washer ....................................................................................................................................... 1

54 NS-047-73 Lock Nut 5/16-18 Hex ................................................................................................................... 1

55 00-418488-00001 Roll Pin ........................................................................................................................................ 1

56 00-418487-00001 Roller ........................................................................................................................................... 1

- 13 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

1
2
3

36

37

38

PL-52881

34-35

4-5-6

32-33

7-8

30-31

9 THRU 12

GROUND

25 THRU 29

13 THRU 17

18-19-20

21-22

23-24

POWER SUPPLY BOX

- 14 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

POWER SUPPLY BOX

ILLUS. PART NO. NAME OF PART AM T.
PL-52881

1 00-421896-00001 Box – Power Supply (Prior to April 28, 2005) ...........................................................................1

00-497095-00001 Box – Power Supply (April 28, 2005 to Present) (ER40/50) .................................................... 1

00-497095-00002 Box – Power Supply (October 6, 2005 to Present) (ER85) ...................................................... 1

2 00-421895-00001 Cover – Box (Prior to April 28, 2005) ........................................................................................ 1

3 SD-036-96 Self-Tapping Screw 8-18 x

3

/4 Hex Hd., Type AB ...................................................................... 2

4 00-411497-000C5 Contactor (3 Pole, 40-amp, 230V) ............................................................................................. 4

5 00-411497-000C3 Contactor (3 Pole, 40-amp, 120 V) ............................................................................................ 4

6 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB ...................................................................... 8

7 00-411497-000A3 Relay S.P.D.T., 24 V. ................................................................................................................... 1

8 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB ...................................................................... 4

9 00-411500-00012 Transformer (120 VAC, 28 V., 20 VA) ...................................................................................... 1

10 00-411500-00013 Transformer (200-240 VAC, 28 V., 20 VA) ............................................................................... 1

11 00-419572-000G2 Transformer 12 V. ...................................................................................................................... 1

12 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB ...................................................................... 2

13 FE-023-55 Holder – Fuse ........................................................................................................................... AR

14 FE-019-40 Fuse (15 Amp.) (300 V.) .......................................................................................................... AR

15 SC-021-10 Mach. Screw 6-32 x 1/2 Rd. Hd. ............................................................................................... AR

16 WL-004-40 Lockwasher #10 Medium ......................................................................................................... AR

17 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................. AR

18 00-417856-00001 Lug – Grounding (With Set Screw) ........................................................................................... 1

19 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ...................................................... 1

20 WL-004-40 Lockwasher #10 Medium ...........................................................................................................1

21 00-410472-00009 Block – Terminal (208/240 V.) .................................................................................................... 1

22 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB ...................................................................... 2

23 00-410472-00008 Terminal Block............................................................................................................................. 1

24 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB .................................................................... AR

25 00-414208-00001 Terminal Barrier .......................................................................................................................... 1

26 00-414208-00002 Barrier – Terminal ....................................................................................................................... 1

27 SC-119-90 Mach. Screw 6-32 x 1 Pan Hd. ................................................................................................. 2

28 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................... 2

29 WL-004-40 Lockwasher #10 Medium ...........................................................................................................2

30 00-411500-00006 Transformer (480 V.) ................................................................................................................. 1

31 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB ........................................................ 4

32 00-411501-00014 Circuit Breaker ............................................................................................................................ 2

33 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB ...................................................................... 4

34 00-419574-000G1 Power Supply Board Assy. (Prior to August 15, 2003) ............................................................ 1

35 NS-046-89 Nut Assy. 6-32 Hex KEPS .......................................................................................................... 4

36 00-411500-00013 Transformer (200-240 VAC, 28 V., 20 VA) ............................................................................... 1

37 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB ........................................................ 1

38 00-419572-000G1 Transformer 12 V. (RC3, 4 & 5) ................................................................................................. 2

FE-002-45 Connector – Conduit 1/2 TS (2 Screws Included) ...................................................................... 1

00-422356-00001 Stand – Contactor ...................................................................................................................... 2

00-421363-00003 Cord – Power ............................................................................................................................. 1

00-419319 Power Cord (Filter) .................................................................................................................... 2

00-416535-00004 Relay Switch (April 28, 2005 to Present) .................................................................................. 1

00-416535-00007 Relay Switch 240 V (April 28, 2005 to Present) ....................................................................... 1

00-427759-00001 Interface Board (Used w/TDI Controller) ................................................................................... 1

- 15 -

ERC/ERD SERIES ELECTRIC FRYERS REPLACEMENT PARTS

RECOMMENDED SPARE PARTS LIST

PART NO. NAME OF PART AMT.

00-414146-00002 Thermostat – High Limit ..............................................................................................................1

00-422737-00001 Thermistor Probe – Temperature .............................................................................................. 1

00-427759-00001 Interface Board .......................................................................................................................... 1

00-426805-000G1 Reed Switch – Wired ................................................................................................................ 1

00-426801-00002 Magnet – Reed Switch .............................................................................................................. 1

00-411500-00013 Transformer 240/24 40 VA ........................................................................................................1

FE-023-55 Fuse Holder ................................................................................................................................1

FE-019-40 Fuse 15-amp .............................................................................................................................. 1

00-411501-00021 Circuit Breaker 50-amp .............................................................................................................. 1

00-416535-00007 Relay, 240V ................................................................................................................................1

00-416535-00004 Relay, 24V .................................................................................................................................. 1

00-416535-00006 Relay, 120V ................................................................................................................................1

00-427755-000G1 Rocker Switch ............................................................................................................................ 1

00-411497-000C5 Contactor 40-amp 230V............................................................................................................. 1

00-411497-000C3 Contactor 40-amp 120V............................................................................................................. 1

00-421892-000G1 Element 208V 12kW ................................................................................................................... 1

00-421892-000G3 Element 240V 12kW ................................................................................................................... 1

00-416741-000G9 Element 208V 8.5kW .................................................................................................................. 1

00-416741-00G11 Element 240V 8.5kW .................................................................................................................. 1

00-416741-000G5 Element 208V 7kW ..................................................................................................................... 1

00-416741-000G7 Element 240V 7kW ..................................................................................................................... 1

00-421892-000G4 Element 480V 12kW ................................................................................................................... 1

00-416741-00G12 Element 480V 8.5kW .................................................................................................................. 1

00-416741-000G8 Element 480V 7kW ..................................................................................................................... 1

00-411500-00012 Transformer 120/28 40 VA ........................................................................................................1

00-411500-00013 Transformer 208-240/28 40 VA ................................................................................................1

00-427757-00001 Controller TDI D Series ............................................................................................................... 1

00-427758-00001 Controller TDI C Series ............................................................................................................... 1

00-497421-00001 Overlay, Controller TDI D Series ................................................................................................1

00-497422-00001 Overlay, Controller TDI C Series ................................................................................................1

- 16 -
