REPLACEMENT PARTS
ELECTRIC CONVECTION OVENS
MODEL
CATALOG OF
EC04S ML-52501
VULCAN- HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201- 0696, TEL. (502) 778-2791
FORM 30941 (6-95)
OVEN
OVEN
ILLUS PART
PL-51882 NO NAME OF PART AMT
1 343516-1 Shell-Chimney (PTD) 1
2 343516-2 Shell - Chimney (SST) 1
3 343508-1 Top - Rear (PTD) 1
4 343508-2 Top - Rear (SST) 1
5 348450-1 Top- Front 1
6 339337-1 Stud - Locating 2
7 357760-1 Panel - Outer (LH)(PTD) 1
8 357760-2 Panel-Outer (LH)(SST) 1
9 353484-1 Plate - Retainer 2
10 SC-53-41 Mach Screw 1/4-20 x 1/2 Truss Hd SST 4
11 WL-19-22 Lockwasher 1/4 Ext 4
12 NS-46-52 Nut -'/4-20 Hex "Keps" 4
13 347080-2 Bearing - Door Shaft 2
14 353482-1 Spacer 2
15 353483-1 Plate - Upper Door Bearing 2
16 357508-1 Seal - Door (23 Long) 2
17 342141-1 Rack-Support (LH) 1
18 342141-2 Rack - Support (RH) 1
19 359505-1 Blower - Baffle (Porcelain) 1
20 357507-1 Seal - Door (30 1/2 Long) 2
21 SC-114-1 Mach Screw 10-32 x % Hex Washer Hd, Slotted 2
22 NS-46-88 Nut Assy 10-32 HEX "KEPS" 2
23 SD-34-31 Self-Tapping Screw 6-20 x 5/16 Pan Phil Hd, Type BT 14
24 342132-2 Guard - Thermostat Bulb 1
25 342154-2 Plug - Thermostat 1
26 342150-5 Leg - Adjustable (8") AR
27 410118-17 Caster - (W/Brake)(6" High) AR
28 410118-16 Caster (6" High) AR
29 343634-1 Caster-(Swivel)(W/Brake)(7'/2") AR
30 343634-2 Caster-7 1/2" High (Rigid) AR
31 SC-114-24 Cap Screw 1/420 x % Socket Hex Hd 16
32 WS-29-49 Washer 16
33 FE-23-53 Bushing - Snap 2
34 412681-1 Foot - Adjustable (PTD) AR
35 358237-1 Leg Assy W/Foot (PTD)(lncls Leg & item 34) AR
36 358237-2 Leg Assy W/Foot (SST)(lncls Leg & item 34) AR
37 358237-3 Leg Assy W/Caster W/Brake (PTD)(lncls Leg & item 27) AR
38 358237-4 Leg Assy W/Caster W/0 Brake (PTD)(lncls Leg & item 28) AR
39 358237-5 Leg Assy W/Caster W/Brake (SST)(lncls Leg & item 27) AR
40 358237-6 Leg Assy W/Caster W/0 Brake (SST)(lncls Leg & item 28) AR
41 346358-2 Hi-Limit Assy 1
42 411794-1 Catch - Door 2
43 417810-3 Spring - Compression 2
44 SC-22-40 Mach Screw 1/4-20 x % Phil Flat Hd 2
45 355344 Channel - Latch 1
342552-1 Stand Assy (Open Stand 32 9/16 Not Shown) 1
OVEN
ILLUS PART
PL-51883 NO NAME OF PART AMT
1 358473-1 Panel-Back (PTD) 1
2 358473-2 Panel - Back (SST) 1
3 342196-1 Back - Inner Panel 1
4 359520-1 Plate - Exhaust Cover (PTD) 1
5 359520-2 Plate - Exhaust Cover (SST) 1
6 356633-1 Motor Mount 1
7 358638-1 Wheel - Blower (lncls'5/1624 UNF SST Sq Hd Bolt) 1
8 359455-1 Panel -Top 1
9 342170-1 Coil Assy (208/60/3/1) 1
10 342170-2 Coil Assy (240/60/3/1) 1
11 344865-1 Coil Assy (480/60/3/1) 1
12 357576-1 Panel - Side (RH) 1
13 358480-1 Panel - Outer (RH)(PTD) 1
14 358480-2 Panel - Outer (RH)(SST) 1
15 341564-3 Handle-Slide 1
16 343499-1 Slide & Rod (Vent) 1
17 417856-1 Lug - Grounding (With Set Screw) 1
18 345186-1 Screw- Ground 1
19 359519-1 Bracket- Lug 1
20 SD-34-49 Self-Tapping Screw 8-32 x 1/2 Hex Washer Hd, Type T 1
21 357440-1 Panel - Bottom 1
22 342766-1 Light Bulb - Oven (40 Watts) (120 V) 1
23 357036-3 Lens - Oven Lamp 2
24 357036-1 Lamp - Oven (120-130V40 Watts)(lncls Item 23) 2
25 357577-1 Panel - Side (LH) 1
26 342142-1 Rack Assy (28" x 2056") AR
27 343509-1 Bracket - Door Switch 1
28 343612-1 Housing- Receptacle 1
29 SD-34-47 Self-Tapping Screw 6-32 x 1 Hex Washer Hd, Type T 2
30 342147-1 Switch-Door 1
31 SD-34-62 Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd, Type T 2
32 343599-1 Vent Extension - Short 1
33 355108-1 Vent Assy - Common (Stacked Units) 1
34 FE-6-5 Lock Nut 1/2(Electrical) 1
35 342151-1 Conduit 1
36 342285-1 Bushing- Plastic 1
37 FE-2-52 Connector - Conduit 1/2 TS 90 Deg 1
38 345523-1 Baffle-Motor 1
39 WS-29-46 Washer 4
40 SC-113-65
41 358723-1 Spacer-Steel 2
42 WS-29-46 Washer 4
43 NS-46-86 Nut Assy 5/16-18 "KEPS" Hex 4
44 358516-2 Motor 1/3 Hp (2 Speed)(208-230, 50/60 Hz, 1 Ph) 1
Cap Screw 5/16-18 x 1 1/4 Hex Hd
4

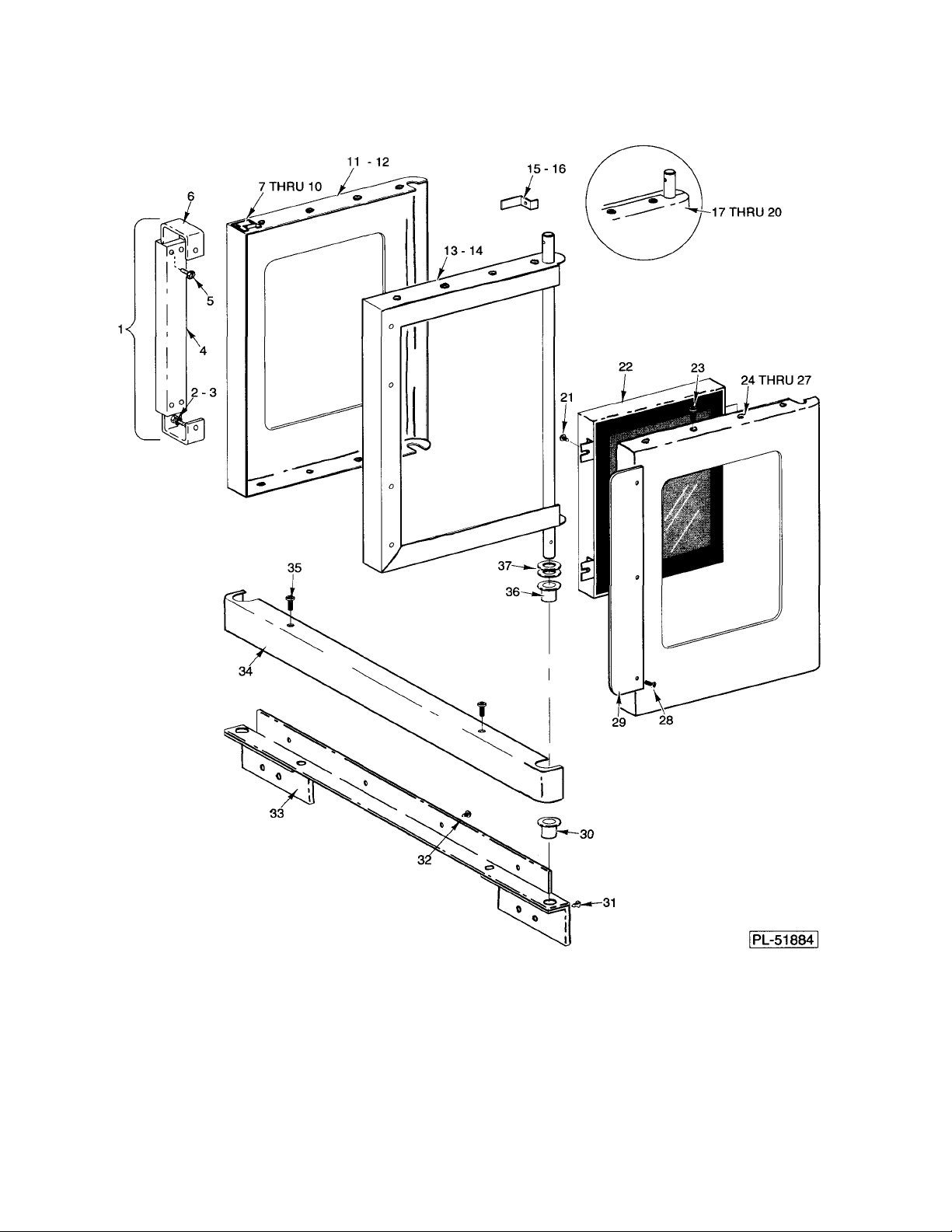

DOOR
DOOR
ILLUS PART
PL-51884 NO NAME OF PART AMT
1 358727-1 Door Handle Assy (Incls Items 4, 5 & 6) 1
2 SC-41-1 Cap Screw 1/4-20 x 1/2 Hex Hd 2
3 WL-19-37 Lockwasher 1/4 Int 2
4 413029-3 Handle 1
5 SD-37-2
6 358728-1 End - Handle 2
7 357877-1 Shim - Door Strike 2
8 358542-1 Strike - Door 1
9 350543-6
10 WL-19-35 Lockwasher 10 Int 2
11 358531-1 Shell - Outer Door (W/Window) 1
12 358531-2 Shell - Outer Door (W/0 Window) 1
13 357840-2 Frame Assy - Door (RH) 1
14 357841-2 Frame Assy - Door (LH)(Not Shown) 1
15 356253-1 Lever - Door Switch 1
16 SD-34-62 Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd, Type T 1
17 358529-1 Door Assy (LH)(W/Window)(lnclsitems 7 thru 11, 14, 21, 22, 23, 25, 28 & 29) 1
18 358529-2 Door Assy (LH)(W/0 Window)(lnclsitems 7 thru 10, 12, 23, 27, 28 & 29) 1
19 358530-1 Door Assy (RH)(W/Window)(lnclsitems 7 thru 11,21 thru 24 & 28) 1
20 358530-2 Door Assy (RH)(W/0 Window)(lnclsitems 7 thru 10, 12, 13, 23 & 26) 1
21 SD-34-62
22 358534-1 Window Assy 1
23 350543-6
24 358532-2 Shell - Inner Door (W/Window)(RH) 1
25 358532-1 Shell - Inner Door (W/Window)(LH)(Not Shown) 1
26 358533-4 Shell - Inner Door (Solid)(RH)(Not Shown) 1
27 358533-3 Shell - Inner Door (Solid)(LH)(Not Shown) 1
28 350543-6
29 357837-1 Seal - Door End 1
30 347080-2 Bearing - Door Shaft 1
31 SC-113-90 Mach Screw 1/4-20 x % Hex Hd 2
32 SC-22-40 Mach Screw 1/4-20 x % Phil Flat Hd 4
33 357873-1 Sill - Bottom Weldment 1
34 343515-1 Front Cover - Door Sill (SST) 1
35 SD-34-59 Self-Tapping Screw 10-32 x % Phil Pan Hd, Type T 2
36 347080-2 Bearing - Door Shaft 1
37 343143-1 Washer 4
Self-Tapping Screw 10-16 x 1/2 Hex Washer Hd, Type AB
Mach Screw 10-32 x 1/2 Phil Pan Hd
Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd, Type T
Mach Screw 10-32 x 1/2 Phil Pan Hd
Mach Screw 10-32 x 1/2 Phil Pan Hd
4
2
4
7
3
CONTROL PANEL
CONTROL PANEL
ILLUS PART
PL-51885 NO NAME OF PART AMT
1 340324-6 Switch (DPST) 1
2 340324-9 Switch (DPDT) 2
3 359440-1 Panel - Control 1
4 411242-1 Knob 2
5 SC-109-10 Mach Screw 6-32 x 1/2Pan Hd 2
6 FE-19-40 Fuse (15 Amp,300 V) 2
7 FE-23-55 Holder- Fuse 2
8 SC-114-27 Mach Screw 8-32 x 1/2 Phil Pan Hd 4
9 NS-46-51 Nut Assy 8-32 Hex 4
10 SD-34-59 Self-Tapping Screw 10-32 x 3/8 Phil Pan Hd, Type T 1
11 WL-14-10 Lockwasher 1/2 Ext "Shakeproof" 1
12 411499-3 Buzzer (230V) 1
13 411690-2 Timer (200-240 V)(1 Hr) 1
14 359437-1 Overlay - Panel 1
15 411506-3 Thermostat (Convection Oven) 1
16 358539-2 Plate - Dial Temperature 1
17 340324-12 Switch (SPST) 1
18 354575-2 Light - Indicator (On/Heat)(110-120V) 1
COMPONENT PANEL
COMPONENT PANEL
ILLUS PL-
51886
1 410472-8 Terminal Block 1
2 SD-34-62 Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd, Type T 2
3 411497-C5 Contactor 3 pole 1
4 SD-34-62
5 417934-G1 Porcelain - Block Assy 1
6 SD-34-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd, Type T 1
7 417934-G1 Porcelain - Block Assy 1
8 SD-34-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd, Type T 1
9 354071-1 Relay- Mercury 1
10 SD-34-62
11 350660-10 Bushing 1
12 359506-1 Panel - Component 1
PART NO NAME OF PART AMT
Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd, Type T
Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd, Type T
411500-15 Transformer (1 KVA, 240 - 480 V)(Not Shown) 1
342326-1 Bracket - Transformer (Not Shown) 1
2
2
