REPLACEMENT PARTS
ELECTRIC CONVECTION OVENS
CATALOG OF
MODELS
EC04C
EC06C
ML-52503
ML-52505
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201- 0696, TEL. (502)778- 2791
FORM 30943 (6- 95)
OVEN
OVEN
ILLUS PART
PL-51906 NO NAME OF PART AMT
1 343516-1 Shell - Chimney (PTD) 1
2 343516-2 Shell - Chimney (SST) 1
3 343508-1 Top - Rear (PTD)(EC04C) 1
4 343508-2 Top - Rear (SST)(EC04C) 1
5 343508-3 Top - Rear (PTD)(EC06C) 1
6 343508-4 Top - Rear (SST)(EC06C) 1
7 358450-1 Top - Front (SST) 1
8 339337-1 Stud - Locating 2
9 353484-1 Plate - Retainer 2
10 SC-22-40 Mach Screw 1/4-20 x % Phil Flat Hd 4
11 WL-13-14 Lockwasher 1/4 Internal Shakeproof 4
12 NS-46-52 Nut - 1/4-20 Hex "Keps" 4
13 347080-2 Bearing - Door Shaft 2
14 353482-1 Spacer 2
15 353483-1 Plate - Upper Door Bearing 2
16 357760-1 Panel - Outer (LH)(PTD)(EC04C) 1
17 357760-2 Panel-Outer (LH)(SST)(NotShown)(EC04C) 1
18 359516-1 Panel - Outer (LH)(PTD)(Not Shown)(EC06C) 1
19 359516-2 Panel - Outer (LH)(SST)(Not Shown)(EC06C) 1
20 357508-1 Seal - Door (23 Long) 2
21 342141-1 Rack-Support (LH)(EC04C) 1
22 342141-2 Rack - Support (RH)(Not Shown)(EC04C) 1
23 342141-3 Rack - Support (LH)(Not Shown)(EC06C) 1
24 342141-4 Rack - Support (RH)(Not Shown)(EC06C) 1
25 359505-1 Blower - Baffle (Porcelain) 1
26 359505-3 Blower- Baffle (SST)(Not Shown) 1
27 357507-1 Seal - Door (30 1/2 Long) 2
28 SC-114-1 Mach Screw 10-32 x % Hex Washer Hd, Slotted 2
29 NS-46-88 Nut Assy 10-32 HEX "KEPS" 2
30 SD-34-31 Self-Tapping Screw 6-20 x 5/16 Pan Phil Hd, Type BT 2
31 342132-2 Guard - Thermostat Bulb 1
32 920883-2 Probe - Thermocouple W/40" Leads 1
33 342154-2 Plug - Thermostat 1
34 342150-5 Leg - Adjustable (8") AR
35 343634-1 Caster - (Swivel)(W/Brake)(7'/2") 2
36 410118-17 Caster - (W/Brake)(6" High) 2
37 343634-2 Caster -7 1/2' High (Rigid) 2
38 410118-16 Caster (6" High) 2
39 412681-1 Foot-Adjustable (PTD) AR
40 FE-23-53 Bushing - Snap 2
41 358237-2 Leg Assy W/Foot (SST)(lncls item 39 & Leg Weldment) AR
42 358237-1 Leg Assy W/Foot (PTD)(lncls item 39 & Leg Weldment) AR
43 358237-4 Leg Assy W/CasterW/0 Brake (PTD)(lncls item 38 & Leg Weldment) AR
44 358237-3 Leg Assy W/Caster W/Brake (PTD)(lncls item 36 & Leg Weldment) AR
45 358237-5 Leg Assy W/Caster W/Brake (SST)(lncls item 36 & Leg Weldment) AR
46 358237-6 Leg Assy W/Caster W/0 Brake (SST)(lncls item 38 & Leg Weldment) AR
47 346358-2 Hi-Limit Assy 1
48 411794-1 Catch - Door 2
49 417810-3 Spring - Compression 2
50 SC-22-40 Mach Screw 1/4-20 x 3/4 Phil Flat Hd 2
51 355344 Channel - Latch 1
OVEN
OVEN
ILLUS PART
PL-51907 NO NAME OF PART AMT
1 358473-1 Panel - Back (PTD) 1
2 358473-2 Panel - Back (SST) 1
3 342196-1 Back - Inner Panel 1
4 359520-1 Plate - Exhaust Cover (PTD) 1
5 359520-2 Plate - Exhaust Cover (SST) 1
6 355023-1 Bushing - Snap 1
7 356633-1 Motor Mount 1
8 358638-1 Wheel - Blower (Incls5/16 UNF SST Sq Hd Bolt) 1
9 342170-1 Coil Assy (208/60/3/1) 1
10 342170-2 Coil Assy (240/60/3/1) 1
11 344865-1 Coil Assy (480/60/3/1) 1
12 358480-1 Panel - Outer (RH)(PTD)(EC04C) 1
13 358480-2 Panel - Outer (RH)(SST)(Not Shown)(EC04C) 1
14 359515-1 Panel - Outer (RH)(PTD)(Not Shown)(EC06C) 1
15 359515-2 Panel - Outer (RH)(SST)(Not Shown)(EC06C) 1
16 341564-3 Handle - Slide 1
17 343499-1 Slide & Rod (Vent) 1
18 417856-1 Lug - Grounding (With Set Screw) 1
19 345186-1 Screw - Ground 1
20 359519-1 Bracket - Lug 1
21 SD-34-49 Self-Tapping Screw 8-32 x 1/2 Hex Washer Hd, Type T 1
22 357440-1 Panel - Bottom (CRS)(EC04C) 1
23 357440-2 Panel - Bottom (SST) (EC04C) 1
24 342766-1 Light Bulb - Oven (40 Watts) (120 V) 2
25 357036-3 Lens - Oven Lamp 2
26 357036-1 Oven Lamp Assy (40 Watts, 120-130V)(lncls items 24 & 25) 2
27 357577-1 Panel - Side (LH)(Porcelain)(EC04C) 1
28 357577-2 Panel - Side (LH)(SST)(EC04C) 1
29 357577-3 Panel - Side (LH)(Porcelain)(EC06C) 1
30 357577-4 Panel - Side (LH)(SST)(EC06C) 1
31 342142-1 Rack Assy (28" x 2056") AR
32 342142-2 Rack Assy (28" x 2856") AR
33 343509-1 Bracket - Door Switch 1
34 343612-1 Housing - Receptacle 1
35 SD-34-47 Self-Tapping Screw 6-32 x 1 Hex Washer Hd, Type T 2
36 342147-1 Switch - Door 1
37 SD-34-62 Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd, Type T 2
38 343599-1 Vent Extension - Short 1
39 342211-1 Vent Assy - Common (Stacked Units) 1
40 345523-1 Baffle- Motor 1
41 WS-29-49 Washer 4
42 SC-113-65 Cap Screw 5/16-18x 1% Hex Hd 4
43 358723-1 Spacer - Steel 2
44 WS-29-49 Washer 4
45 NS-46-86 Nut Assy 5/16-18 "KEPS" Hex 4
46 358516-2 Motor 1/3 Hp (2 Speed)(208-230, 50/60 Hz, 1 Ph) 1
47 FE-6-5 Lock Nut 1/2 (Electrical) 1
48 342151-1 Conduit 1
49 342285-1 Bushing - Plastic 2
50 FE-2-52 Connector - Conduit % TS 90 Deg 1

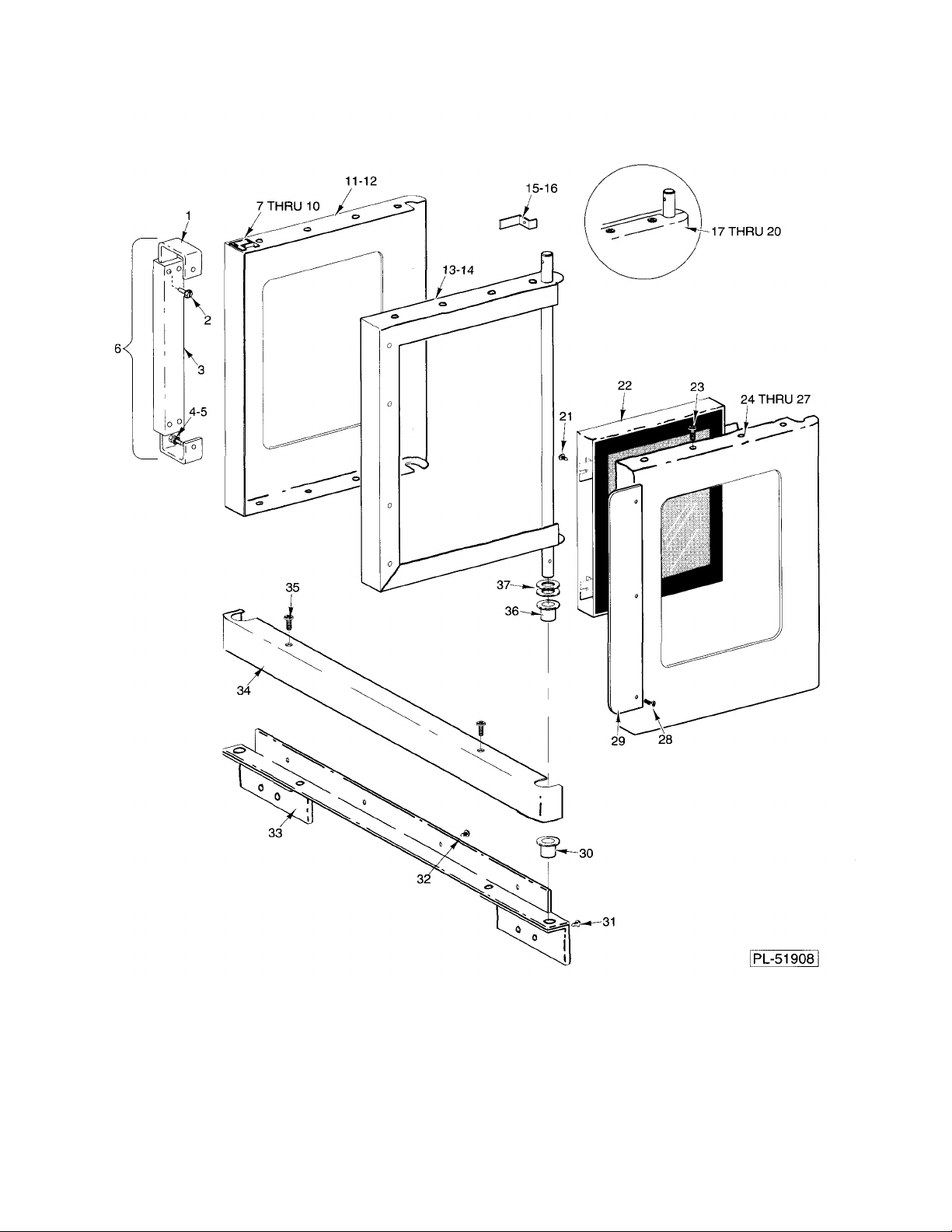

DOOR
DOOR
ILLUS PART
PL-51908 NO NAME OF PART AMT
1 358728-1 End - Handle 2
2 SD-37-2 Self-Tapping Screw 10-16 x 1/2 Hex Washer Hd, Type AB 4
3 413029-3 Handle 1
4 SC-41-1 Cap Screw 1/4-20 x % Hex Hd 2
5 WL-19-37 Lockwasher 1/2 Int 2
6 358727-1 Door Handle Assy (Incls items 1, 2 & 3) 1
7 357877-1 Shim - Door Strike 2
8 358542-1 Strike - Door 1
9 350543-6 Mach Screw 10-32 x 1/2 Phil Pan Hd 2
10 WL-19-35 Lockwasher 10 Int 2
11 358531-1 Shell - Outer Door (W/Window) 1
12 358531-2 Shell - Outer Door (W/0 Window) 1
13 357840-2 Frame Assy - Door (RH) 1
14 357841-2 Frame Assy - Door (LH)(Not Shown) 1
15 356253-1 Lever - Door Switch 1
16 SD-34-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd, Type T 1
17 358529-1 Door Assy (LH)(W/Window)(lncls items 7 thru 11, 14, 21,22, 23, 25, 28 & 29) 1
18 358529-2 Door Assy (LH)(W/0 Window)(lncls items 7 thru 10, 12, 14, 23, 27, 28 & 29) 1
19 358530-1 Door Assy (RH)(W/Window)(lncls items 7 thru 11,13, 21 thru 24 & 28) 1
20 358530-2 Door Assy (RH)(W/0 Window)(lncls items 7 thru 10, 12, 13, 23, 26 & 28) 1
21 SD-34-62 Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd, Type T 4
22 358534-1 Window Assy 1
23 350543-6 Mach Screw 10-32 x 1/2 Phil Pan Hd 7
24 358532-2 Shell- Inner Door (W/Window)(RH) 1
25 358532-1 Shell - Inner Door (W/Window)(LH)(Not Shown) 1
26 358533-4 Shell - Inner Door (Solid)(RH)(Not Shown) 1
27 358533-3 Shell - Inner Door (Solid)(LH)(Not Shown) 1
28 350543-6 Mach Screw 10-32 x 1/2 Phil Pan Hd 3
29 357837-1 Seal - Door End 1
30 347080-2 Bearing - Door Shaft 1
31 SC-113-90 Mach Screw 1/4-20 x 1/2 Hex Hd 2
32 SC-22-40 Mach Screw 1/4-20 x 1/2 Phil Flat Hd 4
33 357873-1 Sill - Bottom Weldment 1
34 343515-1 Front Cover- Door Sill (SST) 1
35 SD-34-59 Self-Tapping Screw 10-32 x 3/8 Phil Pan Hd, Type T 2
36 347080-2 Bearing - Door Shaft 1
37 343143-1 Washer 4

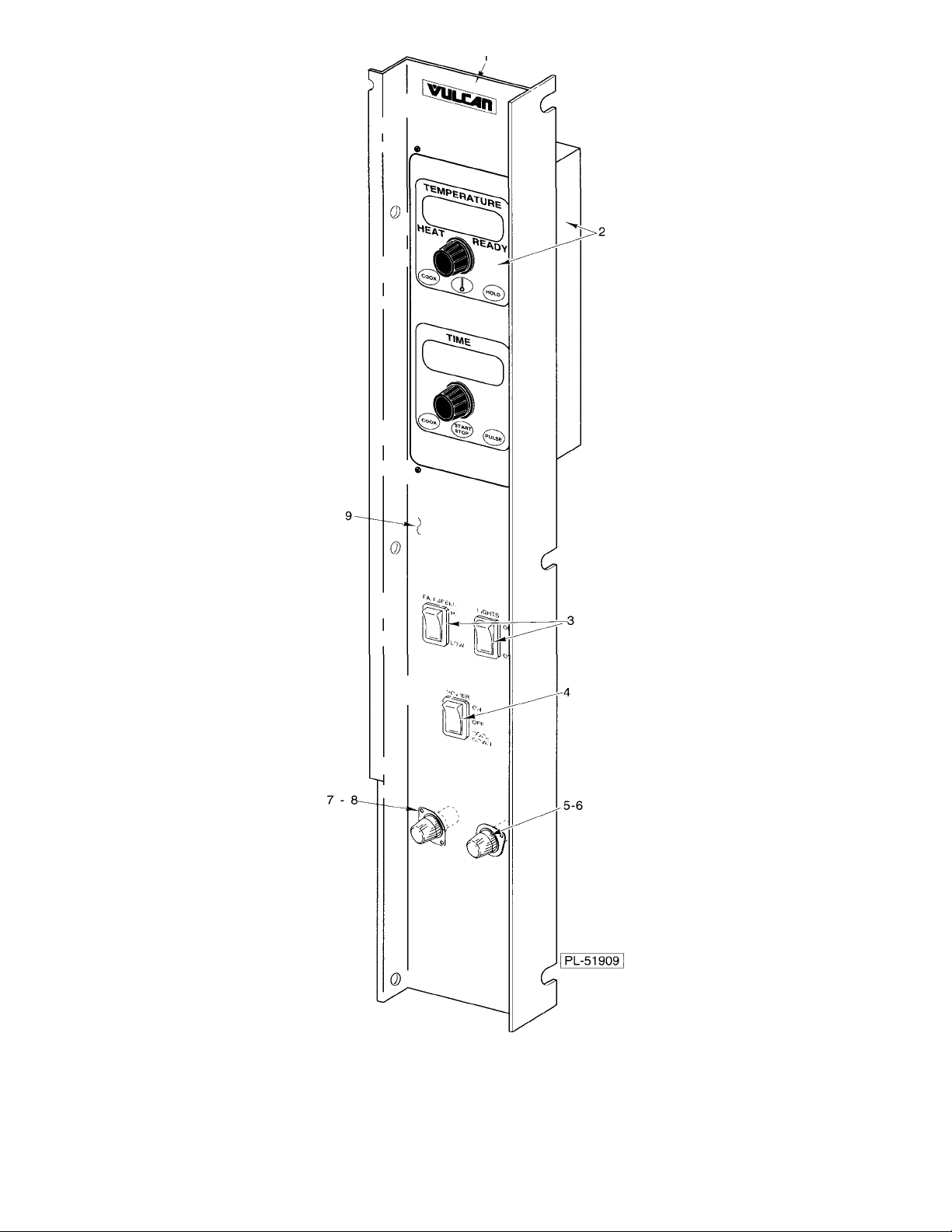

CONTROL PANEL
CONTROL PANEL
ILLUS PL-
51909
N/S 415207-2 Cooling Fan 1
PART NO NAME OF PART AMT
1 359447-1
2 355903-1 Control - Electronic Oven (Time & Temperature) 1
3 358628-2 Switch - Rocker (2 Position) 2
4 358628-1 Switch - Rocker (3 Position) 1
5 FE-19-40 Fuse(15Amp,300V) 2
6 344138-2 Fuse - Holder (15 Amp 300 V) 2
7 SC-114-27 Mach Screw 8-32 x 1/2 Phil Pan Hd 4
8 NS-46-51 Nut Assy 8-32 Hex 4
9 359445-1 Overlay - Panel 1
1

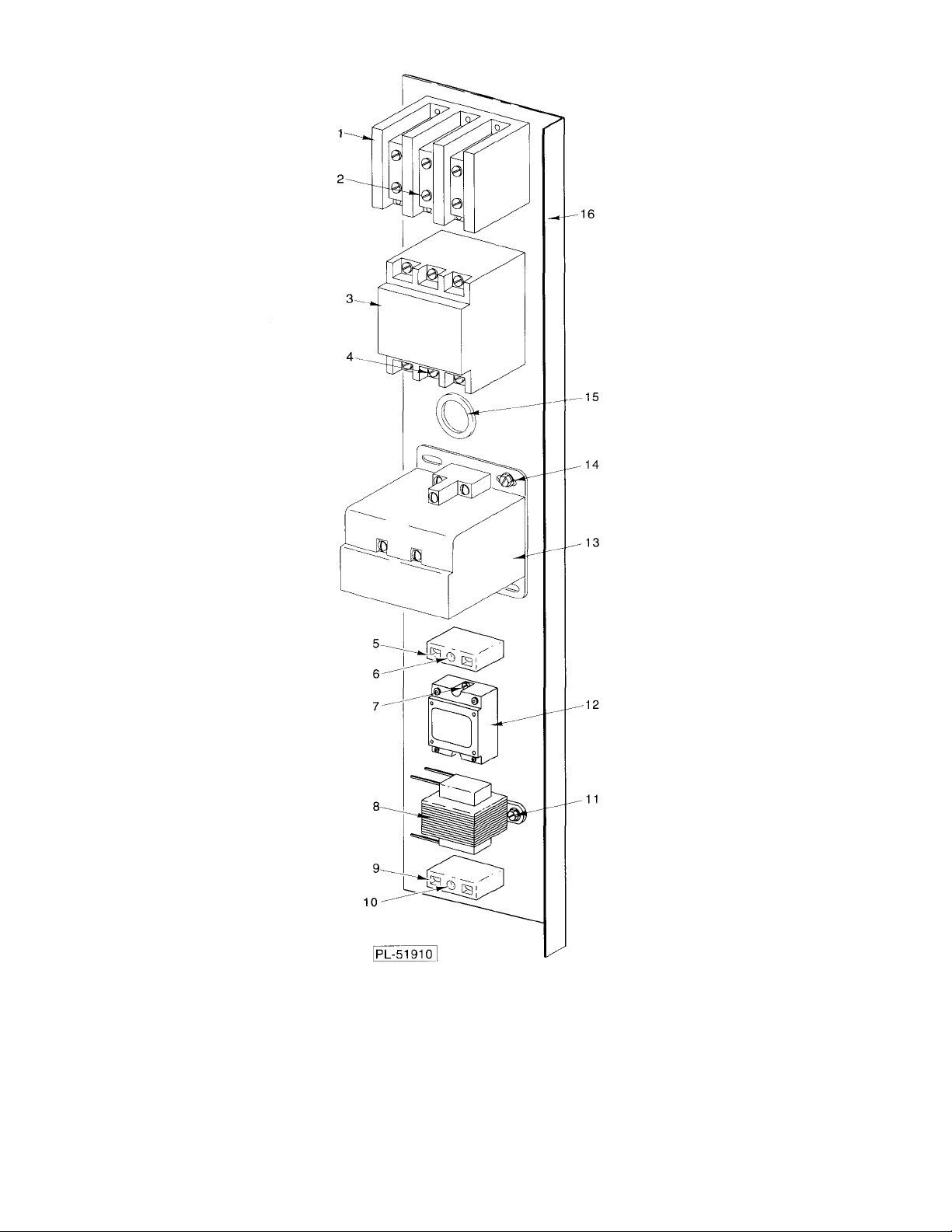

COMPONENT PANEL
COMPONENT PANEL
ILLUS PART
PL-51910 NO NAME OF PART AMT
1 410472-8 Terminal Block 1
2 SD-34-62 Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd, Type T 2
3 411497-C5 Contactor 3 pole 1
4 SD-34-62 Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd, Type T 2
5 417934-G1 Porcelain - Block Assy 1
6 SD-34-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd, Type T 1
7 SD-34-49 Self-Tapping Screw 8-32 x 1/2 Hex Washer Hd, Type T 2
8 358629-1 Transformer (120V) 1
9 417934-G1 Porcelain - Block Assy 1
10 SD-34-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd, Type T 1
11 SD-34-49 Self-Tapping Screw 8-32 x 1/2 Hex Washer Hd, Type T 2
12 821875-2 Relay - Solid State (50Amp) 1
13 354071-1 Relay - Mercury 1
14 SD-34-62 Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd, Type T 2
15 350660-10 Bushing 1
16 359506-1 Panel - Component 1
411500-15 Transformer (1KVA, 480-240V)(Not Shown) 1
342326-1 Bracket - Transformer (Not Shown) 1
