Vulcan E 30 C Service Manual
REPLACEMENT PARTS
GAS AND ELECTRIC
TILTING BRAISING PAN
MODELS
CATALOG OF
G-30-O ML-52701
G-30-C ML-52702
E-30-O ML-52703
E-30-C ML-52704
G-40-O ML-52705
G-40-C ML-52706
E-40-O ML-52707
E-40-C ML-52708
For additional information on Vulcan-Hart Company or to locate an authorized
parts and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201-0696, TEL. (502) 778-2791
FORM 31231 (November 2003)
GAS AND ELECTRIC TILTING BRAISING PAN REPLACEMENT PARTS
F-31231 (November 2003)
- 2 -
© VULCAN-HART COMPANY
GAS AND ELECTRIC TILTING BRAISING PAN REPLACEMENT PARTS
Table of Contents
Page Description
5 Cabinet - Closed Base
7 Cabinet - Open Base
9 Lid Assembly
11 Gas Heat (Standing Pilot)
12 Gas Heat (Electronic Ignition) (For Units Before S/N 271079585)
13 Gas Heat (Electronic Ignition) (For Units Starting with S/N 271079585)

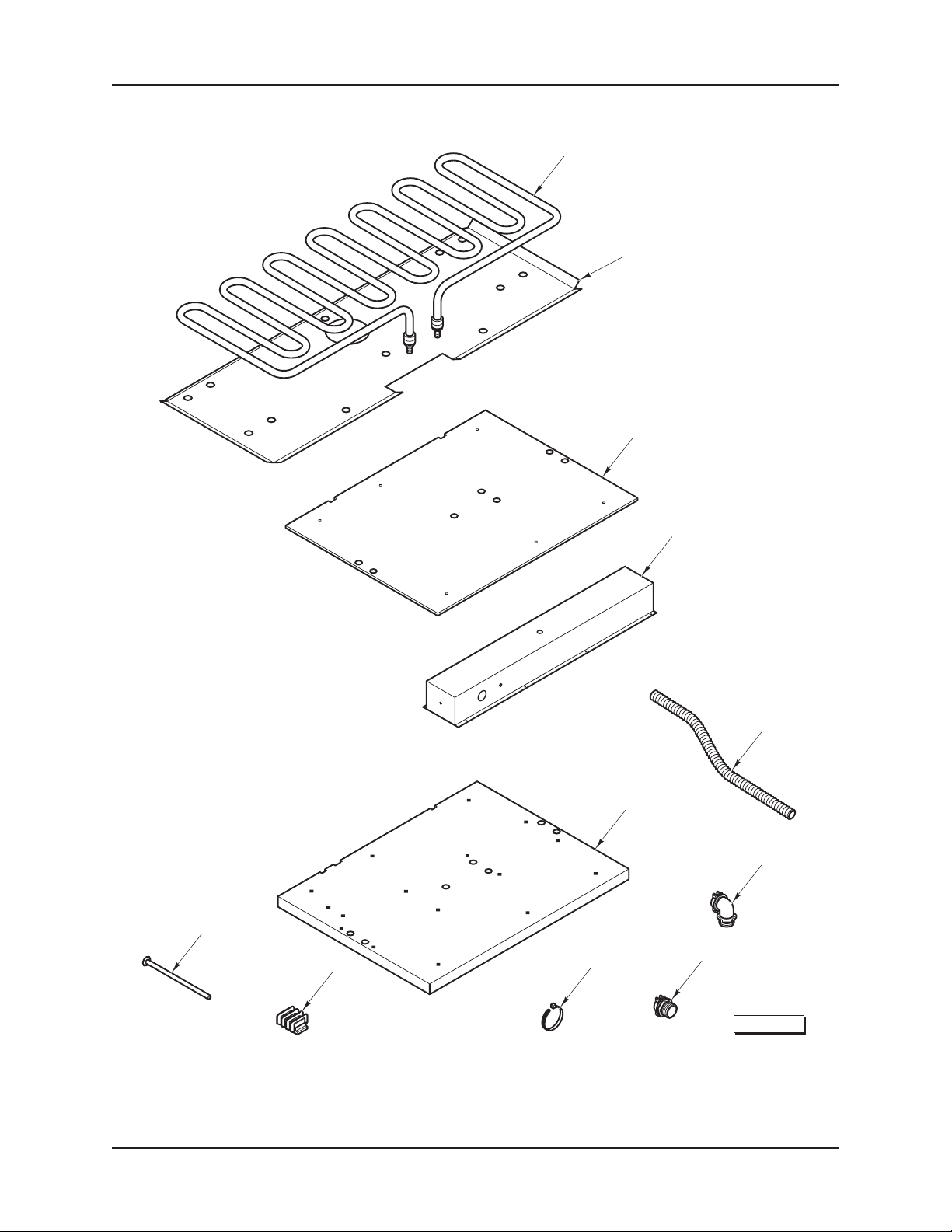

15 Electric Heat
17 Thermostat Temperature Control
19 Solid State Temperature Control (Option)
21 Power Lift
22 Manual Lift (Previous Construction)
25 Manual Lift (Current Construction)
27 Electric Timer (Option)

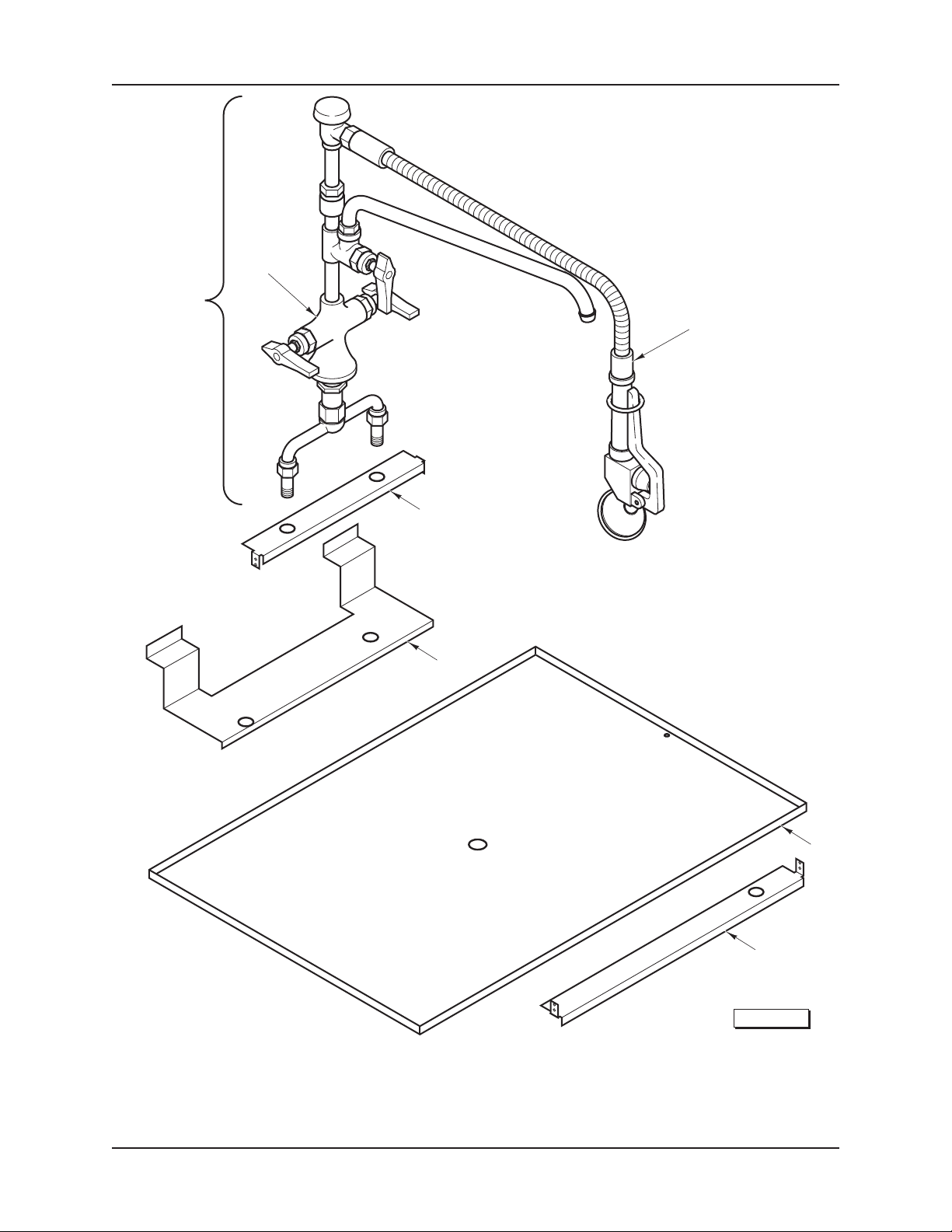

29 Spray Hose with Faucet (Option)
31 Articulated Pan Holder (Option)
32 Other Options
- 3 -
F-31231 (November 2003)
GAS AND ELECTRIC TILTING BRAISING PAN REPLACEMENT PARTS
14 THRU 19
1-2
9 THRU 12
13
3-4
8
5
6-7
PL-56011
F-31231 (November 2003)
CABINET - CLOSED BASE
- 4 -
© VULCAN-HART COMPANY
GAS AND ELECTRIC TILTING BRAISING PAN REPLACEMENT PARTS
CABINET - CLOSED BASE
ILLUS. PART NO. NAME OF PART AM T.
PL-56011
1 00-812276-00001 Pan Rack Assy. (Stationary) (23 & 30 Gallon) .......................................................................... 1
2 00-821176-00002 Pan Rack Assy. (Stationary) (40 Gallon) ................................................................................... 1
3 00-840191-00002 Door Assy. (RH) (23 & 30 Gallon) .............................................................................................. 1
4 00-840347-00002 Door Assy. (RH) (40 Gallon) ......................................................................................................1
5 00-881525 Leg 6 In. Bullet Foot .................................................................................................................... 2
6 00-840437-00001 Door Assy. (LH) (23 & 30 Gallon) .............................................................................................. 1
7 00-840344-00001 Door Assy. (LH) (40 Gallon) ...................................................................................................... 1
8 00-881526 Leg 6 In. Flanged Foot ................................................................................................................2
9 00-881537-00011 Panel – Rear (Alum.) (23 & 30 Gallon) ...................................................................................... 1
10 00-840326-00011 Panel – Rear (Alum.) (40 Gallon) ............................................................................................... 1
11 00-881537-00012 Panel – Rear (SST) (23 & 30 Gallon) ......................................................................................... 1
12 00-840326-00012 Panel – Rear (SST) (40 Gallon) .................................................................................................1
13 00-881536 Side Panel ................................................................................................................................... 2
14 00-840149-00001 Shroud – Gas Heat Units (23 Gallon) ........................................................................................ 1
15 00-821273 Shroud – Gas Heat Units (30 Gallon) ........................................................................................ 1
16 00-840332-00001 Shroud – Gas Heat Units (40 Gallon) ........................................................................................ 1
17 00-840027 Shroud – Electric Heat Units (23 Gallon) ................................................................................... 1
18 00-840266 Shroud – Electric Heat Units (30 Gallon) ................................................................................... 1
19 00-840334 Shroud – Electric Heat Units (40 Gallon) ................................................................................... 1
00-881540-00001 Hinge – Bottom (RH) ................................................................................................................... 1
00-881540-00002 Hinge – Bottom (LH) ...................................................................................................................1
00-817797 Bracket – Magnetic Latch ........................................................................................................AR
00-881761 Catch – Magnetic ..................................................................................................................... AR
00-821134-00002 Pan Bearing Assy. (LH).............................................................................................................. 1
00-821134-00001 Pan Bearing Assy. (RH) ............................................................................................................. 1
- 5 -
F-31231 (November 2003)
GAS AND ELECTRIC TILTING BRAISING PAN REPLACEMENT PARTS
17 THRU 22
13-14-15
16
12
PL-56012
1-2
3-4
11
9-10
6-7
8
5
F-31231 (November 2003)
CABINET - OPEN BASE
- 6 -
GAS AND ELECTRIC TILTING BRAISING PAN REPLACEMENT PARTS
CABINET - OPEN BASE
ILLUS. PART NO. NAME OF PART AM T.
PL-56012
1 00-821176-00001 Pan Rack Assy. (Stationary) (23 & 30 Gallon) .......................................................................... 1
2 00-821176-00002 Pan Rack Assy. (Stationary) (40 Gallon) ................................................................................... 1
3 00-840382-00001 Door Assy. (RH) (23 & 30 Gallon).............................................................................................. 1
4 00-840404-00001 Door Assy. (RH) (40 Gallon) ......................................................................................................1
5 00-881525 Leg 6 In. Bullet Foot .................................................................................................................... 2
6 00-821160-00001 Panel – Inner (RH & LH, Auto Lift) ..............................................................................................2
7 00-821160-00001 Panel – Inner (LH, Manual Lift) ................................................................................................... 1
8 00-821162 Panel – Inner (RH, Manual Lift) .................................................................................................. 1
9 00-840385-00001 Door Assy. (LH) (23 & 30 Gallon) .............................................................................................. 1
10 00-840409-00001 Door Assy. (LH) (40 Gallon) ...................................................................................................... 1
11 00-840381-00001 Door Assy. Center ...................................................................................................................... 1
12 00-881526 Leg 6 In. Flanged Foot ................................................................................................................2
13 00-840200-00011 Panel – Rear (Alum.) .................................................................................................................. 2
14 00-840200-00012 Panel – Rear (SST) (23 & 30 Gallon) ......................................................................................... 2
15 00-840403-00012 Panel – Rear (SST) (40 Gallon) ................................................................................................. 2
16 00-881536 Side Panel ................................................................................................................................... 2
17 00-840149-00001 Shroud – Gas Heat Units (23 Gallon) ........................................................................................ 1
18 00-821273 Shroud – Gas Heat Units (30 Gallon) ........................................................................................ 1
19 00-840332-00001 Shroud – Gas Heat Units (40 Gallon) ........................................................................................ 1
20 00-840027 Shroud – Electric Heat Units (23 Gallon) ................................................................................... 1
21 00-840266 Shroud – Electric Heat Units (30 Gallon) ................................................................................... 1
22 00-840334 Shroud – Electric Heat Units (40 Gallon) ................................................................................... 1
00-821134-00002 Pan Bearing Assy. (LH).............................................................................................................. 1
00-821134-00001 Pan Bearing Assy. (RH) ............................................................................................................. 1
00-842032-00011 Hinge – Bottom ........................................................................................................................... 1
00-817797 Bracket – Magnetic Latch ........................................................................................................AR
00-881761 Catch – Magnetic ..................................................................................................................... AR
- 7 -
F-31231 (November 2003)
GAS AND ELECTRIC TILTING BRAISING PAN REPLACEMENT PARTS
1 THRU 4
5-6
13
12
11
7-8
9-10
PL-56064
F-31231 (November 2003)
LID ASSEMBLY
- 8 -
GAS AND ELECTRIC TILTING BRAISING PAN REPLACEMENT PARTS
LID ASSEMBLY
ILLUS. PART NO. NAME OF PART AM T.
PL-56064
1 00-821281 Lid Assy. W/O Vent (30 Gallon) ................................................................................................. 1
2 00-821269 Lid Assy. W/O Vent (40 Gallon) ................................................................................................. 1
3 00-358002 Lid Assy. W/Vent (30 Gallon) ..................................................................................................... 1
4 00-358002-00002 Lid Assy. W/Vent (40 Gallon) ..................................................................................................... 1
5 00-840012-00011 Spring – Lid Torsion RH (23 & 30 Gallon) .................................................................................. 1
6 00-840012-00012 Spring – Lid Torsion LH (23 & 30 Gallon) ................................................................................... 1
7 00-821134-00001 Lid Support Assy. RH (30 & 40 Gallon) ..................................................................................... 1
8 00-821264-00002 Lid Support Assy. LH (30 & 40 Gallon) ...................................................................................... 1
9 00-840014 Mandrel – Lid Spring (23 & 30 Gallon) ....................................................................................... 1
10 00-840340 Mandrel – Lid Spring (40 Gallon) ................................................................................................1
11 00-840013 Lever – Spring Tension .............................................................................................................. 1
12 SC-047-08 Set Screw 1/4-20 x 1/4 Soc. Hdls., Cup Pt. .................................................................................. 3
13 00-821296 Bracket – Shroud Support (Electric Heat) (30 & 40 Gallon) ..................................................... 1
00-120054-00002 Knob – Vent ................................................................................................................................1
00-358005 Spring – Vent Cover ................................................................................................................... 1
WS-022-06 Washer (SST) (Use with 358005) ............................................................................................. 4
NS-025-04 Crown Nut 1/4-20 (SST)(Use with 358005) ............................................................................... 1
00-358004-00001 Cover – Vent Weldment ............................................................................................................. 1
- 9 -
F-31231 (November 2003)
GAS AND ELECTRIC TILTING BRAISING PAN REPLACEMENT PARTS
1-2
3
4 THRU 7
8-9
10-11
12
13-14
20-21
15-16
22-23-24
18-19
17
F-31231 (November 2003)
PL-56558
GAS HEAT
(STANDING PILOT)
- 10 -
